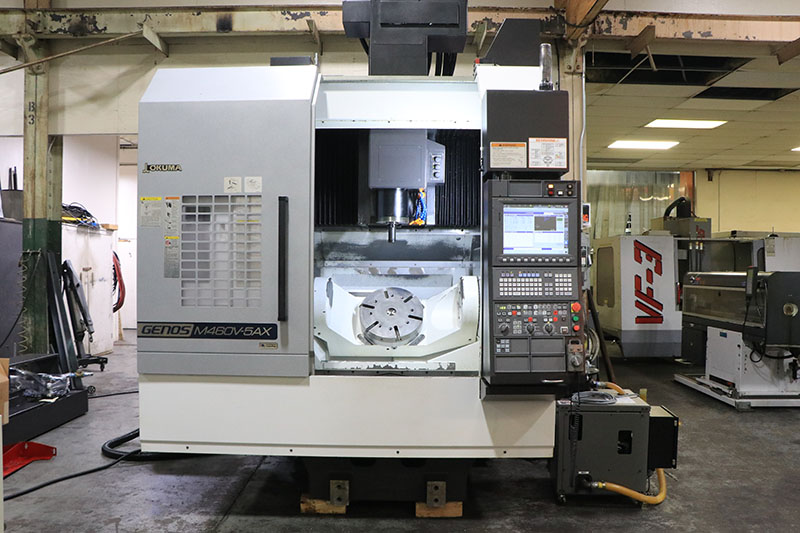

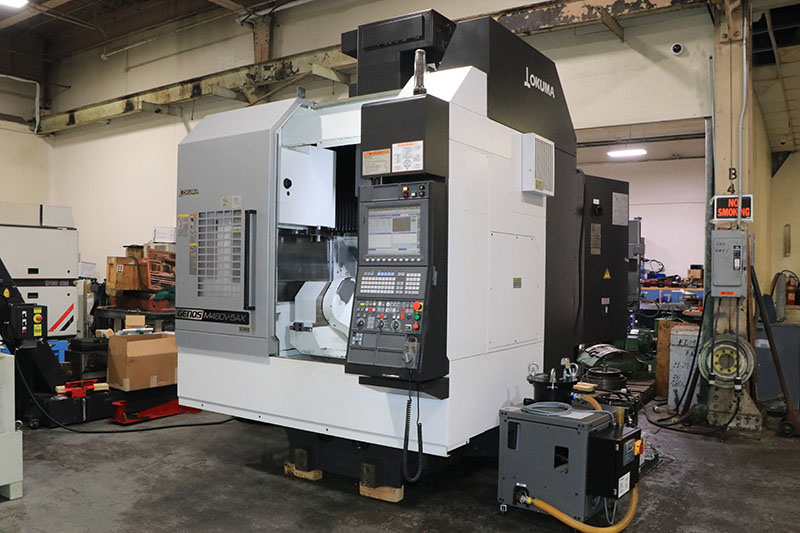

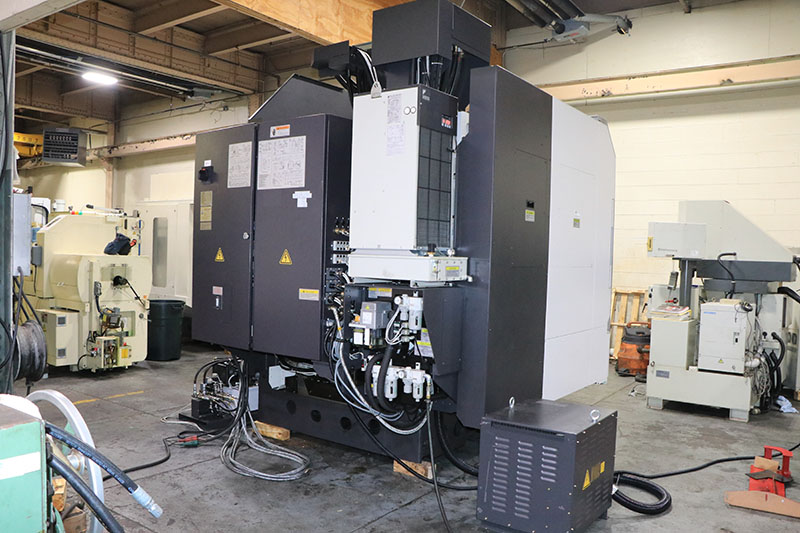

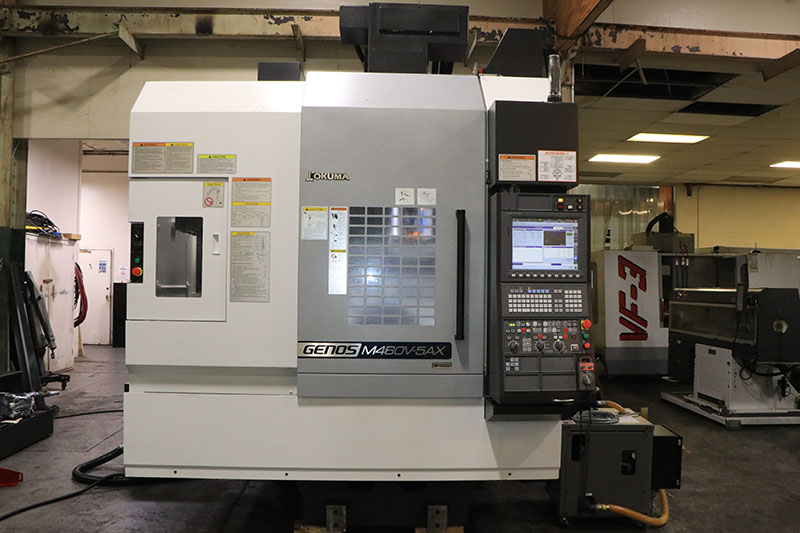

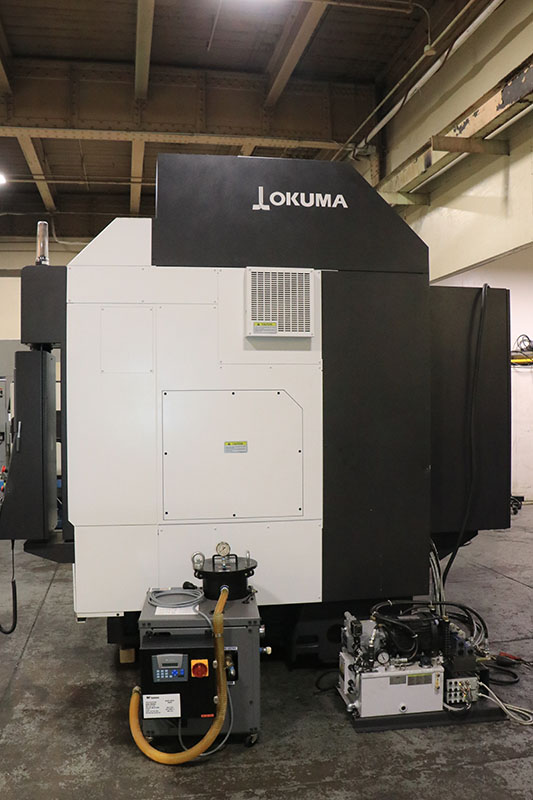

Okuma Genos 460-5AX UNIVERSAL 5-AXIS MACHINING CENTER

$199,500

Make:: Okuma

Model:: Genos 460-5AX

Year:: 2017

Ref #:: 162191

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

OKUMA CNC 5 AXIS MACHINING CENTER

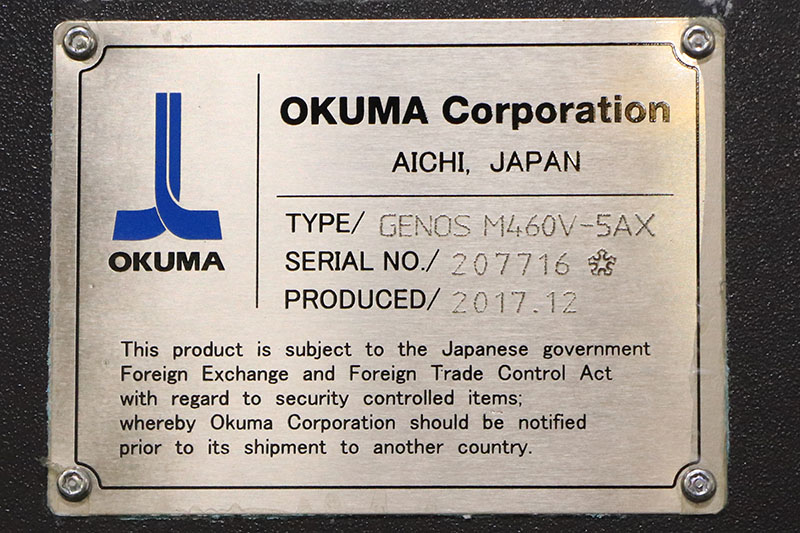

MODEL: M460V-5AX, S/N: 207716, NEW: 2017

SPECIFICATIONS:
TABLE SIZE ............................ 15.75" - 400mm
MAXIMUM WORK SIZE ..................... 23.62" x 15.75"
WEIGHT ON TABLE ....................... 660 LBS.
SPINDLE NOSE TO TABLE ................. 3.94" - 22.05"
MAIN SPINDLE SPEEDS ................... 15,000 RPM
MAIN SPINDLE TAPER .................... CAT 40 BIG+
MAIN SPINDLE HORSE POWER .............. 22 HP
X - AXIS TRAVEL ....................... 30"
Y - AXIS TRAVEL ....................... 18.11"
Z - AXIS TRAVEL ....................... 18.11"
A - AXIS TRAVEL ....................... +20 -110 DEGREES
C - AXIS TRAVEL ....................... 360 DEGREES

RAPID TRAVERSE: X, Y, Z ............... 1575, 1175, 1260 IPM
RAPID TRAVERSE: A, C: ................. 14400, 18000 DEG/MIN
CUTTING FEED RATE ..................... 1260 IPM
AUTOMATIC TOOL CHANGER ................ 48 ATC
TOOL DIAMETER ......................... 3.54" / 4.92"
TOOL LENGTH ........................... 9.45"
 APPROXIMATE FLOOR SPACE ............... 85"W x 111"D x 116"H
APPROXIMATE MACHINE WEIGHT ............ 17,000 LBS.

EQUIPPED WITH:

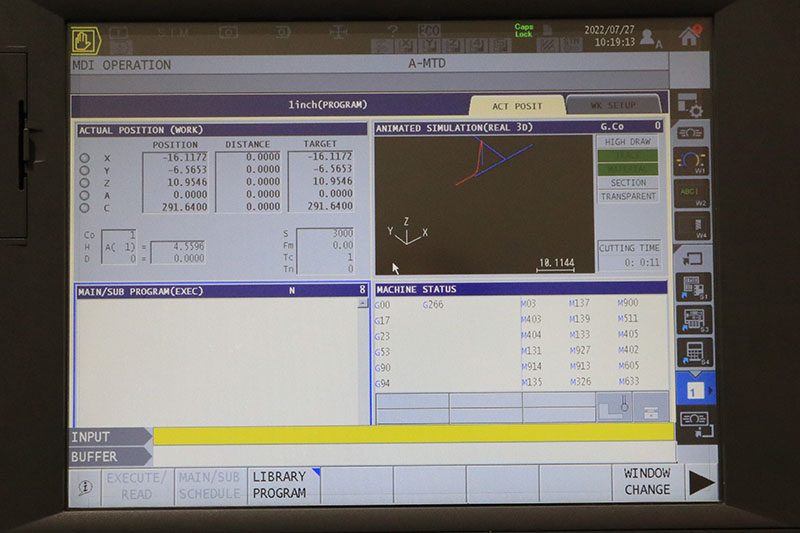

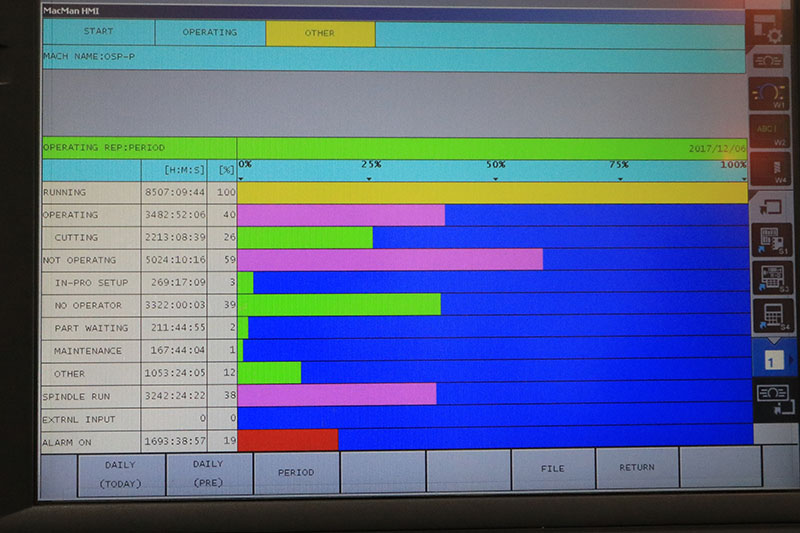

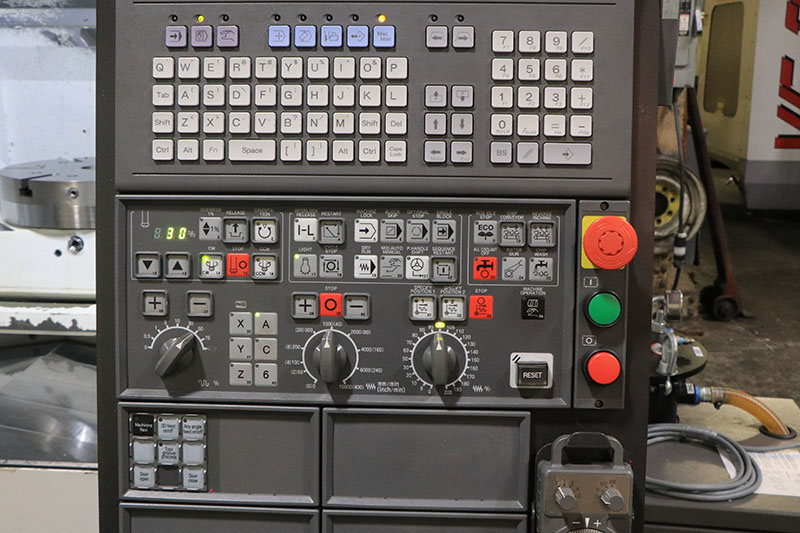

OKUMA MODEL: OSP P300MA-H 5-AXIS CNC CONTROL

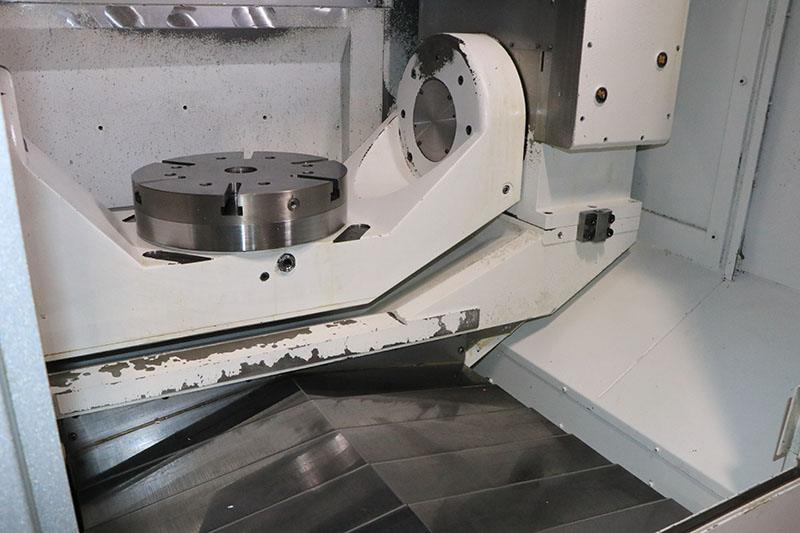

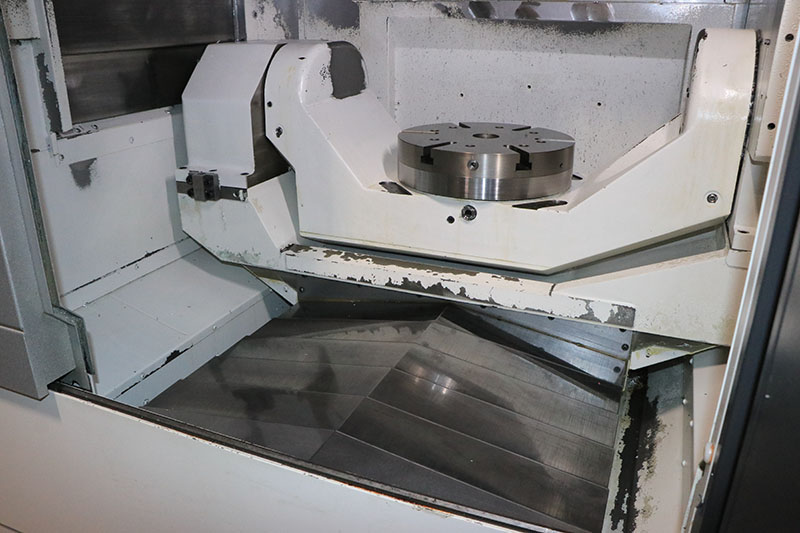

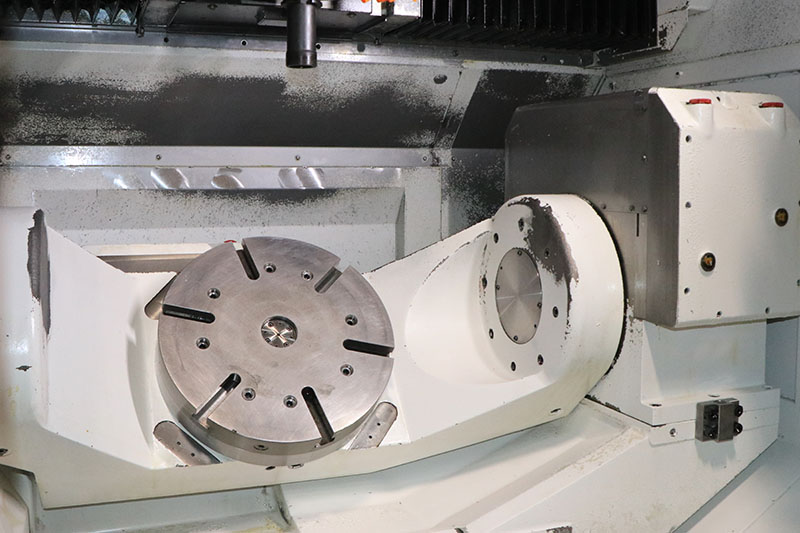

TRUNNION TABLE

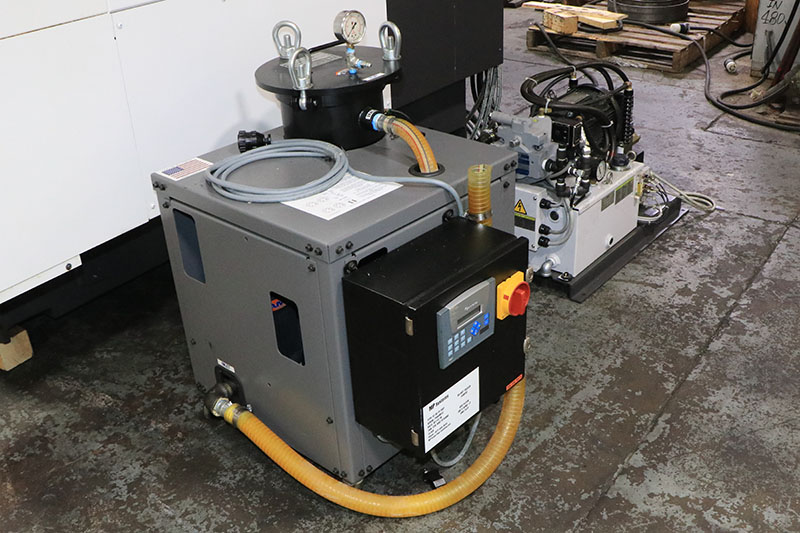

HIGH PRESSURE COOLANT THRU SPINDLE
HIGH SPEED MACHINING

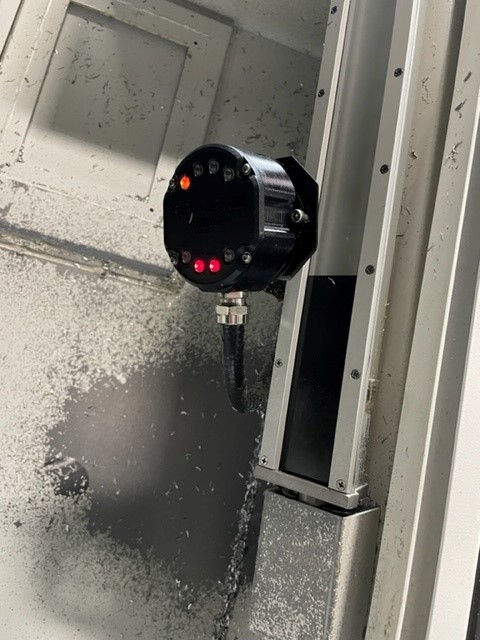

RENISHAW SPINDLE PROBE
SPINDLE AIR BLOW
CHIP CONVEYOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
