Okuma GENOS 560-V VERTICAL MACHINING CENTERS. VMC's

Price on Request

Make:: Okuma

Model:: GENOS 560-V

Year:: 2019

Ref #:: 177898

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

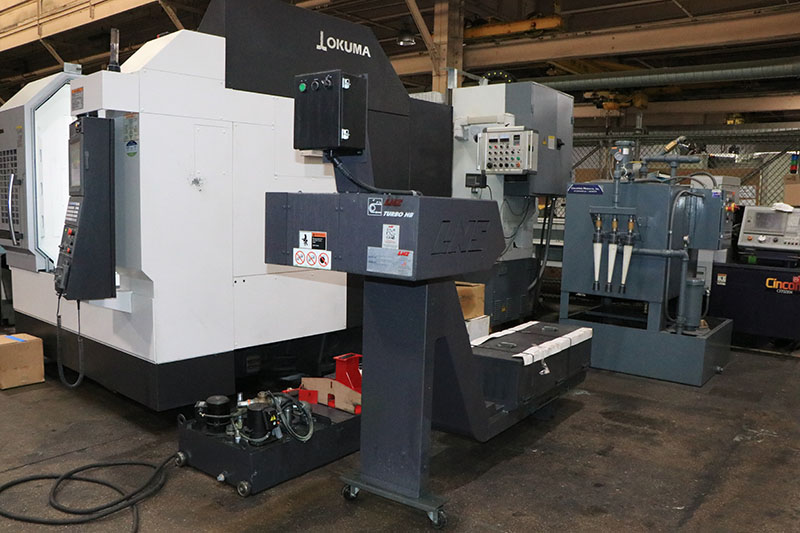

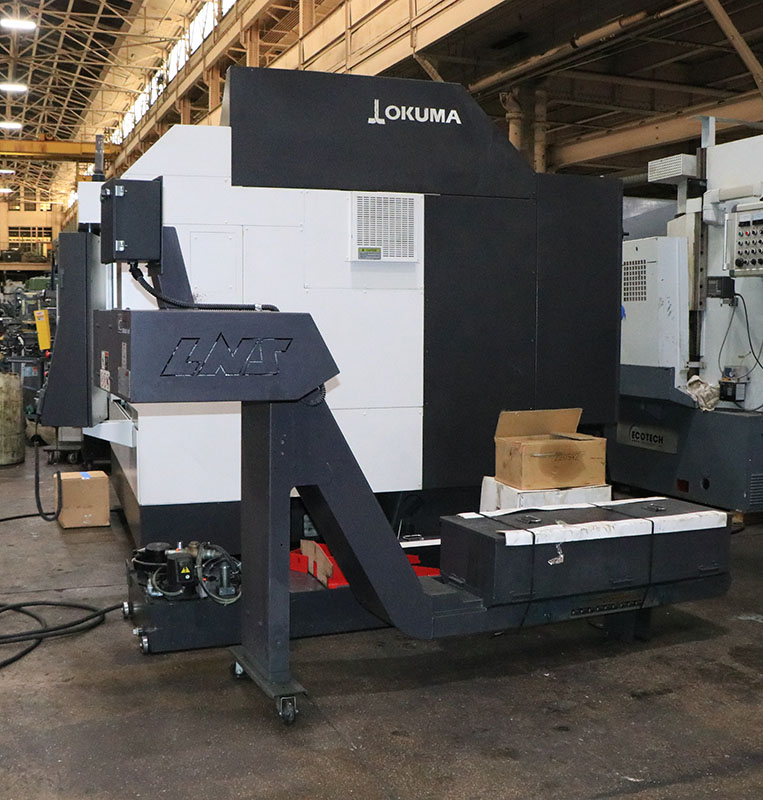

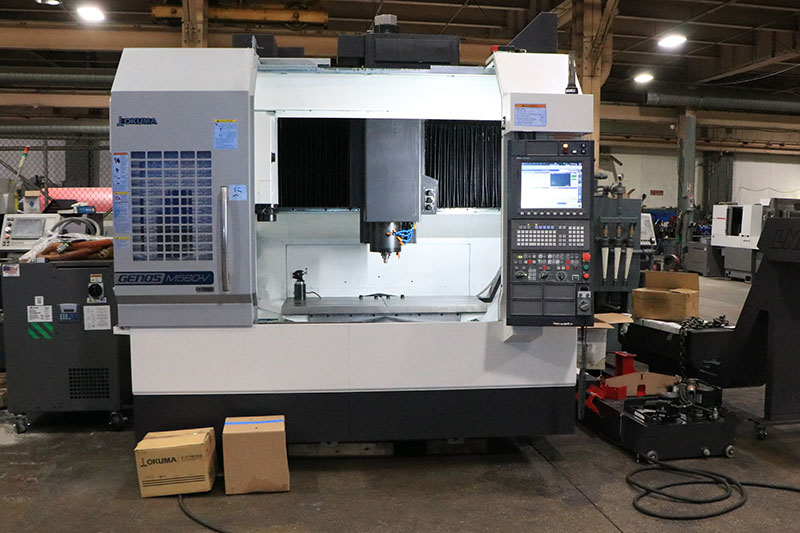

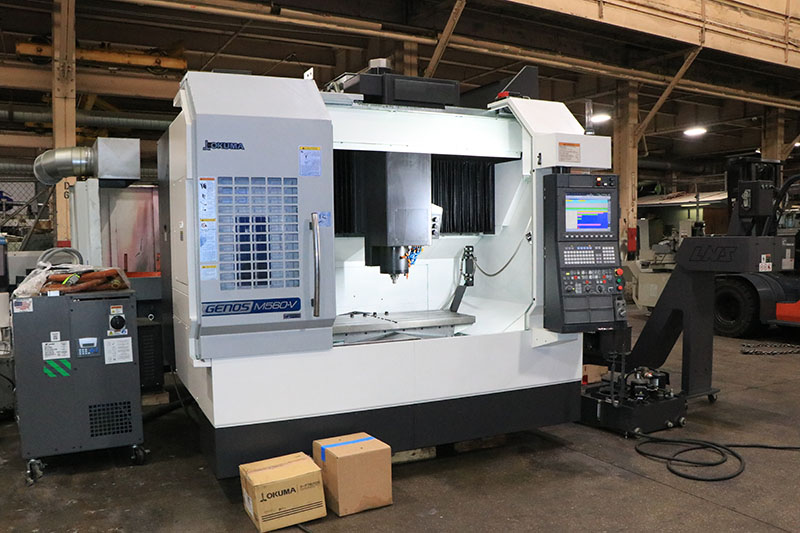

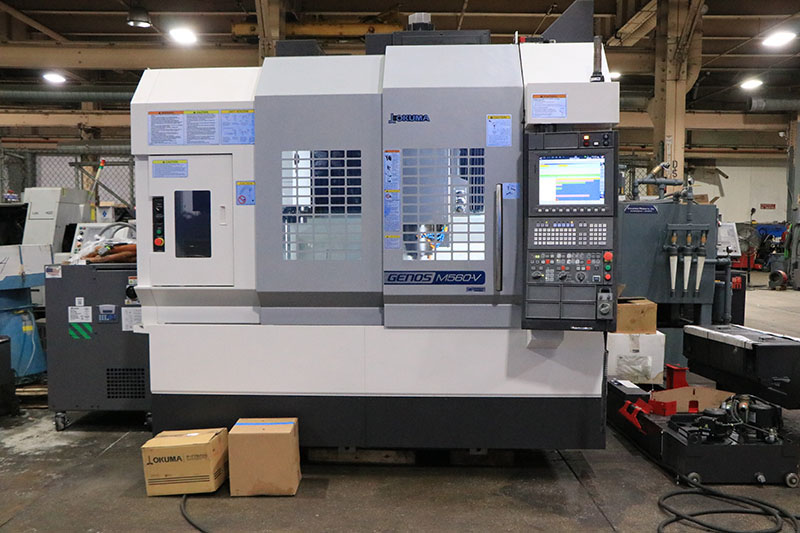

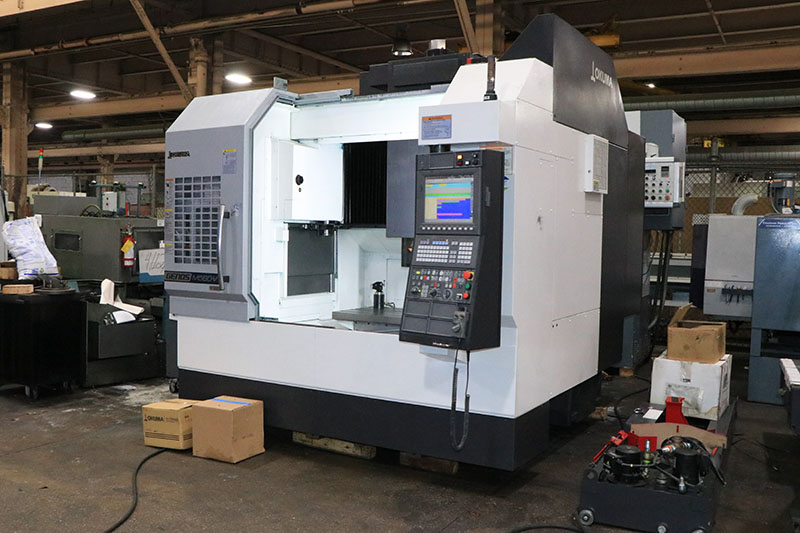

OKUMA CNC VERTICAL MACHINING CENTER

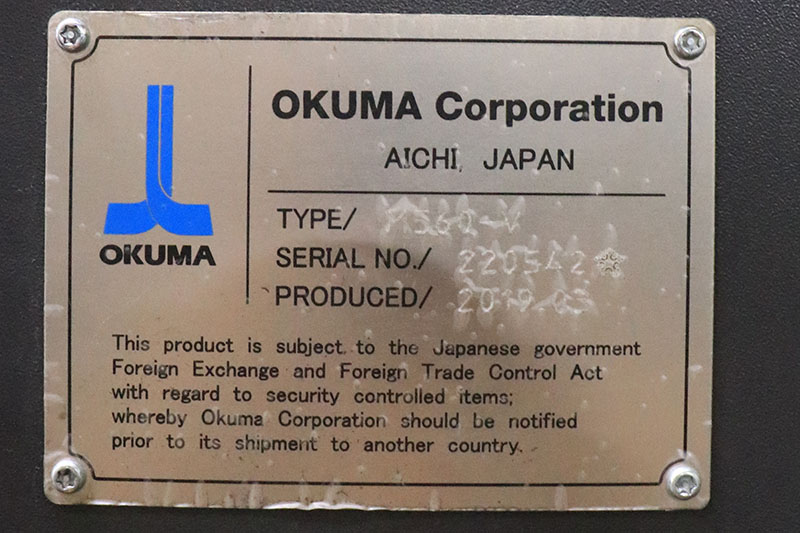

MODEL: GENOS M560V, S/N: 220542, NEW: 2019

SPECIFICATIONS:

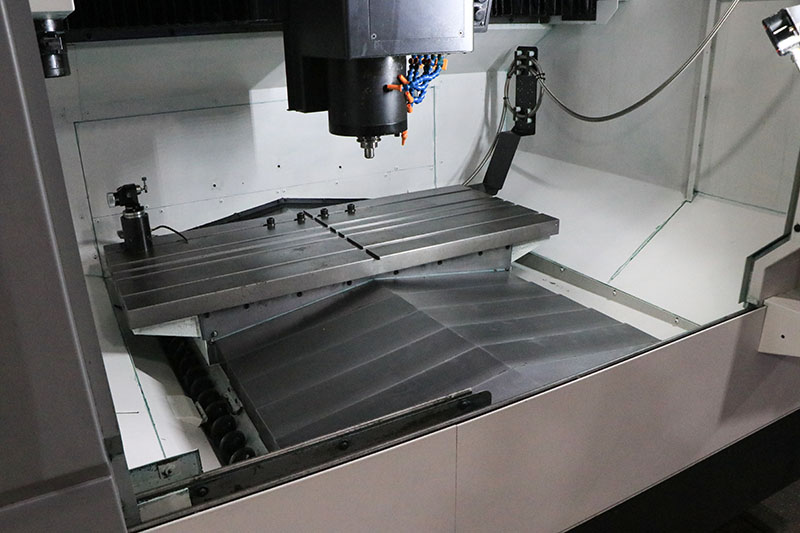

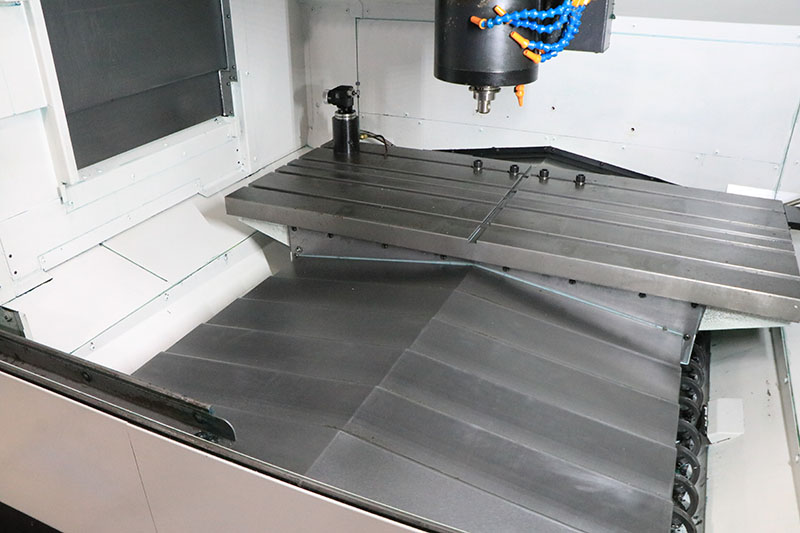

TABLE SIZE ...................... 51.18" X 22.05"
MAXIMUM TABLE LOAD CAPACITY ..... 1,980 LBS
X AXIS TRAVEL: .................. 41.34"
Y AXIS TRAVEL: .................. 22.05"
Z AXIS TRAVEL: .................. 18.11"
SPINDLE TAPER ................... CAT 40 BIG PLUS
SPINDLE SPEEDS .................. FROM 50 TO 15,000 RPM
AUTOMATIC TOOL CHANGER .......... 32 ATC
X AND Y FEED RATES .............. 1,575 IPM
Z AXIS FEED RATE ................ 1,259 IPM
APPROXIMATE MACHINE WEIGHT ...... 18,260 LBS

EQUIPPED WITH:

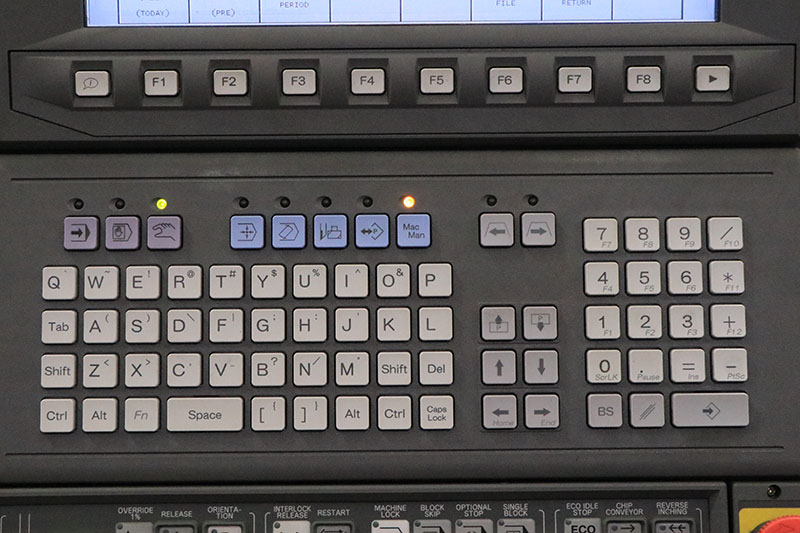

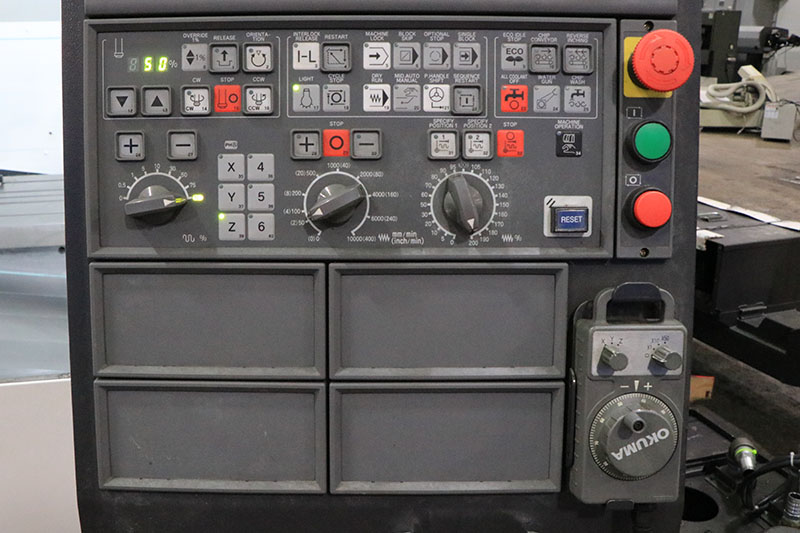

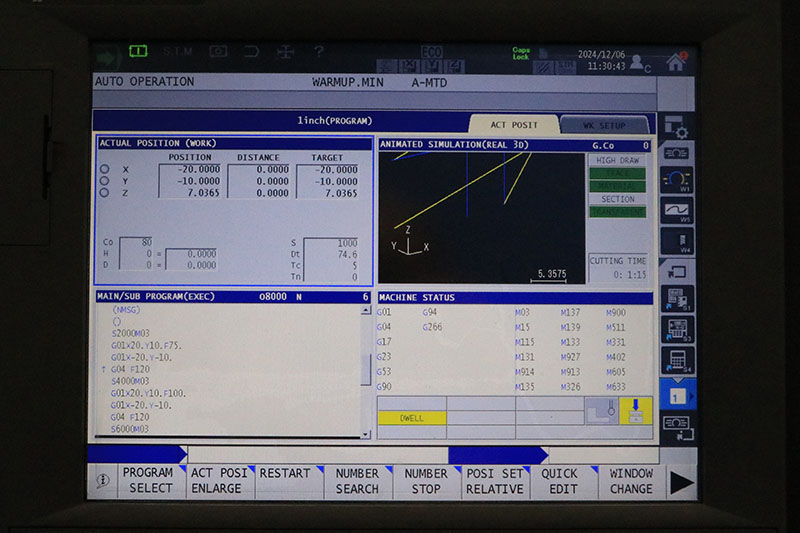

OKUMA OSP P300M CONTROL
REMOTE JOG HANDLE
HELICAL CUTTING

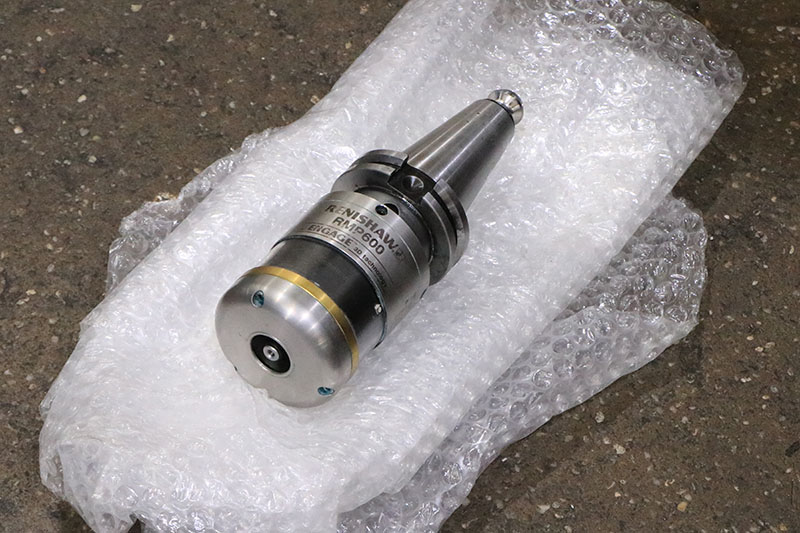

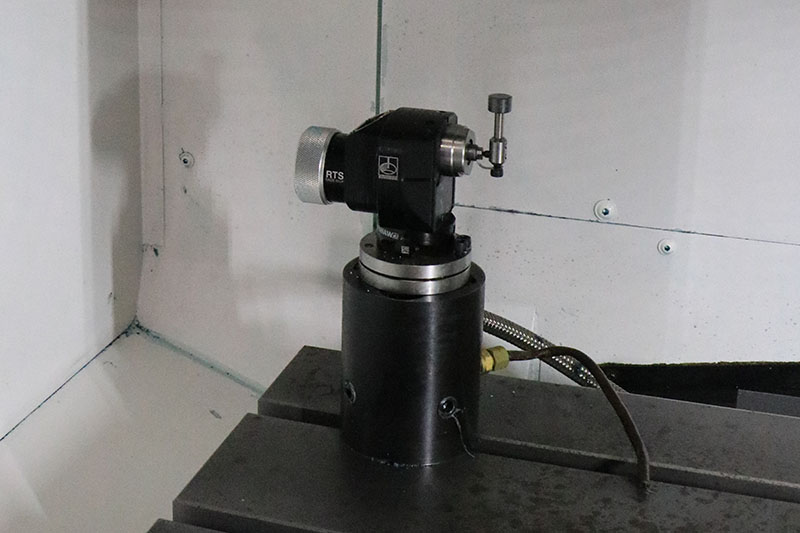

TOOL & PART PROBE

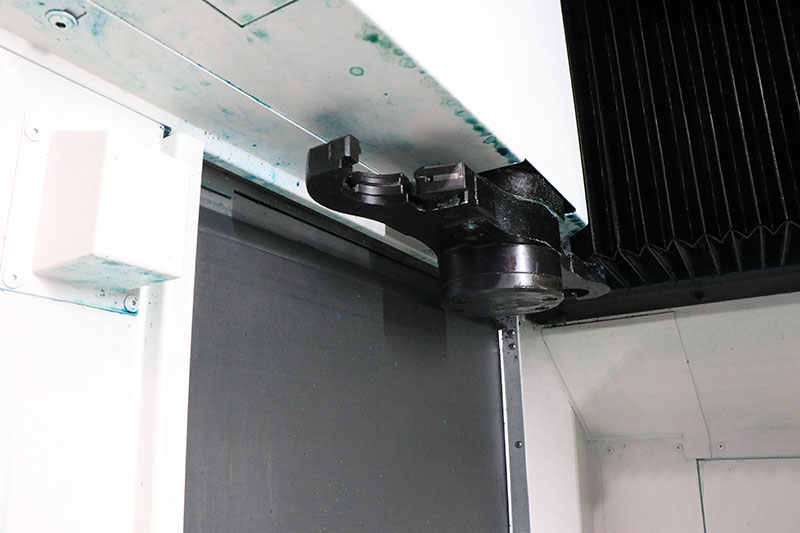

SIDE MOUNTED AUTOMATIC TOOL CHANGER
OIL CHILLER

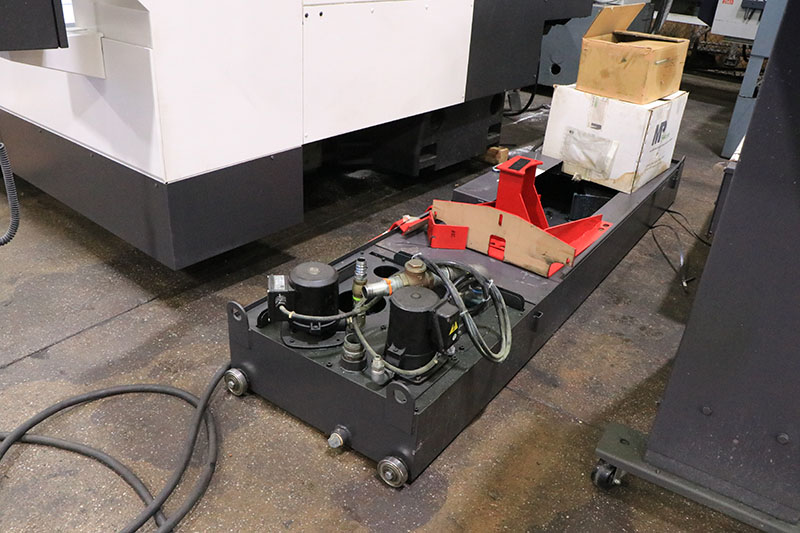

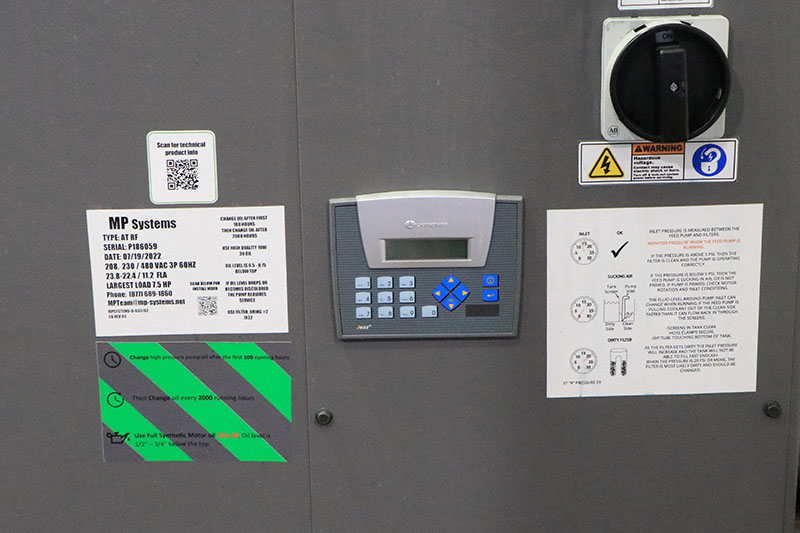

MP-SYSTEMS 1000 PSI HIGH PRESSURE PUMP

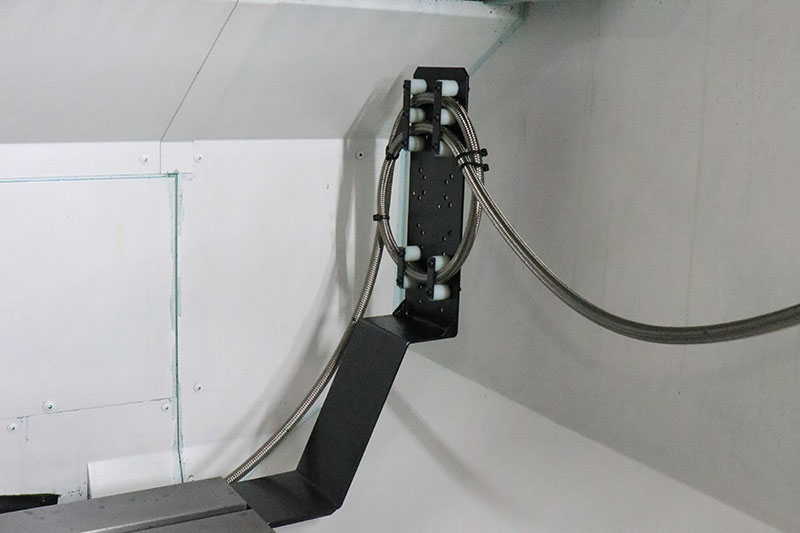

THRU SPINDLE COOLANT

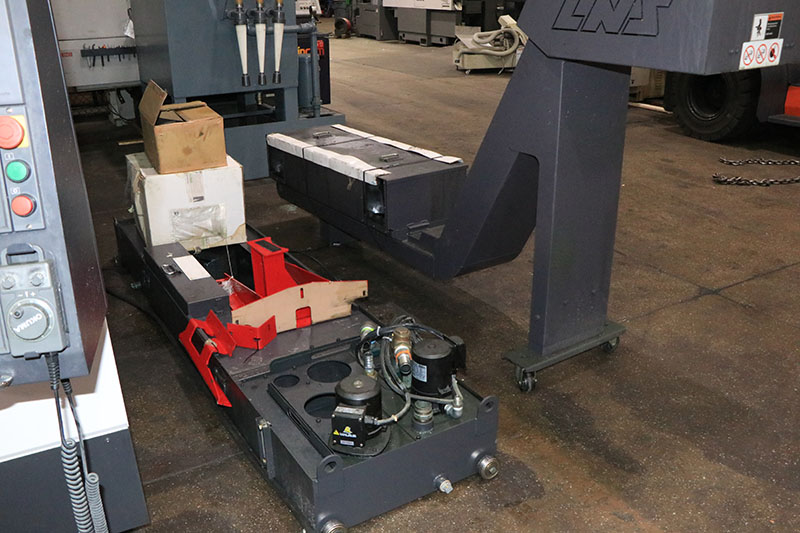

CHIP CONVEYOR
DOUBLE COLUMN BUILD STRUCTURE
25/30 HP MAIN MOTOR
