Orange WORK TABLE / BENCH VISE VISES, MACHINISTS

$1,200

Make:

Orange

Model:

WORK TABLE / BENCH VISE

Year:

Ref #:

178853

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at sales@machineryvalues.com

---

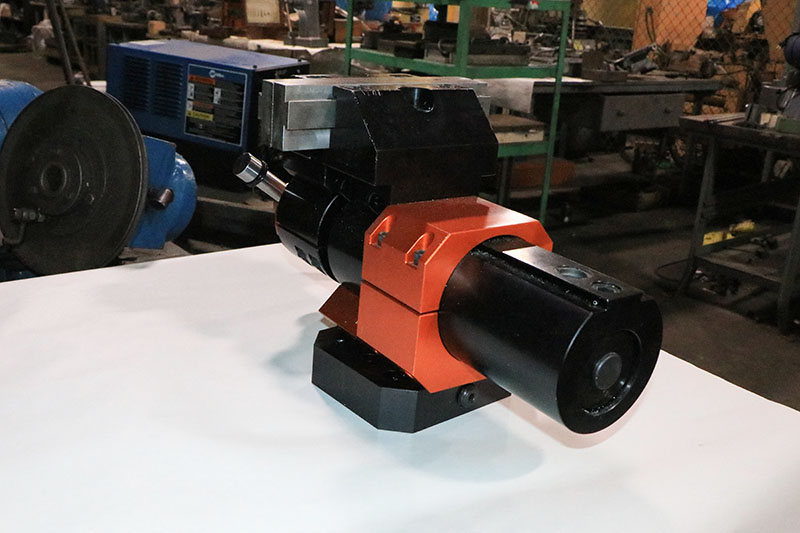

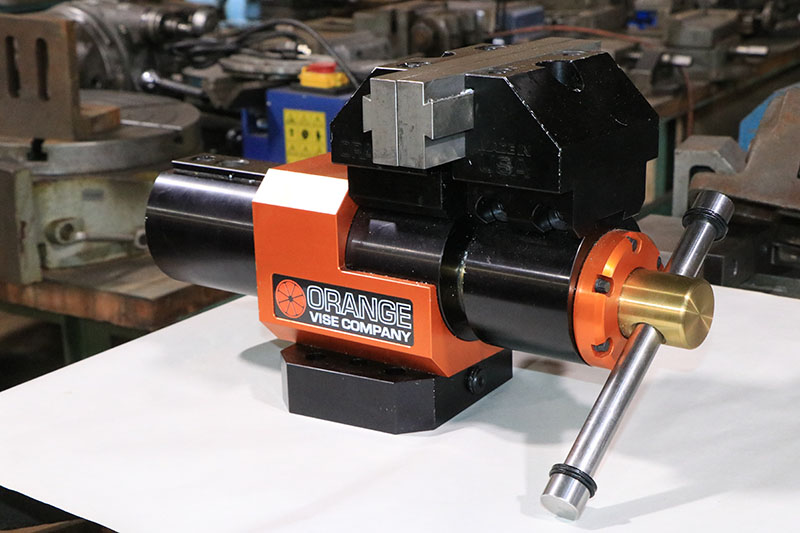

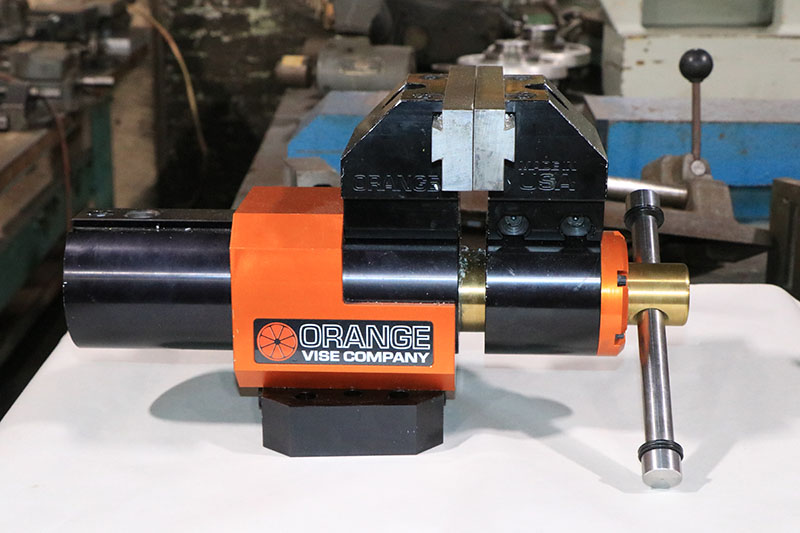

ORANGE BENCH VISE



SPECIFICATIONS:

JAW WIDTH ......................... 5"

JAW OPENING CAPACITY .............. 6.75"

JAW OPENING WITH INCLUDED JAWS .... 4.75"

WORK HEIGHT TOP OF JAW TO PISTON .. 4.88"

INDEXABLE REAR JAW POSITIONING .... 12" MAX

VISE HEIGHT ....................... 9.82"

BASE PLATE ........................ 5" x 5.88"

OVERALL WIDTH ..................... 5"

MAXIMUM OVERALL LENGTH ............ 22.5"

SHIPPING WEIGHT ................... 50 LBS





Clamping Force

The Orange Bench Vise applies clamping force linearly based on the position of the handle after a workpiece is gripped:

• 1/8 turn: 750 lbs
• 1/4 turn: 1500 lbs
• 3/8 turn: 2250 lbs
• 1/2 turn: 3000 lbs (max)

The maximum force of the vise is limited by the axial load rating of the ball thrust bearing.



Includes:

• (1) BENCH VISE w/ HANDLR
• (1) STEEL PISTON HARDENED TO HRC60 & PRECISION GROUND
• (1) PULL STUD
• (1) SWIVEL PLATE

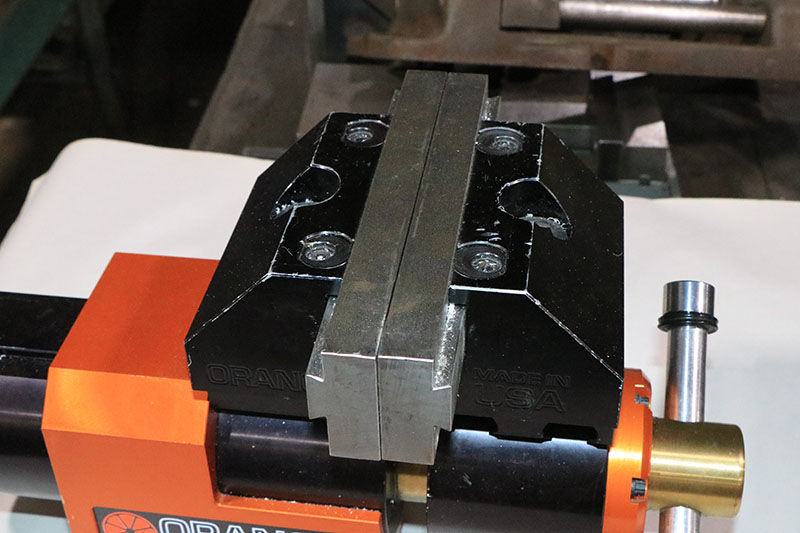

• (1) PAIR OF MASTER JAWS
• (1) PAIR OF 5" x 2" x 1" ALUMINUM DOVETAIL SOFT JAWS



INSPECT IN OUR NEW JERSEY WAREHOUSE
