P/A Ind SRF-300 FEEDERS, MECHANICAL, SERVO, ETC.

$12,500

Make:: P/A Ind

Model:: SRF-300

Year:: 2017

Ref #:: 164405

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com


11.8" x .080" P/A INDUSTRIES SERVO FEEDER

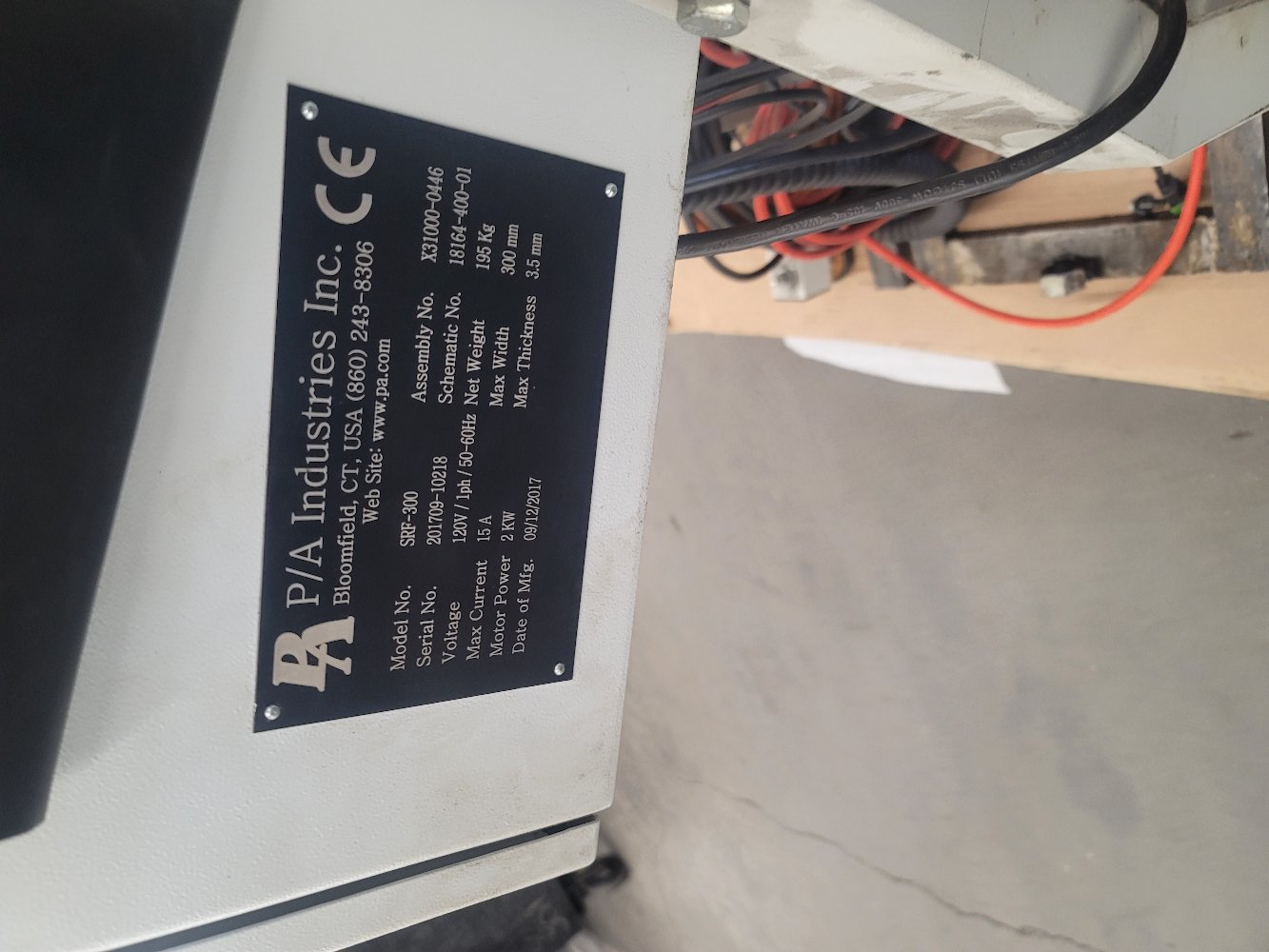

MODEL SRF-300 EDGE          S/N 201709-10218          NEW 2017

WIDTH ............................. 11.81"
THICKNESS ......................... .080" (at full width)
Max roll opening .................. .138
Pulling Power (peak / cont.) ...... 394 / 147 LBS.
ROLL DIAMETER ..................... 3.55"

Dimensions 27" X 23.5" X 22" HIGH
Weight 430 LBS.

Direct press mount style feed equipped with:
- Stock thickness adjustment lever
- Separate free standing and portable control console
- Pilot release roller cam
- Roll release lever for strip insertion & safety lock
- Batch counter
- Inch/Metric & multi language capabilities
- Backlit LCD touchscreen display
- Single or continuous modes
- Jog-Length capabilities
- Jog pendant

******* VERY LIGHTLY USED *******
