Pacific FF350-12-I PRESS BRAKES w/CNC BACK GAUGES

$69,500

Make:: Pacific

Model:: FF350-12-I

Year:: 1985

Ref #:: 157955

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

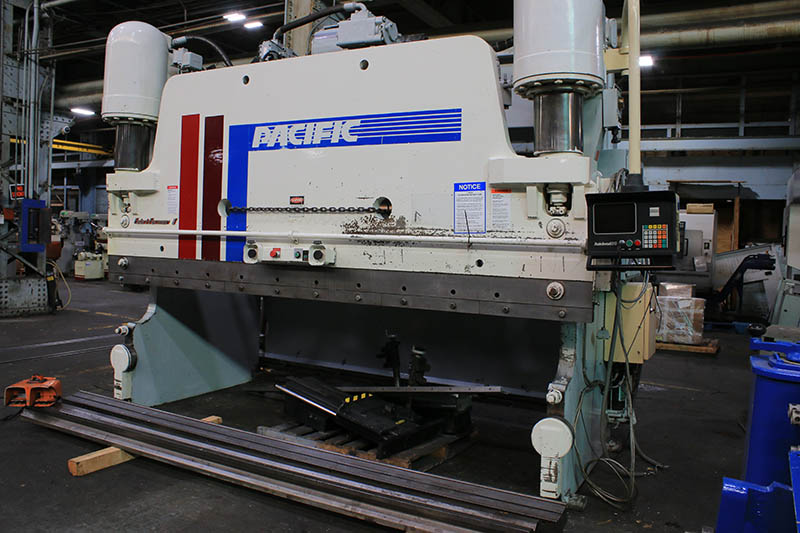

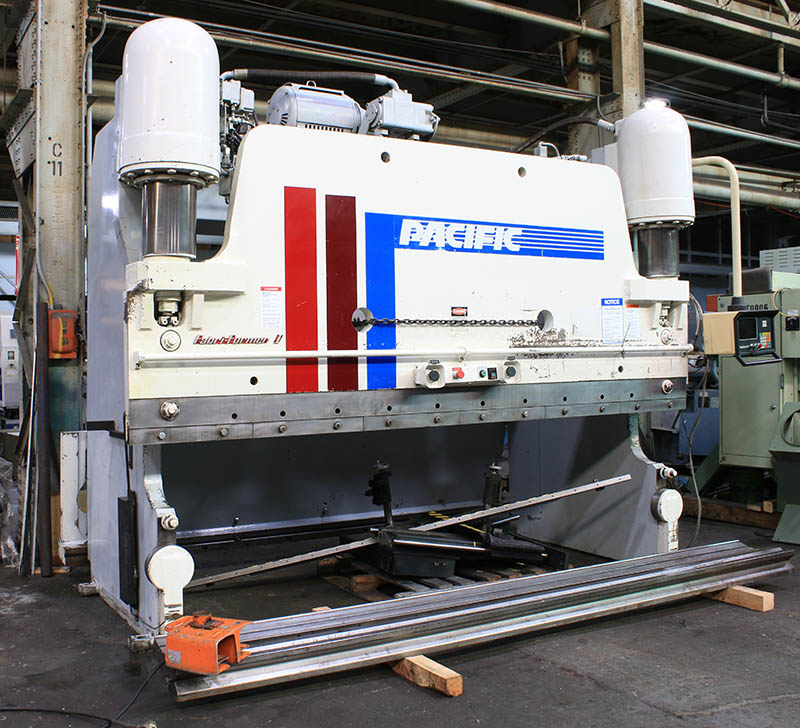

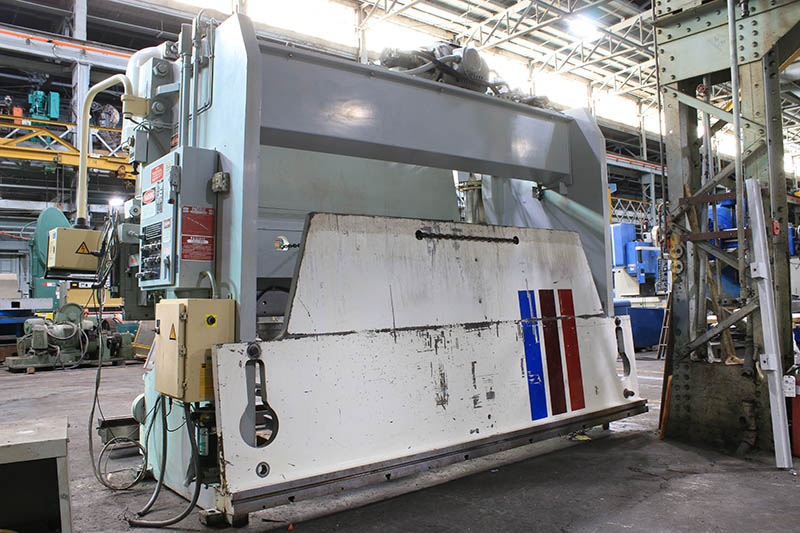

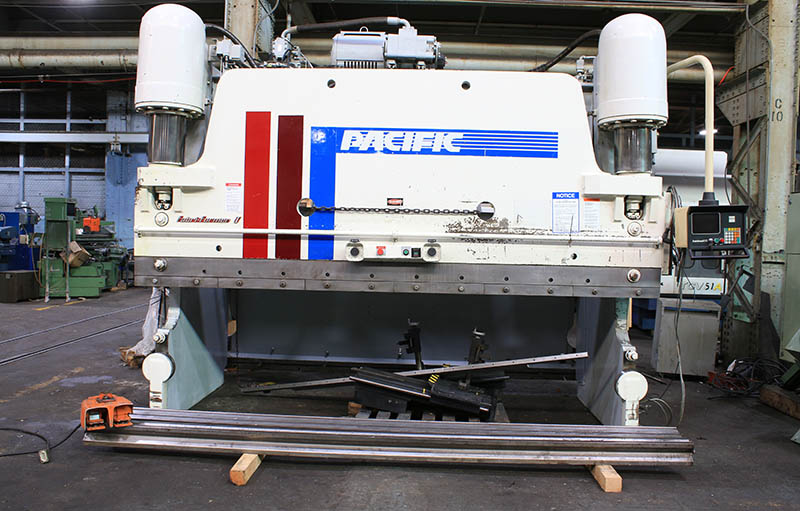

350 Ton x 12' Pacific Hyd. Press Brake W/Hurco 5C Back Gauge

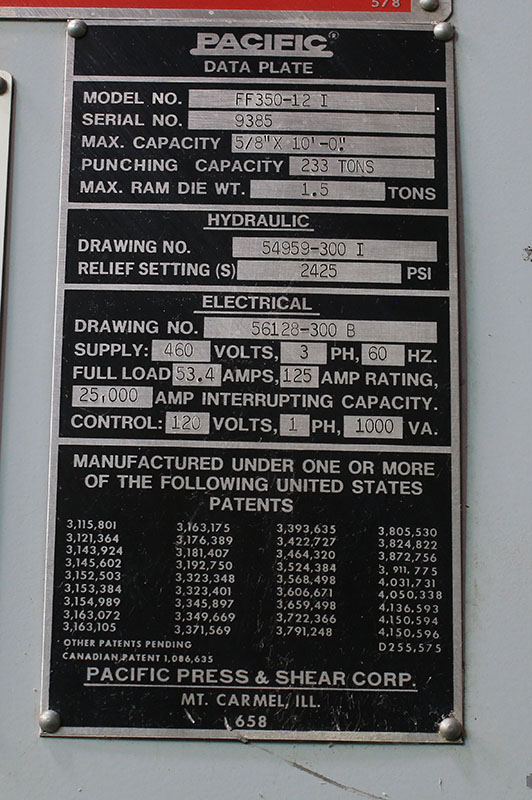

MODEL FF350-12-I           S/N 9385           NEW 1985

Tonnage ................................ 350 Tons
Punchng Capacity ....................... 233 Tons
Bending Capacity ....................... 10' x 5/8"
Overall Length of Bed & Ram ............ 12'
Distance Between Housings .............. 10' 5"
Stroke ................................. 12"
Open Height ............................ 20"
Closed Height .......................... 8"
Throat Depth ........................... 10"
Speeds - (Rapid Advance) ............... 197"/Min.
       - (Forming Speed) ............... 2-20"/Min.
       - (Rapid Return) ................ 240"/Min.
Main Motor ............................. 30 HP 460 Volt / 3 Phase

Approx. Dimensions - 144" x 70" x 143" H
Approximate Weight - 40,000 lbs.

Equipped With:

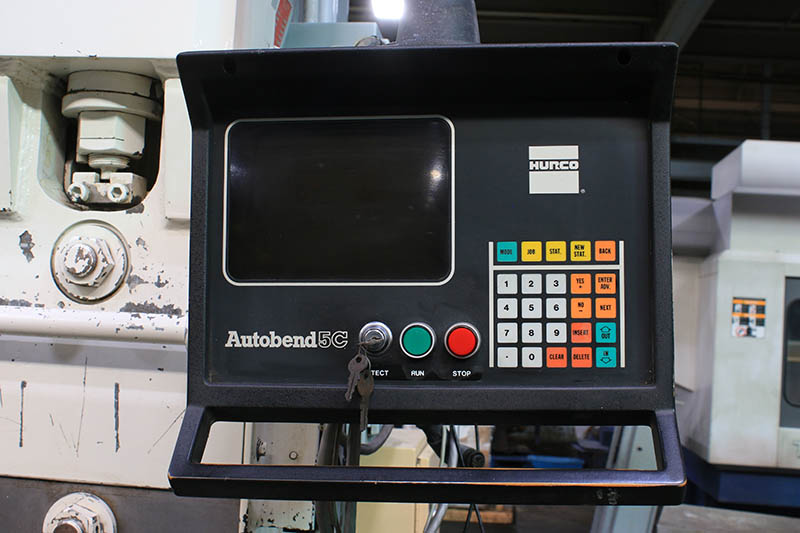

- Hurco Autobend 5C CNC Back Gauge

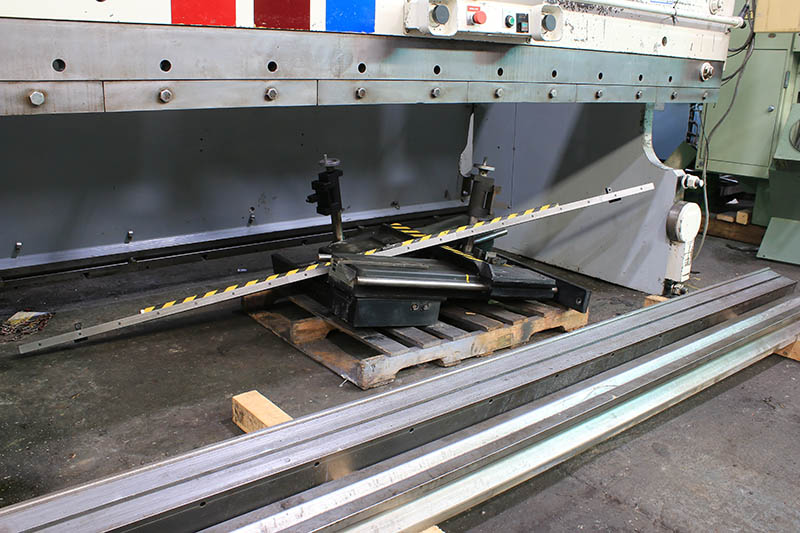

- 4-Way Full Length Lower Die w/ 1", 2", 3" and 4" Openings
- Full Length Die Block 12' x 5-1/4" OD
- Full Compliment of Die Clamps

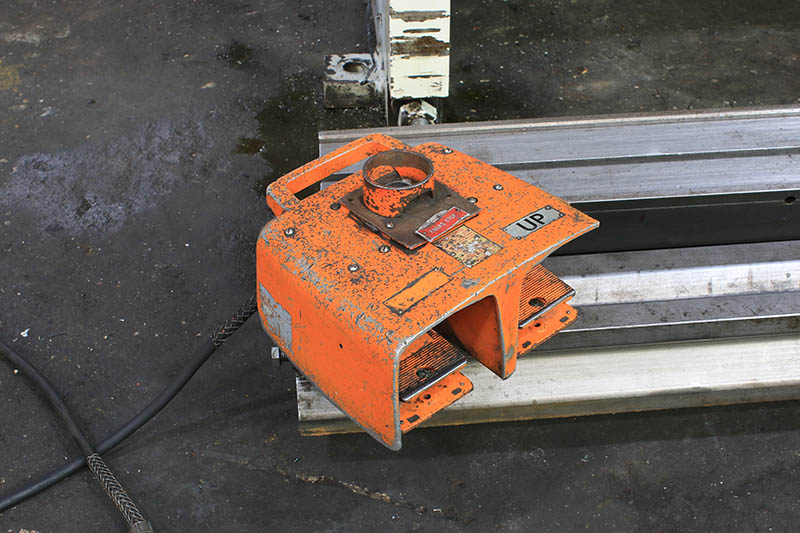

- Movable Electric Foot Pedal

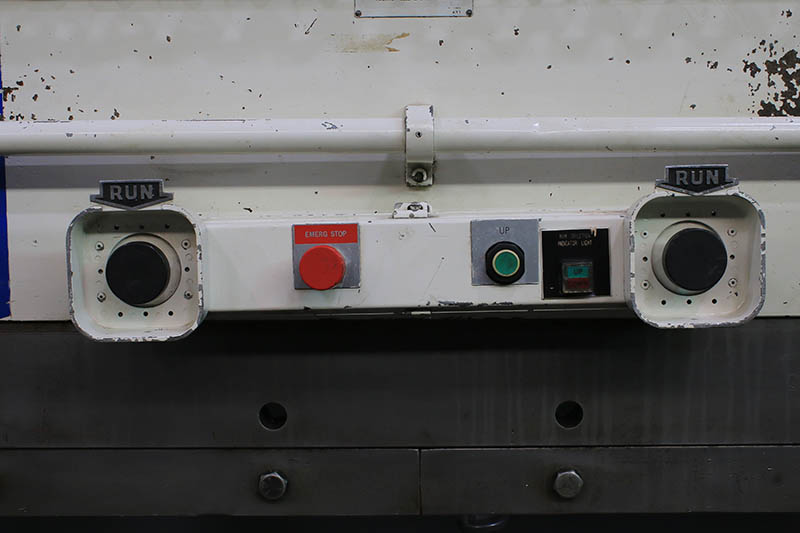

- Dual Palm Buttons w/ Emergency Stop
- Powered Ram Adjustment

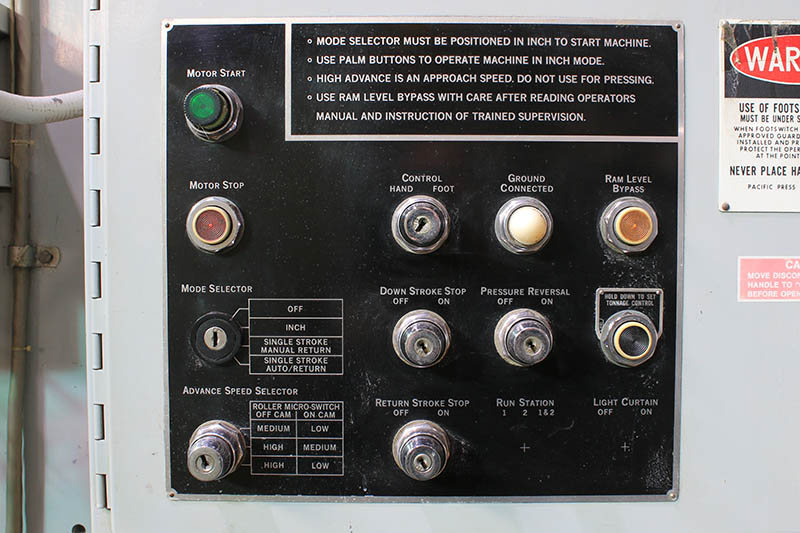

- Mode Selection (Inch, Single Stroke Manual Return, Single Stroke Auto Return)
- Pressure Reversal Switch

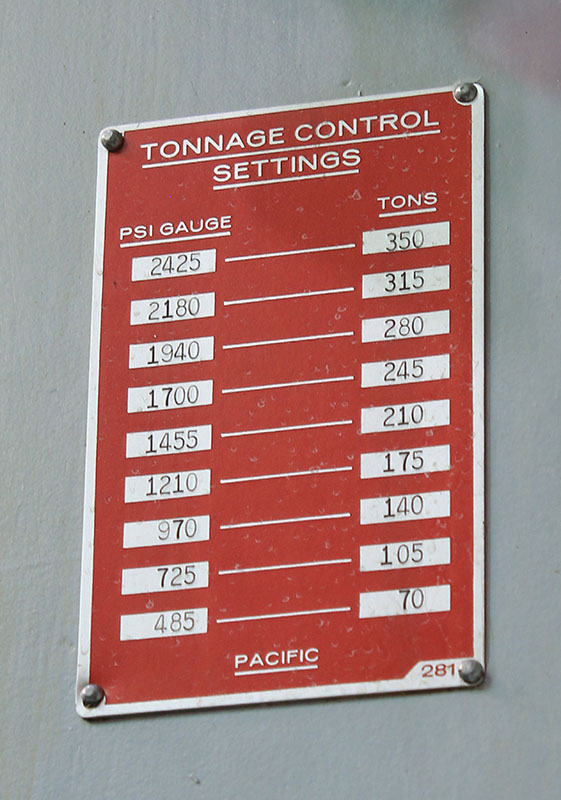

- Tonnage Control w/ Gauge
