Poreba TRP 93 7.8" HOLLOW SPINDLE ENGINE LATHES

$79,500

Make:
Poreba
Model:
TRP 93 7.8"
Year:
2002
Ref #:
164103

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

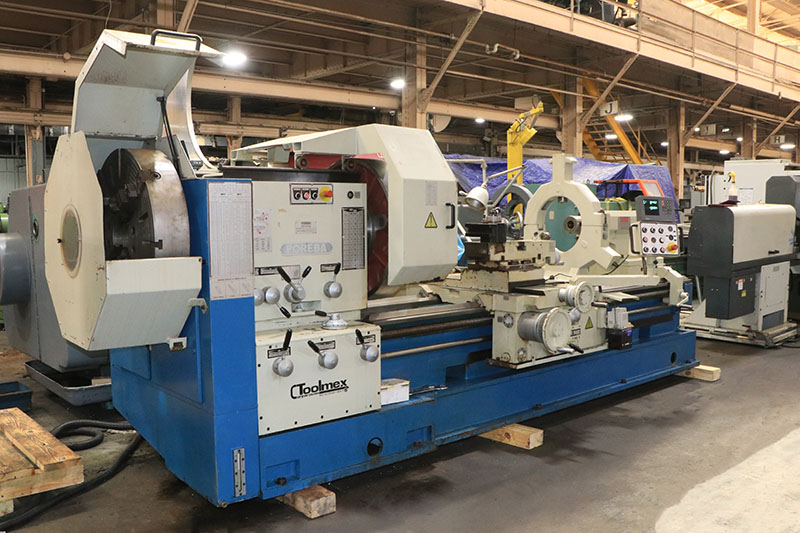

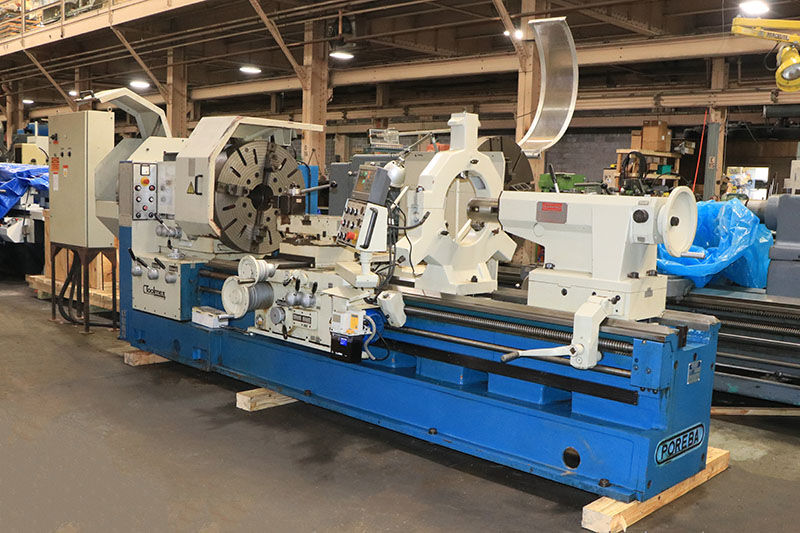

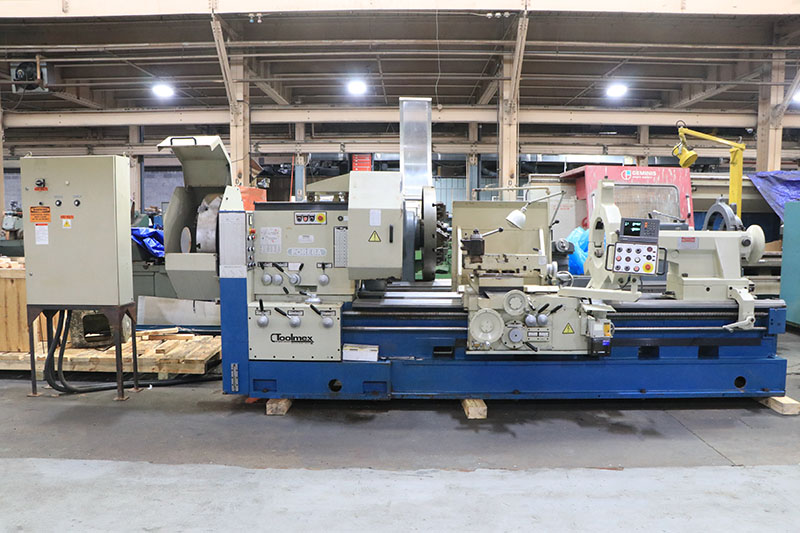

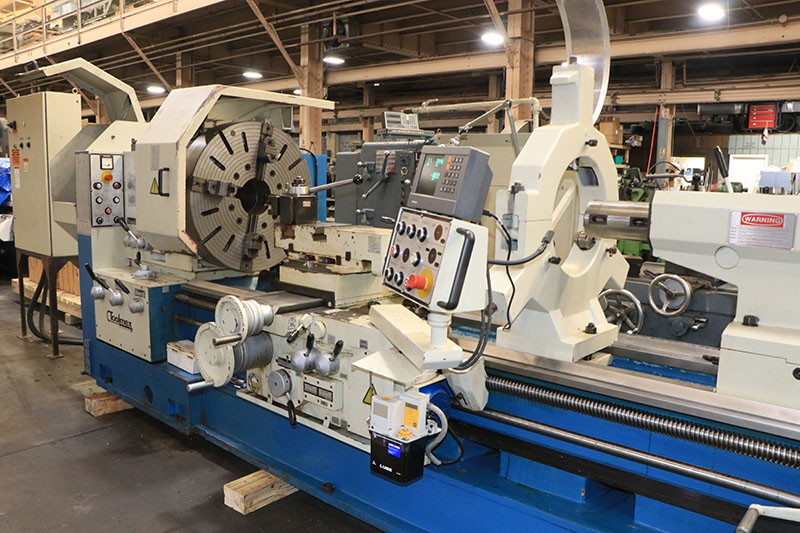

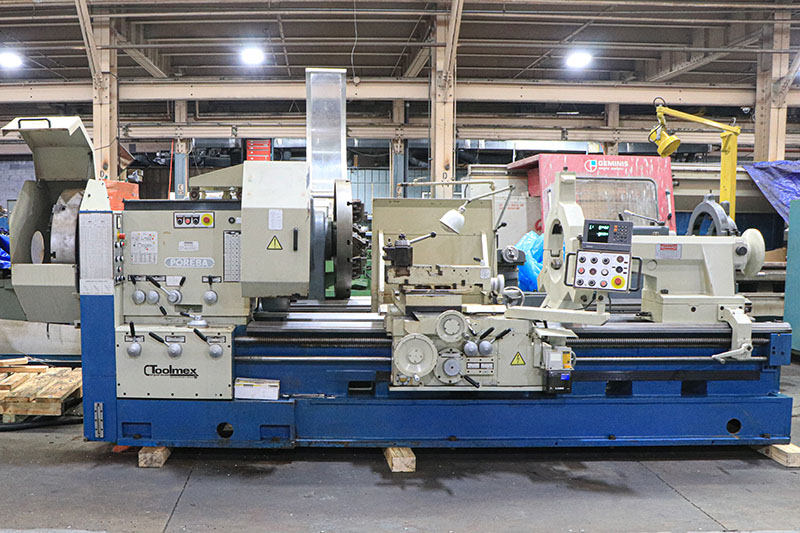

36" X 80" POREBA HOLLOW SPINDLE ENGINE LATHE

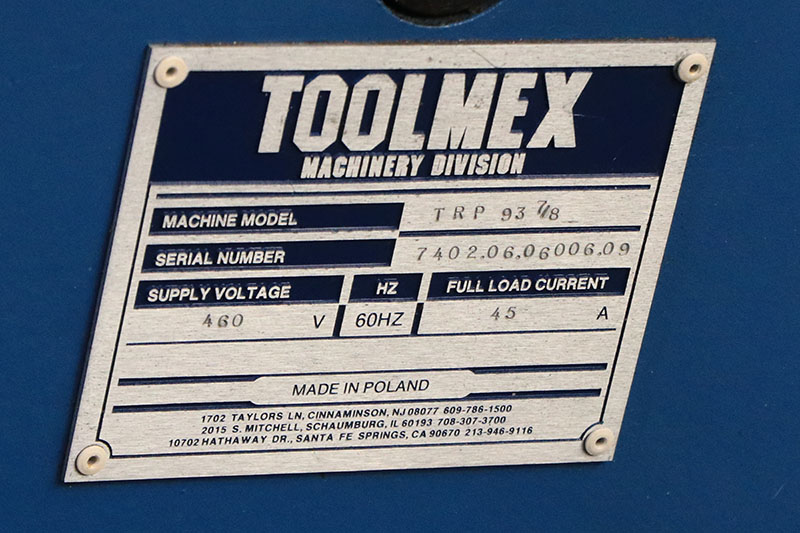

MODEL: TRP-93 7.8, S/N: 7402060600609, NEW: 2002

SPECIFICATIONS:
SWING OVER BED ....................... 36-1/2"
SWING OVER CROSS SLIDE ............... 24-3/4"
SPINDLE NOSE CAMLOCK ................. A1-15
HOLE THROUGH SPINDLE ................. 7.8"
DISTANCE BETWEEN CENTERS ............. 80"
SPINDLE SPEED RANGE (21) ............. 5 - 500 RPM
LONGITUDINAL FEED RANGE (70) ......... .0043 - .249 IPR
CROSS FEED RANGE (70) ................ .0021 - .249 IPR
TOP SLIDE RANGE FEED (70) ............ .001 - .062 IPR
INCH THREADING RANGE (56) ............ .5 - 30 TPI
METRIC THREADING RANGE (62) .......... 1 - 60 MM
WIDTH OF BED ......................... 23"
TAILSTOCK SPINDLE DIAMETER ........... 5-1/8"
TAILSTOCK SPINDLE TAPER .............. #6MT
TAILSTOCK SPINDLE TRAVEL ............. 11-3/4"
APPROXIMATE FLOOR SPACE............... 74" X 160"
APPROXIMATE WEIGHT ................... 17,500 LBS.

EQUIPPED WITH:

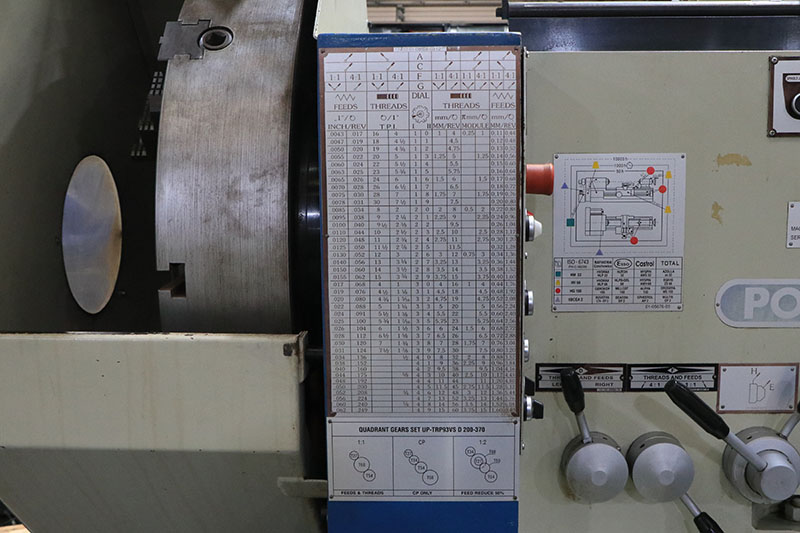

- INCH & METRIC THREADING CAPABILITY
- POWER FEED TO THE TOP SLIDE FOR TAPER TURNING

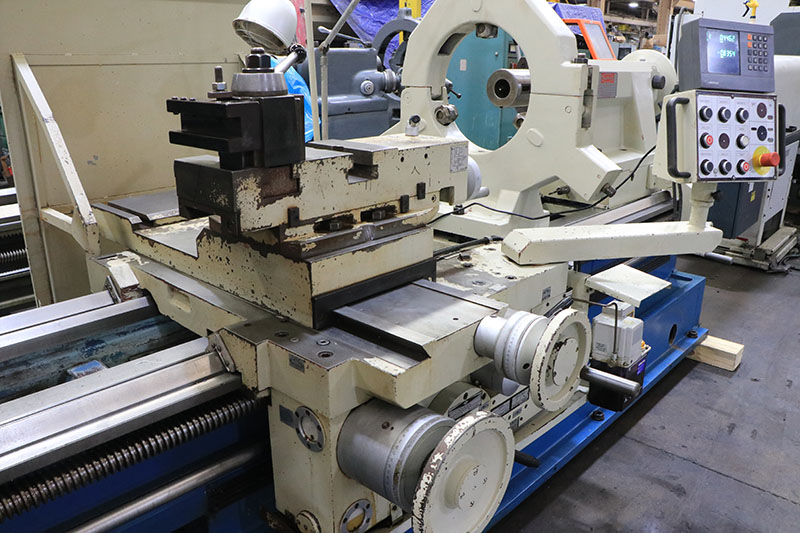

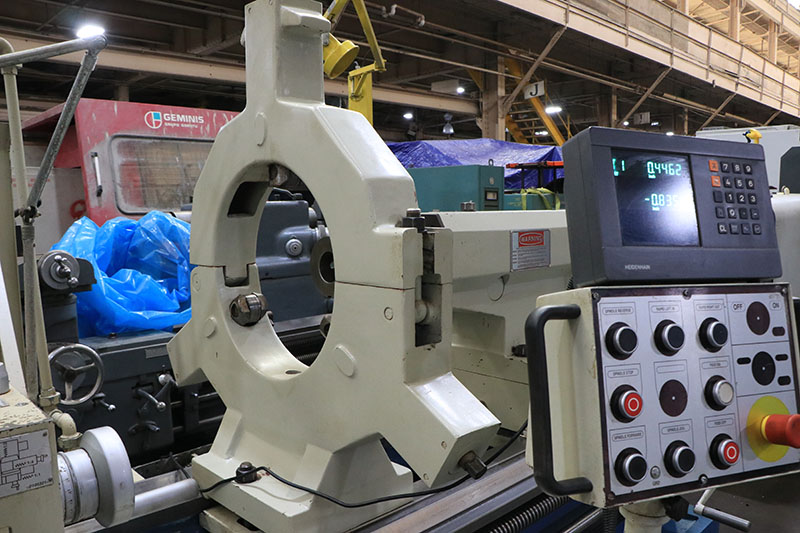

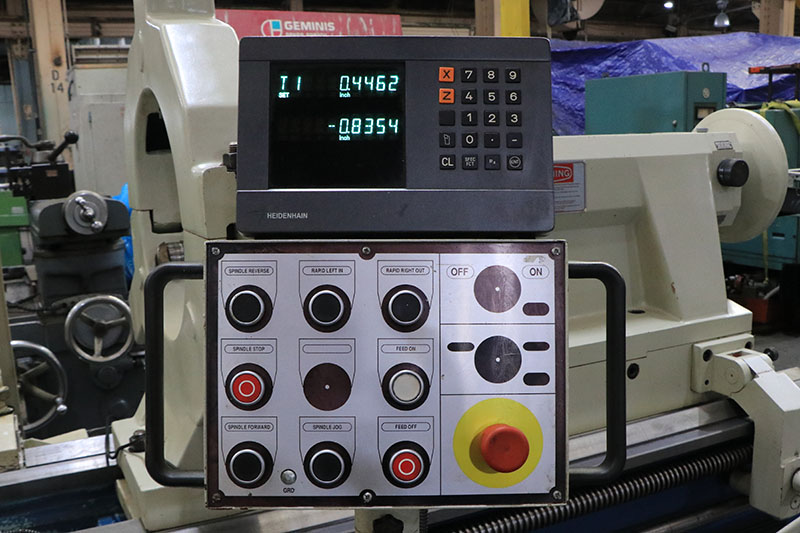

- HEIDENHAIN TWO AXIS DIGITAL READOUT

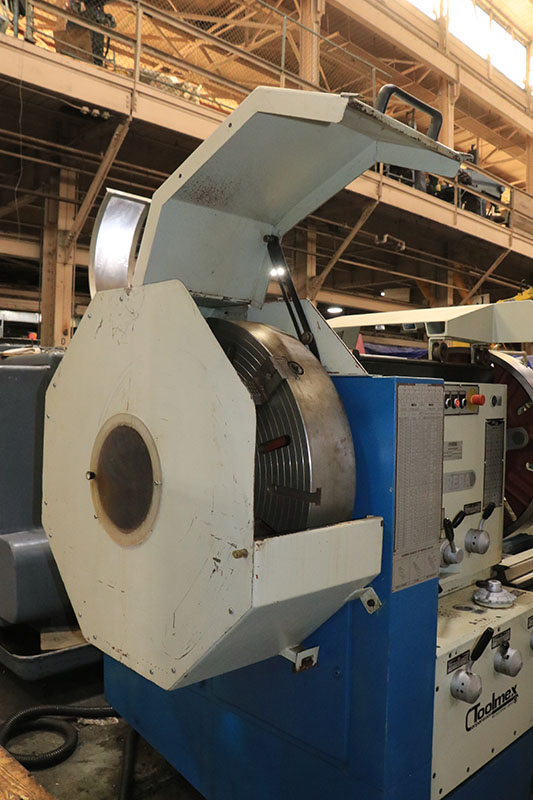

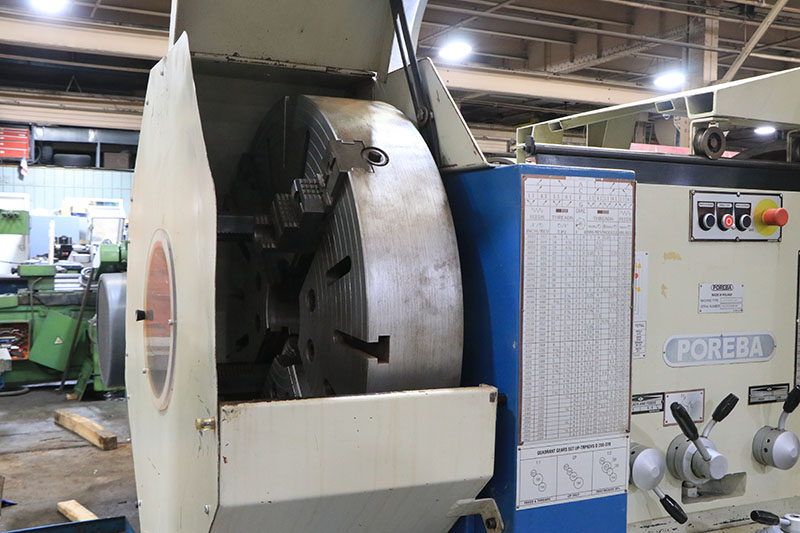

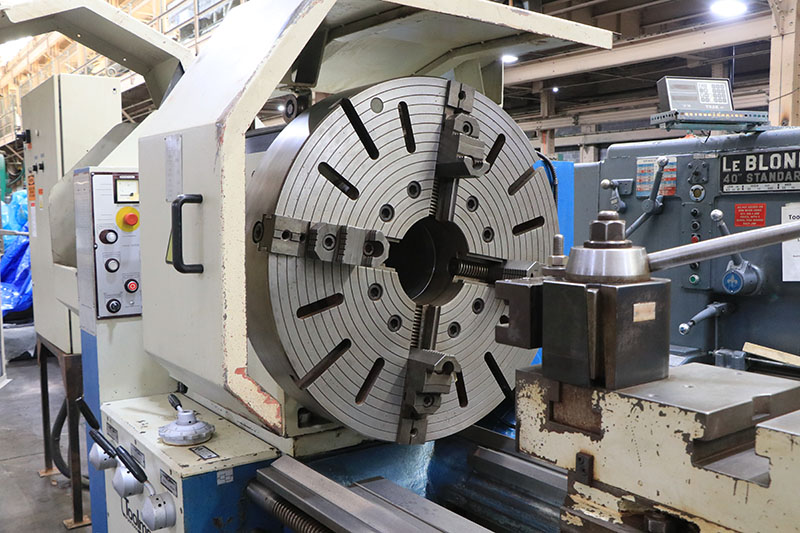

- (2) 32" 4-JAW CHUCKS IN FRONT & REAR OF SPINDLE

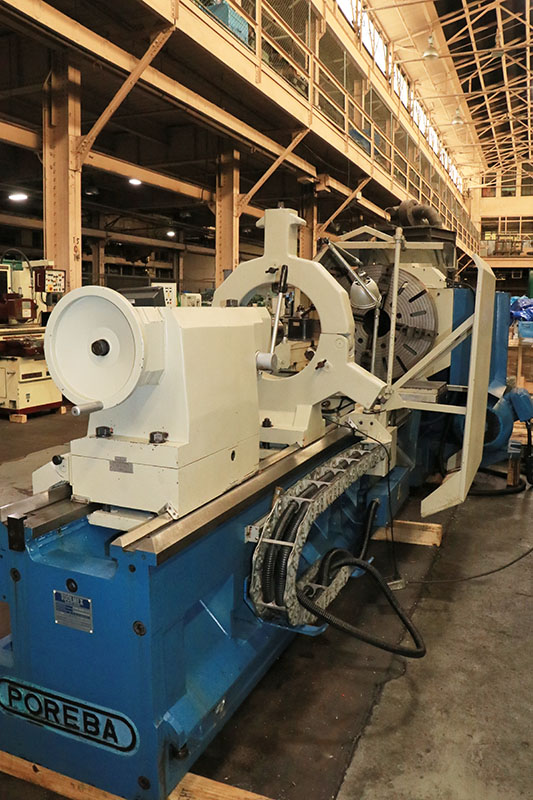

- 15-3/4" CAPACITY ROLLER TYPE STEADY REST
- LIVE CENTER
- THREAD DIAL INDICATOR
- COOLANT SYSTEM
- 6-WAY POWER & RAPID TRAVERSE

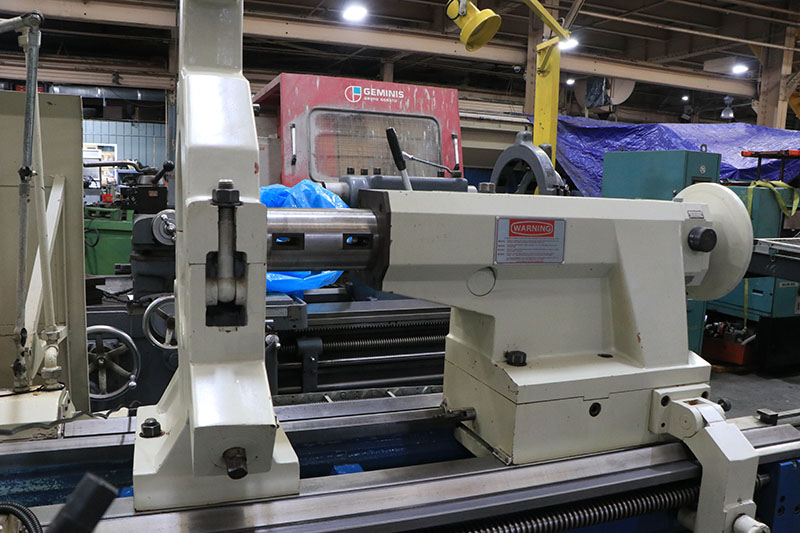

- TWO SPEED TAILSTOCK

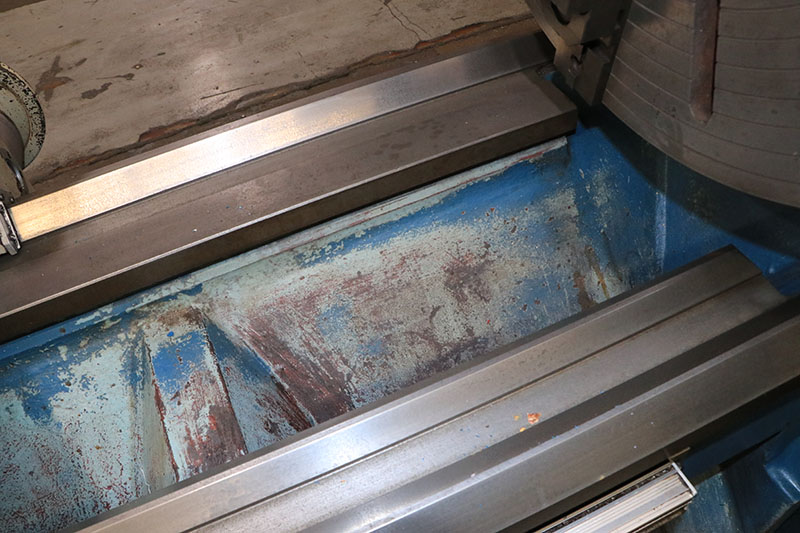

- INDUCTION HARDENED & GROUND BEDWAYS
- 23 / 36 HORSE POWER TWO SPEED DRIVE MOTOR

PURCHASED FROM A GOVERNMENT RESEARCH FACILITY
*** MUST SEE CONDITION ***
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
