Pressmaster FTP-150 RI TIRE PRESS

$44,950

Make:: Pressmaster

Model:: FTP-150 RI

Year:: NEW

Ref #:: 149923

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

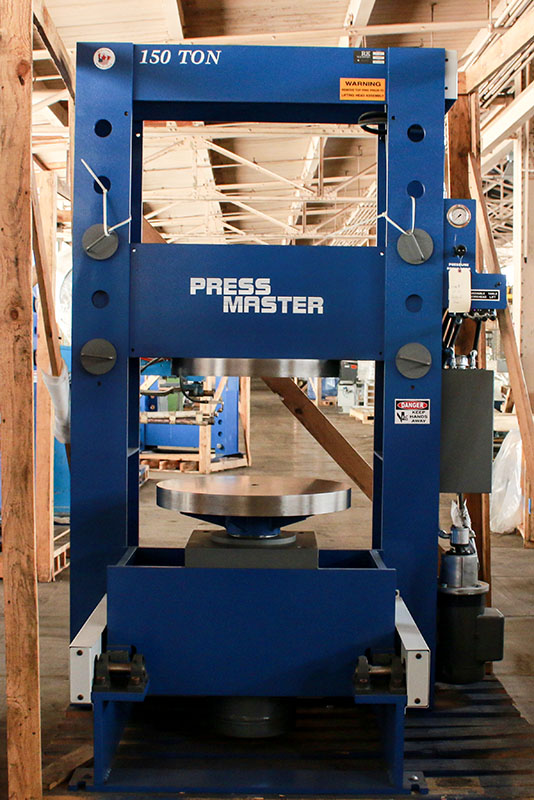

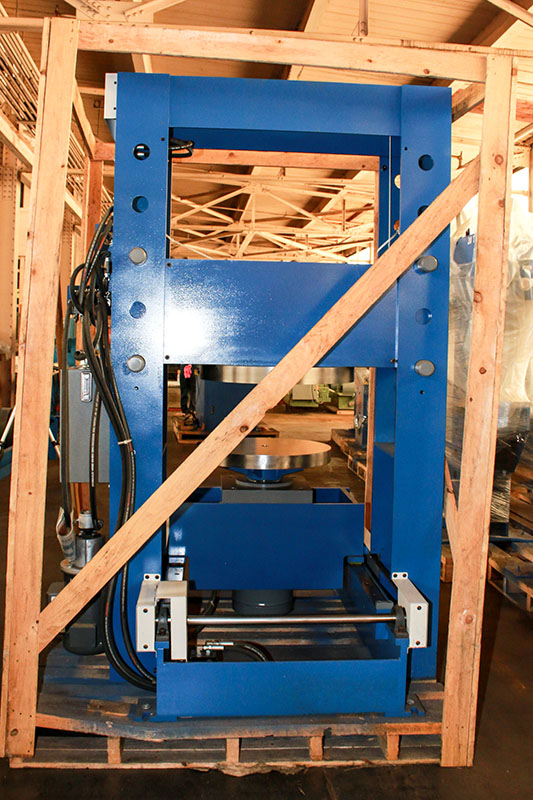

150 TON PRESSMASTER ROLL-IN FORKLIFT TIRE PRESS
NEW AND IN STOCK FOR IMMEDIATE DELIVERY

SPECIFICATIONS
CAPACITY..................................... 150 TONS
BORE......................................... 11"
STROKE....................................... 12"
ROD.......................................... 6"

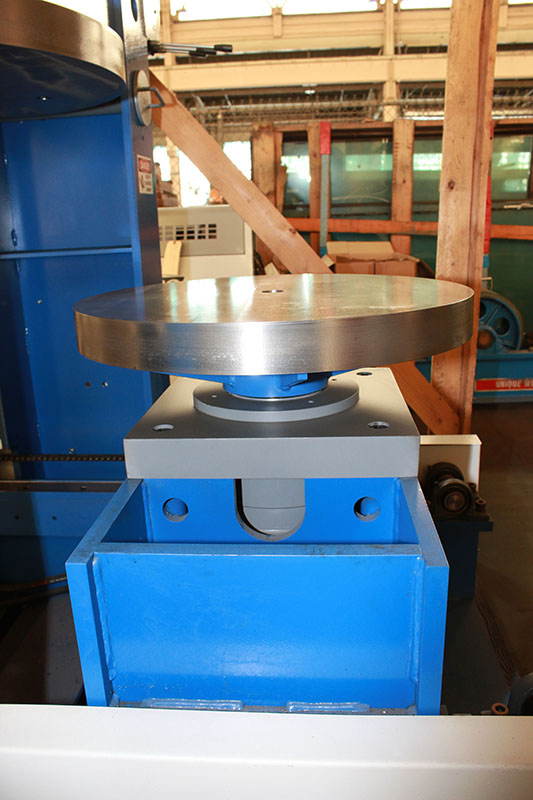

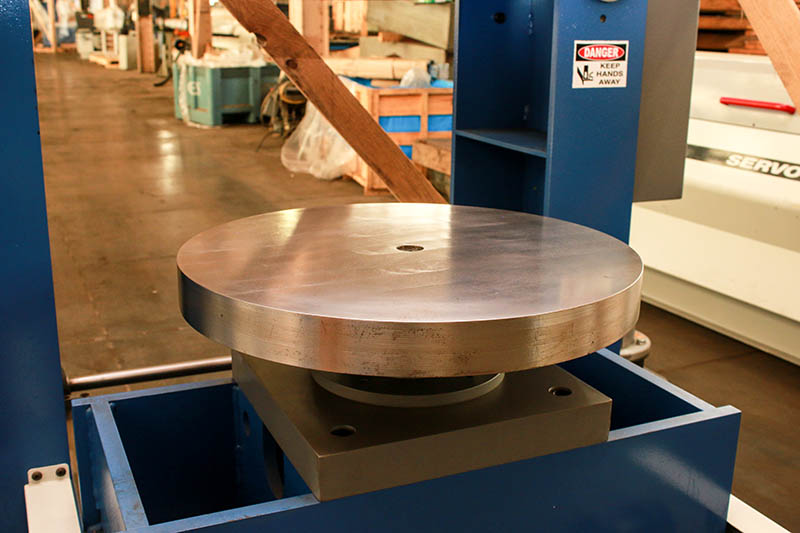

PLATEN DIAMETER.............................. 25"
DISTANCE BETWEEN POSTS....................... 36"
DAYLIGHT..................................... 30"
RAM SPEED
 PRESS....................................... 6 IPM
 RETURN...................................... 8 IPM
DIMENSIONS
 LENGTH...................................... 60"
 WIDTH....................................... 80"
 HEIGHT...................................... 103"
WEIGHT....................................... 4,000#

POWER.............................. 5 HP 230V / 1 PHASE
STANDARD VOLTAGES AVAILABLE-PLEASE SPECIFY WHEN ORDERING

STANDARD FEATURES

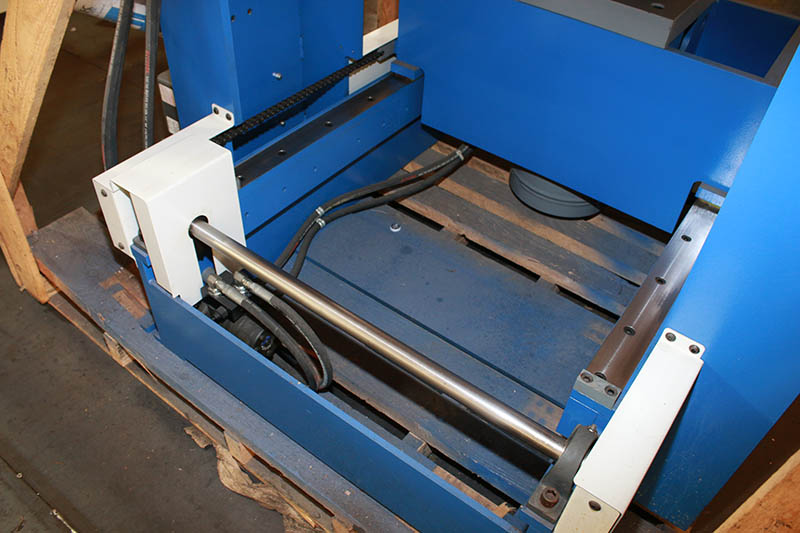

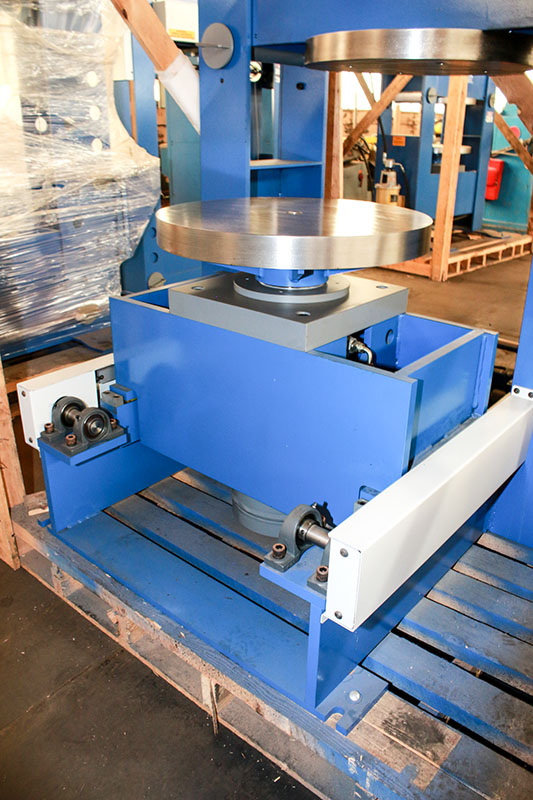

- ROLL-IN TABLE FOR EASY LOADING AND UNLOADING OUTSIDE OF THE PRESSING AREA
- LARGE CYLINDER ROD PROVIDES PLATEN STABILITY AND LONGER SEAL LIFE LOW PRESSURE HYDRAULIC SYSTEM MAINTAINS LOWER OIL TEMPERATURES, RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION
- DOUBLE-ACTING CYLINDER PERMITS PRESSING AS WELL AS RETURN
- HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF HEAD ASSEMBLY, 16" TRAVEL
- CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK
- PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE

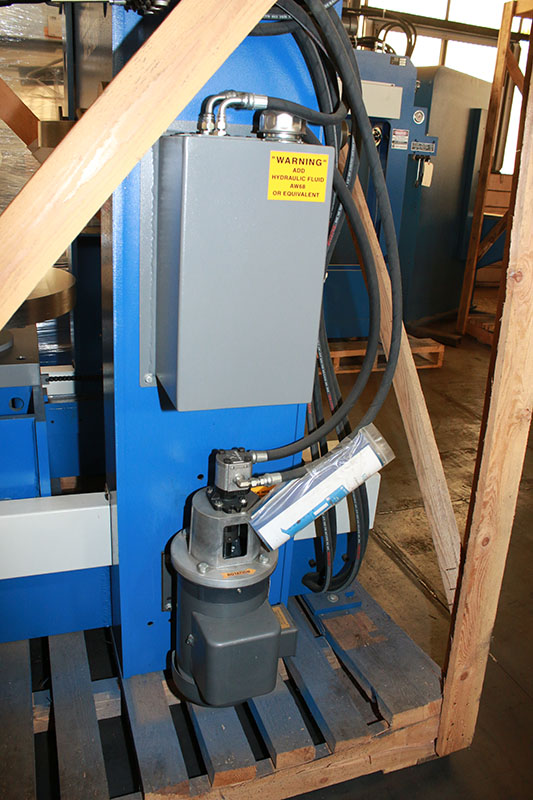

- HIGH CAPACITY 6 GAL. HYDRAULIC OIL RESERVOIR
- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY, AND AVAILABLE THROUGHOUT NORTH AMERICA

AVAILABLE OPTIONS:
- EXTENDED SAFETY CAGE WITH INTERLOCKING GUARDING ........... $9,500
- 10 HP / 3 PH MOTOR (DOUBLES CURRENT PRESS SPEEDS) ........... $2,400
- STOP / START & EMERGENCY STOP .......... $1,000
- FRONT OR BACK SAFETY GUARD .(PER SIDE).. $1,000
- SIDE SAFETY GUARD ..........(PER SIDE).. $  750
- FOOT PEDAL ............................. $4,500
- HIGH ILLUMINATION LIGHTING KIT ......... $2,000
- HANDHELD REMOTE CONTROL ................ $9,500
