Pressmaster HFP-250 HYDRAULIC H-FRAME PRESSES

$54,950

Make:

Pressmaster

Model:

HFP-250

Year:

NEW

Ref #:

142136

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

---

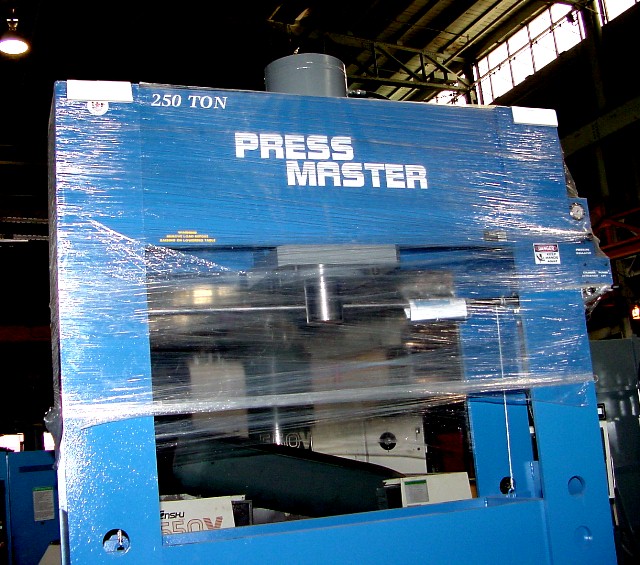

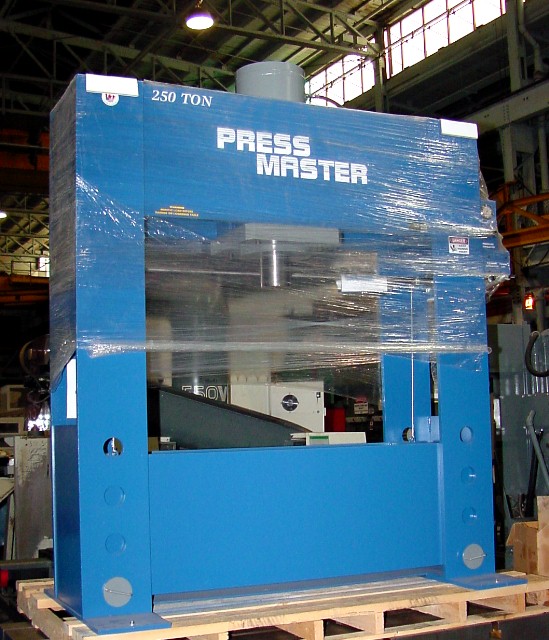

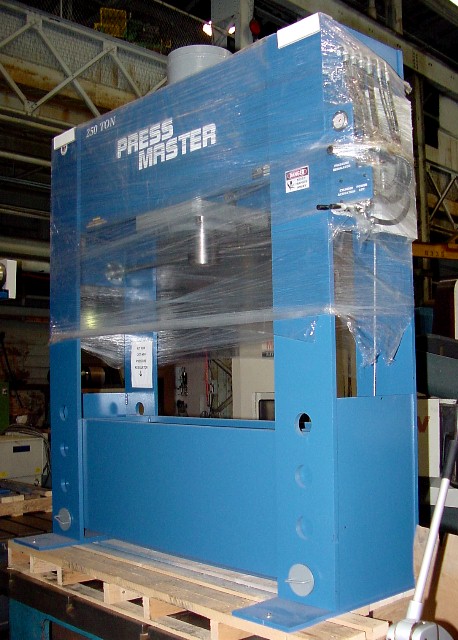

250 TON PRESSMASTER H-FRAME PRESS

MODEL HFP-250



SPECIFICATIONS:

RATED CAPACITY, TONNAGE........................ 250

STROKE......................................... 16"

BORE........................................... 12"

RAM SPEED (Inches/Minute) ADVANCE ............. 17

RAM SPEED (Inches/Minute) PRESSING ............ 4

RAM SPEED (Inches/Minute) RETURN .............. 21

DISTANCE BETWEEN POSTS (RIGHT TO LEFT)......... 60"

DISTANCE BETWEEN POSTS (FRONT TO BACK)......... 20"

MAXIMUM DISTANCE FROM BED TO RAM .............. 33"



OVERALL HEIGHT ................................ 101"

OVERALL WIDTH ................................. 96"

OVERALL DEPTH ................................. 60"

WEIGHT ........................................ 7,200#



MADE IN CANADA - NOT A CHEAP IMPORT



EQUIPPED WITH:

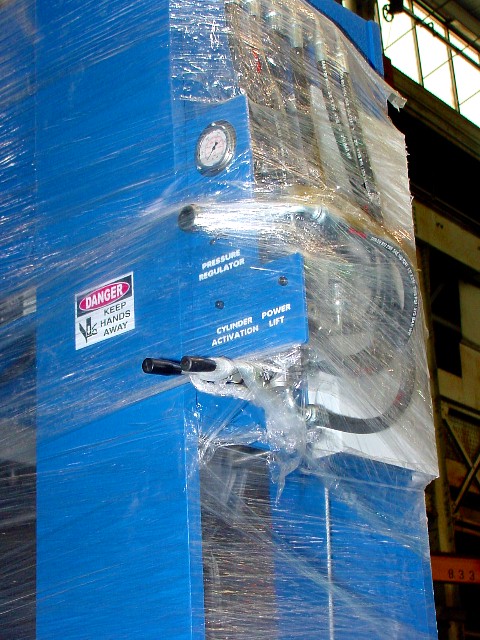

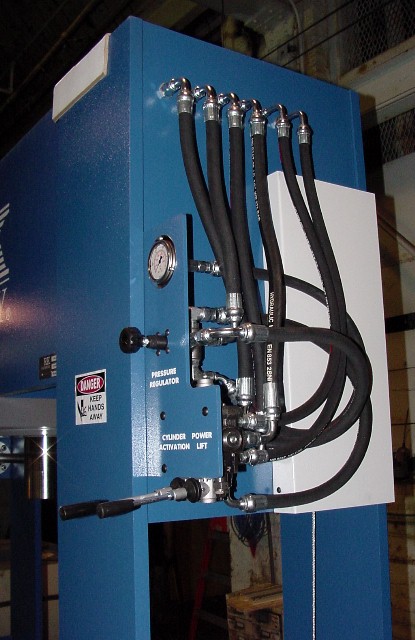

- CYLINDER ACTIVATION IS FINGER TIP CONTROLLED, THE MORE THE HAND LEVER

IS ENGAGED THE MORE THE RAM MOVEMENT INCREASES, ALLOWING THE OPERATOR TO

USE THE PROPER SPEED FOR THE TASK.

- DOUBLE-ACTION PERMITS PULLING AS WELL AS PRESSING RAM ACTION

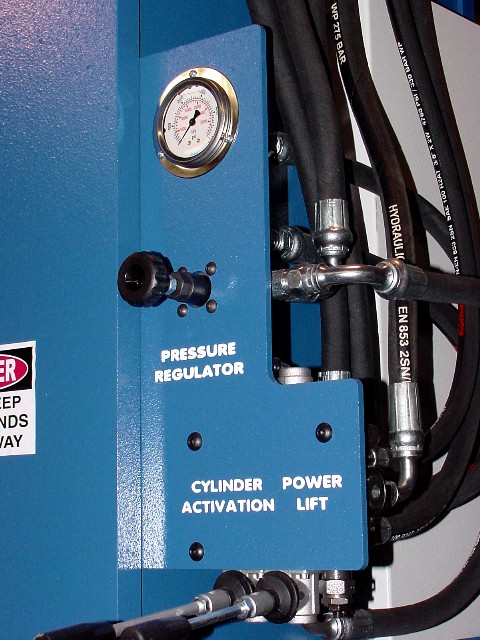

- PRESSURE REGULATOR - TO LIMIT RAM PRESSURE

- HYDRAULIC POWER LIFT TABLE - FOR EASY VERTICAL MOVEMENT OF TABLE.

- HEAVY DUTY STEEL STRUCTURE - ALL COMPONENTS ARE QUALITY U.S. OR CANADIAN PARTS

- TIE RODS WITH SELF LOCKING TABLE - ELIMINATES LATERAL MOVEMENT

- OPEN SIDES - FACILITATES WORK ON LONGER PIECES

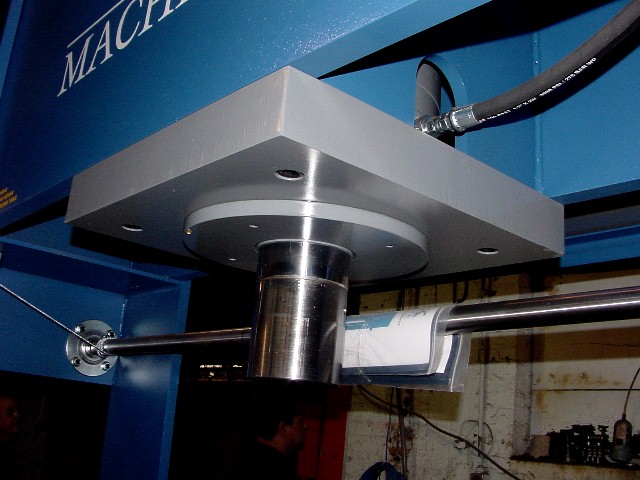

- FLAT RAM NOSE - ALLOWS THE USER TO ADAPT THE PRESS TO A SPECIFIC JOB.

- ELECTRIC/HYDRAULIC OPERATION - PROVIDING SMOOTH AND CONSISTENT PRESSING ACTION

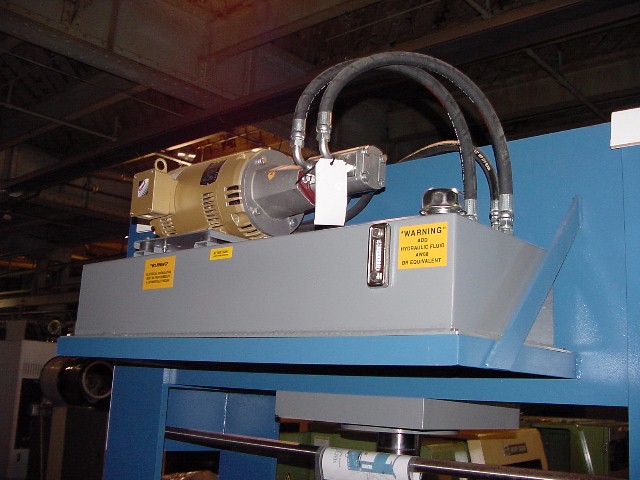

- BALDOR 10 HP, 3 PHASE, 208/230/460 VOLT LOW SPEED MOTOR

- LOW SPEED PUMP - PROVIDES QUIET AND DEPENDABLE OPERATION

- 20 GALLON OIL RESERVOIR.

- LOW PRESSURE HYDRAULIC SYSTEM - MAINTAINS LOWER OIL TEMPERATURE,

RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION.

- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY AND

READILY AVAILABLE THROUGHOUT NORTH AMERICA.

- FULL ONE YEAR WARRANTY.



AVAILABLE OPTIONS:

- V-BLOCKS ................................... $1,250 SET

- STOP / START & EMERGENCY STOP .............. $900

- FRONT OR BACK SAFETY GUARD ................. $900 EA

- SIDE SAFETY GUARD ..............(PER SIDE).. $600

- FOOT PEDAL ................................. $3,400

- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $5,000

- 24” STROKE CYLINDER ........................ $1,400

- PRESS PLATE ................................ $3,500

- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND

LEXAN GUARDING ............................... $7,600
