Roundo R9S ANGLE BENDING ROLLS

$89,500

Make:

Roundo

Model:

R9S

Year:

Ref #:

178149

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

---

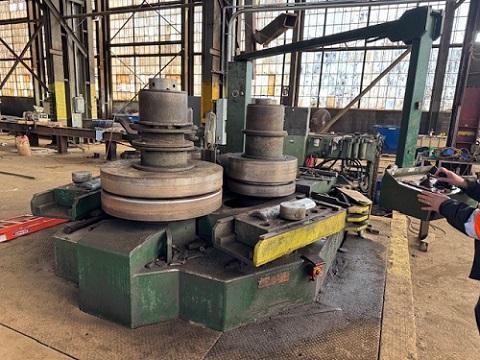

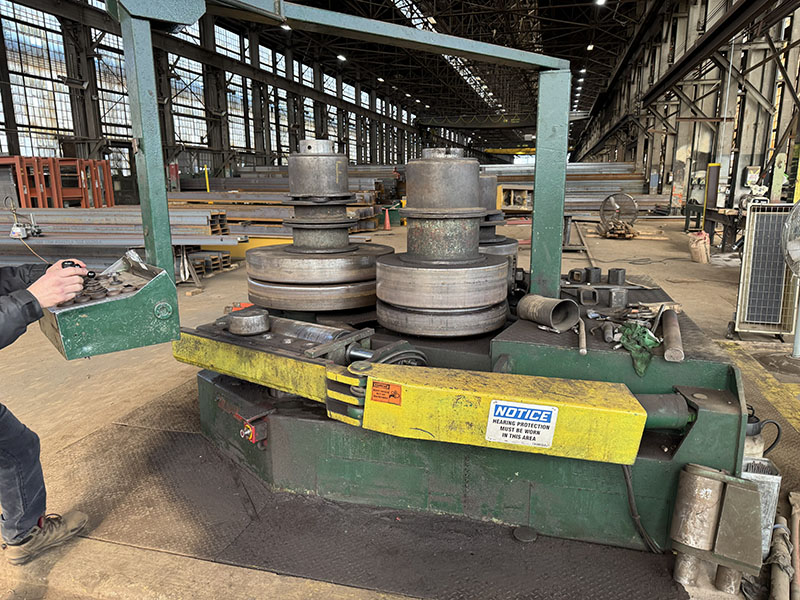

8" X 8" X 1" ROUNDO  HYDRAULIC ANGLE BENDING ROLL

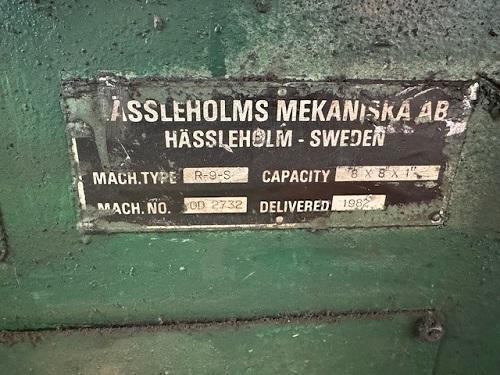

MODEL R9S        S/N OD2732       NEW 1982



ROLL DIAMETER .................... 29"



ANGLE IRON, LEG OUT .............. 8" X 8" X 1"

MIN. DIAMETER .................... 125"

ANGLE IRON, LEG IN ............... 8" X 8" X 3/4"

MIN. DIAMETER .................... 140"



ANGLE IRON, SMALLEST SIZE ........ 3" X 3" X 1/4"

FLAT IRON, ON FLAT ............... 3" X 15"

FLAT IRON, ON EDGE ............... 2-1/4" X 8"

MIN. DIAMETER .................... 80"



T IRON, LEG OUT .................. WT8" X 50"

                                   WT7" X 141.5"

T IRON, LEG IN ................... WT8" X 50"

                                   WT7" X 116.5"



I BEAM & CHANNEL ................. 18"WF



SQUARE BAR ....................... 6"

ROUND BAR ........................ 6"

PIPE ............................. 9"

MIN. DIAMETER .................... 120"



FLOOR SPACE ...................... 110" X 165"

APPROX. WEIGHT ................... 50,000 LBS.



MOTOR HP ......................... 75 / 220 / 440 V



EQUIPPED WITH:

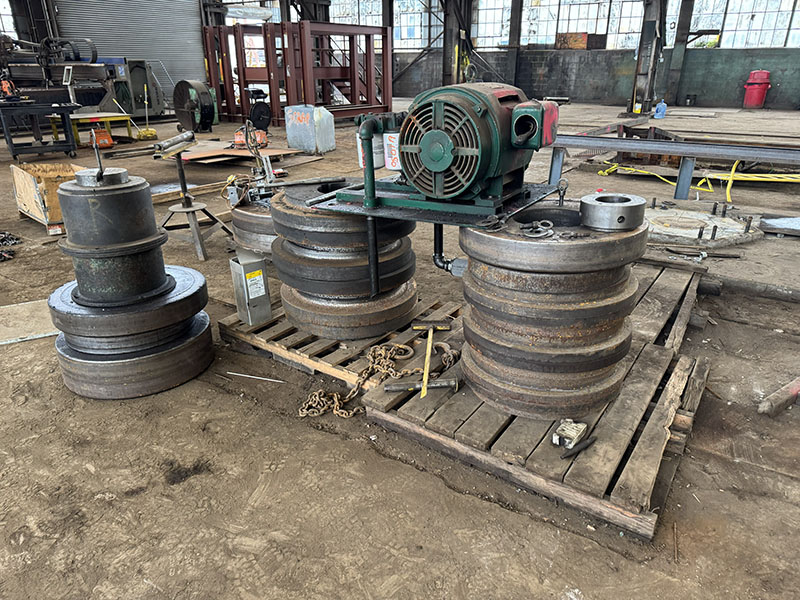

- LARGE AMOUNT OF MISC. DIES

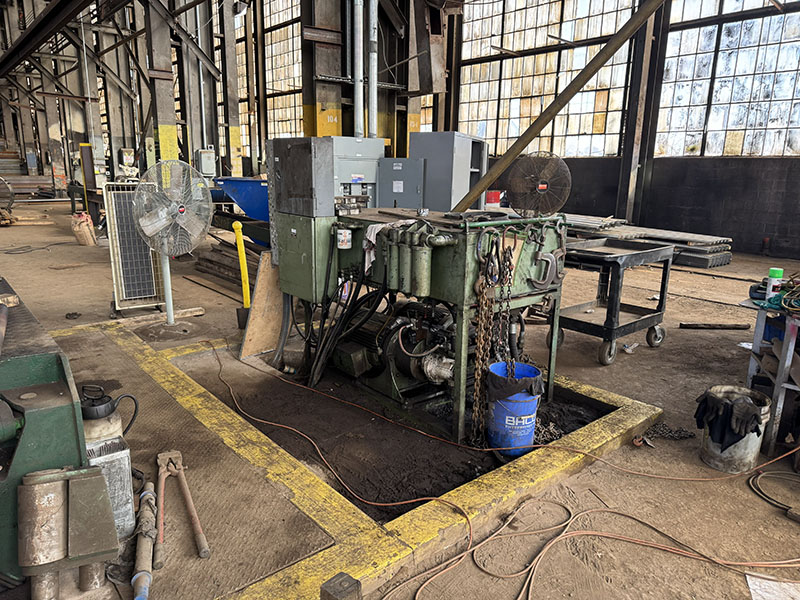

- HYDRAULIC MOTOR WITH BUILT IN BRAKE & CONTROLS

PROVIDING INFINITELY VARIABLE SPEEDS 3 PH / 60 HZ / 220 / 440

- HYDRAULICALLY OPERATED AND POWERED ADJUSTMENT OF LOWER ROLLS

- SIX-DIRECTIONAL HYDRAULICALLY OPERATED AND POWERED GUIDE ROLLS

- REMOTELY OPERATED PUSH BUTTON CONTROLS WITH EMERGENCY STOP
