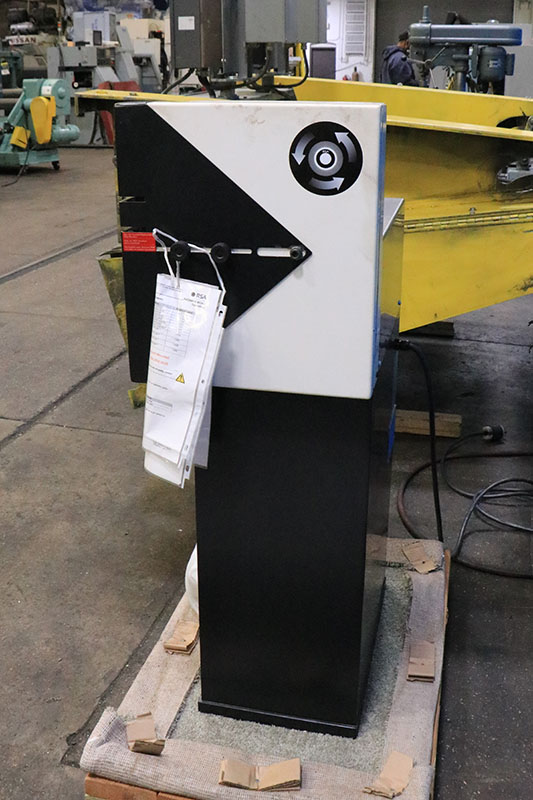

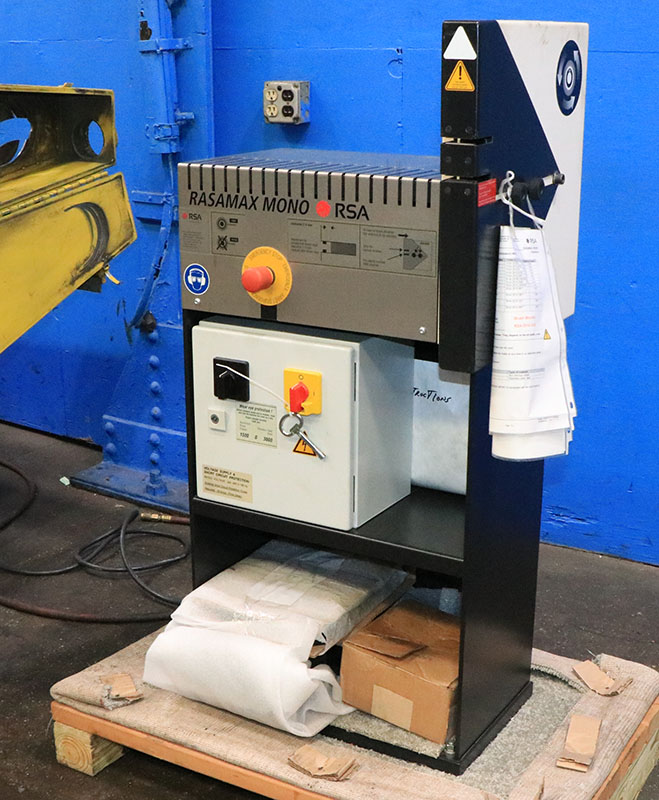

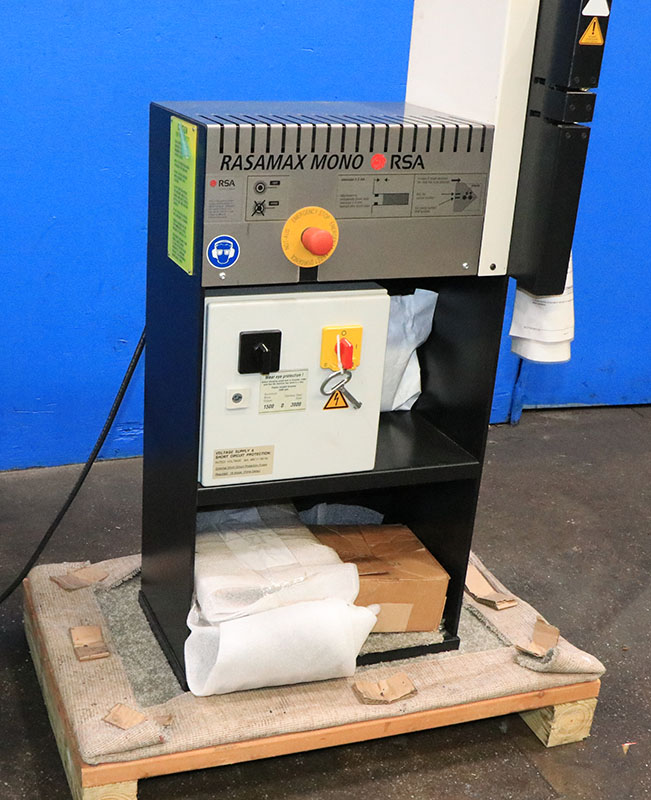

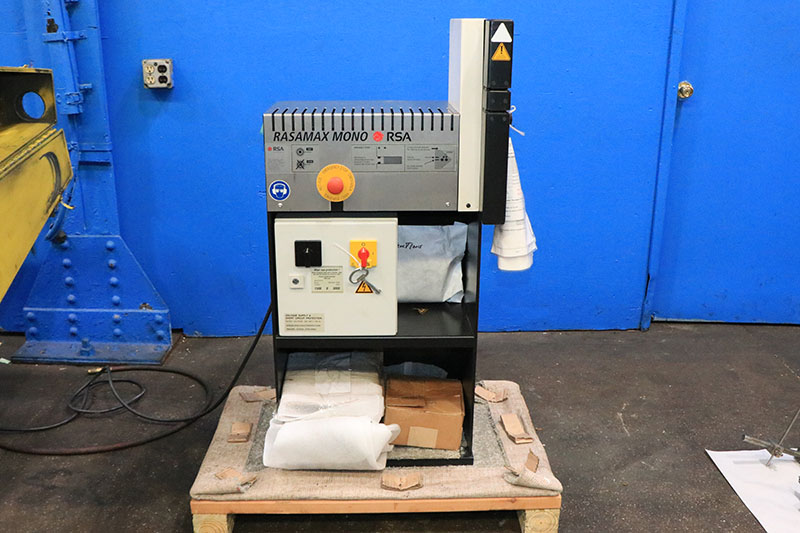

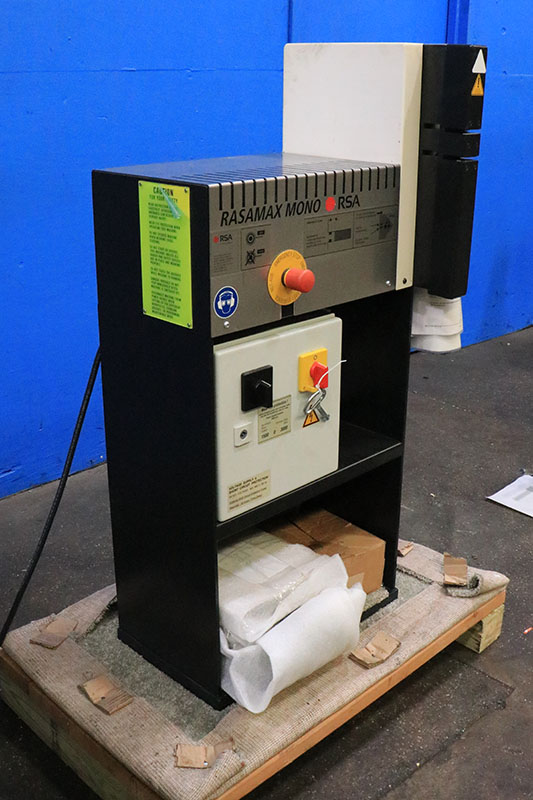

RSA RASAMAX MONO DEBURRING MACHINES, BRUSH TYPE

Price on Request

Make:: RSA

Model:: RASAMAX MONO

Year:: 2017

Ref #:: 178234

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

HEAVY DUTY DEBURRING MACHINE
MODEL: RASAMAX MONO

THIS MODERN, HEAVY-DUTY MACHINE IS DESIGNED FOR EDGE DEBURRING
OF STEEL AND NON-FERROUS SHEET METAL.  THE SHEET METAL IS GUIDED
INTO THE BRUSH BY THE OPERATOR. AS IT PASSES ACROSS THE BRUSH,
THE SHEET METAL EDGE IS DEBURRED

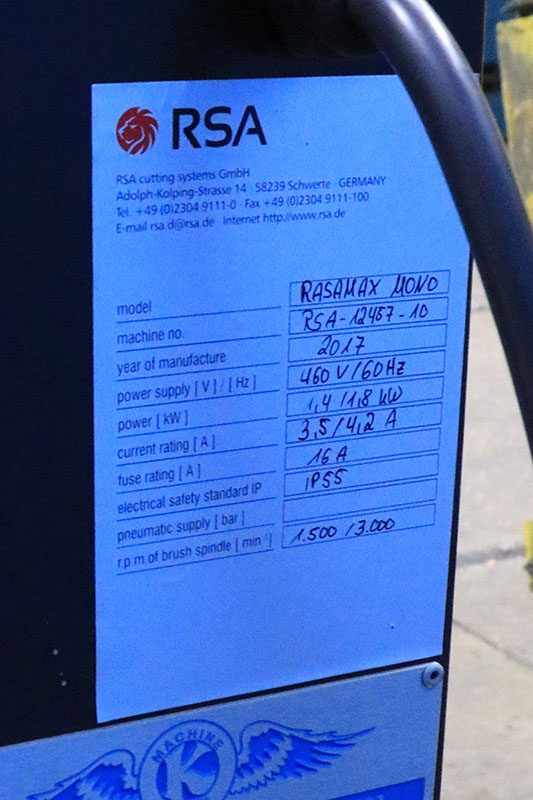

TECHNICAL SPECIFICATIONS:
MODEL:........................... MONO
BRUSH DIAMETER:.................. (250mm) 10"
BRUSH WIDTH:..................... (15mm) 19/32"
MAXIMUM WORKPIECE THICKNESS:..... (6MM) .236"
DEBURRING SPEEDS:................ 1800/3600 RPM
DRIVE MOTOR:..................... 1.4/1.8 KW
ELECTRICALS:..................... 460 VOLT, 3 PH, 60 HZ

DESCRIPTION:

THE DEBURRING MACHINE IS MOUNTED ON A STURDY STEEL BASE WITH SHELVING
PROVIDED TO STORE TOOLS AND BRUSHES.

ADJUSTMENT IS PROVIDED FOR BRUSH WEAR.

THE SHEET METAL WHICH IS TO BE DEBURRED IS MANUALLY PASSED ALONG
THE FACE OF THE ROTATING BRUSH.  BY GENTLY PRESSING AGAINST THE
BRUSH, THE SHEET METAL IS DEBURRED.

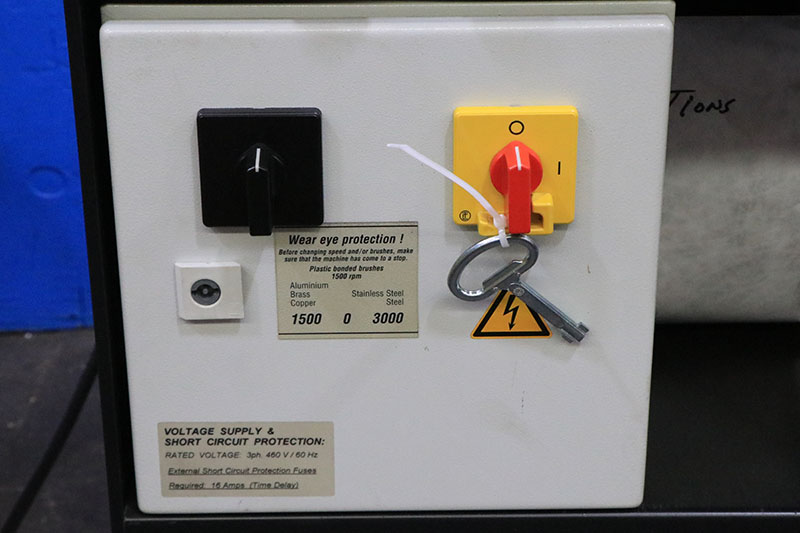

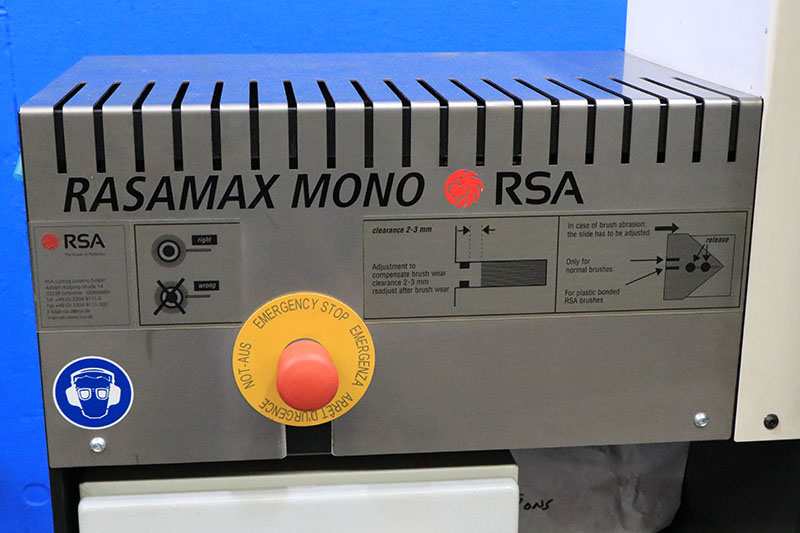

THE BRUSH DRIVE MOTOR IS TOTALLY ENCLOSED.  SELECTOR SWITCH FOR THE
DEBURRING SPEEDS IS CONVENIENTLY LOCATED.
