Rush 252S, 1996, AIR-POWERED WORKHEAD, 6-JAW CHUCK DRILL GRINDERS

Price on Request

Make:: Rush

Model:: 252S, 1996, AIR-POWERED WORKHEAD, 6-JAW CHUCK

Year:: 1990

Ref #:: 179368

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

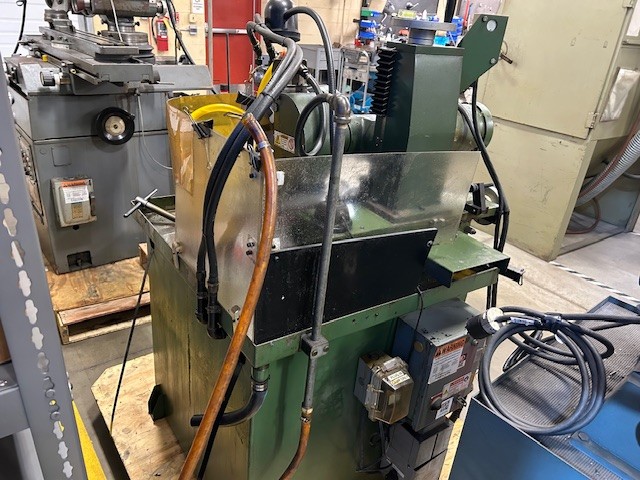

         RUSH DRILL GRINDER
** AIR-POWERED "SEMI-AUTO" WORKHEAD **

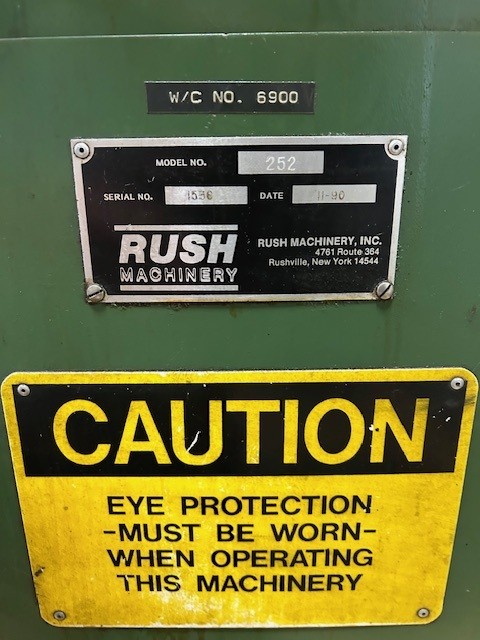

MODEL: 252S   S/N: 1536  NEW: 1990

** CAN DO ODD-FLUTED TOOLS (1, 3, 5, & 7) AS WELL AS
   EVEN-FLUTED TOOLS 2, 4, 6,& 8).  THIS IS ACHEIVED
   WITH THE USE OF A UNIQUE DUAL-CAM WORKHEAD.
   THE INNER CAM DRUM IS TURNING @ A 2:1 GEAR RATIO
   TO GRIND EVEN-FLUTED TOOLS.  THE OUTER DRUM IS
   TURNING @ A 1:1 RATIO FOR ODD-FLUTED TOOLS.

CAPACITY ........................ 3/32" TO 2"
                                 STRAIGHT OR TAPER SHANK
DRILL POINT ANGLES .............. 40° TO 180°
MOTOR ........................... 1/2 H.P.

DIMENSIONS ...................... 44"W x 42"D x 53"H
APPROX. MACHINE WEIGHT .......... 590 LBS.

EQUIPPED WITH:
"SEMI-AUTOMATIC" OPTION - WORKHEAD IS AIR POWERED
  FOR ROTATION AND CAM ACTION.  THIS FEATURE CAN
  BE DISENGAGED FOR MANUAL OPERATION.

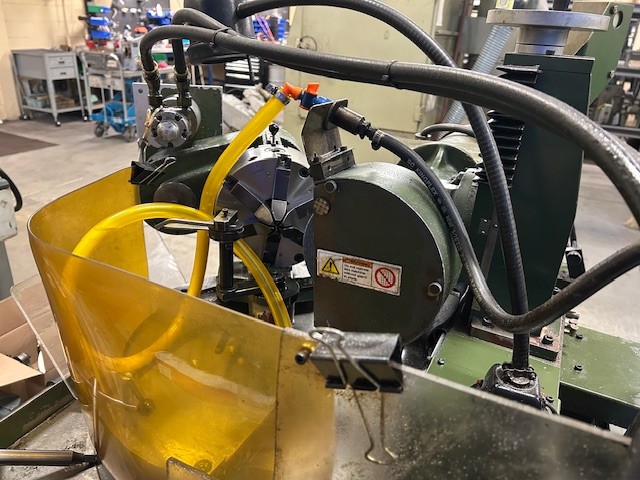

SELF-CENTERING 6-JAW CHUCK
CABINET BASE
SET-UP FOR COOLANT
ACCESSORIES

** EXCELLENT CONDITION (ORIGINAL PAINT) **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE*
