Scotchman 9012-24M IRONWORKERS

$18,500

Make:: Scotchman

Model:: 9012-24M

Year:: 2003

Ref #:: 179408

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

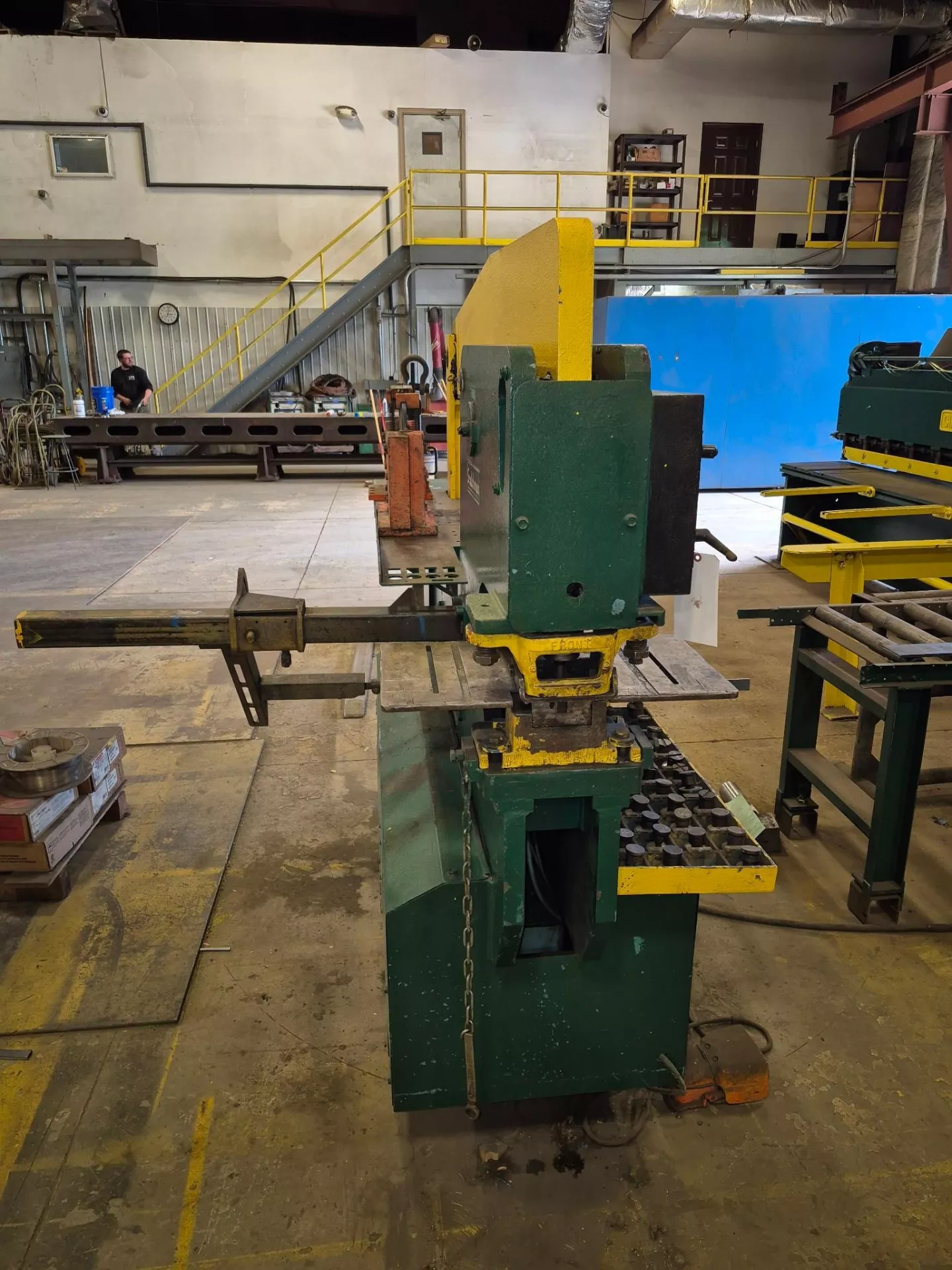

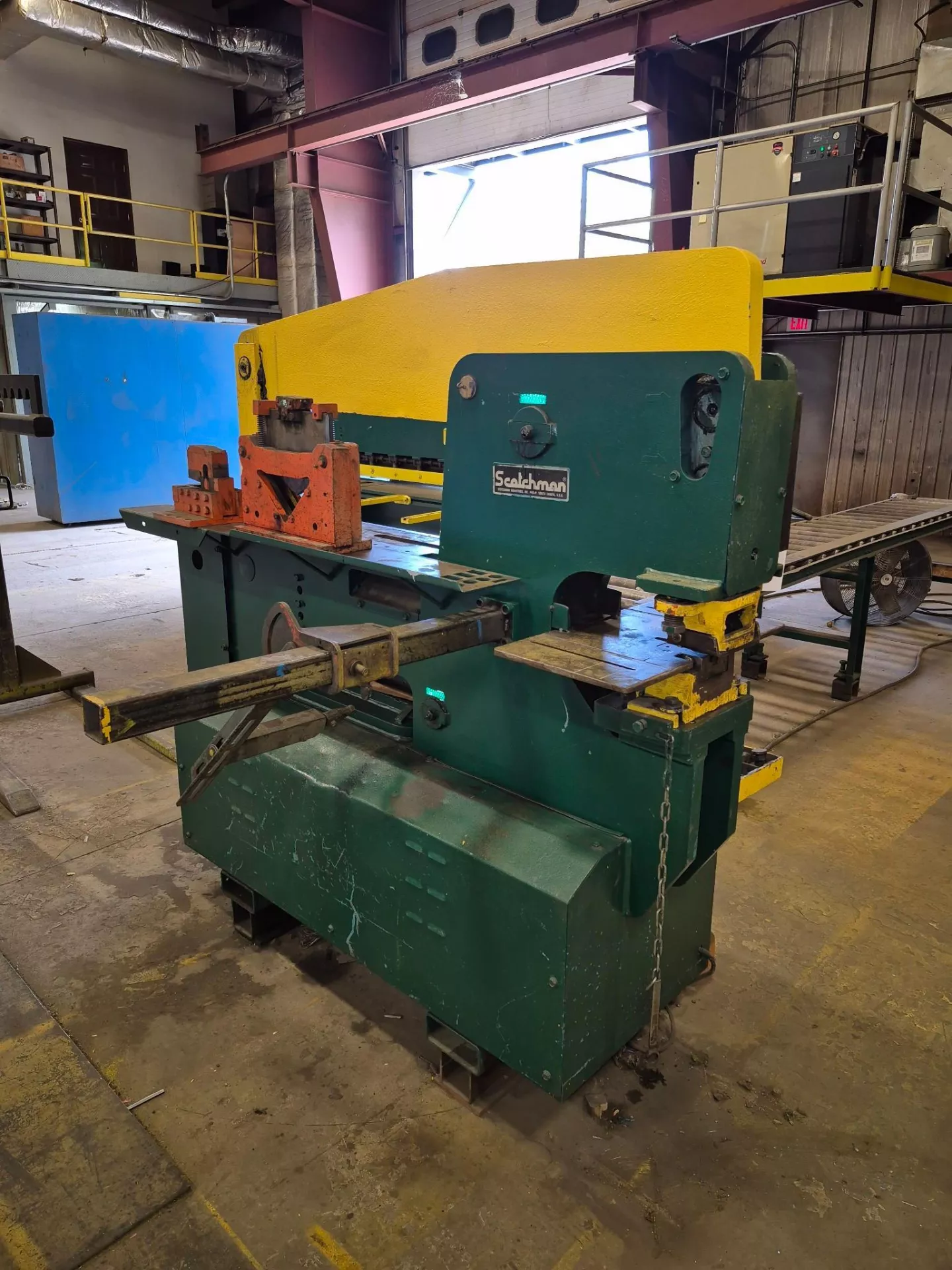

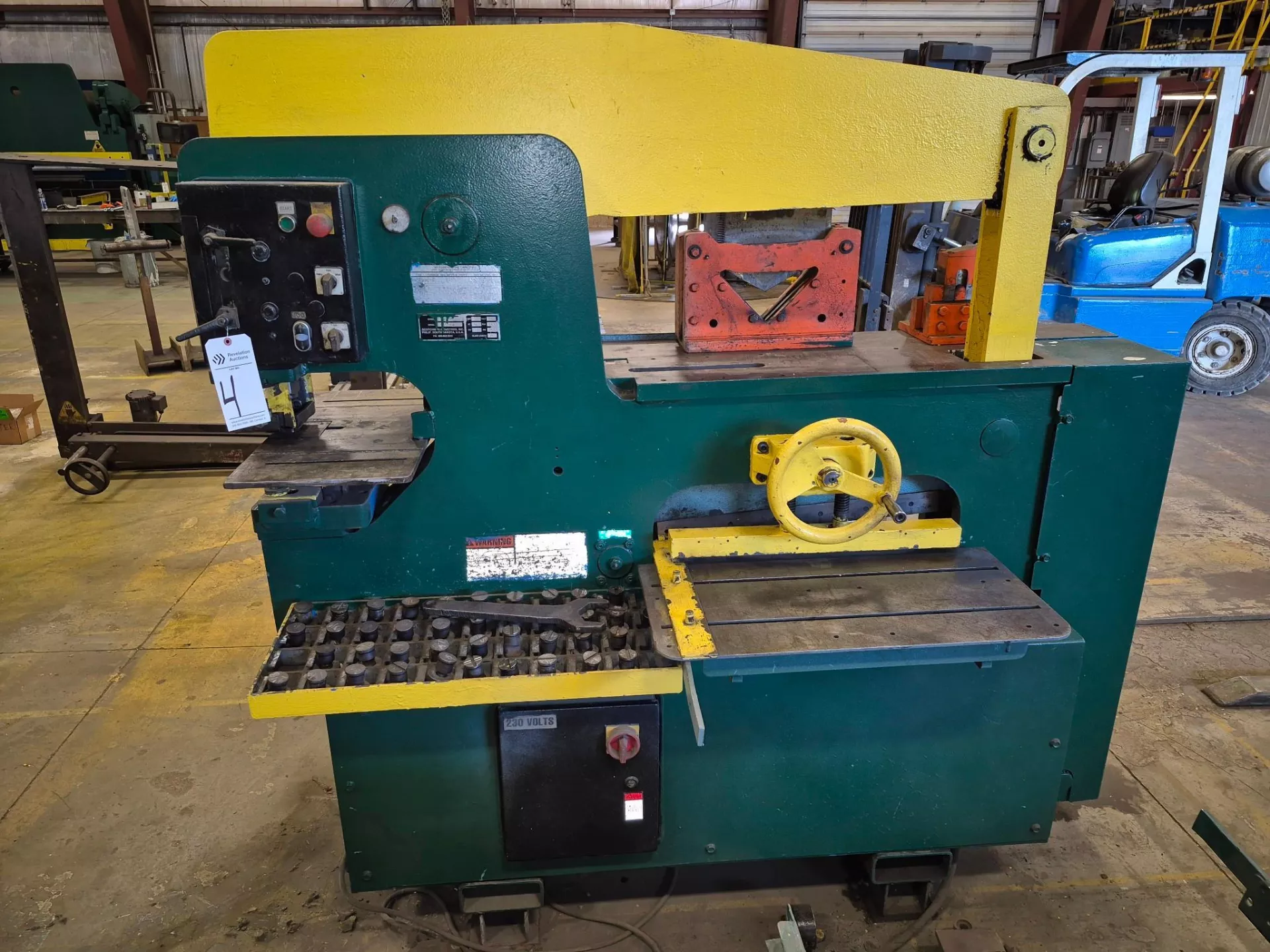

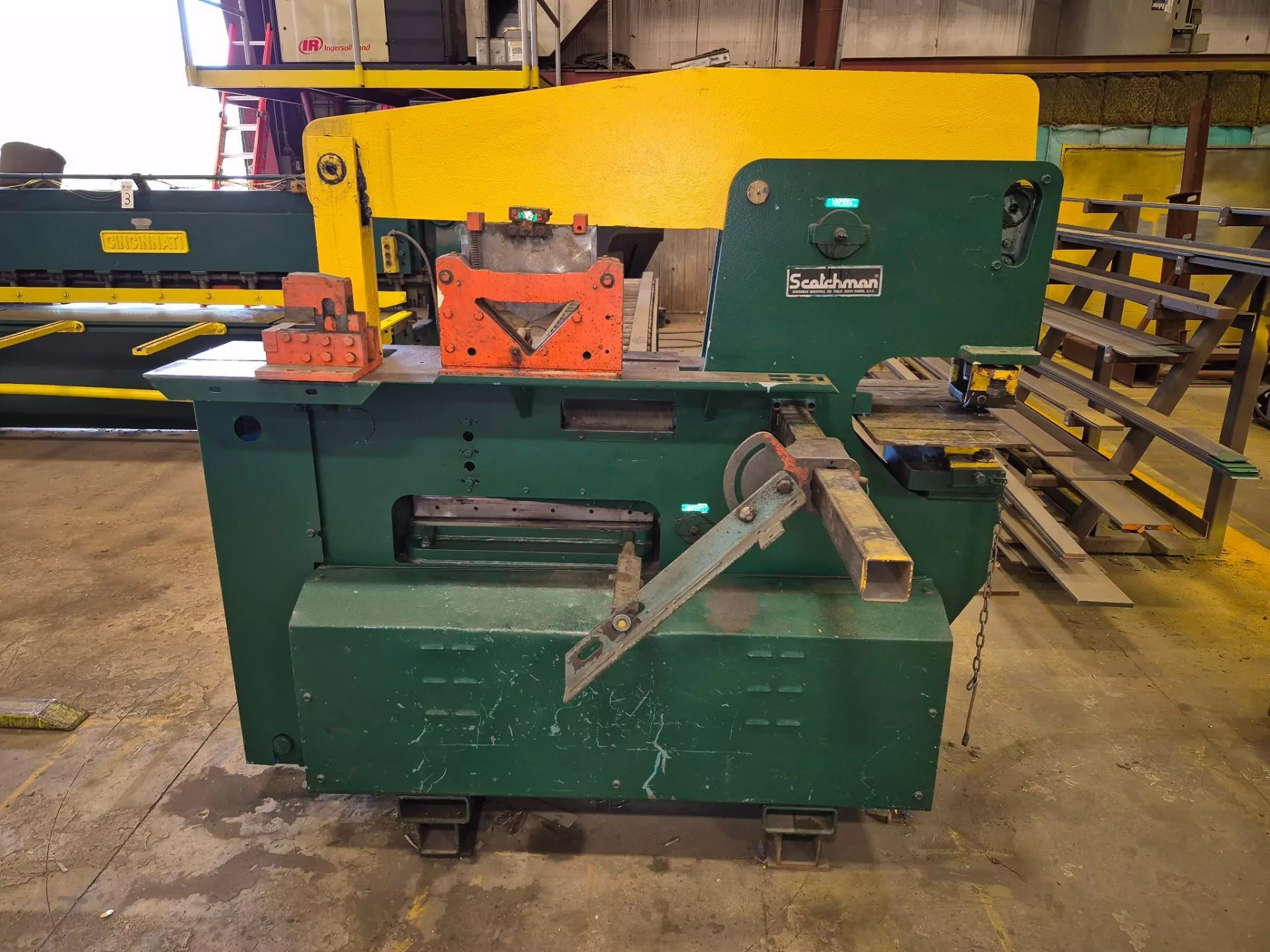

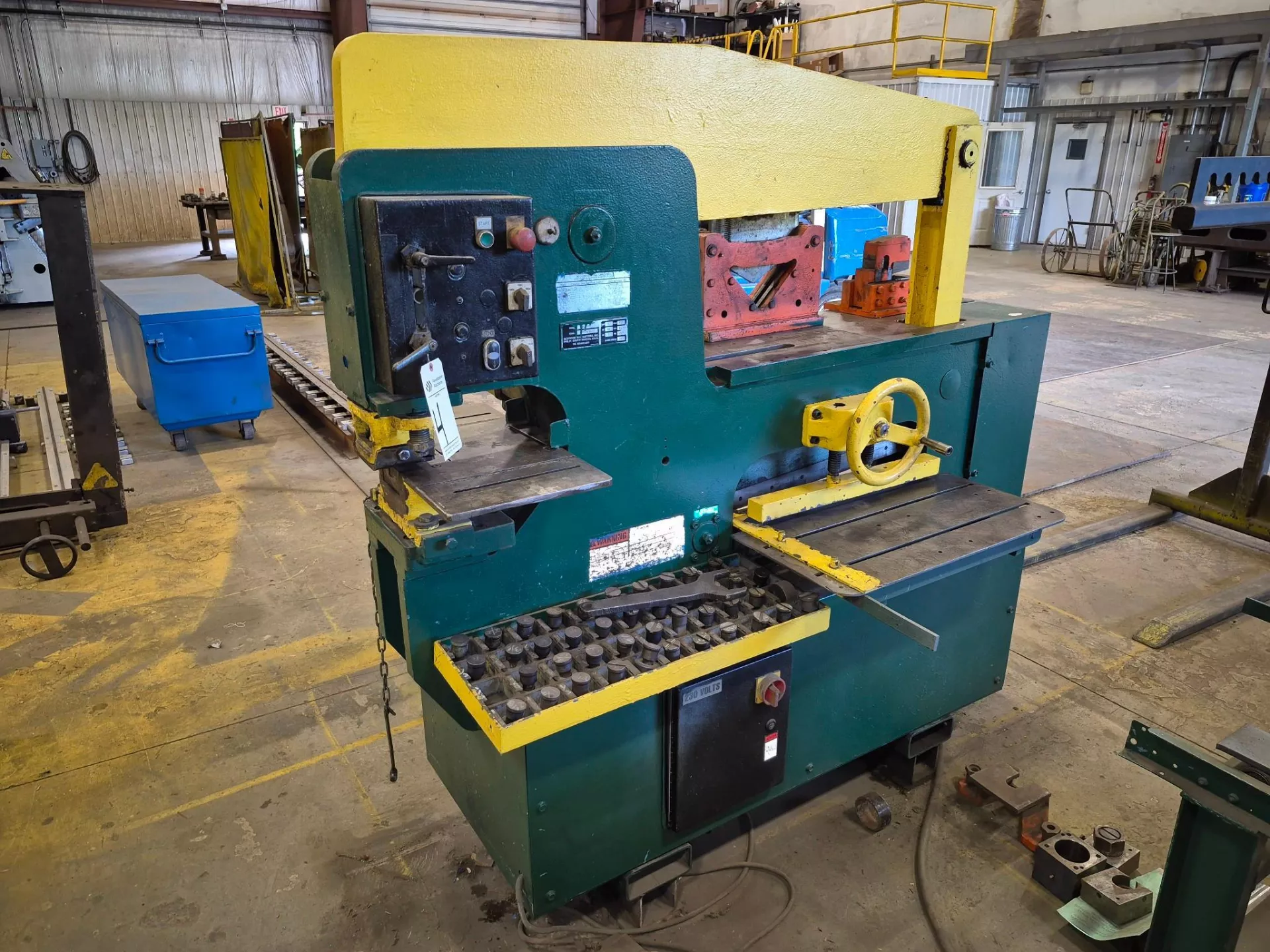

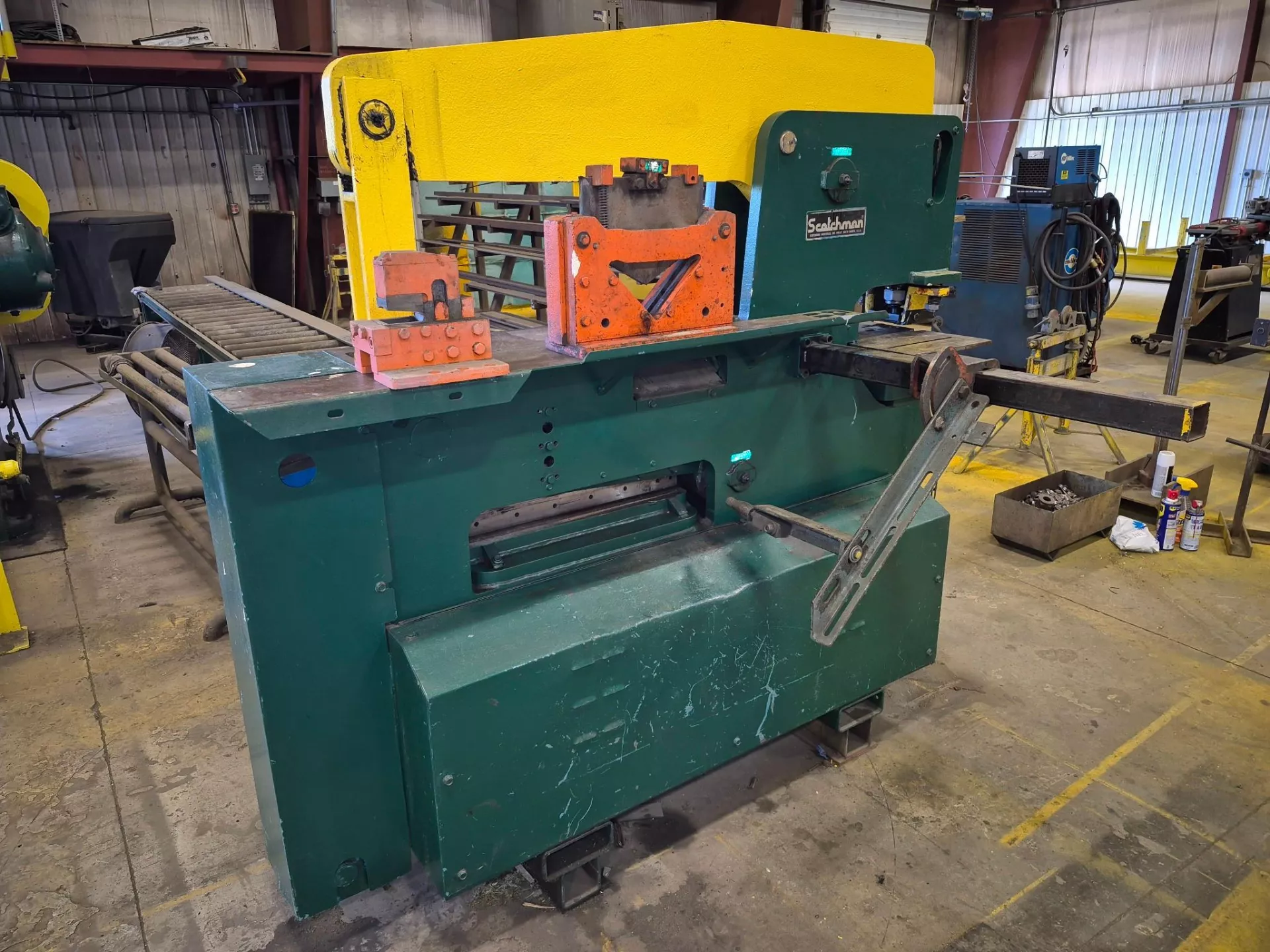

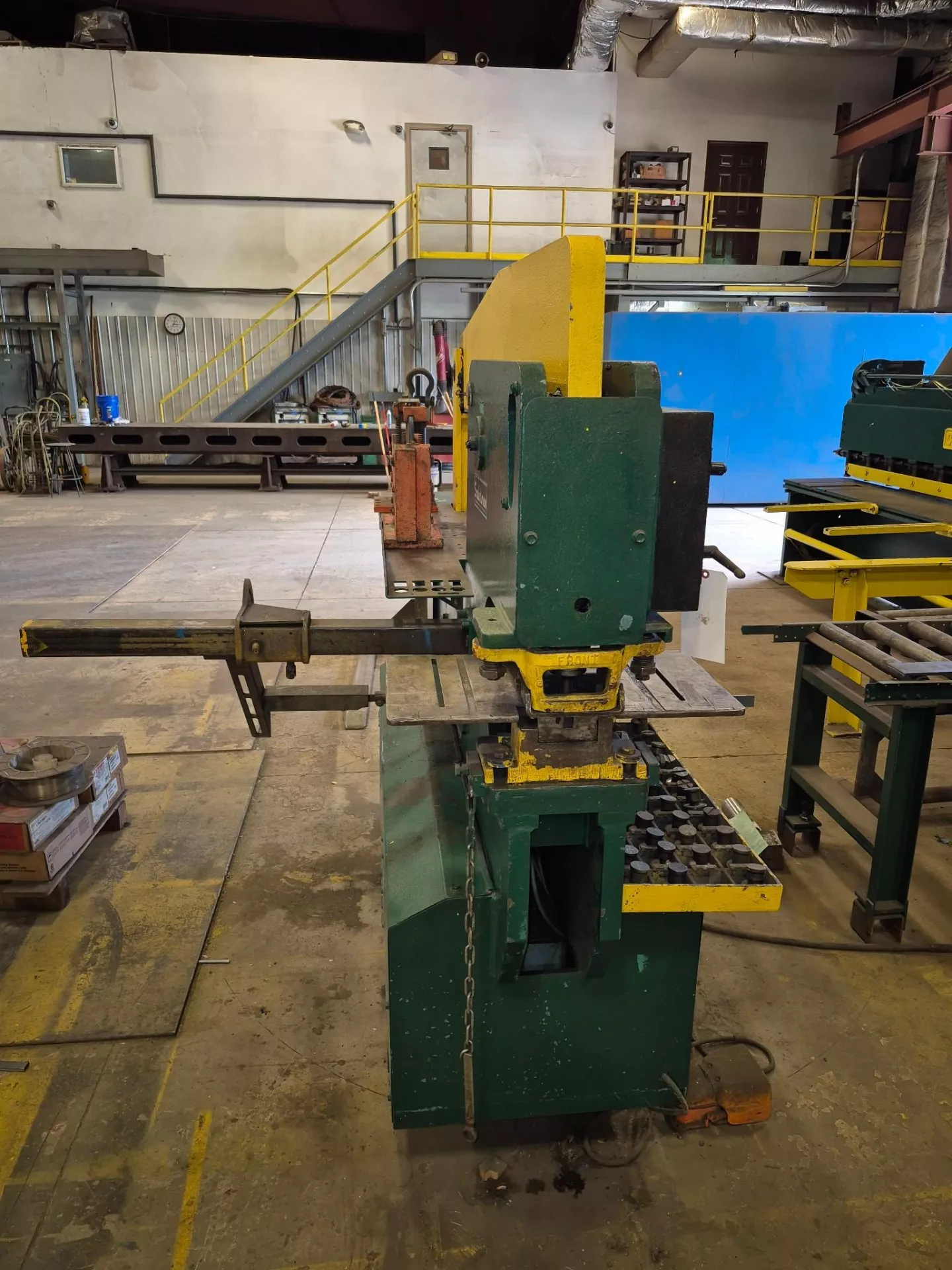

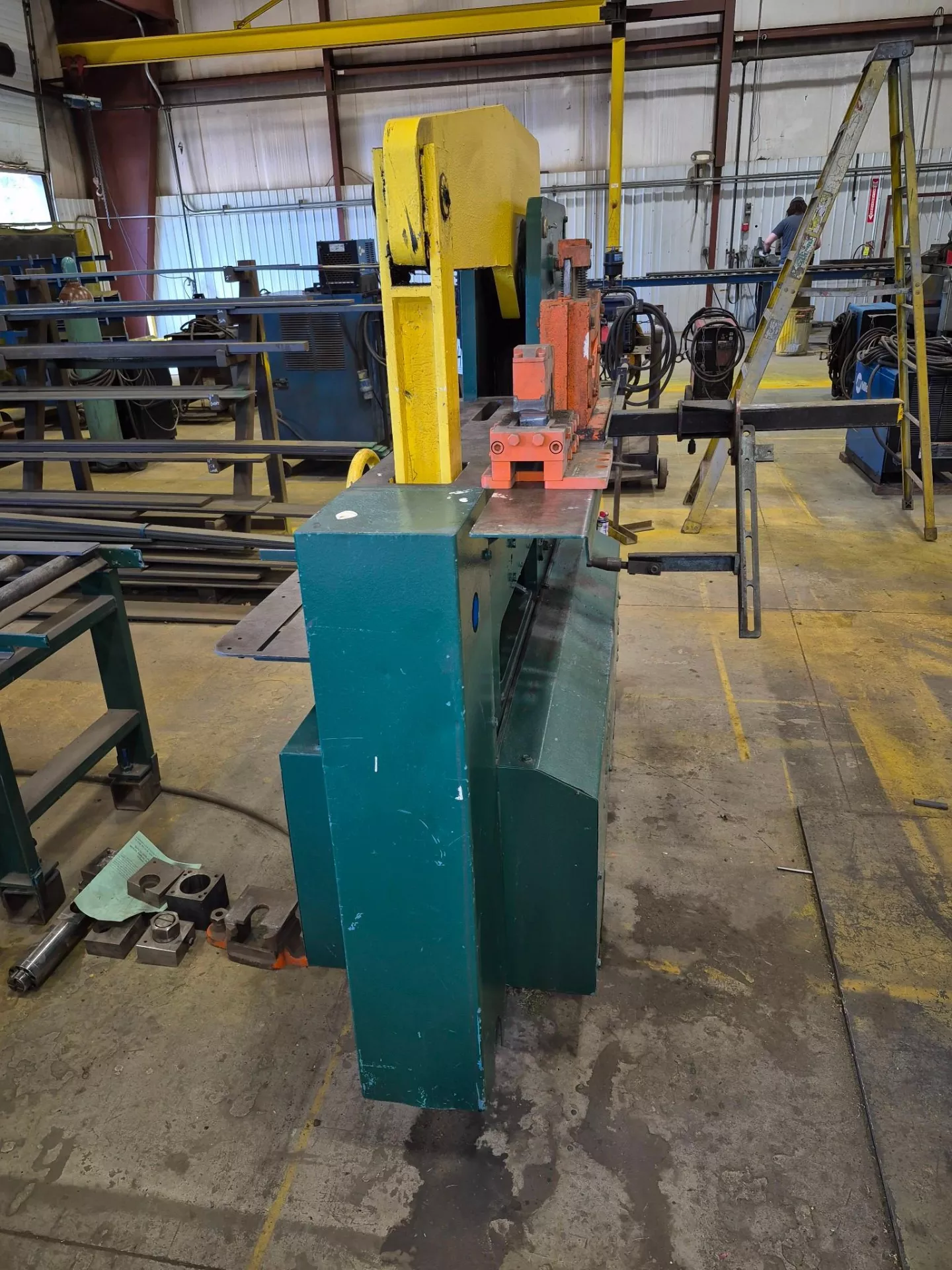

90 TON SCOTCHMAN HYDRAULIC IRONWORKER

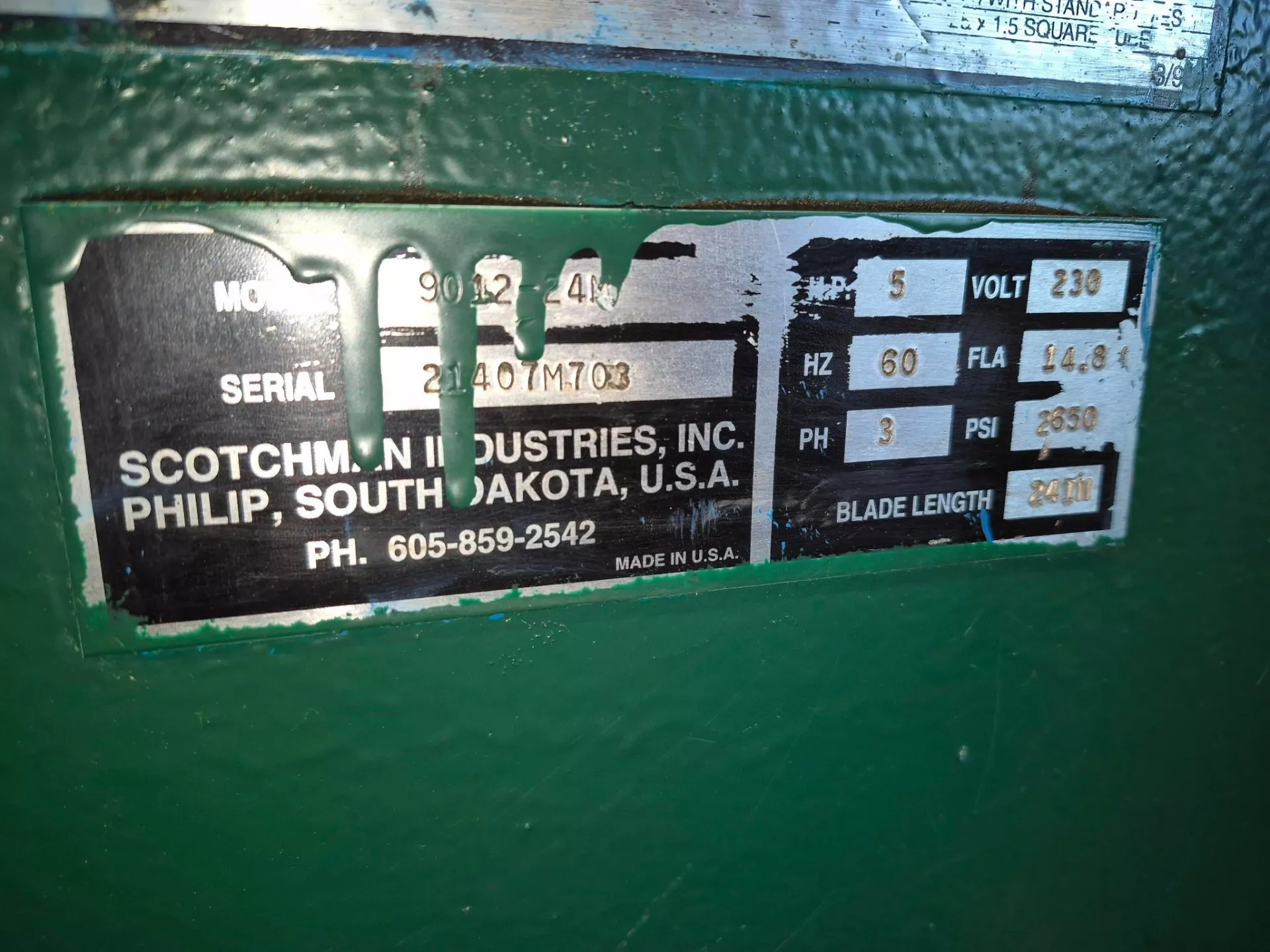

MODEL 9012-24M     S/N 21407M703     NEW 2003

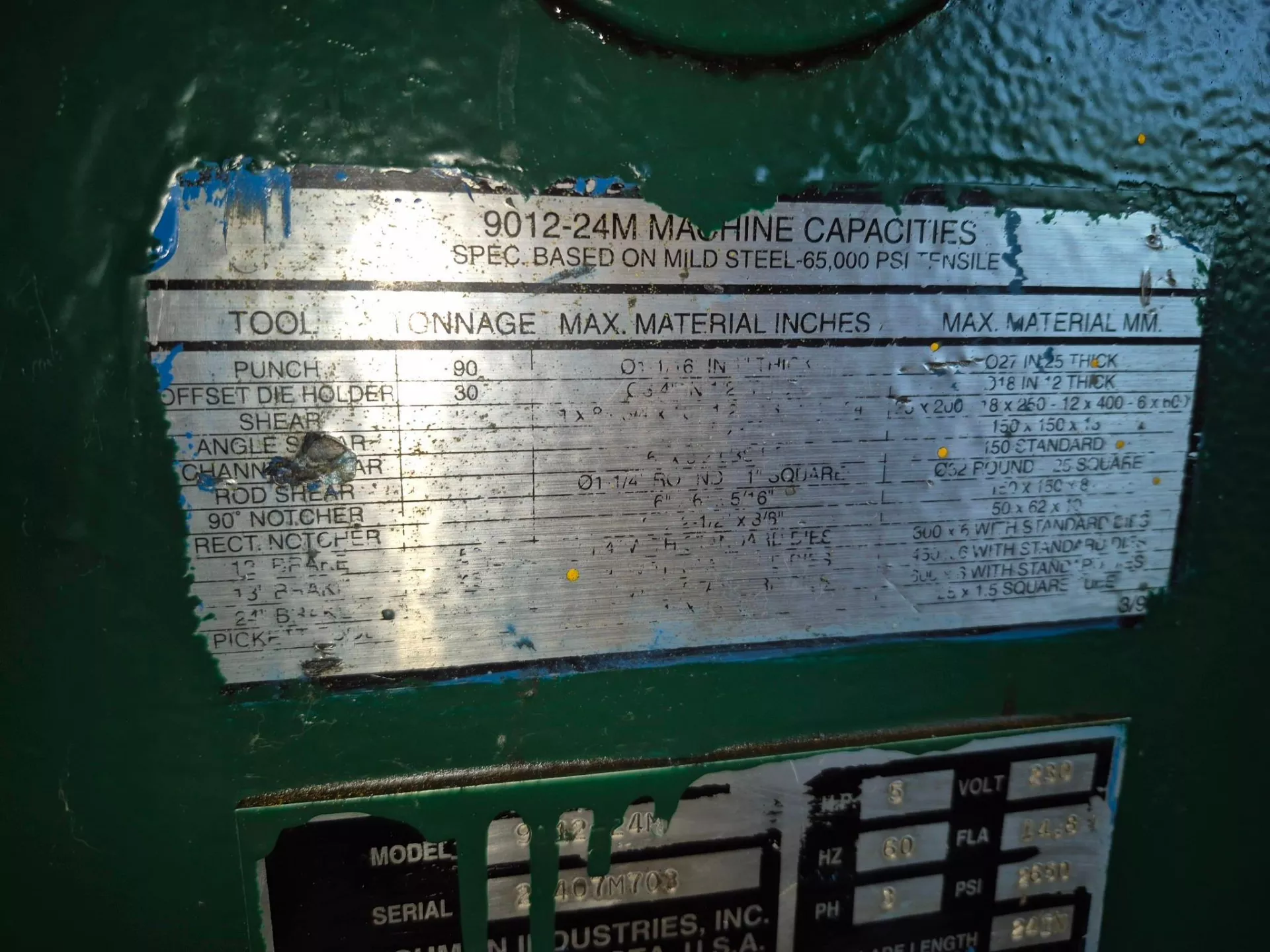

PUNCHING CAPACITY ................... 90 TONS
                                      1-1/8 IN 1"
THROAT DEPTH ........................ 12"
OPT. SABER BLADE..................... 1/2" X 22"
                                      3/8" X 24"
OFFSET DIE HOLDER.................... MAX. 40 TON
OPEN END BRAKE....................... MAX. 1/4" X 6"
                                      FLAT OR ANGLE IRON
SPECIAL TOOLING ..................... 4" IN MAX. DIA.

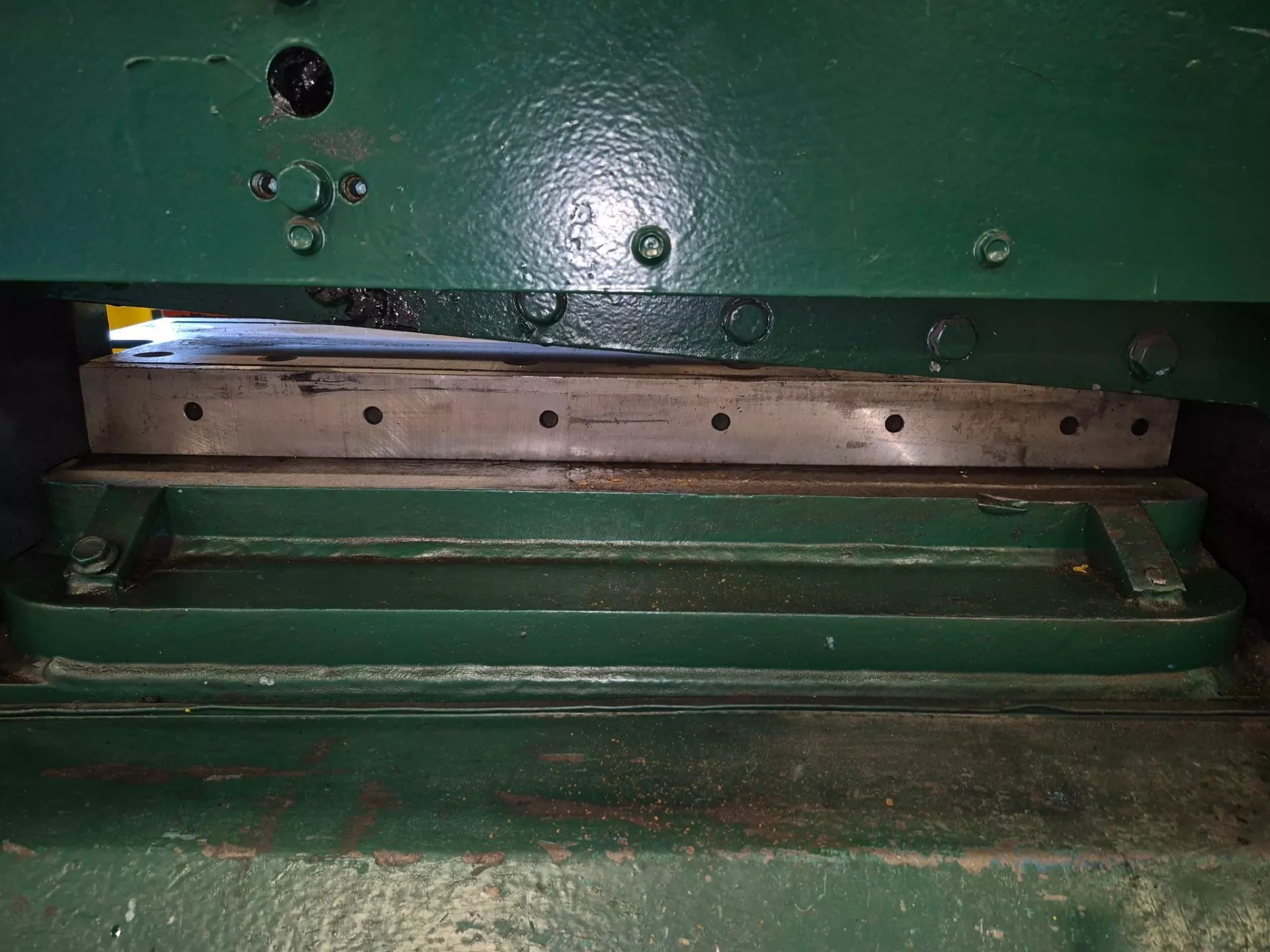

FLAT BAR SHEAR ...................... 24" LENGTH
                                      1" X 8"
                                      3/4" X 12"
                                      1/2" X 16"
                                      1/4" X 24"

ANGLE SHEAR 90 DEGREES .............. 6 X 6 X 1/2"
ANGLE SHEAR 45 DEGREES .............. 4 X 4 X 1/2"

TUBE SHEAR........................... 1/2" TO 2", 16 GA.
CHANNEL SHEAR ....................... 2" TO 6" ADJ.
PICKETT TOOL ........................ 1/2", 3/4" AND 1"

ROD SHEAR:
ROUND ............................... 1/4" TO 1-1/4"
                                      9 CAV.
SQUARE .............................. 1/4" TO 1", 1 CAV.
90 V.NOTCHER ........................ 6" X 6" X 1/2"
RECTANGLE NOTCHER ................... 2" X 2-1/2" X 3/8"
PIPE NOTCHING ....................... 3/4", 1", 1-1/4",
                                      1-1/2", 2"
BRAKE 12" ........................... 50 TON
BRAKE 24" ........................... 40 TON
DYDRAULICS .......................... 2,500 PSI

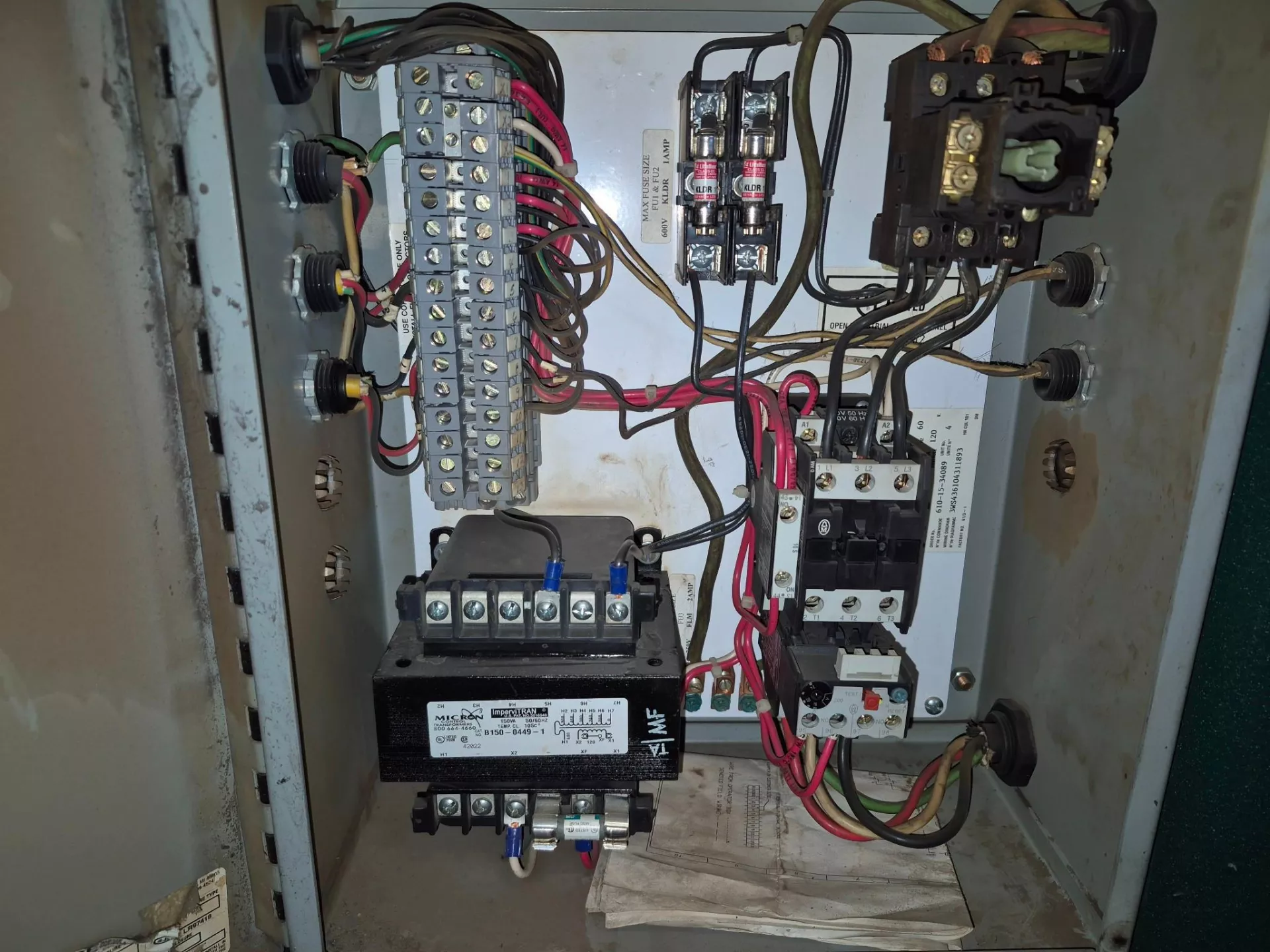

MOTORS:
STANDARD............................. 230/460 5 HP 3 PH
OPTIONAL............................. 230 5 HP 1 PH

DIMENSIONS .......................... W-26" X L-76" X H-70"
WEIGHT .............................. 4,200 LBS.

EQUIPPED WITH:
- ANGLE SHEAR
- NOTCHER

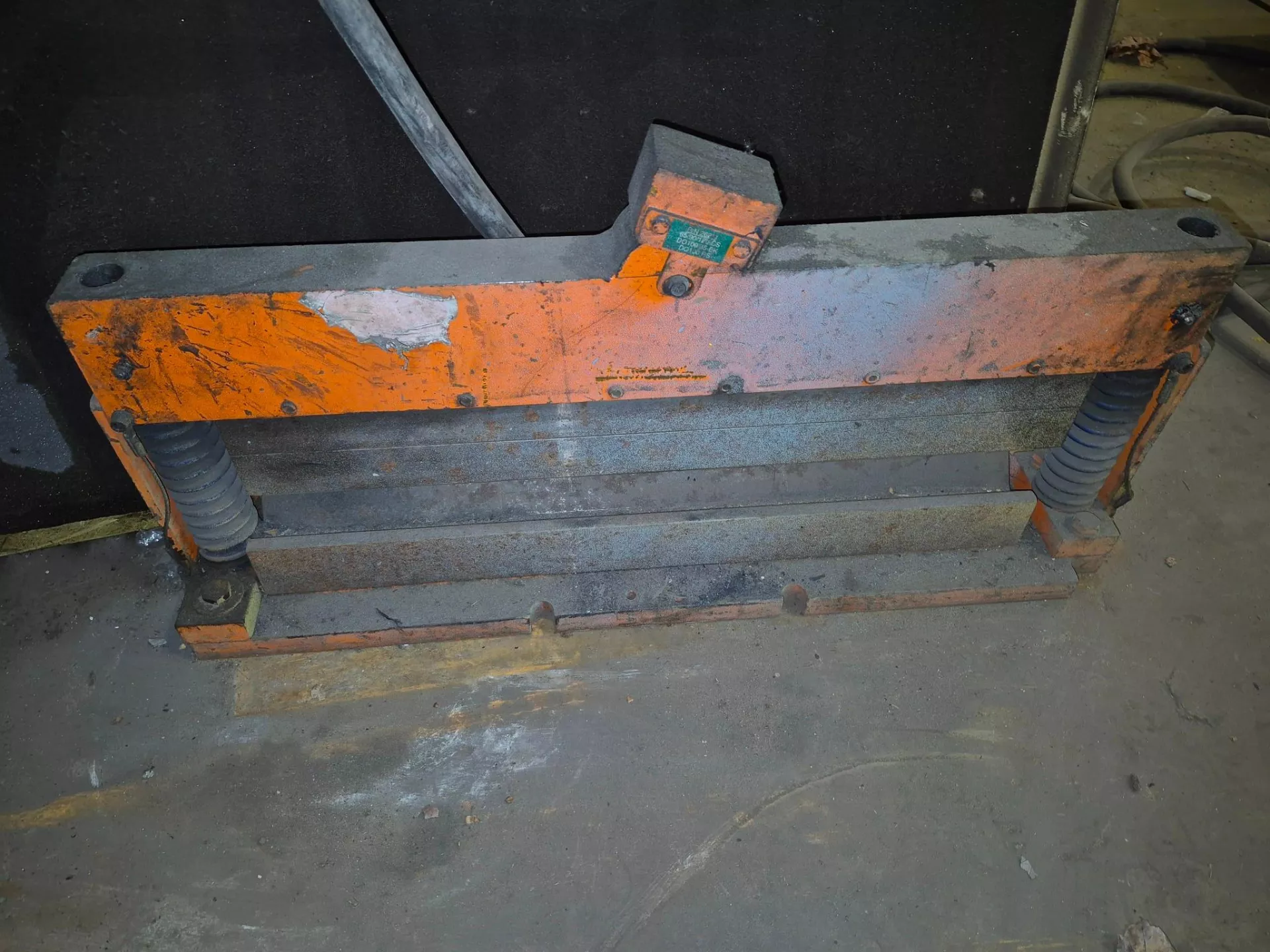

- BRAKE

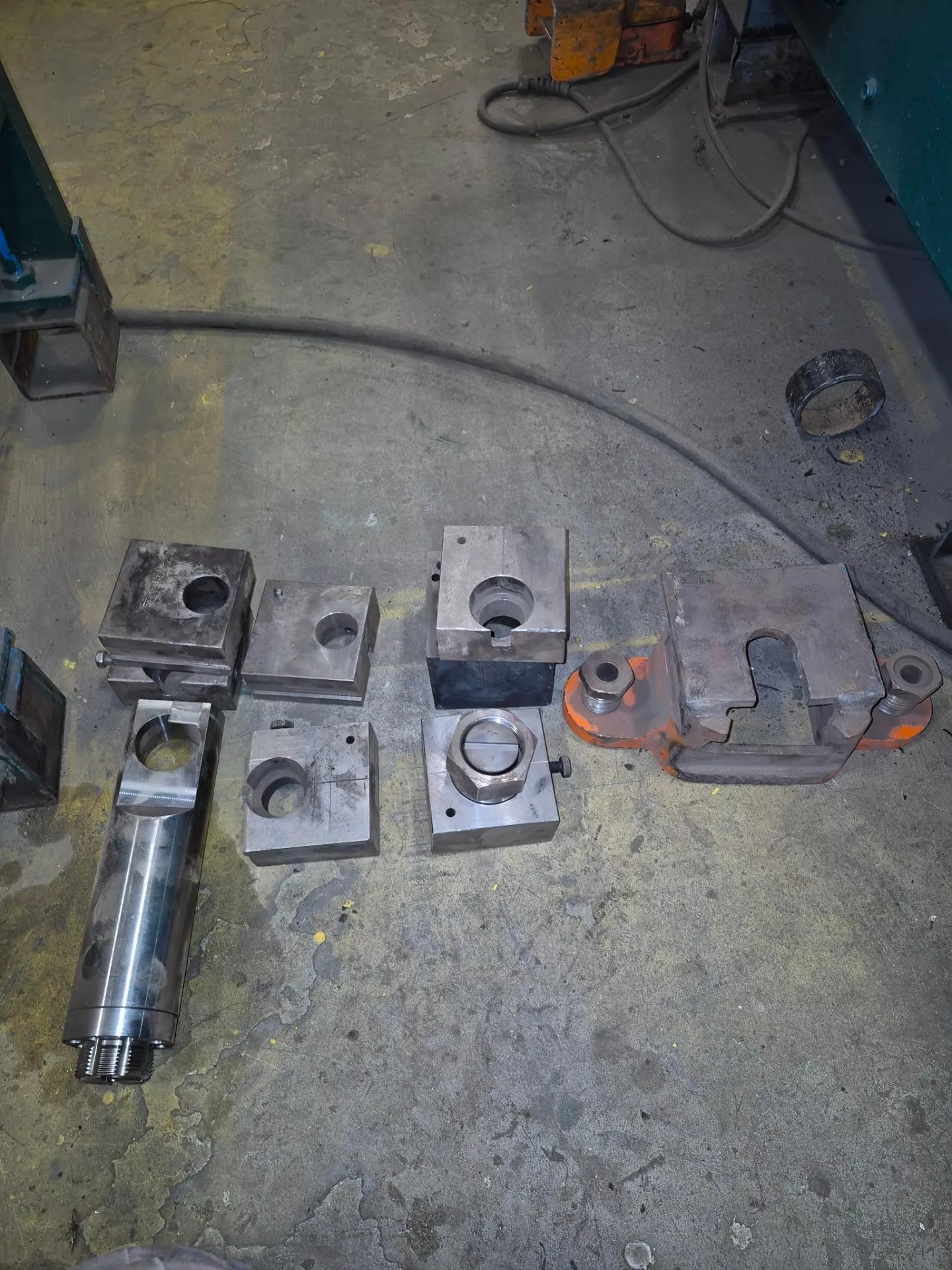

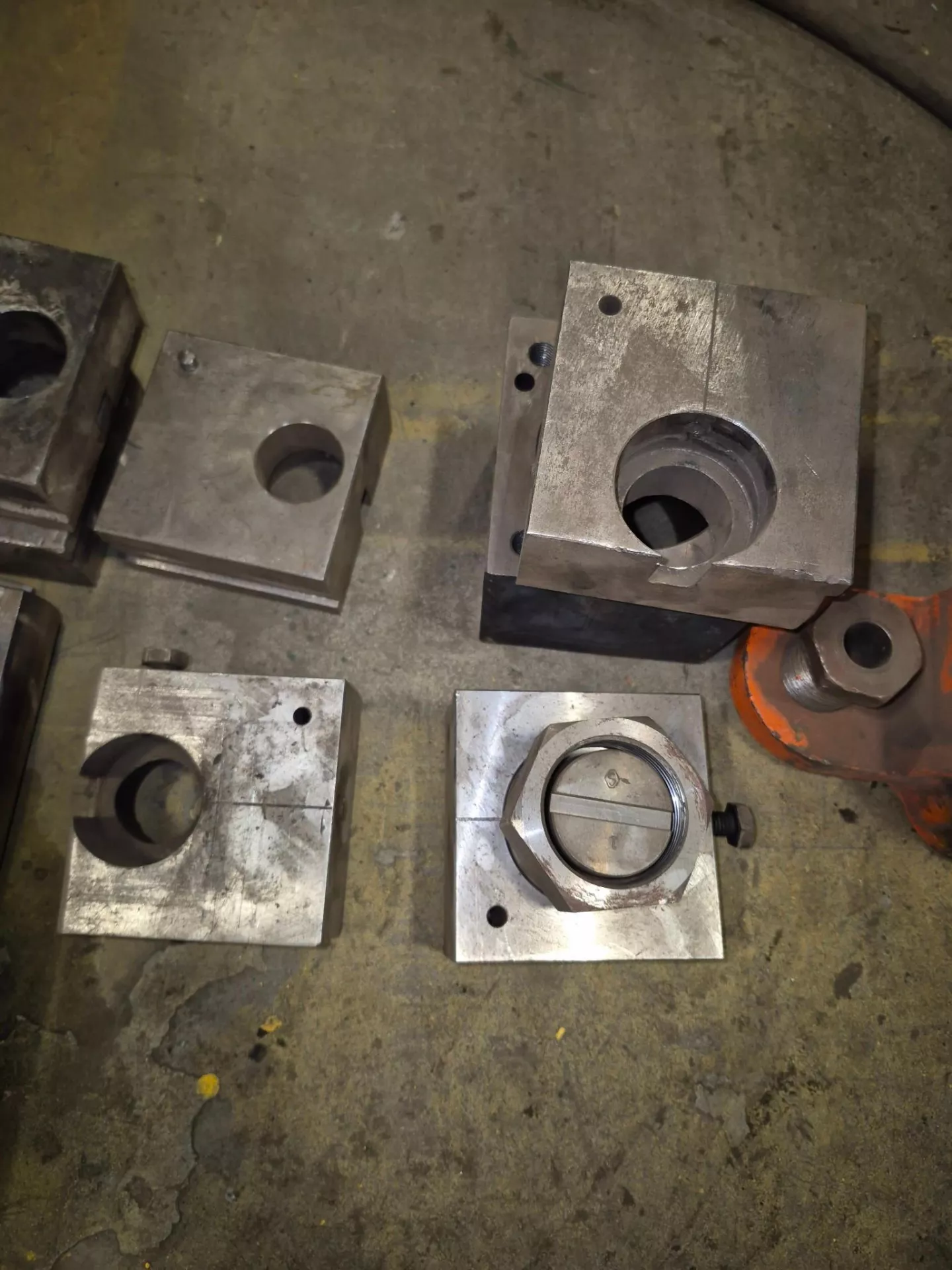

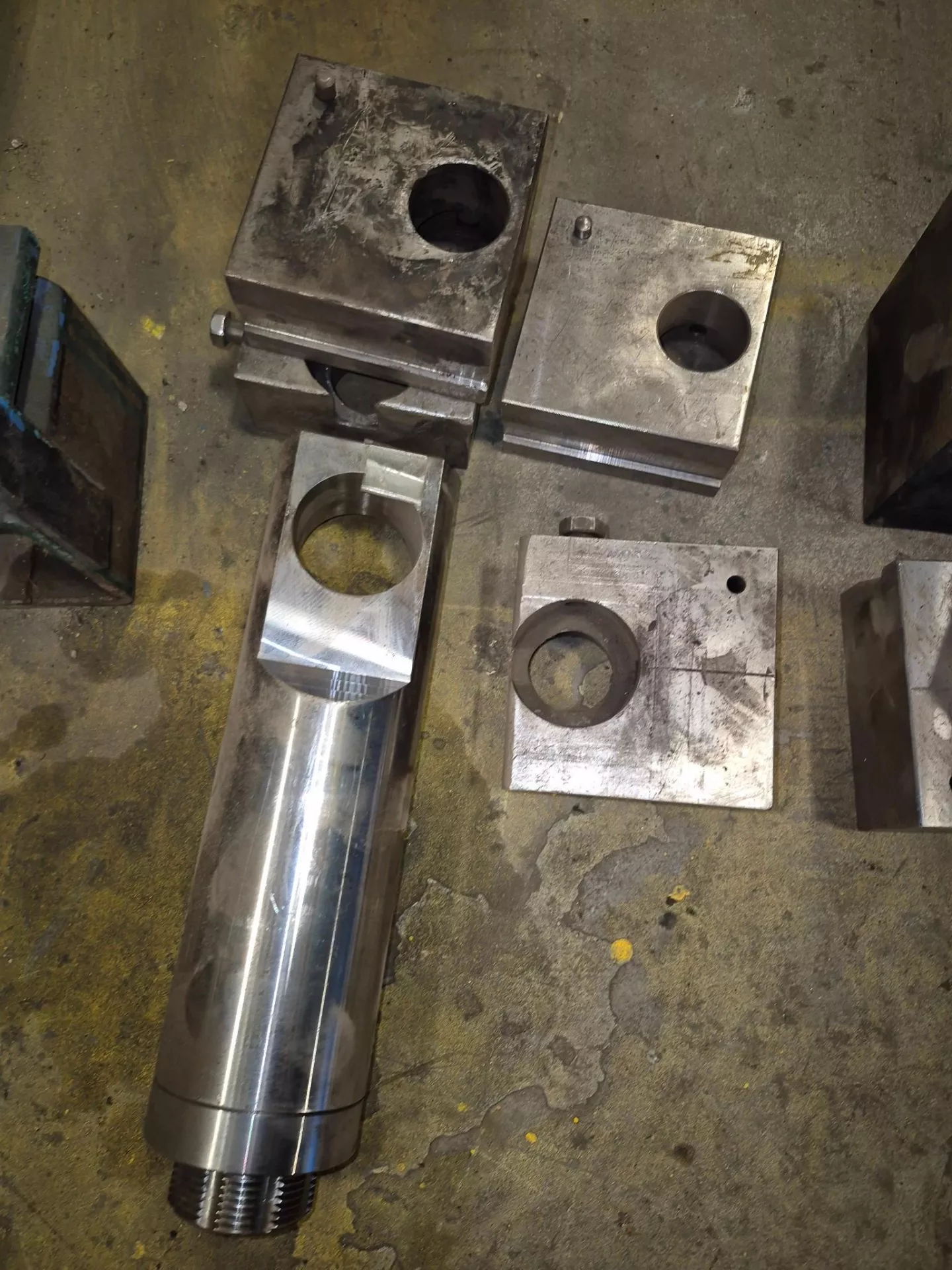

- MISC. PUNCH ACCESSORIES

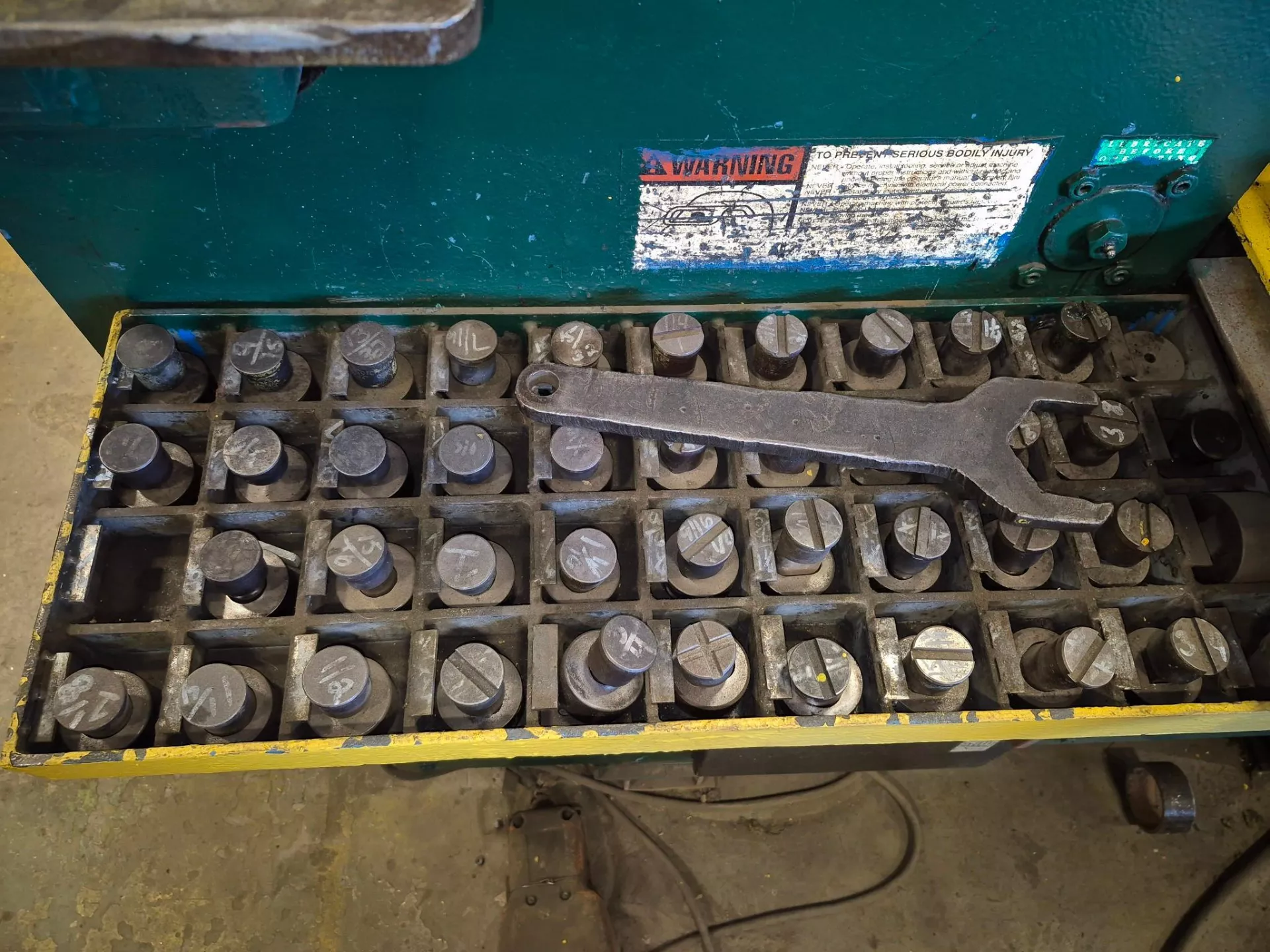

- MISC. PUNCHES & DIES
- FLAT SHEARING STATION

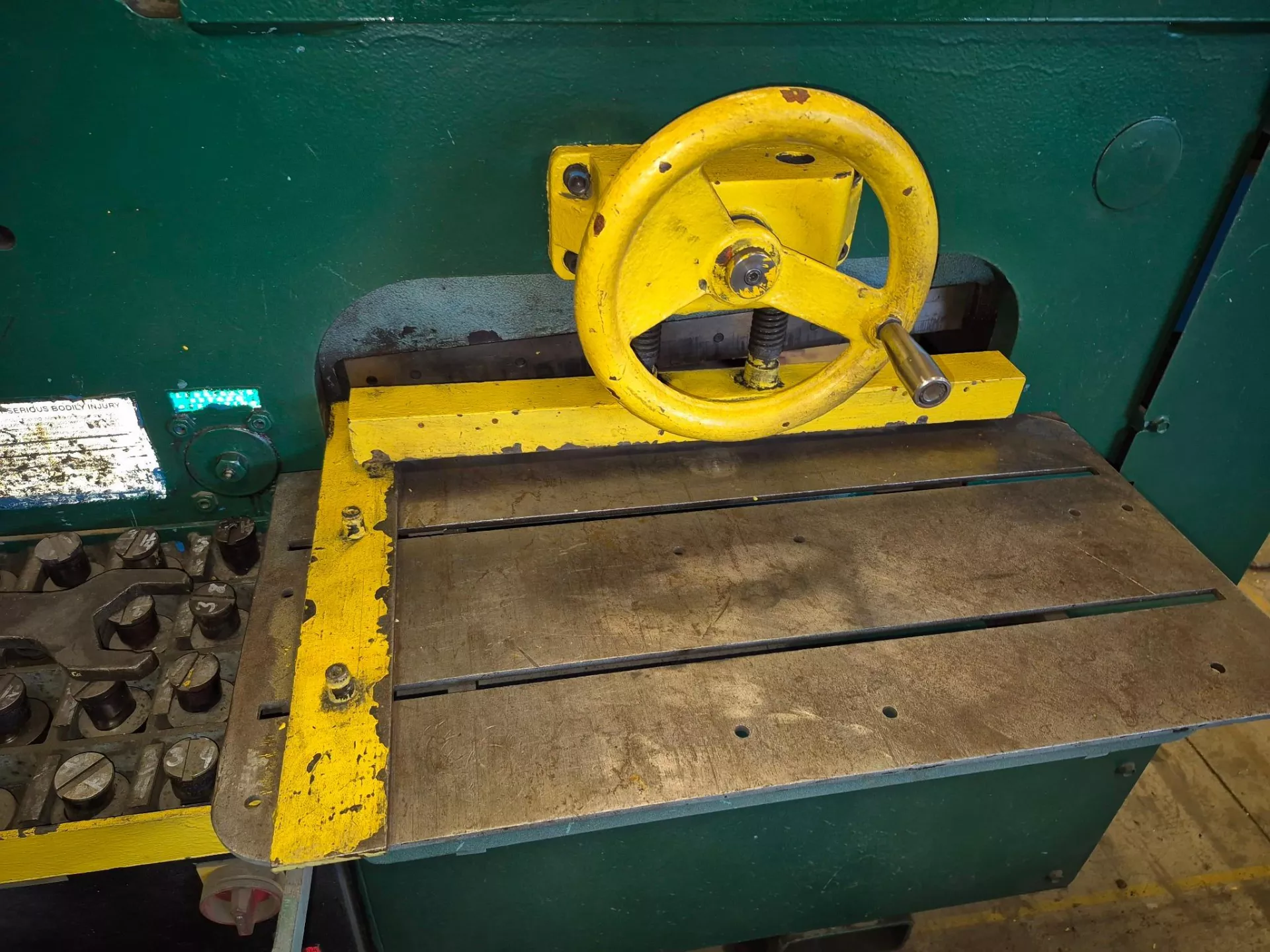

- BACK GAUGE STOP
- FOOT PEDAL
