Scotchman SUP-500 COLD SAWS & CARBIDE SAWS (Non-Ferrous)

Price on Request

Make:: Scotchman

Model:: SUP-500

Year:

Ref #:: 178350

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

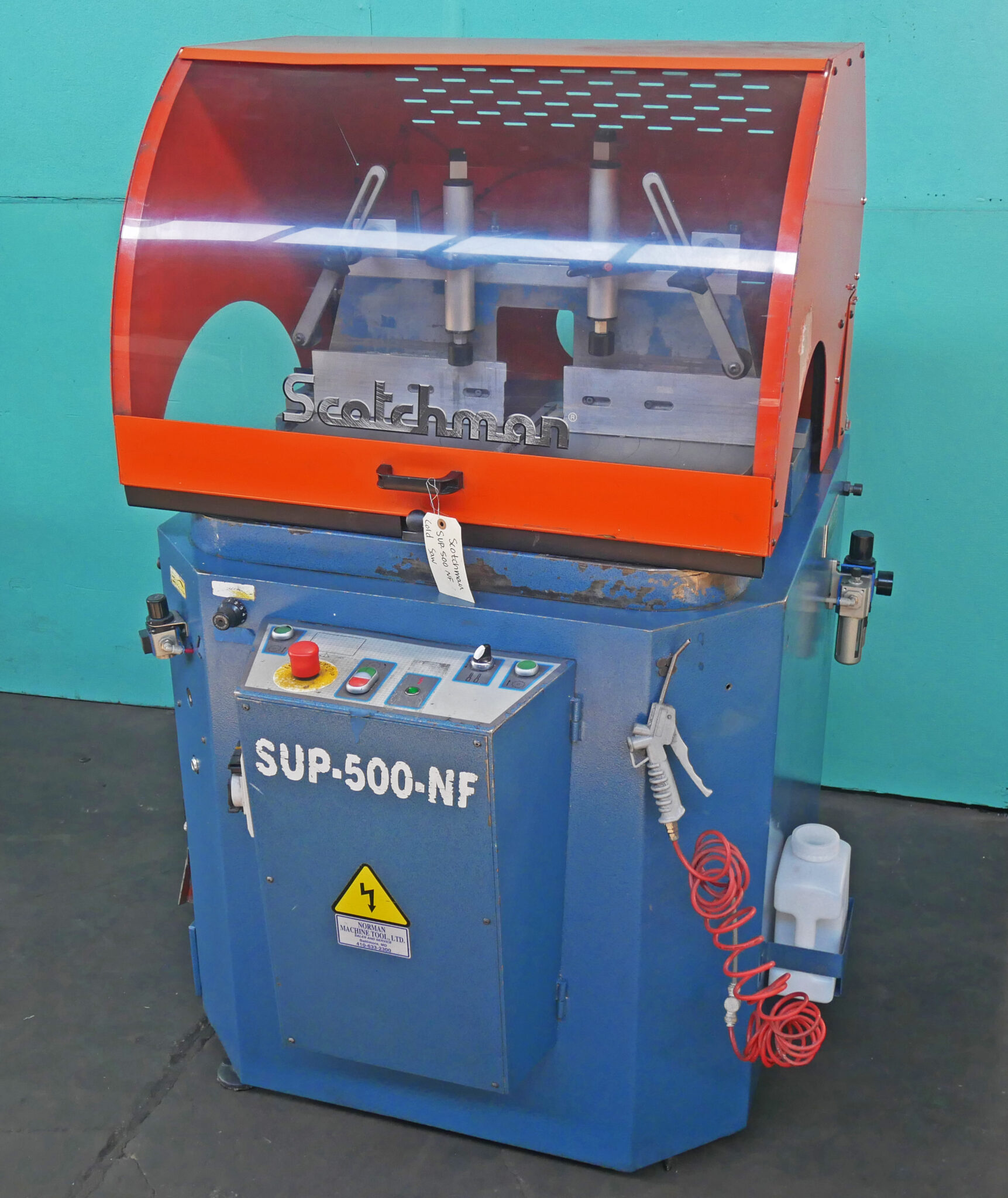

SCOTCHMAN 20″ SEMI-AUTOMATIC NON-FERROUS COLD SAW, SUP-500
MODEL: SUP-500 NF

SPECIFICATIONS:
CAPACITIES:
@ 90°:
ROUND: ........................... 7″
SQUARE: .......................... 6″
RECTANGLE: ....................... 11 3/4″ X 5″
@ 45°:
ROUND: ........................... 7″
SQUARE: .......................... 4 3/4″
RECTANGLE:........................ 5 3/4″ X 4 3/4″
CUTTING SPEED: ................... 3,000 RPM
AIR PRESSURE: .................... 90 PSI
MAX. DIAMETER BLADE: ............. 500 MM
ARBOR BORE: ...................... 50 MM
HEIGHT FROM FLOOR TO TABLE: ...... 38 5/8″
MOTOR: ........................... 5.5 HP / 460V / 3PH

FEATURES & EQUIPMENT INCLUDED:
PRECISION MITER UP-CUT NON-FERROUS SAW
SAFETY HOOD WITH SAFETY SWITCH THAT WILL NOT ALLOW SAW TO RUN WITH HOOD OPEN
BLADE DOOR WITH SAFETY INTERLOCK SWITCH
DUAL PALM BUTTONS
ADJUSTABLE FEED RATE ON SAW HEAD
TWO HORIZONTAL PNEUMATIC CLAMPS
TWO VERTICAL PNEUMATIC CLAMPS
MITER CAPABILITY 30° LEFT, 90° STRAIGHT, 0° RIGHT
CAPABLE OF SLOTTING
MOVEABLE BACK FENCE FOR LARGER CAPACITY
COOLANT TANK WITH MIST LUBRICATION
AIR HOSE
CHIP COLLECTION DRAWER IN BASE AND A 4 3/4″ CHIP COLLECTION PORT
NOISE LEVEL 68 DB
MECHANICAL SPECIFICATIONS:
SHIPPING DIMENSIONS: APPROX. 46″ X 42″ X 61″ H
SHIPPING WEIGHT: APPROX. 1,200 LBS.
NEW REPLACEMENT COST: $15,590.00+
