Sharp LMV VERTICAL MILLS - VERTICAL MILLING MACHINES

$4,500

Make:
Sharp
Model:
LMV
Year:
1999
Ref #:
161200

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

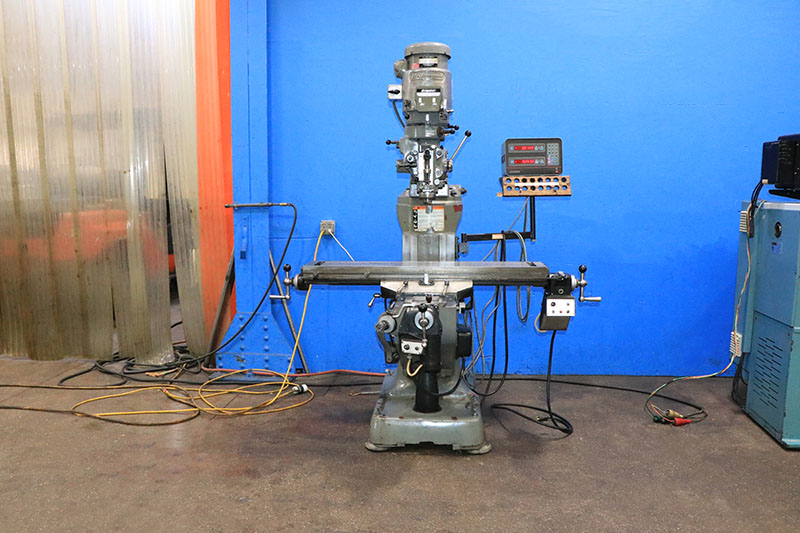

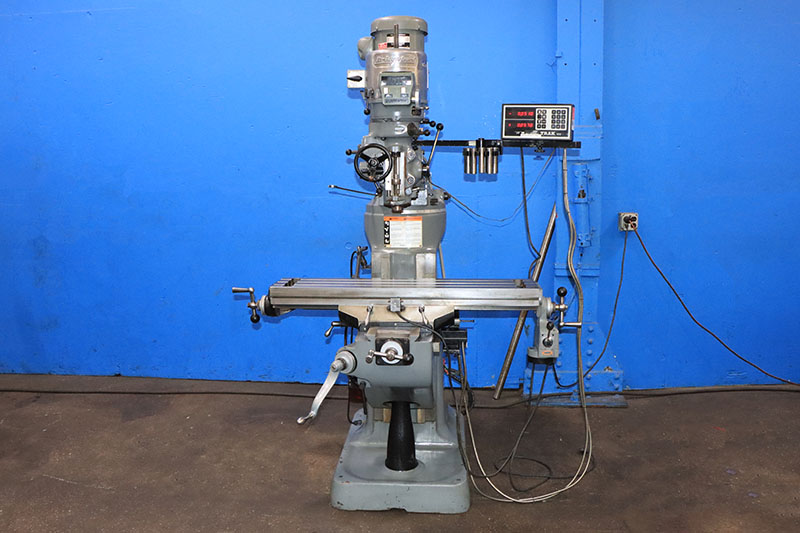

SHARP VERTICAL MILLING MACHINE
MODEL: LMV, S/N: 70224640, MFG: 1999

SPECIFICATIONS:
WORKING AREA OF TABLE ................ 9" x 42"
TABLE LONGITUDINAL TRAVEL ............ 30"
TABLE CROSS TRAVEL ................... 12"
VERTICAL KNEE TRAVEL ................. 16"
RAM TRAVEL ........................... 12"
SPINDLE QUILL TRAVEL ................. 5"
SPINDLE TAPER ........................ R8
SPINDLE SPEED RANGE .................. 50-3750 RPM
SPINDLE FEEDS (31 PER REV OF SPINDLE). .0015, .003, .006
HEAD SWIVEL .......................... 360 DEGREES
HEAD TILT (RIGHT TO LEFT) ............ 45 DEGREES
HEAD TILT (UP AND DOWN) .............. 45 DEGREES
APPROX WEIGHT ........................ 2,200 LBS

EQUIPPED WITH:
NEWALL TWO AXIS DIGITAL READOUT
CHROME WAYS
SERVO POWER FEED FOR LONGITUDINAL TABLE TRAVEL
ONE SHOT LUBRICATION
3 HP SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
