Sharp LMV w/DVS VERTICAL MILLS - VERTICAL MILLING MACHINES

$7,500

Make:: Sharp

Model:: LMV w/DVS

Year:: 2005

Ref #:: 164132

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

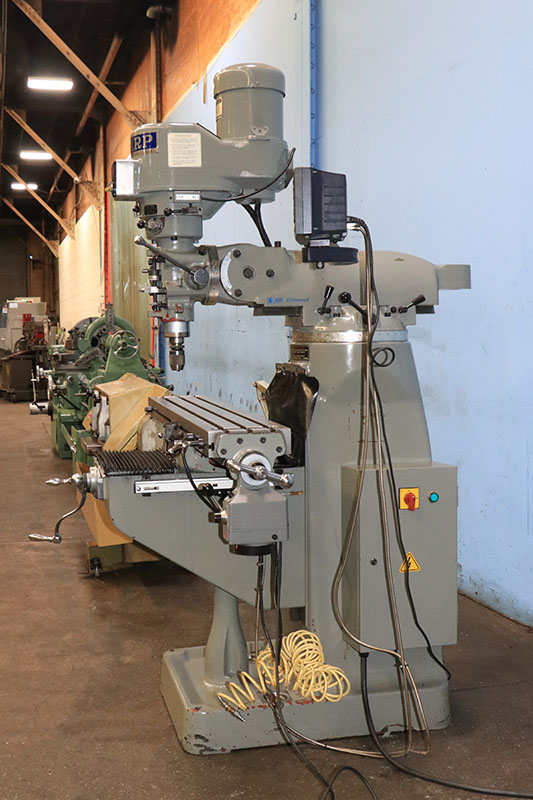

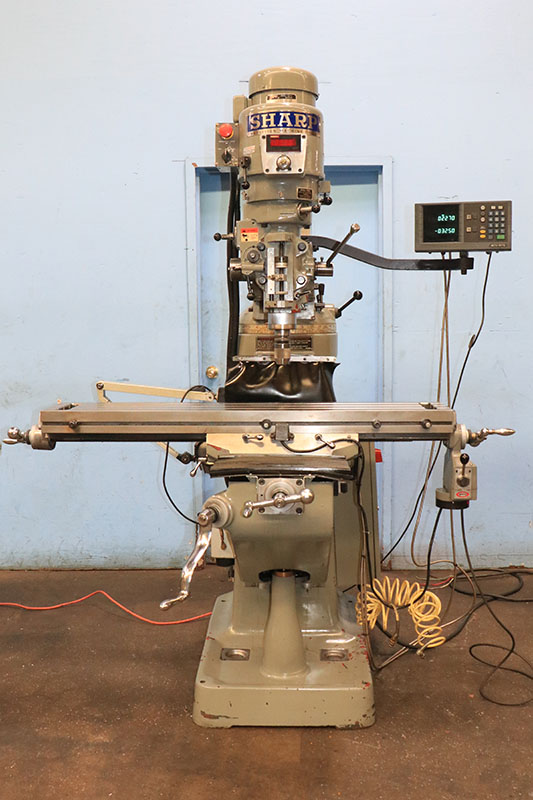

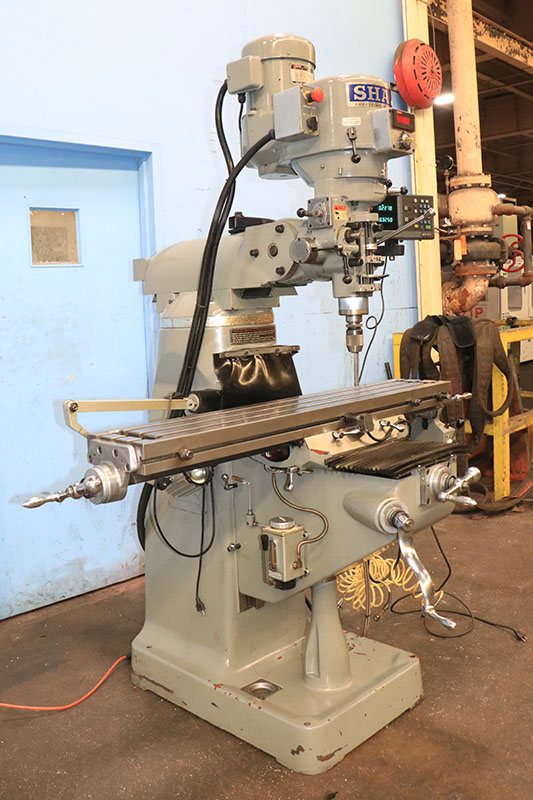

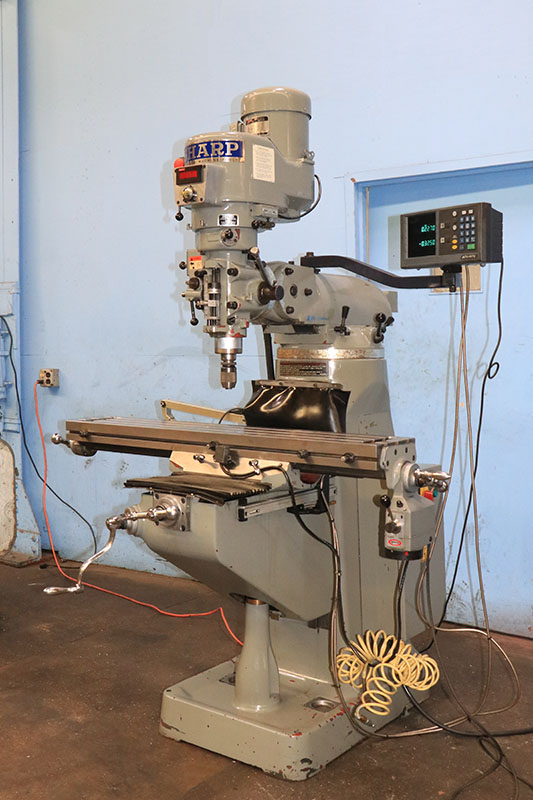

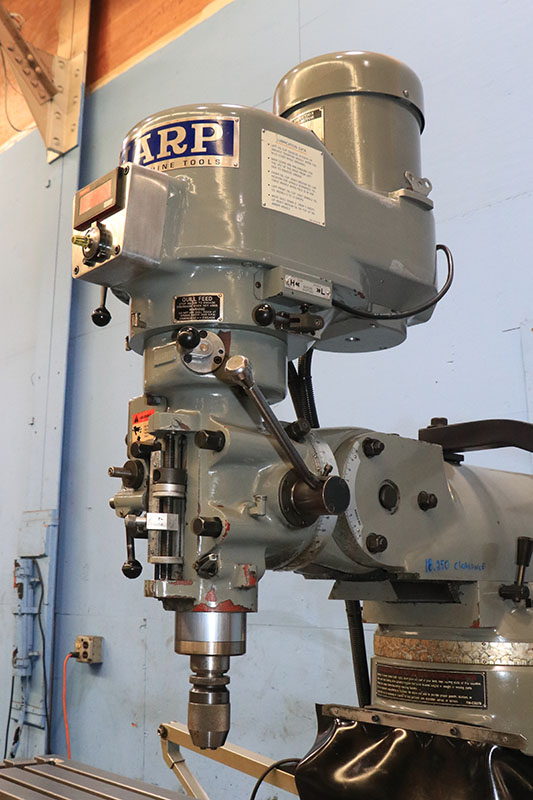

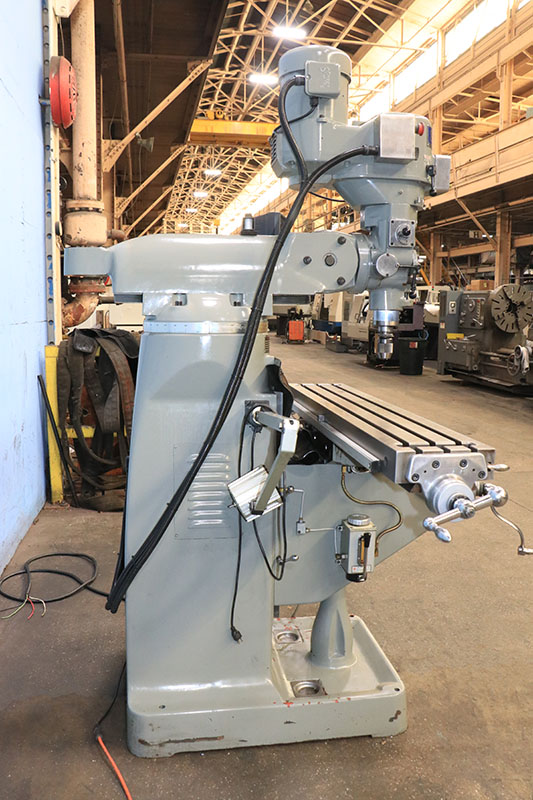

SHARP VERTICAL MILLING MACHINE

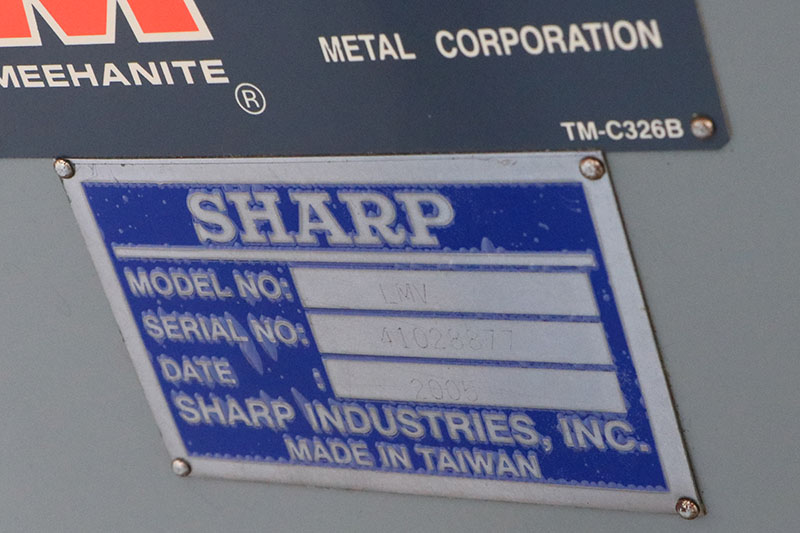

MODEL: LMV-50, S/N: 41028877, MFG: 2005

SPECIFICATIONS:
WORKING AREA OF TABLE ................ 9" x 50"
TABLE LONGITUDINAL TRAVEL ............ 37"
TABLE CROSS TRAVEL ................... 12"
VERTICAL KNEE TRAVEL ................. 16"
RAM TRAVEL ........................... 12"
SPINDLE QUILL TRAVEL ................. 5"
SPINDLE TAPER ........................ R8
SPINDLE SPEED RANGE .................. 60 - 4500 RPM
SPINDLE FEEDS (31 PER REV OF SPINDLE). .0015, .003, .006
HEAD SWIVEL .......................... 360 DEGREES
HEAD TILT (RIGHT TO LEFT) ............ 45 DEGREES
HEAD TILT (UP AND DOWN) .............. 45 DEGREES
APPROX WEIGHT ........................ 2,200 LBS

EQUIPPED WITH:

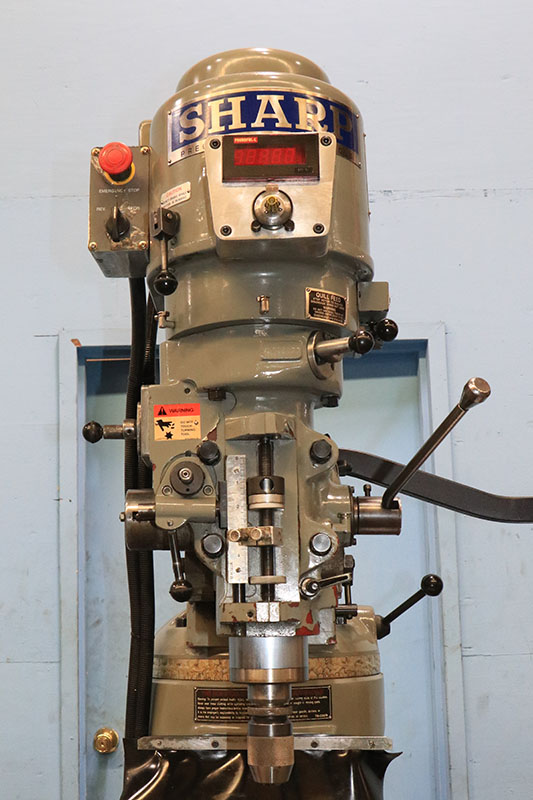

DVS DIGITAL VARIABLE SPEED WITH INVERTER DRIVE &
   DIGITAL RPM DISPLAY

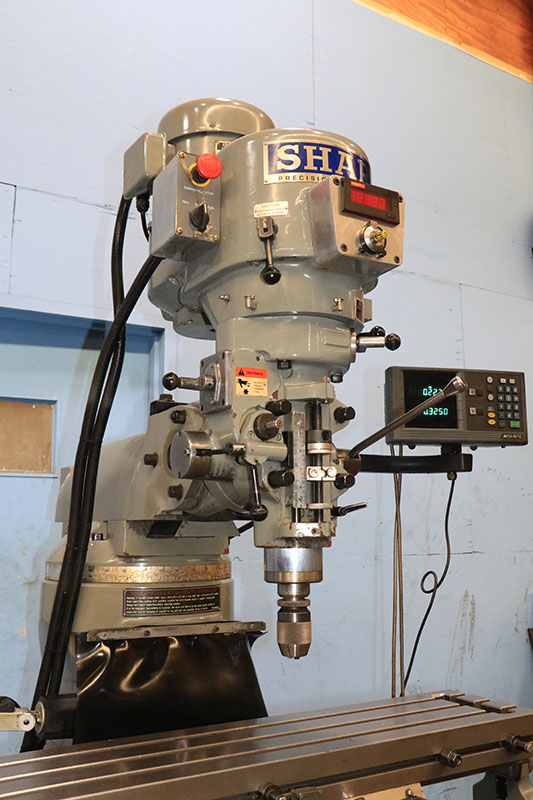

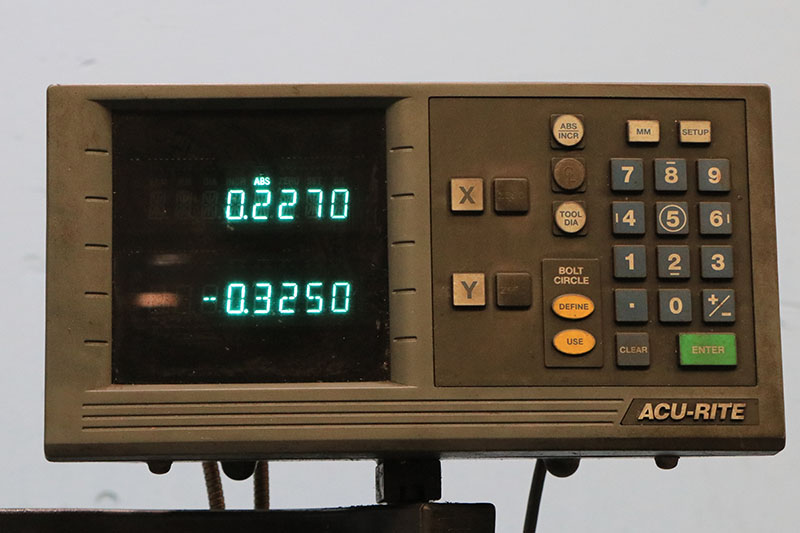

ACU-RITE TWO AXIS DIGITAL READOUT

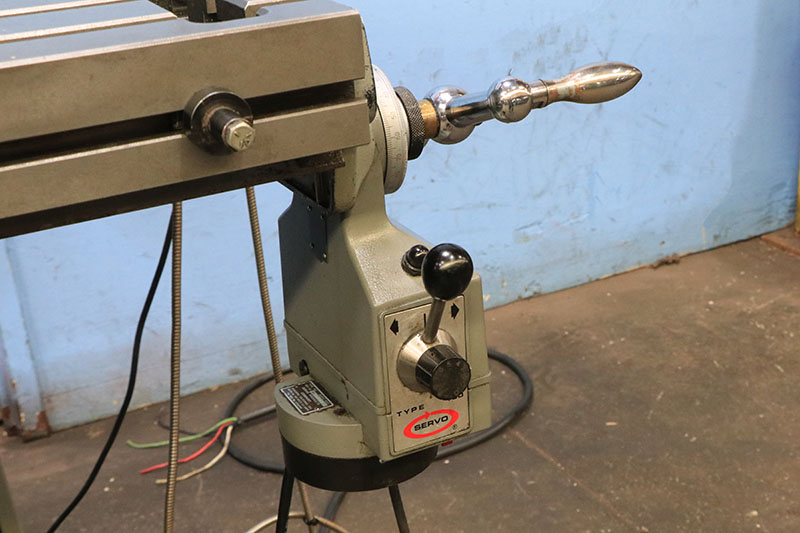

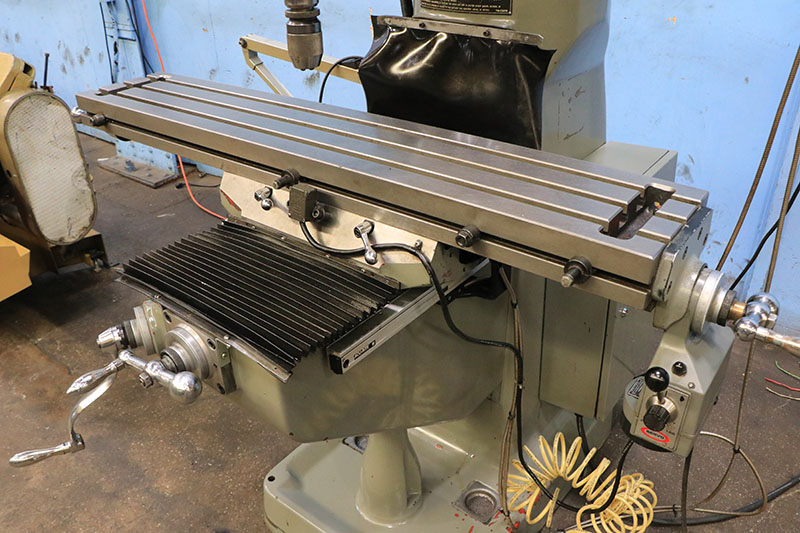

SERVO POWER FEED FOR LONGITUDINAL TABLE TRAVEL
CHROME WAYS
ONE SHOT LUBRICATION
3 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
