Sharp SH-2447 NEW SURFACE GRINDERS

Price on Request

Make:: Sharp

Model:: SH-2447

Year:: NEW

Ref #:: 136900

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

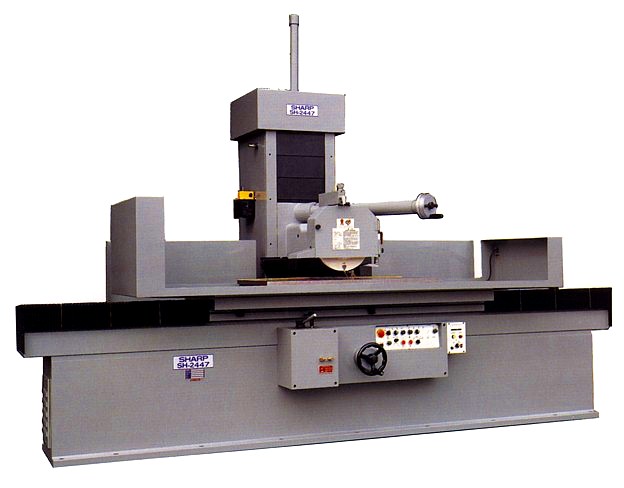

										NEW SHARP 24 x 47" COLUMN-TYPE SURFACE GRINDER
 MODEL:   SH-2447       **MADE IN TAIWAN**



 CAPACITY
 Nominal grinding length: 47"
 Nominal grinding width: 24"
 Maximum distance: table to spindle center: 27.6"

 TABLE
 X & Y travels (cross x longitudinal): 24.8" x 53.2"
 Spindle center to table surface: 27.6"
 Table working surface: 23.6" x 47.2"
 Longitudinal hydraulic table feed: 6.6 - 82 FPM
 Intermittent cross feed (in. feed): 0.004 - 0.6 IPM
 Continuous cross feed: 39 IPM
 Number of graduations on dial: 200
 Feed per graduation: 0.001"
 Feed per revolution: 0.200"

 VERTICAL TRAVEL
 Number of graduations on dial: 100
 Feed per graduation: 0.0001"
 Feed per revolution: 0.010"
 Rapid downfeed (optional): 11.8 IPM

 SPINDLE AND WHEEL
 Wheel size (OD x W x ID): 14 x 2 x 5"
 Spindle motor: 10 hp

 GENERAL
 Approximate weight: 17,600 lbs
 Packing crate dimensions (W x D x H): 15 x 7.5 x 8.5'

 STANDARD EQUIPMENT:
 Grinding Wheel
 Ballscrew on Cross Feed
 Wheel Flange
 Coolant System (25 Gal.) with guarding
 Wheel Balancer and Balancing arbor
 Automatic Lubrication System
 Tool kit

 OPTIONAL (EXTRA COST) ACCESSORIES
 Criss-Cross Grinding Attachment
 Electro-magnetic chuck with control (Kanetsu or Walker)
 Spare wheel adaptors
 Paper and magnetic filtration
 Dust collector
 Parallel or Radius dressers
 Wheel Balancing stand
 Push-Button Rapid Up & Down Wheelhead
 Programmable Microprocessor Incr. Downfeed Control w/CRT Display
