Sharp YC 1-1/2VA VERTICAL MILLS - VERTICAL MILLING MACHINES

$2,250

Make:
Sharp
Model:
YC 1-1/2VA
Year:
1979
Ref #:
162448

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

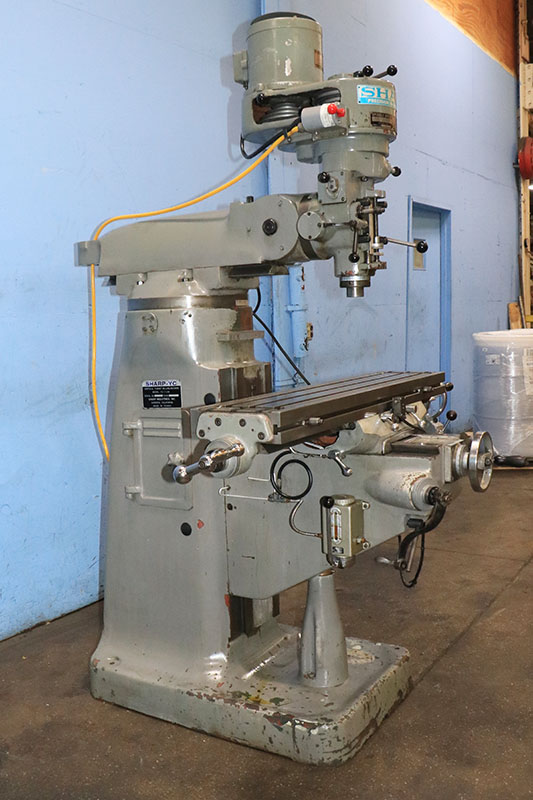

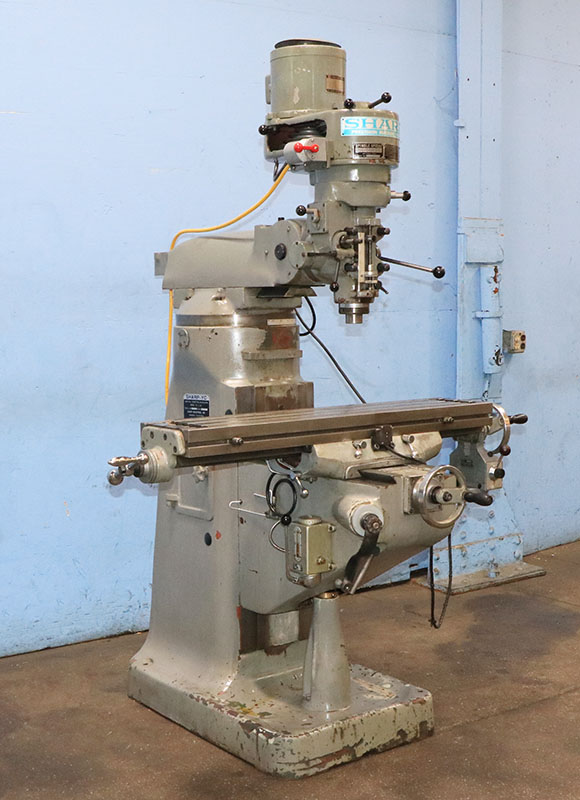

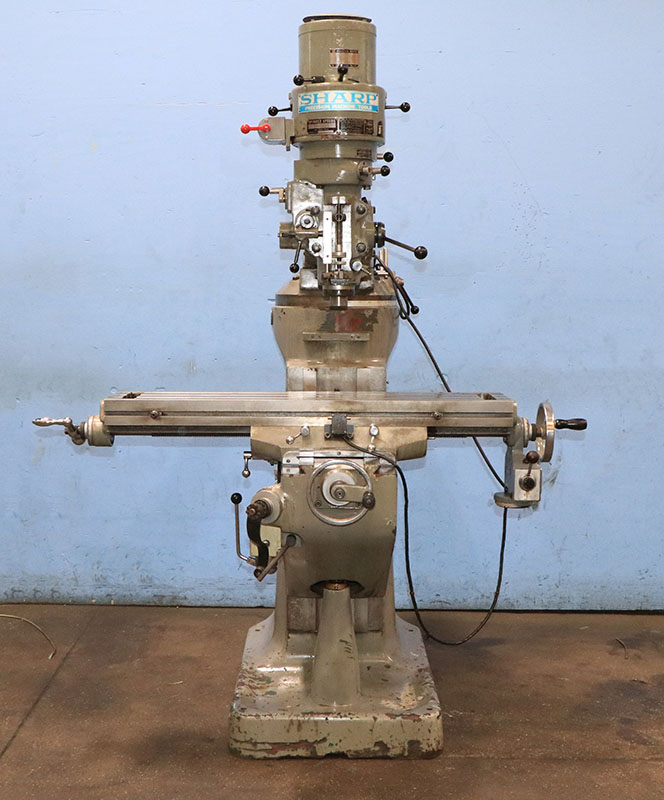

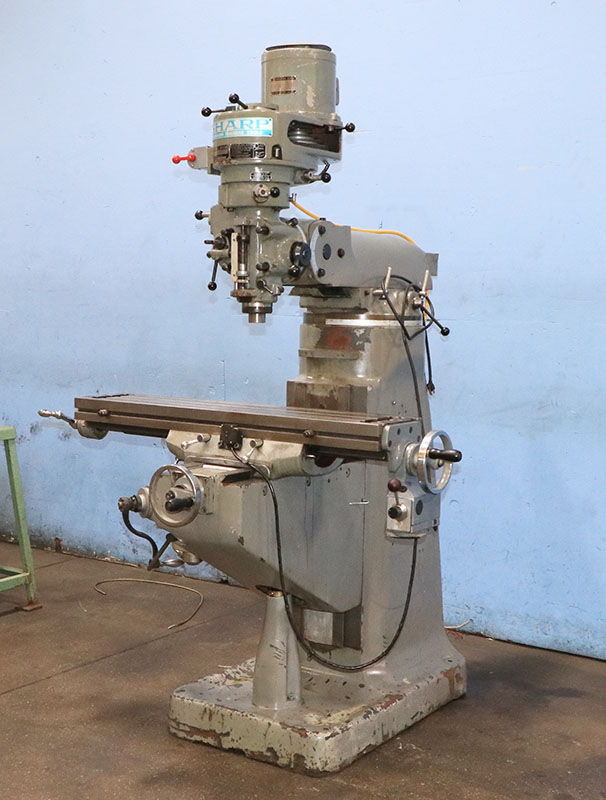

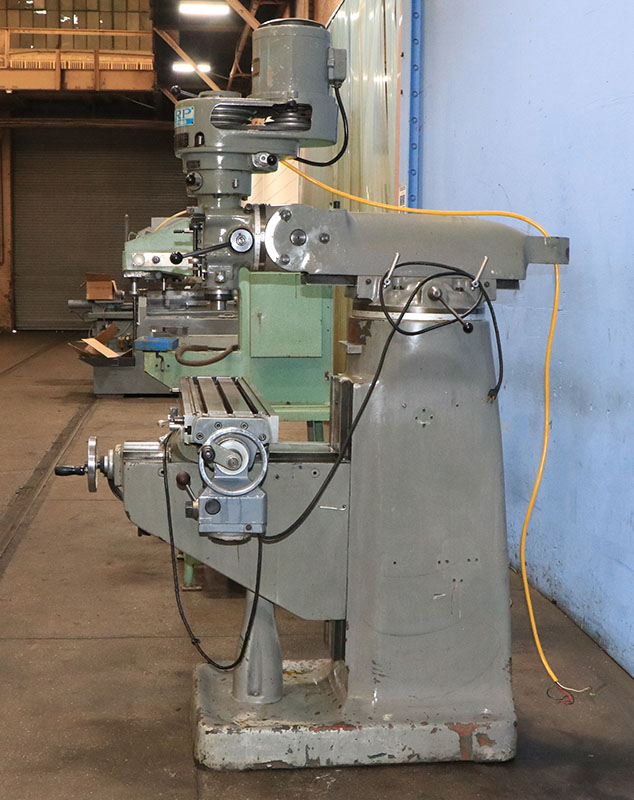

SHARP VERTICAL MILLING MACHINE

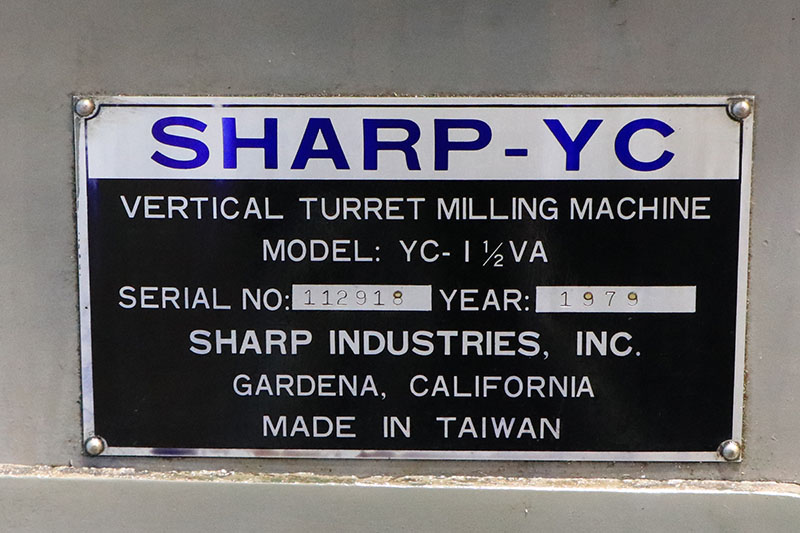

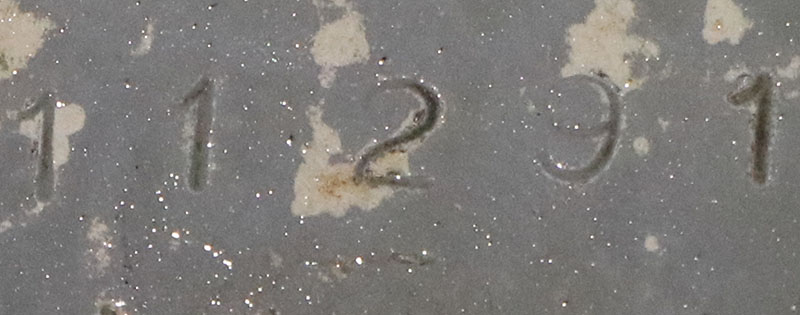

MODEL: YC-1 1/2VA, S/N: 1129178, NEW: 1979

SPECIFICATIONS:

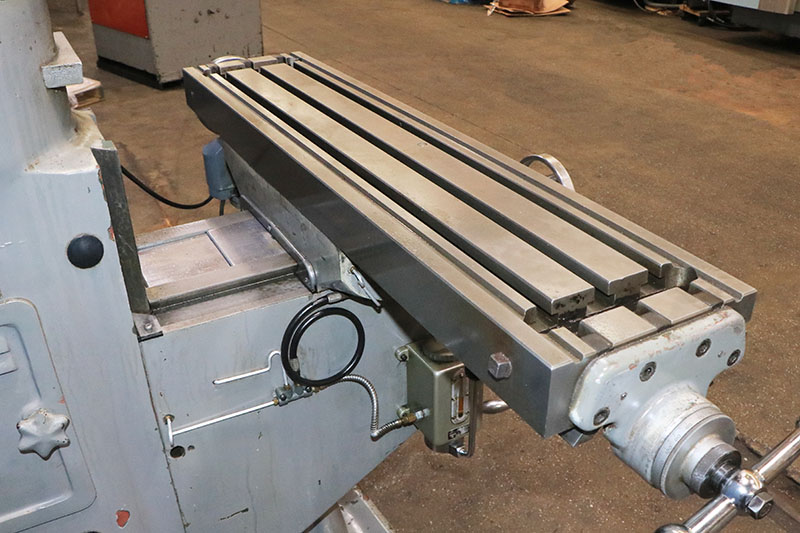

WORKING SURFACE OF TABLE ............. 9" x 42"
TABLE LONGITUDINAL TRAVELS ........... 30"
CROSS TABLE TRAVEL ................... 12"
VERTICAL KNEE TRAVEL ................. 16"

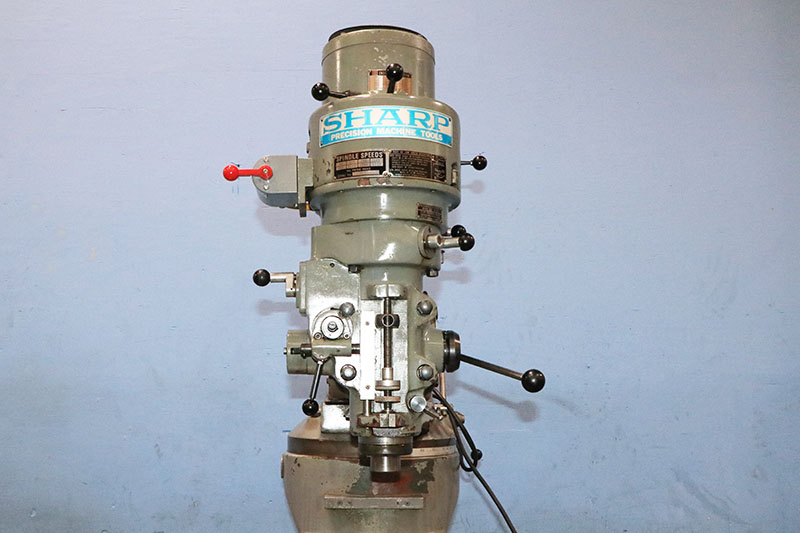

QUILL TRAVEL ......................... 5"
SPINDLE TAPER ........................ R-8
SPINDLE SPEED RANGE (8) .............. 80 - 2720 RPM
SPINDLE QUILL FEEDS (3) .............. .0015, .003, .006 IPR
RAM TRAVEL IN & OUT .................. 12"

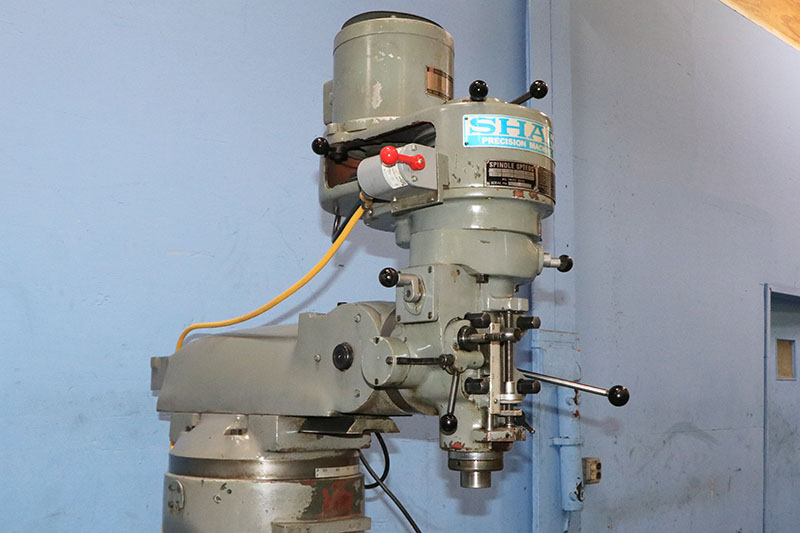

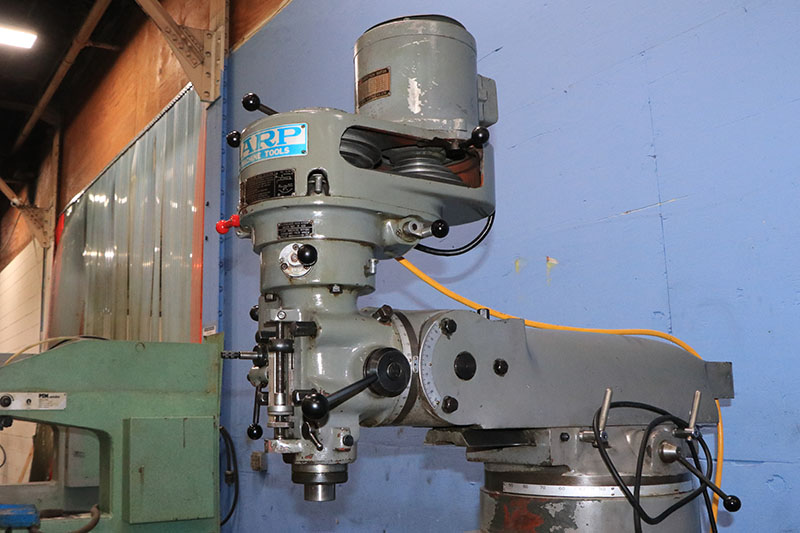

HEAD TILT, LEFT & RIGHT .............. 90 DEGREES
HEAD TILT, FRONT TO REAR ............. 45 DEGREES
APPROX MACHINE WEIGHT ................ 2,000 LBS

EQUIPPED WITH:

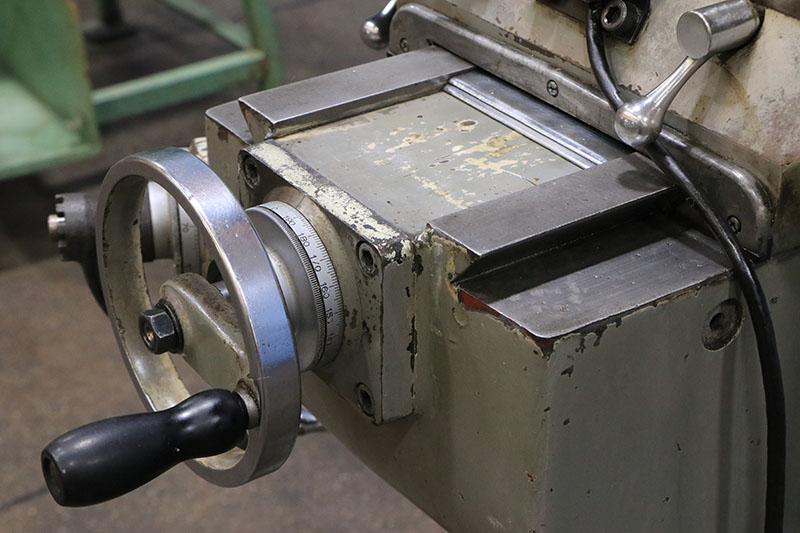

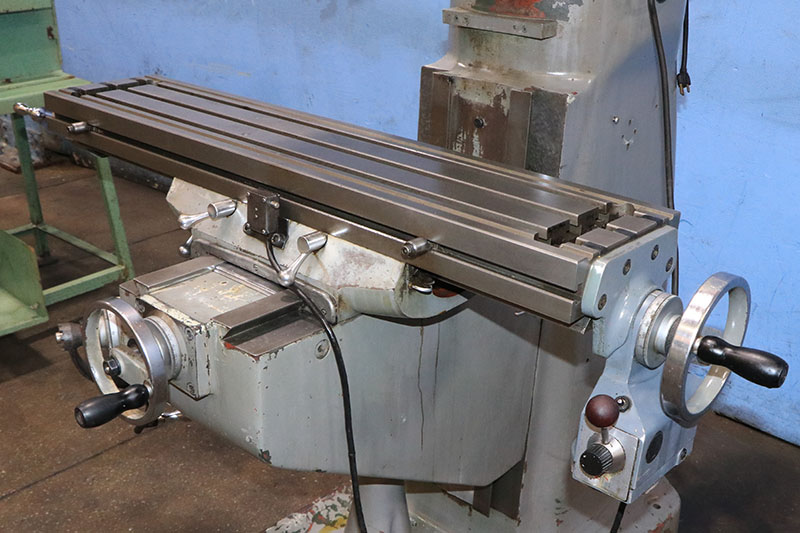

SERVO POWER FEED FOR TABLE TRAVEL
ONE SHOT LUBRICATION SYSTEM

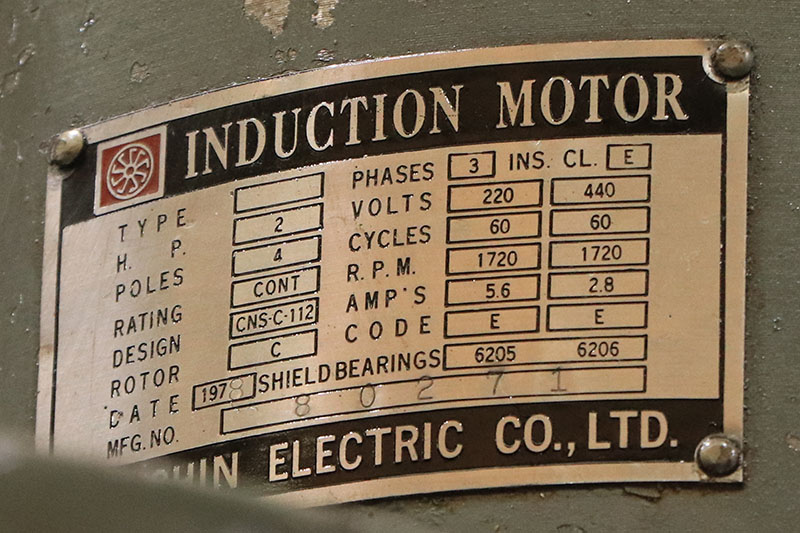

2 HP SPINDLE MOTOR

MACHINE WIRED FOR 220 VOLT OPERATION

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE


DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
