Shigiya GUA-30-100, 1985, HYD. TABLE, AUTO INFEED & PLUNGE UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Shigiya

Model:: GUA-30-100, 1985, HYD. TABLE, AUTO INFEED & PLUNGE

Year:: 1985

Ref #:: 178268

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

   11.8" X 40" SHIGIYA-OKAMOTO (MADE IN JAPAN)
  "HIGH-PRECISION" UNIVERSAL CYLINDRICAL GRINDER

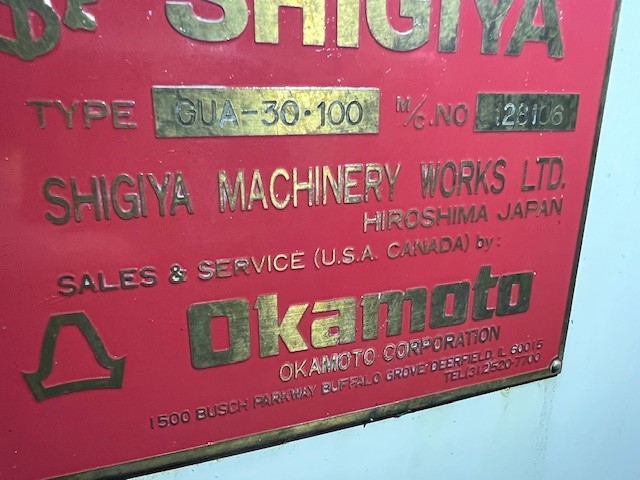

  MODEL: GUA30-100    S/N: 128106     NEW: 1985

SWING ............................... 11.8"
DISTANCE BETWEEN CENTERS ............ 40"
LONGITUDINAL TABLE SPEED ............ 2" TO 160" IPM
TABLE SWIVELS  ...................... 7° CCW/1° CW
MAX. STROKE OF WHEELHEAD (MANUAL) ... 6.9"
RAPID TRAVERSE (HYDRAULIC) .......... 1.6"
MAX. AUTO INFEED STROKE ............. 0.4"
AUTO INFEED RATE .................... 0.00004" TO .004"
AUTO PLUNGE INFEED .................. 0.0008" TO .06"
ONE REV. OF HANDWHEEL ............... 0.04"
HANDWHEEL, FINE FEED BY MICRFEED .... 0.0001"
WHEELHEAD SWIVELS LEFT & RIGHT ...... 30°
GRINDING WHEEL SIZE ................. 14" DIA. x 1"-2"W
                                       x 5" BORE
GRINDING WHEEL SPEEDS (2) ........... 1,675/2,013 RPM
WORKHEAD SPINDLE TAPER .............. #4 MT
WORKHEAD SPINDLE SPEEDS (9) ......... 13 TO 252 RPM
WORKHEAD SWIVELLING RANGE (TOTAL) ... 120 DEG.
TAILSTOCK SPINDLE TAPER ............. #4 MT
TAILSTOCK SPINDLE TRAVEL ............ 1.2"

APPROX. MACHINE WEIGHT .............. 7,260 LBS.
APPROX. DIMENSIONS ............... 108" x 82"D x 60"H


THIS MODEL, HYDRAULIC OPERATION FEATURING:
-POWER TABLE TRAVERSE
-ADJUSTABLE TABLE DWELL
-AUTO INFEED
-DUAL RATE (COARSE/FINE) PLUNGE INFEED
-RAPID WHEELHEAD ADVANCE & RETRACTION
INDEPENDENT SPARKOUT TIMERS, FOR AUTO INFEED
  & PLUNGE GRINDING OPERATIONS

 OTHER STANDARD FEATURES:
WHEELHEAD FEATURES HYDROSTATIC BEARING DESIGN
(AUTO-PRESSURE LUBRICATED)
EXTERNAL HYDRAULIC SYSTEM
SEPARATE LUBRICATION SYSTEM FOR WHEELHEAD SPINDLE OIL
AUTOMATIC LUBRICATION SYSTEM FOR WAYS
DUAL LIVE/DEAD WORKHEAD SPINDLE
5 H.P. WHEELHEAD MOTOR, 3/60/230-460 VOLTS

EQUIPPED WITH:
COOLANT SYSTEM WITH MAGNETIC SEPARATOR
SONY 2-AXIS DIGITAL READOUT
14" WHEEL
CENTER IN WORKHEAD, #4 MT
WORK LIGHT
DIAL INDICATOR FOR TABLE SWIVEL
MACHINE IS WIRED FOR 3/60/220 VOLTS




** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
*** EXCEPTIONAL - FAR BETTER THAN TYPICAL,
   CONDITION & APPEARANCE (ORIGINAL PAINT) ***
