South Bend 10" Precision 187ZB, 1 Phase Electrics ENGINE LATHES

$4,500

Make:: South Bend

Model:: 10" Precision 187ZB, 1 Phase Electrics

Year:

Ref #:: 179202

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

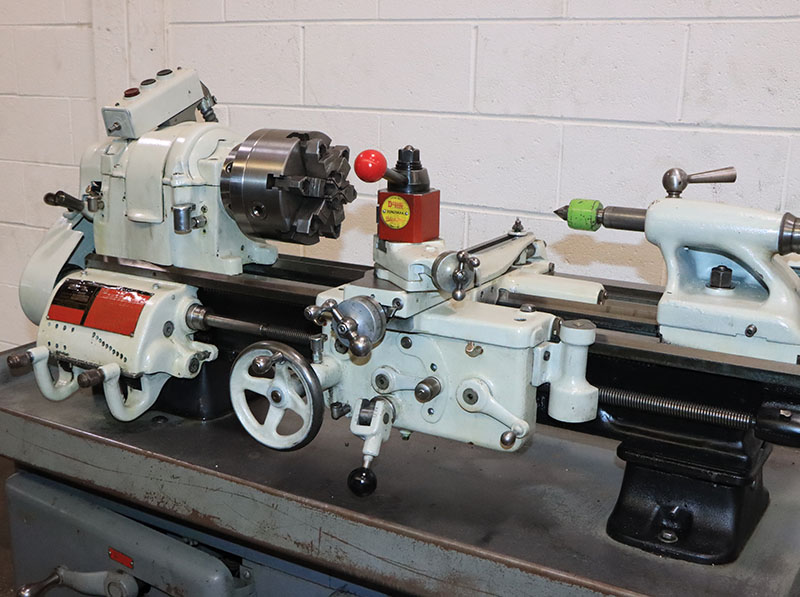

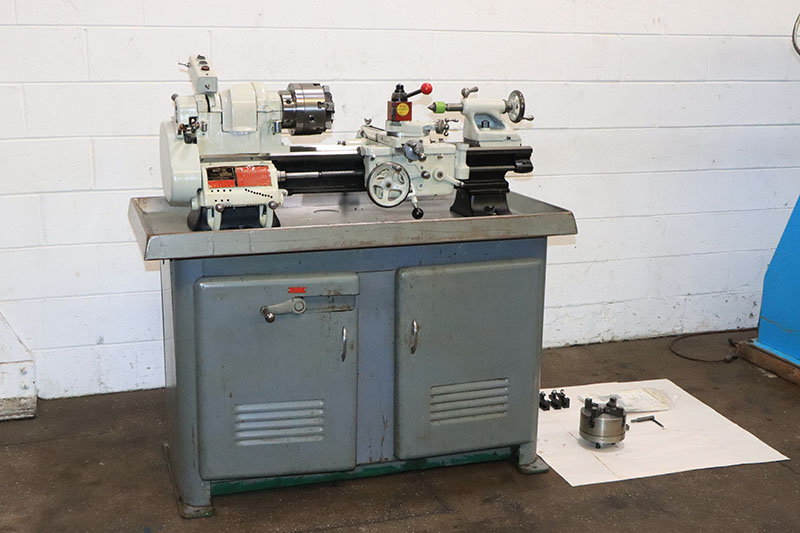

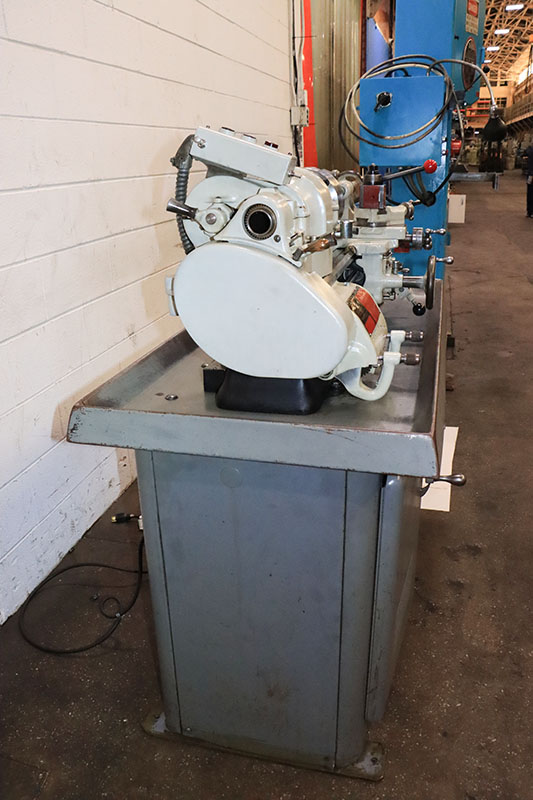

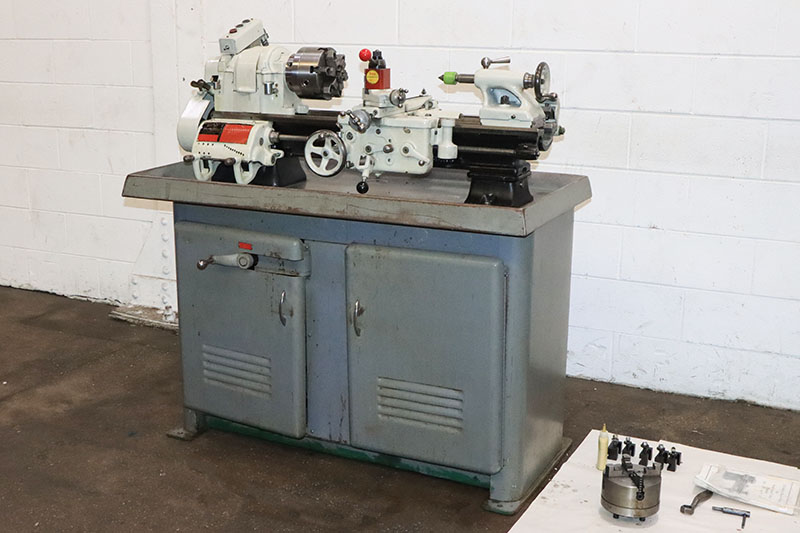

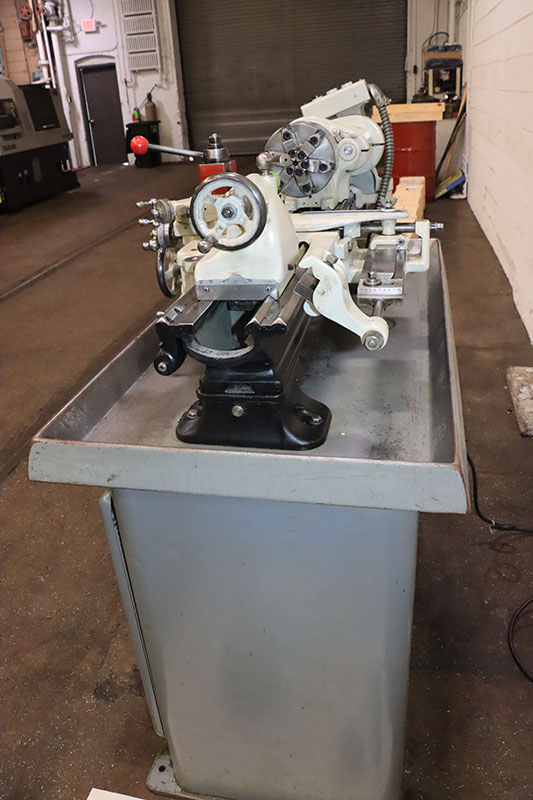

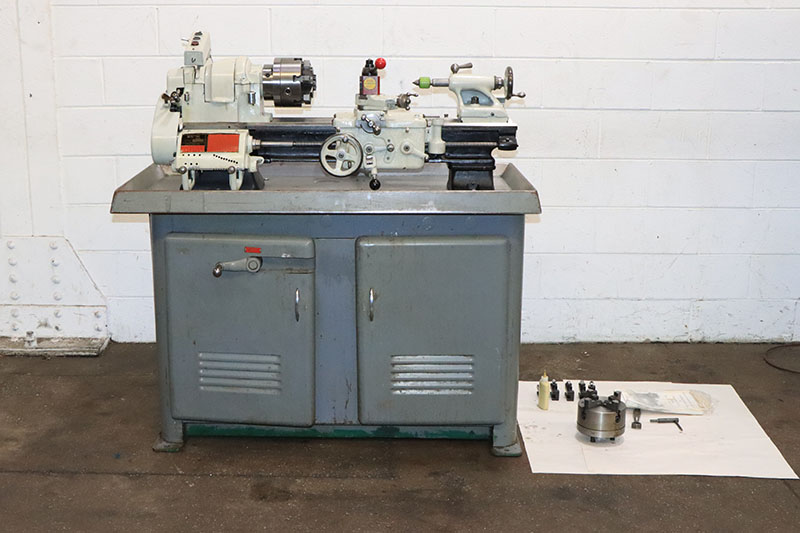

10" x 19" SOUTHBEND PRECISION LATHE
MODEL: CL187ZB

SPECIFICATIONS:
SWING OVER BED ........................ 10-1/8"
SWING OVER CROSS SLIDE ................ 5-7/8"
DISTANCE BETWEEN CENTERS .............. 19"
HOLE THRU SPINDLE ..................... 1-3/8"
SPINDLE NOSE CAMLOCK .................. D1-4"
SPINDLE SPEED:
    DIRECT DRIVE(6) ................... 304 - 1400 RPM
    BACK GEARED (6) ................... 55 - 250 RPM
SPEEDS ARE VARIABLE IN EACH SPEED

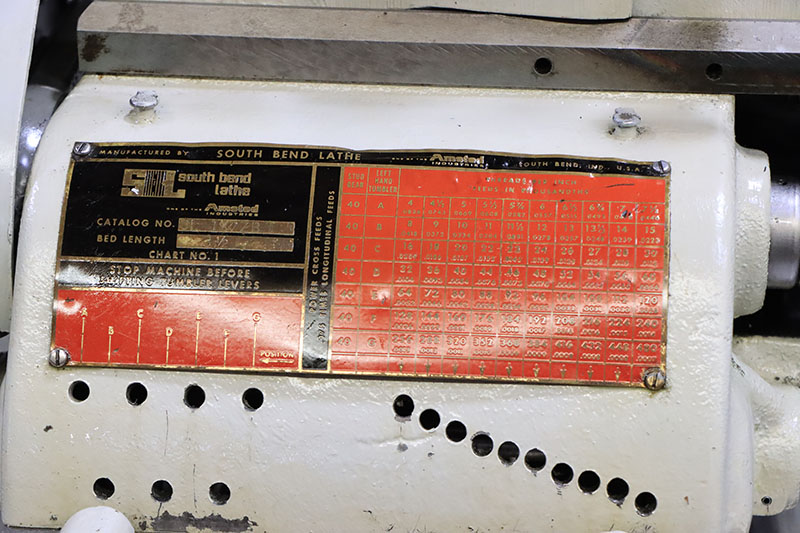

THREADING RANGE (70) .................. 4 - 480 TPI
LONGITUDINAL FEED RANGE (70) .......... .0836" - .0007"
CROSS FEED RANGE (70) ................. .0303" - .0003"

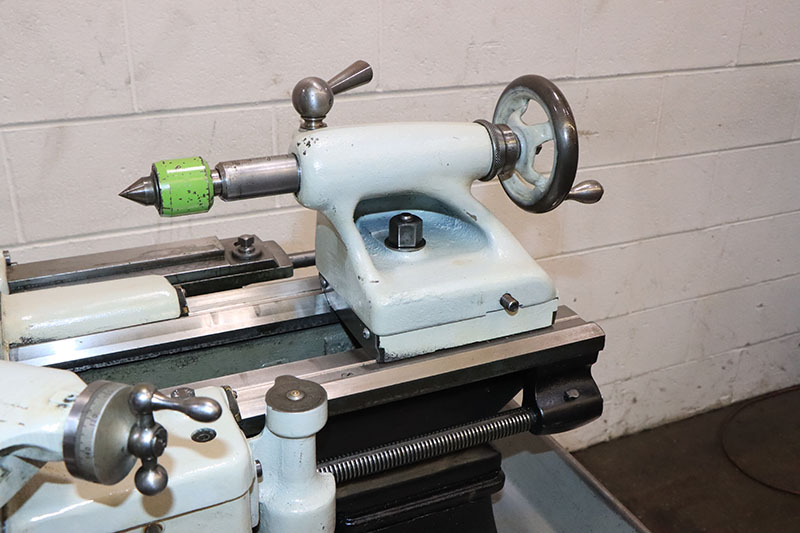

TAILSTOCK SPINDLE TAPER ............... #2MT
TAILSTOCK SPINDLE TRAVEL .............. 2-1/8"
APPROX MACHINE WEIGHT ................. 900 LBS

EQUIPPED WITH:

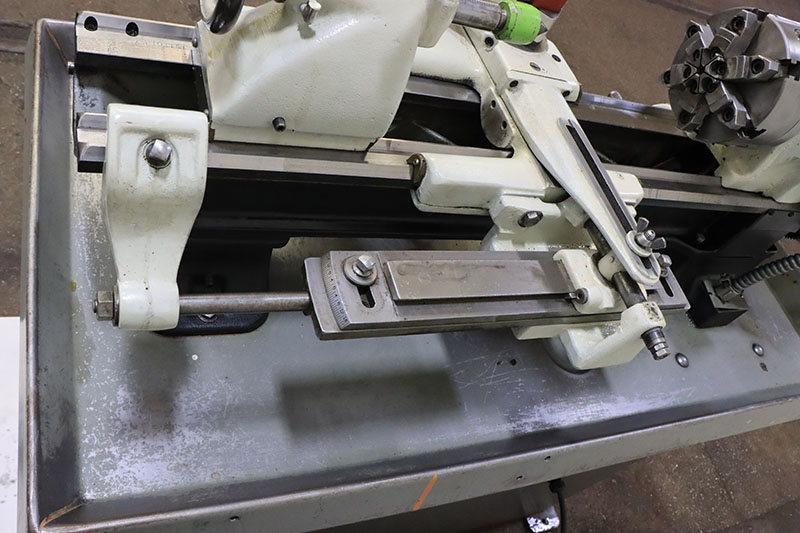

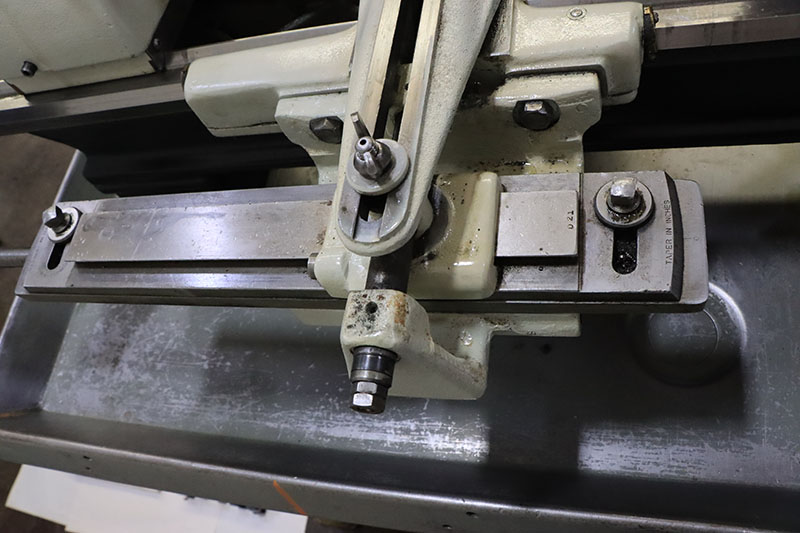

TAPER ATTACHMENT

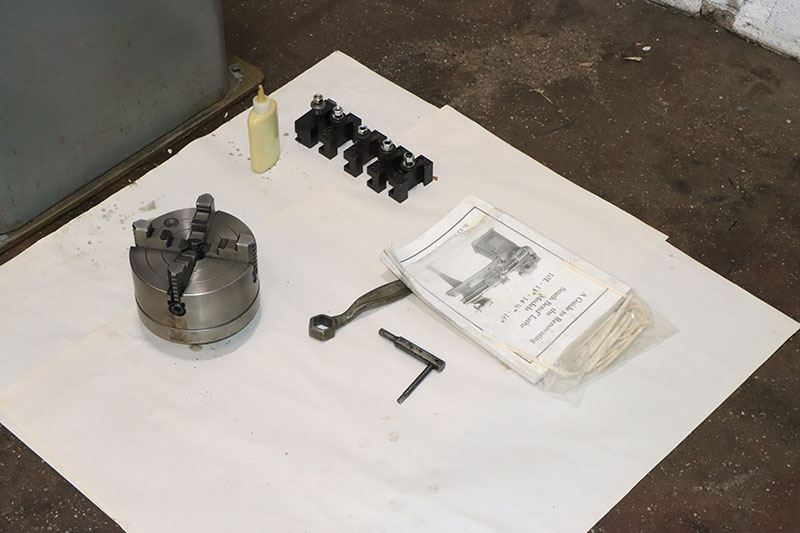

6" 4-JAW CHUCK

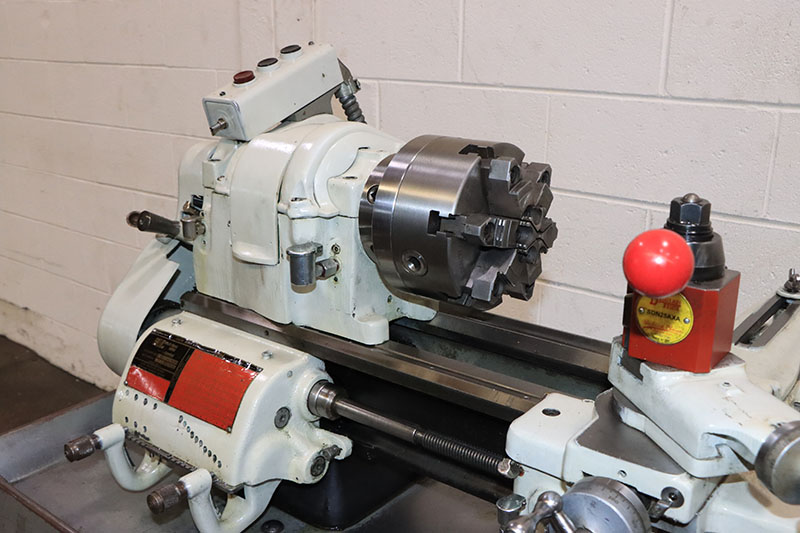

6" 6-JAW CHUCK

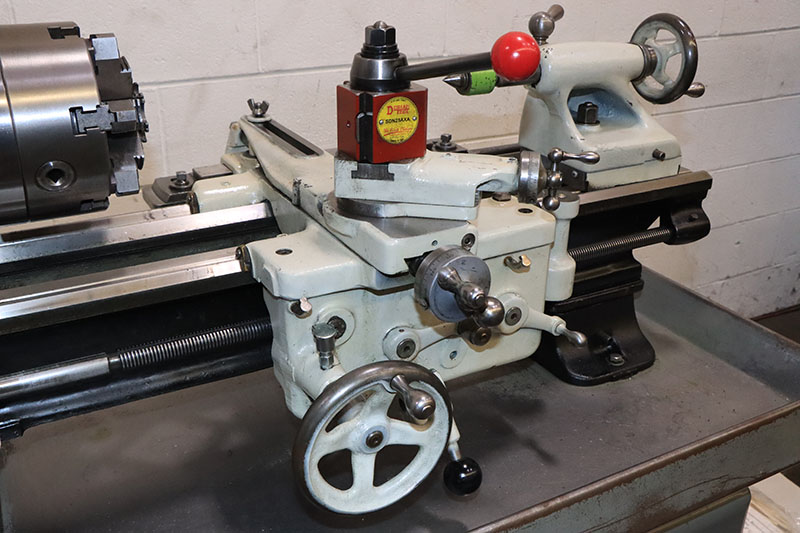

DORIAN QUICK CHANGE TOOLPOST w/HOLDERS
THREAD DIAL INDICATOR
SINGLE PHASE INVERTER DRIVE
1 HORSE POWER MOTOR

PERFECT FOR ANY HOME SHOP
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
