Southwest Ind. 1630RX CNC LATHES, FLAT BED (ENGINE LATHE STYLE)

Price on Request

Make:: Southwest Ind.

Model:: 1630RX

Year:: 2018

Ref #:: 178217

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

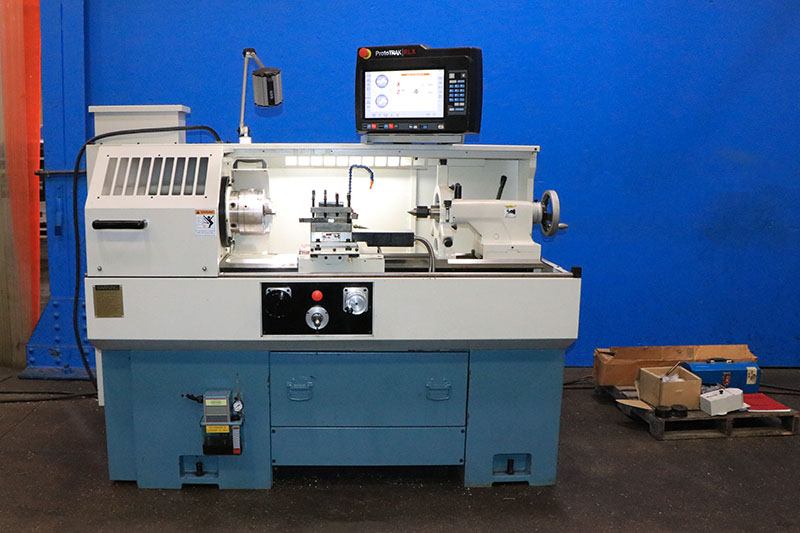

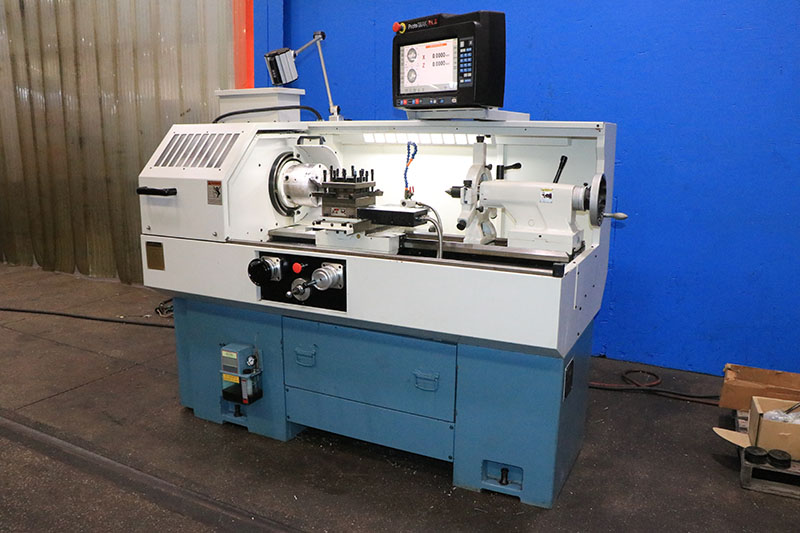

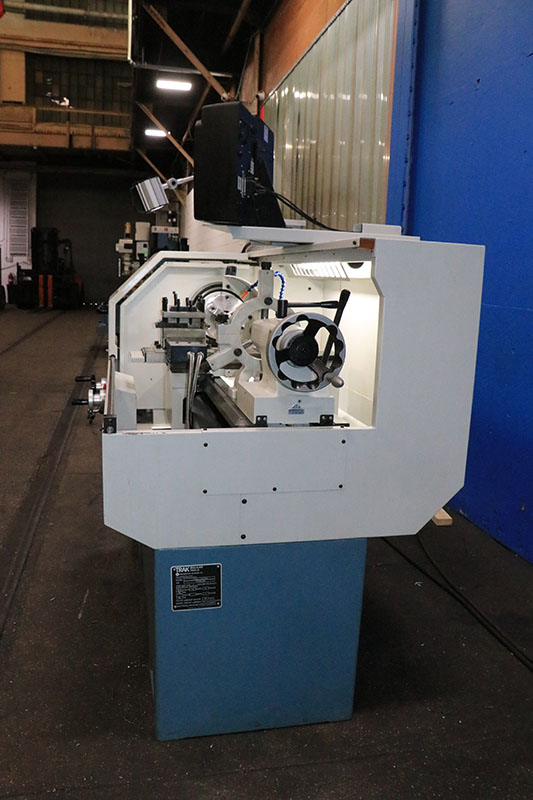

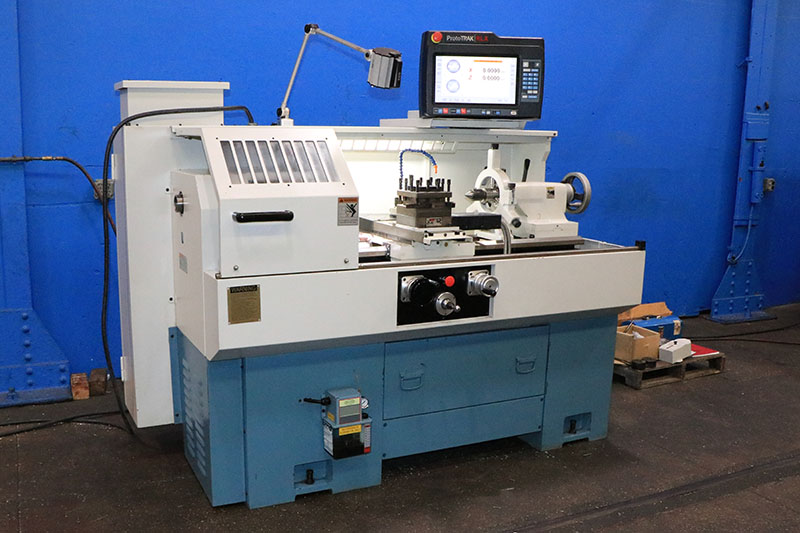

16" X 30" TRAK CNC/MANUAL FLAT BED LATHE

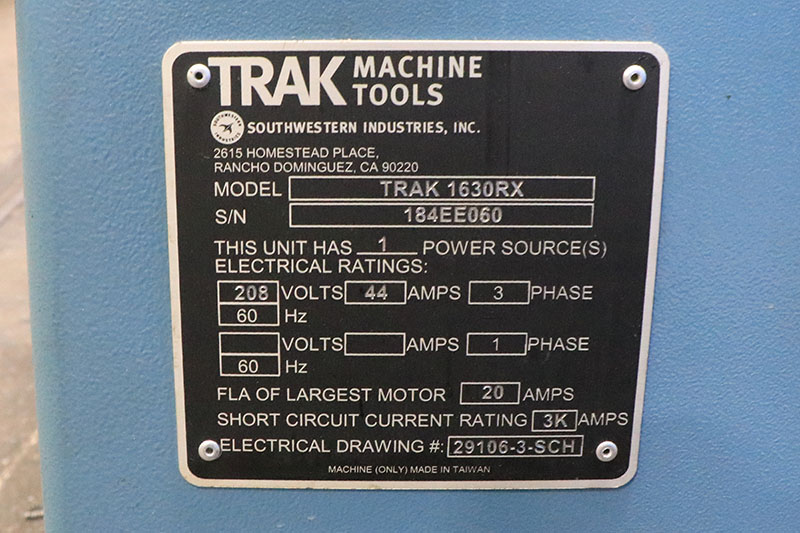

MODEL: 1630-RX, S/N: 184EE060, NEW: 2019

SPECIFICATIONS:
HEIGHT OF CENTERS .......................... 8"
SWING OVER BED ............................. 16"
SWING OVER CROSS SLIDE ..................... 8.6"
SWING OVER SADDLE WINGS .................... 16"
MAX DISTANCE BETWEEN CENTERS ............... 30"
CROSS SLIDE TRAVEL (X) ..................... 8.5"
LONGITUDINAL TRAVEL (Z) .................... 30"
SPINDLE TAPER, CAMLOCK, SIZE ............... D1-6"
SPINDLE SPEED RANGE INF VAR ................ 150 - 2500 RPM
SPINDLE BORE ............................... 2.12"
TAPER IN HEADSTOCK SPINDLE ................. #5 MT
WIDTH OF BED ............................... 12.6"
TAILSTOCK QUILL TRAVEL ..................... 5.75"
TAILSTOCK QUILL DIAMETER ................... 2.36"
TAILSTOCK QUILL TAPER HOLE ................. #4 MT
APPROX WEIGHT .............................. 2500 LBS
APPROX DIMENSIONS .......................... 82" X 46" X 67"

EQUIPPED WITH:

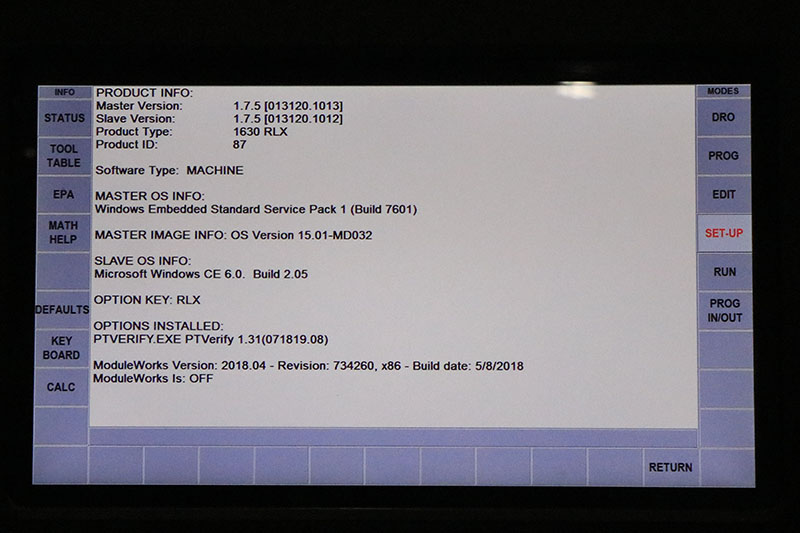

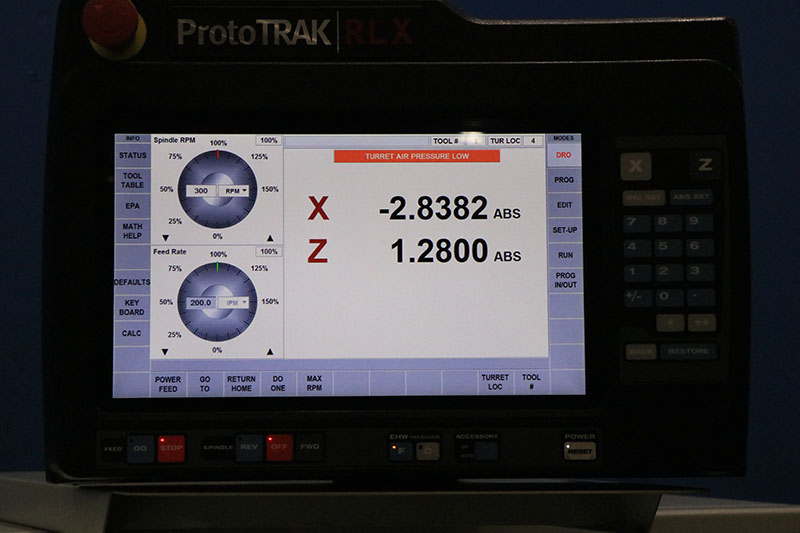

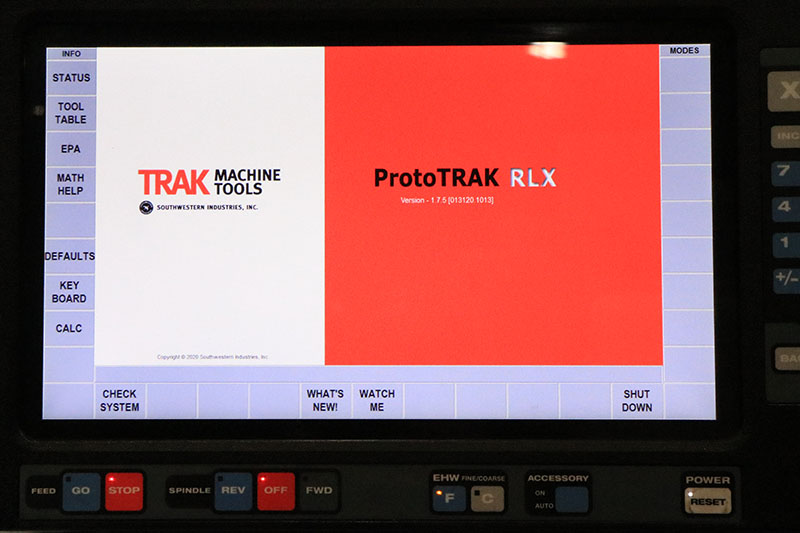

- SOUTHWESTERN INDUSTRIES-PROTOTRAK MODEL: RLX CNC CONTROL
   ENHANCED ProtoTRAK ASSISTANCE / E.P.A.,
   DXF CONVERTOR, ADVANCED FEATURES,
   TRAKING, TOUCH SCREEN, GRAPHICS, MATH HELP,
- TWO AXIS DIGITAL READOUT DURING MANUAL OPERATION
- CONSTANT SURFACE SPEED & PROGRAMMABLE SPINDLE SPEEDS
- SERVO MOTORS & GROUND BALLSCREWS
- AC DRIVES & MOTORS
- ELECTRONIC HANDWHEELS FOR X & Z MANUAL TRAVERSE
- JOGSTICK FOR CONVENIENT JOG AT RAPID TRAVELS
- INCH & METRIC THREADING CAPABILITY

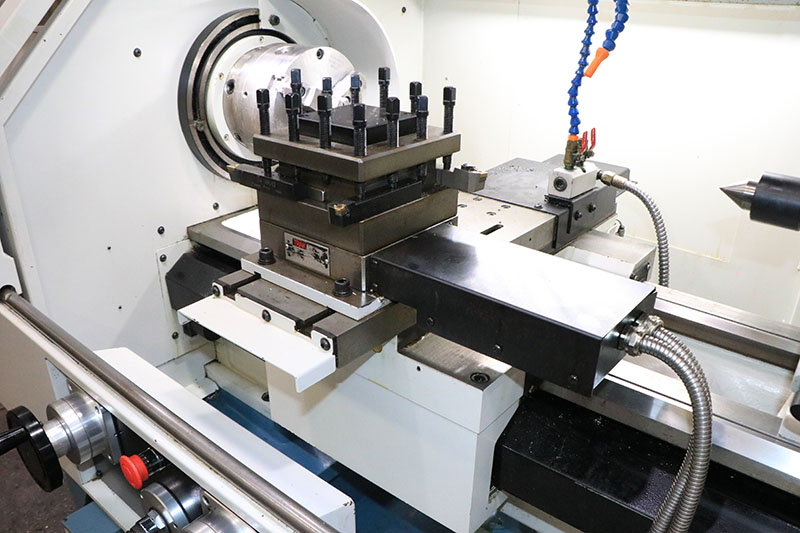

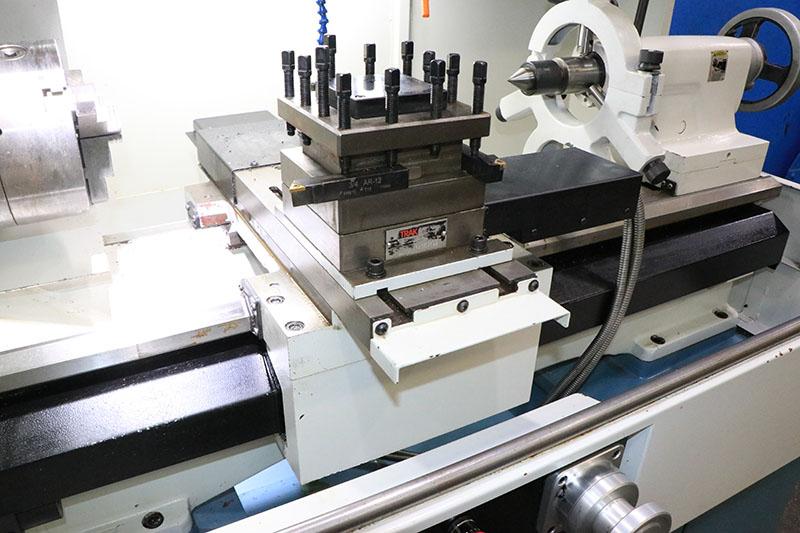

- TRAK FOUR STATION PROGRAMMABLE TURRET TOOLPOST

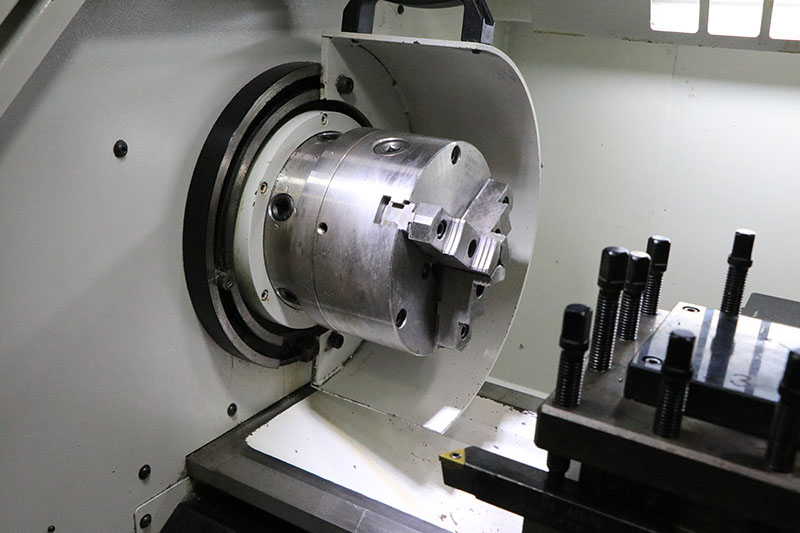

- 3-JAW BUCK CHUCK
- 4-JAW BUCK CHUCK
- STEADY REST
- 5-C COLLET CLOSER

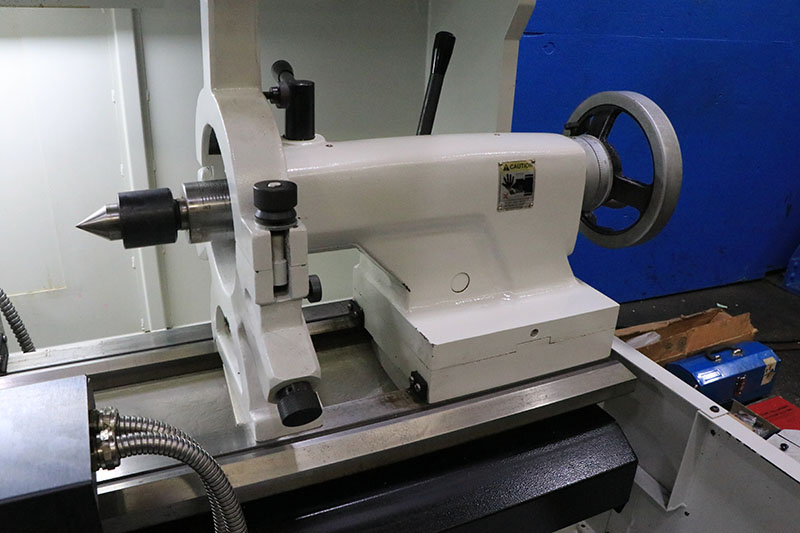

- LIVE CENTER FOR TAILSTOCK
- HARDENED & GROUND BED WAYS
- AUTOMATIC LUBRICATION SYSTEM FOR THE SLIDE WAYS & BALLSCREWS
- COOLANT SYESTEM & SPLASH GUARD

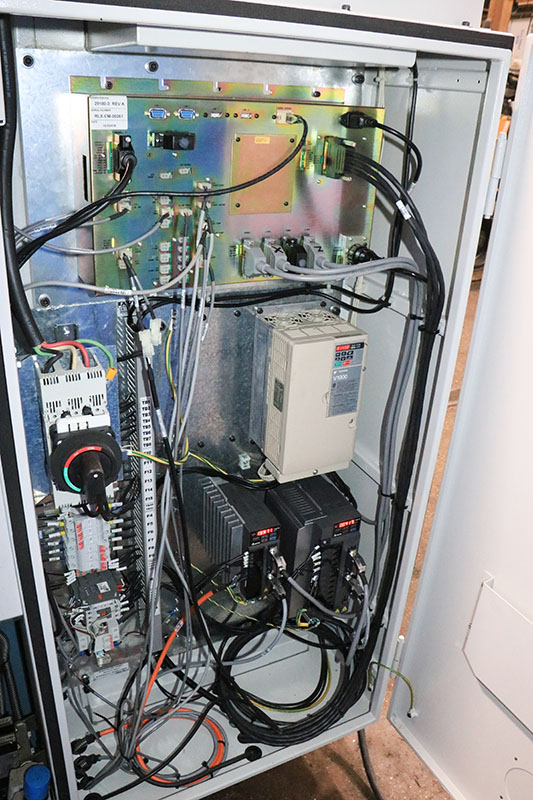

- 7.5 HORSE POWER 3/60/230 VOLT SPINDLE DRIVE MOTOR & ELECTRICAL CONTROLS

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
