Southwest Ind. FHM7, SMX Control, Traking, #40 Taper, 5,000 RPM CNC VERTICAL MILLING MACHINES

Price on Request

Make:: Southwest Ind.

Model:: FHM7, SMX Control, Traking, #40 Taper, 5,000 RPM

Year:: 2012

Ref #:: 179421

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

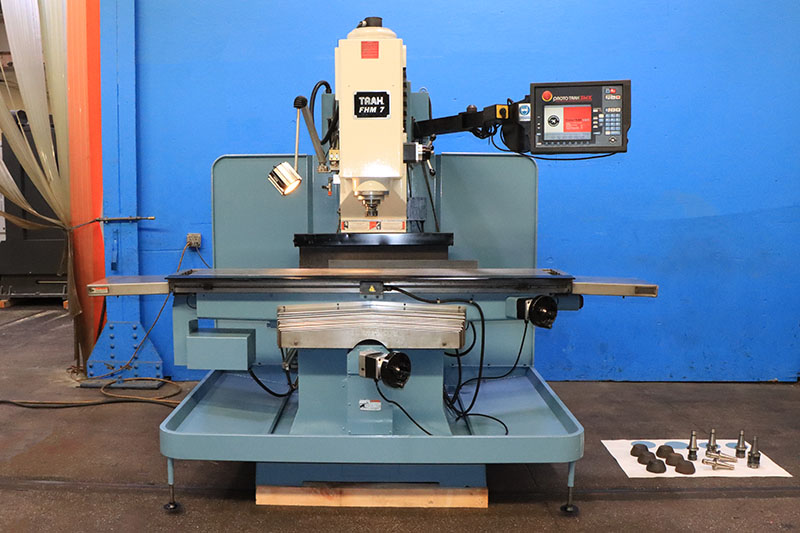

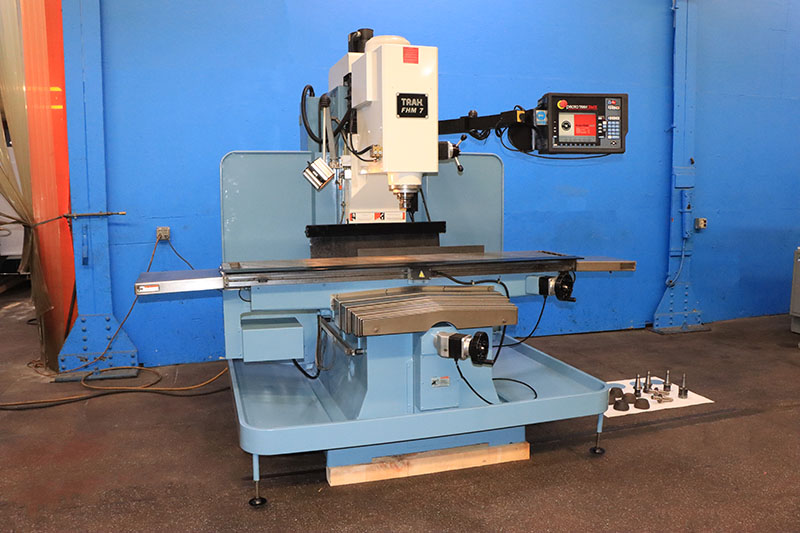

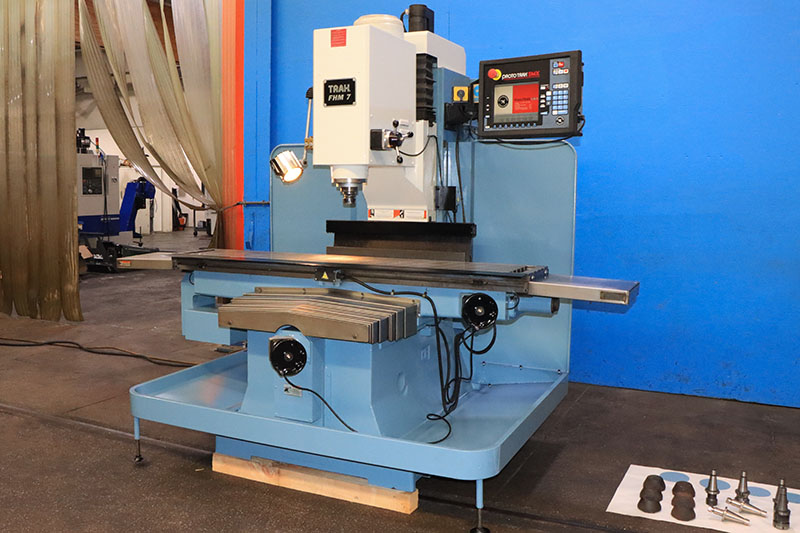

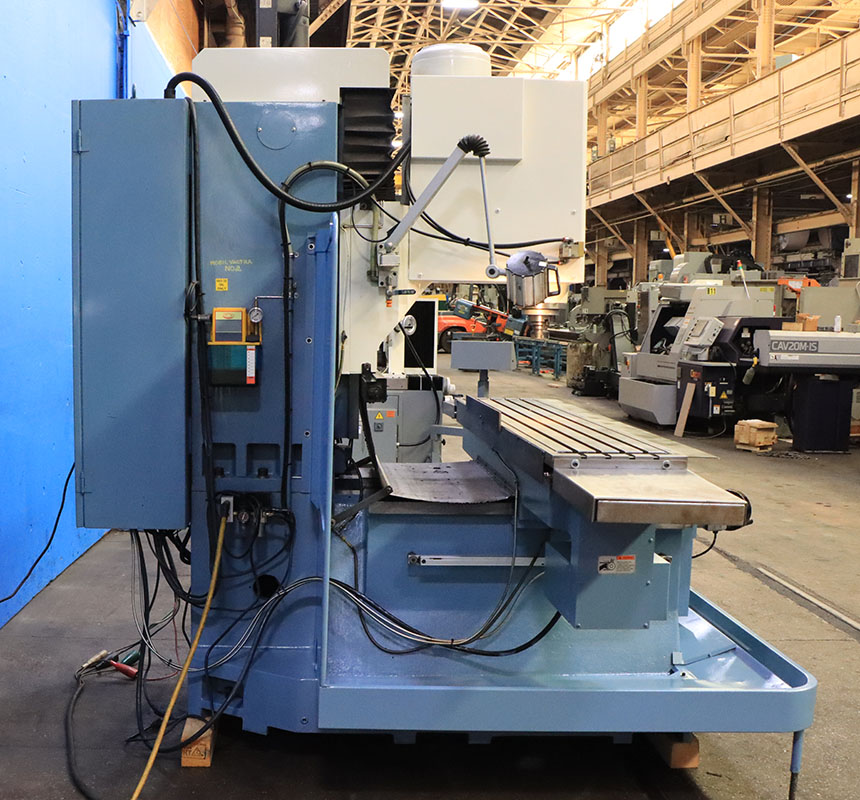

SOUTHWESTERN INDUSTRIES CNC VERTICAL MILL

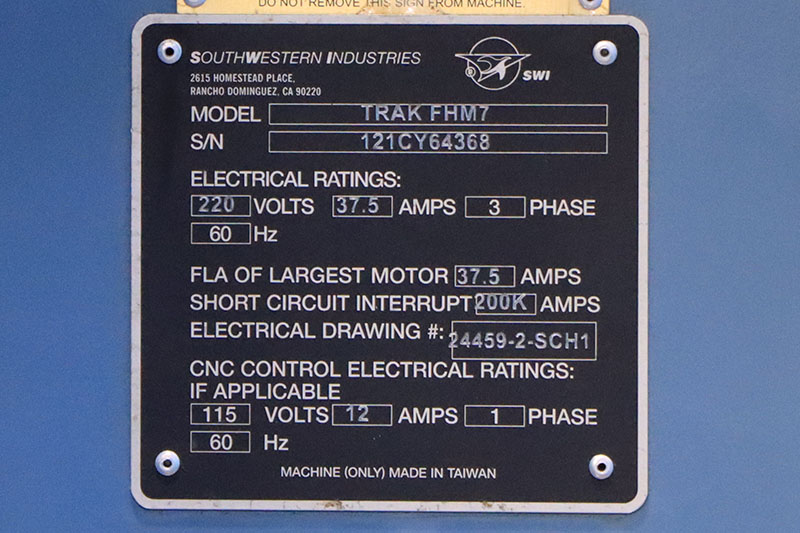

MODEL: FHM 7, S/N: 121CY64368, NEW: 2012

SPECIFICATIONS:
TABLES SIZE ...................... 76" X 14"
TRAVELS:
TABLE  (X-AXIS) .................. 60"
SADDLE (Y-AXIS) .................. 23"
HEAD  (Z-AXIS) ................... 20.5"
QUILL DIAMETER ................... 5.06"

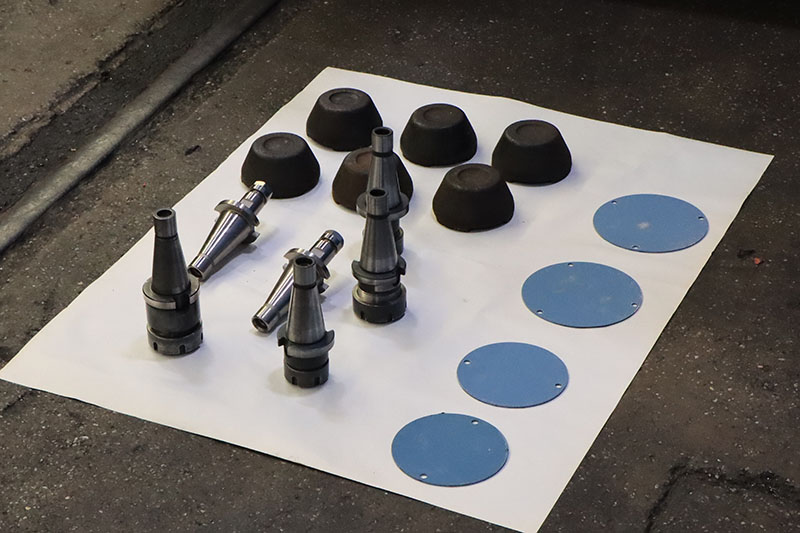

SPINDLE TAPER .................... #40
SPINDLE SPEED RANGE .............. 200 - 5000 RPM
SPINDLE CENTER TO COLUMN FACE .... 23.75"
SPINDLE MOTOR .................... 7.5 HP
MAX WEIGHT OF WORKPIECE .......... 2,200 LBS
TABLE HEIGHT FROM BED BOTTOM ..... 38.25"
MAX SPINDLE NOSE TO TABLE ........ 24"
MIN HEIGHT ....................... 91.75"
MAX HEIGHT ....................... 101"
APPROXIMATE MACHINE WEIGHT ....... 7,975 LBS.

EQUIPPED WITH:

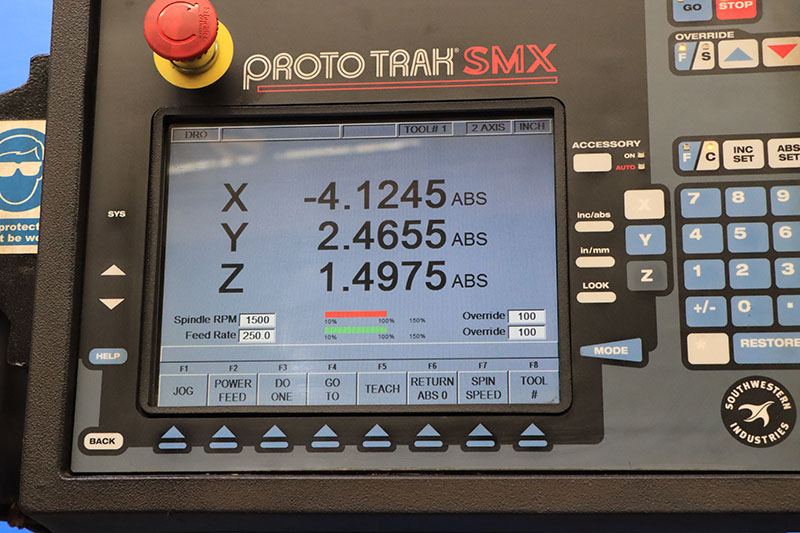

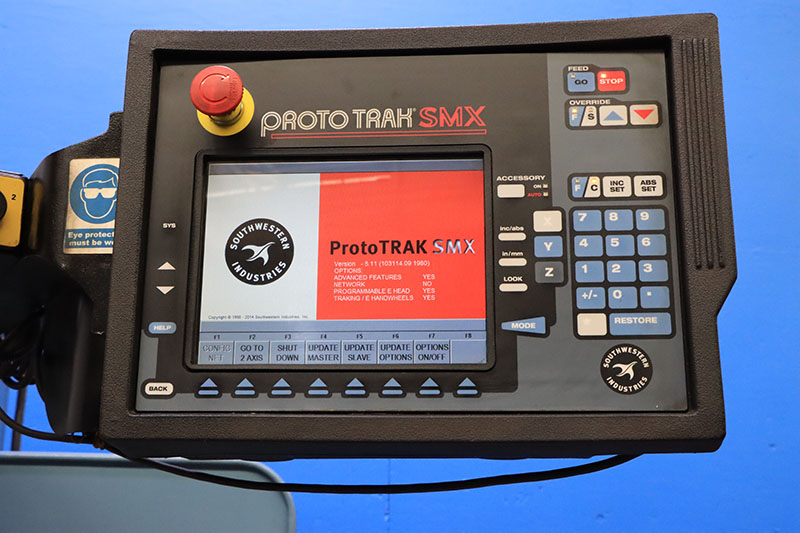

PROTO-TRAK MODEL: SMX CONTROL,
  WINDOWS OPERATING SYSTEM,
   ADVANCED FEATURES, PROGRAMMABLE E HEAD, TRAKing
   10.4" LCD SCREEN, RS232 PORT& RJ45 CONNECTOR,
   AUTO GEOMETRY ENGINE, LINEAR & CIRCULAR INTERPOLATION,
   TWO OR THREE AXIS, ROTATE OR MIRROR, (2) USB PORTS,
   & MUCH MUCH MORE!

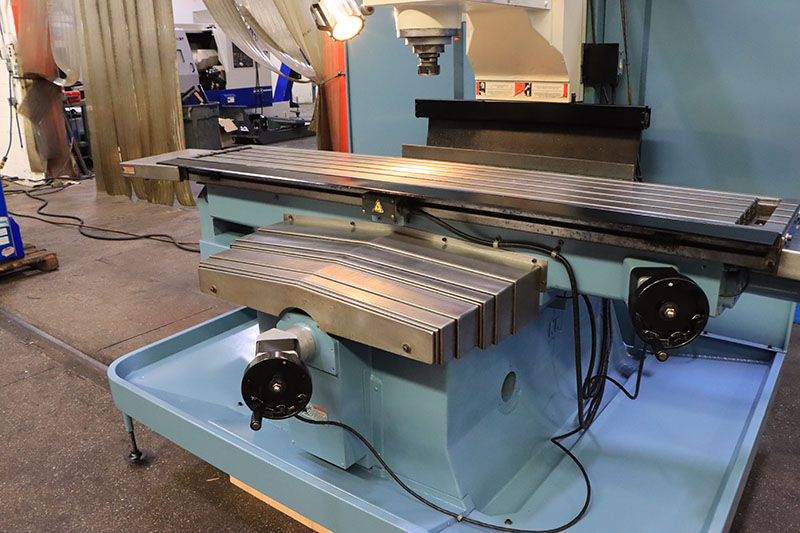

TRAKing/ELECTRONIC HANDWHEELS

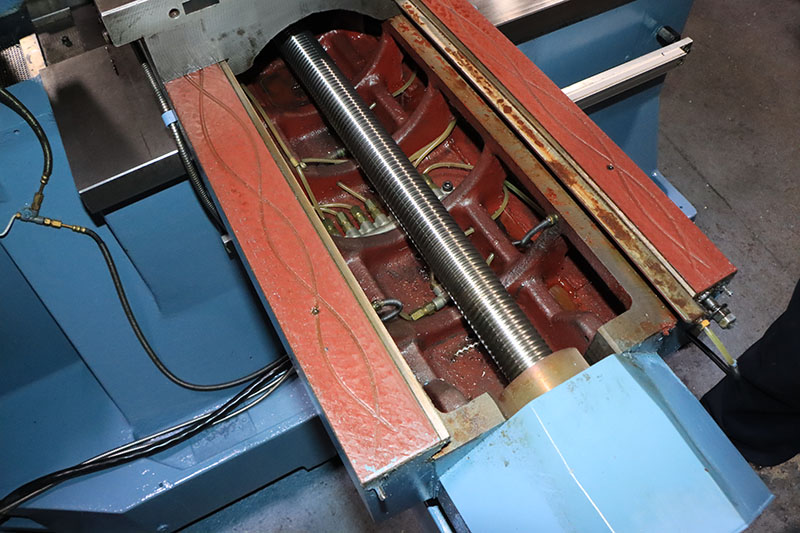

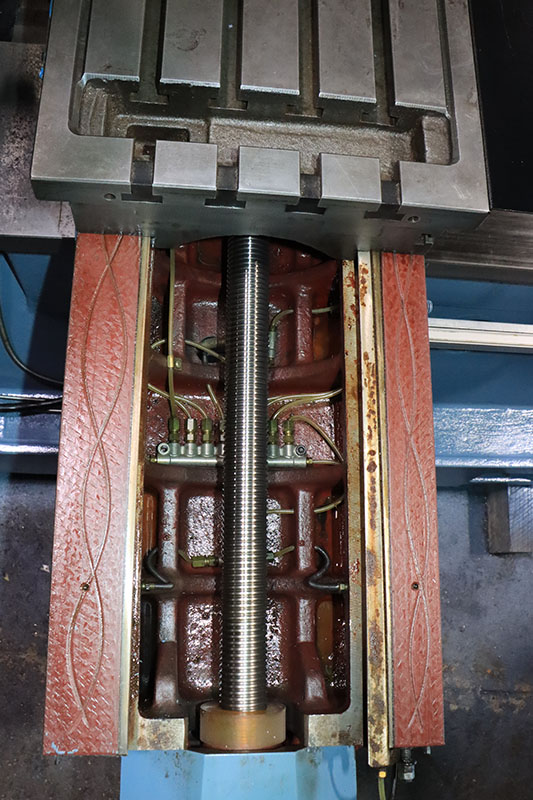

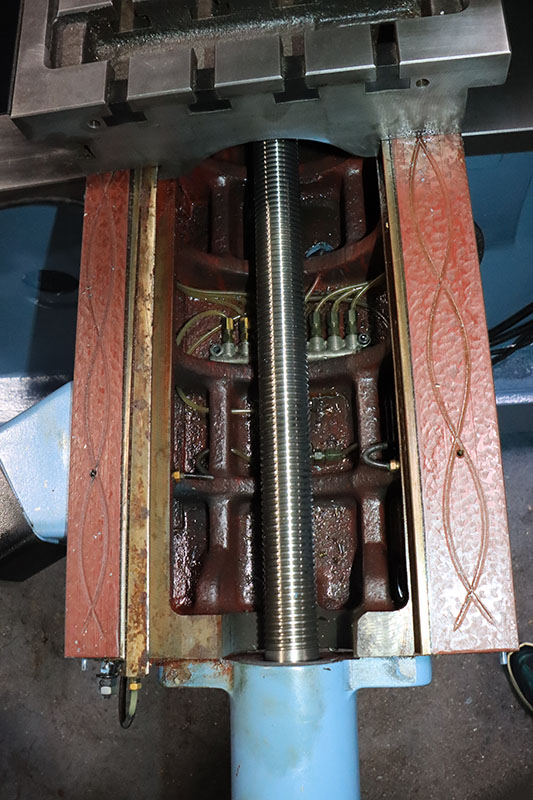

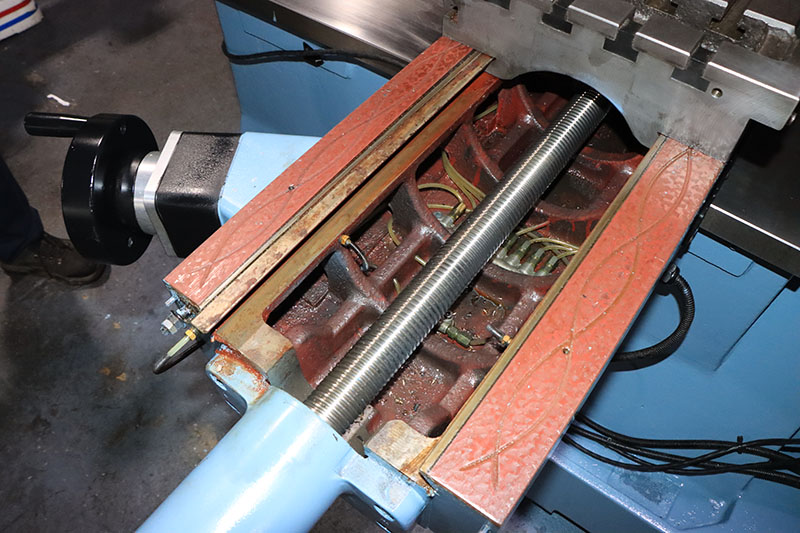

BALL SCREWS & AC SERVO MOTORS FOR X,Y & Z AXES

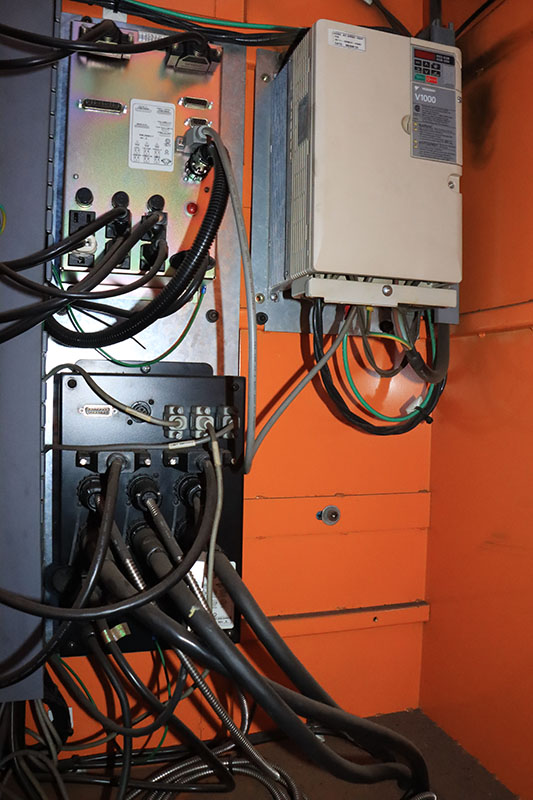

YASKAWA SPINDLE DRIVE

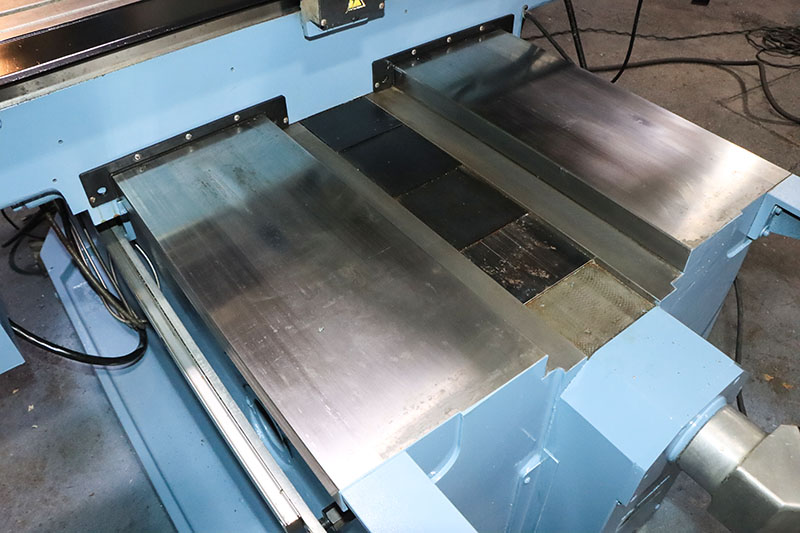

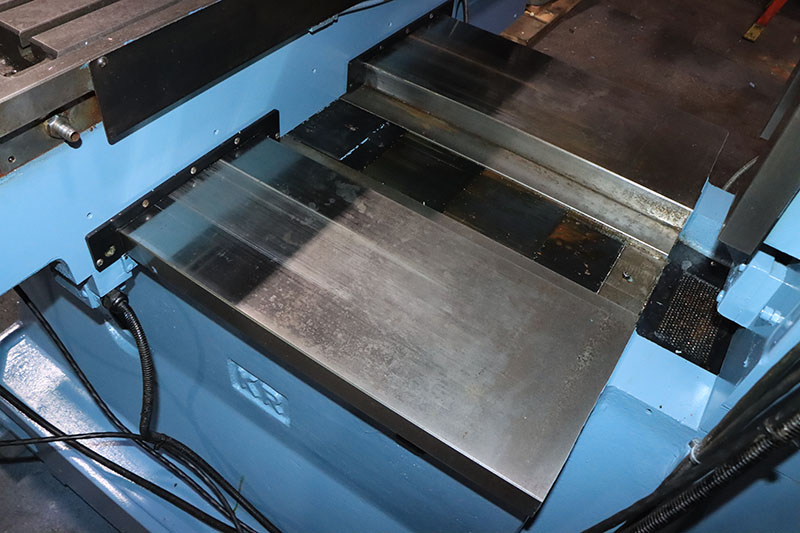

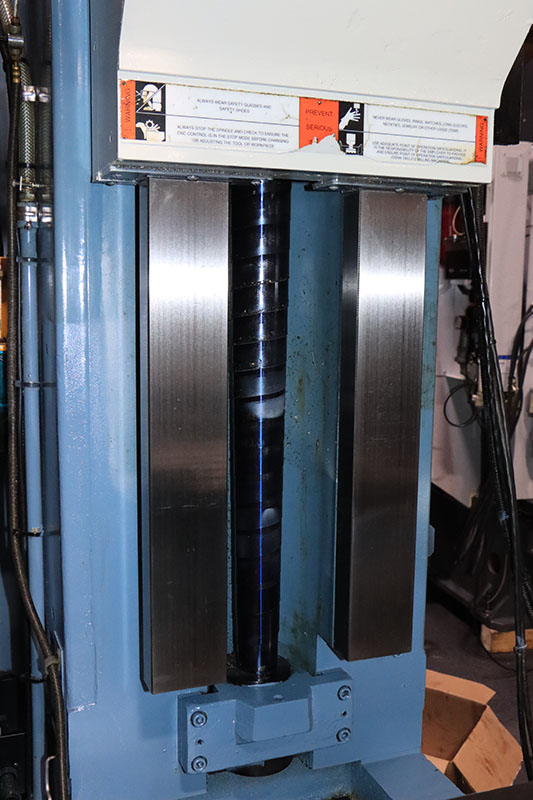

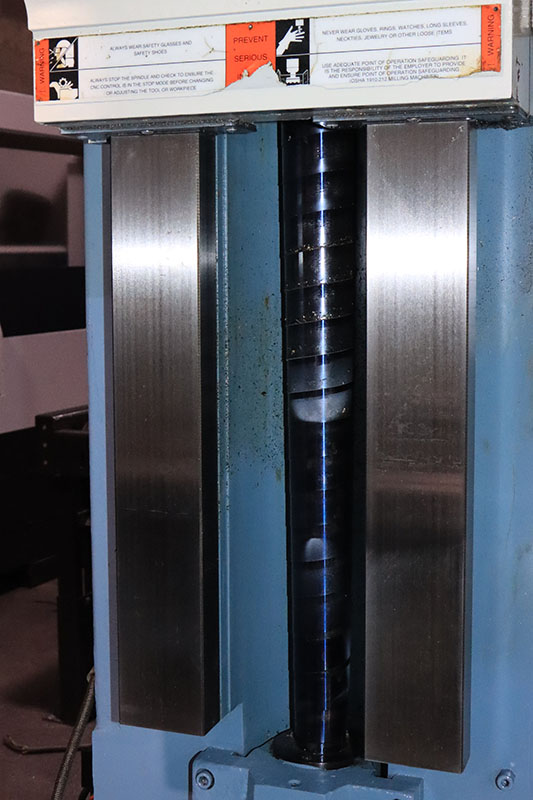

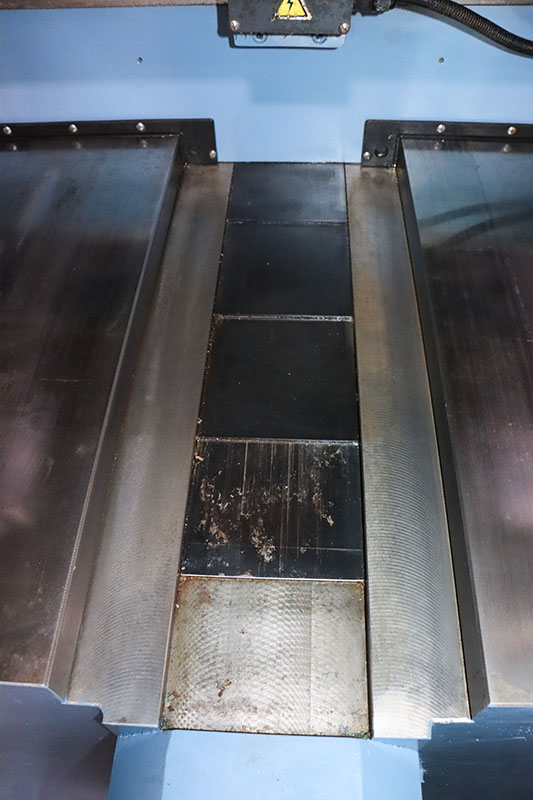

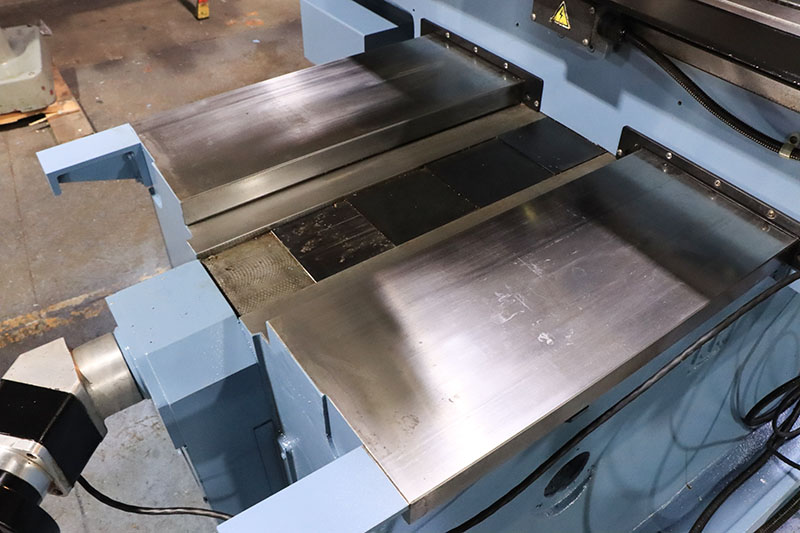

HARDENED & GROUND BOX WAYS

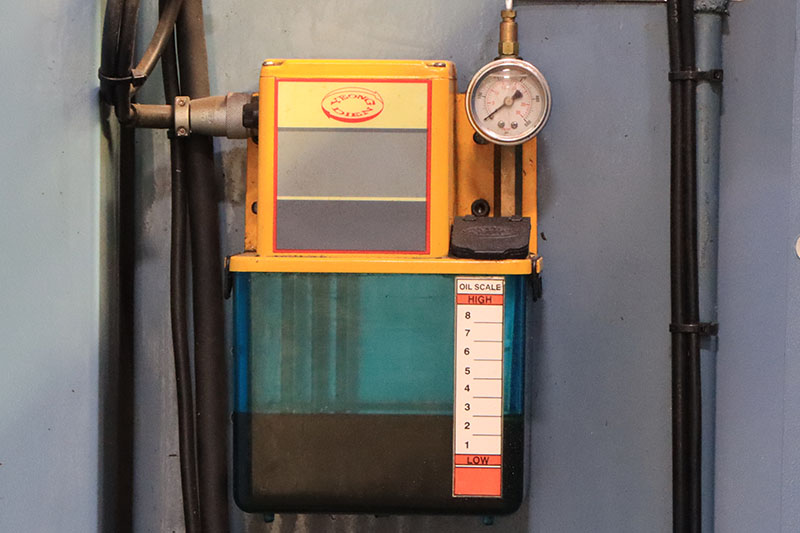

AUTOMATIC LUBRICATION SYSTEM
COOLANT SYSTEM w/CHIP PAN & SPLASH SHIELD
7.5 HORSE POWER SPINDLE MOTOR & INVERTER
