Strippit Super 750 SG/40 SINGLE STATION PUNCHES, FABRICATORS

$19,500

Make:: Strippit

Model:: Super 750 SG/40

Year:: 1996

Ref #:: 178784

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

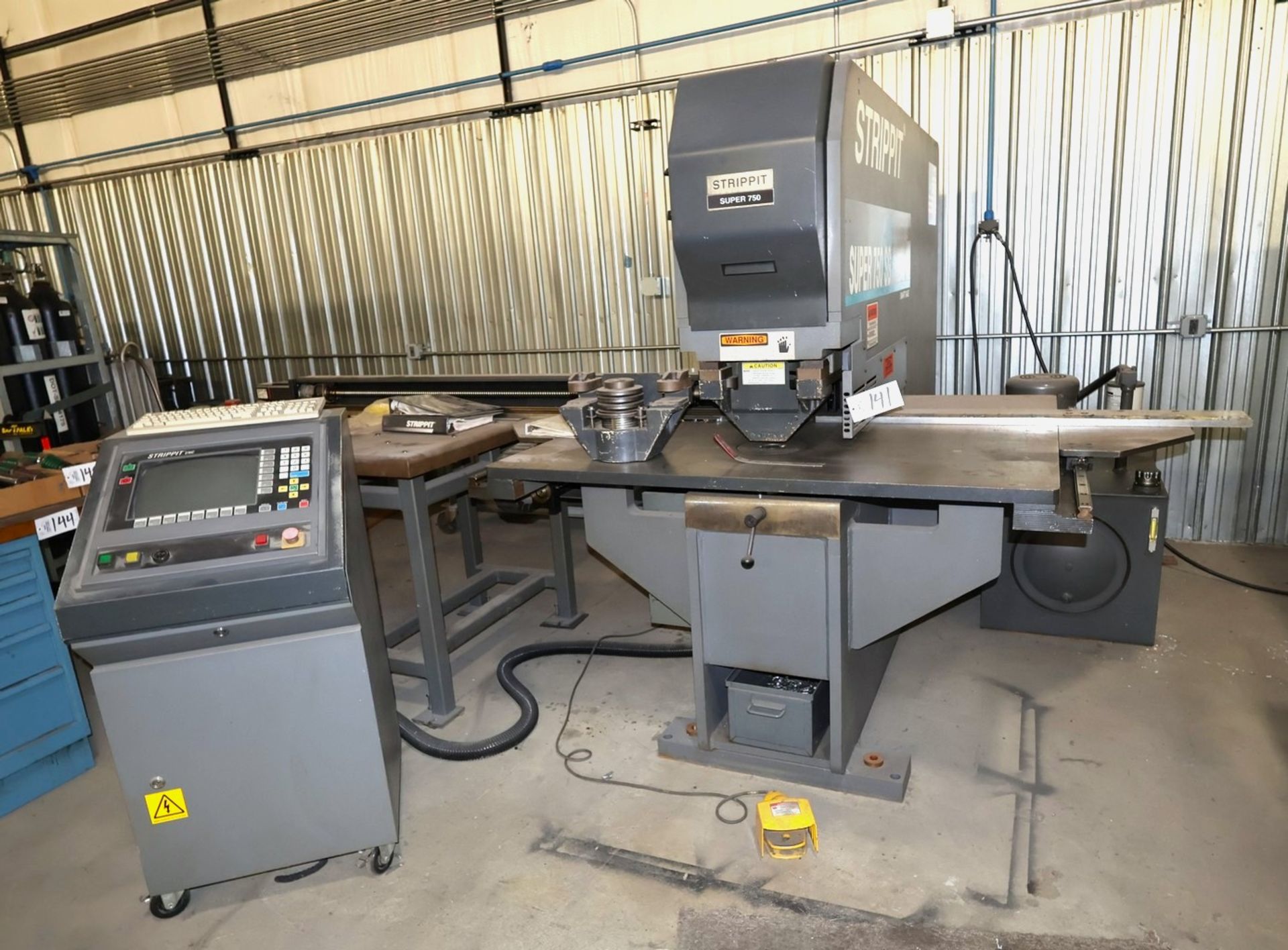

STRIPPIT 44 TON SINGLE STATION FABRICATOR WITH SMART GAGE PC CONTROL

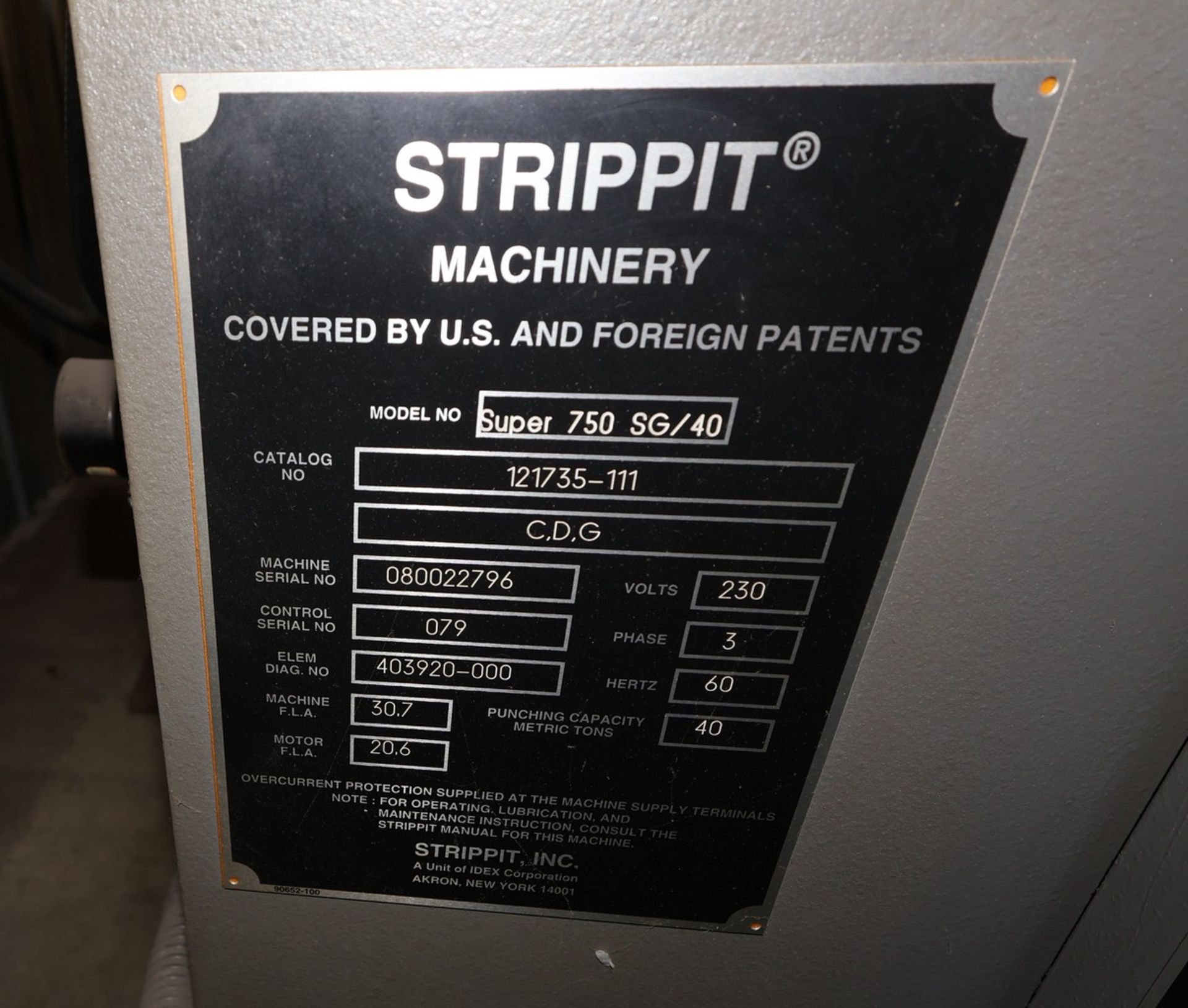

MODEL SUPER 750 SG/40     S/N 080022796  NEW 1996

Maximum material thickness .. 375"
Tonnage: .................... 40 metric (44 US Tons)
Capacity ............. 1.25" dia. in. .375" mild steel
                       2" dia. in .250" mild steel
                       3.5" dia. in .135" mild steel
Axis travel ................. 30" x 72" *WITH TABLE
Gage position accuracey ..... +- .002"
Table Height ................ 39"
Positioning speed ........... up to 800 IPM

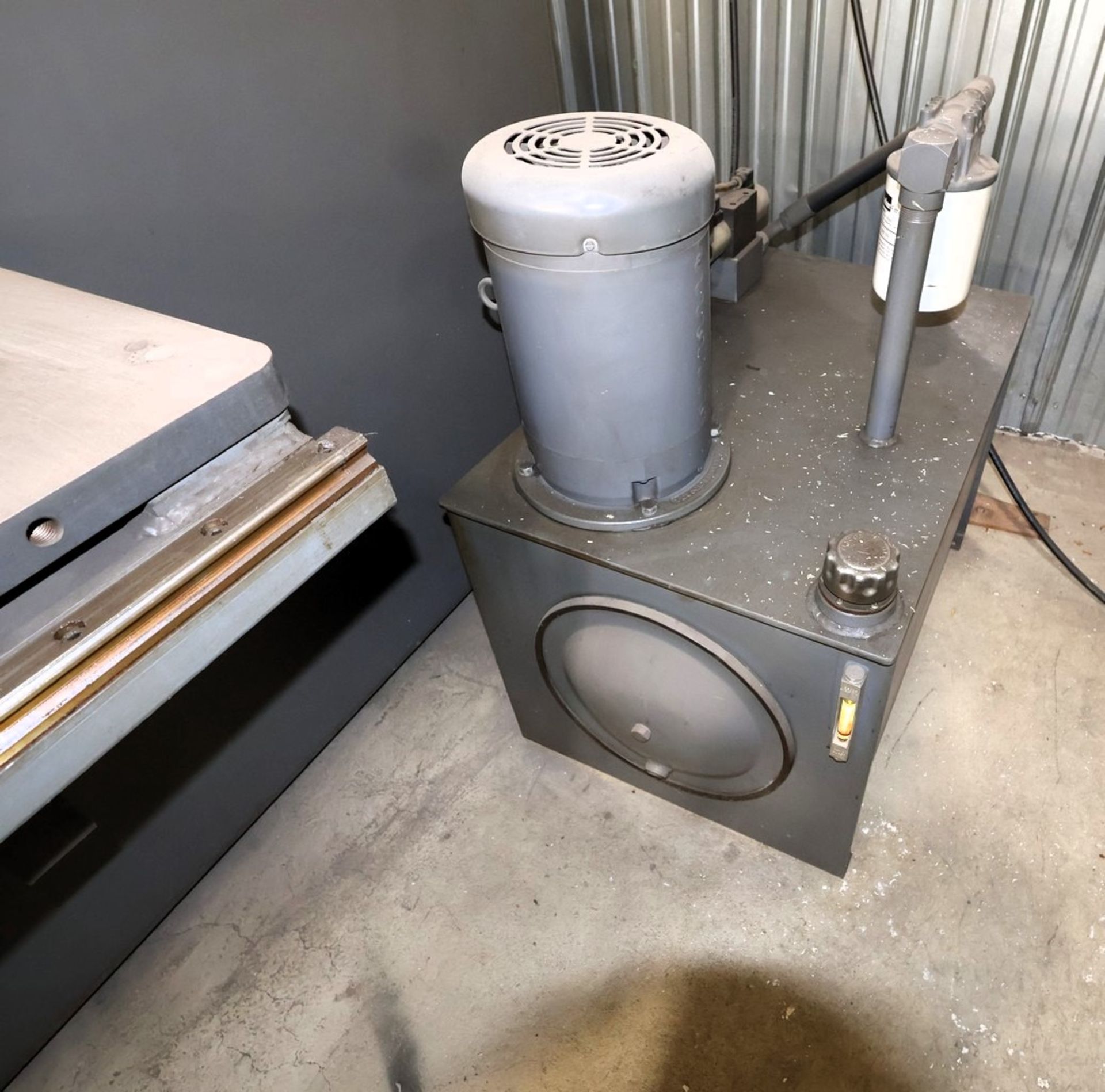

Hydraulic pump motor ........ 7 1/2 HP
Air consumption ............. 90 PSI, negligible SCFM

Dimensions - 106" W x 90.25" D x 76" H
Weight - 12,000 lbs.

EQUIPPED WITH:

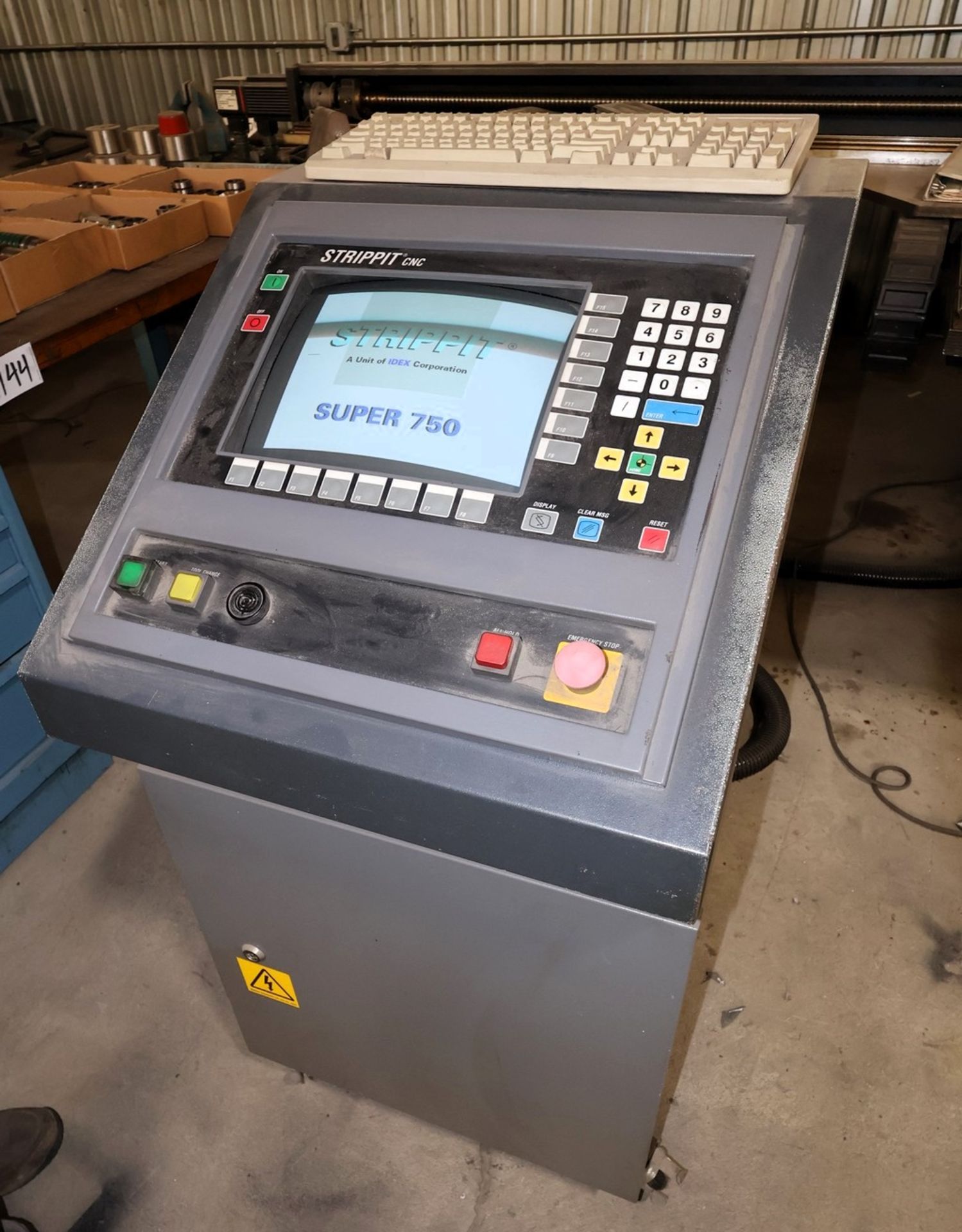

- SMART GAGE PC BASED CONTROL
- BALL TRANSFER SUPPORT TABLE FOR EXTENDED TRAVEL

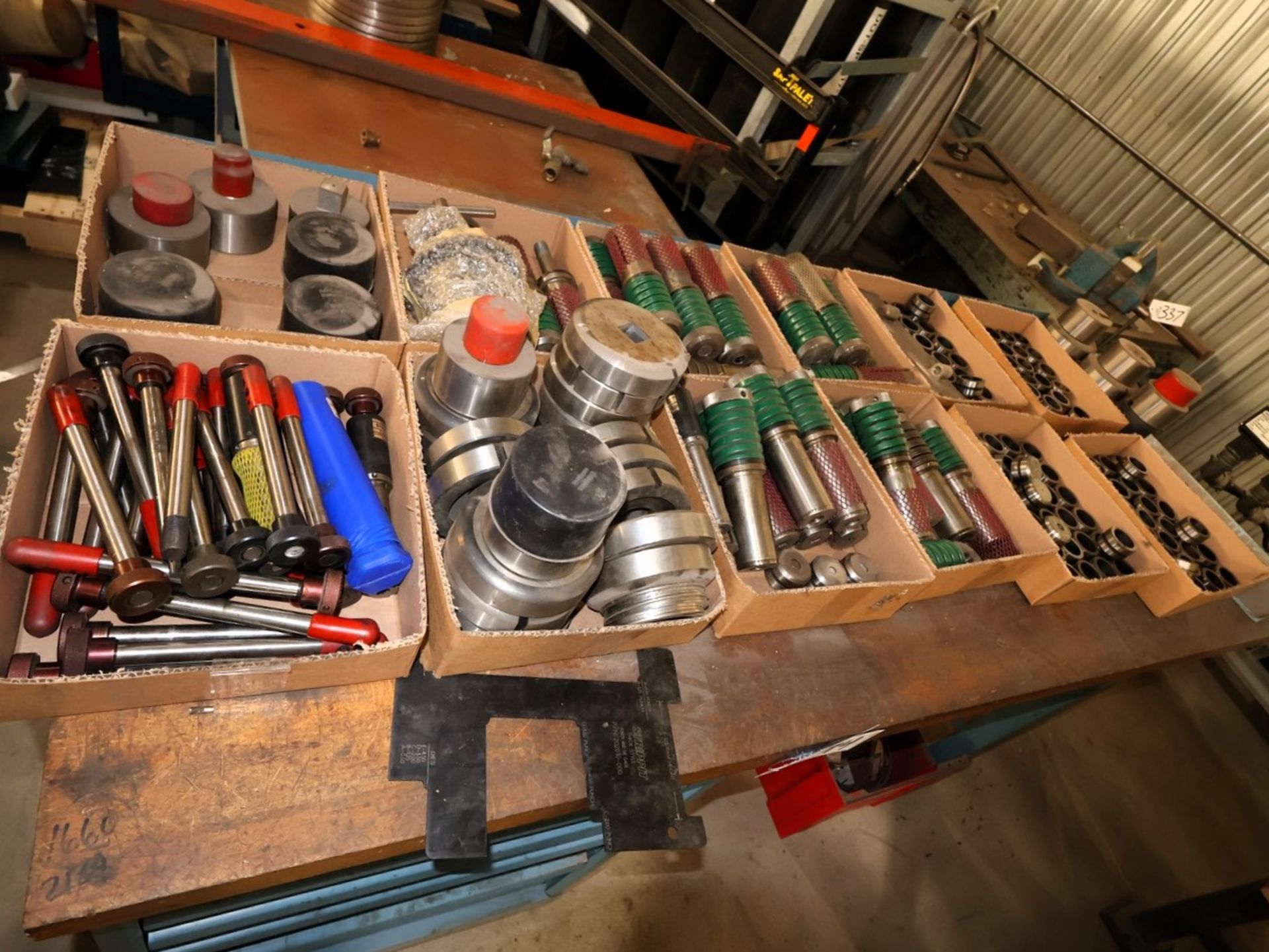

- LOTS OF TOOLING (AS SHOWN)

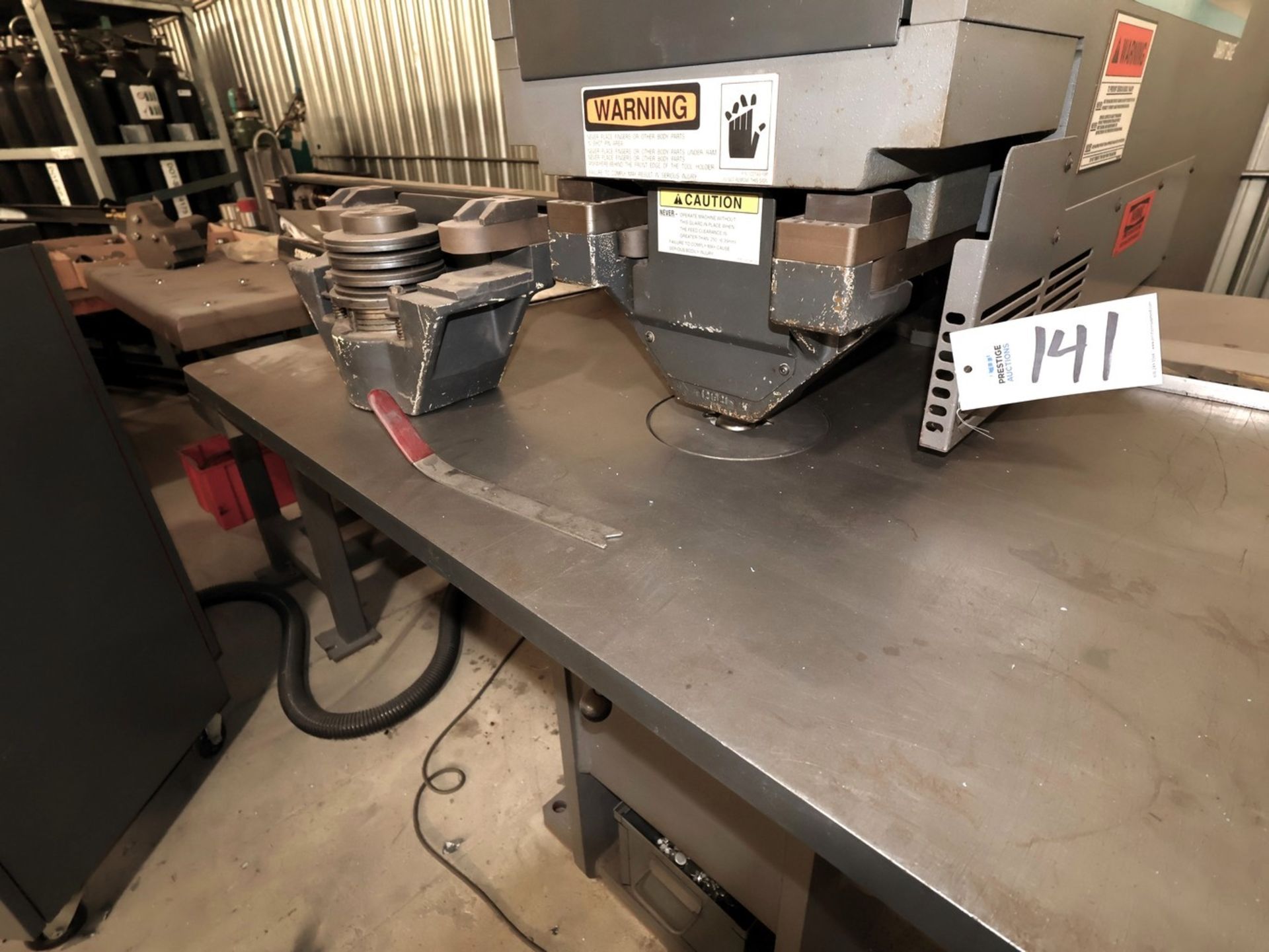

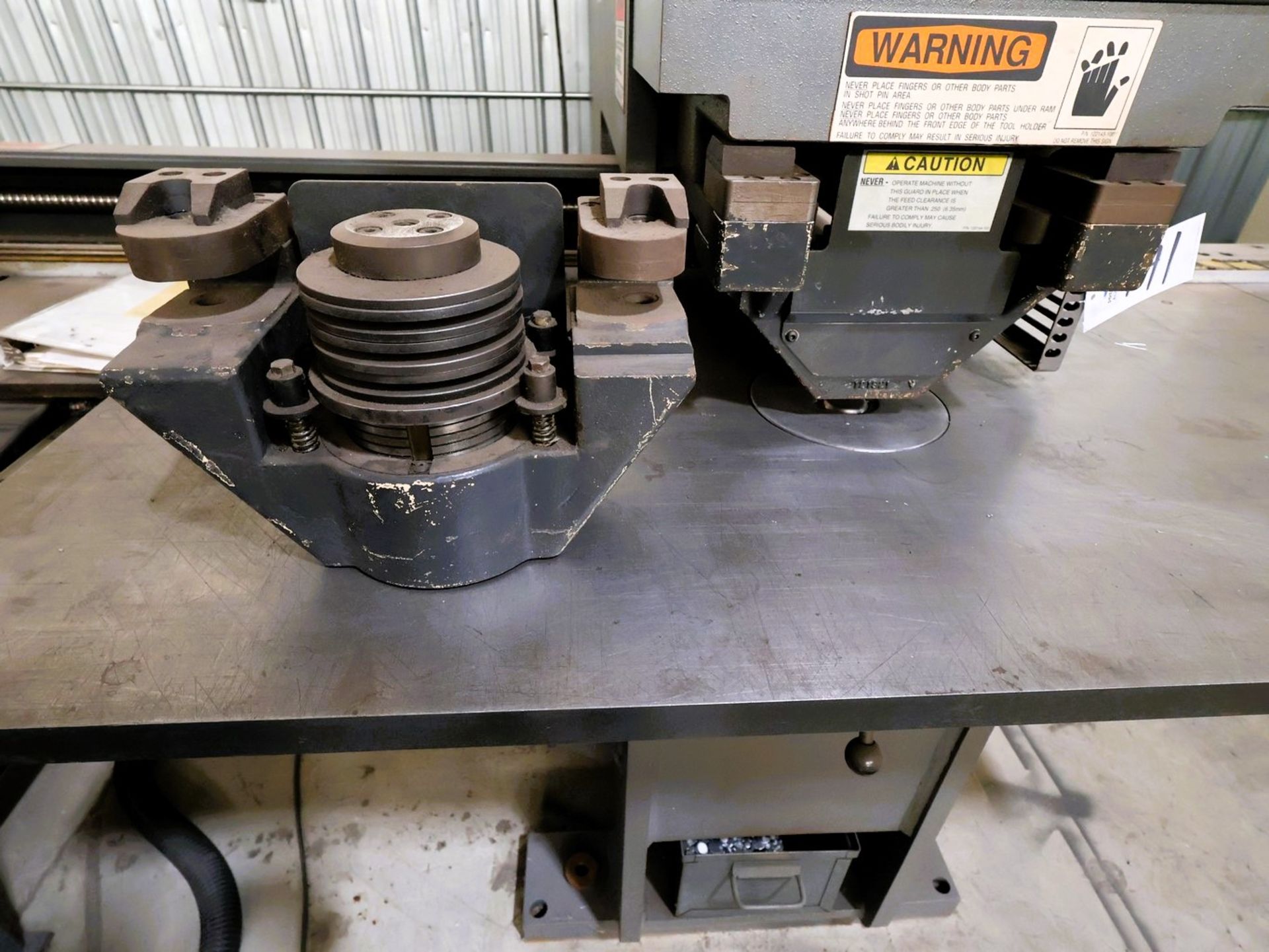

- BOTH THE LARGE AND SMALL DIE HOLDERS
- FOOT PEDAL

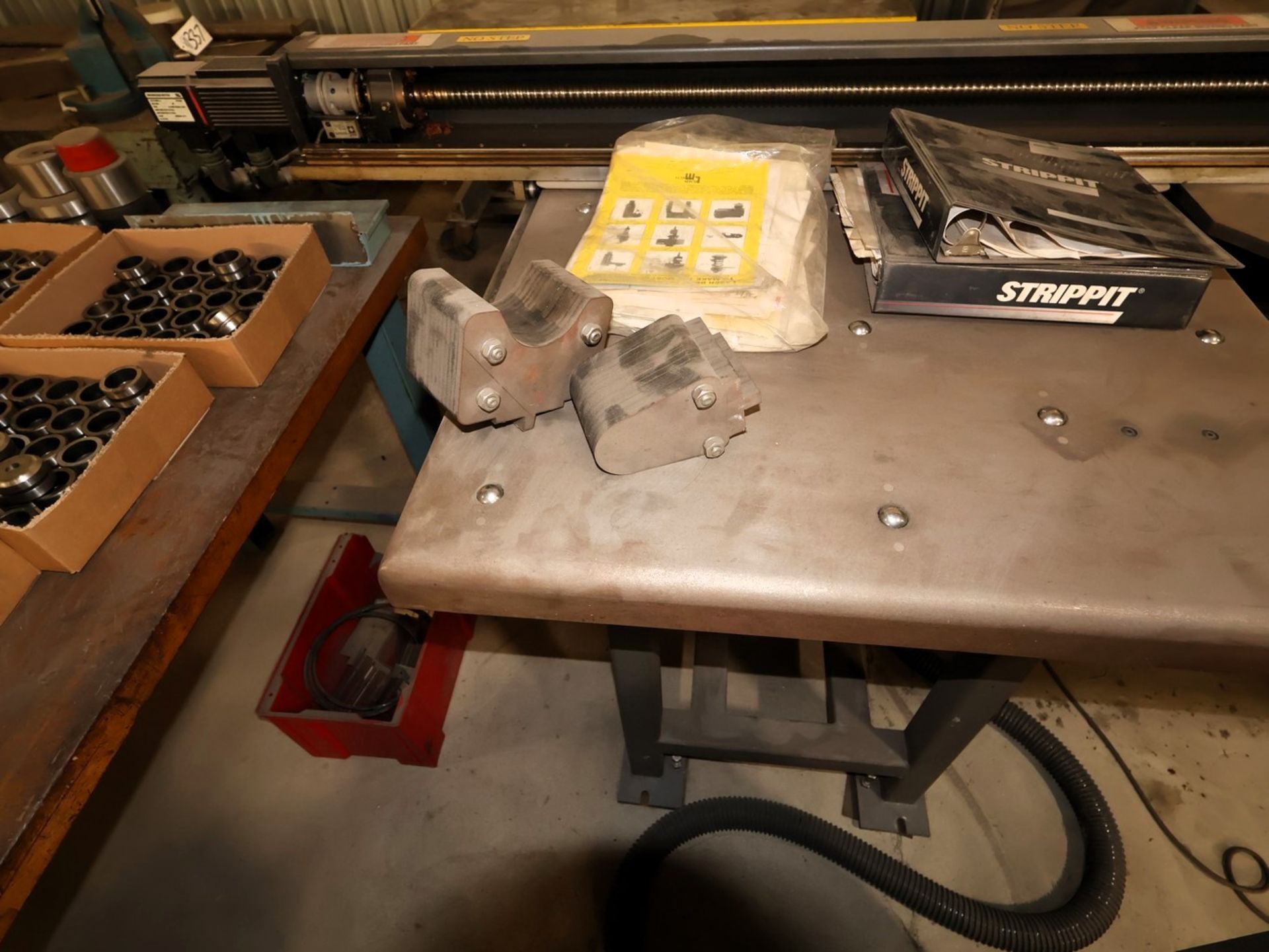

- OPERATION MANUALS
