Watch Video:

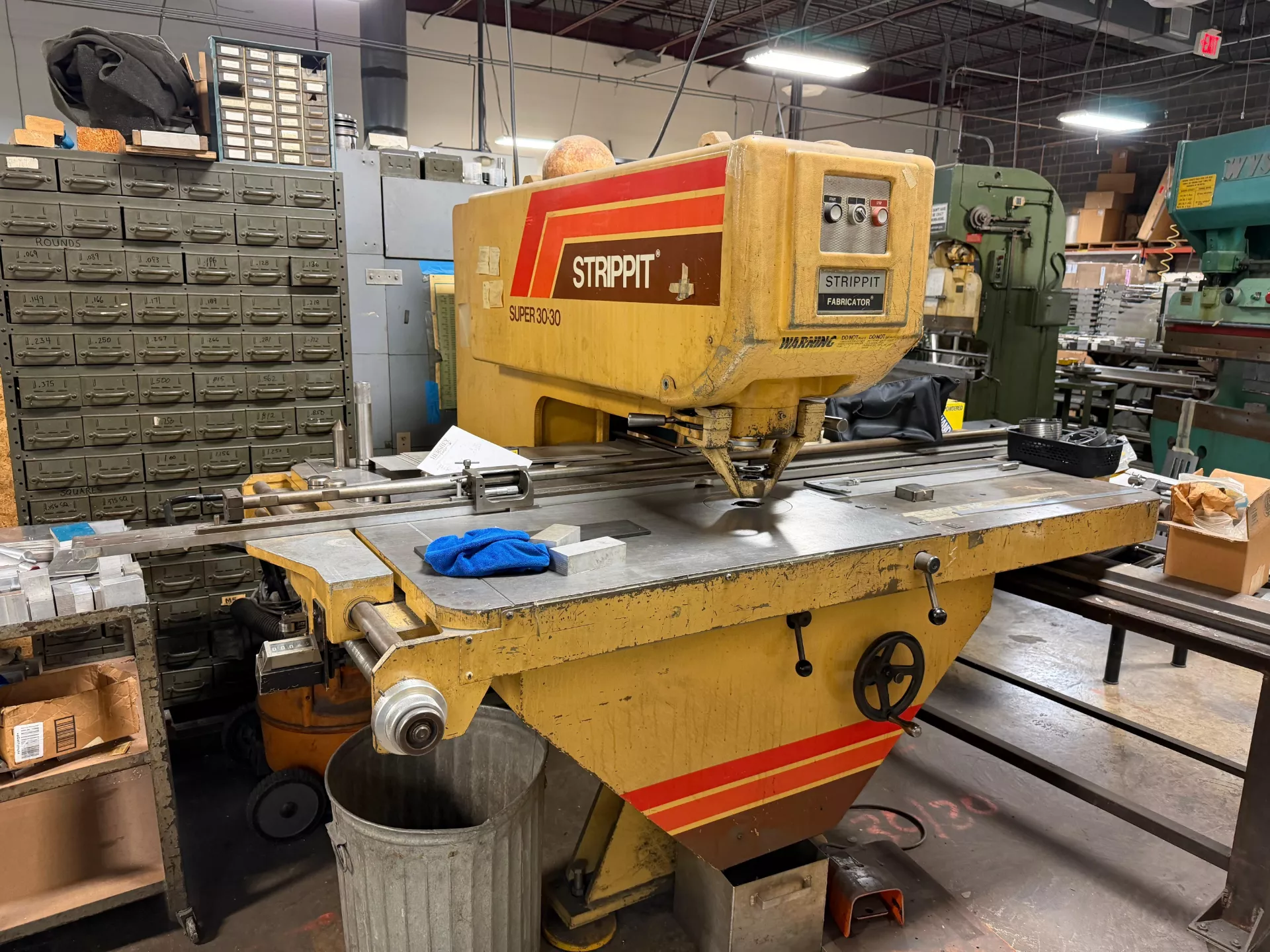

Strippit SUPER AG SINGLE STATION PUNCHES, FABRICATORS

$14,500

Make:
Strippit
Model:
SUPER AG
Year:
1991
Ref #:
158003

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com



Strippit Super AG CNC 2-Axis Gauging
STRIPPIT SUPER AG  30/30
S/N 2507096091     NEW 1991

Storage & Edit Bubble Memory (128K Memory).
Manual Data Input.
Calculation Mode.
Programmable Feed Rate.
Decimal Point Programming.
Absolute/Incremental Programming.
15 Digit Program / Part Number.
CRT Display for Command, Absolute Position, Tool.
Machine Status, Date, & Part Drawing.
Automatic Parts Counter.
Block Delete.
Inch/Metric Switchable.
Pattern Functions Includes.
Grid From Center Position.
Grid From Corner Position.
Bolt Hole Circle.
Rectangular Cut Out With Square or Radius Corners.
Arc.
Circular Nibbling.
Straight Nibbling.
All of above Can Be Rotated To Any Angle.
Lists All Programs.
Lists All Tools In Order Of Shape & Size Required For Individual
Programs.
Offset to Datum Lines

Maximum Material - .250" (6.3mm)

Capacity

1.000" dia. (25.4mm) in .250" (6.3mm) mild steel
3.500" dia" (88.9mm) in 12 ga. (2.6mm) mild steel

Axis Travel -  30.00" x 39.37" (400mm x 1000mm)

Positioning Accuracy -  +/.005" (+/.13mm)

Positioning Speed - Up to 590 IPM (15 MPM) -

Adjustable Strokes Per Minute - 80 (Operator Dependent)

Width - 100"
Height - 68"
Depth - 51"
Table Height - 39"
Shipping Weight 7,300 Lbs.

***** RUNS GREAT! READY TO GO *****
