Summit 20X120B 4" Bore, Taper, Fagor DRO, Inch/Metric, ENGINE LATHES

Price on Request

Make:: Summit

Model:: 20X120B 4" Bore, Taper, Fagor DRO, Inch/Metric,

Year:: 2014

Ref #:: 179346

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

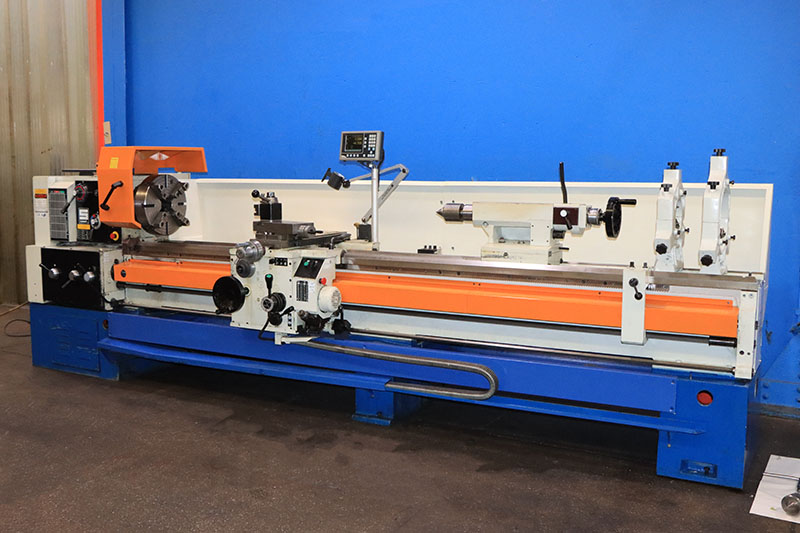

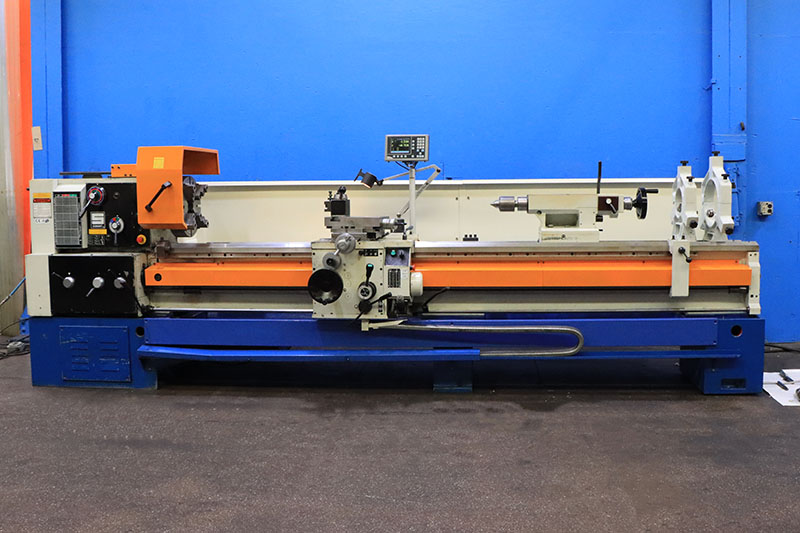

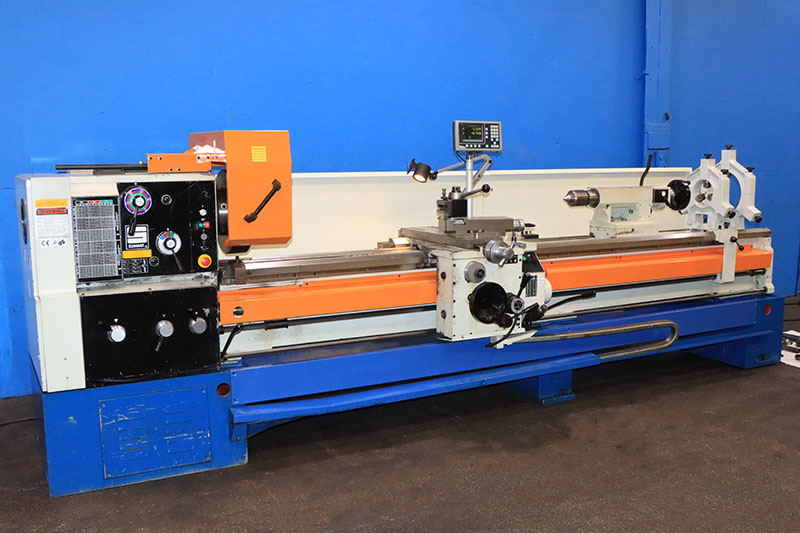

20"/30" x 120" SUMMIT GAP BED LATHE

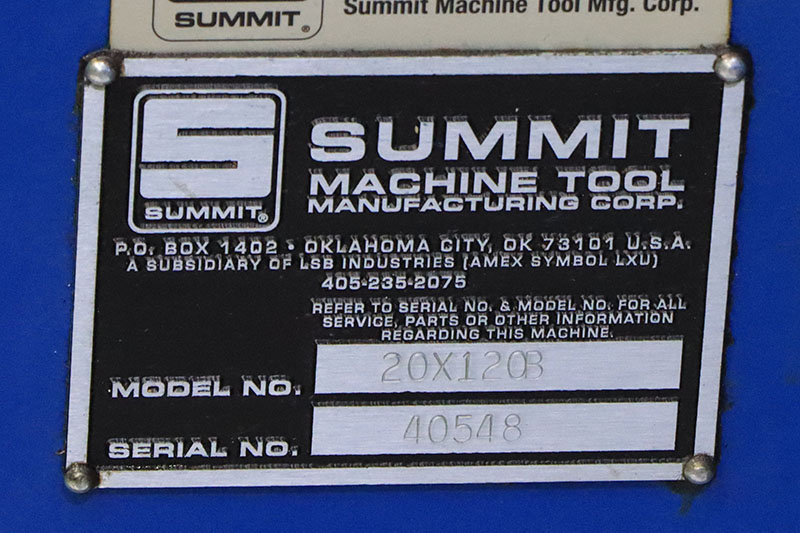

MODEL: 20-4", S/N: 40548, NEW: 2014

SPECIFICATIONS:
SWING OVER BED WAYS ................. 20-1/4"
SWING IN REMOVABLE GAP .............. 27-7/8"
SWING OVER CROSS SLIDE .............. 11-7/8"
DISTANCE BETWEEN CENTERS ............ 120"
HOLE THRU SPINDLE ................... 4-1/8"
WIDTH OF BED ........................ 15-3/4"
SPINDLE NOSE ........................ D1-8" CAMLOCK

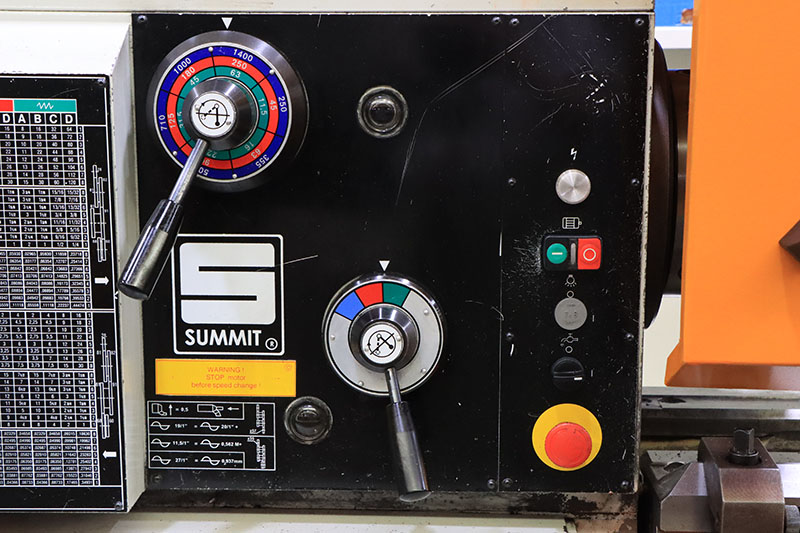

SPINDLE SPEED RANGE (15) ............ 11.5 - 1400 RPM
LONGITUDINAL FEED RANGE (56) ........ .00145" - .44474"
CROSS FEED RANGE (56) ............... .0007" - .22237"
INCH THREADING RANGE (64) ........... 1/4 - 60 TPI
METRIC THREADING RANGE (64) ......... .5 - 120 mm
TAILSTOCK SPINDLE TRAVEL ............ 9-1/2"
TAILSTOCK SPINDLE TAPER ............. #5MT
APPROXIMATE FLOOR SPACE ............. 180"L x 48"W x 60"H
APPROX WEIGHT ....................... 8,500 LBS

EQUIPPED WITH:

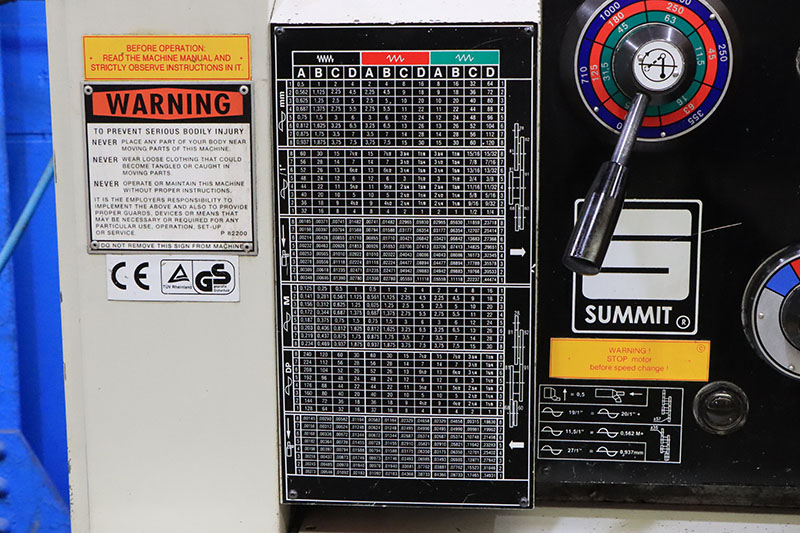

INCH & METRIC THREADING

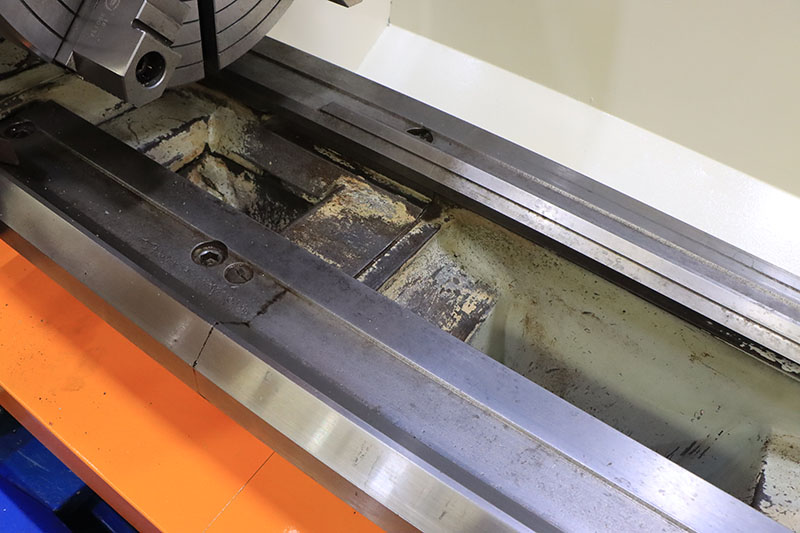

REMOVEABLE GAP (LENGTH OF GAP 15")

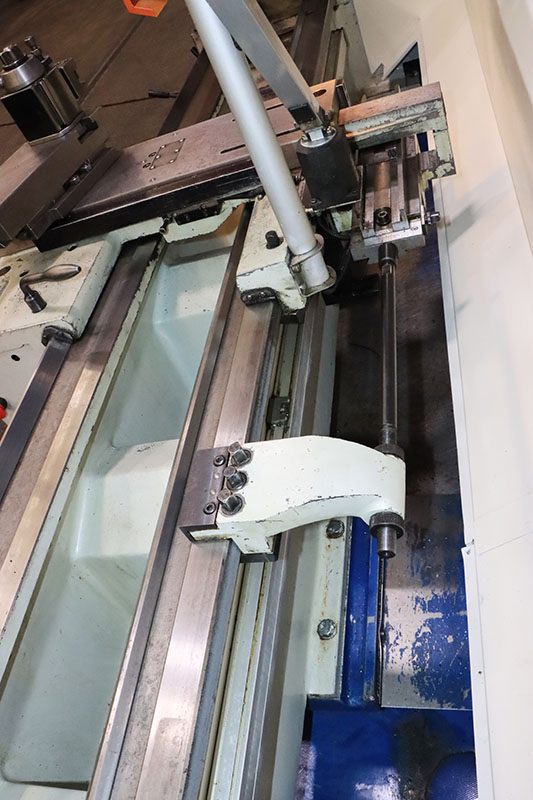

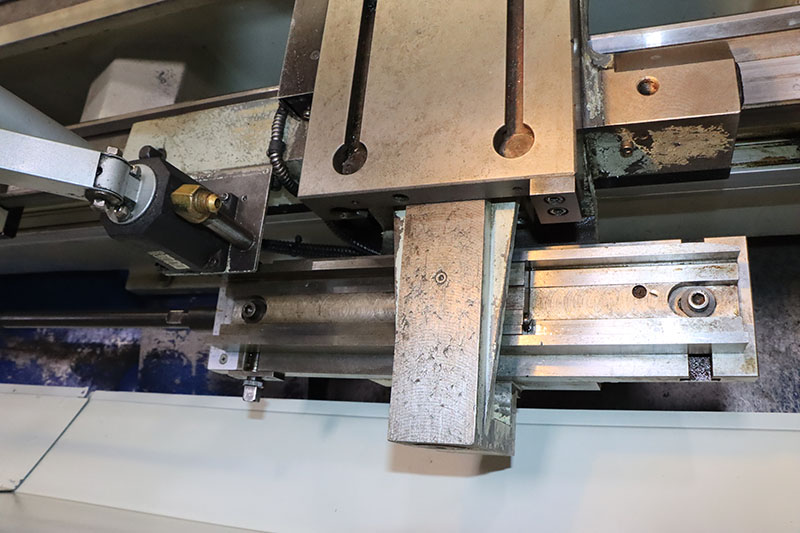

TAPER TURNING ATTACHMENT

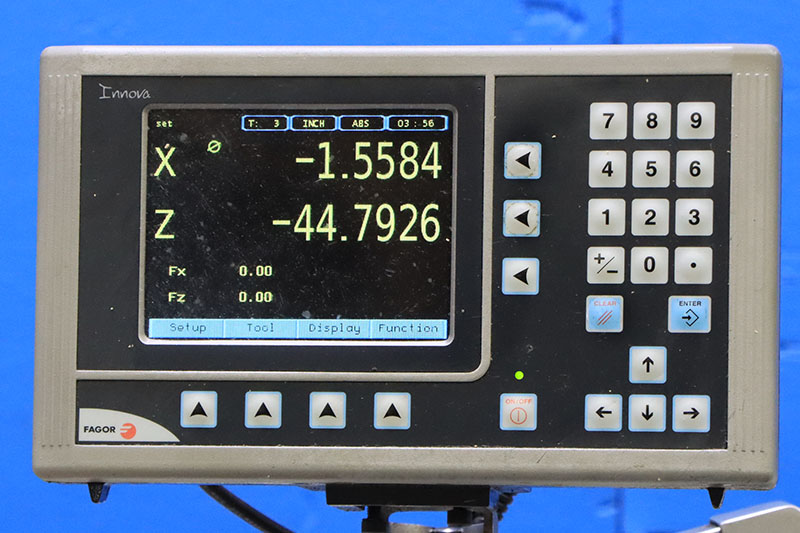

FAGOR TWO AXIS DIGITAL READOUT

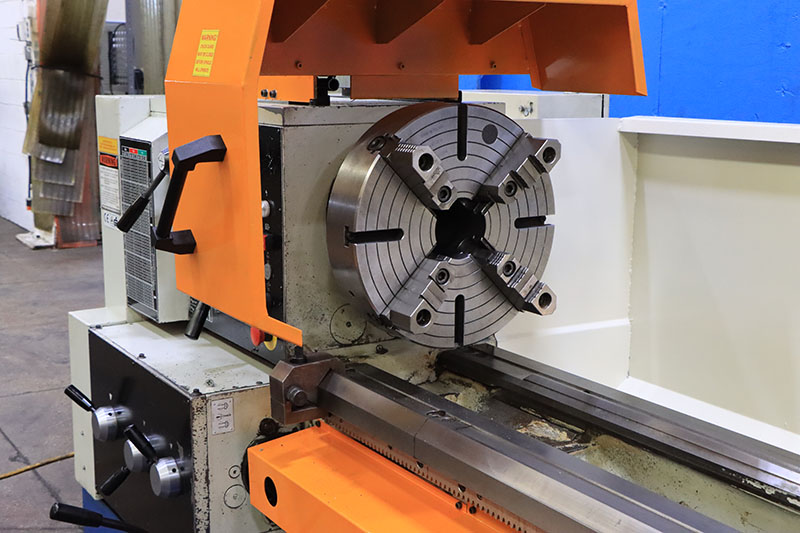

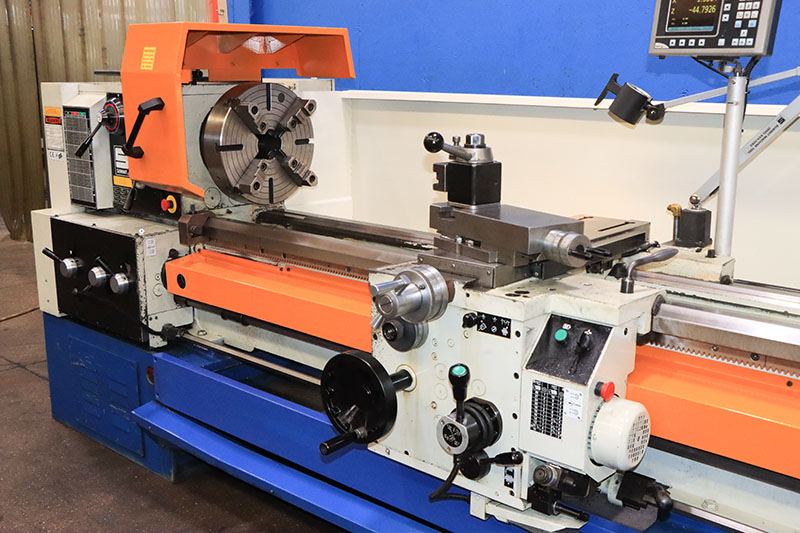

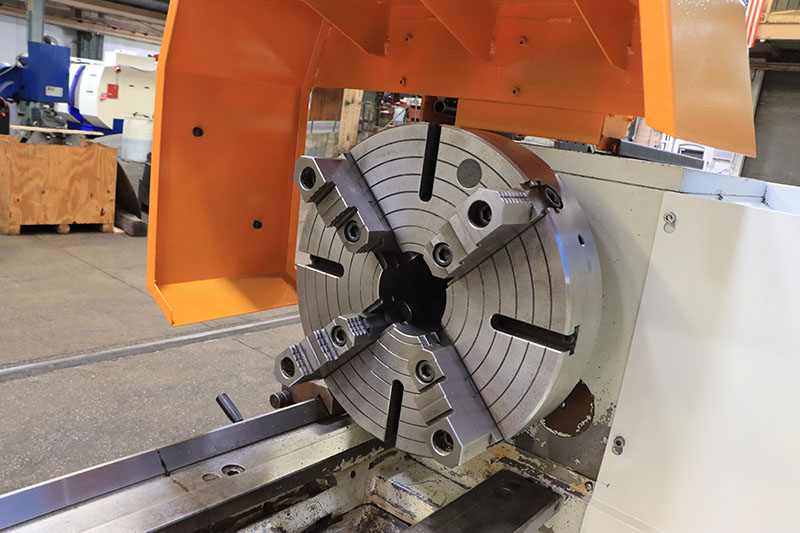

16" 4-JAW CHUCK

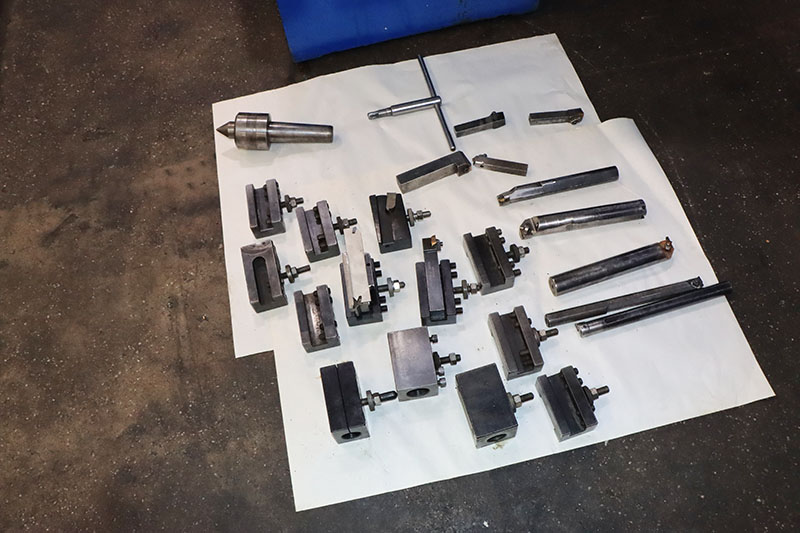

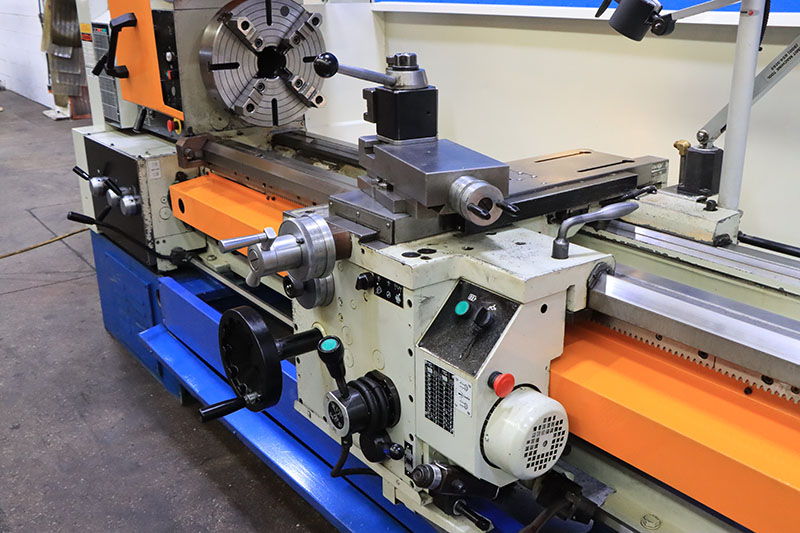

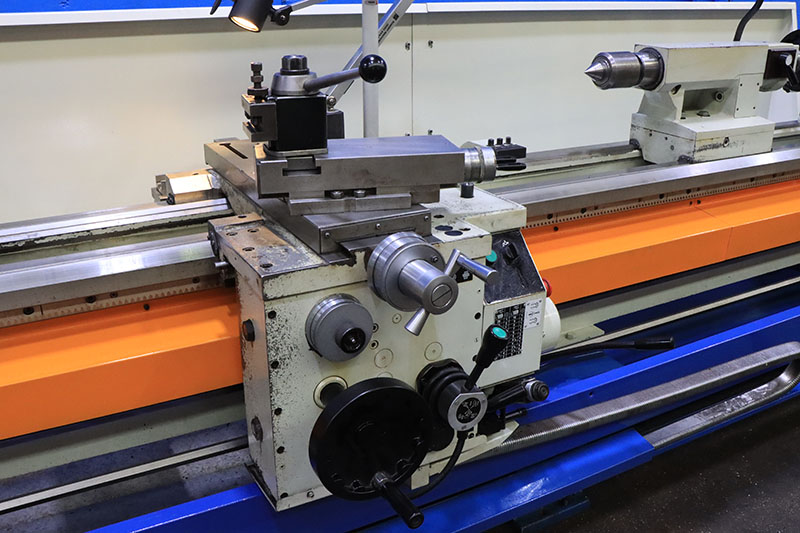

ALORIS QUICK CHANGE TOOLPOST

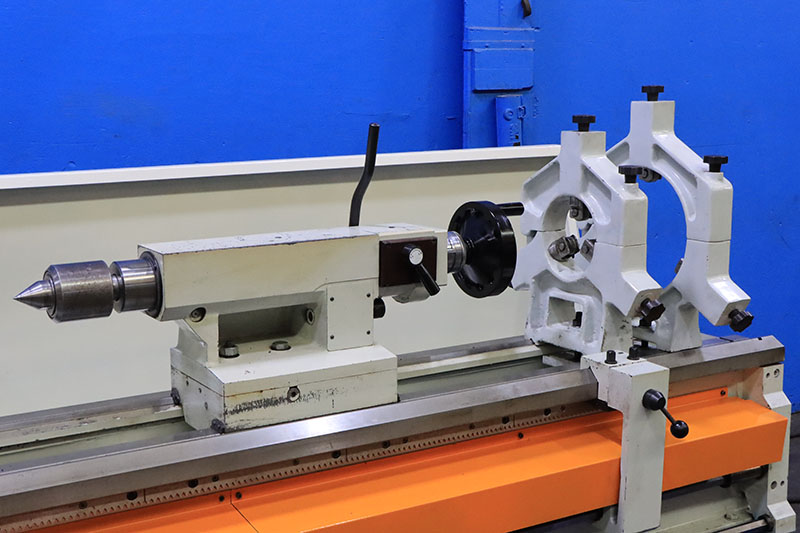

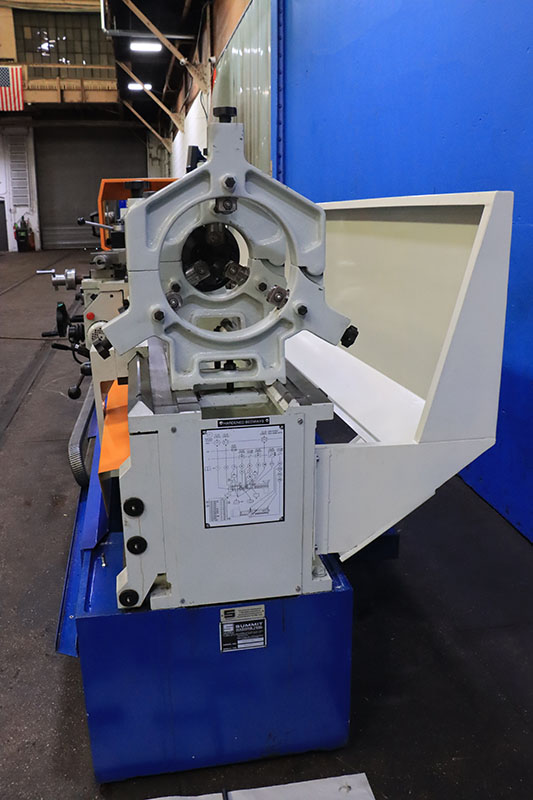

(2) ROLLER TYPE STEADY RESTS
LIVE CENTER FOR TAILSTOCK
TWO SPEED TAILSTOCK
THREAD DIAL INDICATOR
MICROMETER CARRIAGE STOP
POWER RAPID TRAVERSE

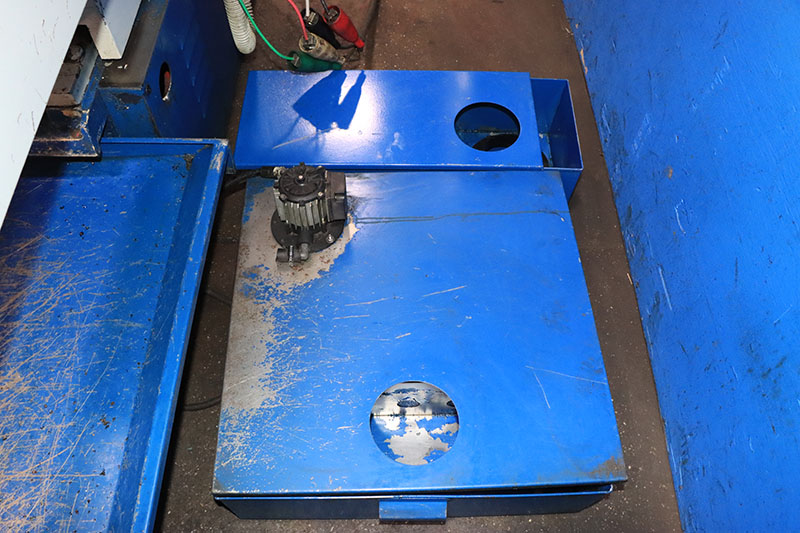

COOLANT SYSTEM WITH REMOVEABLE CHIP PAN

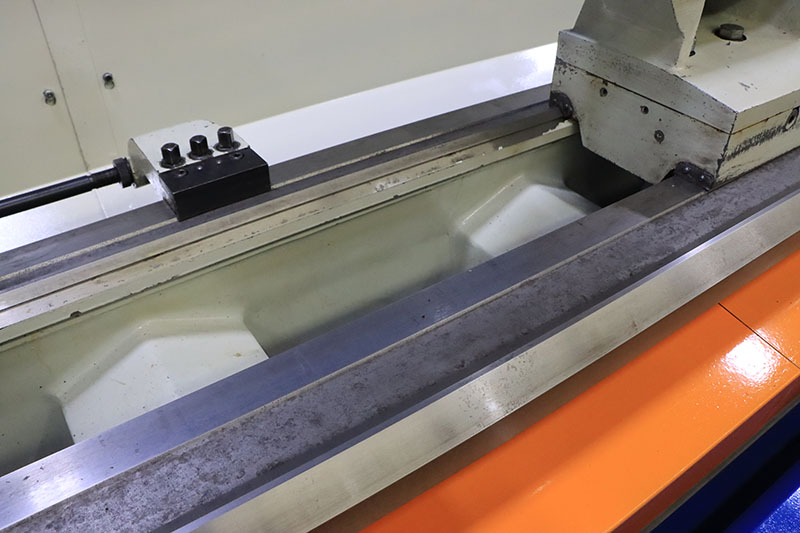

HARDENED & GROUND BED WAYS
10 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
