Summit HBM-110 TABLE TYPE HORIZONTAL BORING MILLS

Price on Request

Make:: Summit

Model:: HBM-110

Year:: 2014

Ref #:: 178423

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

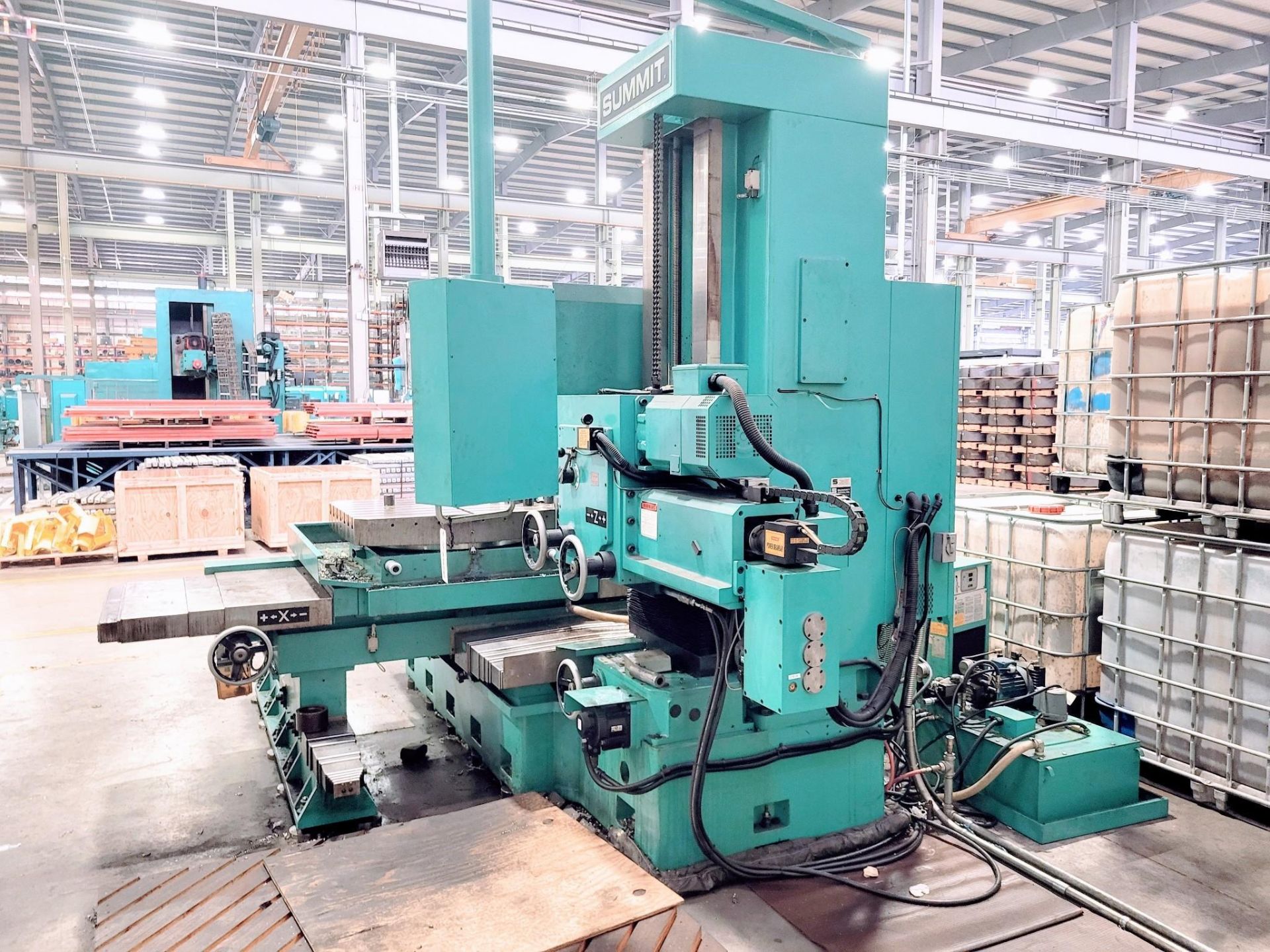

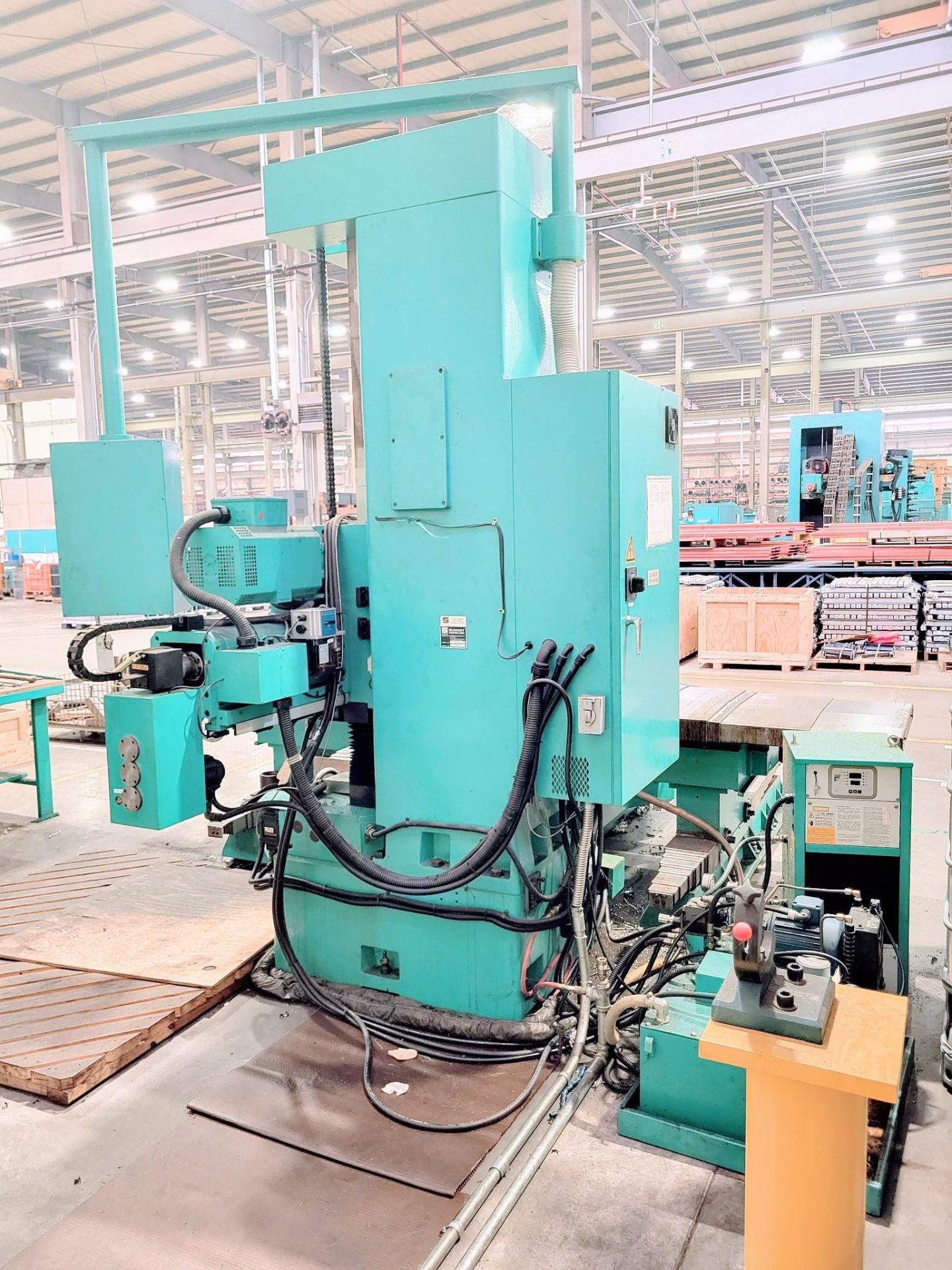

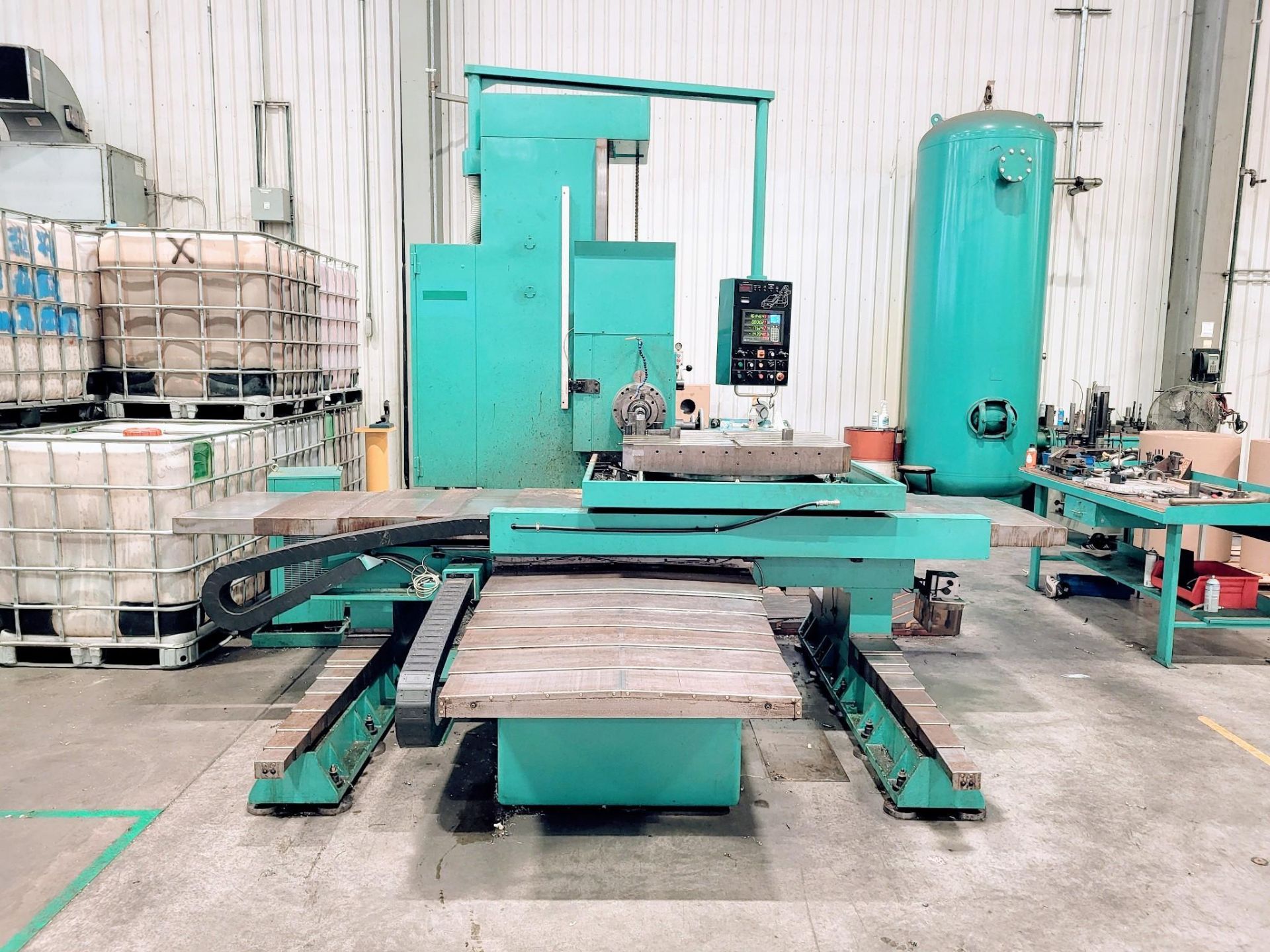

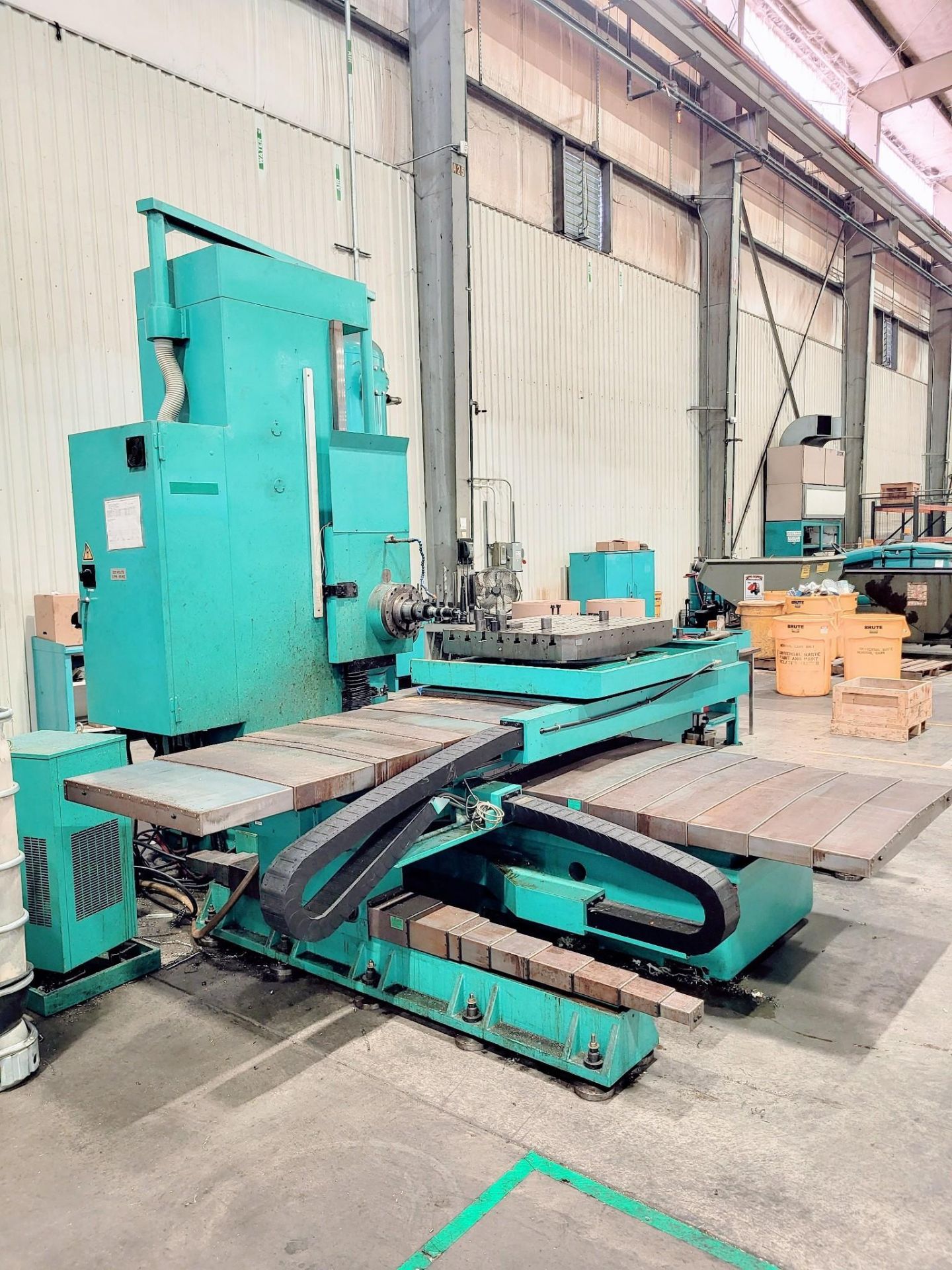

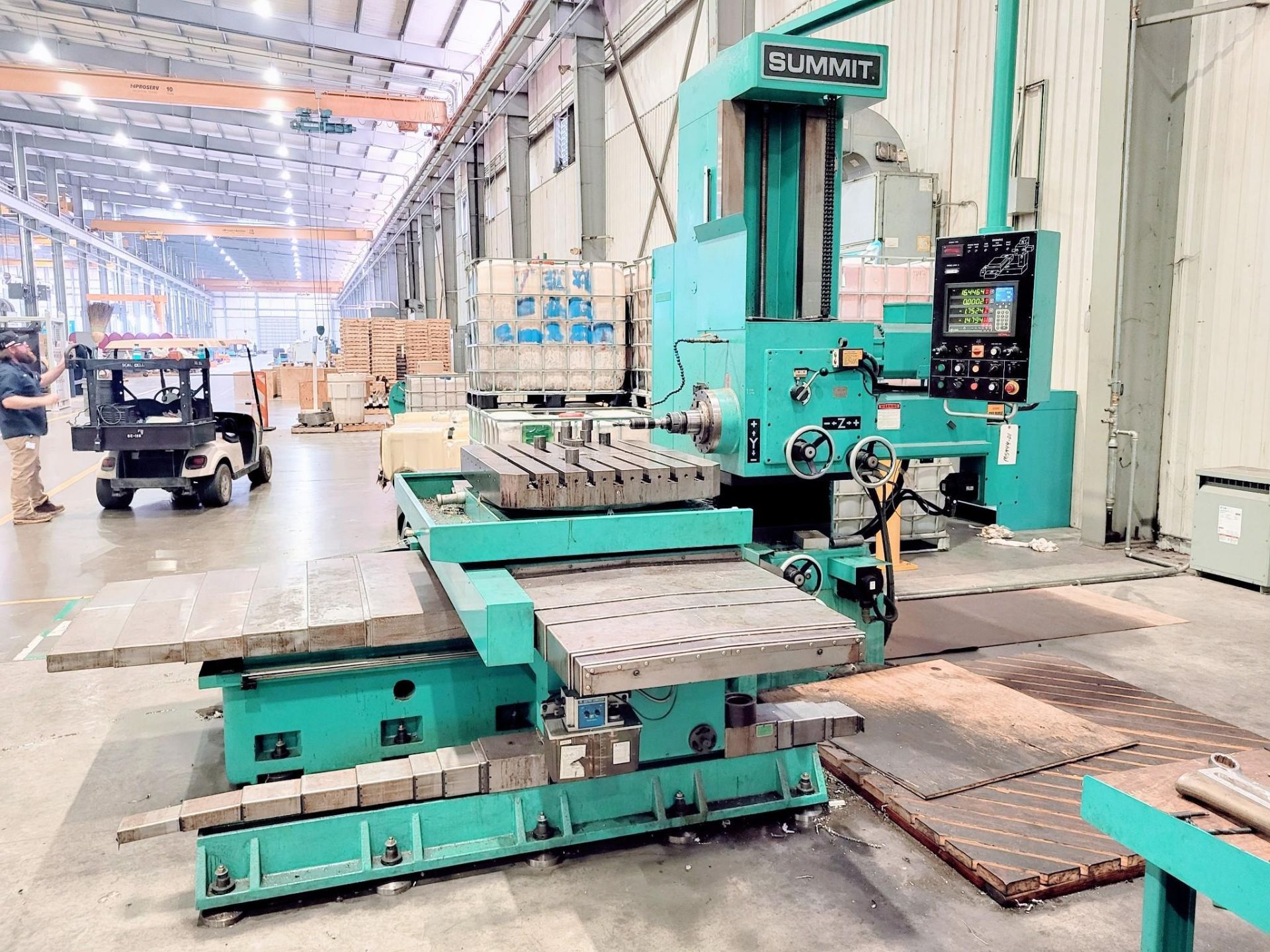

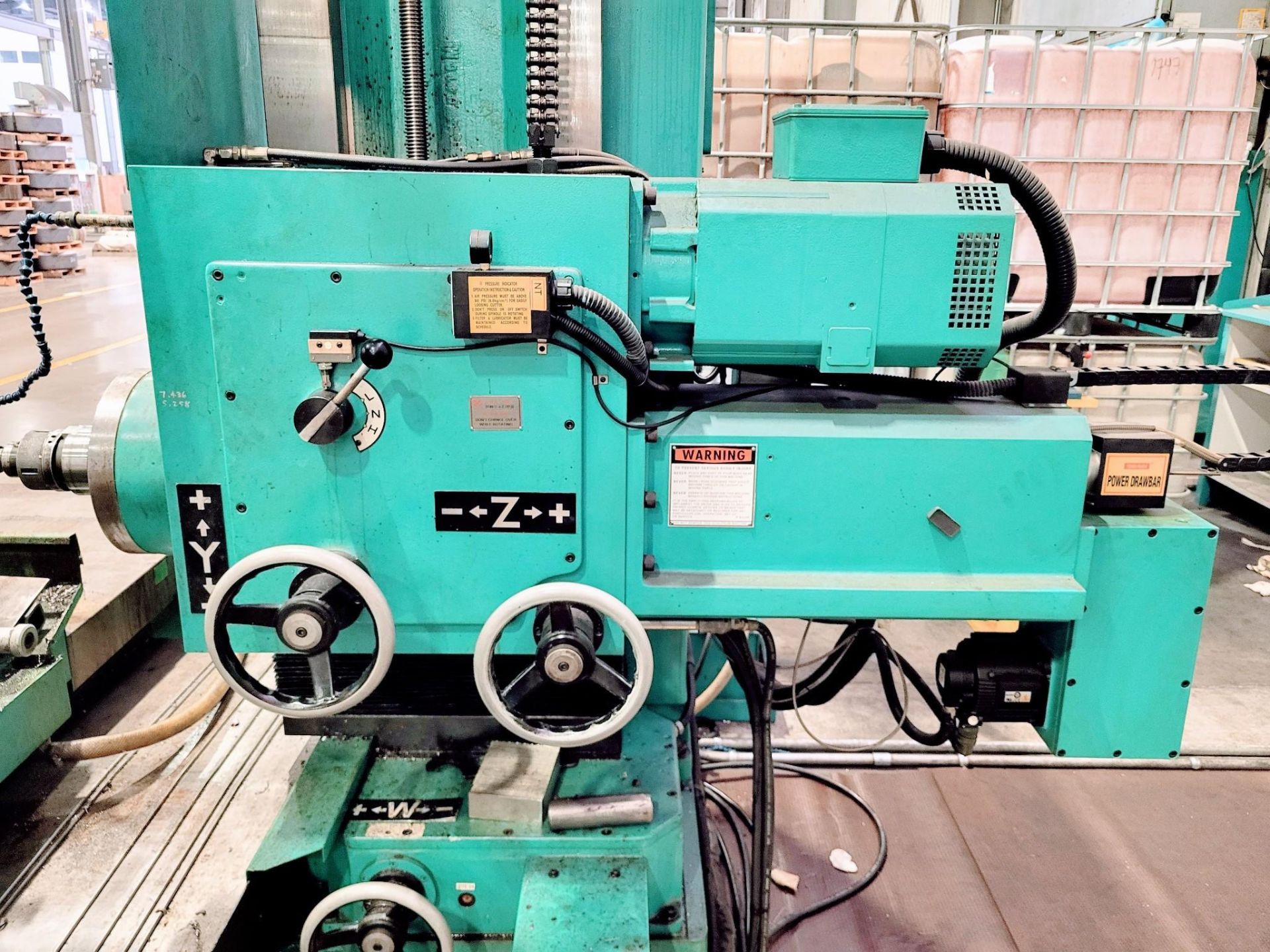

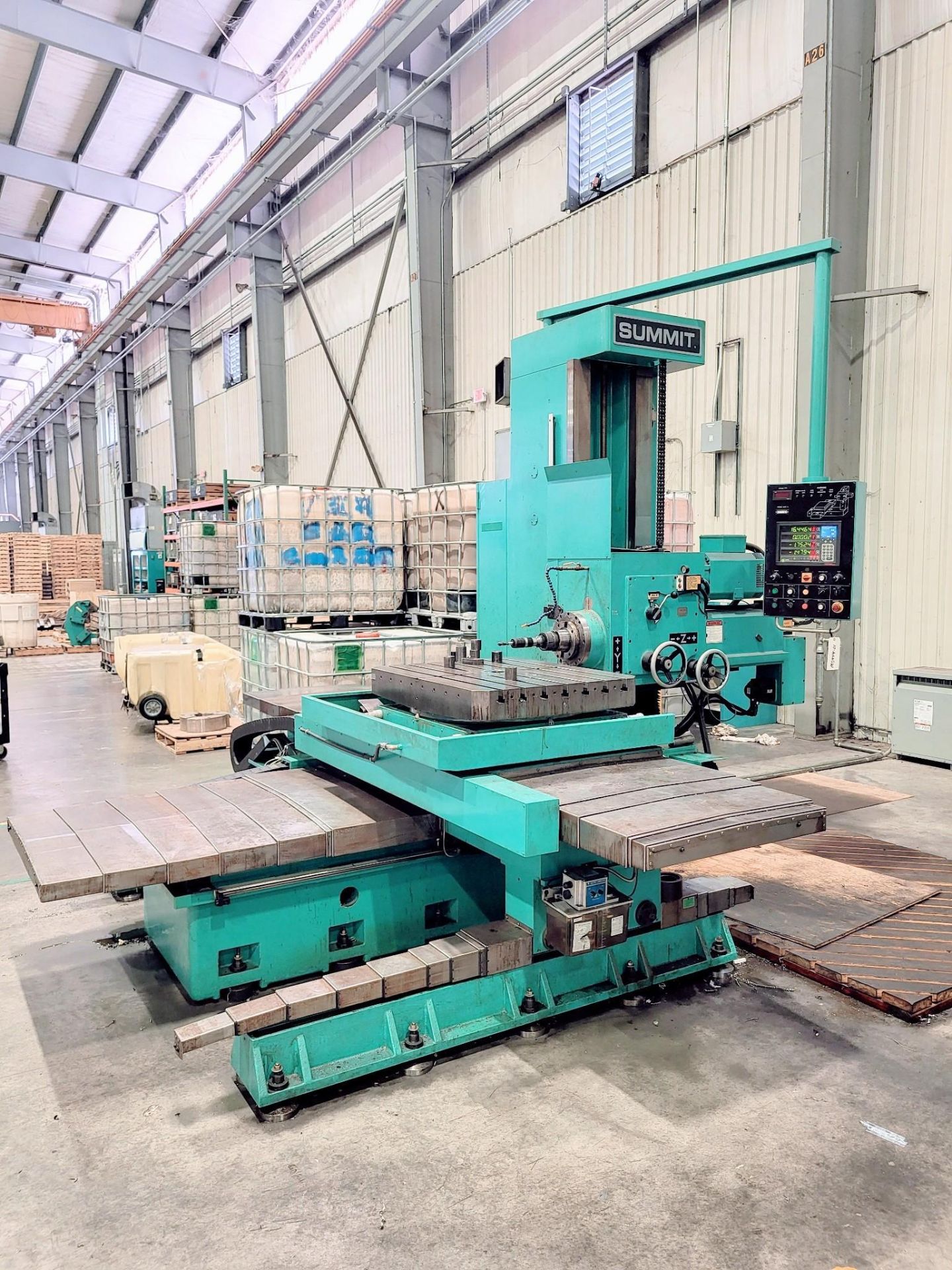

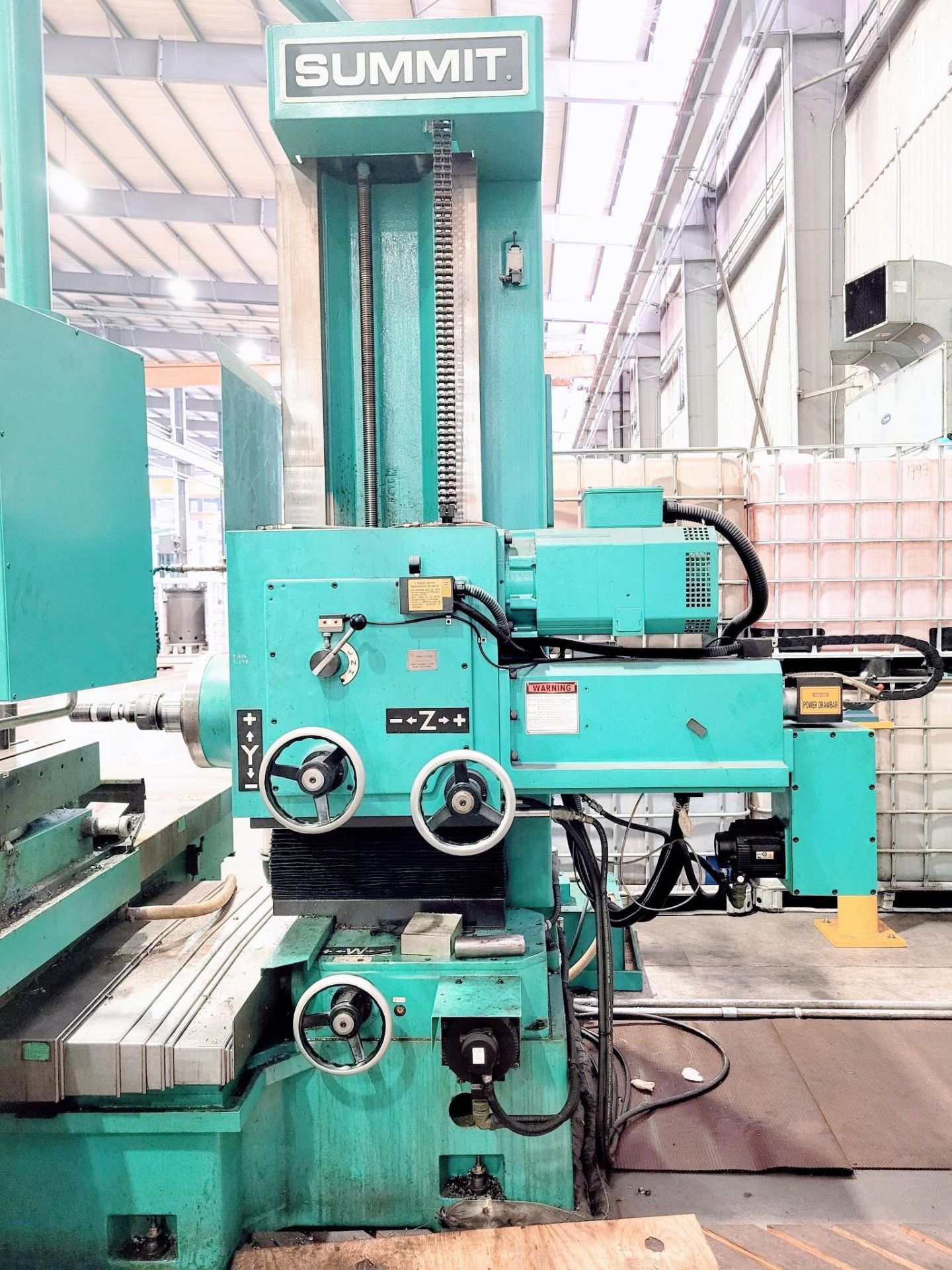

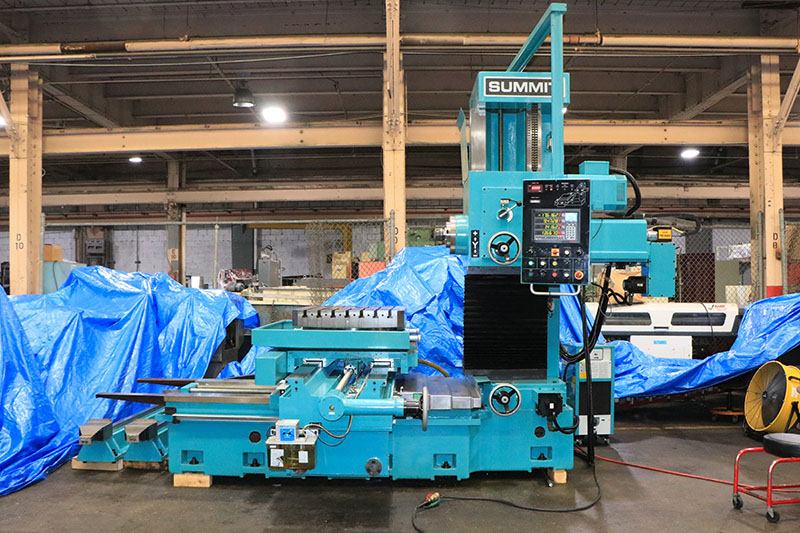

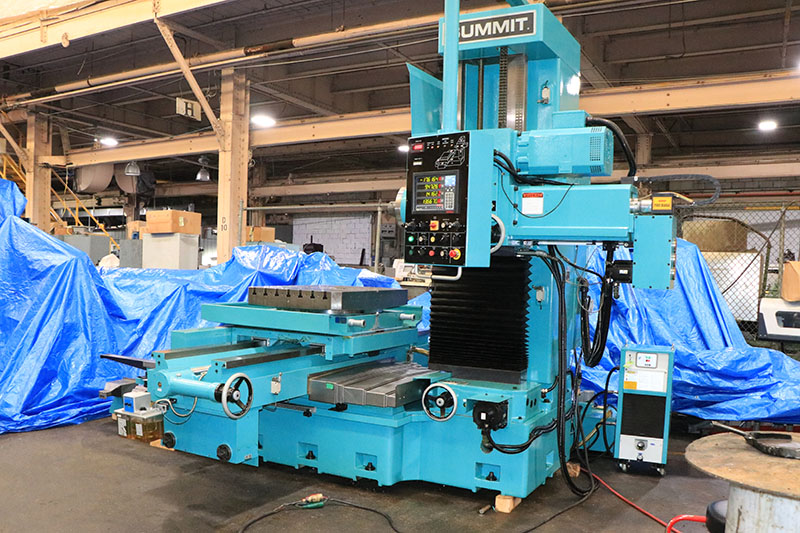

SUMMIT TABLE TYPE HORIZONTAL BORING MILL

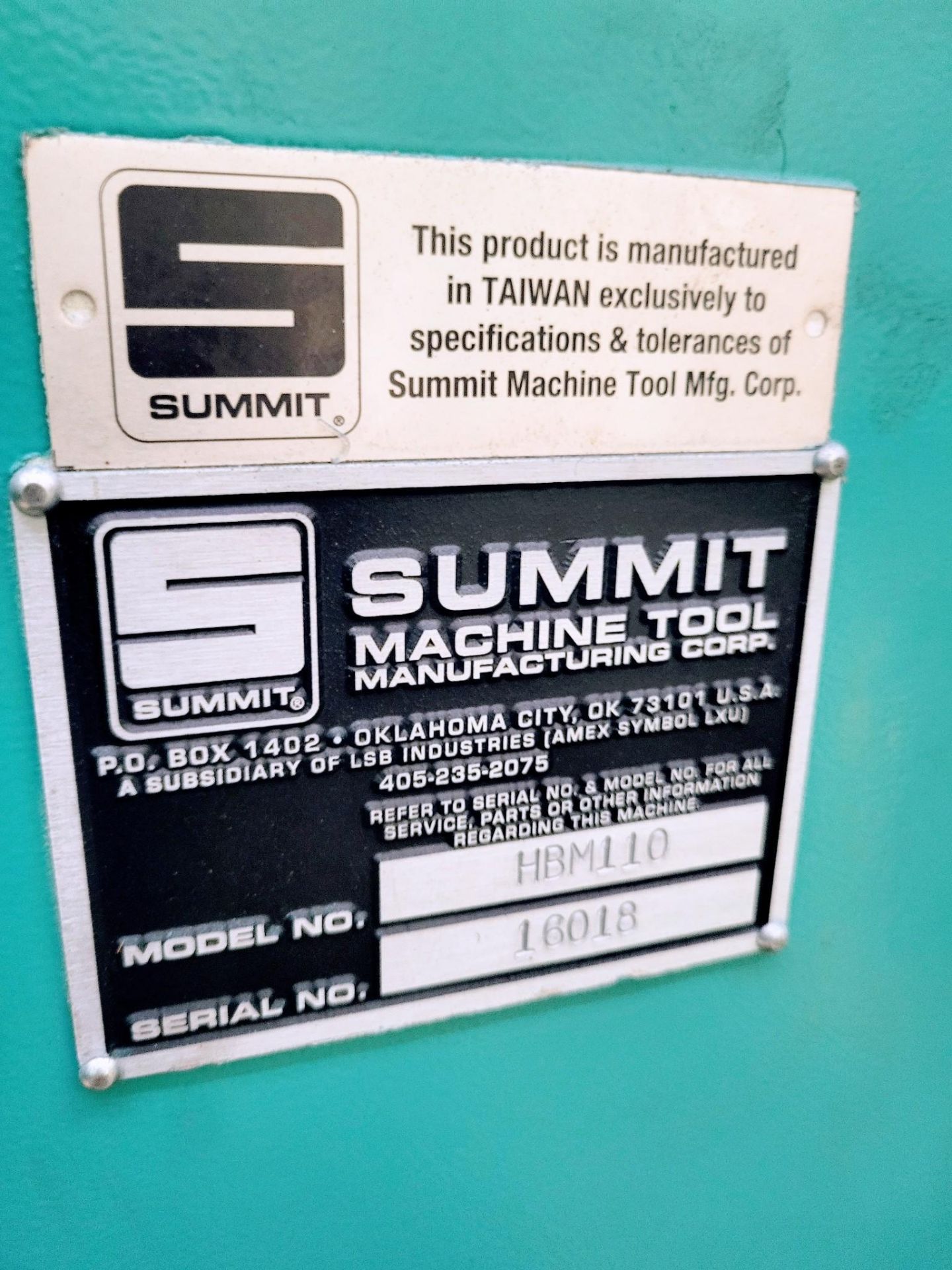

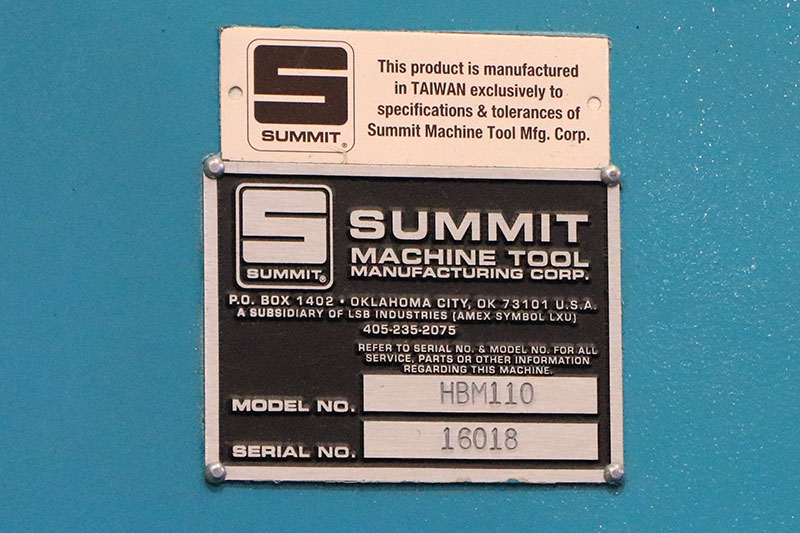

MODEL: HBM-110, S/N: 16018, MFG: 2014

SPECIFICATIONS:

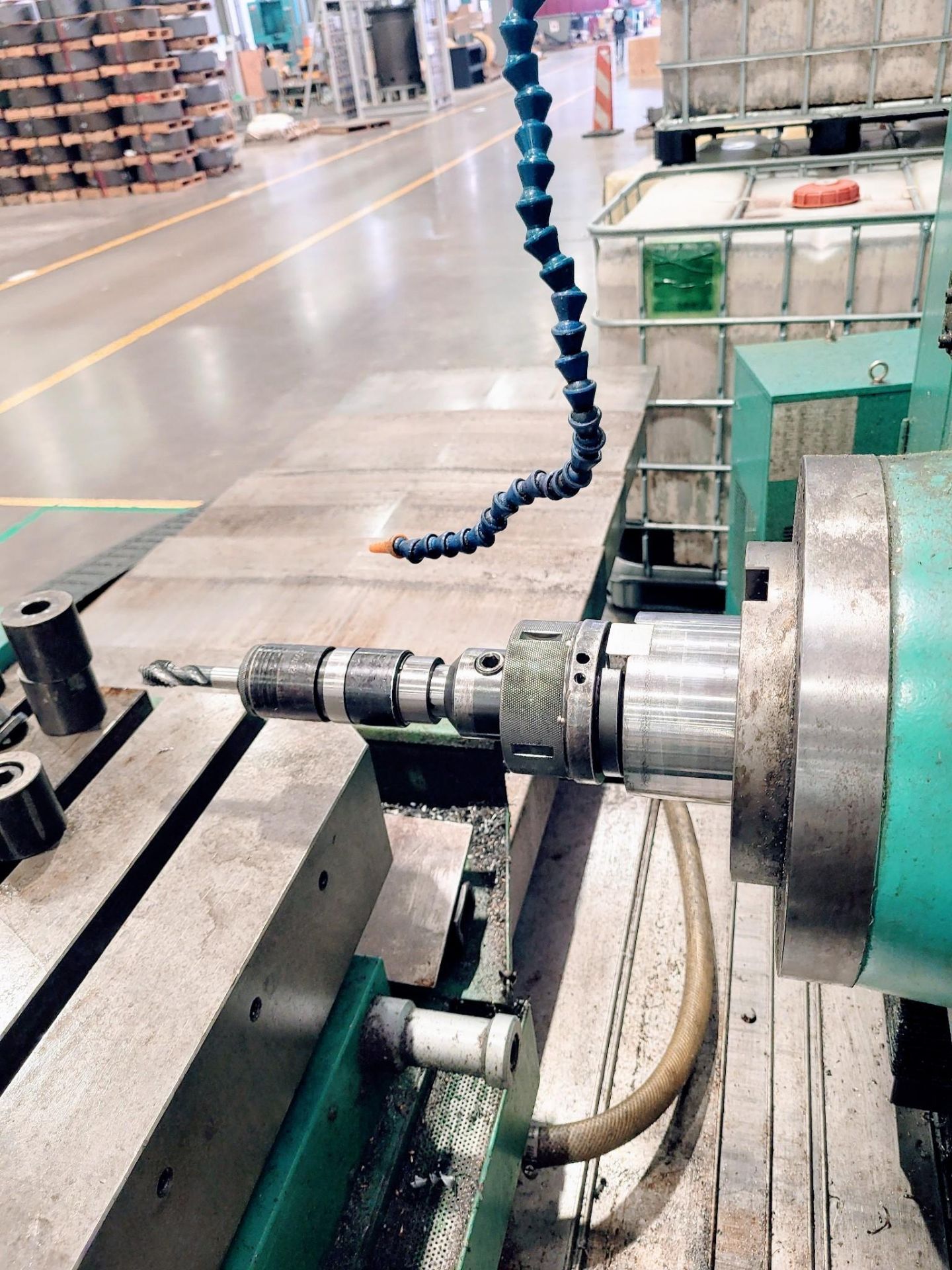

SPINDLE:

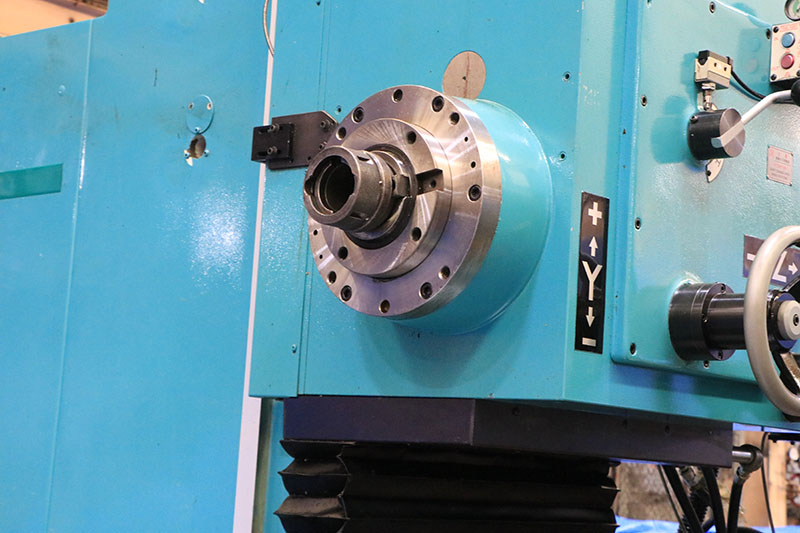

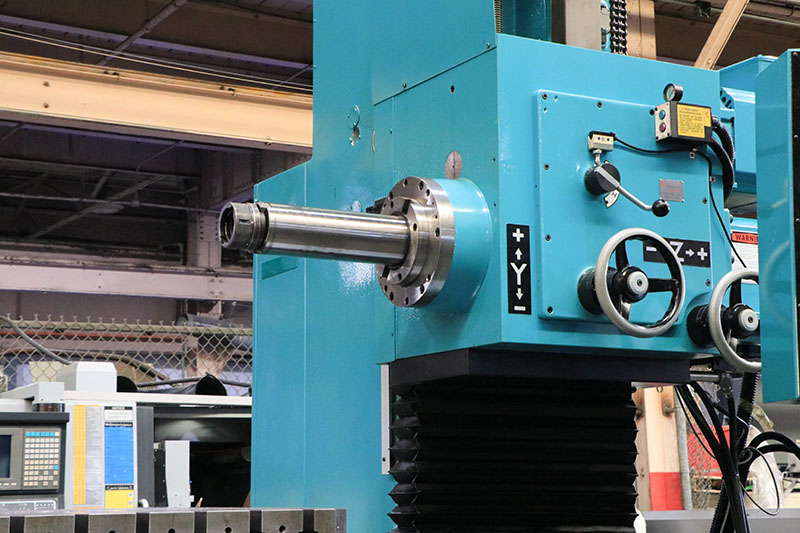

DIAMETER OF SPINDLE ................. 4.3″
TAPER OF SPINDLE .................... #50
SPINDLE SPEED VARIABLE .............. 20 – 1,500 RPM
TRAVELS:
VERTICAL HEADSTOCK TRAVEL (Y-AXIS) .. 39.4″
CROSS TRAVEL (X-AXIS) ............... 63″
SADDLE TRAVEL (W-AXIS) .............. 49.2″
SPINDLE TRAVEL (Z-AXIS) ............. 16″
FEED RANGE (X, Y, & W) .............. 0.118 – 37.4 IPM
RAPID TRAVERSE (X, Y, & W) .......... 0.118 – 15.75 IPM
ROTARY TABLE SIZE ................... 31-1/2″ X 39.4″
MAX. WEIGHT OF WORKPIECE ............ 5,500 LBS.
TABLE HEIGHT FROM FLOOR ............. 49″
SPINDLE MOTOR ....................... 20 HP
APPROXIMATE MACHINE DIMENSIONS: ..... 157″ X 169″ X 120″ H
APPROXIMATE MACHINE WEIGHT: ......... 27,500 LBS.

EQUIPPED WITH:

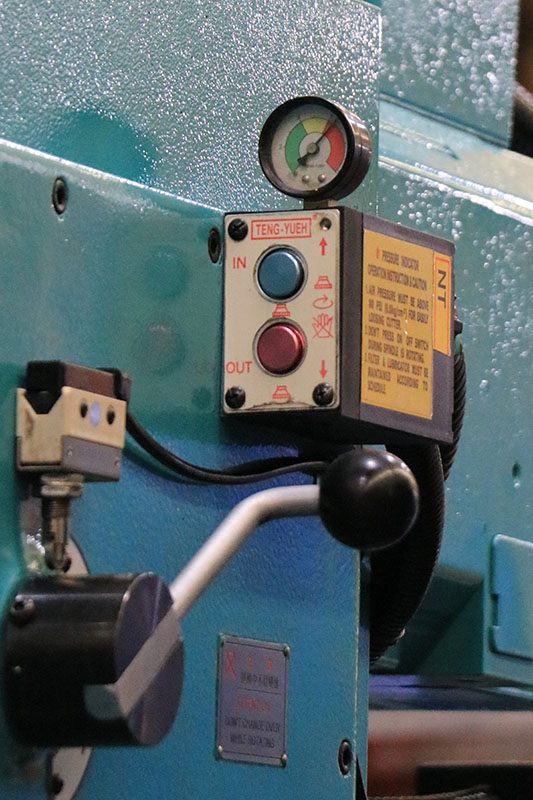

#50 TAPER POWER DRAW BAR

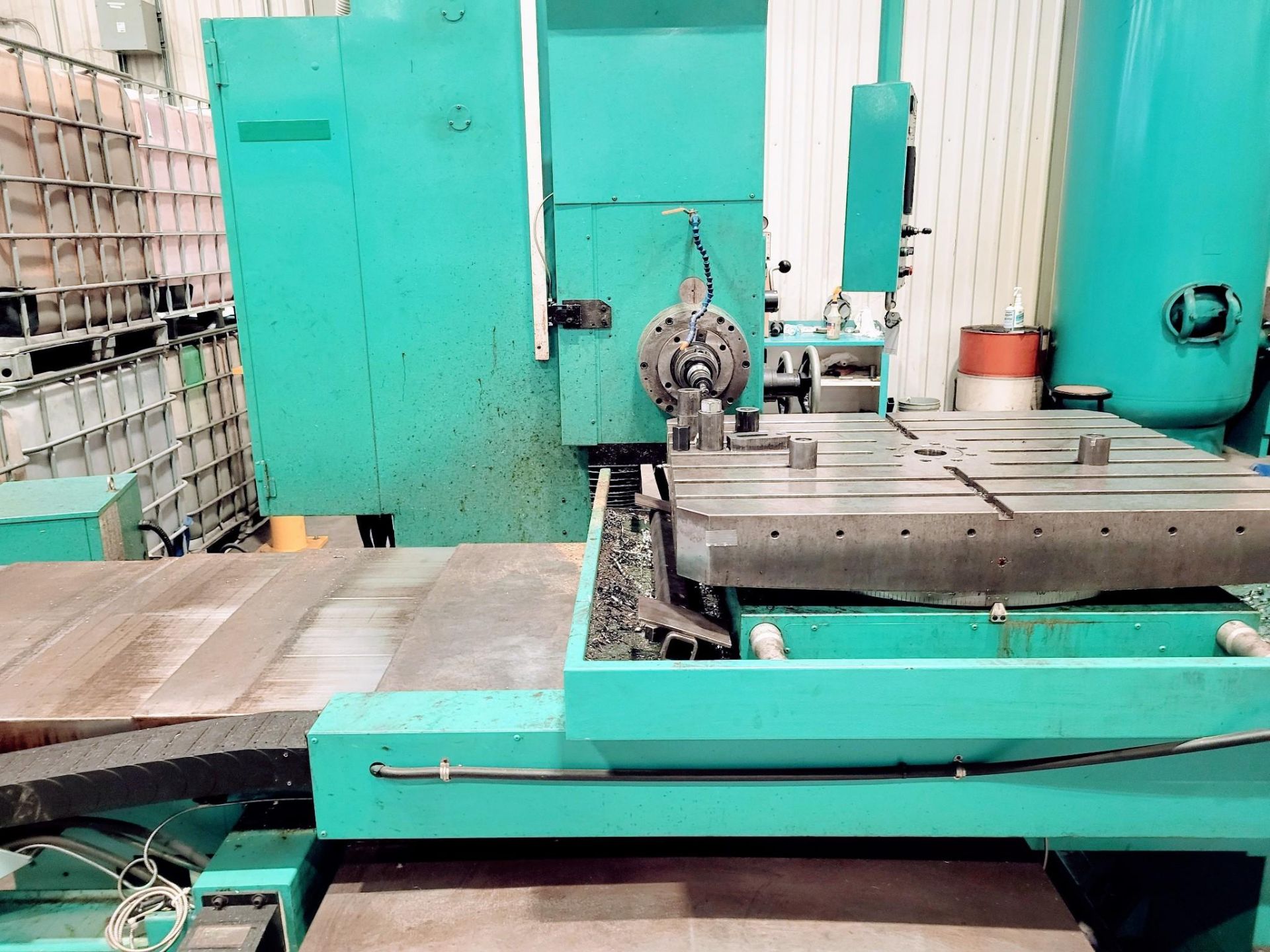

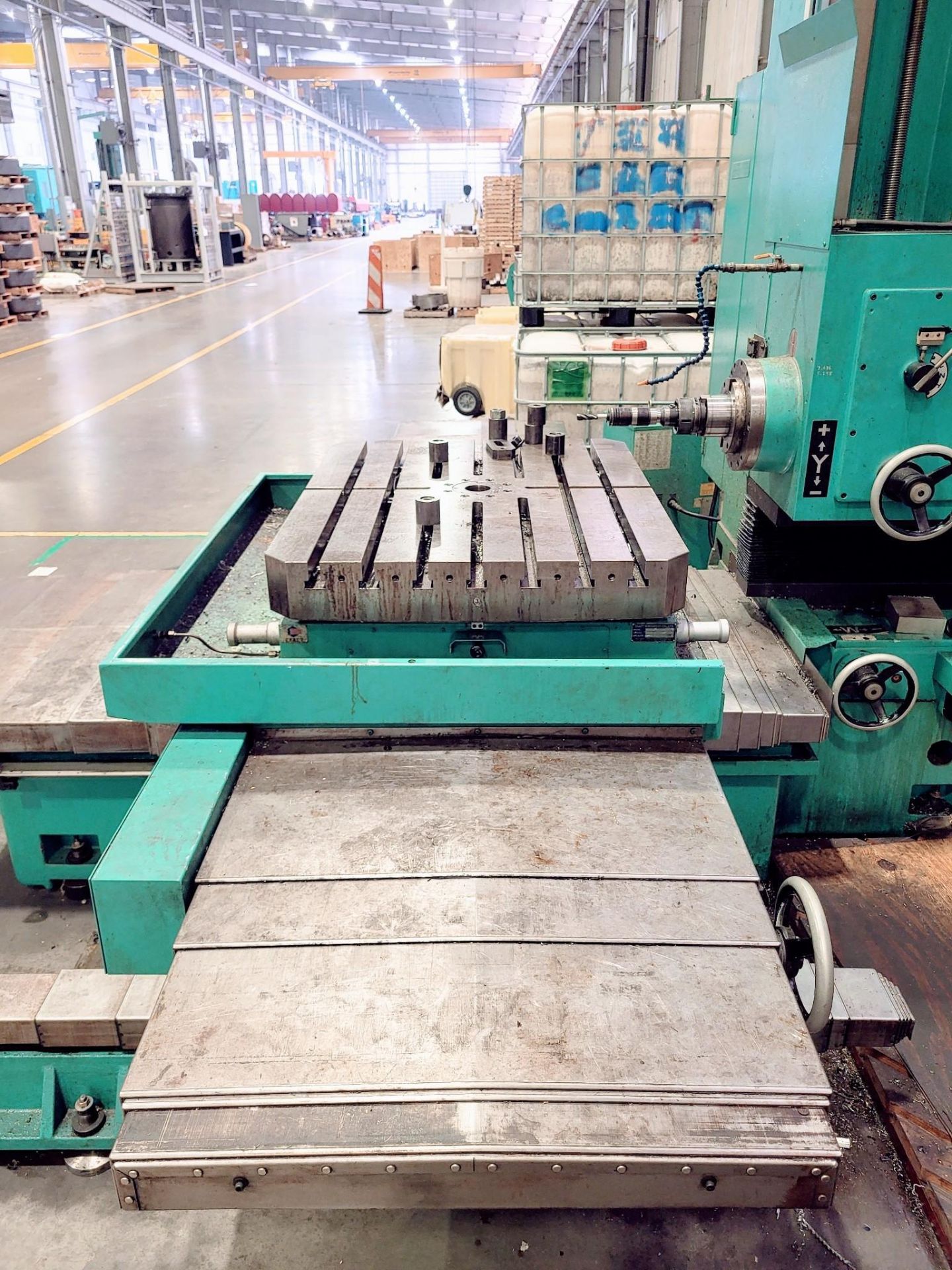

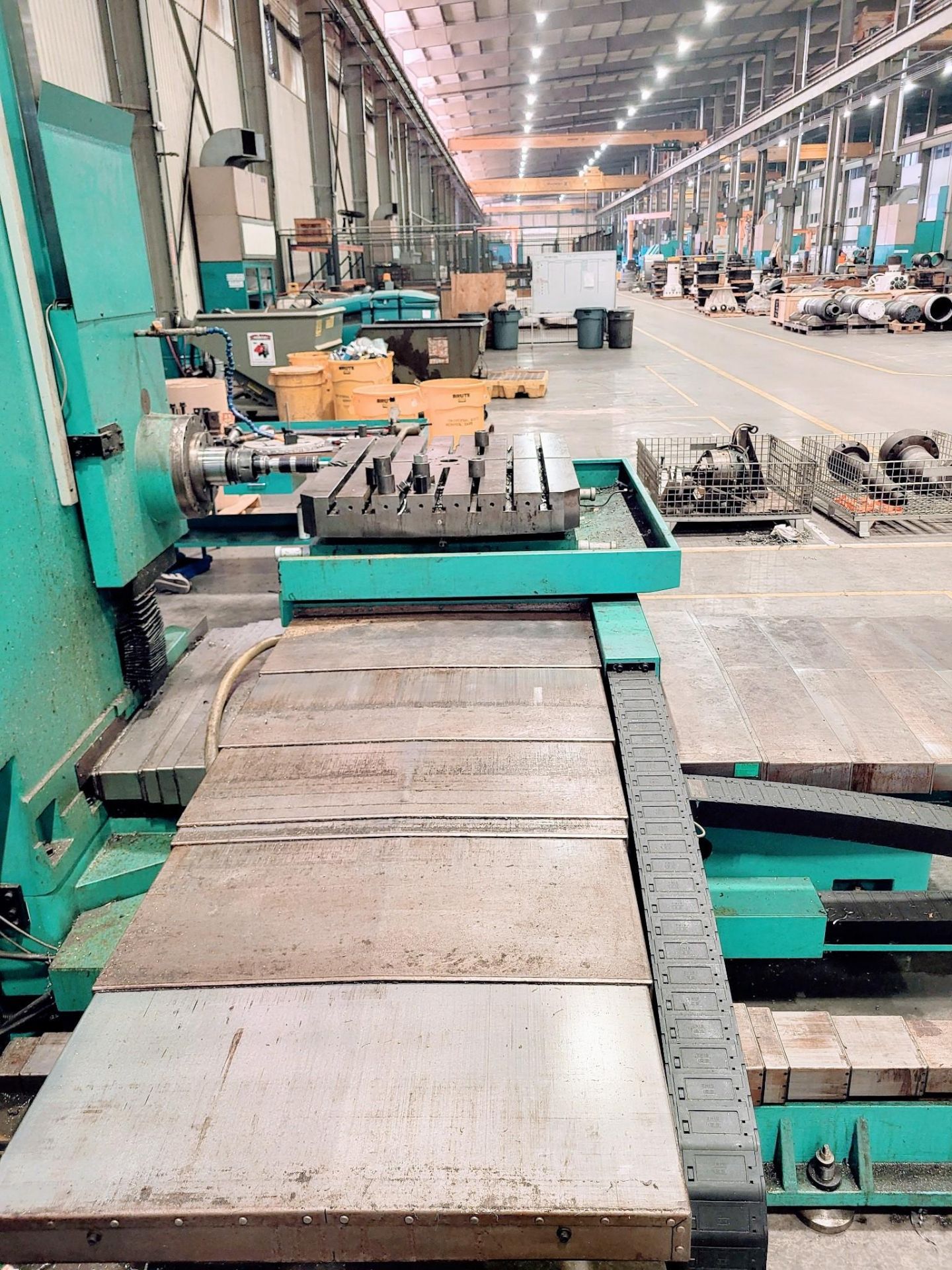

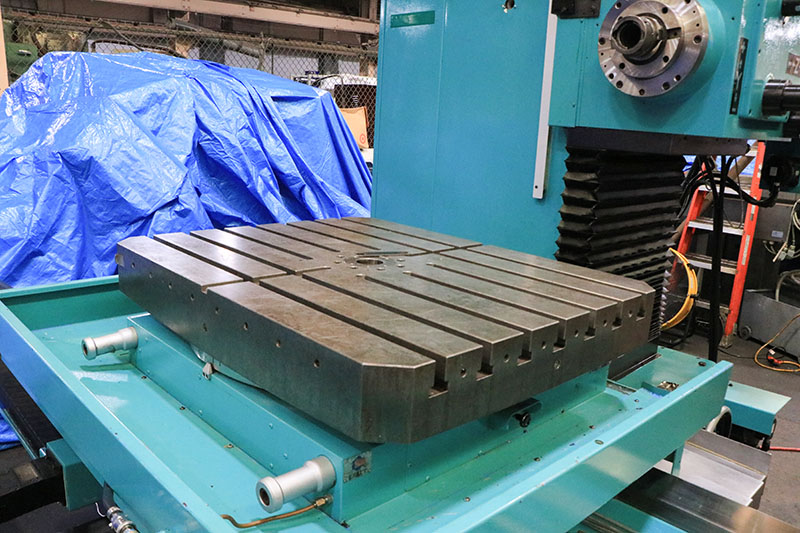

ROTARY TABLE

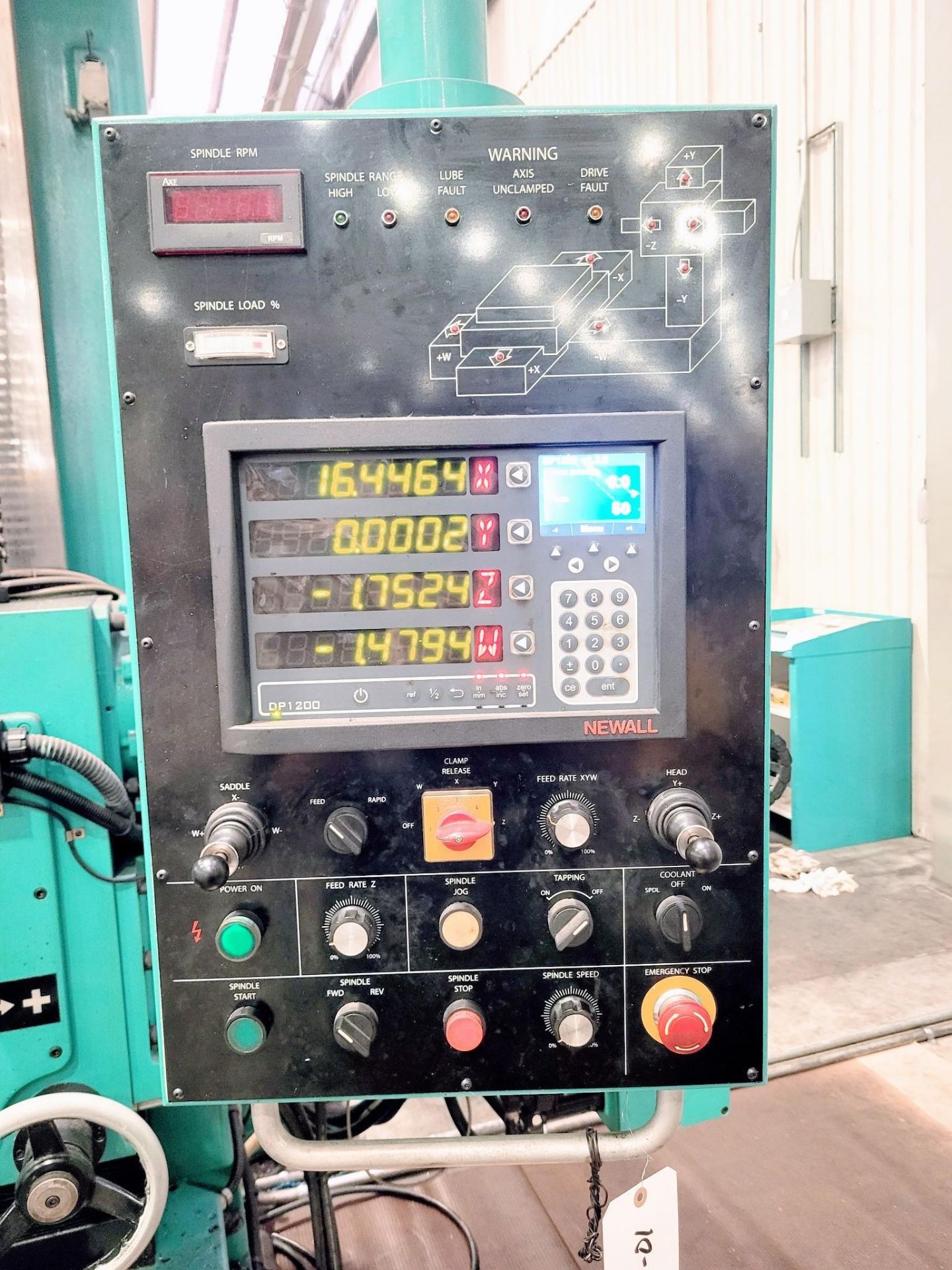

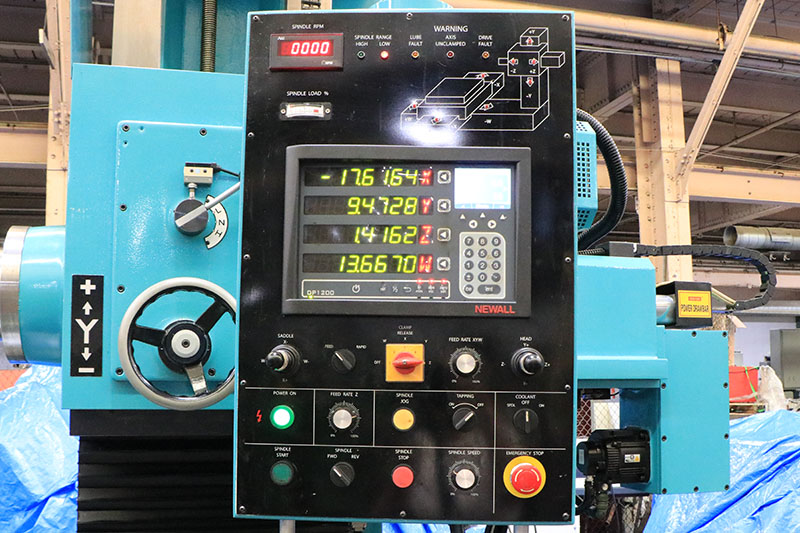

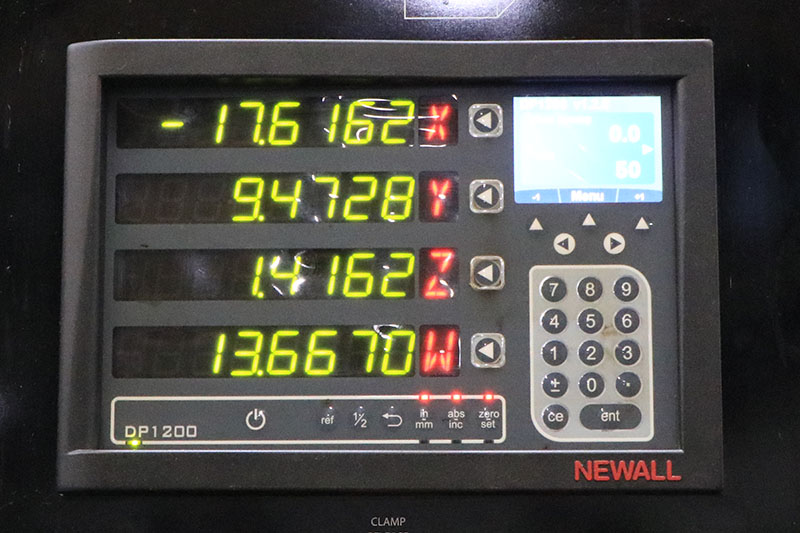

NEWALL FOUR AXIS DIGITAL READOUT

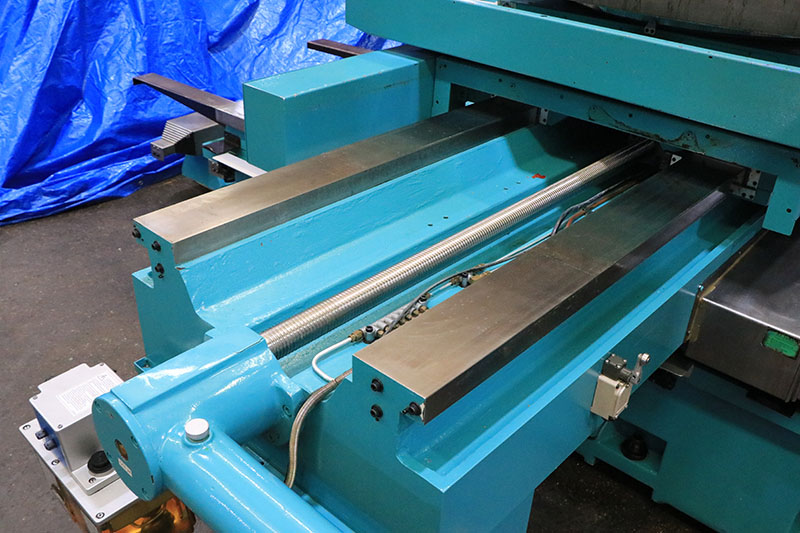

HARDENED AND GROUND BEDWAYS

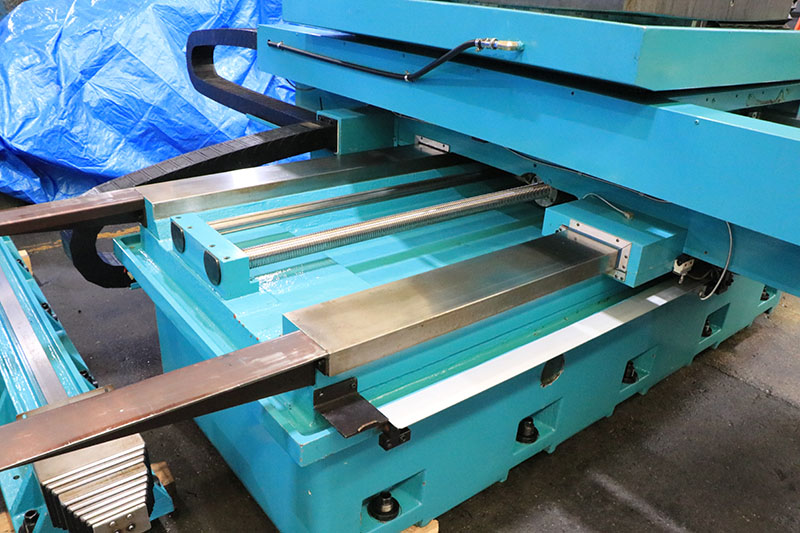

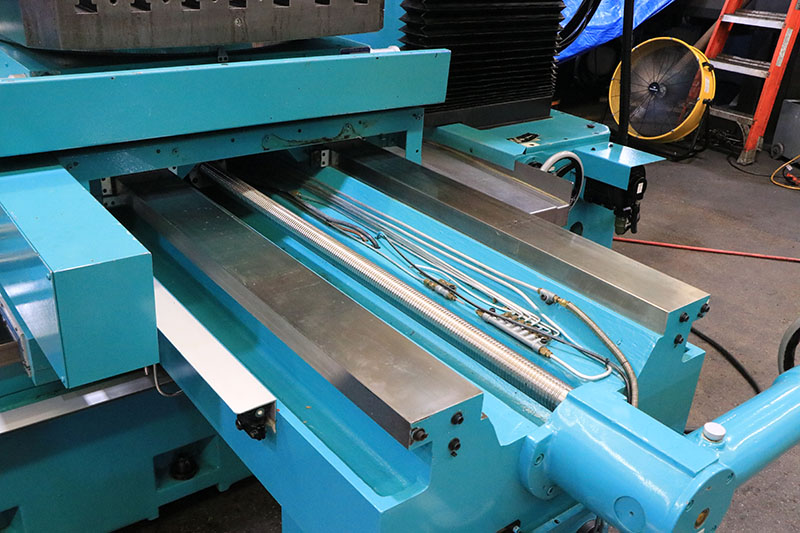

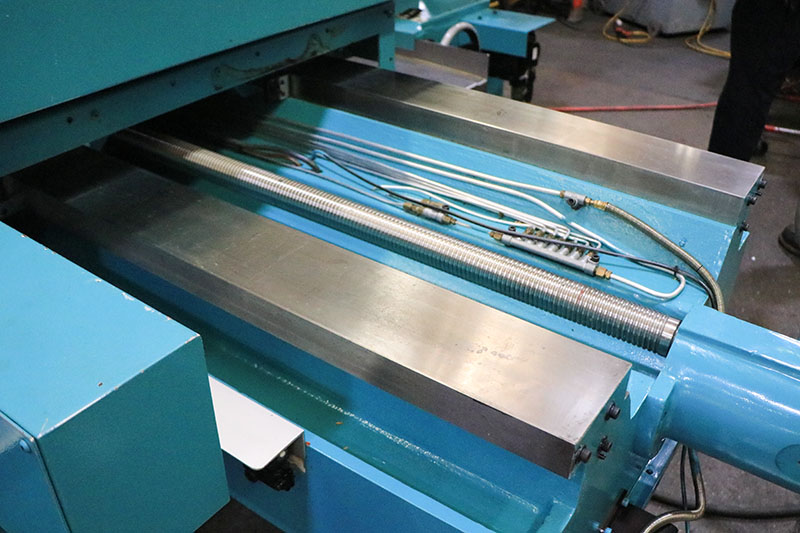

BALL SCREWS ON THE X & W AXIS

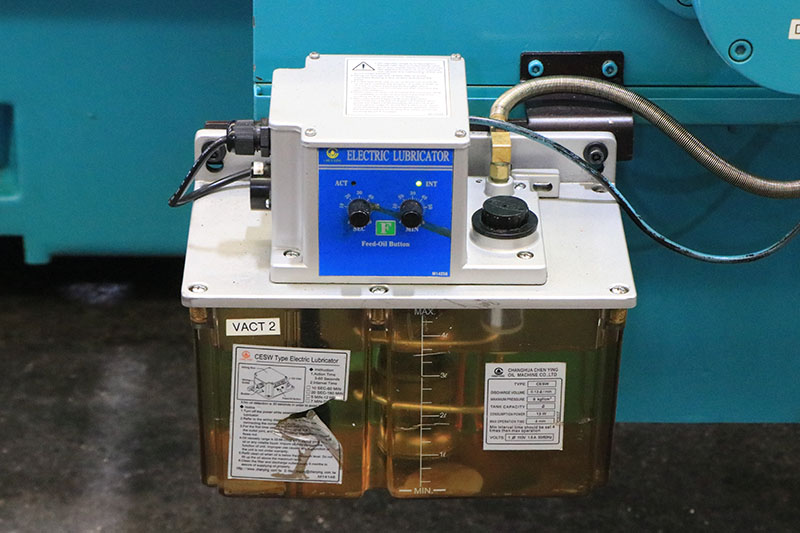

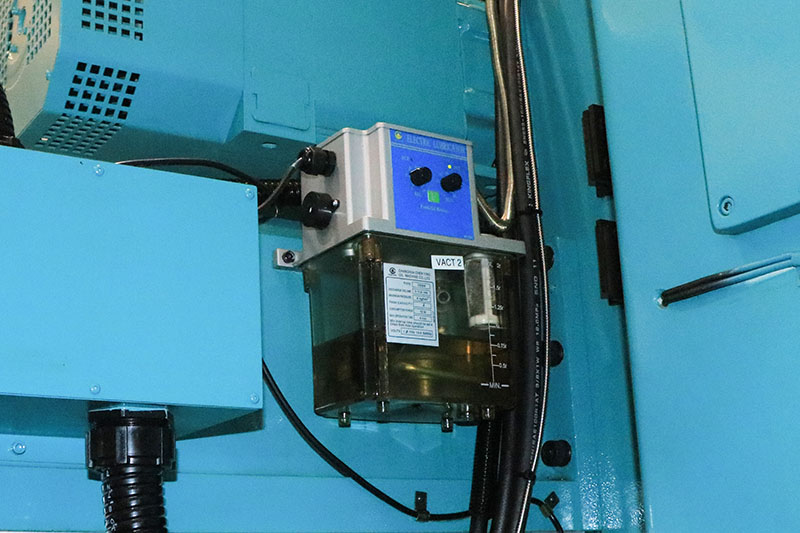

FULLY AUTOMATIC LUBRICATION SYSTEM
RAPID TRAVERSE IN ALL FEED DIRECTIONS

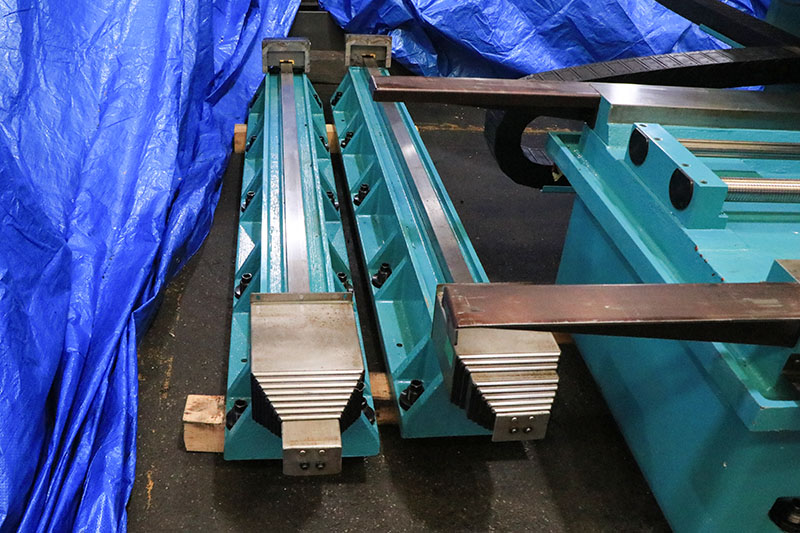

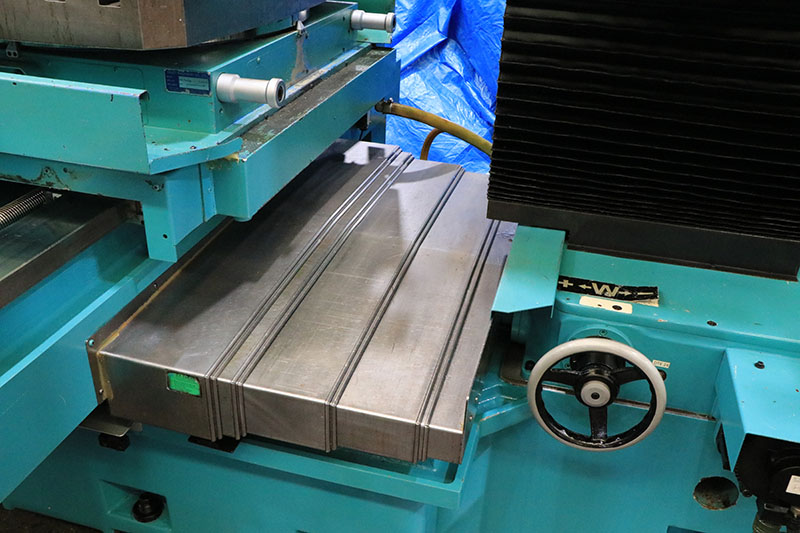

FULL STEEL TELESCOPING WAY COVERS ON X AND W-AXIS

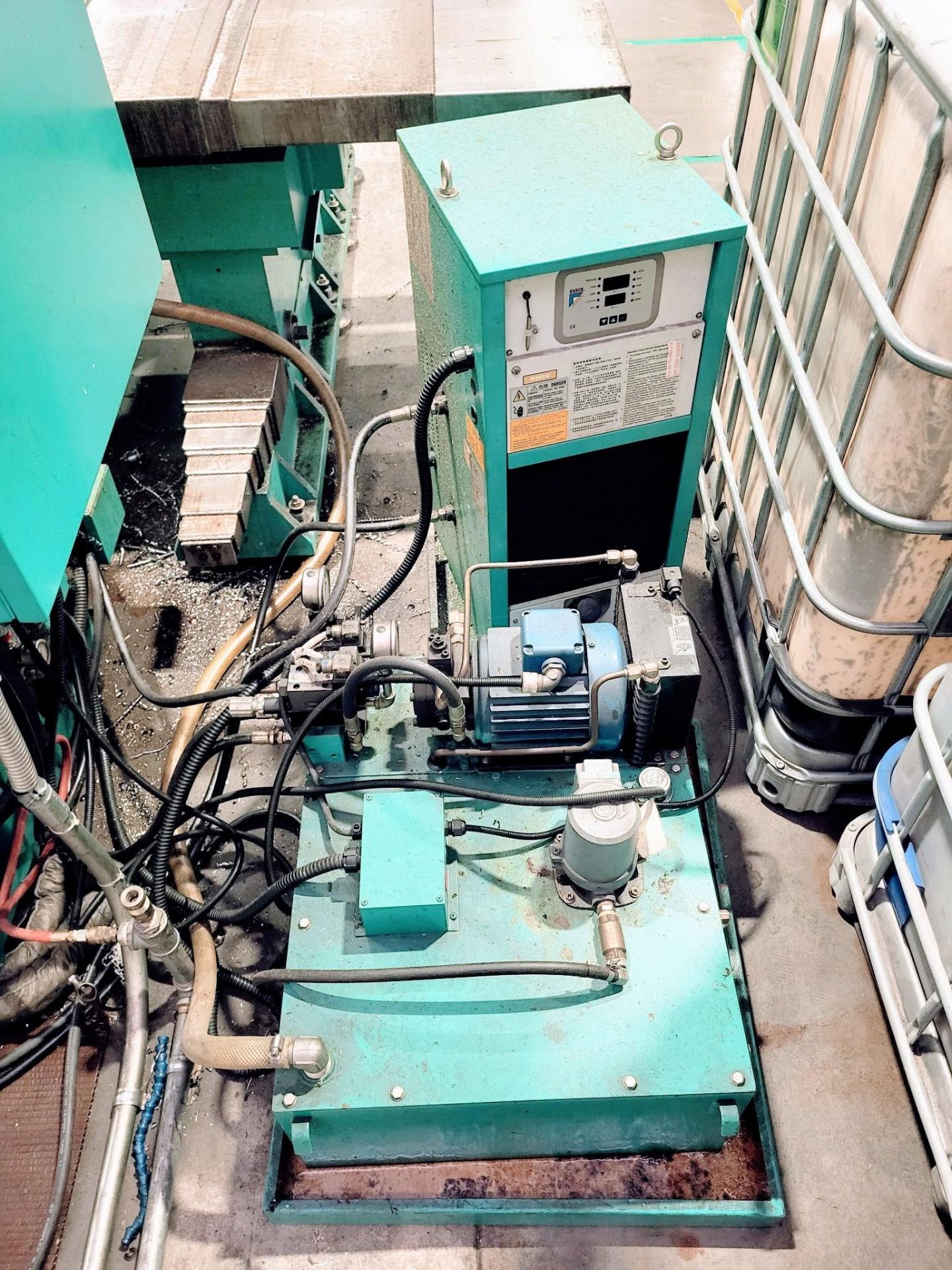

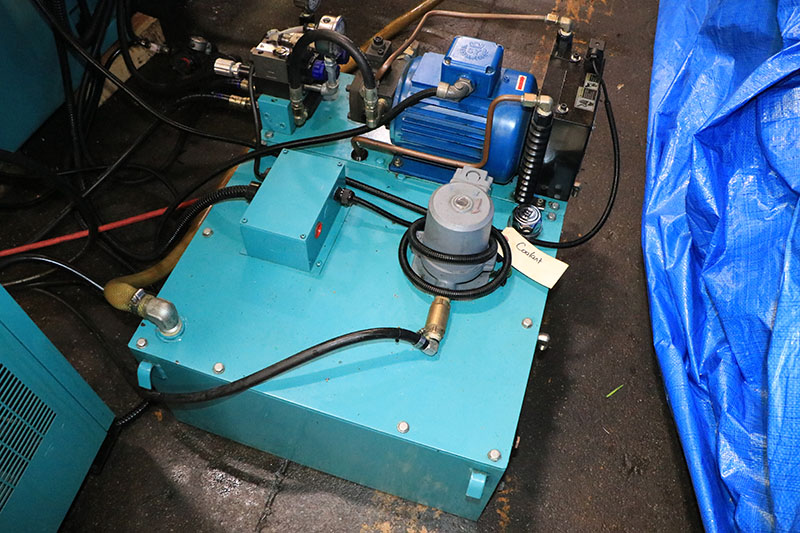

HYDRAULIC CLAMPING (X, Y, AND W-AXIS)
20 HORSE POWER SPINDLE MOTOR
