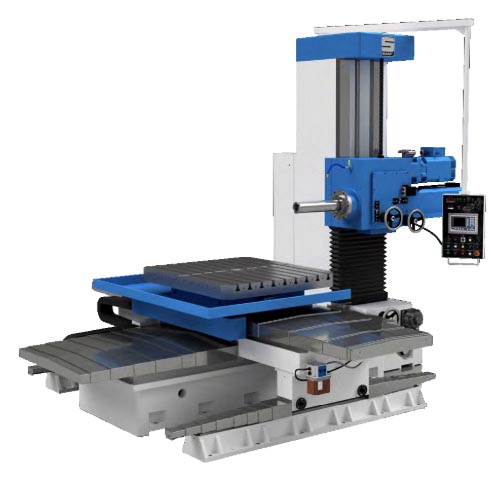

Summit HBM 110H TABLE TYPE HORIZONTAL BORING MILLS

Price on Request

Make:: Summit

Model:: HBM 110H

Year:: NEW

Ref #:: 179372

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

NEW 4" SUMMIT TABLE TYPE HORIZONTAL
BORING & MILLING MACHINE
MODEL: HBM 110H
WITH FOUR (4) AXIS ELECTRONIC DIGITAL READOUT

SPECIFICATIONS
SPINDLE
DIAMETER OF SPINDLE ................... 4.3”
TAPER OF SPINDLE ...................... #50
SPINDLE SPEEDS (NO) RANGE (INF. VAR.) . 20 - 1500 RPM
TRAVELS
HEADSTOCK, VERTICAL (Y) ............... 55.1”
TABLE, CROSS (X) ...................... 70.8”
SADDLE, LONGITUDINAL (W) .............. 55.1”
SPINDLE (Z) ........................... 21.6”
FEEDS
NUMBER OF FEEDS INF. VAR.
RANGE OF FEEDS X,Y,W AXIS ............. 0.118 – 37.4 IPM
RANGE OF FEEDS Z AXIS ................. 0.118 – 15.75 IPM
RAPID TRAVERSE X,Y,W AXIS ............. 110 IPM
RAPID TRAVERSE Z AXIS ................. 47.25 IPM
ROTARY TABLE
DIMENSIONS ............................ 47.2” X 55.1”
TABLE INDEX (360DEGREES) .............. 1 DEGREE INCREMENTS
T SLOT WIDTH .......................... 0.875”
MAX TABLE LOAD ........................ 11,000 LBS.
MISCELLANEOUS
MAIN DRIVE MOTOR ...................... 20 HP
SERVO LINEAR AXIS FEED MOTOR .......... 3.9 HP
SERVO SPINDLE FEED MOTOR .............. 1.75 HP
DIMENSIONS (LXWXH) .................... 213”X183”X143”
WEIGHT (APPROXIMATE) .................. 35,200 INCLUDED

FEATURES AND EQUIPMENT
Ø AIR POWER DRAW BAR
Ø AUTOMATIC LUBE TO THE WAYS
Ø HYDRAULIC CLAMPING ON X, Y AND Z AXIS
Ø HARDENED AND GROUND WAYS
Ø 4 AXIS ELECTRONIC DIGITAL READOUT
Ø TELESCOPING STEEL WAY COVERS ON HORIZONTAL WAYS
Ø BALL SCREWS ON X, W & Z AXIS
Ø COOLANT SYSTEM
