Sunnen MBB-1660K, 1984, 1PH/115V, PFN-150K FILTER UNIT HONES, HORIZONTAL (LIKE SUNNEN)

Price on Request

Make:: Sunnen

Model:: MBB-1660K, 1984, 1PH/115V, PFN-150K FILTER UNIT

Year:: 1984

Ref #:: 179309

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

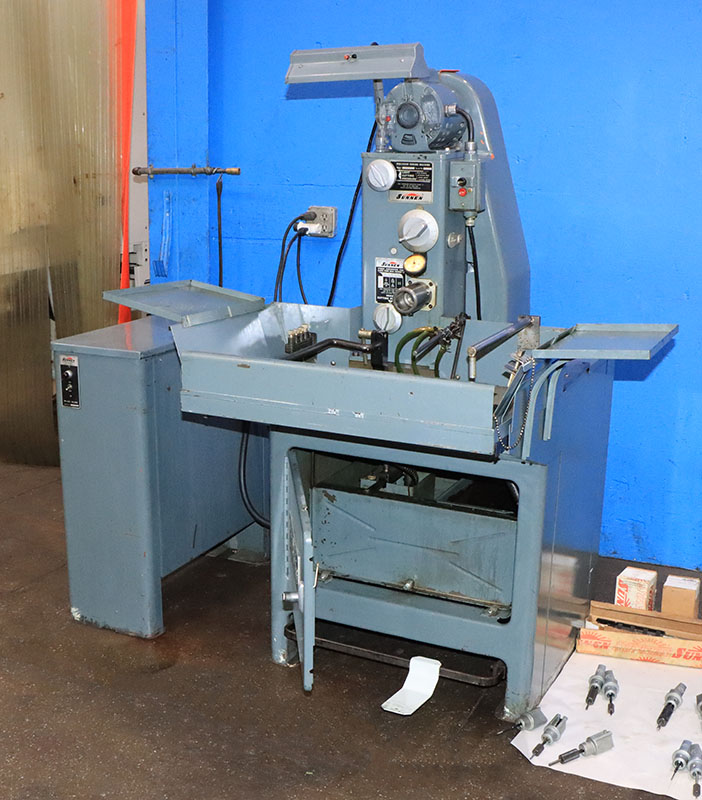

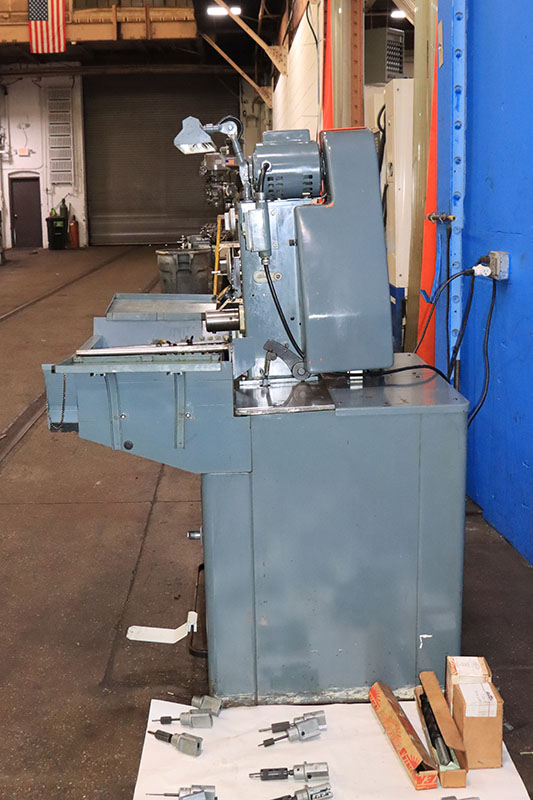

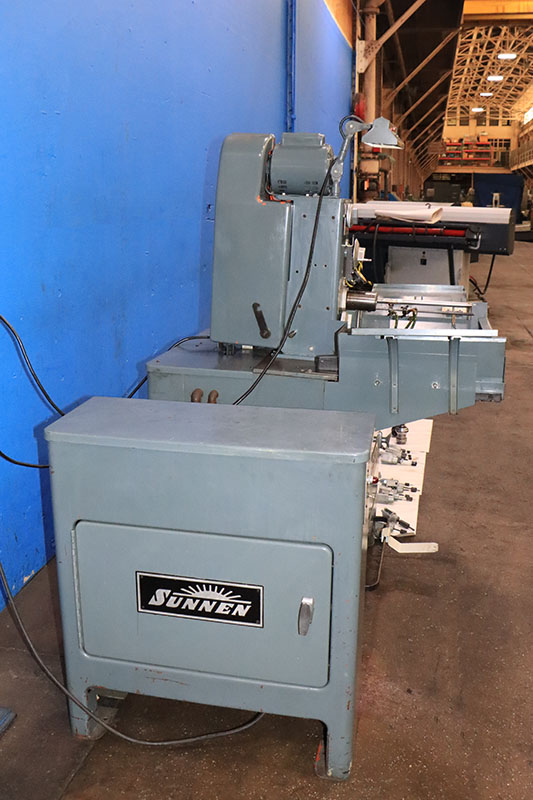

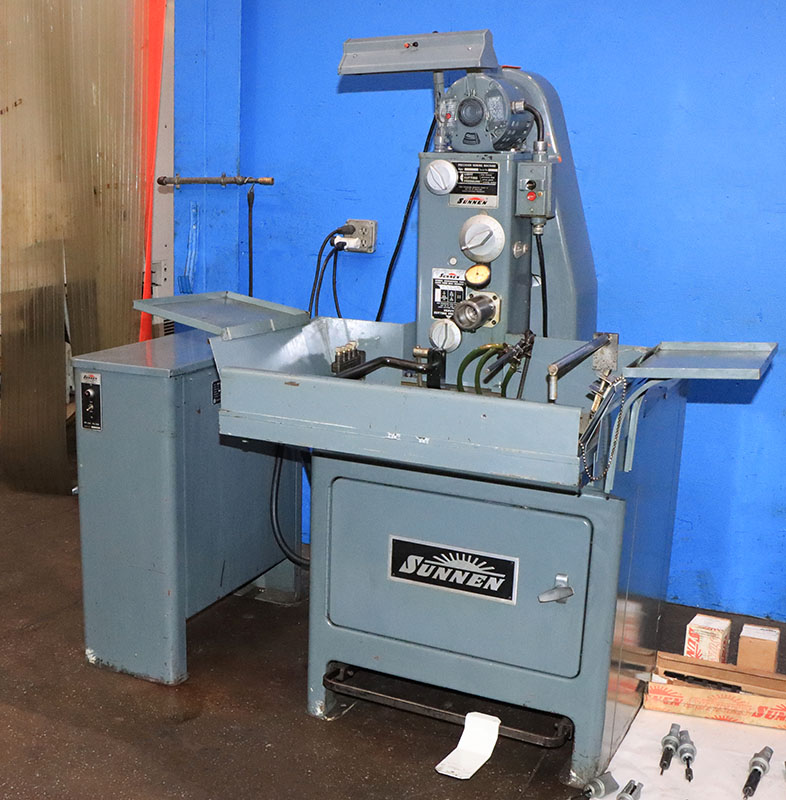

SUNNEN HONE, SINGLE PHASE/115 VOLTS,
WITH "PFN 150" OIL FITRATION SYSTEM"

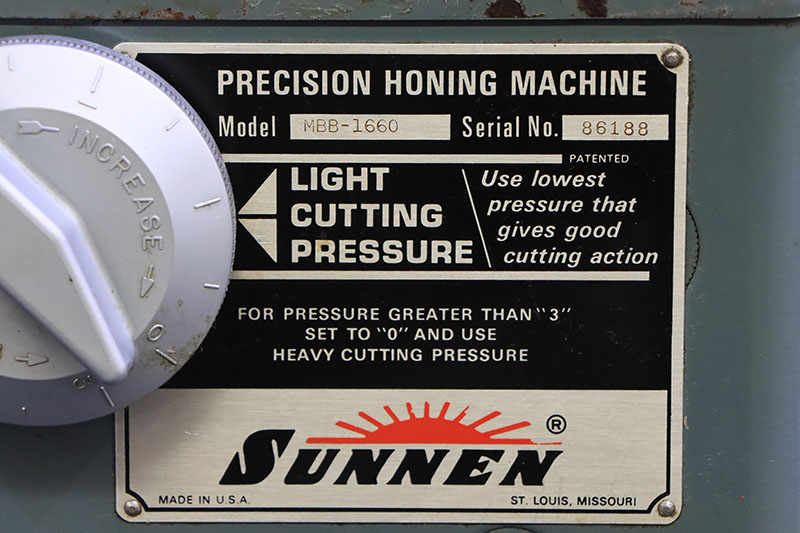

MODEL: MBB-1660-K     S/N: 2EI-86188    NEW: 1984


I.D. RANGE ........... 0.060" TO 6.500"
LENGTH RANGE ......... HONES BORES UP TO 16" IN LENGTH,
                        DEPENDING ON BORE DIAMETER

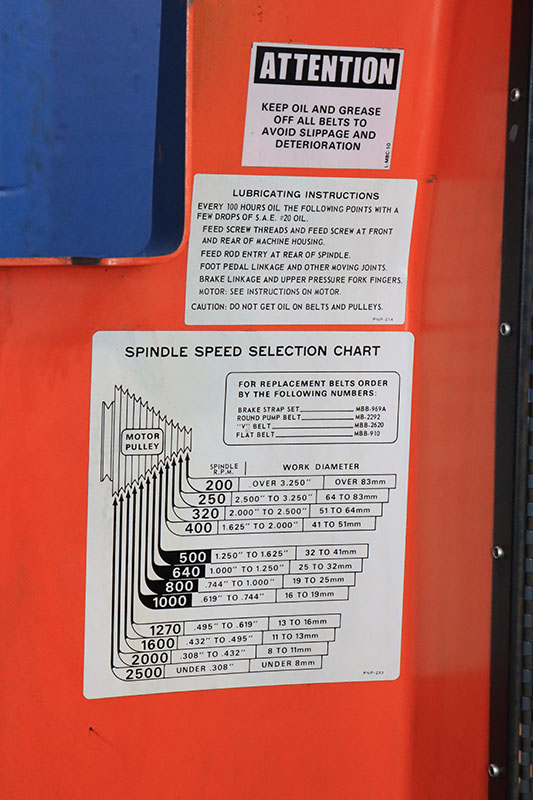

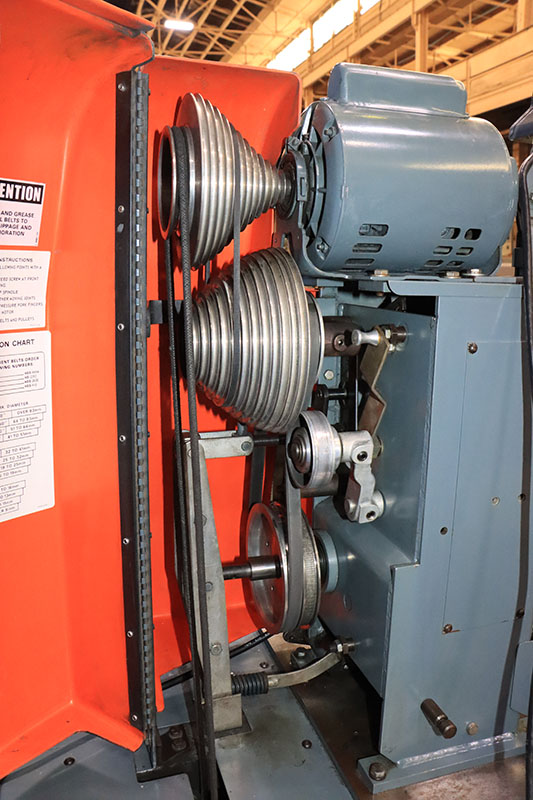

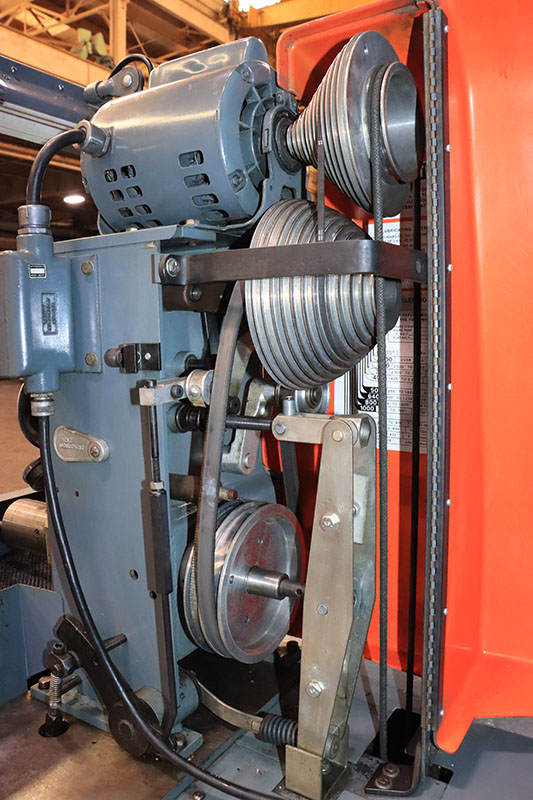

SPINDLE SPEEDS (12) .. 200, 250, 320, 400, 500, 640,
                        800, 1,000, 1,270, 1,600,
                        2,000 AND 2,500 RPM

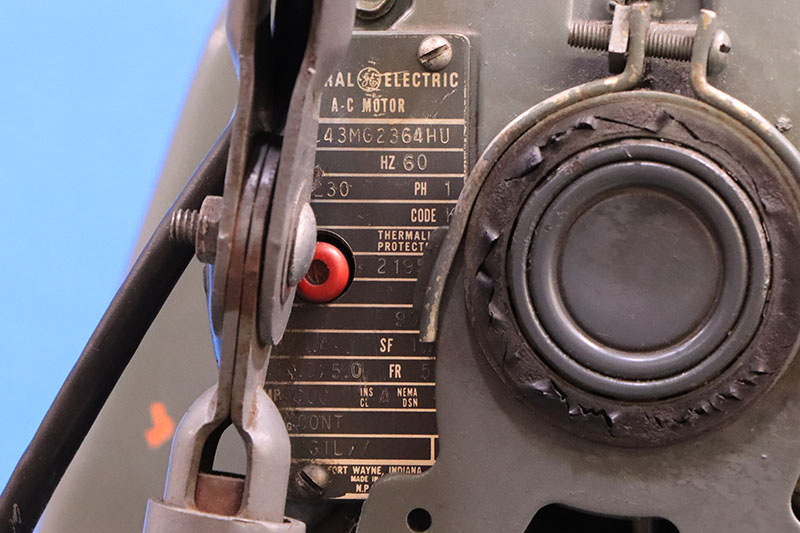

SPINDLE MOTOR ........ 1/2 HP
SPINDLE BRAKE ........ SELF-ENERGIZING BAND-TYPE

FLOOR SPACE .......... 30"W X 60"D X 63"H
APPROXIMATE WEIGHT ... 630 LBS

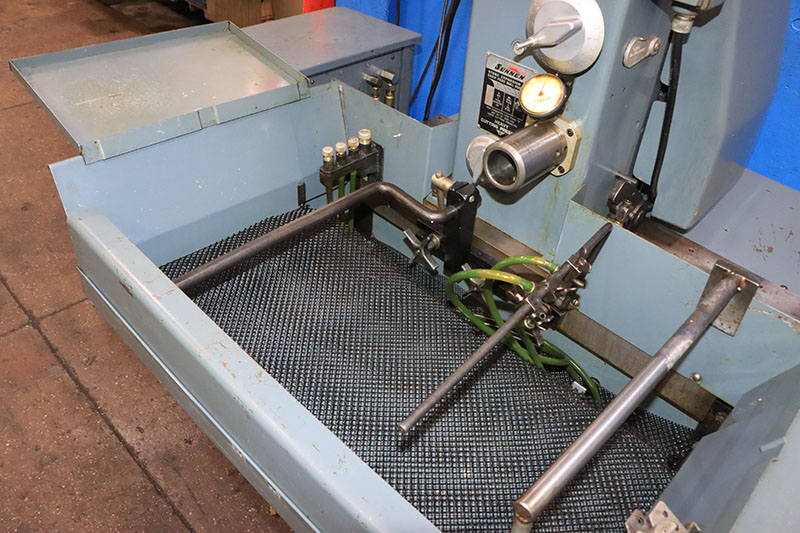

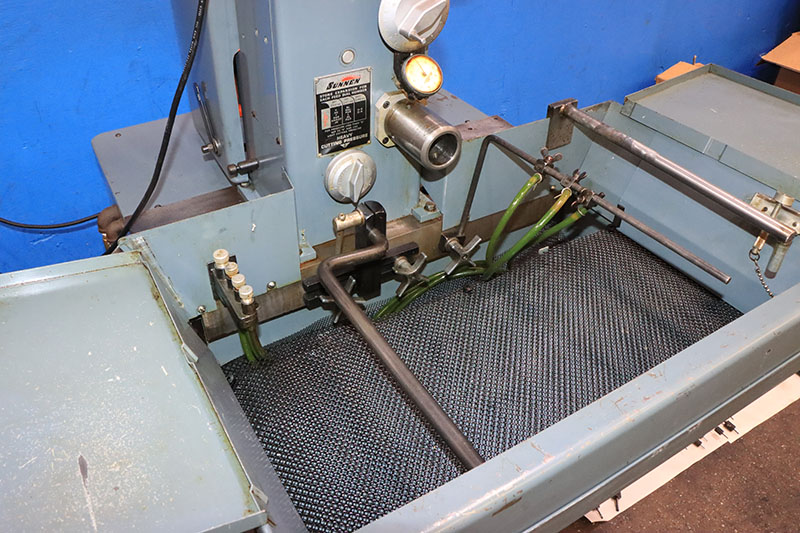

MACHINE FEATURES:
FULL LENGTH FOOT PEDAL
DOOR FOR EASY ACCESS TO HONING OIL RESEVOIR

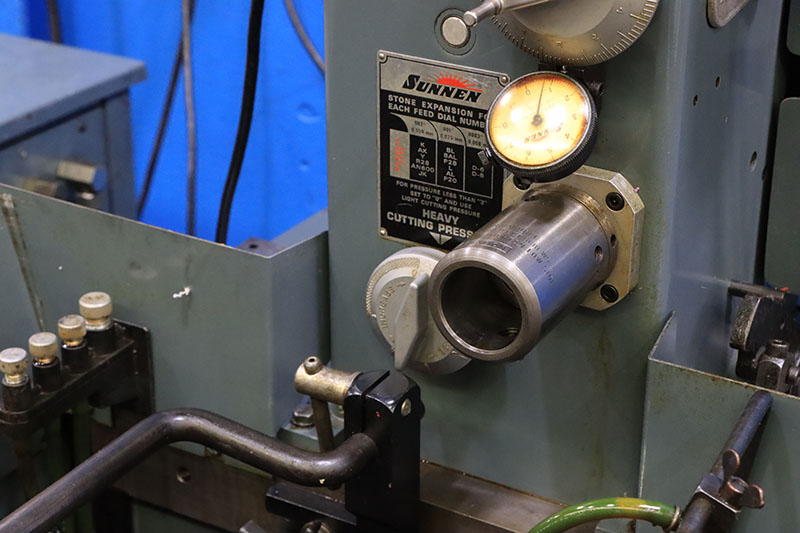

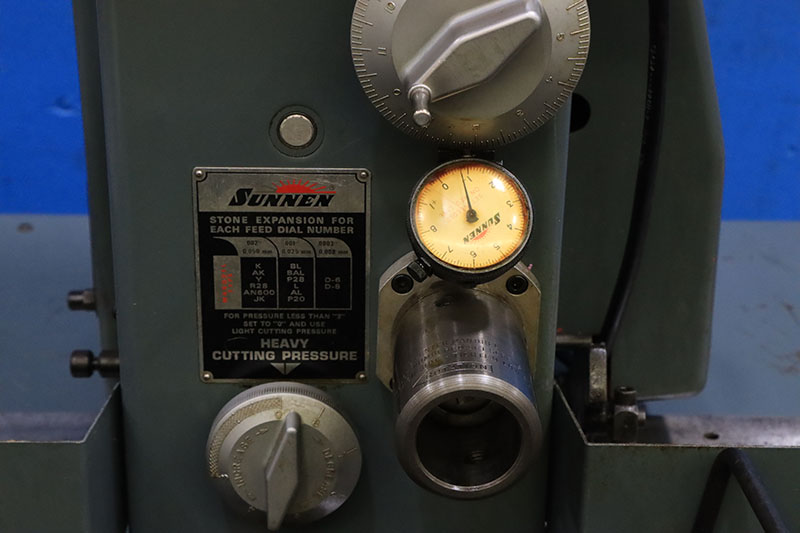

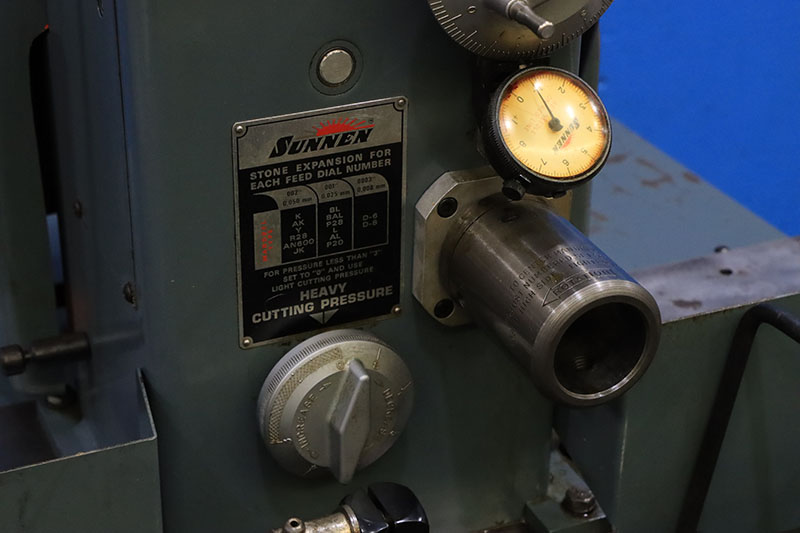

DIAL INDICATOR

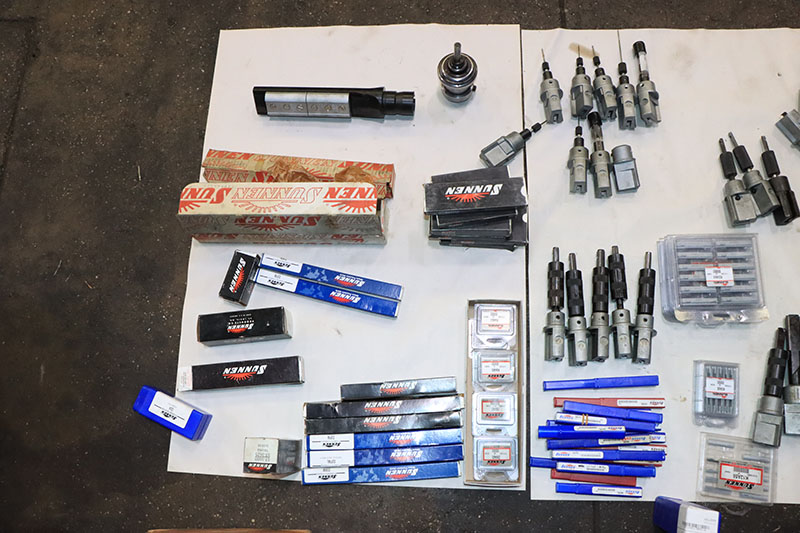

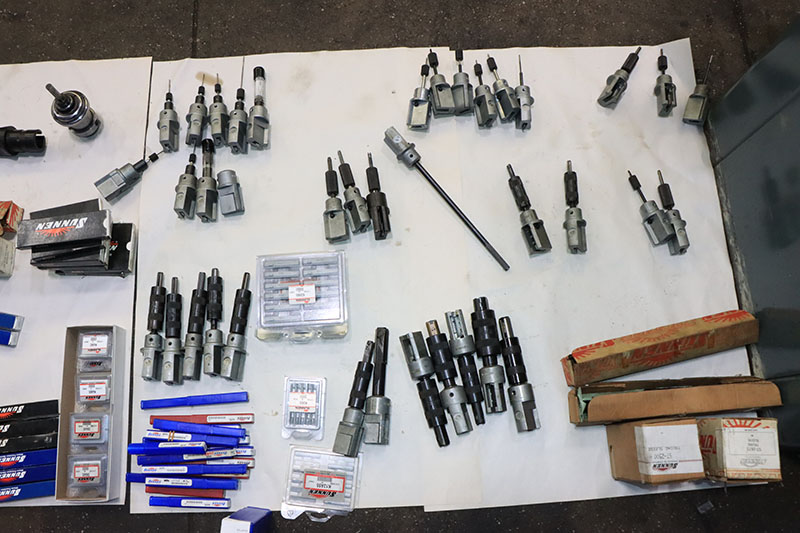

TOOLING:

Adaptors:
K8-A BL8-A Y8-A qty:3
K3-A K4-A k5-A BL3-A BL4-A BL5-A qty:6
D2-8 qty:9
K10-A BL10-A Y10-A qty:3
K11-A Bl12-A Y12-A qty:2
K8-A BL8-A Y8-A qty:2
K16-A BL16-A Y16-A qty:5
K20-A BL20-A Y20-A qty:1
AK20-A BLA20-A AAY20-A qty:6

Truing sleeves:
St-1875 qty:1
ST-2500 qty:1
ST-1600/ST1625 qty:1
S-869 qty:1

Mandrel w/ sleeve:
2G-P28-1250WB Qty:1
2G-P28-1000VA QTY:1

Mandrel no sleeve:
2H-P28-2500WG qty:1
2H-P28-1875WE qty:1
2G-P28-1625WD qty:1


EQUIPPED WITH:

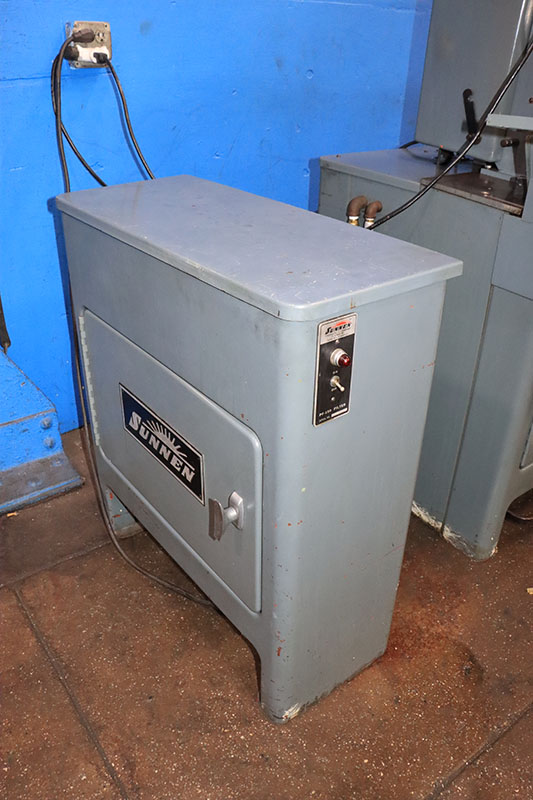

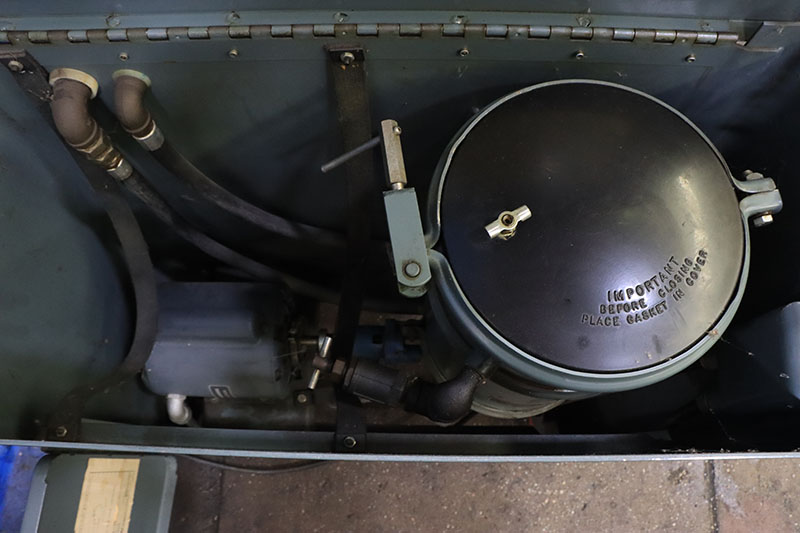

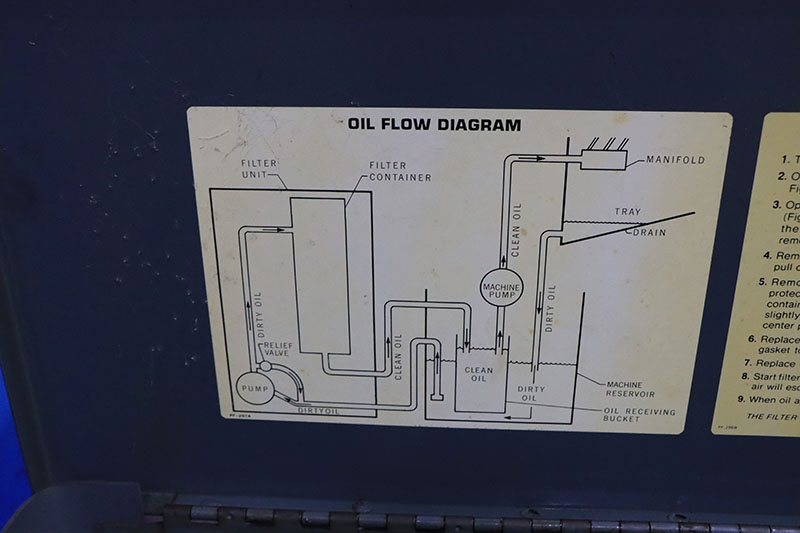

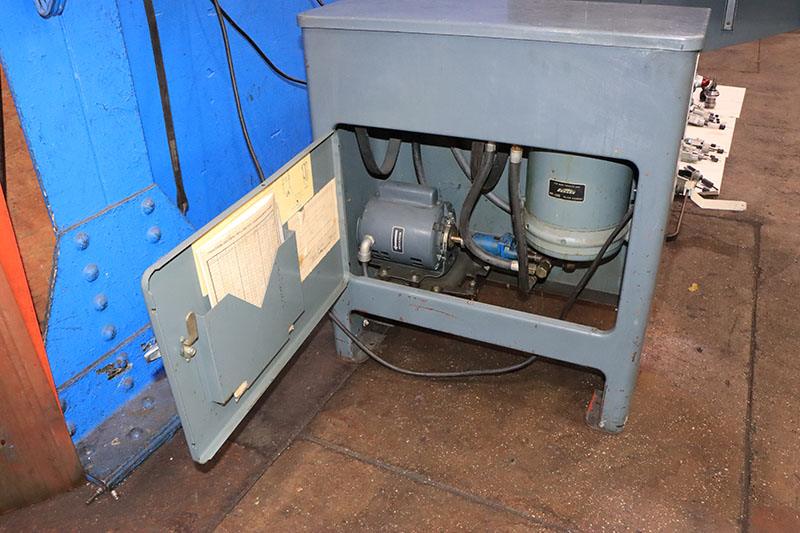

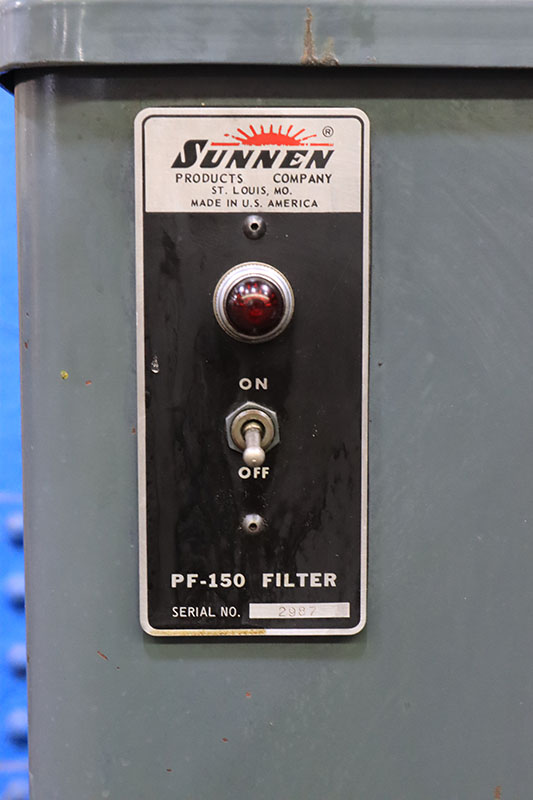

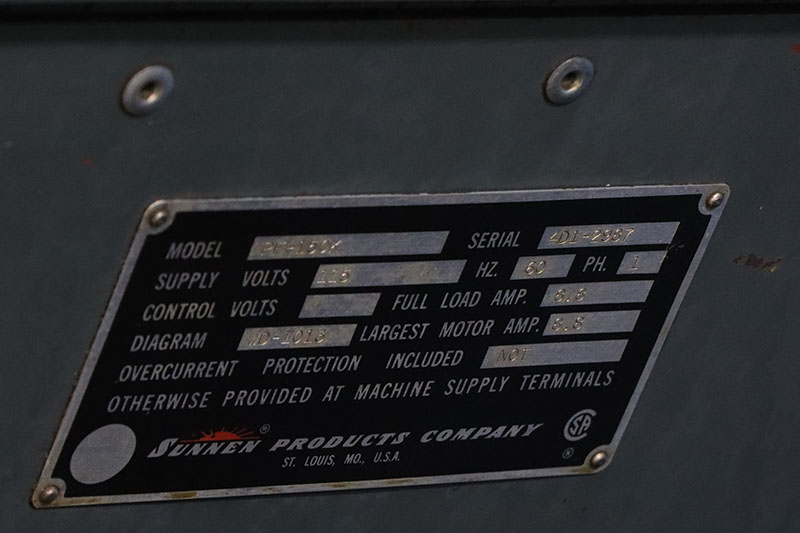

SUNNEN PFN-150K OIL FILTRATION UNIT, S/N: 4D1-2987,
 1 PHASE/115 VOLTS/8.8 FLA

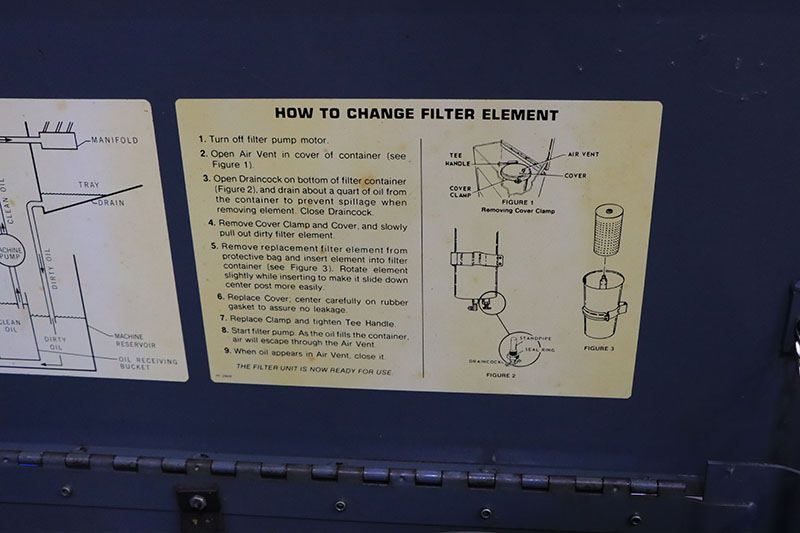

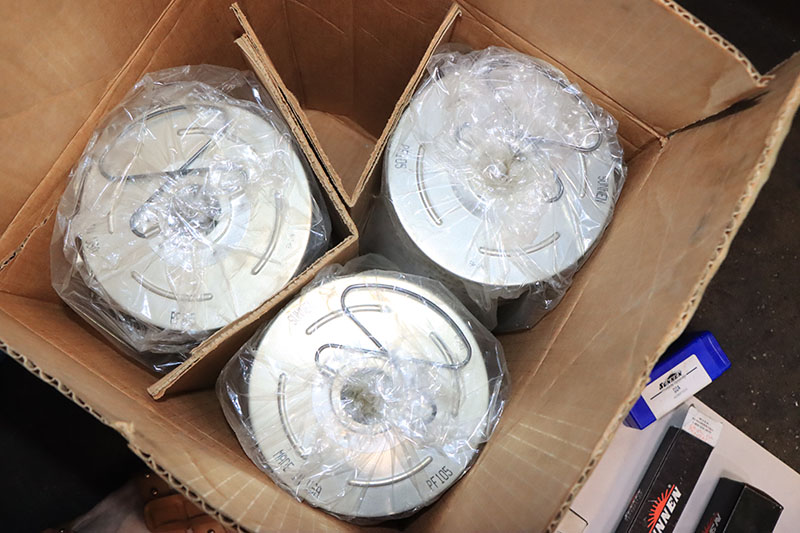

EXTRA NEW FILTERS FOR THE PFN-150K

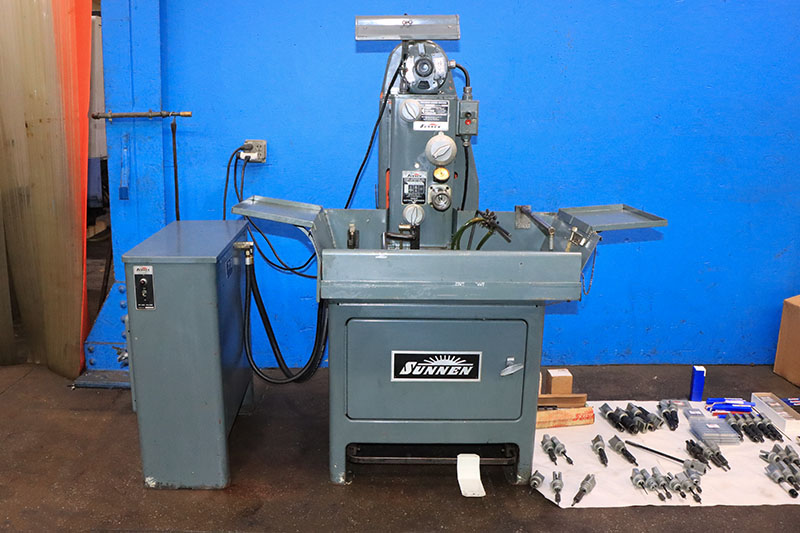

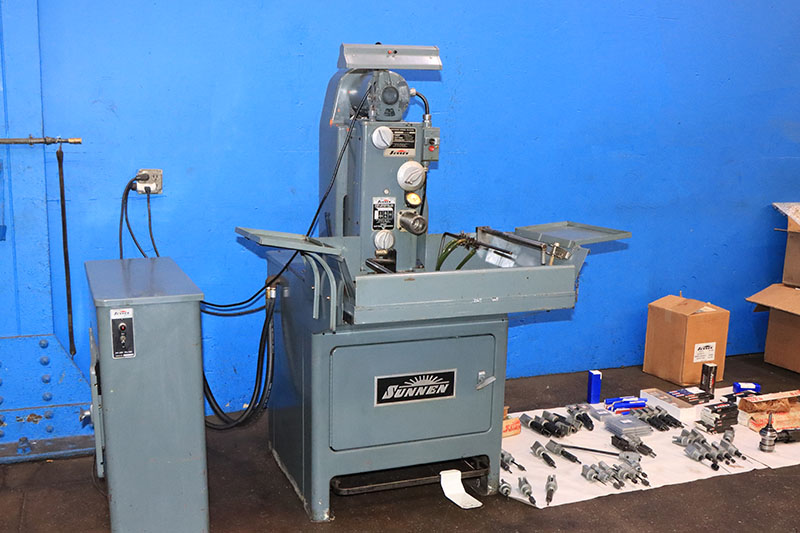

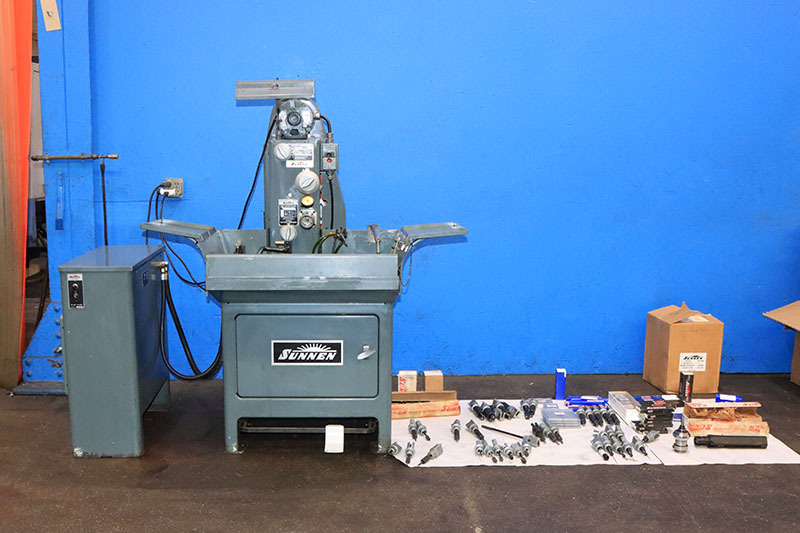

TOOLING AS DESCRIBED ABOVE, AND AS SHOWN IN THE PHOTOS

Link to Video: https://youtu.be/mHo_xq5v4ws?si=AxbrKchJb8uQ9v59

** ORIGINAL PAINT - EXCELLENT CONDITION & APPEARANCE **
* INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE *
