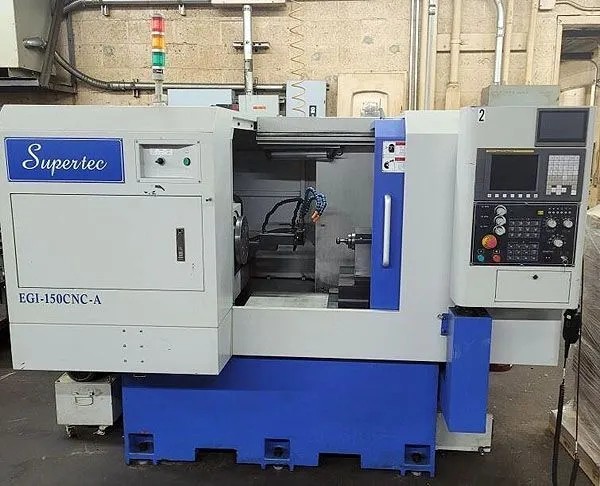

Supertec EGI-150 CNC A CNC ID / INTERNAL GRINDERS

Price on Request

Make:: Supertec

Model:: EGI-150 CNC A

Year:: 2015

Ref #:: 179234

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

 Supertec Model: EGI-150 CNC
     ID Grinder, New: 2015


Specifications:

Grinding Capacity
Grinding Diameter Range 0.16” ~ 9.4”
Max. Grinding Depth 5.9”
Swing over table 15”
Swing over Splash guard 12.6”
Control System

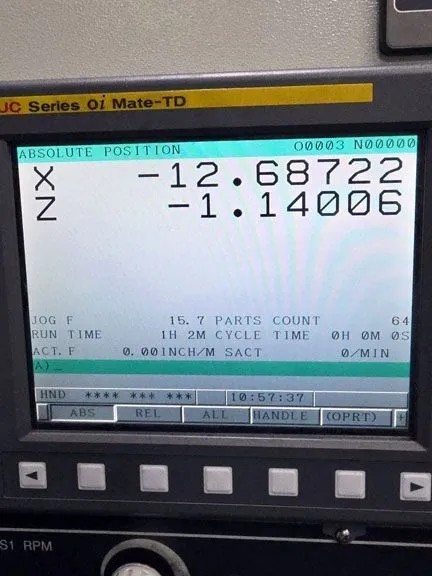

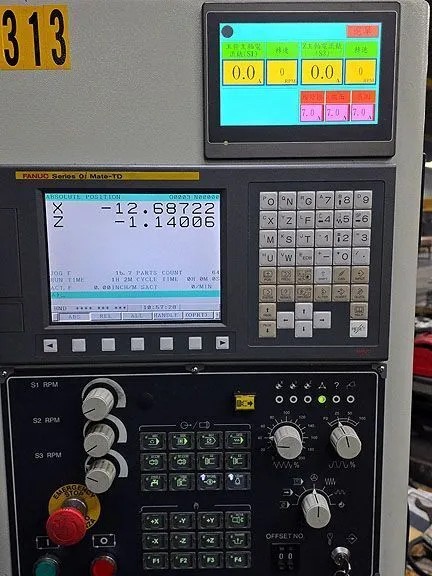

Control FANUC Oi-TD
Workhead
Spindle Speed 30,000 rpm
X Axis feed rate 394 in/min
X Axis Travel 11.8”
Min. unit of X Axis movement 0.0001”
Workhead Swiveling angel -5 ~ +15”
Table
Max. feed rate of Y/Z Axis Z: 394 in/min
Y / Z Axis travel Z: 15.7” +3.9”
Min. unit of Y / Z Axis movement 0.0001”/0.0001”
Distance from wheel center to Floor 41.7”
Hydraulic System
Hyd. Oil Tank Capacity 7.5 Gal.
Cooling System
Coolant tank capacity 37.5 Gal
Drive Motor
Hyd. Pump motor 0.75 Kw (1HP)
Coolant Pump 0.18 Kw (1/4HP)
X / Y / Z Axis Servo motor X: 1.2Kw /Z: 1.2Kw
Grinding Wheel motor (B1/B2) (KW) B1: 2.2,2P(3HP)
Workhead Motor 2.2 Kw, 4P (3HP)
Other
Automatic lubricator 0.5 gal.
Machine Dimensions (LxWxH) 87” x 91” 67”
Machine Weight 6600 lbs
Equipped with
3 Jaw Chuck
Frequency inverter for X-axis workhead motor
Frequency inverter for Z-axis workhead motor
Heat exchanger for electrical Cabinet
CNC control
Hydraulic chuck
Rotary cylinder
Work light
Frequency inverter for Automatic lubricator
X-axis workhead motor
Coolant tank & pump

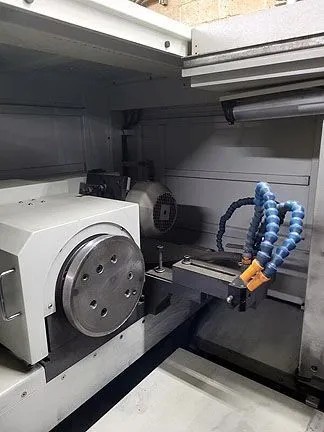

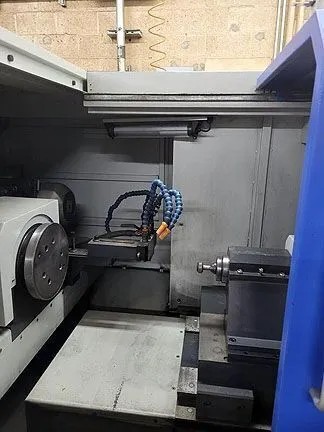

Grinding spindle on Z-axis
Frequency inverter for Three-color warning light
Z-axis workhead motor
