Supertec G38P-100NC, 2017, PLC AUTO CYCLE CONTROL, HYD. TAB CNC UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Supertec

Model:: G38P-100NC, 2017, PLC AUTO CYCLE CONTROL, HYD. TAB

Year:: 2017

Ref #:: 178568

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

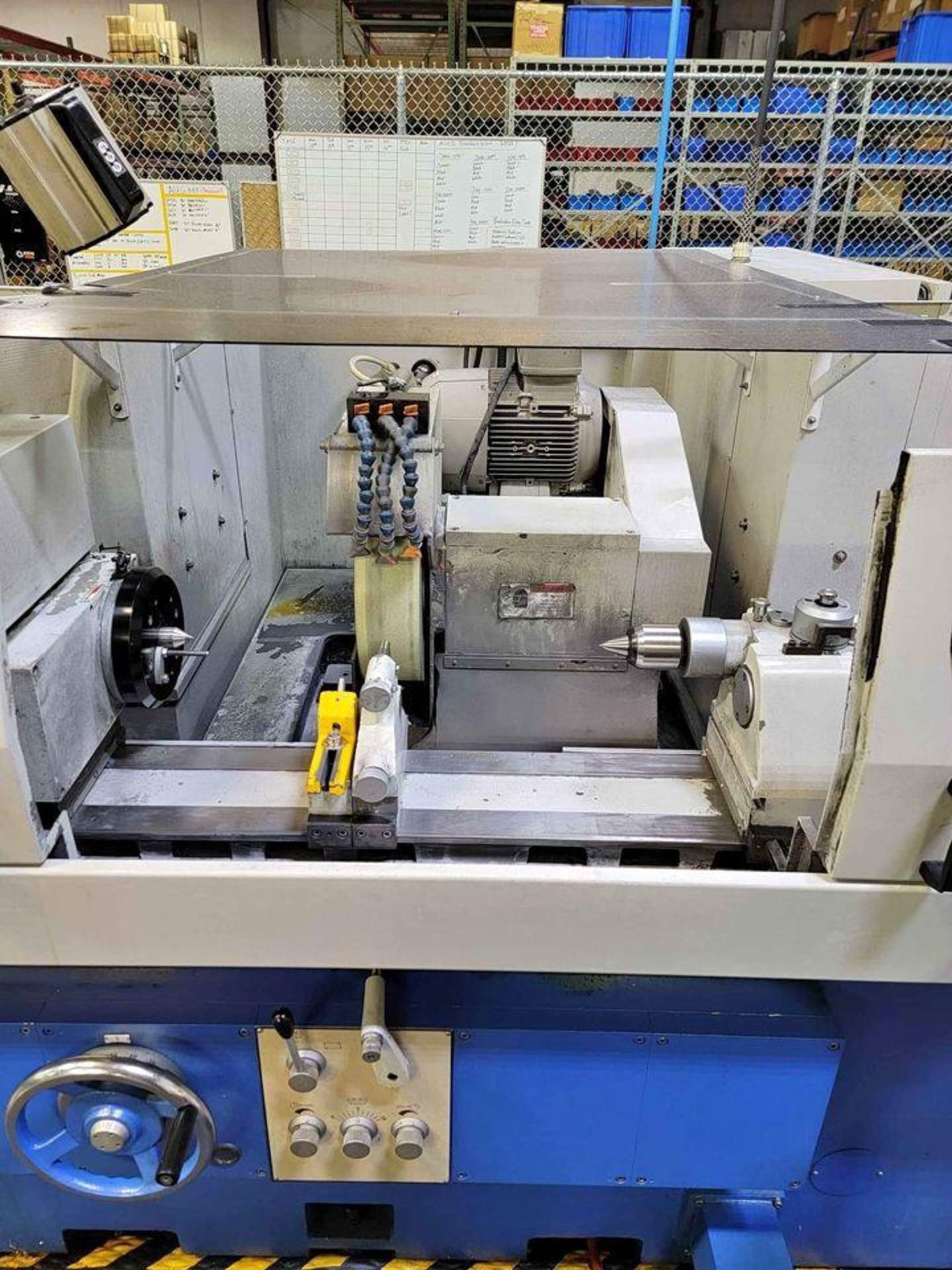

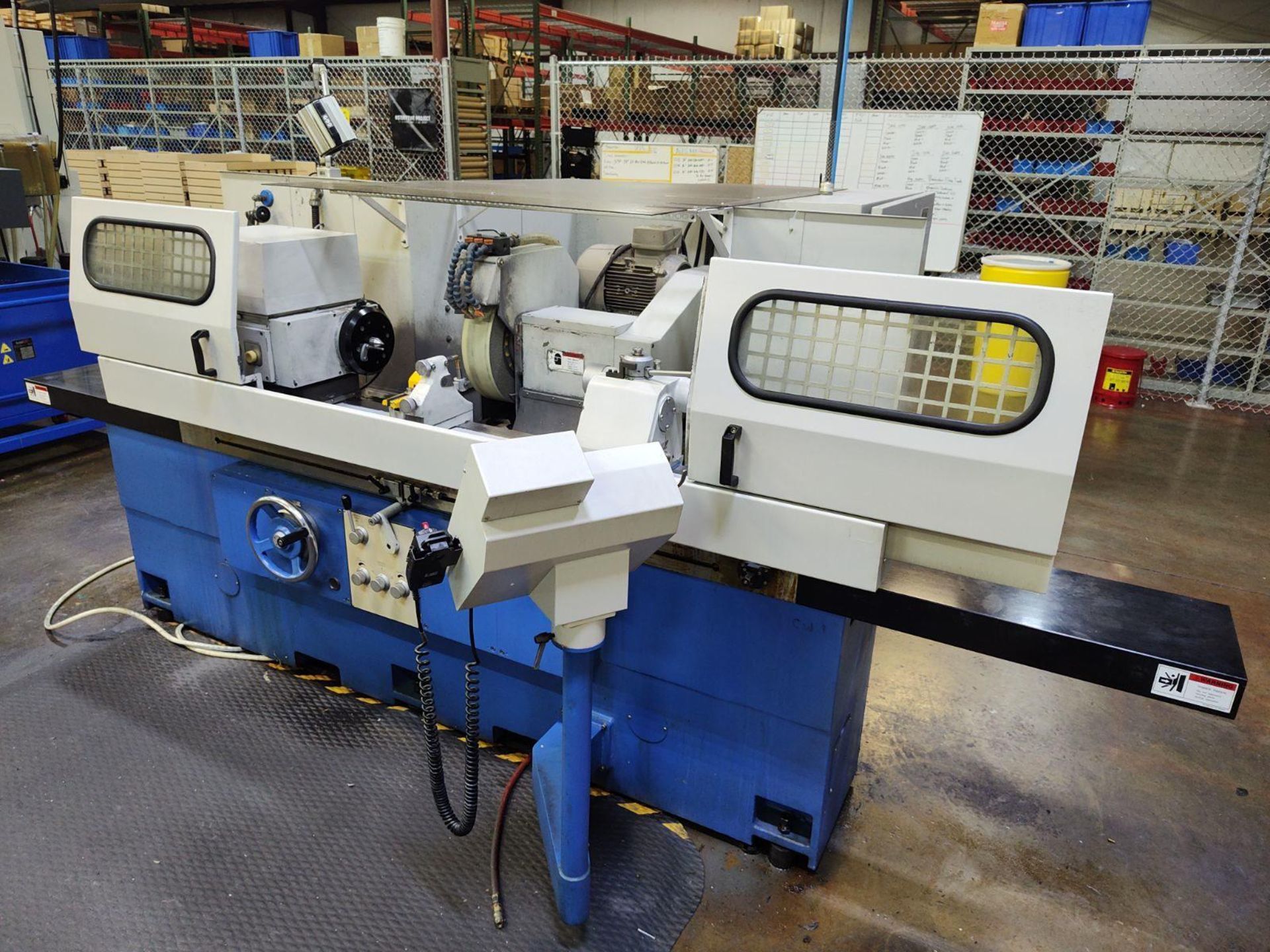

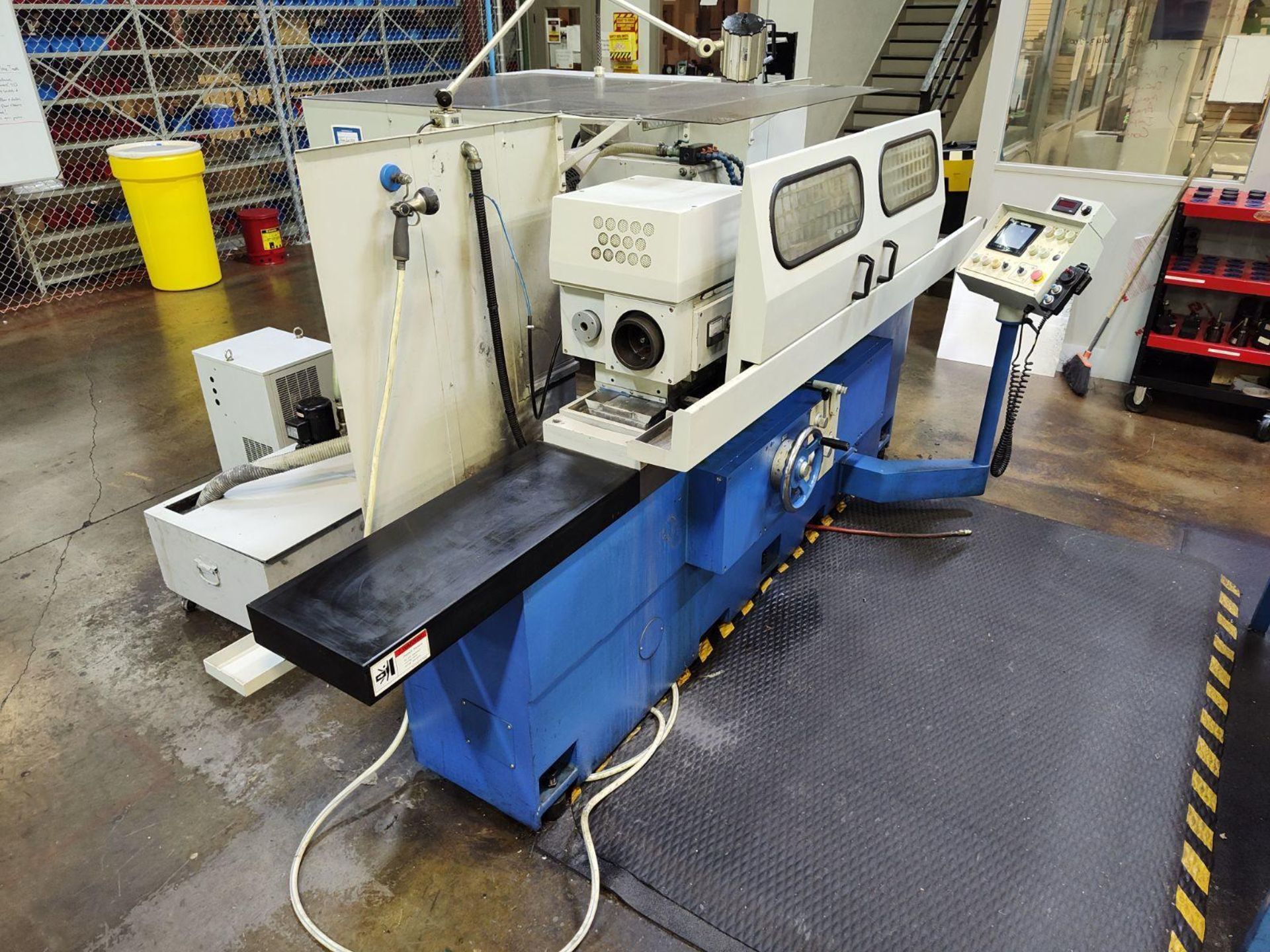

15.7" x 40" SUPERTEC UNIVERSAL CYLINDRICAL GRINDER

  Mitsubishi "PLC" Programmable Automatic Infeed
Control, with Ball Screw & AC Servo Motor on Infeed

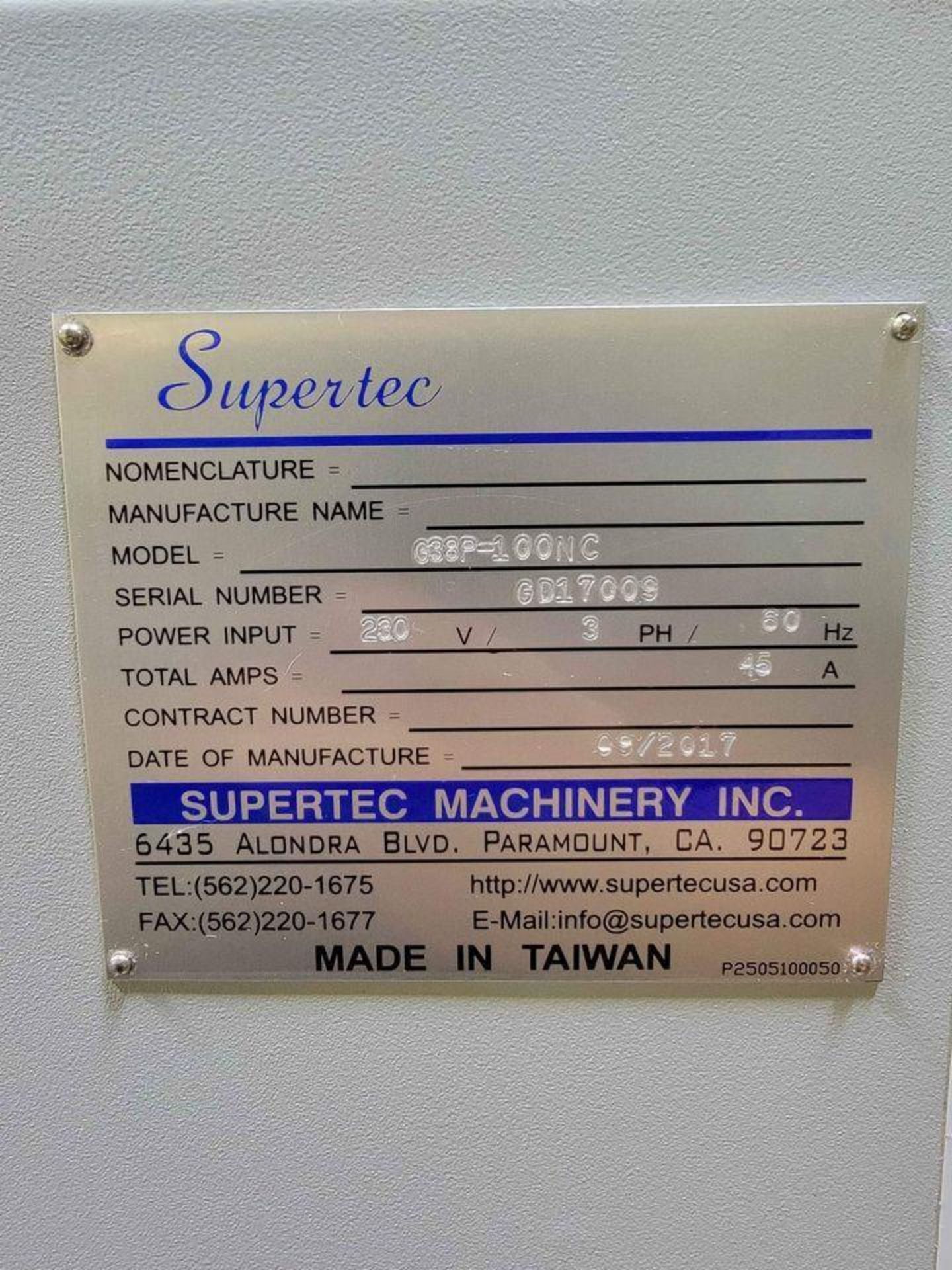

MODEL G38P-100NC     S/N: GD17009     NEW:  09/2017


SPECIFICATIONS:
GENERAL CAPACITY:
Distance Between Centers .......... 40"
Swing Over Table .................. 15.7"
Max. Grinding Diameter ............ 14"
Max. Load Held Between Centers .... 330 lbs

WHEELHEAD:
Auto incremental infeed (NC) ...... 0.0001" ~ 0.0999"
Handwheel per revolution .......... By MPG
Top slide sliding travel .......... 7"
Total Infeed ...................... 9.6"
Swiveling angle (R&L) ............. 30 Degrees
Automatic rapid travel ............ 1.75"


GRINDING WHEEL:
Diameter x Width x Bore ........... 16" x 2" x 5"
Wheel speed ....................... 1,650 rpm

TABLE:
Swivelling angle (R&L) ............ 7 Degrees
Traverse speed (infi variable) .... 1.2" ~ 275"/min
Handwheel per revolution .......... 0.39"

WORKHEAD:
Swiveling angle (R&L) ............. 90 Degrees
Center taper ...................... MT4
Spindle speed (infi variable) ..... 30 ~ 350 rpm

TAILSTOCK:
Center taper ...................... MT4 (option MT5)
Quill travel ...................... 1"


MOTORS:
Wheel spindle motor ............... 7.5 H.P.
Workhead motor .................... 2 H.P.
Hydraulic pump .................... 2 H.P.
Coolant pump ...................... 0.25 .H.P


MACHINE:
Net weight ........................ 10,500 lbs



Machine Features:

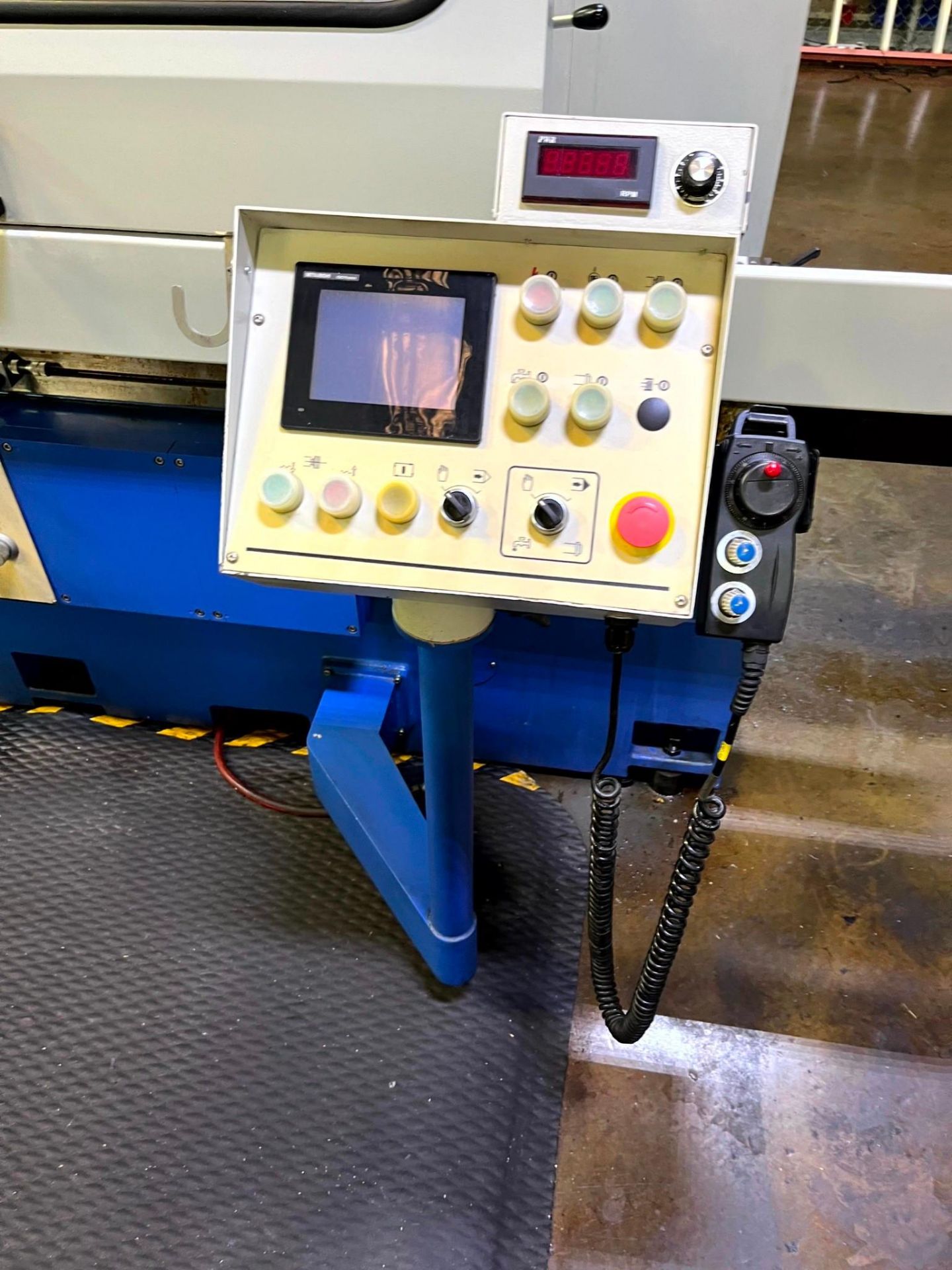

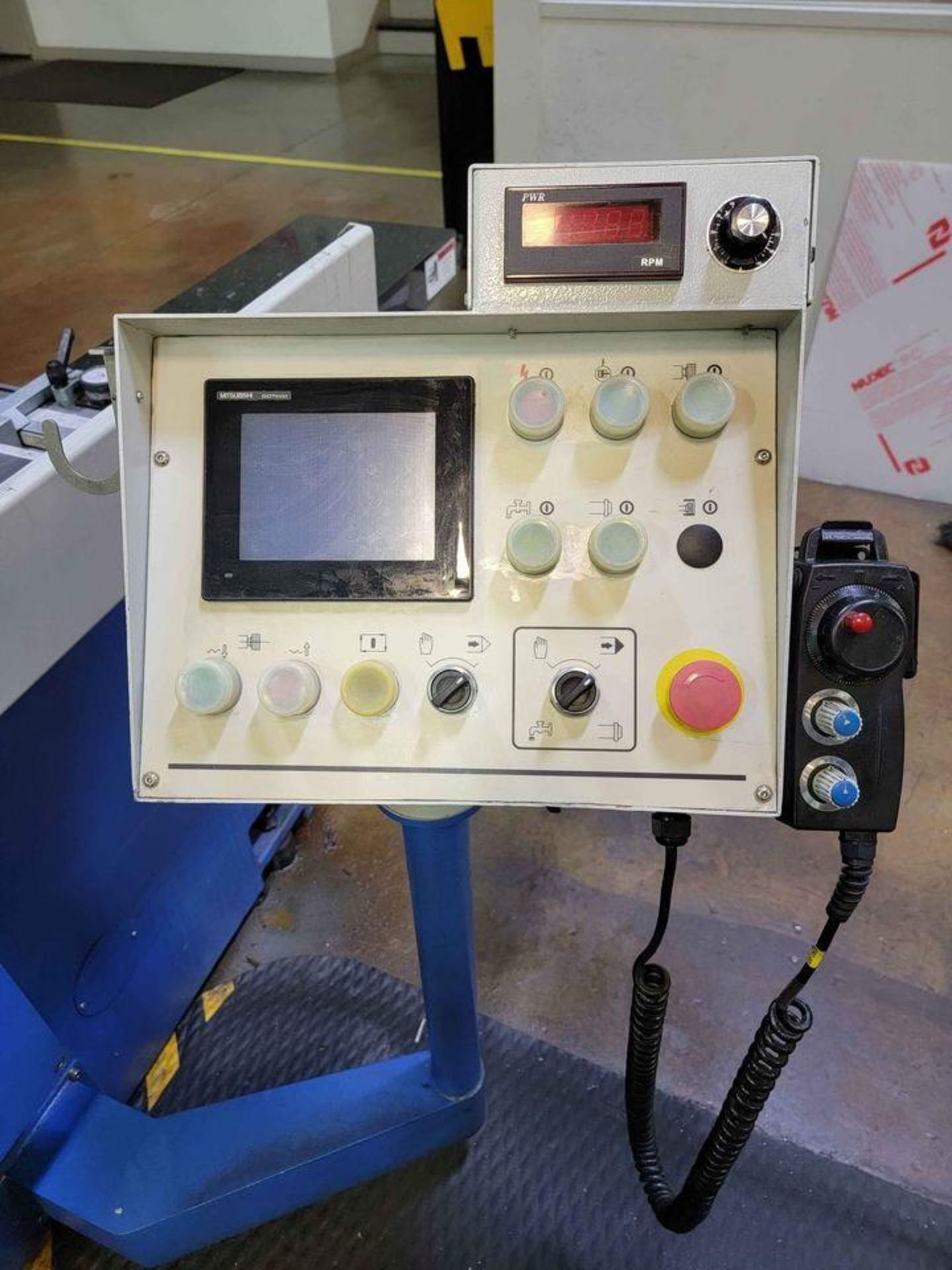

- Mitsubishi PLC Control uses a menu-driven LCD
   touch screen - it is easy to learn and easy to set-up.
   Simply fill in the blanks to set the total grinding
   amount, rough increment, fine increment, spark-out
   passes, feeding direction, parking position, and
   retracting clearance - then press cycle start to
   complete an automatic grinding cycle.
- Ball Screw & AC Servo Motor on Infeed

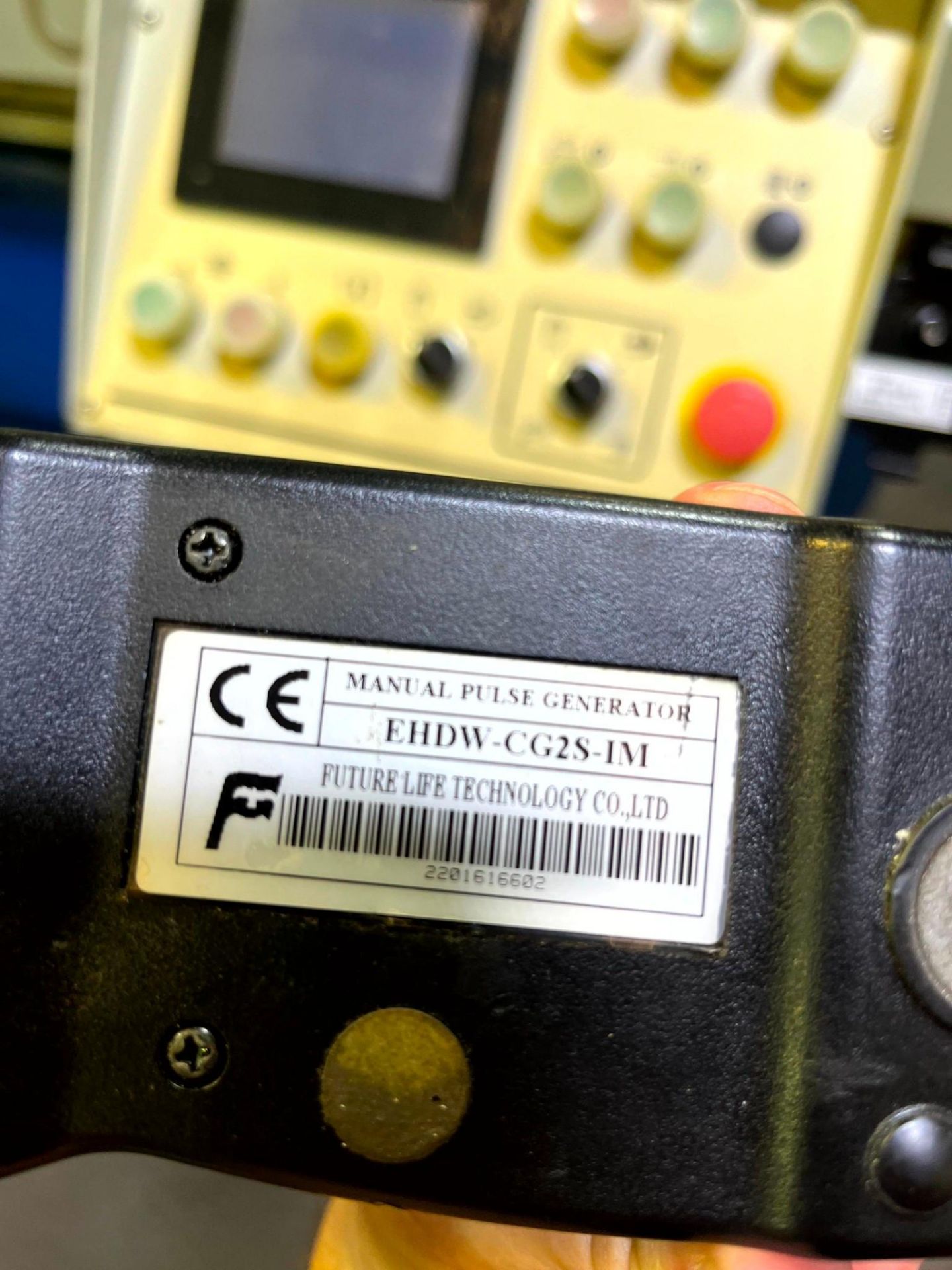

- Manual Pulse Generator (MPG), for Electronic
   Manual Control of the Wheelhead Movement.
- "Turcite" on Ways for Wheelhead Slide, Increases Wear
   Life & Provides Smooth Wheelhead Infeed
- Infinitely Variable Spindle Speeds for the Workhead,
   with RPM   Display for the Spindle Speed Selected.
- Workhead Spindle is Dual "Live & Dead"
- Universal Grinder, Wheelhead & Workhead Swivel
- Hydraulic Table Traverse, & Handwheel for Manual
   Table Movement.
- Auto lube system

Equipped With:
- Coolant System, Standard Tank with Pump

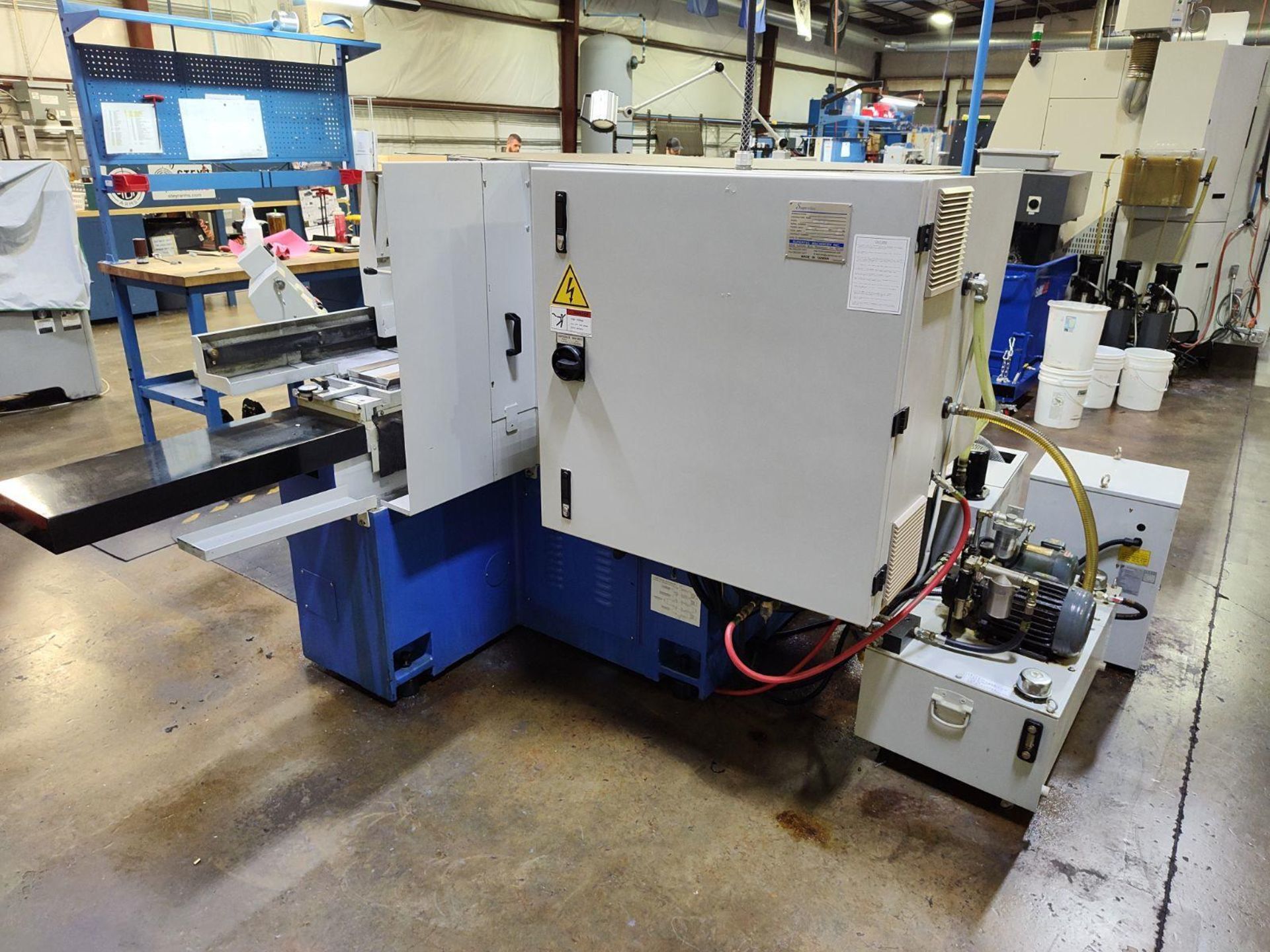

- Separate Oil Cooler, This is an Expensive Option,
   Provides Thermal Stability for the Hydraulic Oil,
   Which Increases the Precision Capability
   of the Machine.
- Center in Workhead
- 2-Point Steady Rest (White)
- Table Mounted Dresser (Yellow)
- Machine is Presently Wired for 230 Volts,
   45 Full Load Amps


Special Note:
Not equipped as optional equipment, but available
 to purchase from Supertec for this machine:

"Swing Down I.D. Grinding Attachment with I.D. Spindle"


** Beautiful Condition & Appearance **
** This is a 2017 Machine! - Wow!! **
** Inspect Under Power in our Harrison, NJ Warehouse **
