Sutton EXTRUSION LINE EXTRUSION PRESSES

Price on Request

Make:

Sutton

Model:

EXTRUSION LINE

Year:

2001

Ref #:

178989

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

---

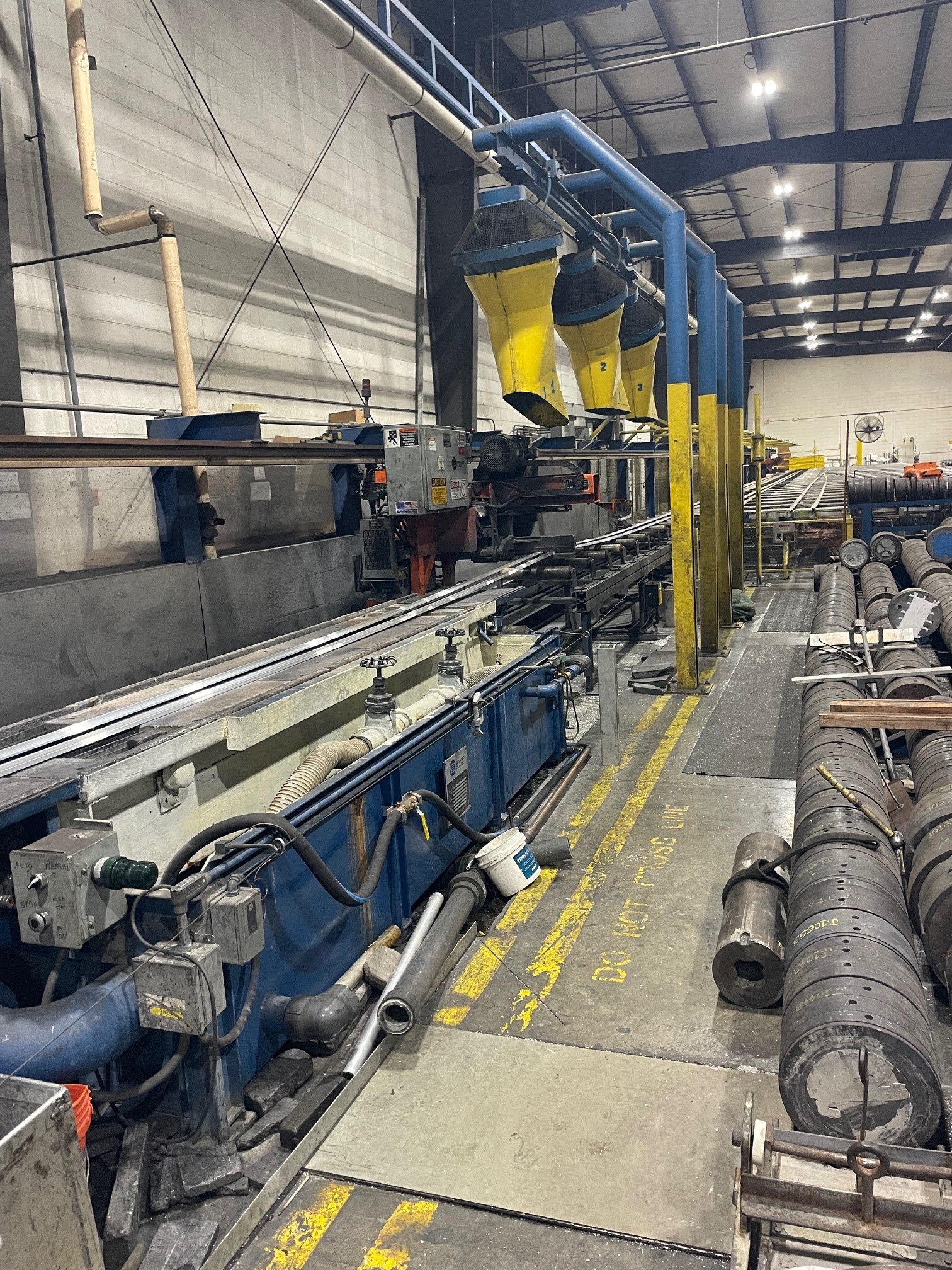

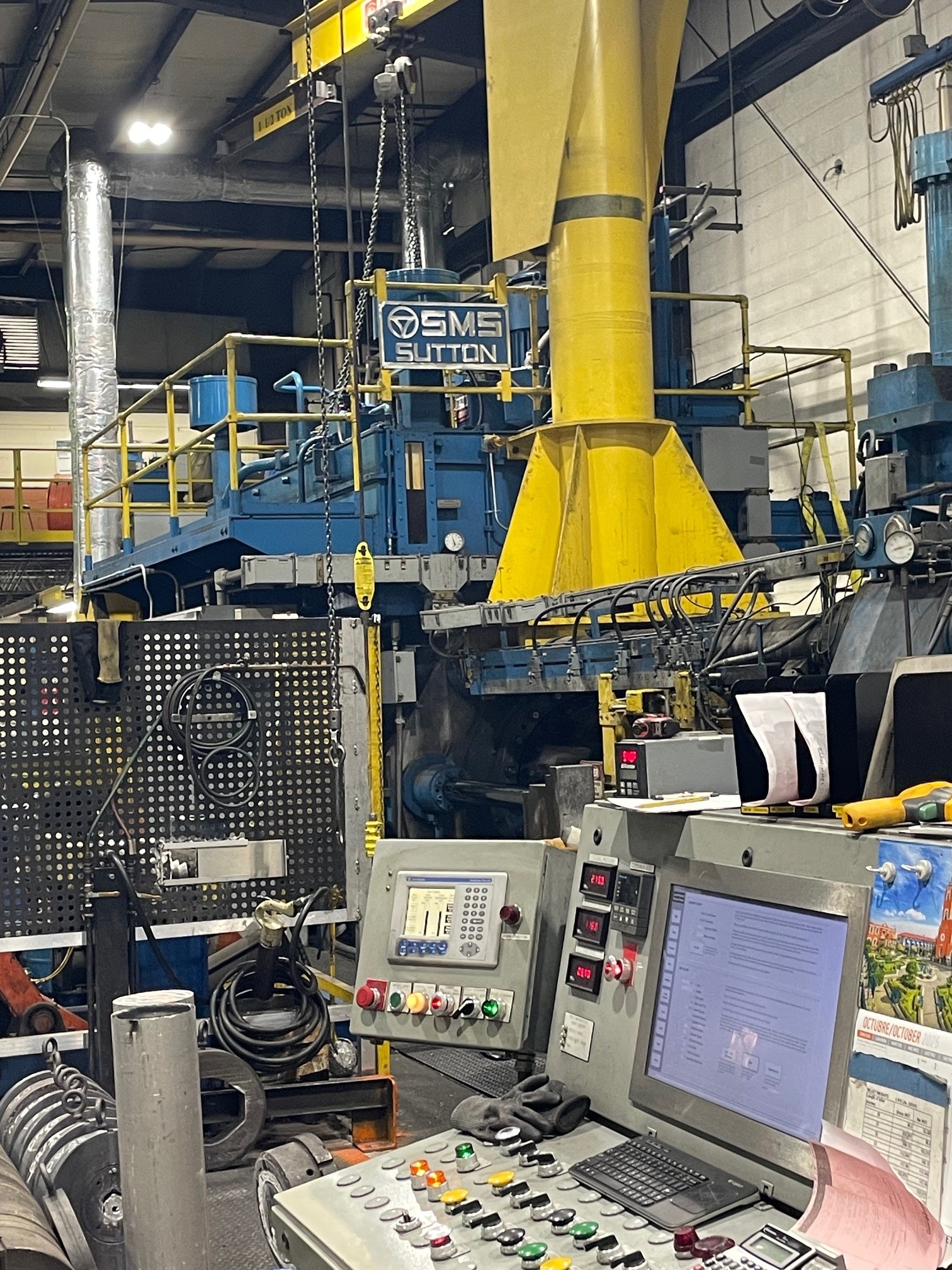

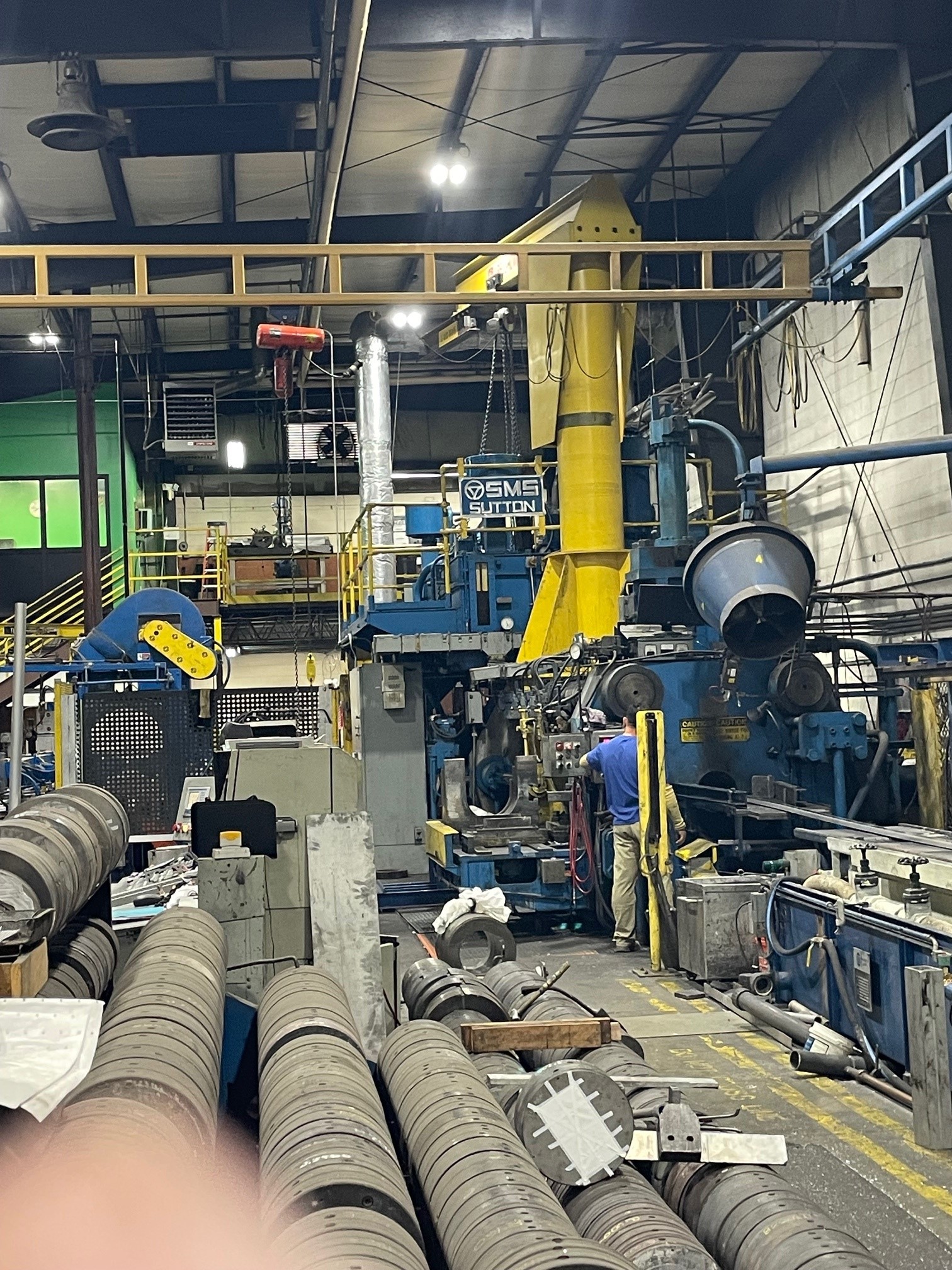

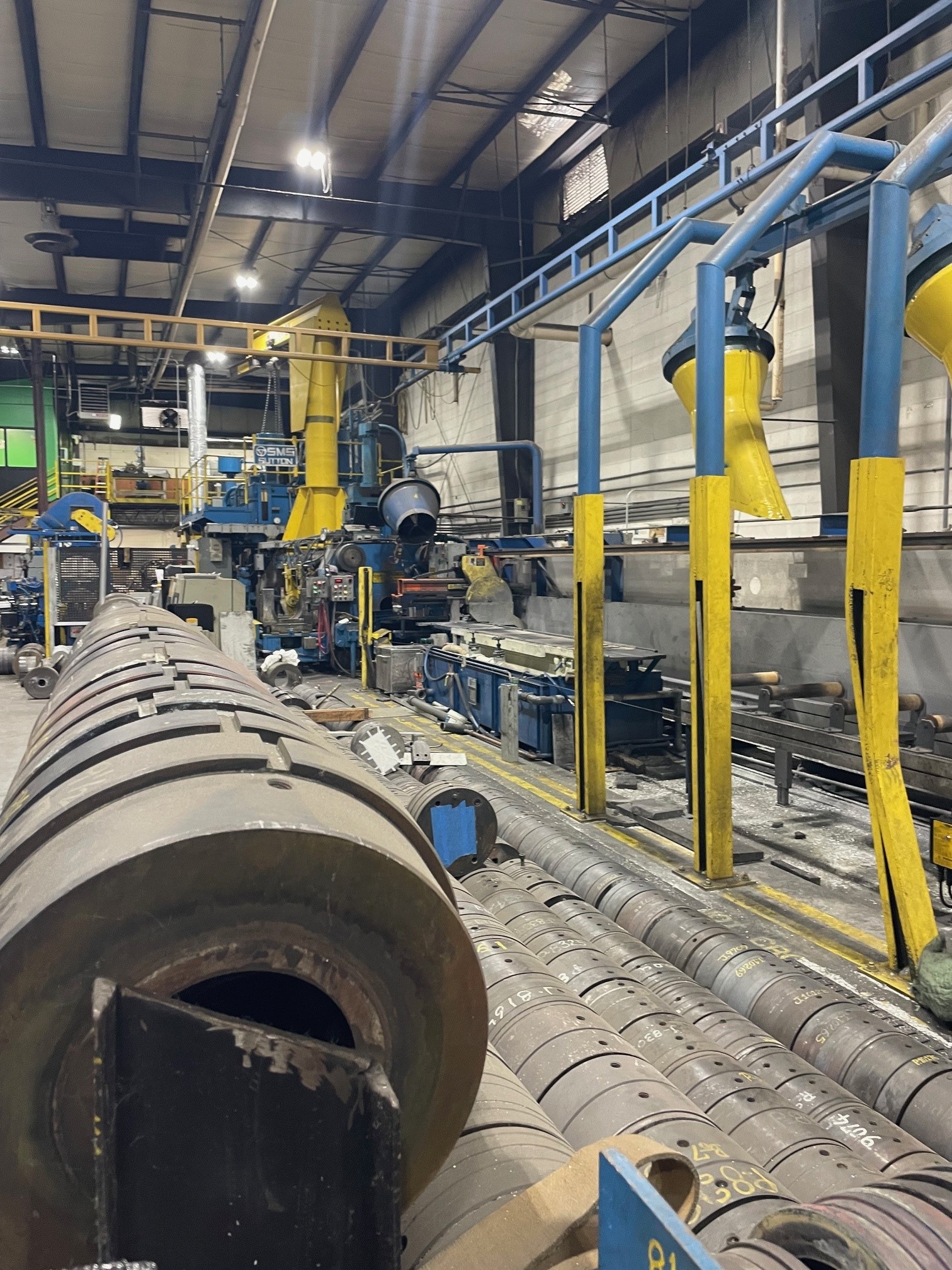

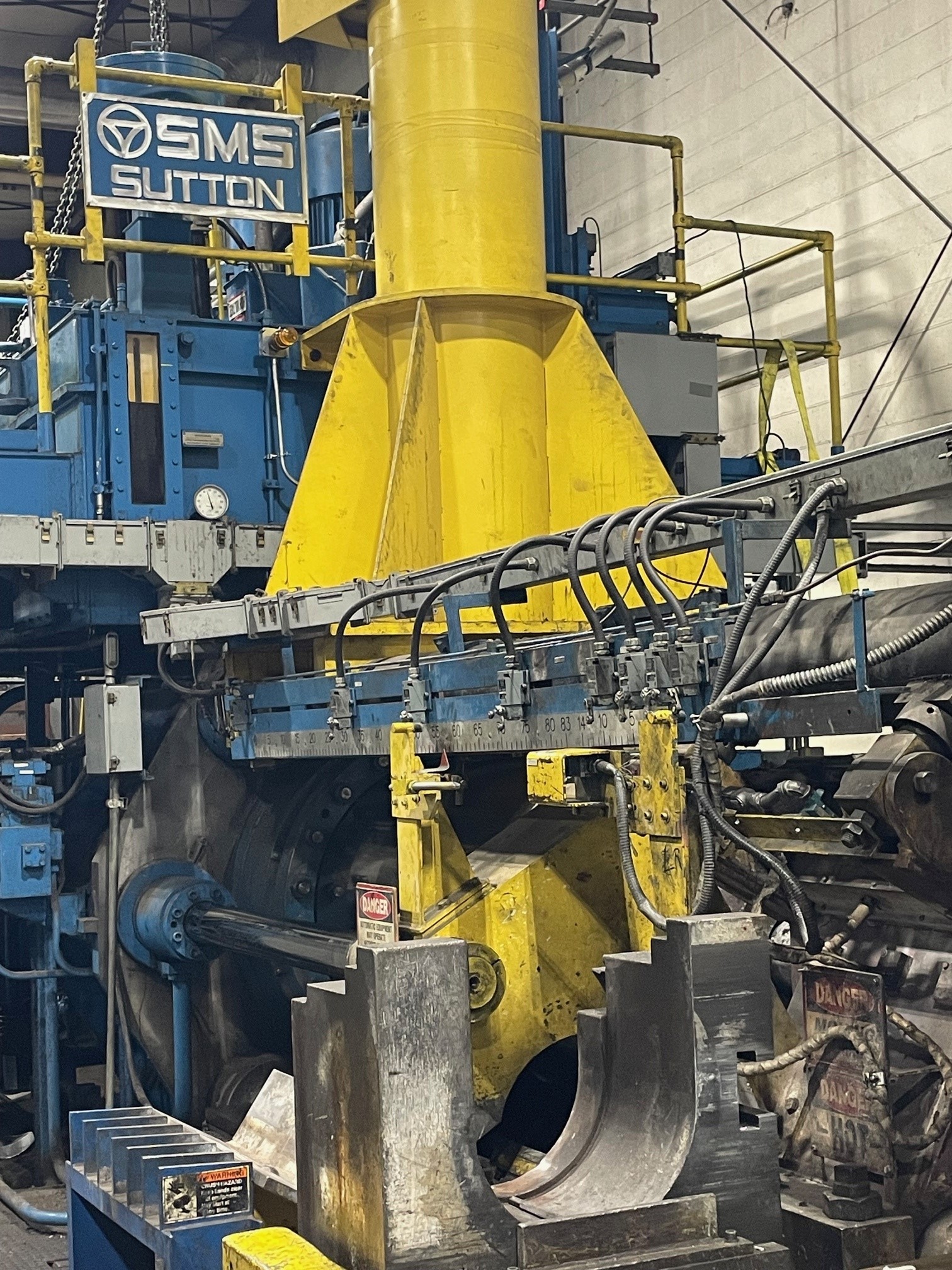

ALUMINUM EXTRUSION LINE FEATURING 2,500 TON SMS SUTTON HYDRAULIC EXTRUSION PRESS



SPECIFICATIONS:

CAPACITY ....................... 2,500 TON

CYLINDER ....................... 8" DIA.

STROKE ......................... 36"



EQUIPPED WITH:

- SELF-CONTAINED HYDRAULIC POWER SUPPLY WITH (3) 250 MAX. HP VARIABLE DRIVE MOTORS

- GAS BILLET HEAT

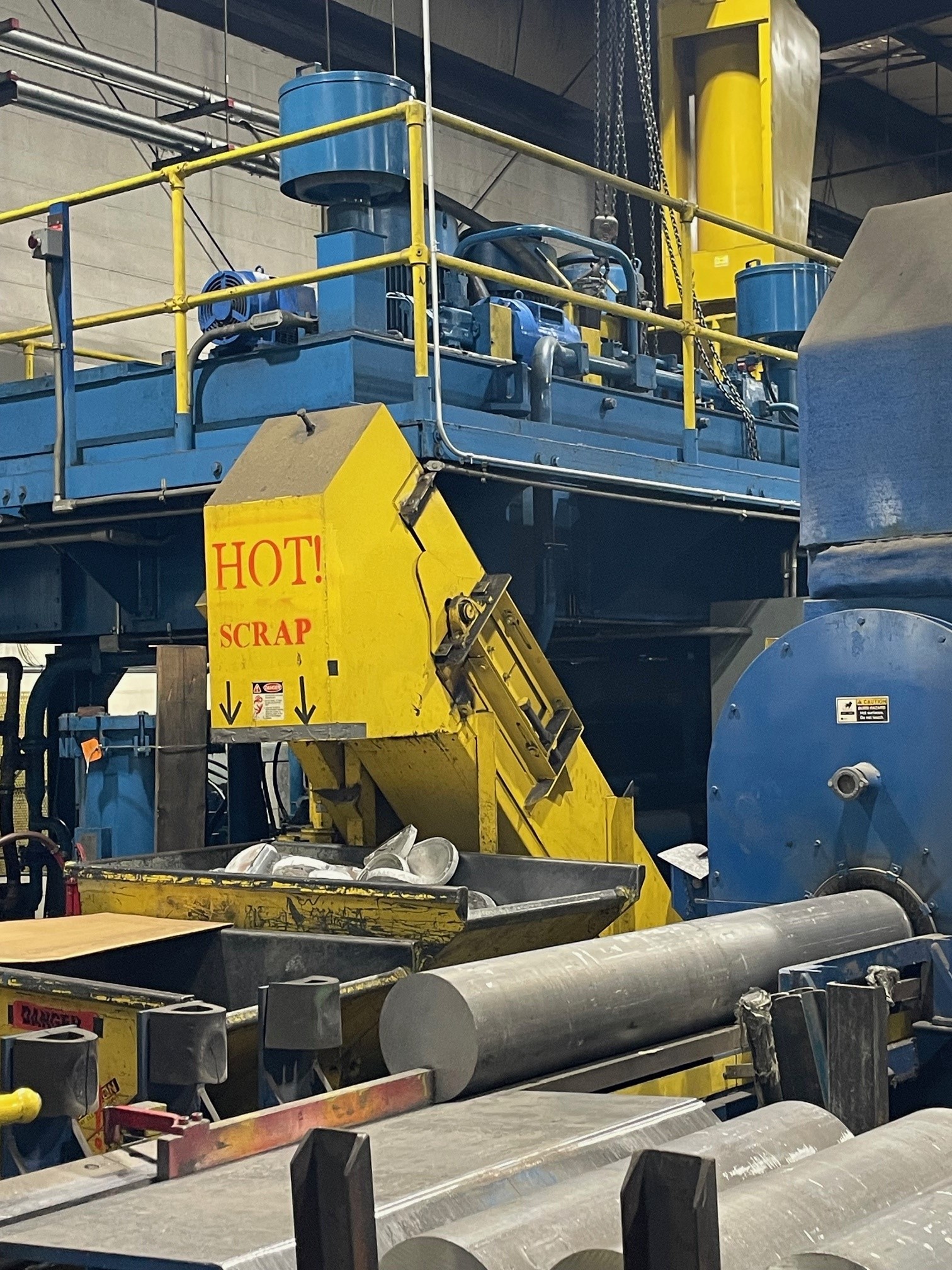

- BUTT CONVEYOR

- MASTER CONTROL CONSOLE w/PLC CONTROLS

- (1) GRANCO - CLARK, MODEL: 69-30-3 SST HOT JET GAS FIRED 3 ZONE BILLET HEATER, w/LOADING CONVEYOR, FEED TABLE & BILLET HANDLER

- (1) GRANCO - CLARK TRAVELING HEAD CUT-OFF SAW

- (1) GRANCO - CLARK MODEL: 14-8 ROLLOVER WATER WALL QUENCH TANK, 450 GAL. CAP.

- (1) GRANCO - CLARK 128' DOUBLE PULL RUNNOUT TABLE, HIGH TEMP., MID-TEMP., & LOW TEMP. LATERAL TRANSFER CONVEYORS, COOLING BLOWERS

- (1) GRANCO - CLARK HYD. STRETCHER, w/ H/D HYDRAULIC POWER SUPPLY

- (1) GRANCO - CLARK, MODEL: ESC-3608 TRAVELING HEAD AUTO CUT OFF SAW, 8" X 36" CAP., IN-FEED & OUT-FEED CONVEYORS, w/CONTROL CONSOLE w/PLC CONTROL (SOFTWARE & CONTROL MONITORING & CAMERAS ADDED IN 2015)

- (1) GRANCO - CLARK GAS FIRED HEAT TREAT OVEN 40' CHAMBER CAPACITY, 370 DEGREE F OPERATING TEMP., ELECTRIC CABLE LIFT DOORS, DOUBLE TRUCK ROLLER TRACK BEDS, HONEYWELL ELECTRONIC TEMP. CONTROL w/CHART RECORDER

- (1) CASTOOL ELECTRIC SINGLE BOX DIE HEATER

- (2) THERMICKA MODEL: IR2-18-DPO-AB-2014-SS ELECTRIC DOUBLE BOX DIE HEATERS w/ALLEN BRADLEY PANEL VIEW C400 PLC CONTROLS

- (1) LOT OF APPROX. 4,000 ASSORTED 6" & 8" (MOSTLY 8") STANDARD EXTRUSION DIES FOR VARIOUS PROFILES w/QUANTITY OF SUPPORT EQUIPMENT INCLUDING APPROX. 60 FEEDER PLATES, 60 RINGS, 30 LARGE BOLSTERS, 100 SMALL BOLSTERS & 1,060 BACKERS
