Tacchella 1018, AUTO CYCLE, HYD TABLE, AUTO INFFED & PLUNGE UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Tacchella

Model:: 1018, AUTO CYCLE, HYD TABLE, AUTO INFFED & PLUNGE

Year:: 1988

Ref #:: 160449

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

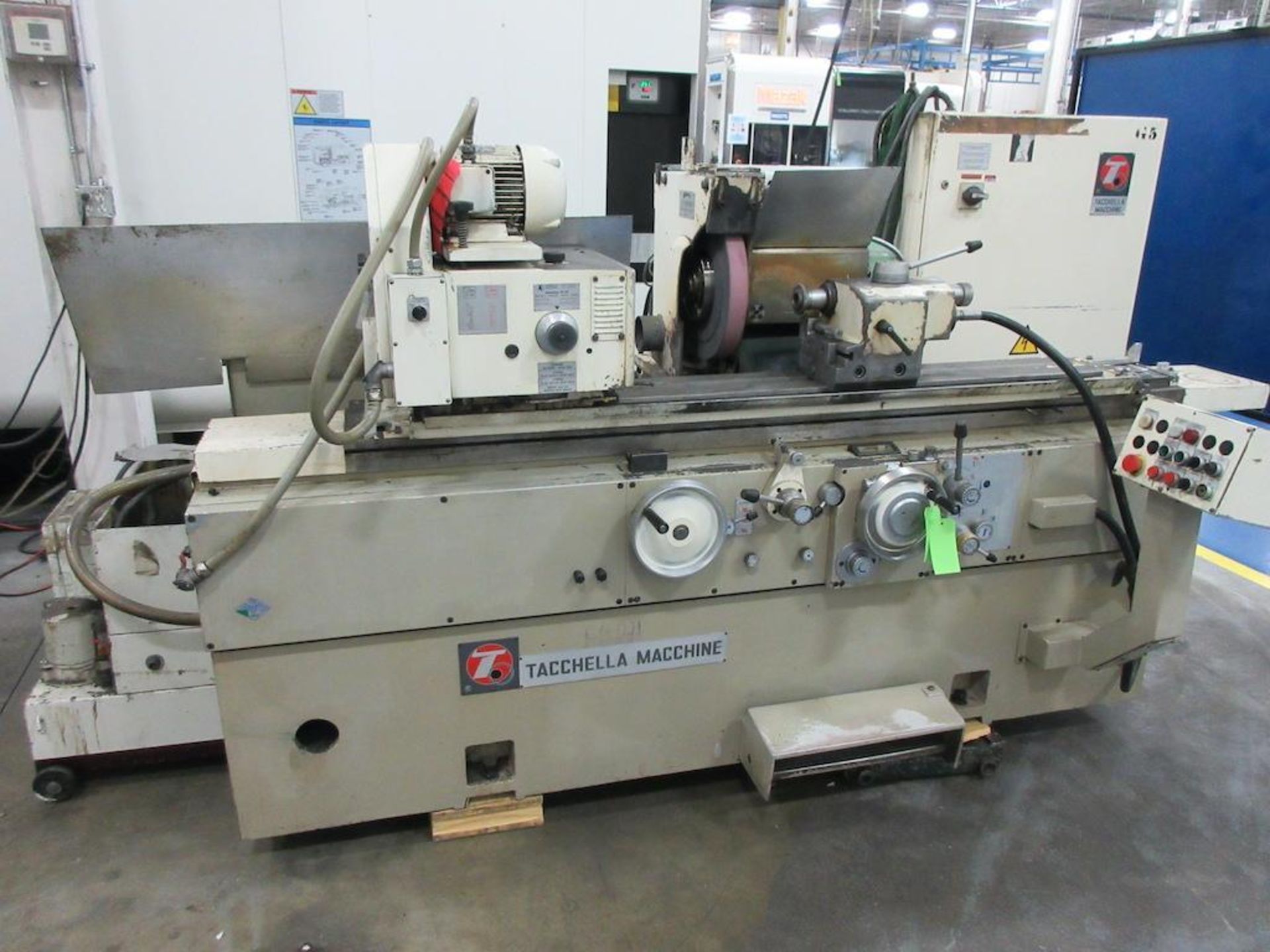

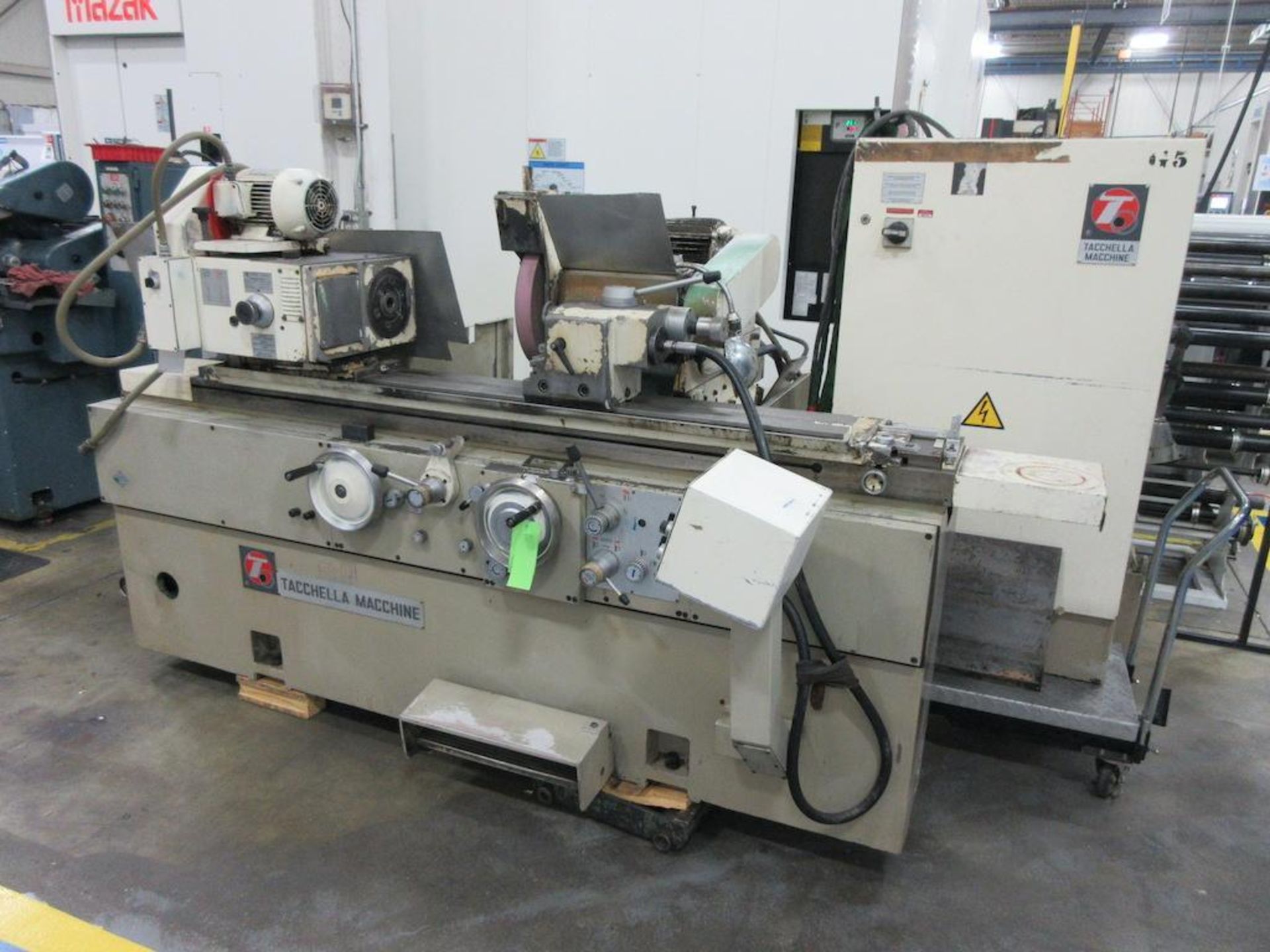

  14" X 40" TACCELLA "HIGH-PRECISION"
    UNIVERSAL CYLINDRICAL GRINDER

MODEL: 1018UA     S/N: 5734     NEW: 1988

MAXIMUM SWING OVER TABLE............... 14"
DISTANCE BETWEEN CENTERS............... 40"

  WORK CARRIAGE:
TRAVERSE SPEED......................... 4" TO 192" I.P.M.

GRINDING .............................. 16" DIA. x 2"W
                                         x 5" HOLE
SWIVEL RANGE .......................... +/- 90°
(2) GRINDING WHEEL SPINDLE SPEEDS...... 1640/1900 R.P.M.
AUTOMATIC INFEED @ TABLE REVERSAL,
  ON DIA. .............................. 0.0005" TO .002"
PLUNGE GRINDING, FEED RATE RANGE ...... 0.0005" TO .070"
RAPID HYDRAULIC INFEED STROKE.......... 2"

  MOTORIZED WORKHEAD AND TAILSTOCK:
INFINITELY VARIABLE WORKHEAD........... 30 TO 600 RPM
WORKHEAD TAPER......................... #4 MT
DIA. OF HOLE, WORKHEAD SPINDLE......... 1- 3/16""
WORKHEAD SWIVEL RANGE.................. +/- 90°
TAILSTOCK TAPER........................ #4 MT
TAILSTOCK STROKE ...................... 1- 1/4"

  TABLE:
SWIVEL TABLE GRADUATED (DEG. INCLUDED
ANGLE)................................. 9°

APPROX. DIMENSIONS .................... 108" X 60" X 69"H
APPROX. WEIGHT ........................ 8,000 LBS.


  EQUIPPED WITH:

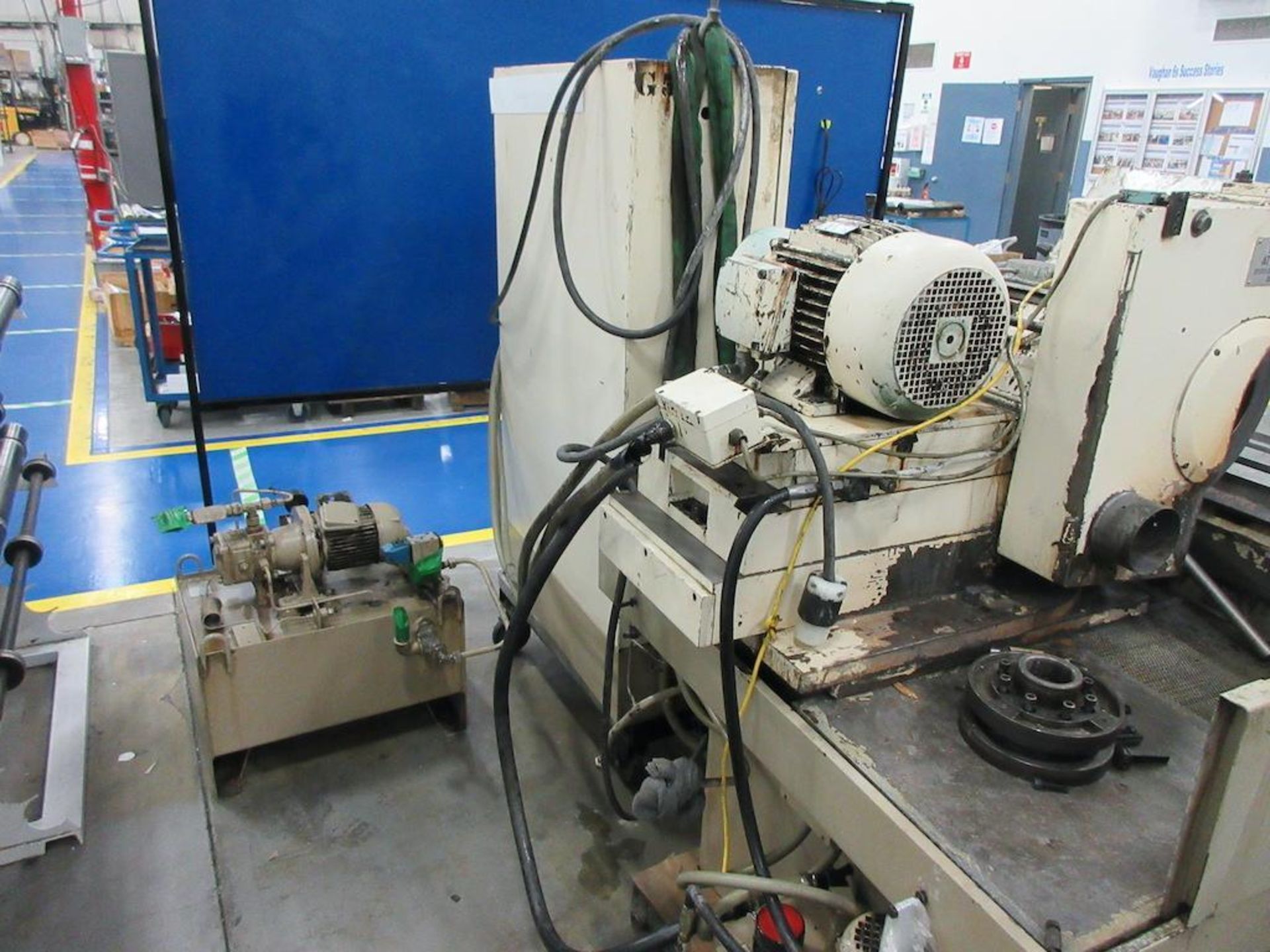

HYDRAULIC OPERATION FEATURING:

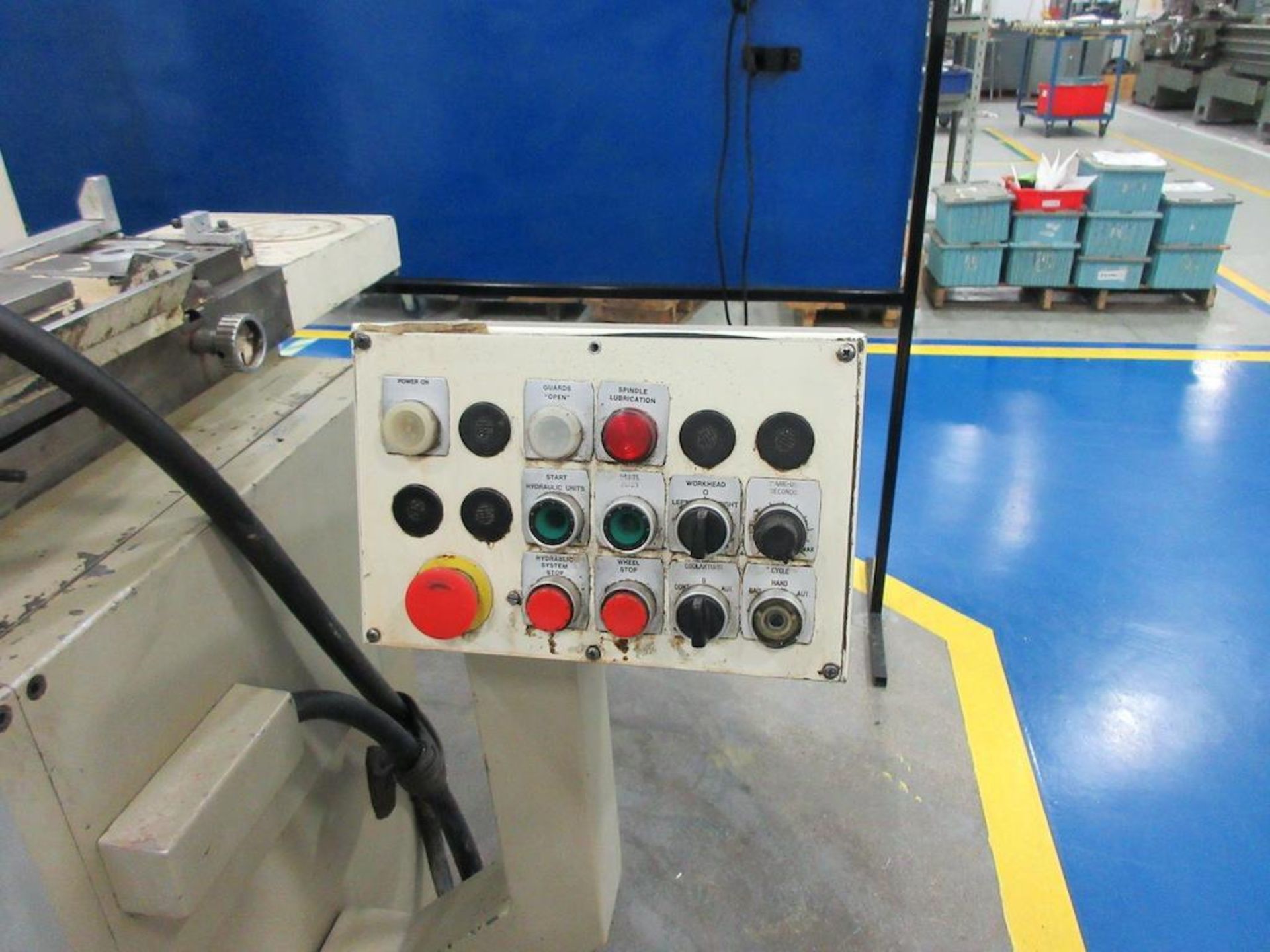

-SINGLE LEVER AUTO CYCLE CONTROL
-AUTO TABLE TRAVERSE
-AUTO INFEED
-DUAL RATE (COARSE & FINE) PLUNGE INFEED
-RAPID WHEELHEAD AVANCE & RETRACTION
SPARKOUT TIMER (0 TO 60 SECONDS)
DUAL LIVE/DEAD HEADSTOCK SPINDLE
16" GRINDING WHEEL
ELECTRONIC SPEED CONTROL FOR WORKHEAD
HYDRAULIC TAILSTOCK QUILL
LUBRICATION SYSTEM
COOLANT SYSTEM
WIRED PRESENTLY FOR 3/60/600 VOLTS
TRANSFORMER AVAILABLE TO USE FOR
 200-208-220-230-240-440-460-480 VOLTAGES.
 PLEASE SPECIFY THE VOLTAGE YOU REQUIRE.
 PRICE FOR THIS ITEM IS $875.



SPECIAL NOTE:
ITALIAN BUILT MACHINE, SUPERIOR QUALITY! **

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** - ORIGINAL PAINT - EXCELLENT CONDITION **
