Tos BUAJ 28-630, 1992, HYD. TABLE, 16" WHEEL UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Tos

Model:: BUAJ 28-630, 1992, HYD. TABLE, 16" WHEEL

Year:: 1992

Ref #:: 178134

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

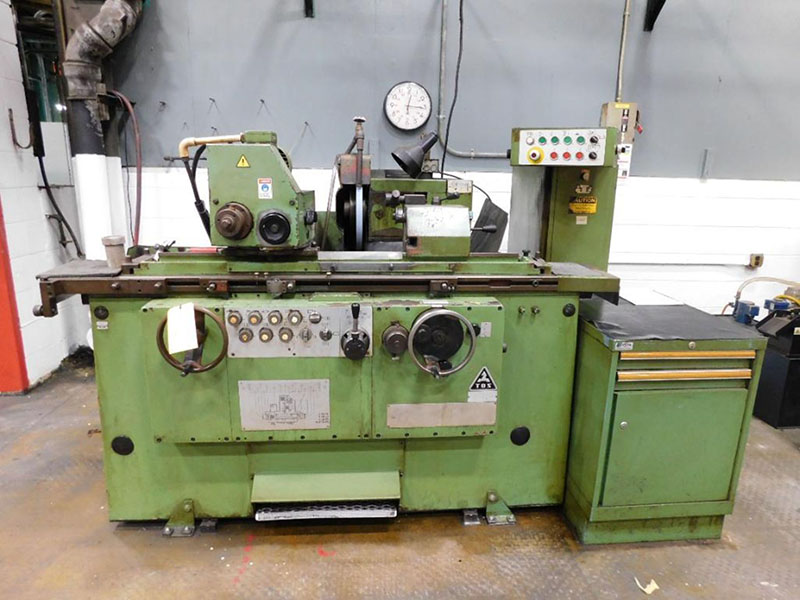

  11" X 25" TOS HOSTIVAR UNIVERSAL
      CYLINDRICAL GRINDER

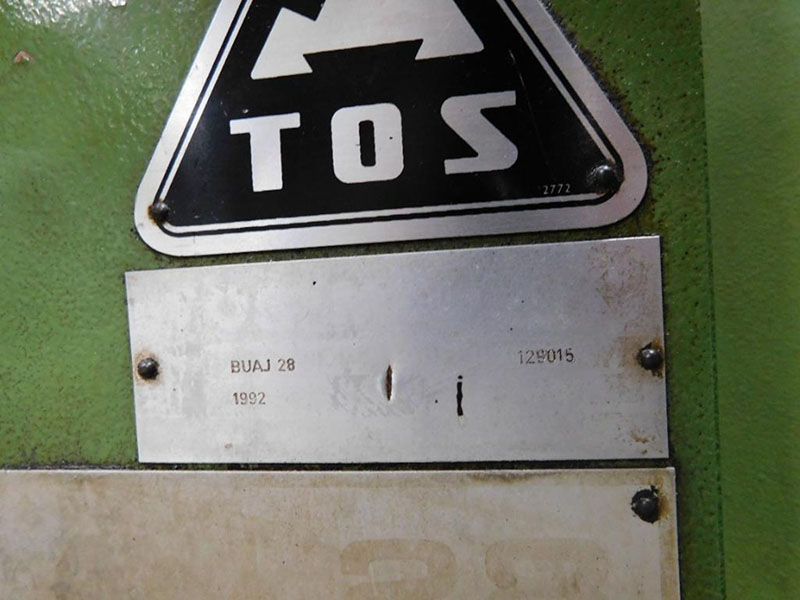

MODEL BU28/630     S/N: 129015     NEW: 1992

MAX. GRINDING DIAMETER ................. 11"
DISTANCE BETWEEN CENTERS ............... 25"
MAXIMUM WEIGHT OF WORKPIECE,
 BETWEEN CENTERS ....................... 276 LBS.

WORKHEAD SPINDLE TAPER ................. #4 MT
WORKHEAD SPINDLE SPEED RANGE,
 (12) SPEED CHOICES, FROM .............. 22.4 TO 710 RPM
SWIVEL OF WORKHEAD ..................... +/- 90°
TAILSTOCK SPINDLE TAPER ................ #4 MT
TAILSTOCK SLEEVE ....................... 1"

WHEELHEAD TRAVEL MAXIMUM ............... 10- 1/2"
HYDRAULIC RAPID TRAVERSE (STROKE) ...... 1- 1/2"
AUTOMATIC INFEED OF GRINDING WHEEL,
 PER TABLE REVERSAL .................... 0.0002" - 0.002"
AUTOMATIC PLUNGE INFEED RATE,
 COARSE FEED RATE ...................... 0.0040" - 0.157" IPM
AUTOMATIC PLUNGE INFEED RATE,
 FINE FEED RATE ........................ 0.00060"" - 0.04" IPM
MINIMUM MANUAL "MICRO-INFEED",
 RELATED TO DIAMETER ................... 0.00004"

WHEELHEAD SWIVELS, LEFT & RIGHT ........ +/- 45°
GRINDING WHEEL DIMENSIONS .............. 16" X 1- 1/2"
                                         X 5"
MINIMUM GRINDING WHEEL DIAMETER ........ 10"
MAX. WIDTH OF GRINDING WHEEL ........... 2- 1/2"
WHEELHEAD MOTOR ........................ 5.5 H.P.
GRINDING WHEEL SPEEDS (2) .............. 2,040 & 2,560 RPM

MAXIMUM TABLE TRAVEL ................... 30"
LEAST LENGTH TRAVEL .................... 0.04"
TABLE SWIVELS .......................... 8° CW
                                         3° CCW
HYDRAULIC TABLE TRAVERSE ............... 2" TO 275"

APPROX. FLOOR SPACE REQUIRED ........... 103" x 65" x 60"H
APPROX. MACHINE WEIGHT ................. 5,800 LBS.

  EQUIPPED WITH:
HYDRODYNAMIC SPINDLE BEARINGS
HYDRAULIC TABLE TRAVERSE
AUTO INFEED AT TABLE REVERSALS
DUAL RATE AUTO PLUNGE INFEED
POWER RAPID WHEELHEAD ADVANCE & RETRACTION
SPEARKOUT 0 TO 30 SECONDS
DUAL LIVE/DEAD WORKHEAD SPINDLE

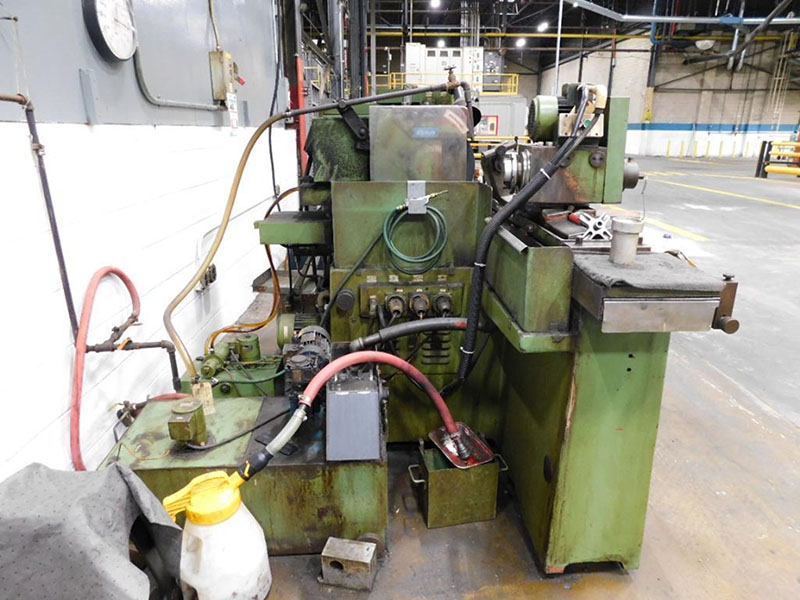

COOLANT TANK WITH MAGNETIC SEPARATOR
ADAPTOR PLATE, FOR WORKHEAD
MAGNETIC CHUCK WITH ADAPTOR, ON THE WORKHEAD

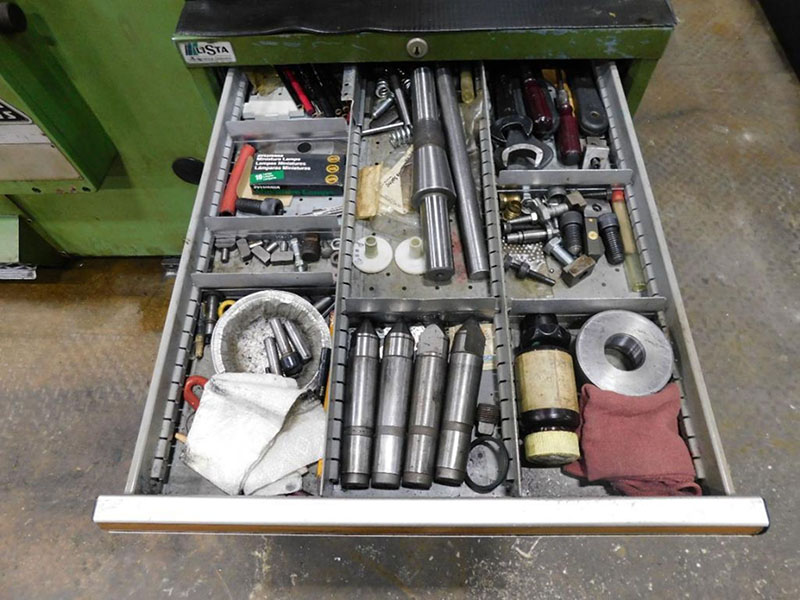

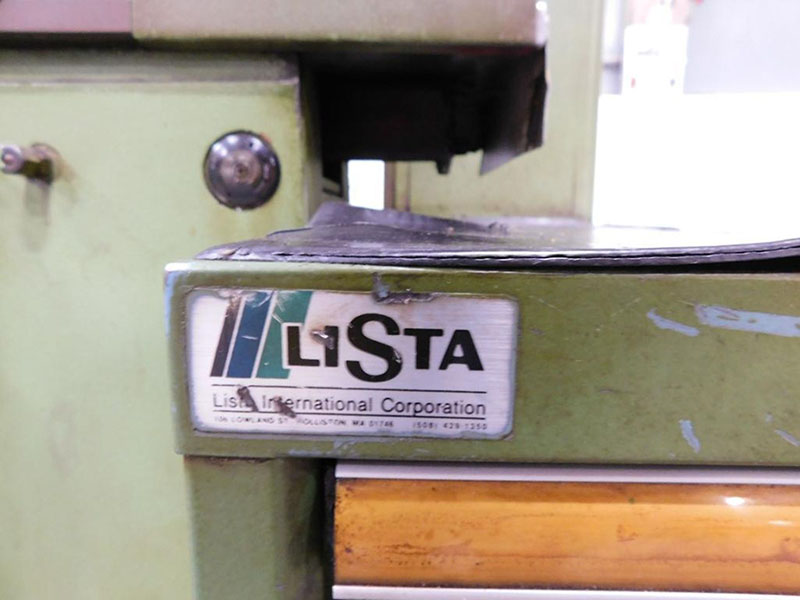

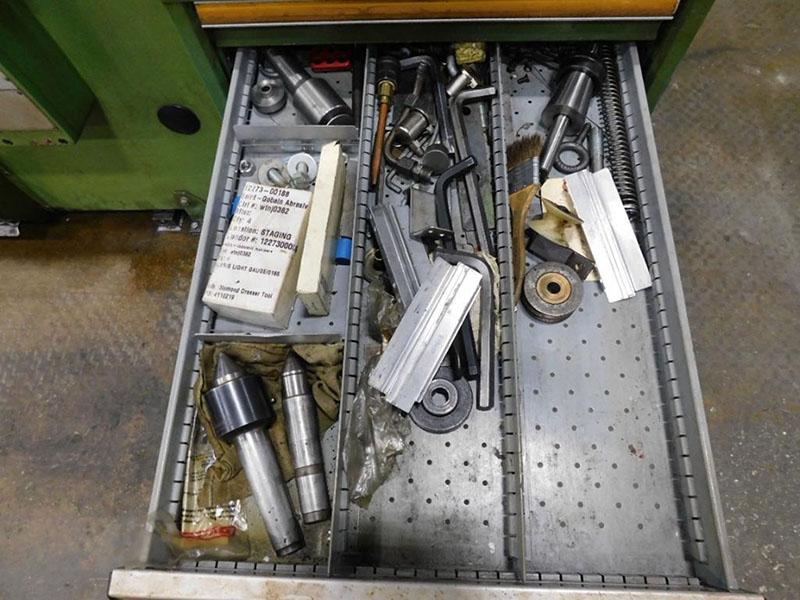

TOOL CABINET, WITH ACCESSORIES

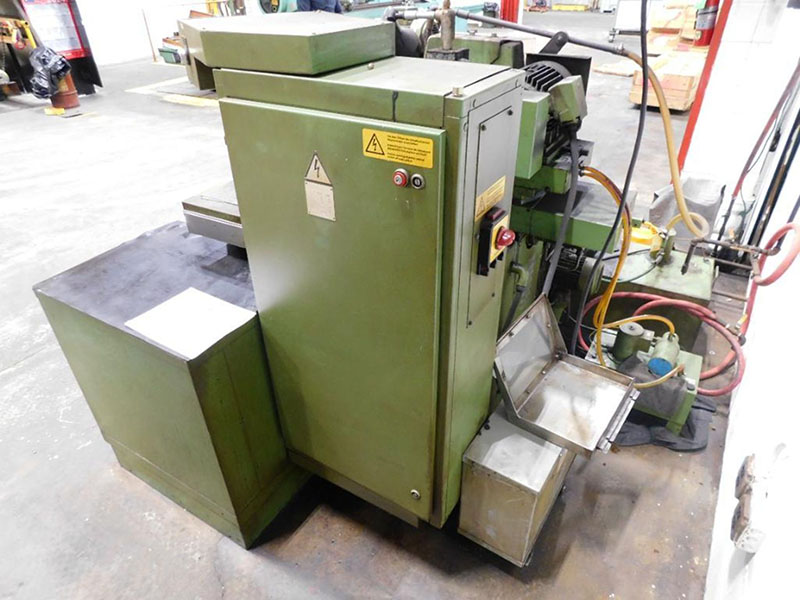

SEPERATE ELECTRICAL CABINET
MACHINE IS WIRED FOR 3/60/220-440 VOLT ELECTRICS

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
