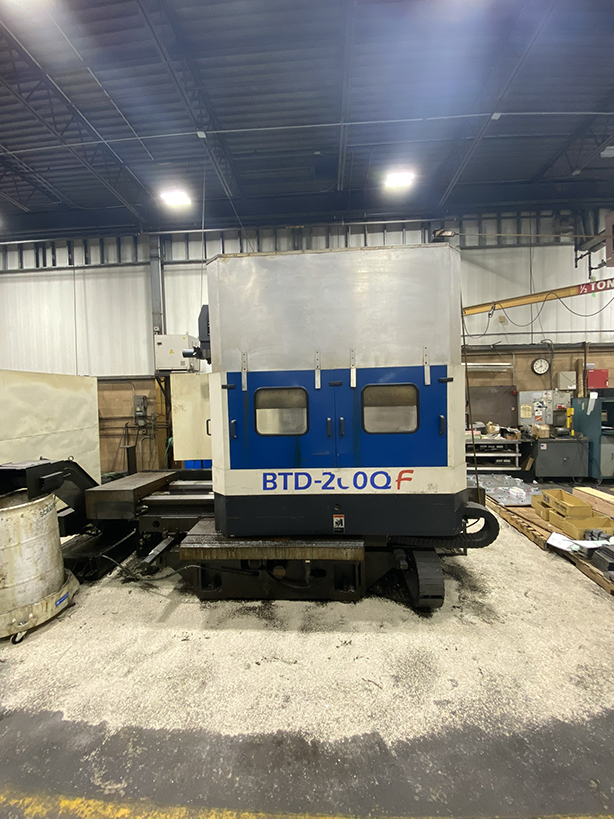

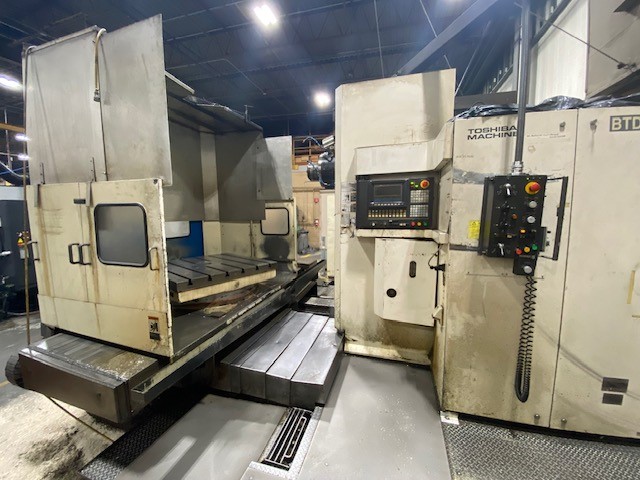

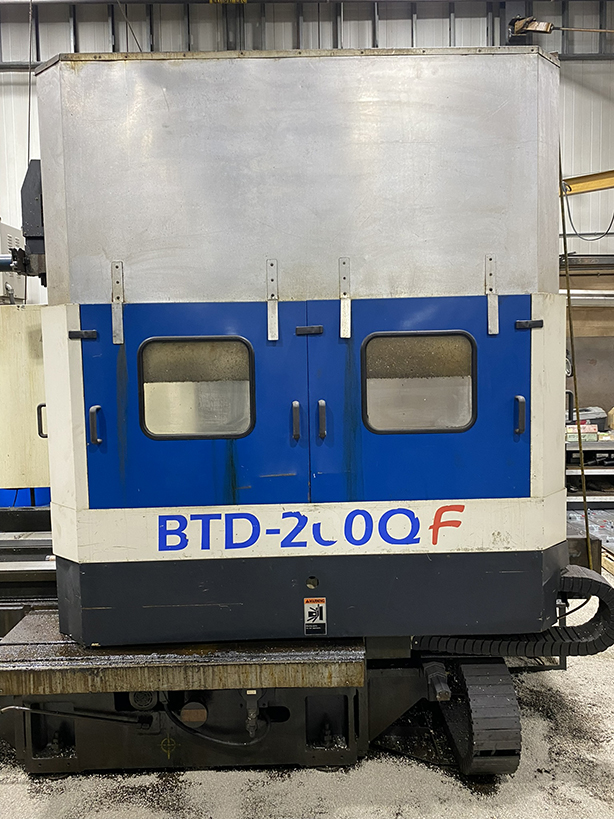

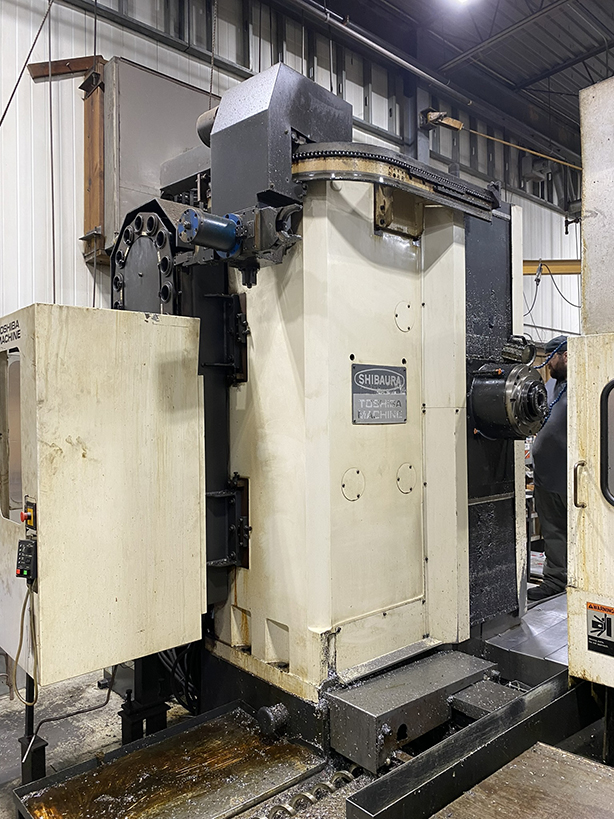

Toshiba BTD-200QF CNC TABLE TYPE HORIZONTAL BORING MILLS

Price on Request

Make:: Toshiba

Model:: BTD-200QF

Year:: 1998

Ref #:: 178403

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

4.3" TOSHIBA CNC TABLE TYPE BORING MILL
MODEL: BTD-200 QF,  YEAR: 1998

VIDEO LINK:
https://youtube.com/shorts/x1g1kETpQWs?si=5R7kHOIgdRO4Bnmx

SPECIFICATIONS:
TABLE CROSS TRAVEL (X AXIS) ................ 59.1"
VERTICAL TRAVEL OF HEADSTOCK (Y AXIS) ...... 47.2"
LONGITUDINAL TRAVEL OF TABLE (Z AXIS) ...... 27.6"
SPINDLE/QUILL TRAVEL (W AXIS) .............. 15.7"
DIST FROM TABLE CENTER TO SPINDLE CENTER ... 0 - 39.4"
DIST FROM TABLE CENTER TO SPINDLE GAGE PLANE 17.7"-45.3"
TABLE WORKING SURFACE ...................... 39.4" x 39.4"
TABLE LOADING CAPACITY ..................... 6,600 LBS
TABLE INDEXING ............................. .001 DEG

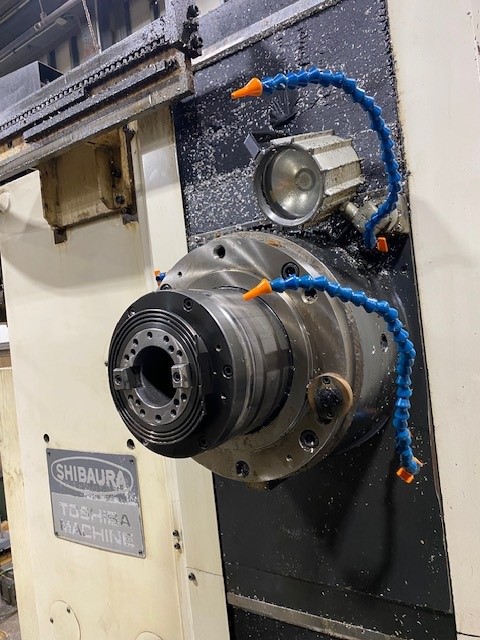

ROTATING SPINDLE DIAMETER .................. 4.3"
EXTENDED QUILL DIAMETER .................... 7.9"
SPINDLE SPEED .............................. 25 - 3000 RPM
SPINDLE TAPER .............................. CAT-#50
RAPID TRAVERSE RATE (X, Y, Z) .............. 472.4 IPM
       (W) ................................. 196.9 IPM
       (B) ................................. 500 DEG/MIN
FEED RATE .................................. .04 - 236.2 IPM
TOOL STORAGE CAPACITY ...................... 30
APPROXIMATE DIMENSIONS ................. 173" x 169" x 124"H
APPROXIMATE WEIGHT ......................... 37,500 LBS

EQUIPPED WITH:

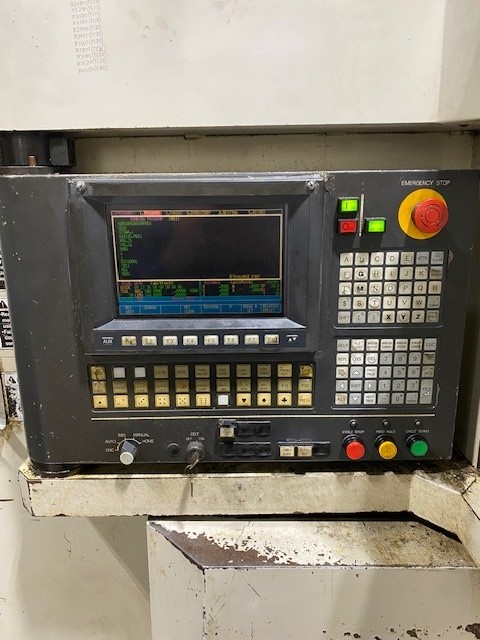

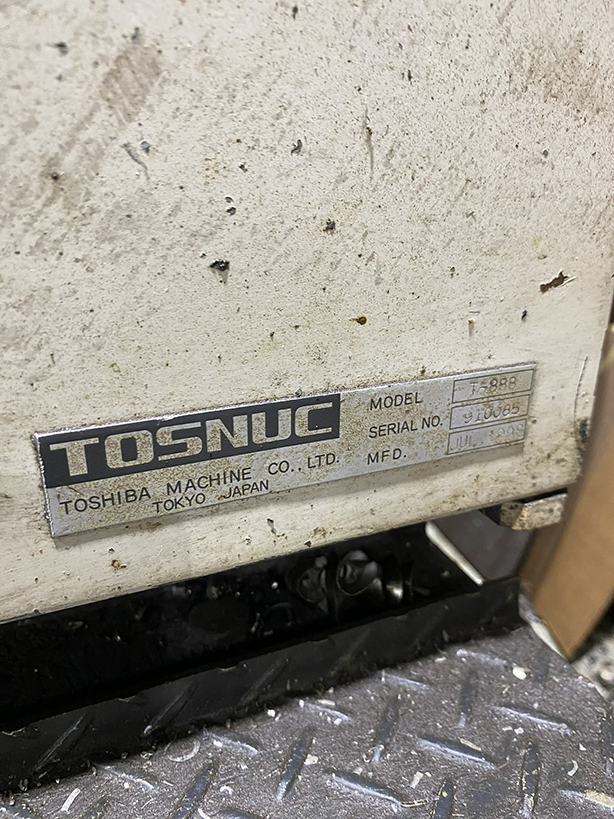

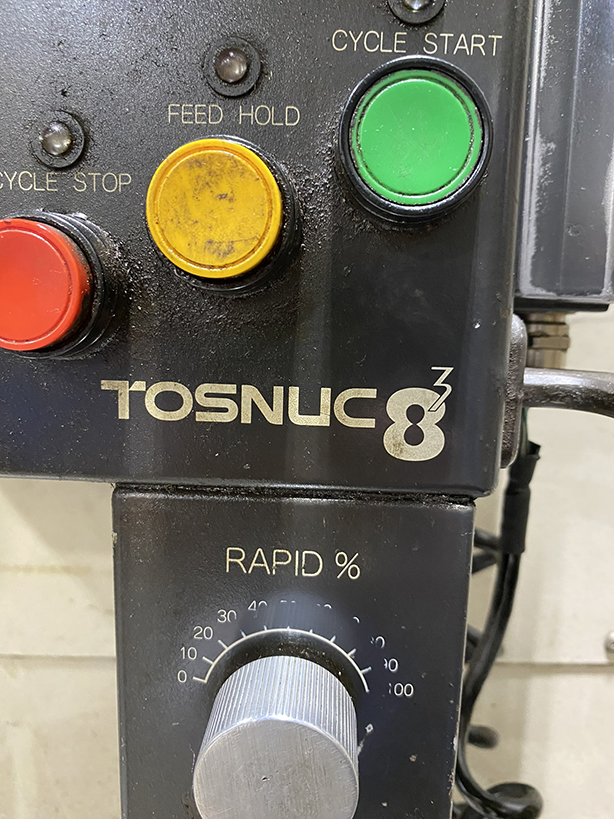

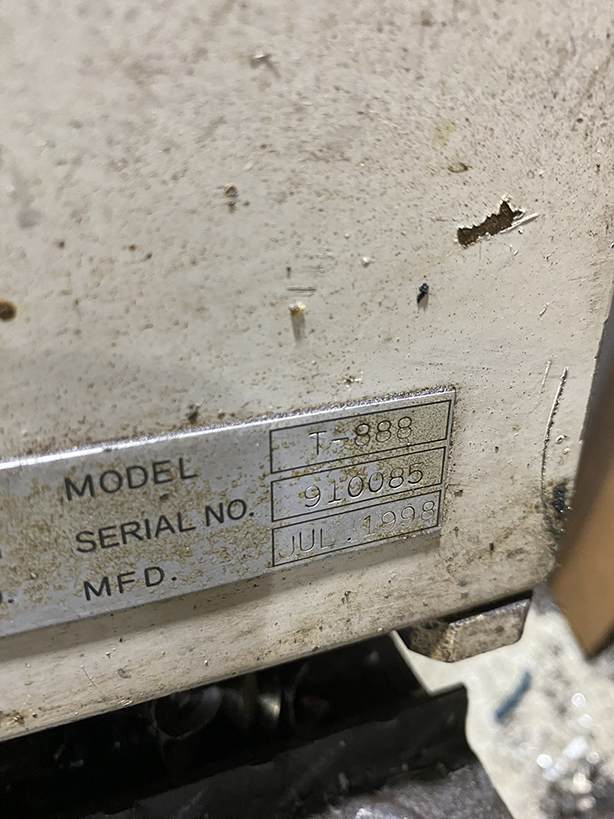

- TOSNUC 888 CNC CONTROL
- MACHINE HAS OPTION B PACKAGE:
   HELICAL INTERPOLATION, SYNHRONOUS TAPPING,
   TEACHING FUNCTION, FIXTURE OFFSETS, 99 SETS,
   RANDOM ANGLE CHAMFERING & CORNER (R)

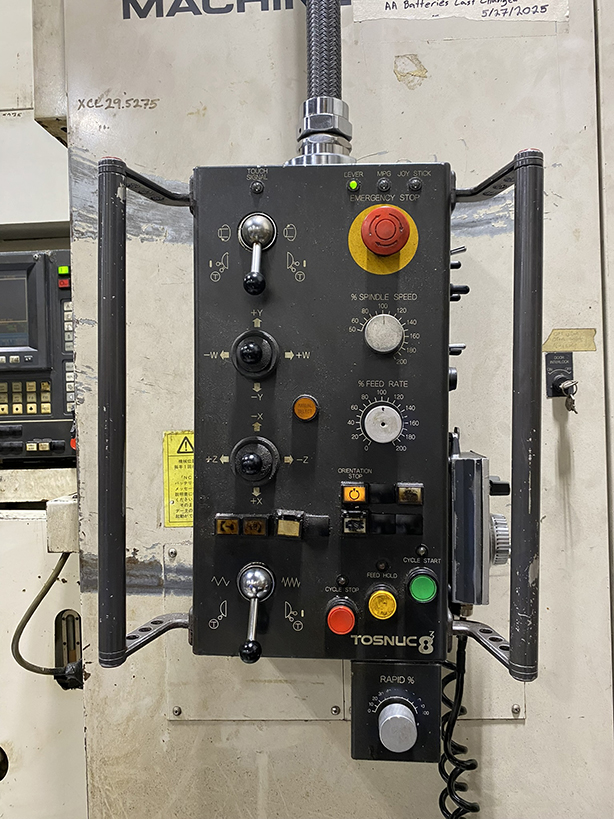

- EASY TO OPERATE PENDANT FOR MANUAL MACHINE OPERATION
- HANDWHEEL FEED UNIT FOR X,Y,Z,W & B AXES

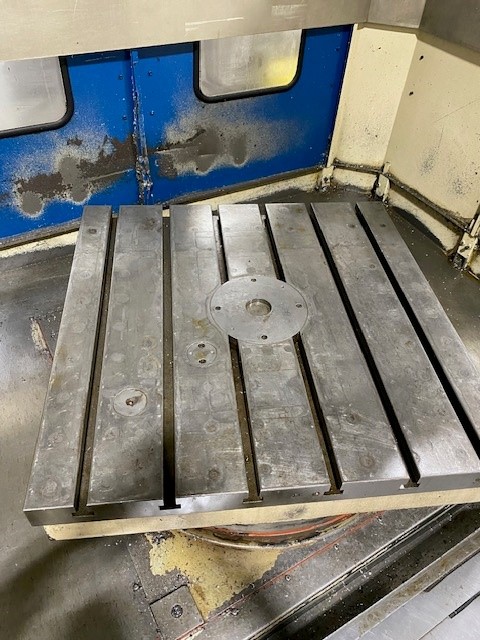

- 39" x 39" FULL B-AXIS ROTARY TABLE

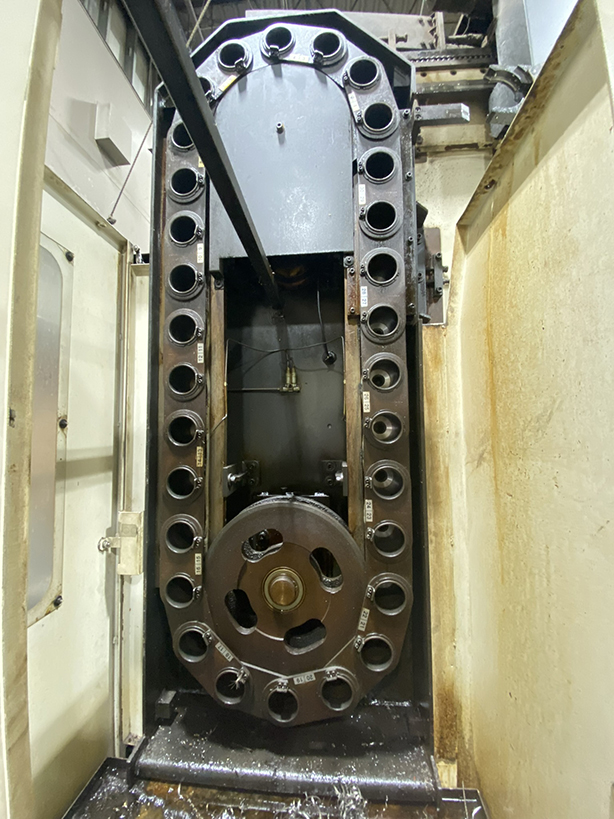

- 30 POSITION AUTO TOOL CHANGER
- 7.9" QUILL DIAMETER
- FLOOD COOLANT SYSTEM
- COOLANT THROUGH SPINDLE
- LIFT-UP CHIP CONVEYOR
- TABLE CHIP ENCLOSURE
- 15/20 HORSE POWER AC SPINDLE DRIVE MOTOR

MACHINE IS SOLD PREPPED AND LOADED ONTO A TRUCK
