Toshiba-Shibaura BT-10B TABLE TYPE HORIZONTAL BORING MILLS

$44,500

Make:: Toshiba-Shibaura

Model:: BT-10B

Year:: 1975

Ref #:: 179194

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

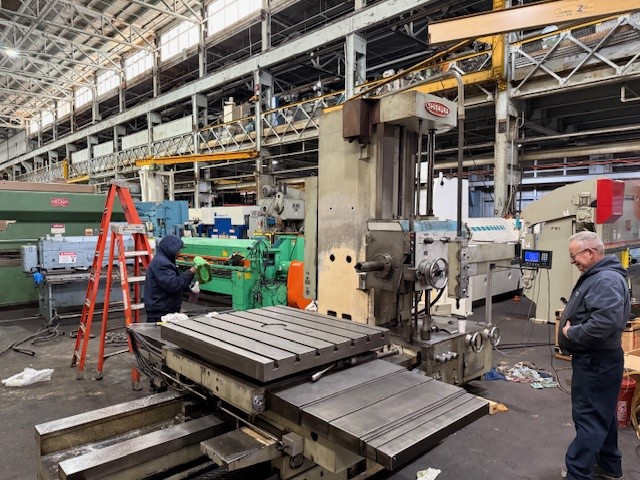

4" TOSHIBA TABLE TYPE HORIZONTAL BORING MILL

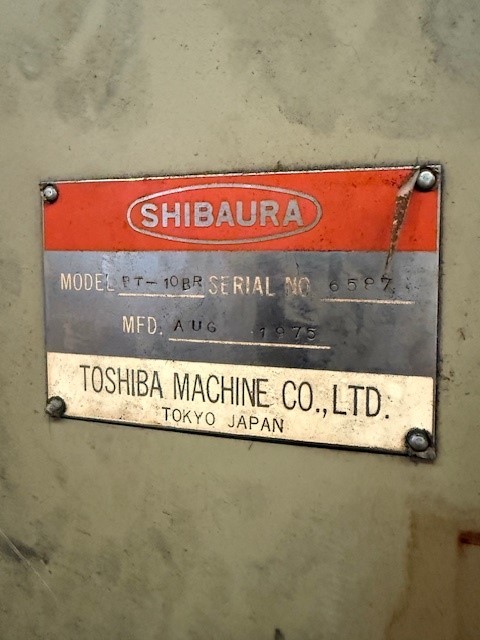

MODEL: BT-10B, S/N 6587, NEW 1975

SPECIFICATIONS:
DIAMETER OF SPINDLE .................. 3.94"
TAPER IN SPINDLE ..................... NO.50
DIAMETER OF MILLING QUILL ............ 8.86"
SPINDLE LONGITUDINAL TRAVEL .......... 28"
HEADSTOCK VERTICAL TRAVEL ............ 49.2"
ROTARY TABLE WORKING SURFACE ......... 44.1" X 49.21"
TABLE CROSS TRAVEL ................... 55.1"
TABLE LOAD ........................... 8,800 LBS.
RAPID ROTATION OF ROTARY TABLE ....... 1 RPM
TABLE LONGITUDINAL TRAVEL ............ 44.6"
WIDTH ACROSS 4-WAY BED ............... 56.75"
RAPID TRAVERSE RATE .................. 136 IPM
SPINDLE SPEEDS (16) .................. 20 TO 1000 RPM
FEEDS IN HIGH RANGE (12) ............. .0009 - .15 IPR
FEEDS IN LOW REANGE (12) ............. .0004 - .067 IPR
APPROX. WEIGHT ....................... 34,000 LBS
DIMENSIONS ........................... 201 ½" x 99" X 117 ½"

EQUIPPED WITH:
- BUILT-IN T-SLOTTED POWER ROTARY TABLE
- NO.50 POWER TOOL DRAW BAR
- TOSHIBA-SHIBAURA RIGHT ANGLE HEAD

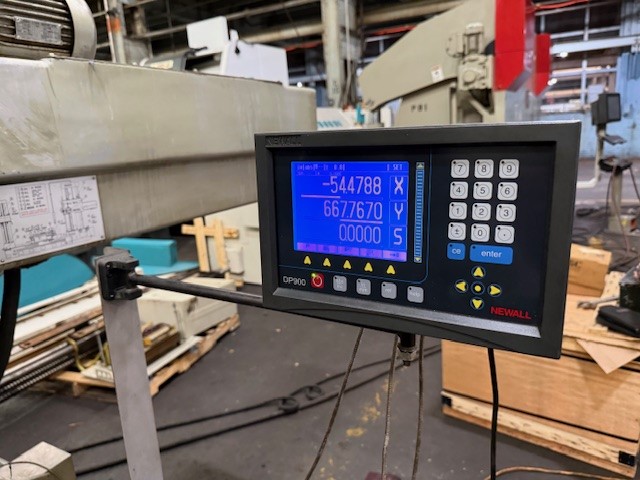

- NEWALL THREE AXIS DIGITAL READOUT
   FOR SADDLE, TABLE & VERTICAL HEADSTOCK TRAVELS
- POWER RAPID TRAVERSE
- BUILT-IN 4-WAY BED
- HARDENED WAYS

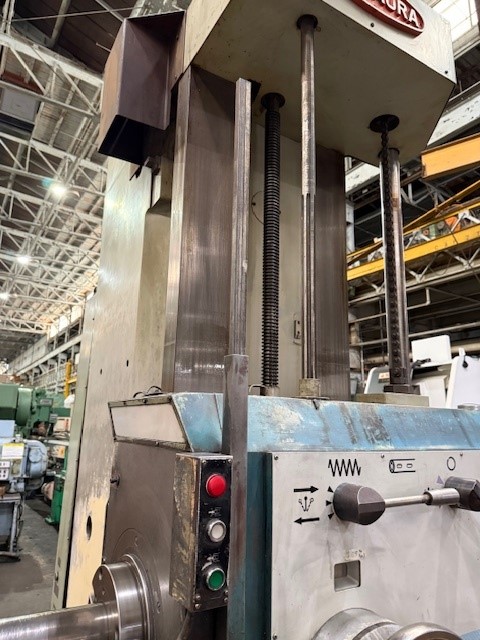

- SIMPLE PENDANT CONTROL

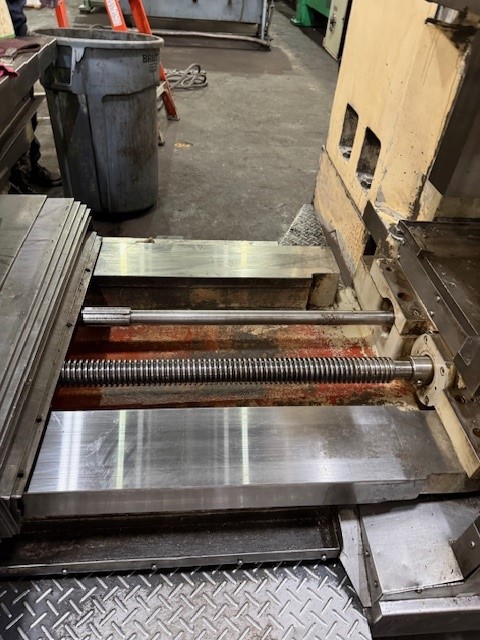

- BED AND SADDLE WAY COVERS
- 15 HORSE POWER SPINDLE MOTOR WITH CONTROLS

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
