Tru-Tech TTS-8-20, 2006, RENISHAW TOUCH PROBE, ACCESSORIES CNC UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Tru-Tech

Model:: TTS-8-20, 2006, RENISHAW TOUCH PROBE, ACCESSORIES

Year:: 2006

Ref #:: 178982

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

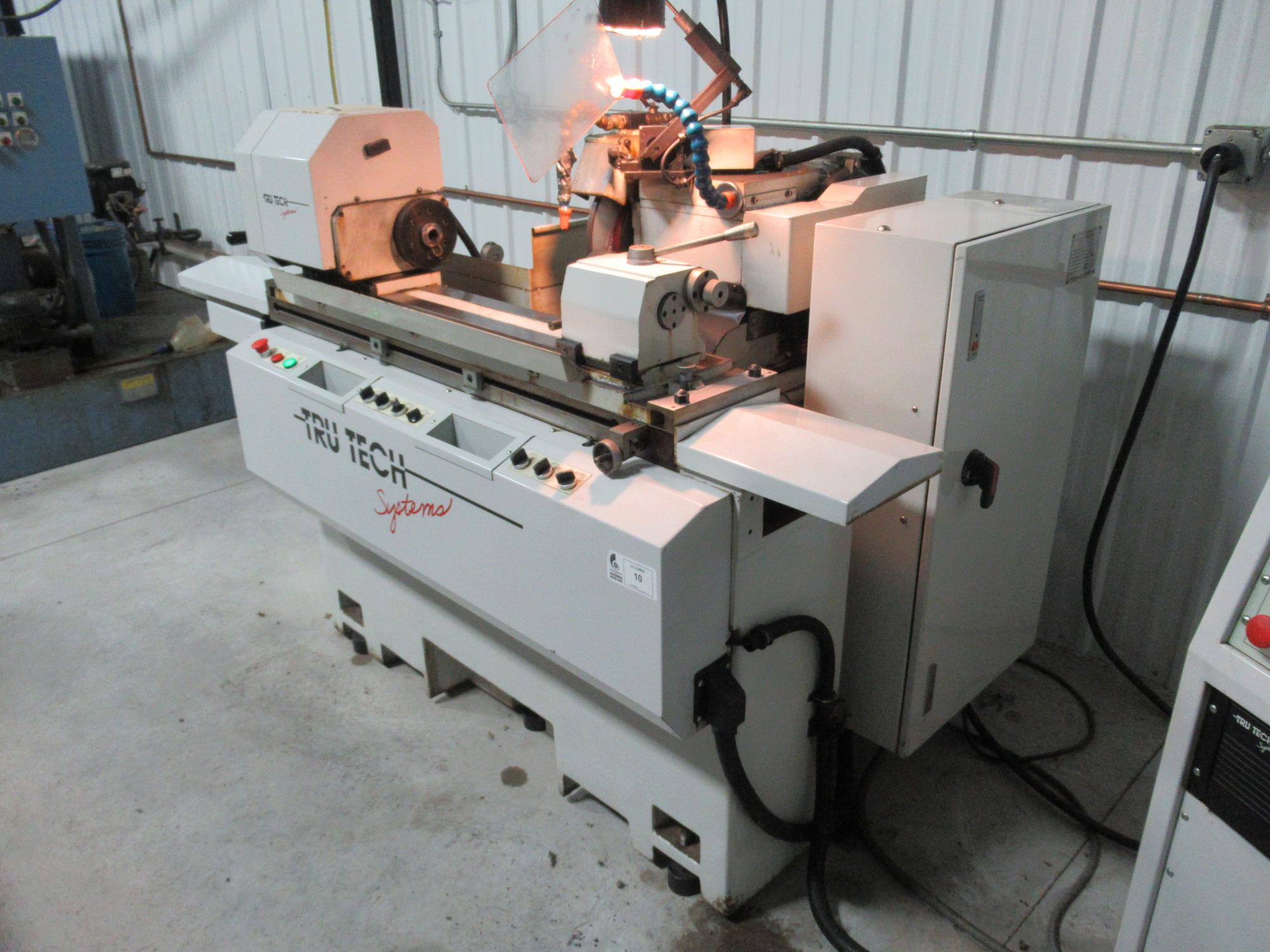

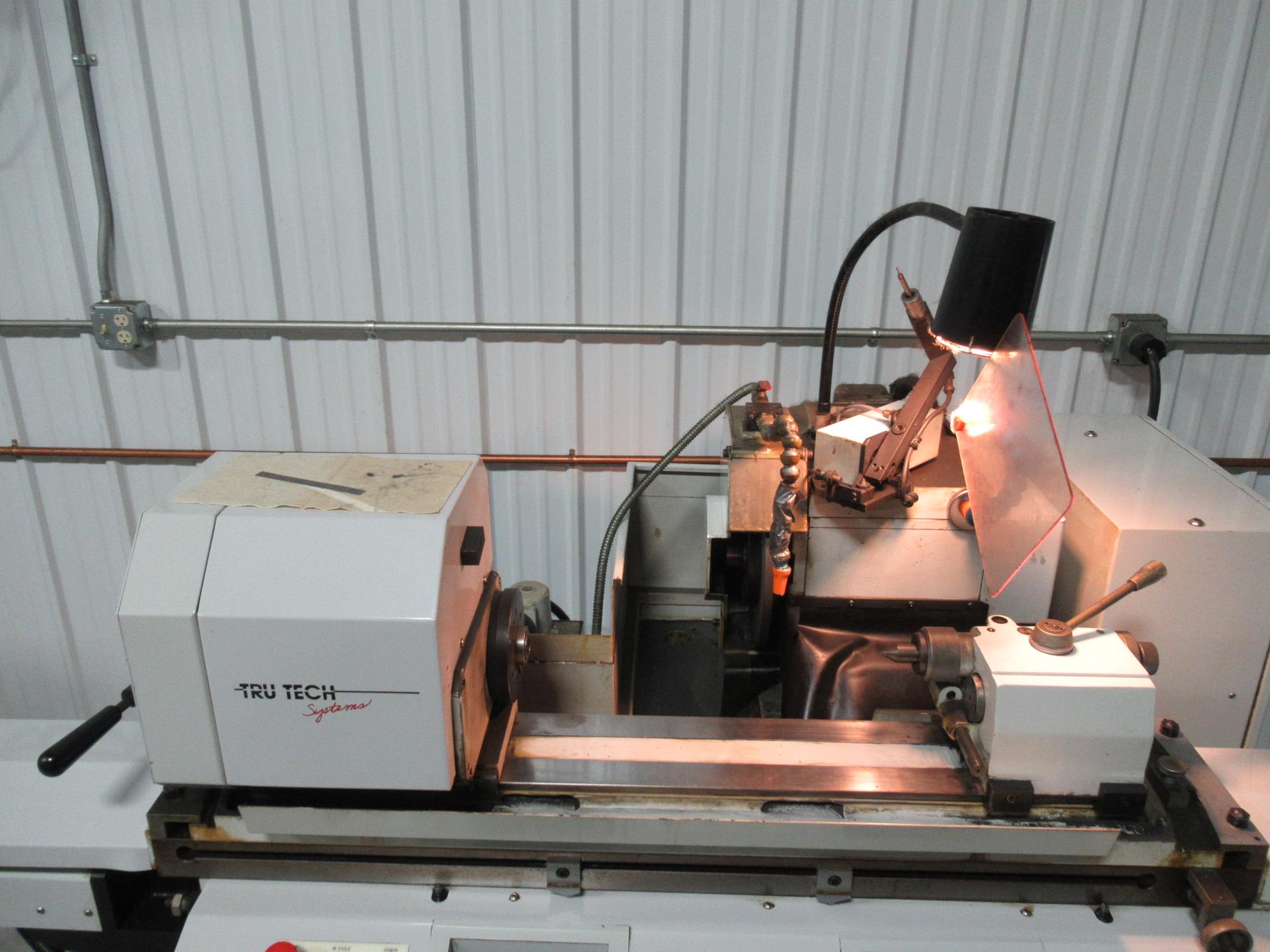

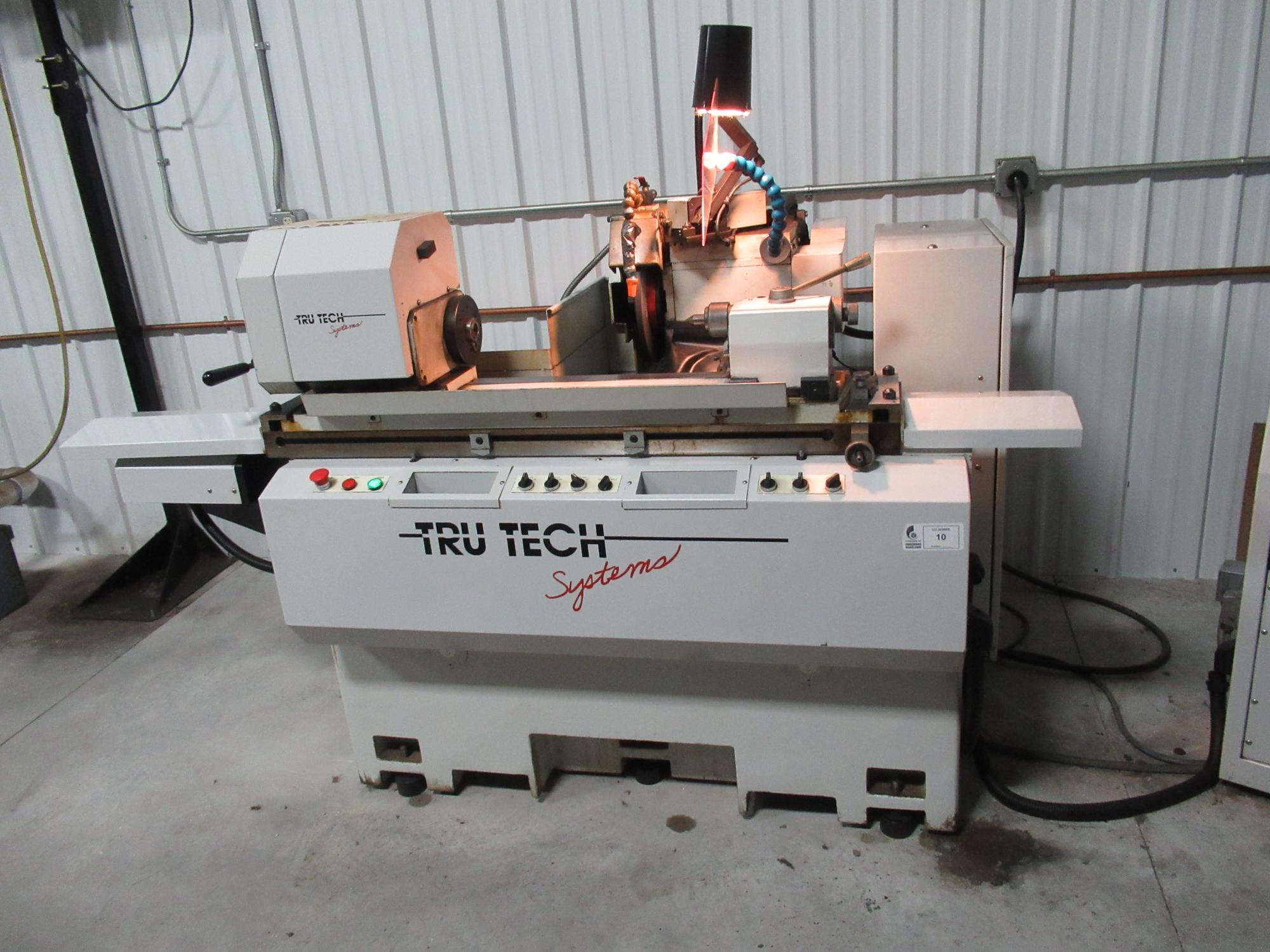

          8" x 20" "TRU TECH SYSTEMS"
           CNC CYLINDRICAL GRINDER

               MODEL: OD-8-20

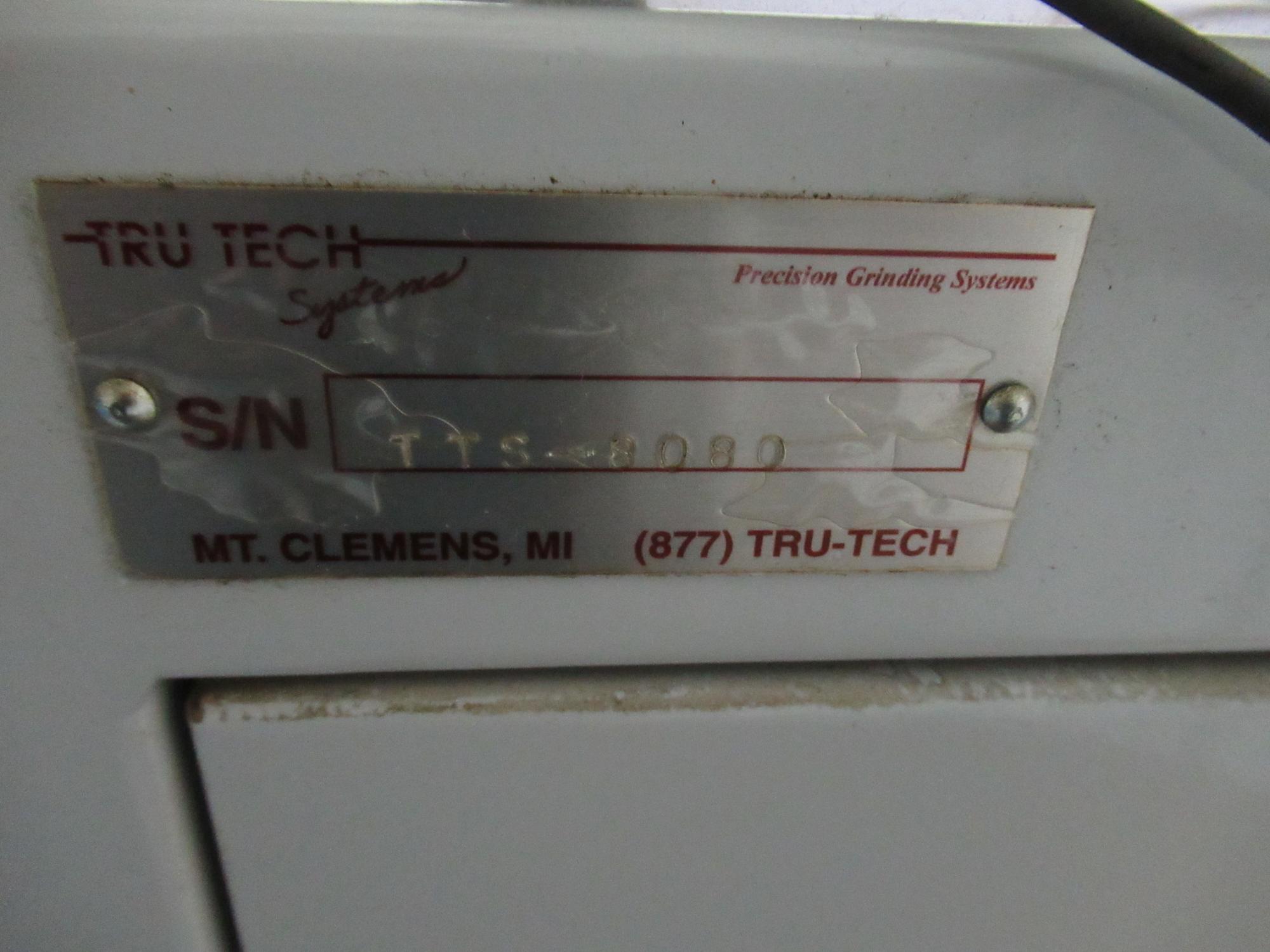

               S/N: TTS-8080
                 NEW: 2006

MAXIMUM GRIND DIAMETER ......... 8"
DISTANCE BETWEEN CENTERS ....... 20"
STANDARD WHEEL SIZE ............ 14" DIAMETER, 5" BORE,
                                  2.5" MAX. WHEEL WIDTH
GRINDING WHEEL SPEED ........... 500 - 3000 RPM
MAXIMUM VELOCITY, Y AXIS ....... 50" IPM
MAXIMUM VELOCITY, Z AXIS ....... 60" IPM
INPUT INCREMENT ................ 0.000010"
WHEEL SPINDLE MOTOR ............ 5 H.P. VARIABLE
GRINDING SPINDLE SPEEDS ........ 500 - 4,500 RPM
WORKHEAD SPINDLE SPEEDS ........ 50 - 800 RPM
WORKHEAD SWIVEL ADJUSTMENT ..... +/- 45 DEGREES
TABLE TAPER ADJUSTMENT ......... +/- 8 DEGREES

MACHINE FOOTPRINT .............. 60" x 60"
APPROXIMATE MACHINE WEIGHT ..... 4,500 LBS.

MACHINE FEATURES:

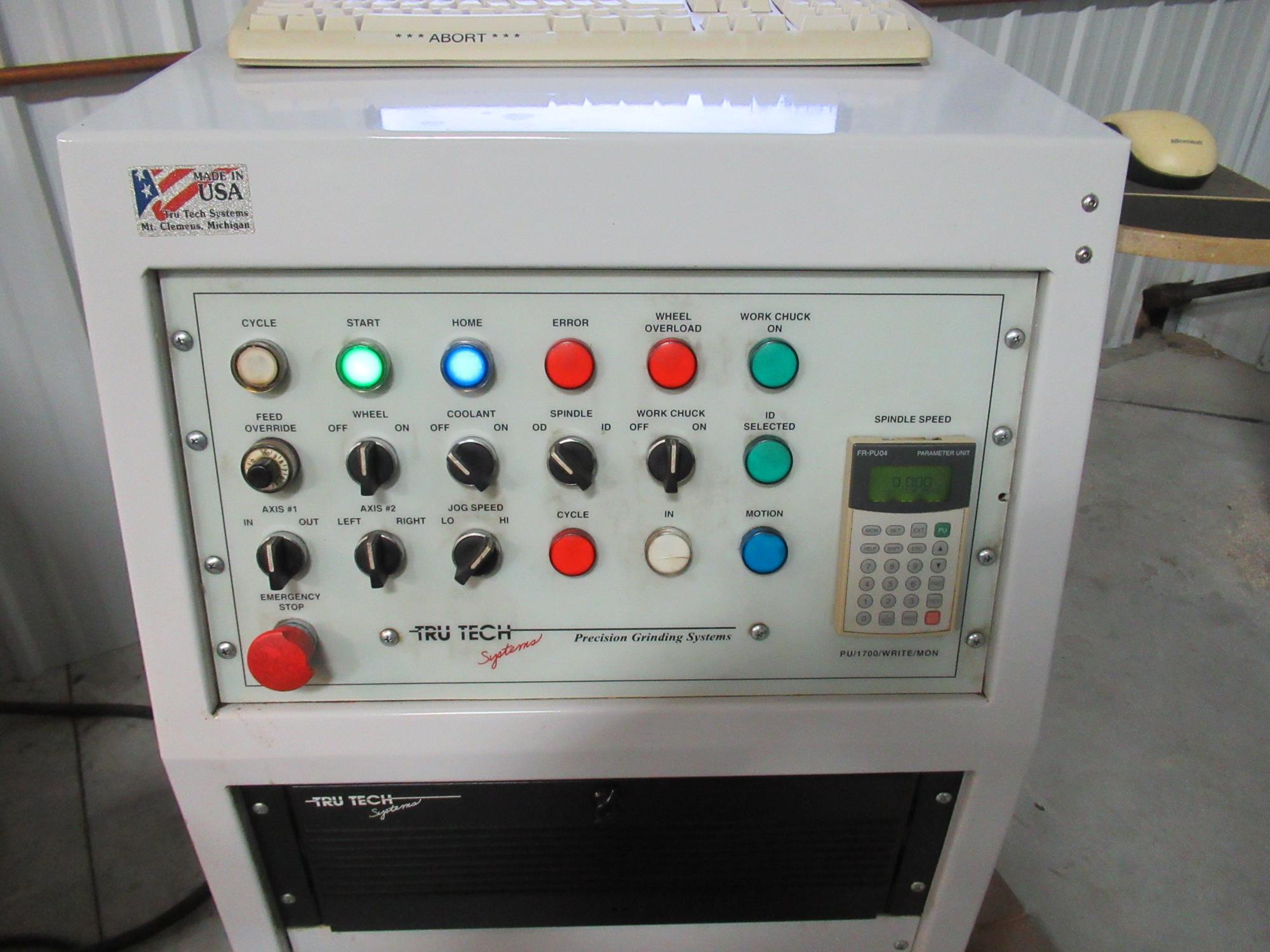

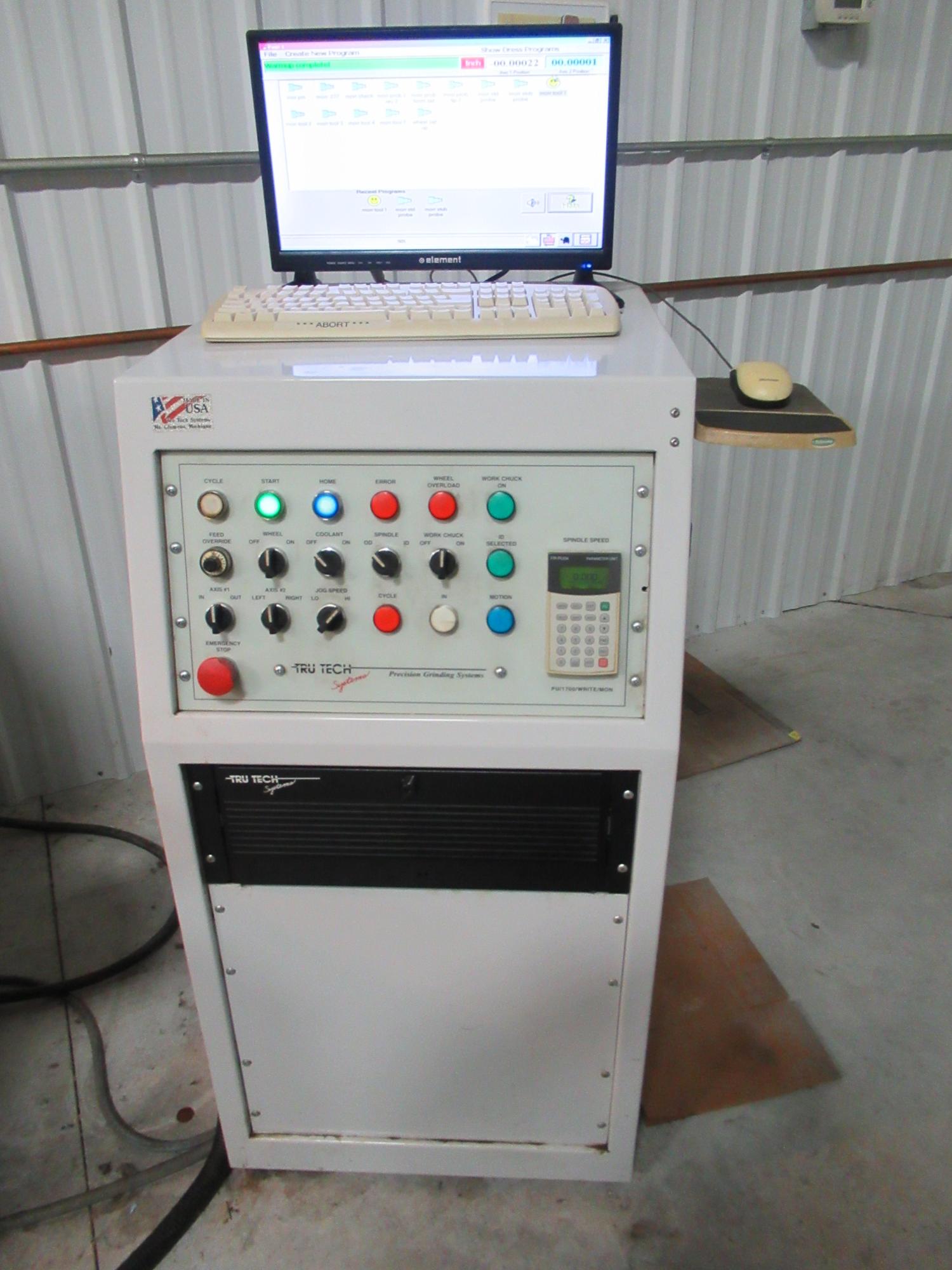

TRU TECH SYSTEMS CNC CONTROL
 - INDUSTRIAL COMPUTER WITH INDUSTRIAL SSD HARD DRIVE
 - INTEL PROCESSOR
 - LCD FLAT PANEL DISPLAY

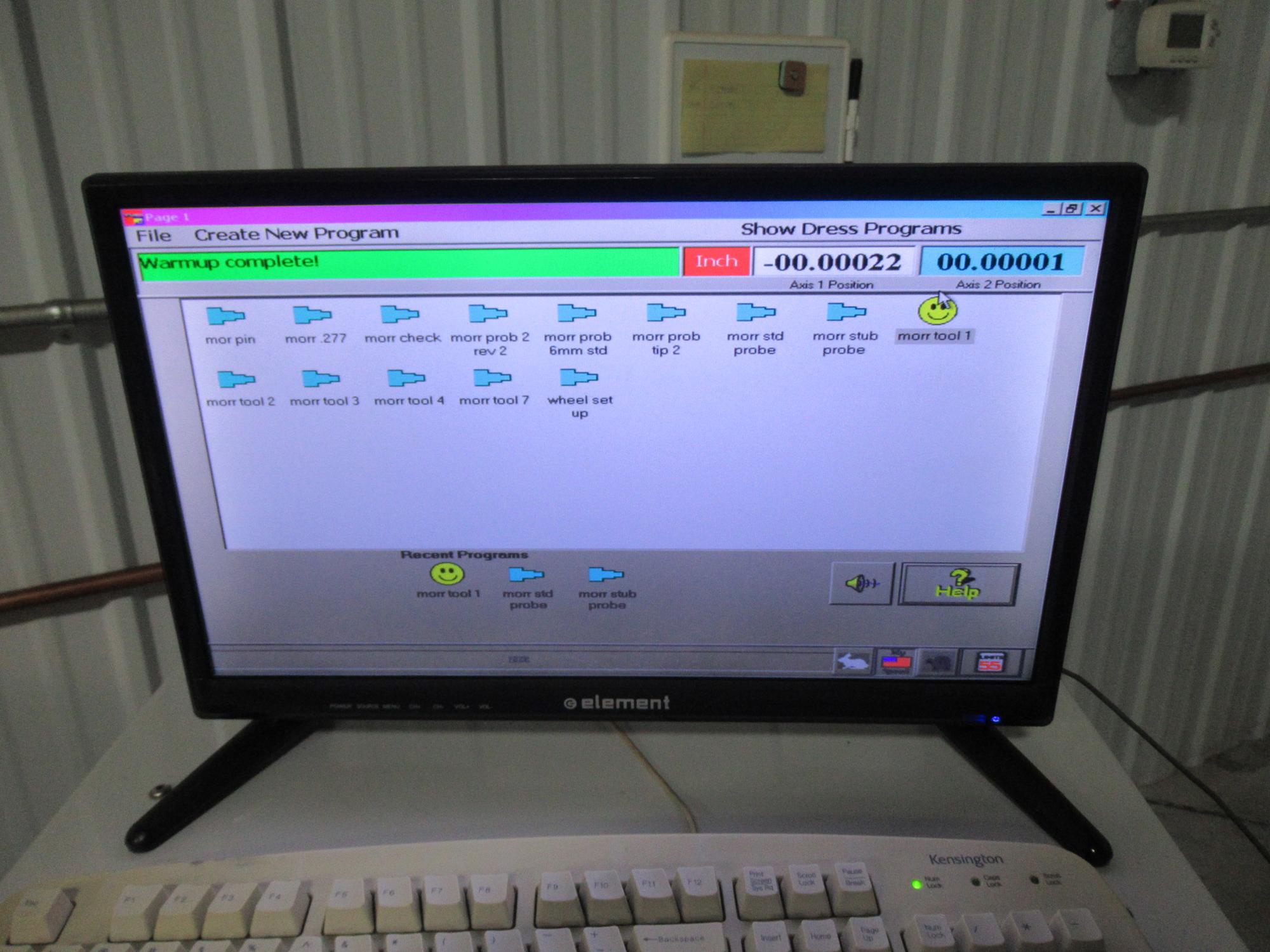

TRU TECH SYSTEMS "PICK-N-PLACE" SOFTWARE/PROGRAMMING
 - SIMPLY DRAG MOVE ICONS INTO PLACE, EDIT
   THEIR VALUES AND START GRINDING
 - GRIND SHAPES & PROFILES
 - MULTIPLE DIAMOND & CBN WHEEL DRESSING CAPABILITIES
 - FULLY PROGRAMMABLE IN 10 MILLIONTHS GRADUATIONS
 - PROFILE GRIND, PLUNGE GRIND, PEEL GRIND

RIGID CAST IRON BASE
PRECISION BALLSCREWS
VARIABLE SPEED 5 H.P. GRINDING WHEEL SPINDLE, FULLY PROGRAMMABLE
VARIABLE SPEED 1/4 H.P. WORKHEAD, FULLY PROGRAMMABLE
WORKHEAD IS A 5C COLLET SPINDLE
MACHINE IS WIRED FOR 3/60/220 VOLTS, 14.7 AMPS SERVICE

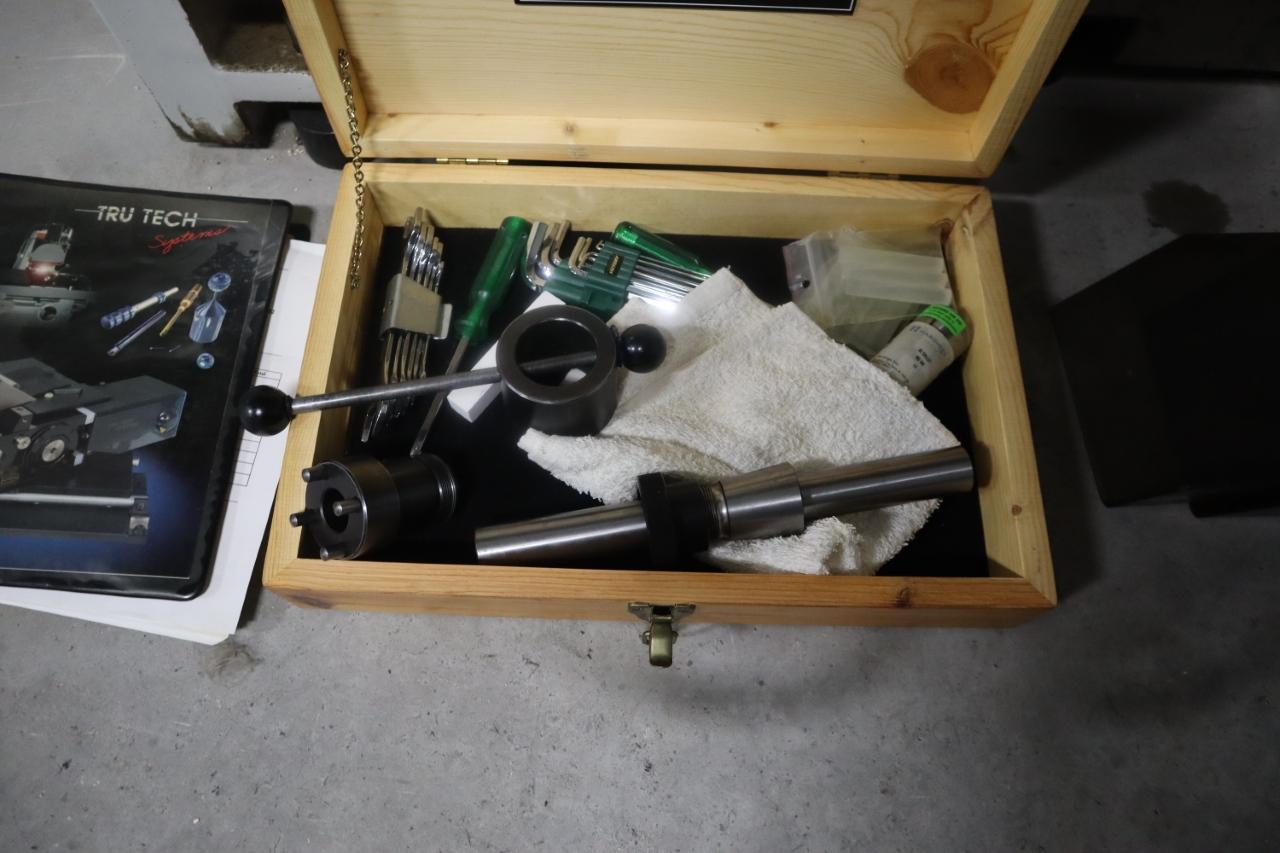

OPTIONAL EQUIPMENT WITH THIS MACHINE:

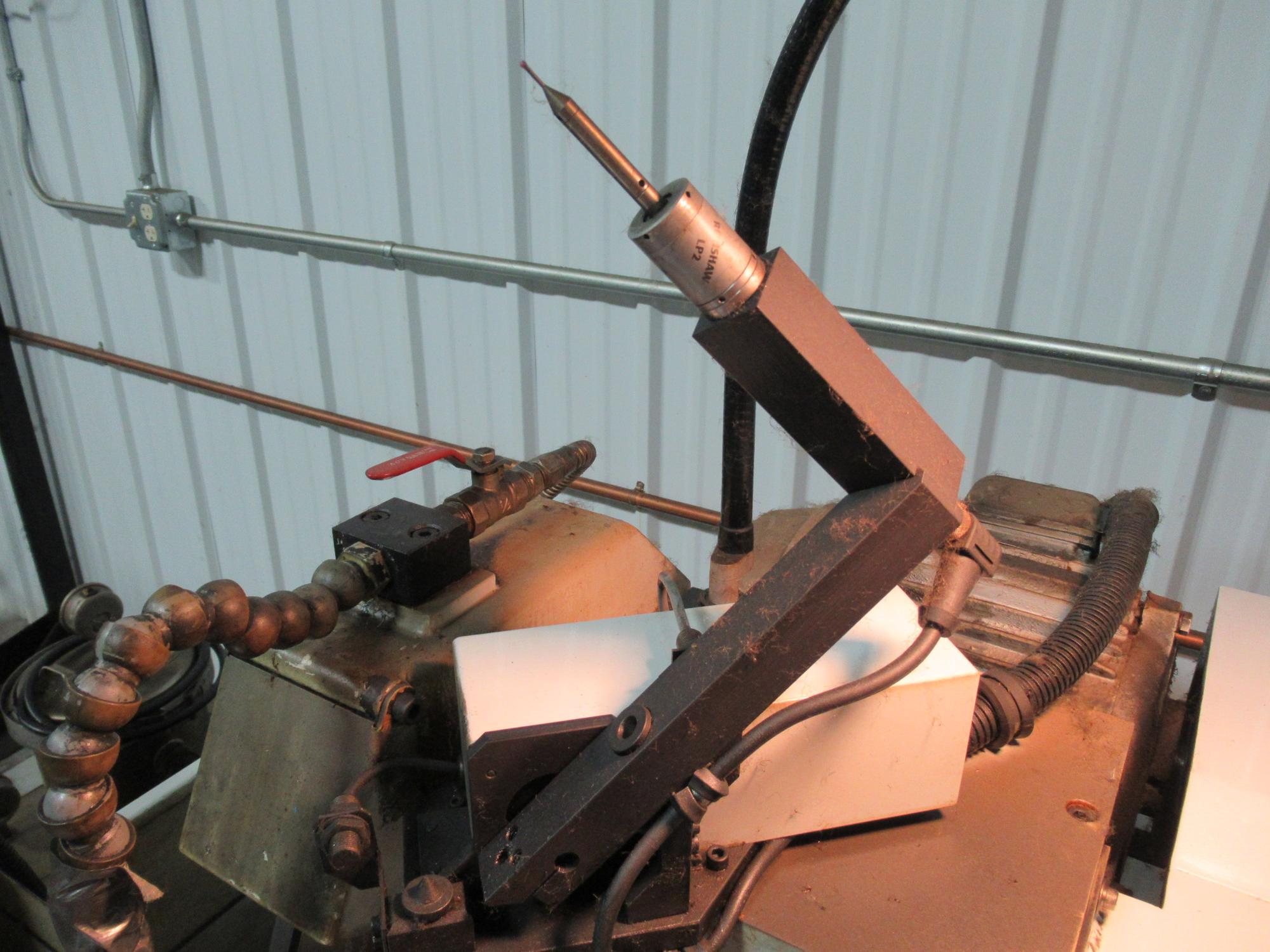

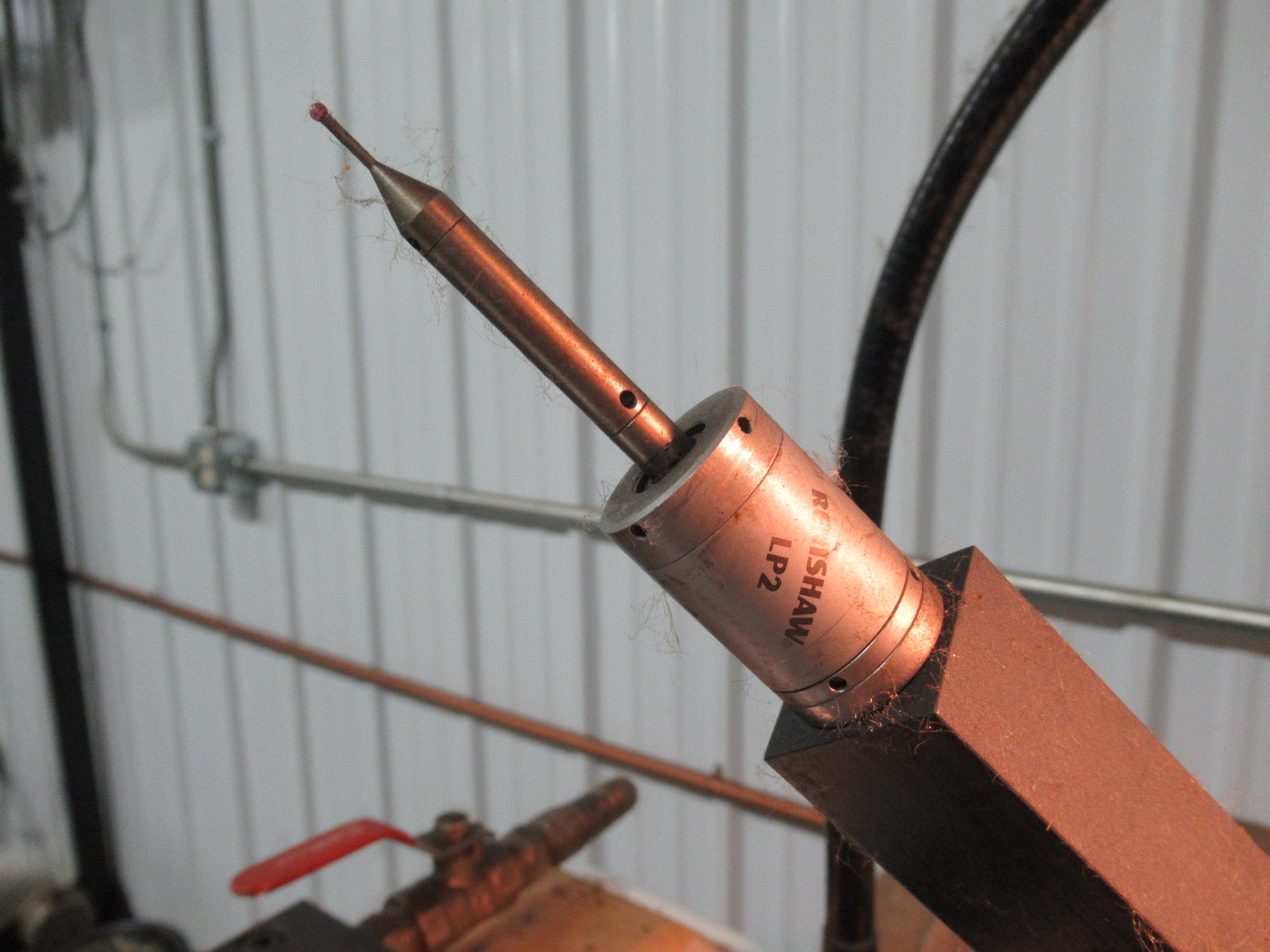

"RENISHAW" "LP2" TOUCH PROBE, LATERAL LOCATOR

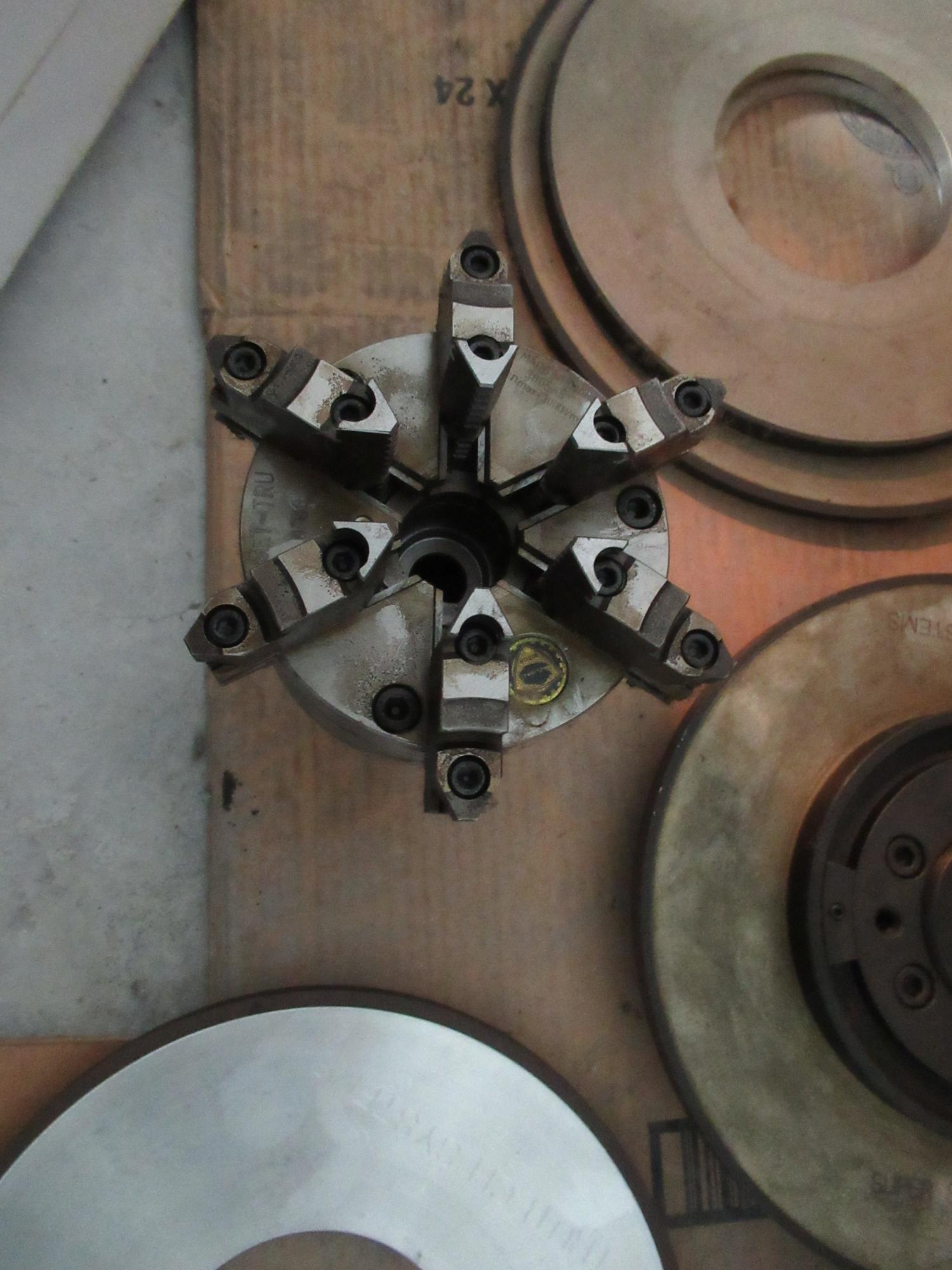

6-JAW CHUCK
QUICK ACTING LEVER TYPE 5C COLLET CLOSER

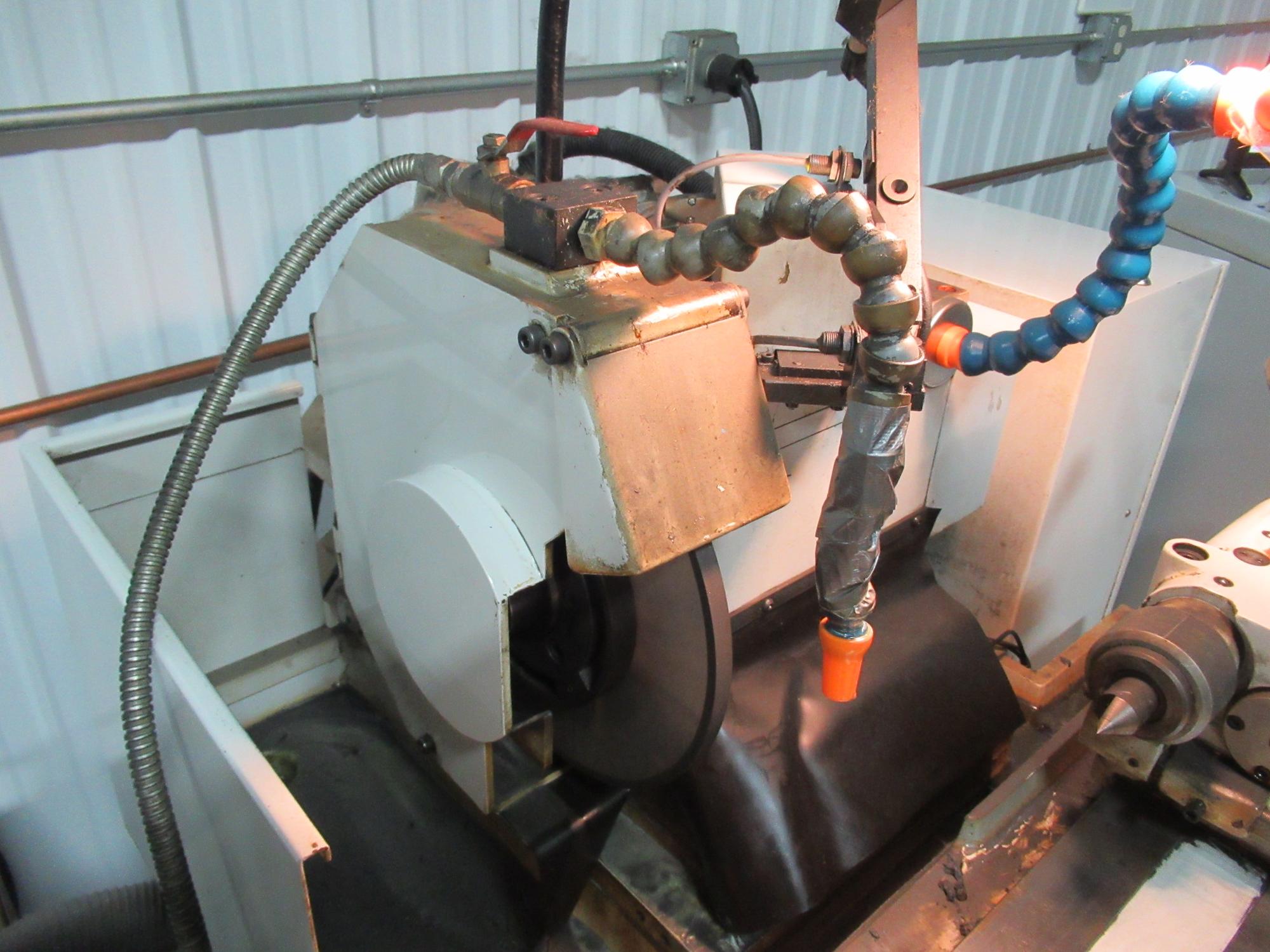

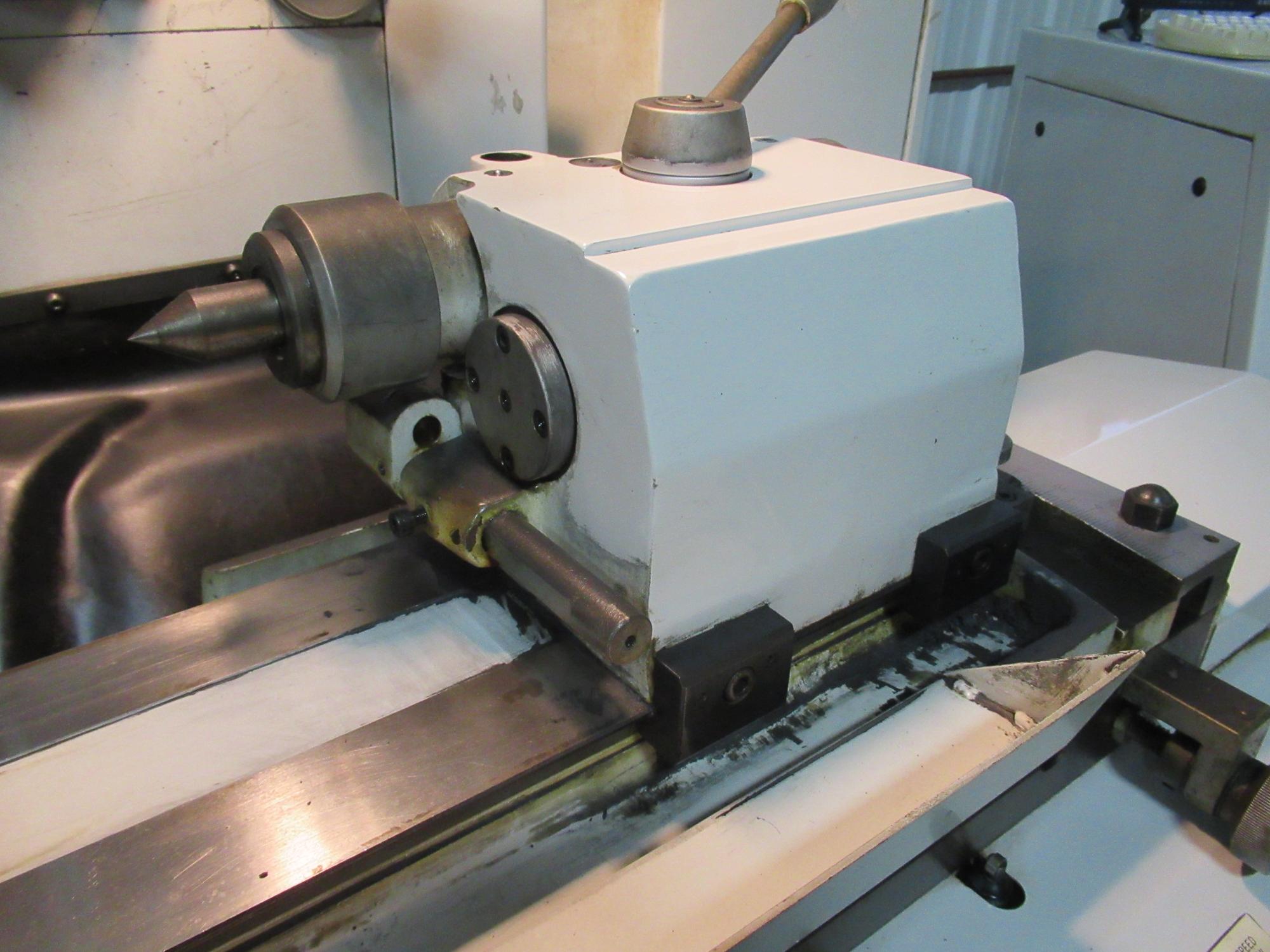

DRESSER MOUNTED ON TAILSTOCK, UNDERNEATH TAILSTOCK SPINDLE

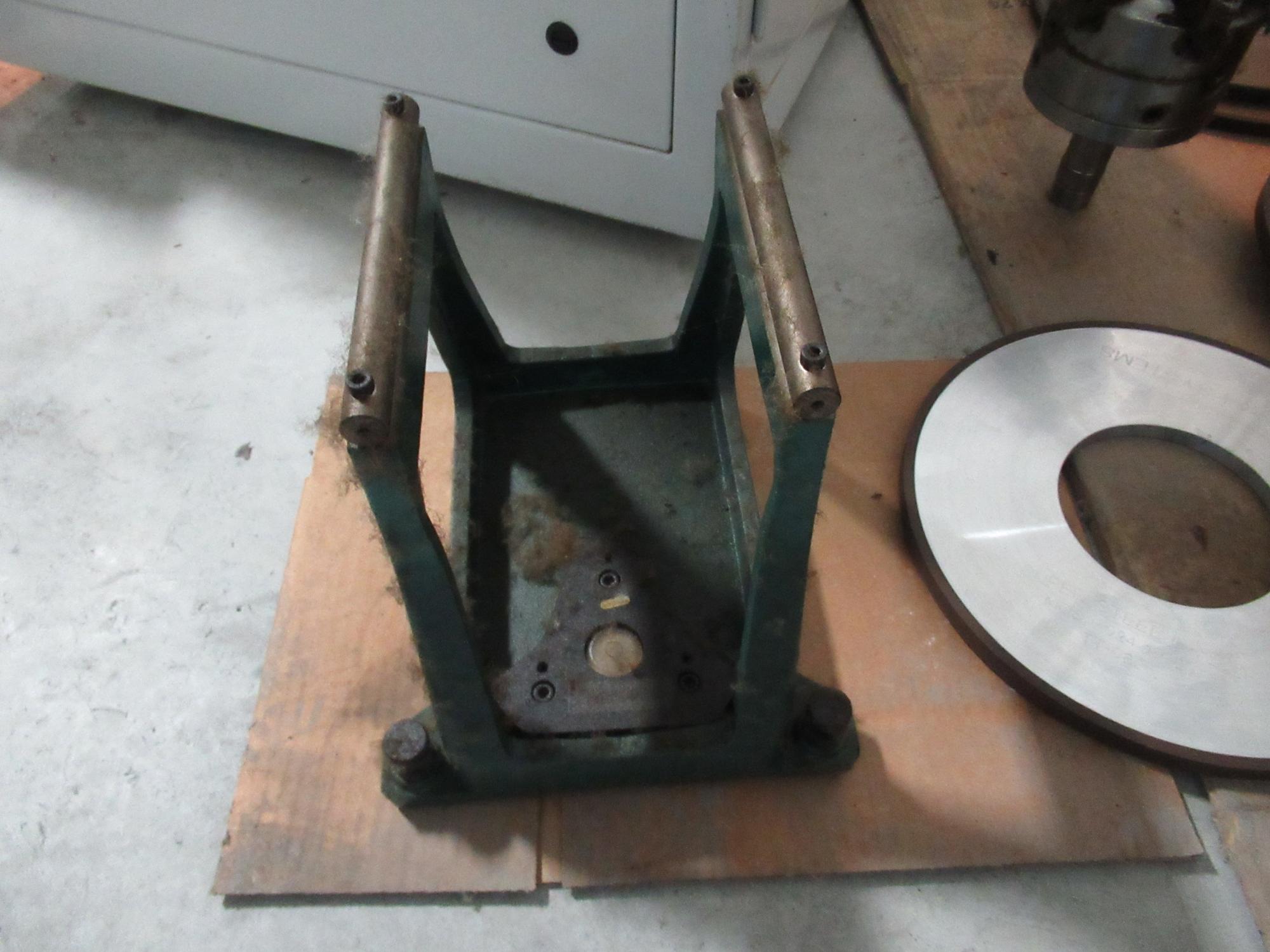

GRINDING WHEEL BALANCING STAND
GRINDING WHEEL BALANCING ARBOR
DIAMOND WHEEL ON THE MACHINE PRESENTLY
(2) ADDITIONAL WHEEL HUBS

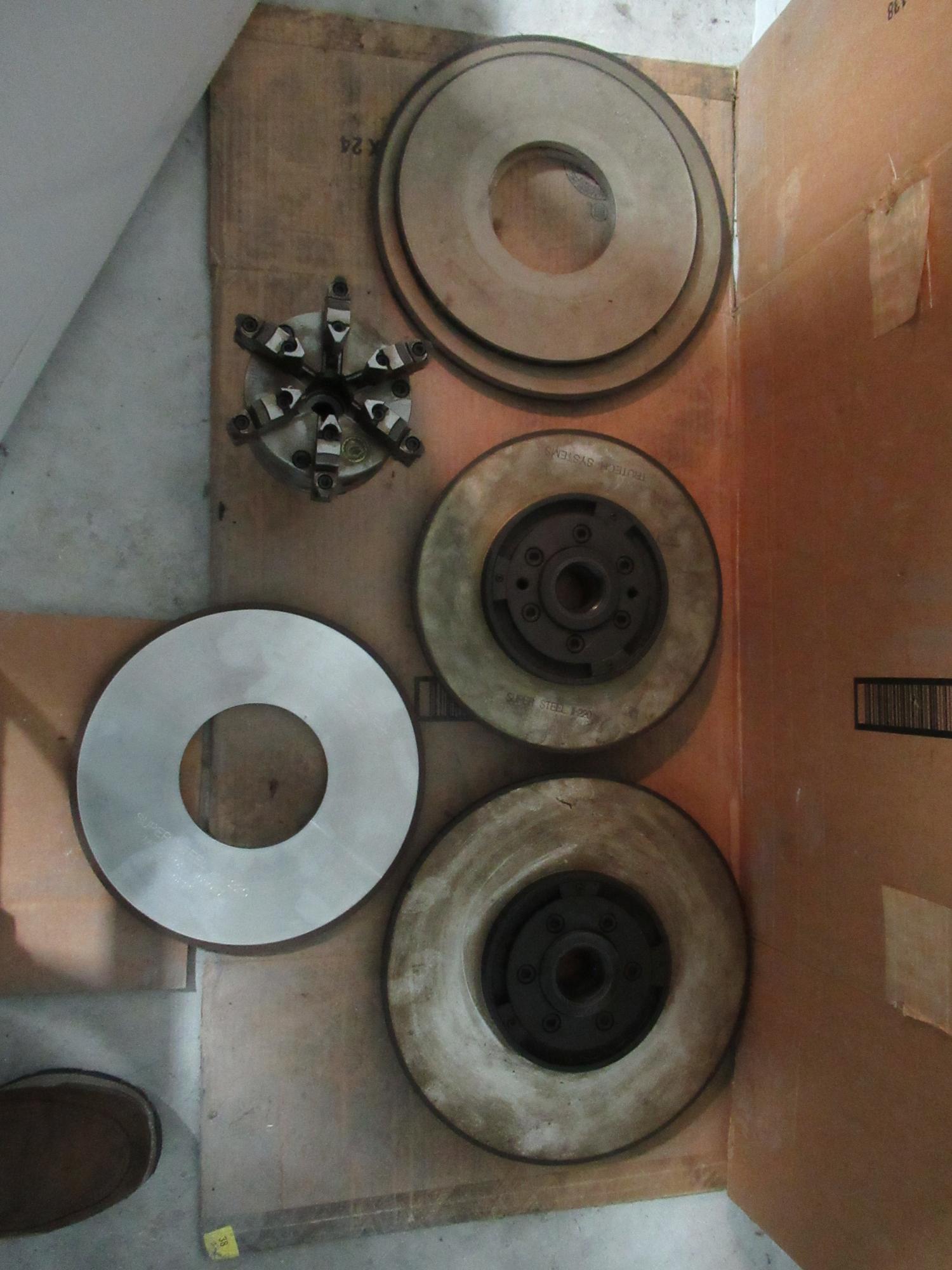

EXTRA GRINDING WHEELS, INCLUDING (1) DIAMOND WHEEL
WORK LIGHT

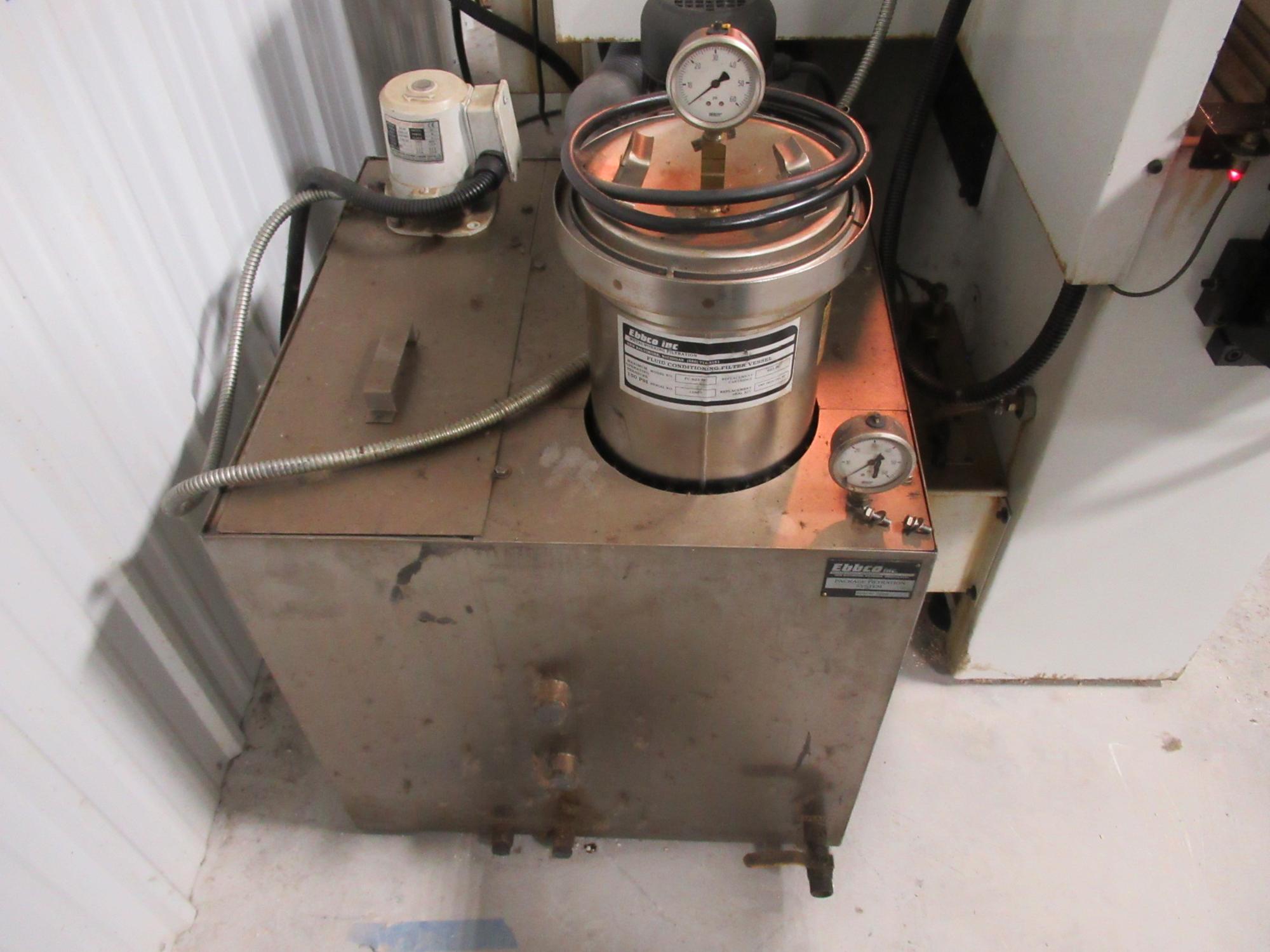

COOLANT SYSTEM WITH "EBBCO" FLUID CONDITIONING FILTER

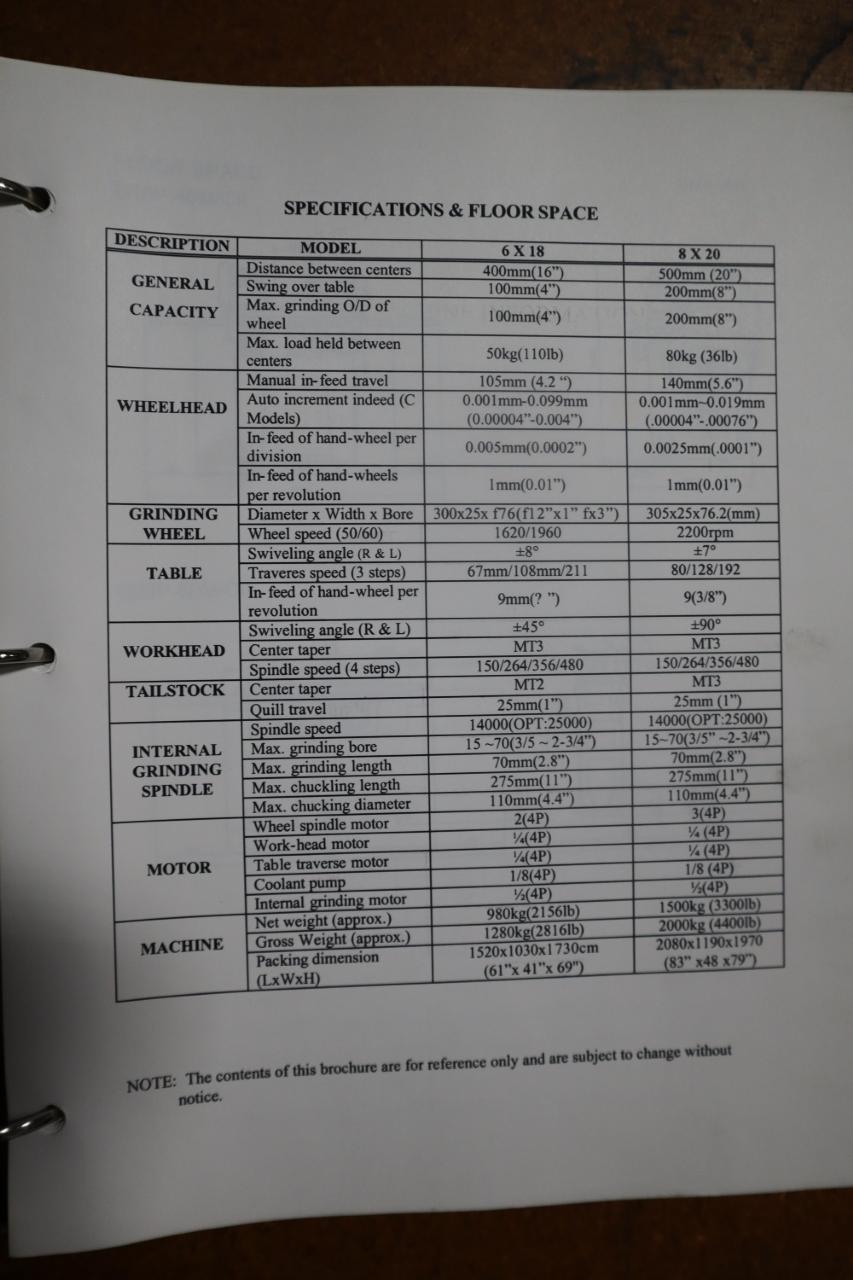

MACHINE TOOL MANUAL/BOOK

PARTS & SERVICE AVAILABLE FROM OUR FRIENDS AT:
       "STAR CUTTER COMPANY",
  OEM FOR THE TRU TECH GRINDERS
https://starcutter.com/tool-grinders/tru-tech-grinders/


LINK TO VIDEO: https://youtu.be/N8ckShtx6l4?si=ZrJbXCKUQaeRVQy3

** EXCEPTIONAL CONDITION & APPEARANCE - ALL ORIGINAL **
** LOCATED PRESENTLY IN OUR CUSTOMER'S SHOP,
            UPPER MIDWEST LOCATION  **
