Tschudin HTG-310 UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Tschudin

Model:: HTG-310

Year:: 1998

Ref #:: 157517

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

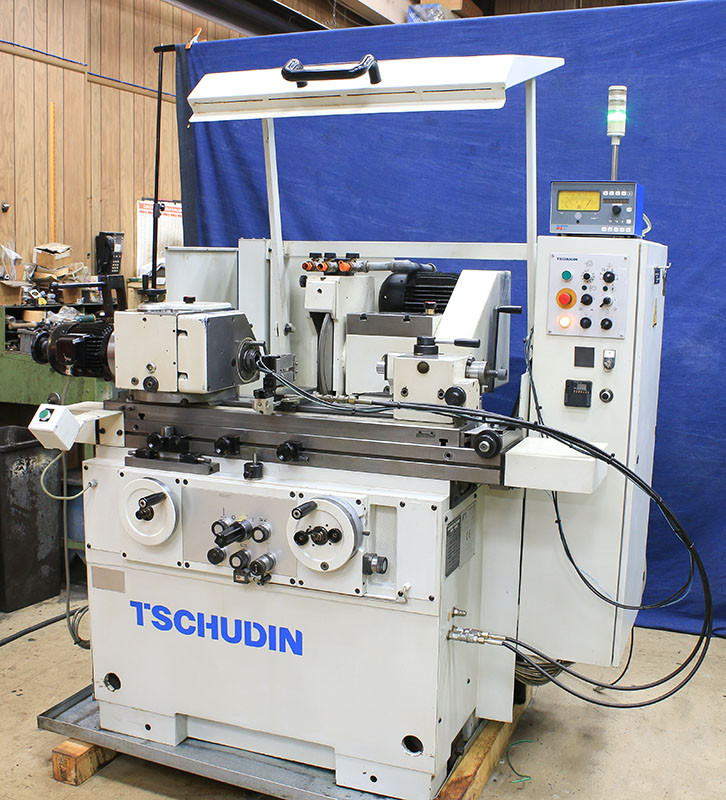

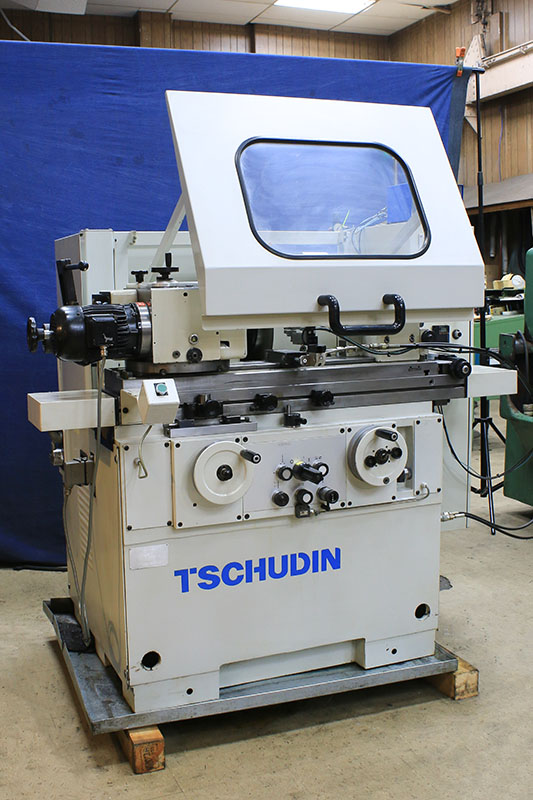

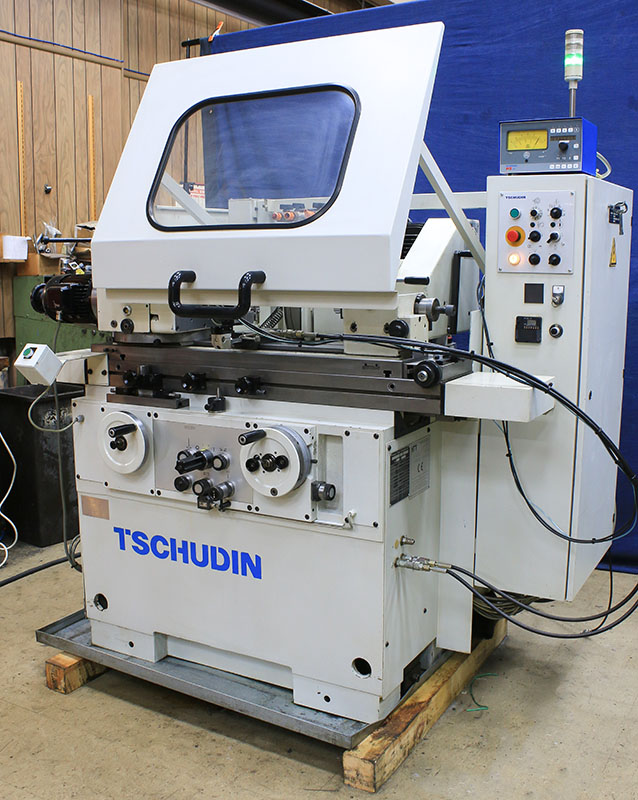

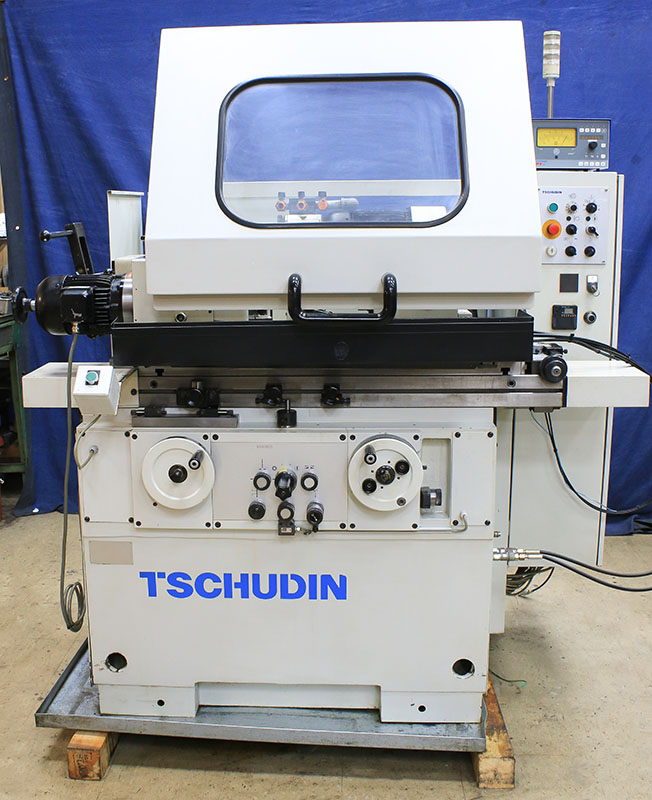

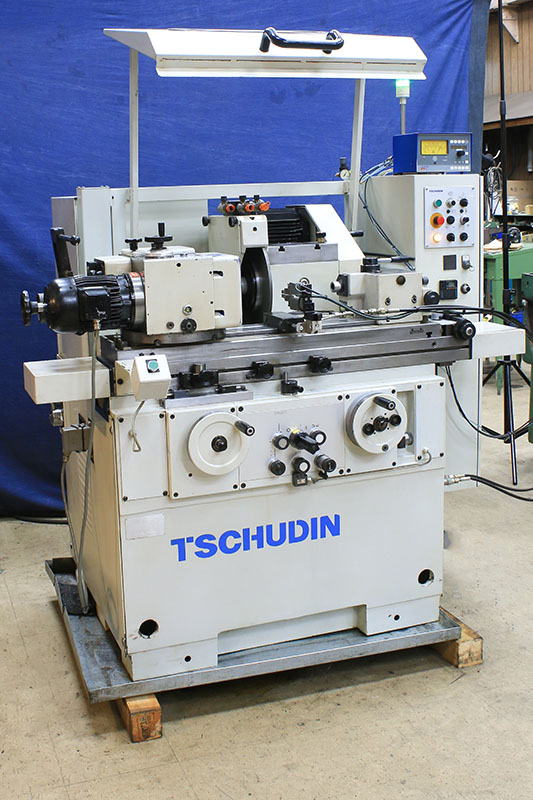

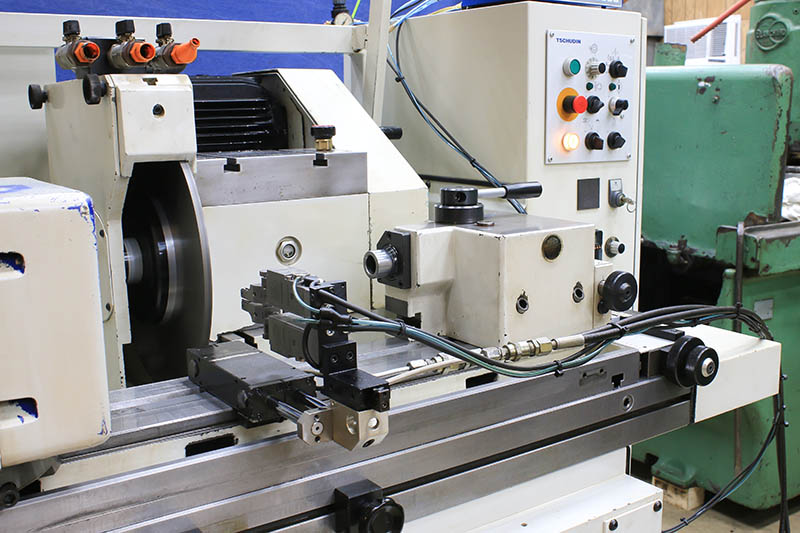

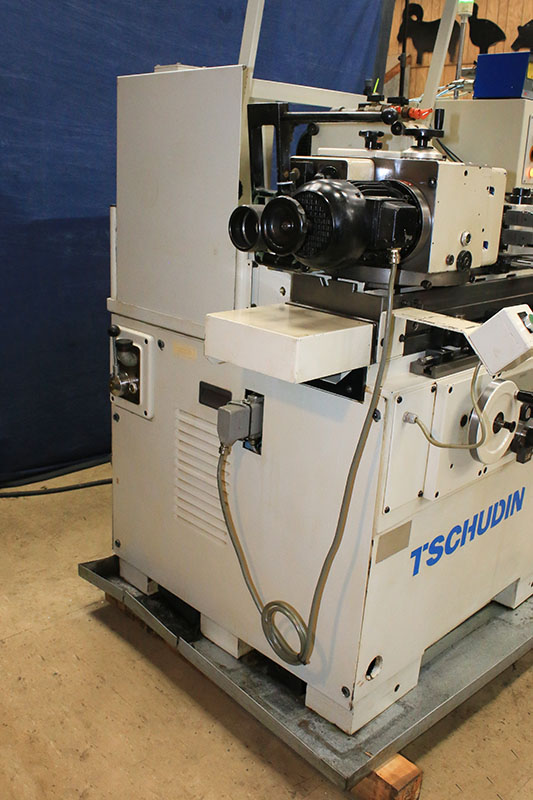

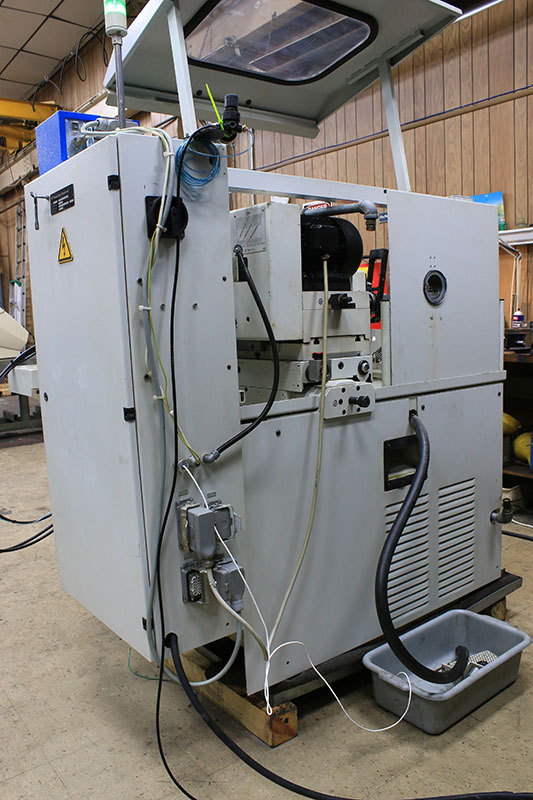

    8" X 13.4" TSCHUDIN "SWISS" SUPER-PRECISION UNIVERSAL CYLINDRICAL GRINDER
  WITH MARPOSS IN-PROCESS GAUGING OPTION

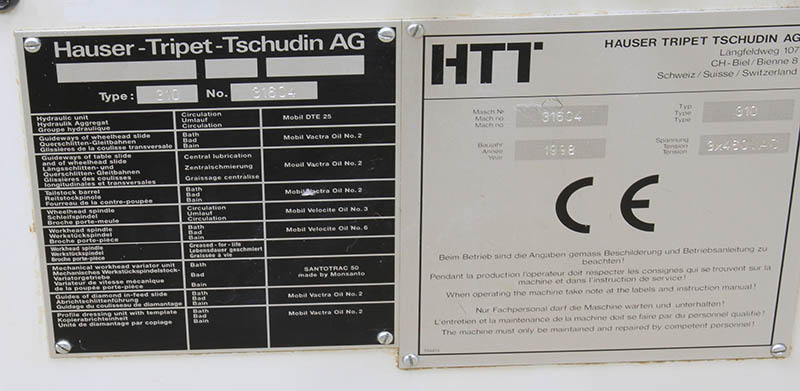

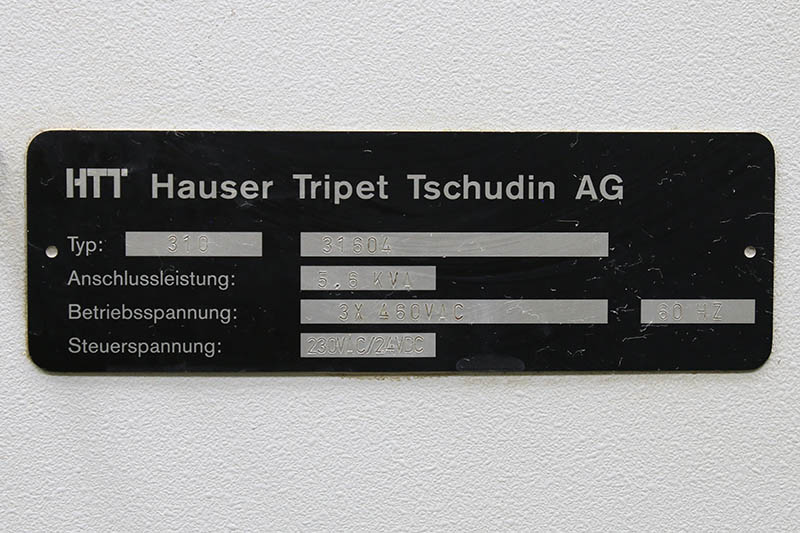

MODEL:  HTG-310     S/N:  31604      NEW:  1998

TABLE:
  SWING OVER TABLE ................................. 8"
  DISTANCE BETWEEN CENTERS ......................... 13.4"
  TABLE SPEED ...................................... 0 TO 195" IPM
  SWIVELLING RANGE ................................. +/- 11 DEGREES
WHEELHEAD:
  WHEEL SIZE ....................................... 14"DIA. X 2"W X 5"BORE
  SWIVELLING RANGE ................................. +/- 5 DEGREES
  MOTOR ............................................ 4 HP
  RAPID APPROACH ................................... 1-1/2"
  INFEED-AUTOMATIC ................................. 0 TO .050" ON DIA.
  INFEED SPEED, MAXIMUM ............................ 1.2"/MIN.
  SPARKOUT ......................................... 2 TO 30 SECONDS
WORKHEAD:
  SPINDLE TAPER .................................... #4MT
  SWIVELLING RANGE ................................. 360 DEGREES
  INFINITELY VARIABLE SPINDLE SPEED ................ 50 TO 500 RPM
TAILSTOCK:
  TAPER OF CENTER BORE ............................. #3MT
  TRAVEL OF CENTER ................................. 0.8"
APPROXIMATE MACHINE DIMENSIONS FOR
  OPERATION ........................................ 8'L X 6'D X 80"H
APPROXIMATE WEIGHT ................................. 4,000 LBS

STANDARD FEATURES/ATTRIBUTES:
  TSCHUDIN HYDRODYNAMIC TYPE CYLINDRICAL BRONZE TO
   STEEL BEARING WHEELHEAD DESIGN

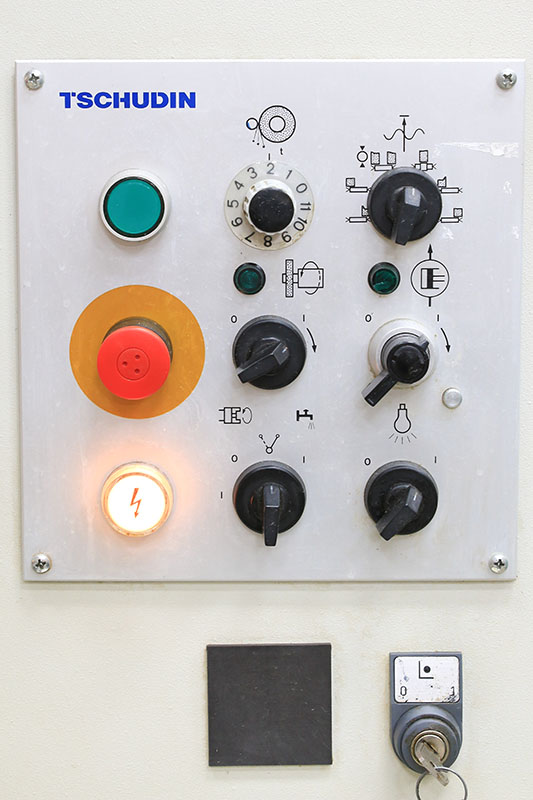

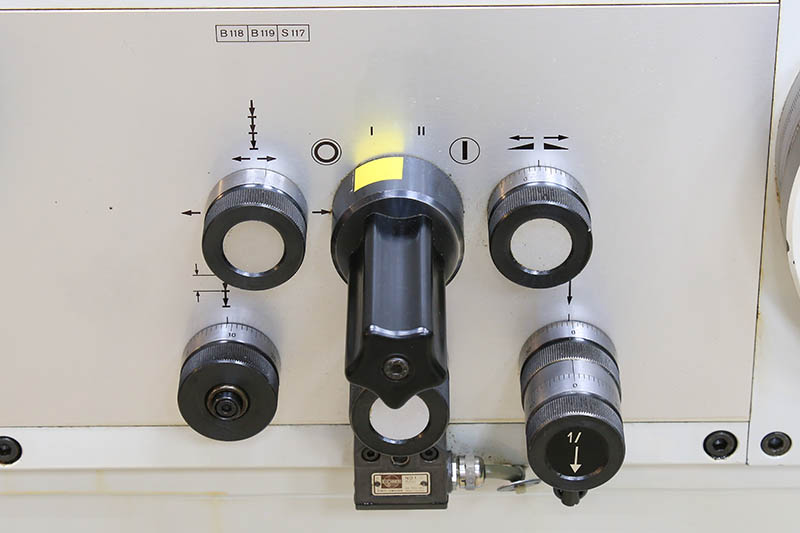

  SIMPLE ONE-KNOB CONTROL INITIATES ALL THE SETTINGS
   FOR TRAVERSE& PLUNGE GRINDING CYCLES
  HYDRAULIC OPERATION FEATURING:
   -POWER TABLE TRAVERSE
   -AUTOMATIC INFEED
   -PLUNGE INFEED
   -RAPID WHEELHEAD ADVANCE AND RETRACTION

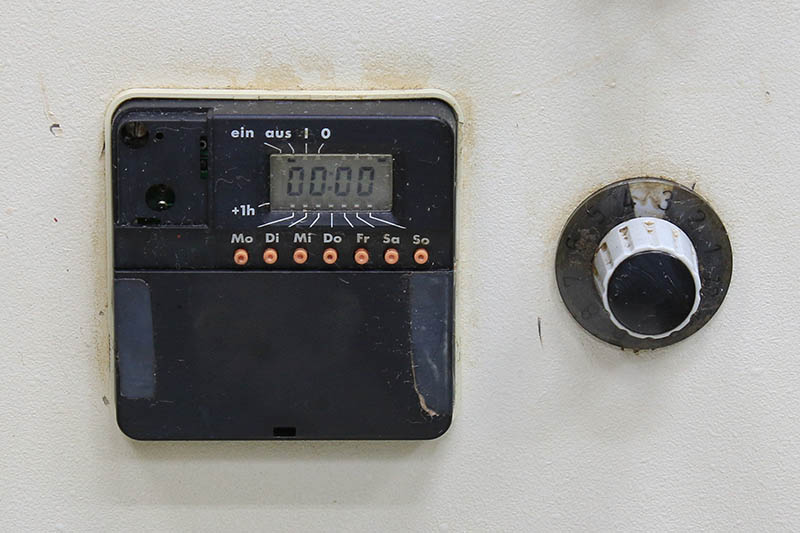

  SPARKOUT TIMER
  DUAL LIVE/DEAD WORKHEAD SPINDLE

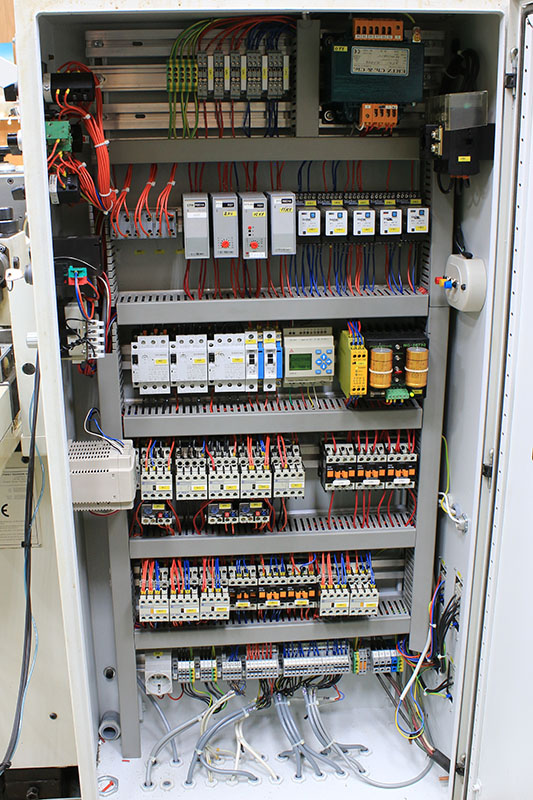

  3/60/230-460 VOLT ELECTRICS


EQUIPPED WITH:

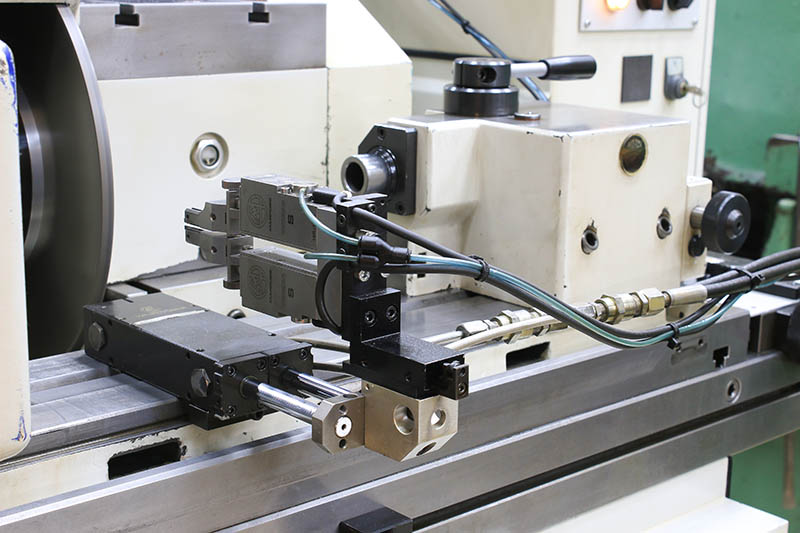

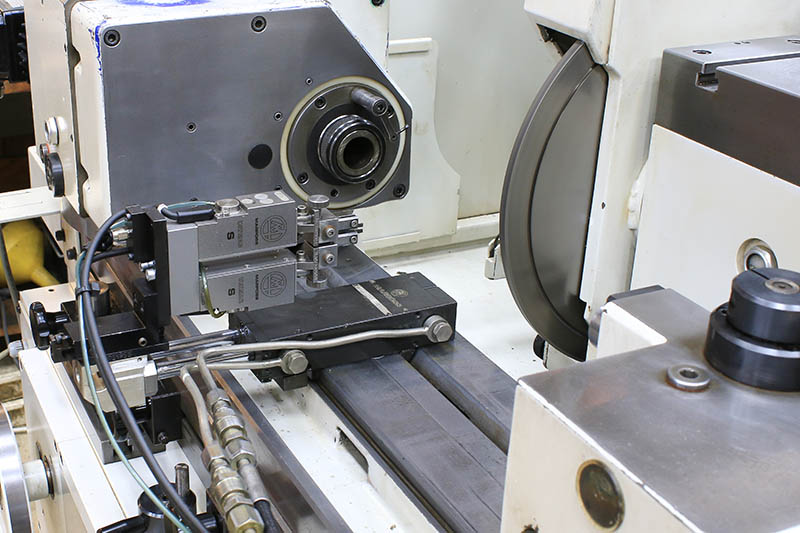

MARPOSS IN-PROCESS GAUGING:

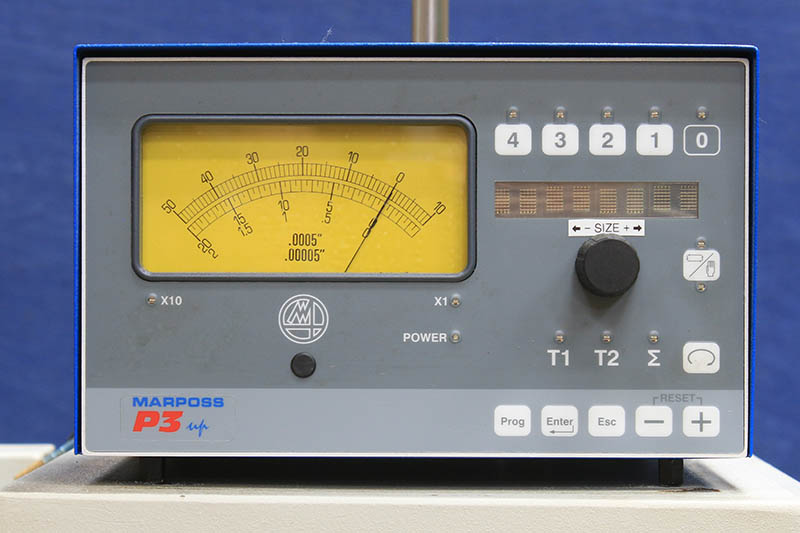

 - MARPOSS P3 DIMENSIONAL CONTROL

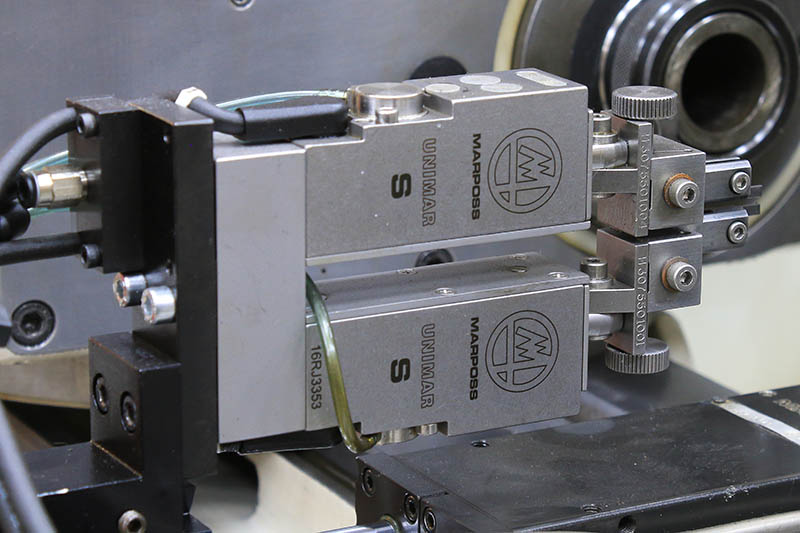

 - MARPOSS "UNIMAR" "S" UNIVERSAL MEASUREMENT HEAD
DUAL RATE AUTOMATIC PLUNGE INFEED OPTION, "COARSE" & "FINE" CYCLE FEED OPTION

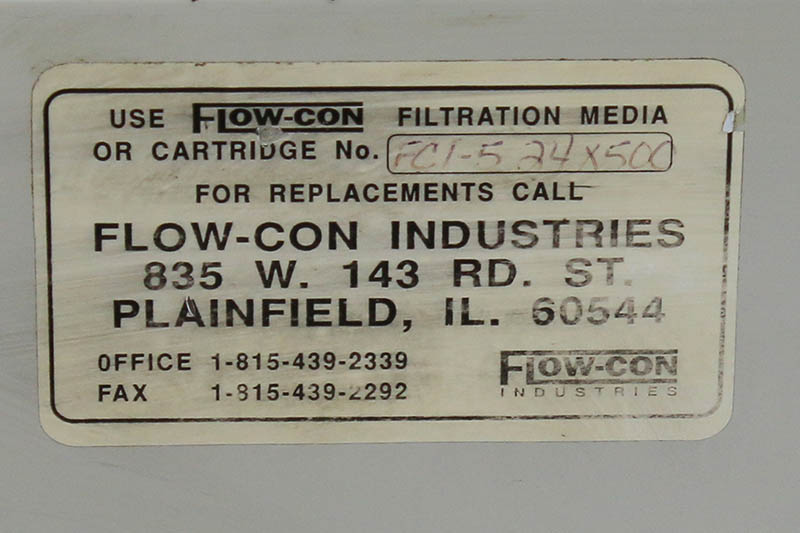

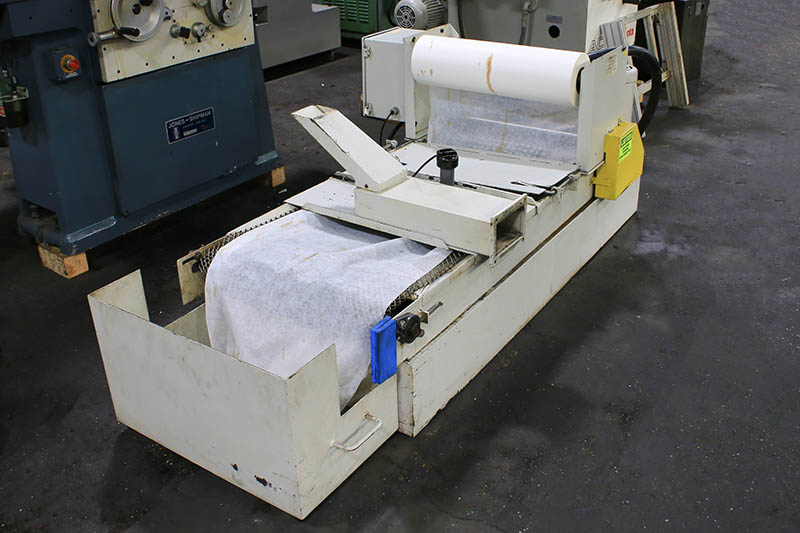

LARGE COOLANT SYSTEM WITH MOTORIZED PAPER FILTRATION
TSCHUDIN "SUPER-PRECISION" WORKHEAD OPTION.  THIS WAS A FACTORY OPTION THAT PROVIDED FOR
 EVEN HIGHER PRECISION WORK THAN A STANDARD TSCHUDIN WORKHEAD.  THIS MACHINE WHEN IT LEFT
 THE FACTORY IN SWITZERLAND HAD A CONCENTRICITY OF 0.00035mm, WHICH IS 0.00001378".

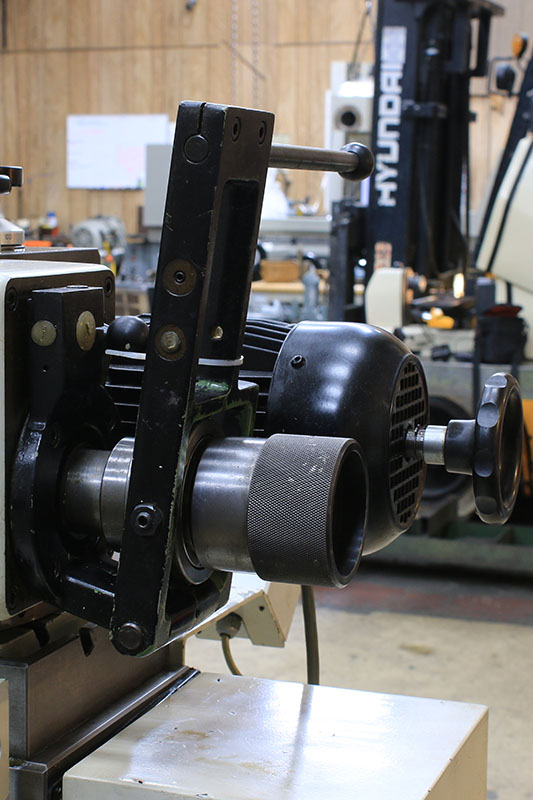

WORKHEAD HAS A QUICK ACTING COLLET CLOSER, "W20" COLLETS.

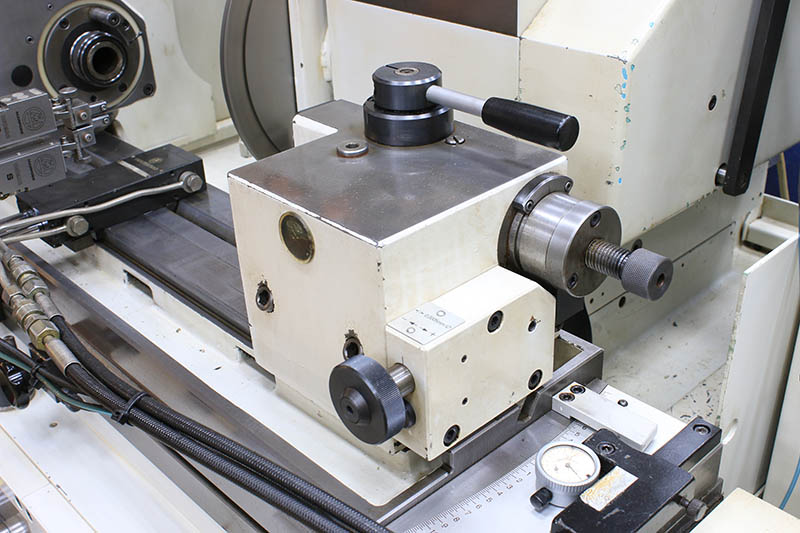

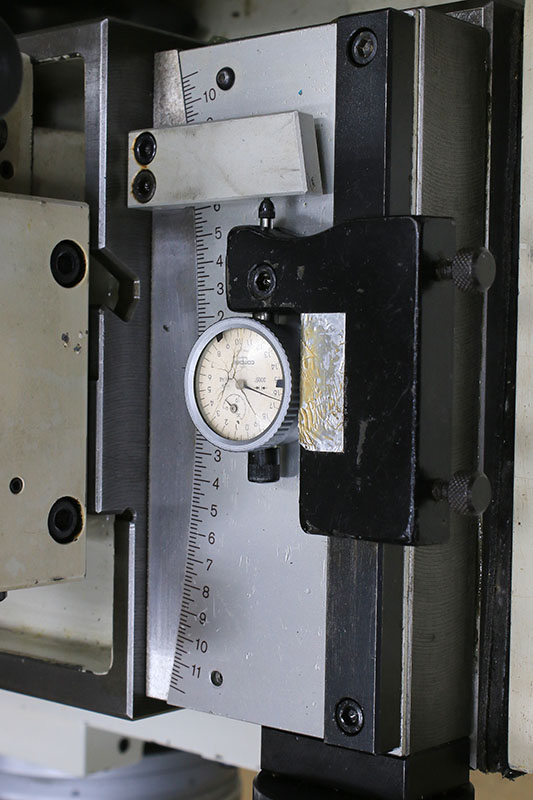

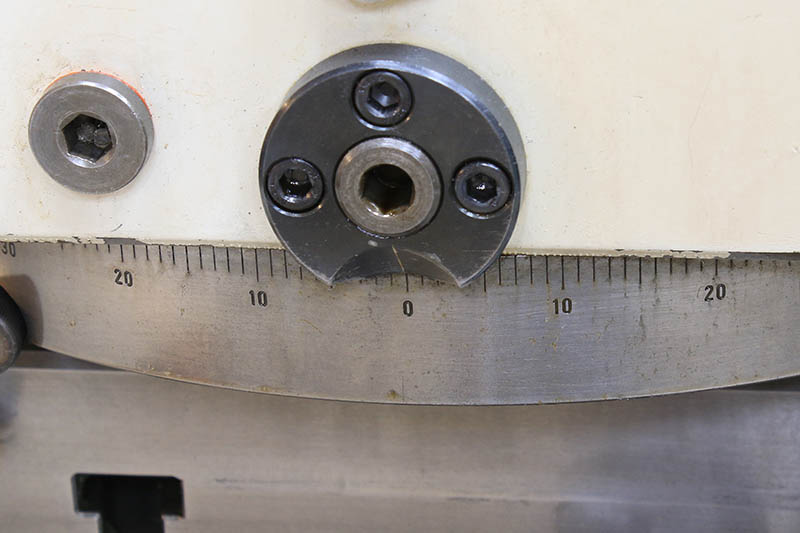

DIAL INDICATOR FOR TABLE SWIVEL

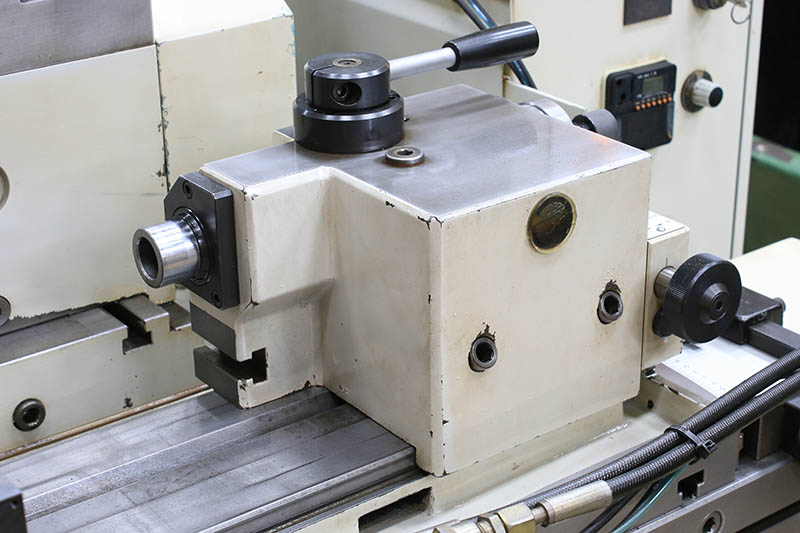

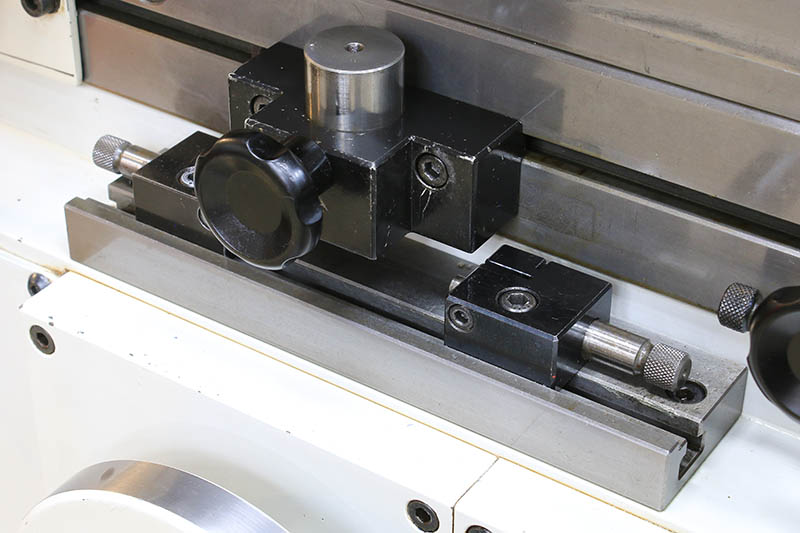

FINE TAPER ADJUSTMENT OPTION ON THE TAILSTOCK

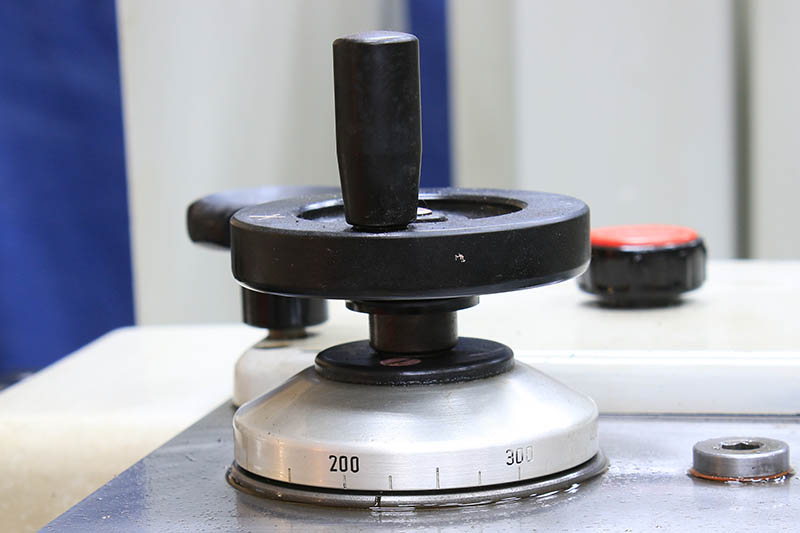

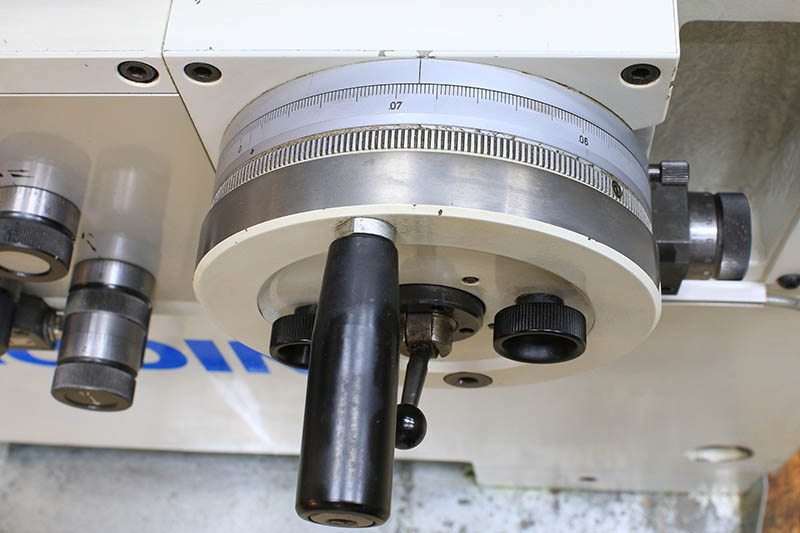

MANUAL COARSE ADJUSTMENT OPTION FOR THE WHEELHEAD, RAPID MOVEMENT BY A LEVER

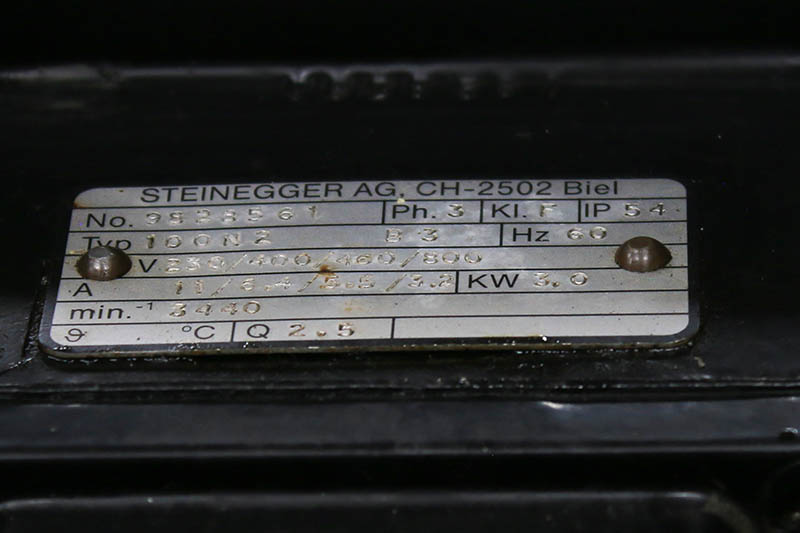

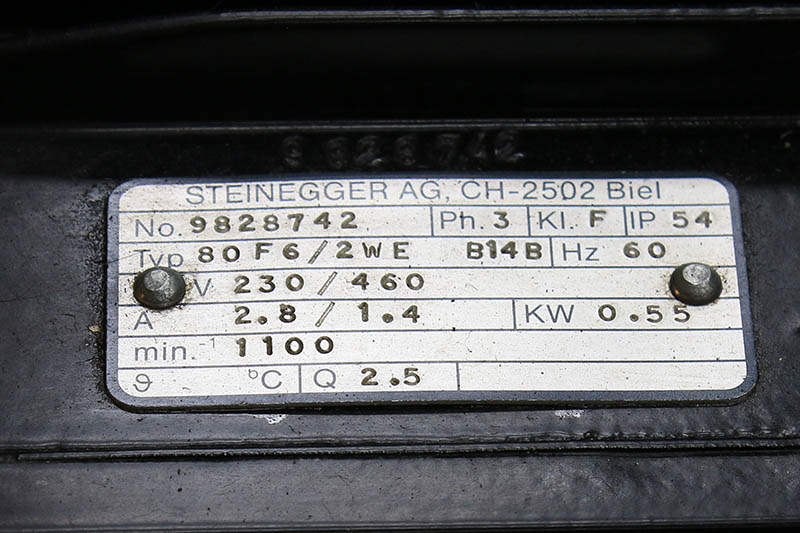

WHEELHEAD MOTOR, 3 KW (4 H.P.), 3/60/230-460 VOLTS
MACHINE IS PRESENTLY WIRED FOR 3/60/480 VOLTS

SPECIAL NOTE:
WE HAVE FINISHED OUR THOROUGH SERVICING OUR TSCHUDIN HTG-310.

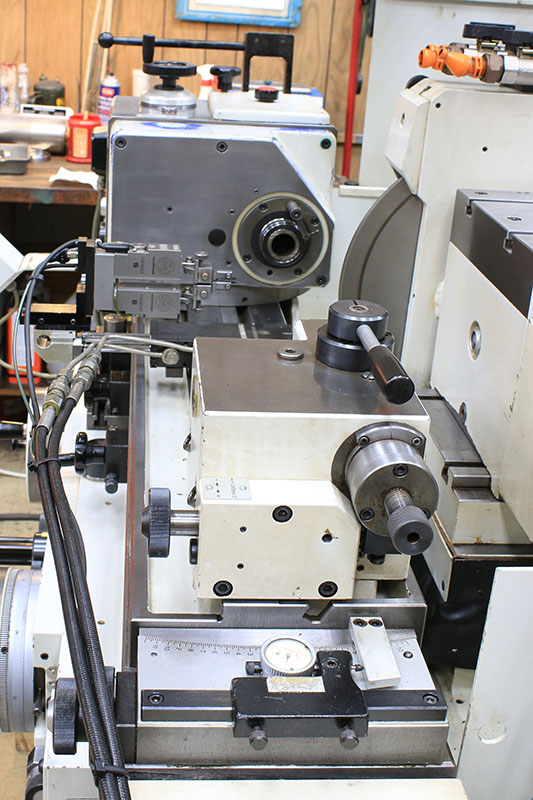

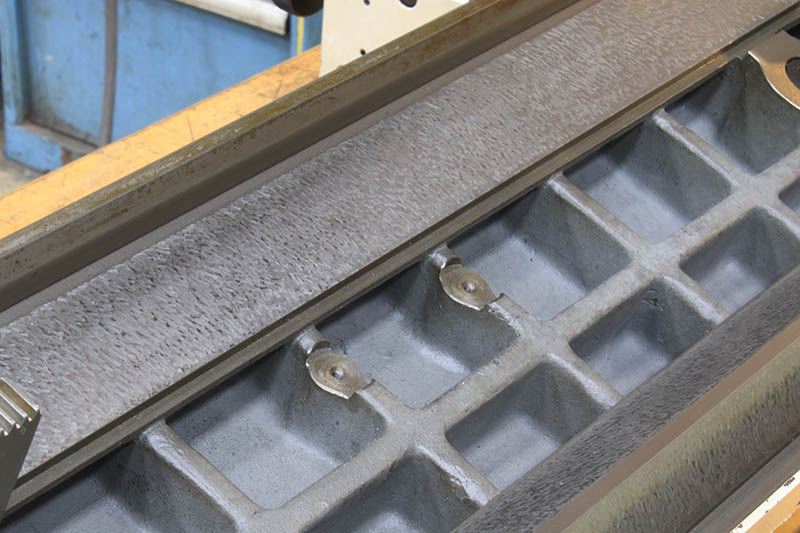

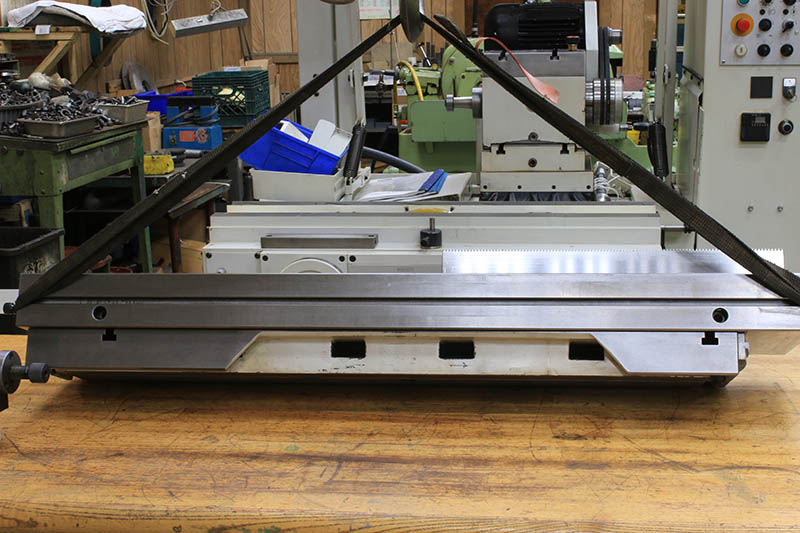

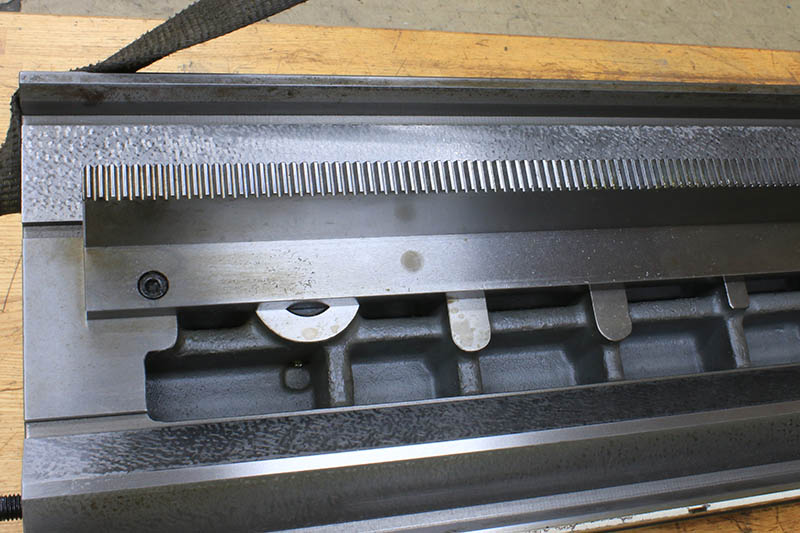

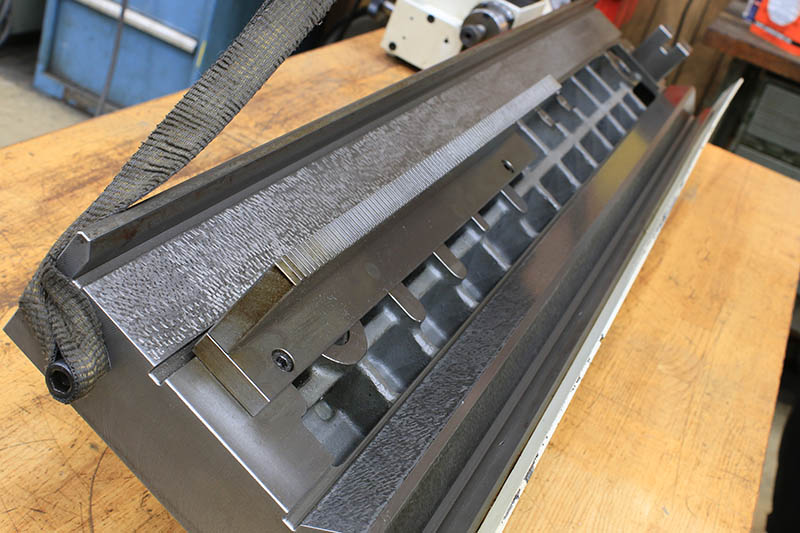

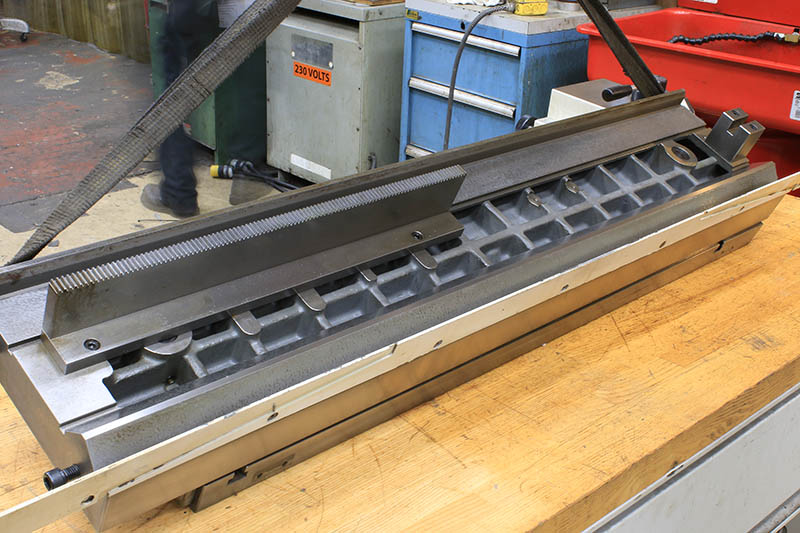

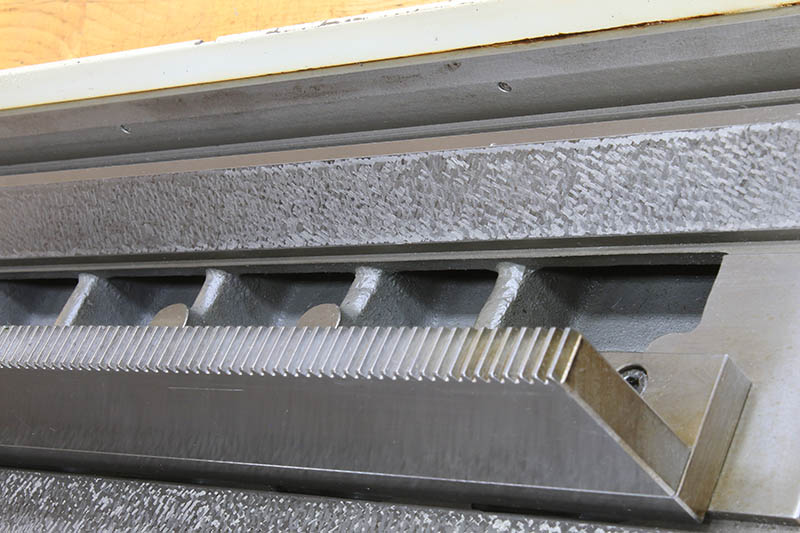

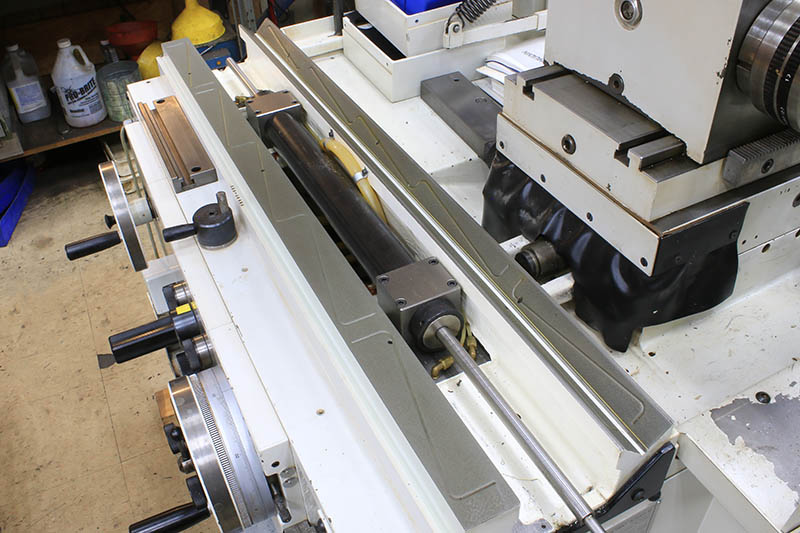

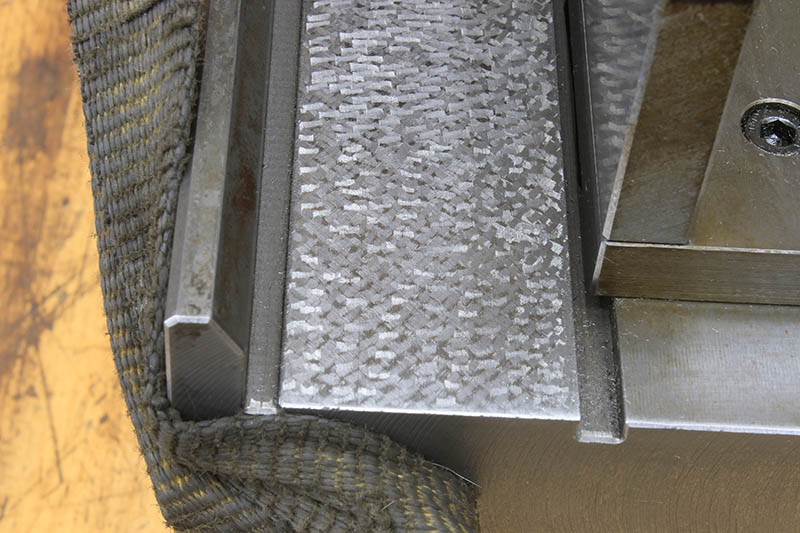

 WE HAVE TAKEN PHOTOS OF THE MACHINE APART, THE WAYS ARE FANTASTIC.

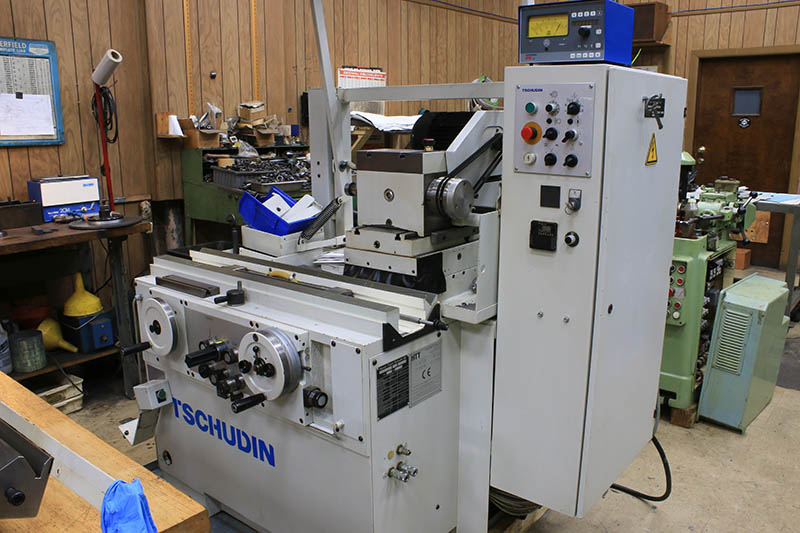

 PLEASE ALSO SEE THE PHOTOS AND A VIDEO OF THE MACHINE, FINISHED & READY
 FOR DELIVERY.

** MADE IN SWITZERLAND **
** ORIGINAL & BEAUTIFUL - EXCEPTIONAL CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
