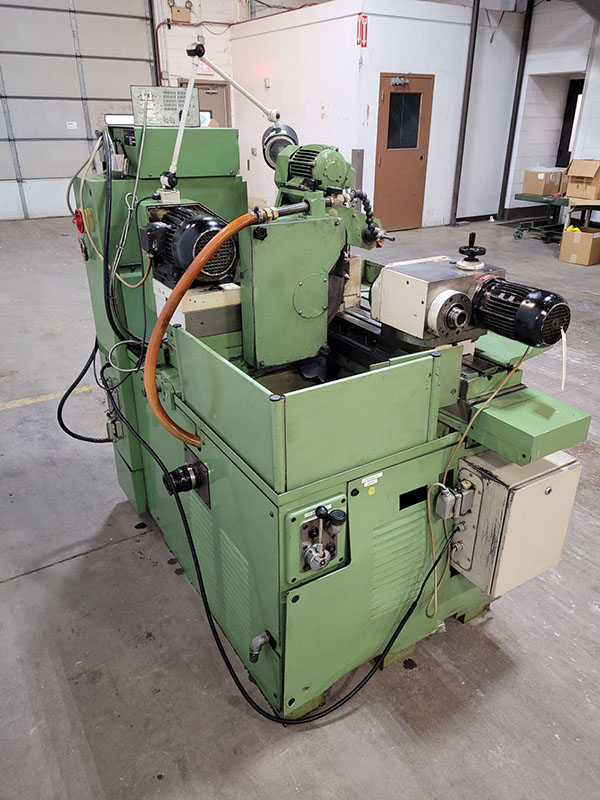

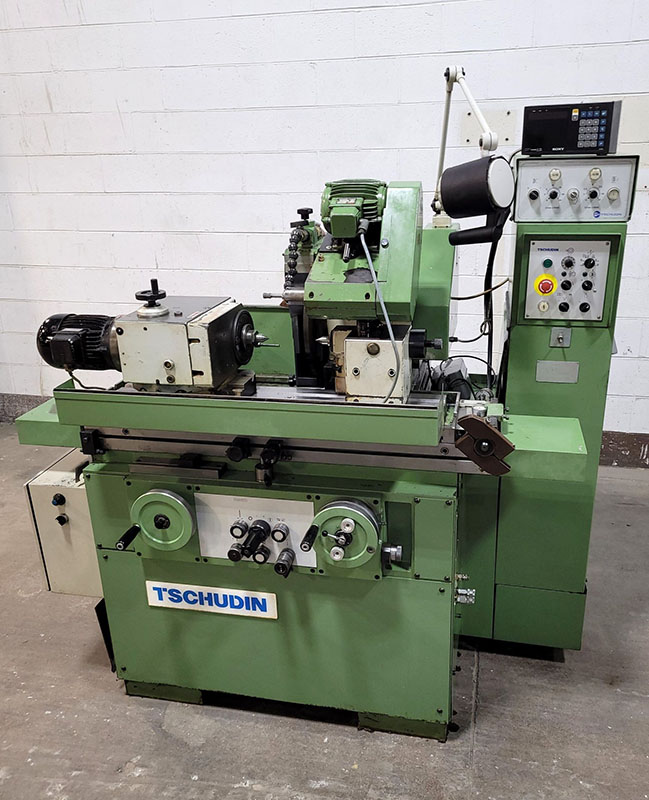

Tschudin HTG310, 1991, SWISS, FACTORY RISERS UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Tschudin

Model:: HTG310, 1991, SWISS, FACTORY RISERS

Year:: 1991

Ref #:: 178352

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

 11.8" X 13.4" TSCHUDIN "MADE IN SWITZERLAND"
            SUPER-PRECISION

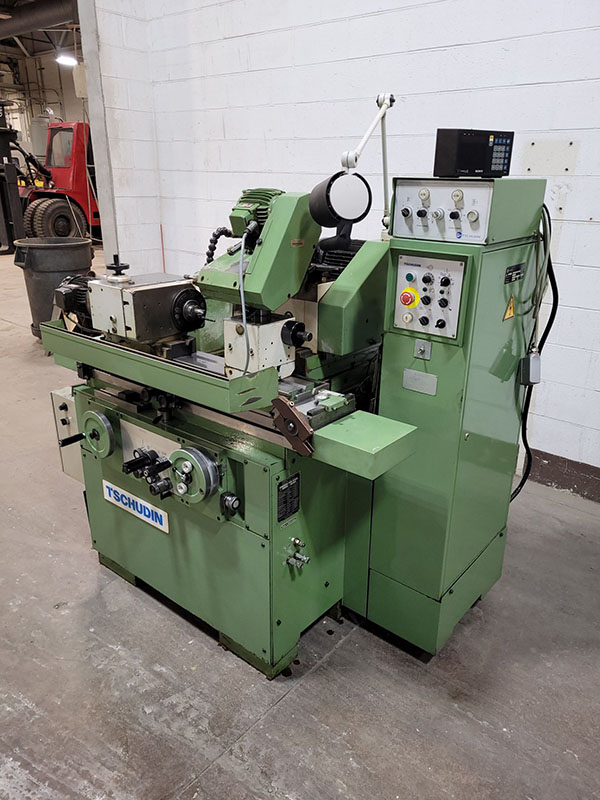

   UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

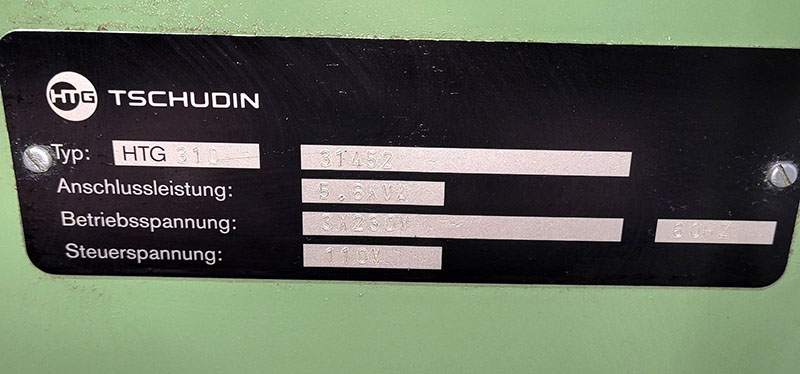

MODEL:  HTG-310     S/N:  31452      NEW:  1991

TABLE:
SWING OVER TABLE, AS EQUIPPED,
 WITH 2" FACTORY RISERS ....... 11.8"
CENTER HEIGHT, WITH RISERS .... 5.9"
DISTANCE BETWEEN CENTERS ...... 13.4"
SWIVELLING RANGE .............. +/- 11°

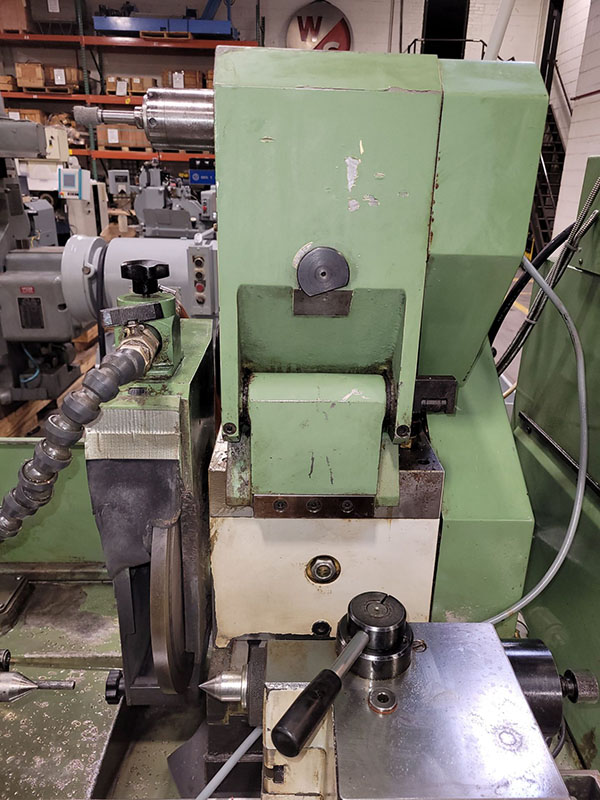

WHEELHEAD:
WHEEL SIZE ............... 14"DIA. x 2"W x 5"BORE
SWIVELLING RANGE .............. +/- 12°

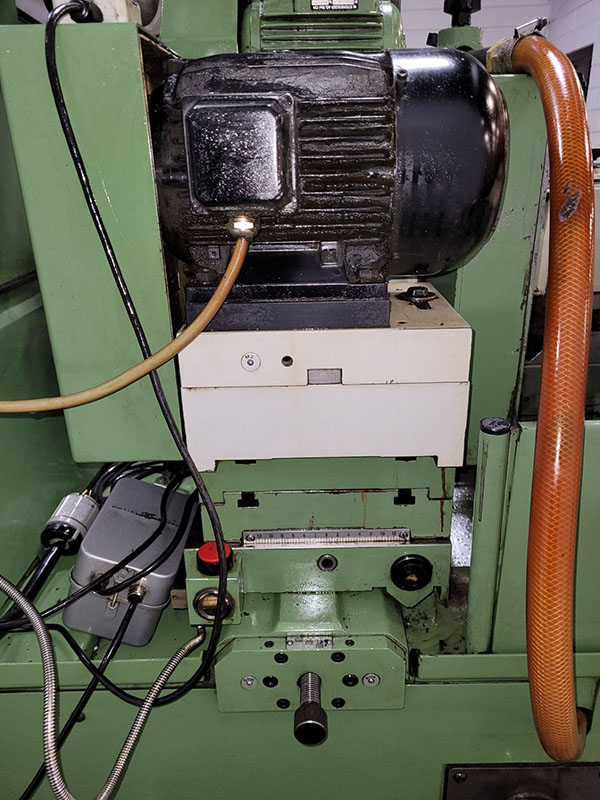

MOTOR ......................... 4 HP
RAPID APPROACH, POWER ......... 1-1/2"
MANUAL TRAVEL ................. 1.77"
INFEED-AUTOMATIC .............. 0 TO .050" ON DIA.
NORMAL INFEED TRAVEL, MAX ..... 0.047"
FINE INFEED TRAVEL, MAX. ...... 0.0059"
INFEED SPEED, MAXIMUM ......... 1.2"/MIN.
SPARKOUT ...................... 2 TO 30 SECONDS

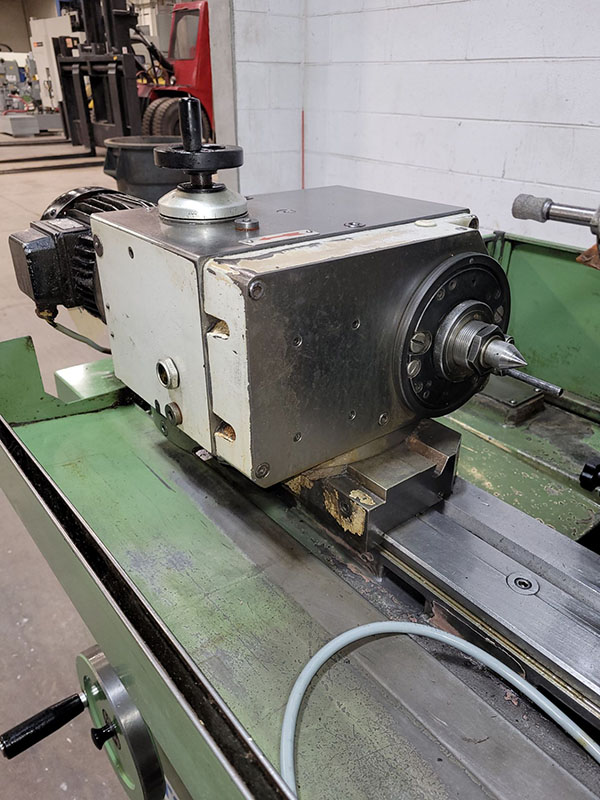

WORKHEAD:
SPINDLE TAPER ................. #5MT
SWIVELLING RANGE .............. 360°
INF. VAR. SPINDLE SPEEDS ...... 50 TO 500 RPM

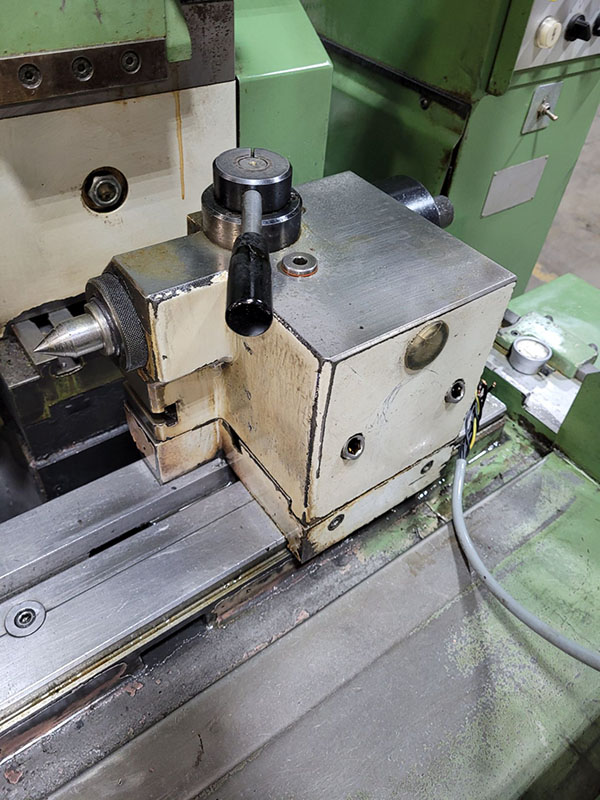

TAILSTOCK:
TAPER OF CENTER BORE .......... #3MT
TRAVEL OF CENTER .............. 0.8"


APPROXIMATE DIMS. ........ 79.53"L x 47.25"D x 57.1"H
APPROXIMATE WEIGHT ............ 4,000 LBS

STANDARD FEATURES/ATTRIBUTES:
TSCHUDIN HYDRODYNAMIC TYPE CYLINDRICAL BRONZE TO
  STEEL BEARING WHEELHEAD DESIGN
SIMPLE ONE-KNOB CONTROL INITIATES ALL THE SETTINGS
  FOR TRAVERSE & PLUNGE GRINDING CYCLES
HYDRAULIC OPERATION FEATURING:
-POWER TABLE TRAVERSE
-AUTOMATIC INFEED
-PLUNGE INFEED
-RAPID WHEELHEAD ADVANCE AND RETRACTION
-SPARKOUT TIMER
DUAL LIVE/DEAD WORKHEAD SPINDLE
A 0.00002" GRADUATED DIAL SETS POSITIVE STOP DIAMETER
3/60/230-460 VOLT ELECTRICS


EQUIPPED WITH:
FACTORY RISERS, WHICH INCREASES THE SWING TO 11.8"

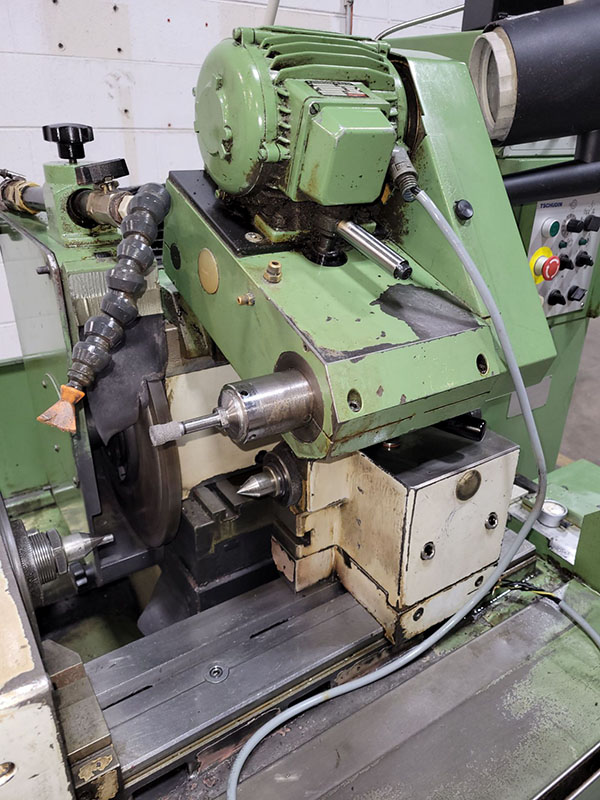

SWING DOWN I.D. GRINDING ATTACHMENT

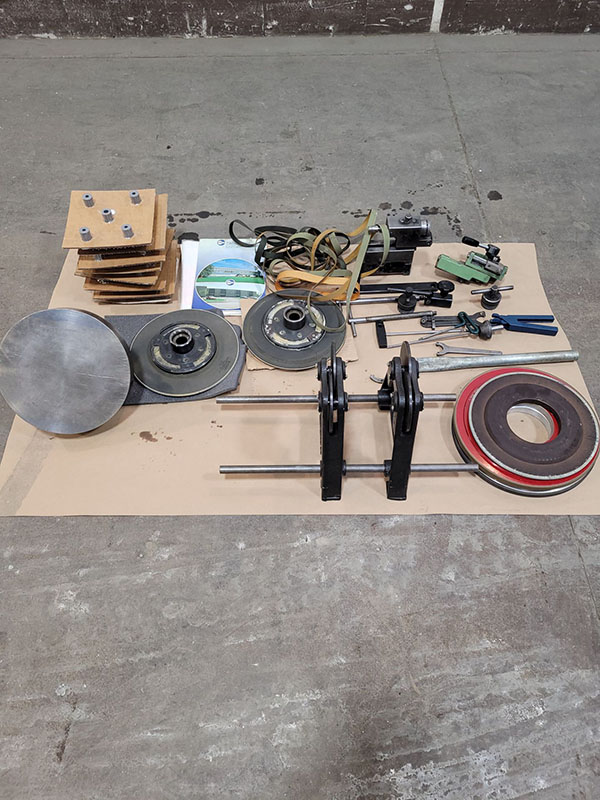

I.D. GRINDING SPINDLE, COMPLETE, WITH ARBOR & WHEEL
EXTRA GRINDING WHEELS FOR THE I.D. SPINDLE
EXTRA BELTS
ELECTRONIC VARI-SPEED CONTROL, FOR THE I.D. SPINDLE,
 FACTORY OPTION THAT OUR MACHINE IS EQUIPPED WITH.
"SONY" SINGLE AXIS DIGITAL READOUT DISPLAY
"FIXED STOP FOR TABLE SLIDE FACTORY ACCESSORY
DUAL RATE AUTOMATIC PLUNGE INFEED OPTION,
 "COARSE" & "FINE" CYCLE FEED OPTION

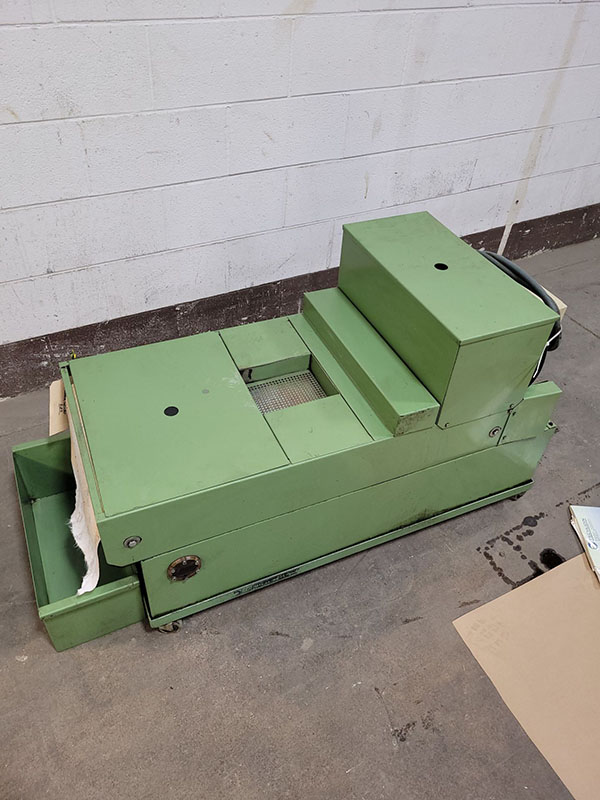

COOLANT SYSTEM WITH PAPER FILTRATION
COOLANT GUARDING
WORK LIGHT
(2) ADDITIONAL GRINDING WHEEL HUBS, WITH GRINDING WHEELS
DIAL INDICATOR, FOR TABLE SWIVEL ADJUSTMENT
CENTER IN WORKHEAD
RADIUS DRESSER

WORKHEAD SPINDLE IS A LARGE TAPER, No. 5 MT.
 THIS ALLOWS ONE TO USE A 5C COLLET WITH AN
 ATTACHMENT THRU THE SPINDLE, EITHER A
 DRAW BAR, A QUICK ACTING LEVER TYPE UNIT,
 OR A PNEUMATIC POWER CLOSER TYPE.

MACHINE MANUAL, COMPLETE DOCUMENTATION

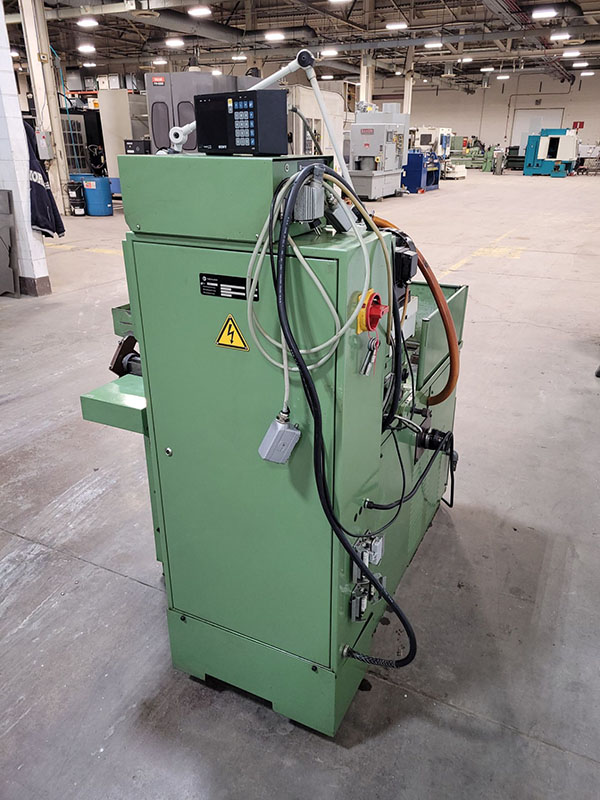

HIGH-TYPE ELECTRICAL CABINET, ATTACHED TO MACHINE
WHEELHEAD MOTOR, 3 KW (4 H.P.), 3/60/230-460 VOLTS
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS
MACHINE IS WIRED FOR 3/60/230 VOLTS, 5.6 KVA



** MADE IN GRENCHEN, SWITZERLAND **
** ORIGINAL & BEAUTIFUL - EXCEPTIONAL CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
