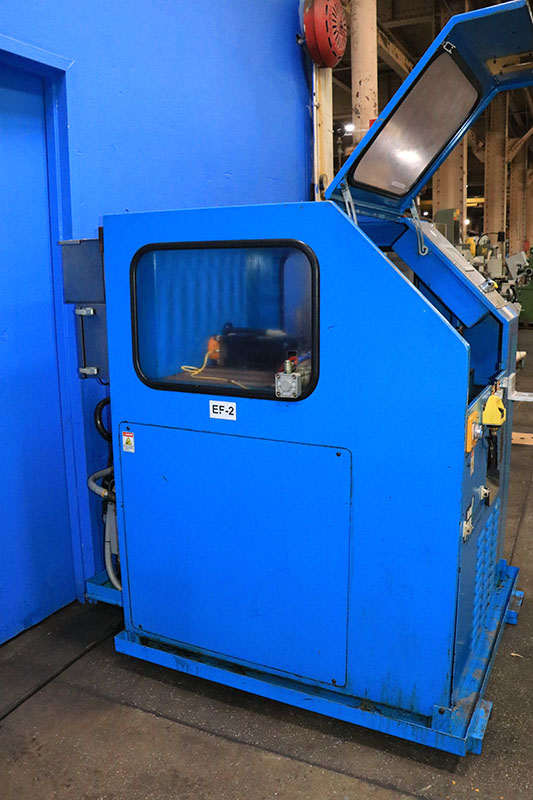

Wauseon 1003 HY TUBE END FORMING MACHINERY

Price on Request

Make:

Wauseon

Model:

1003 HY

Year:

Ref #:

178606

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

---

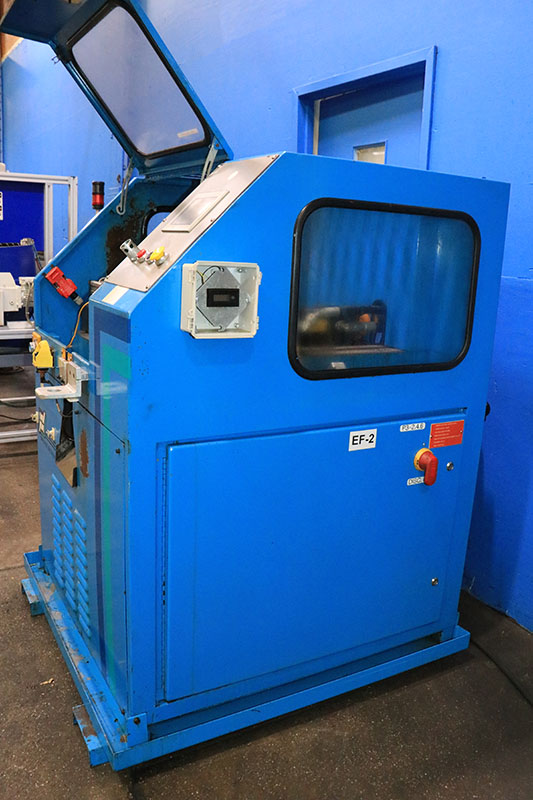

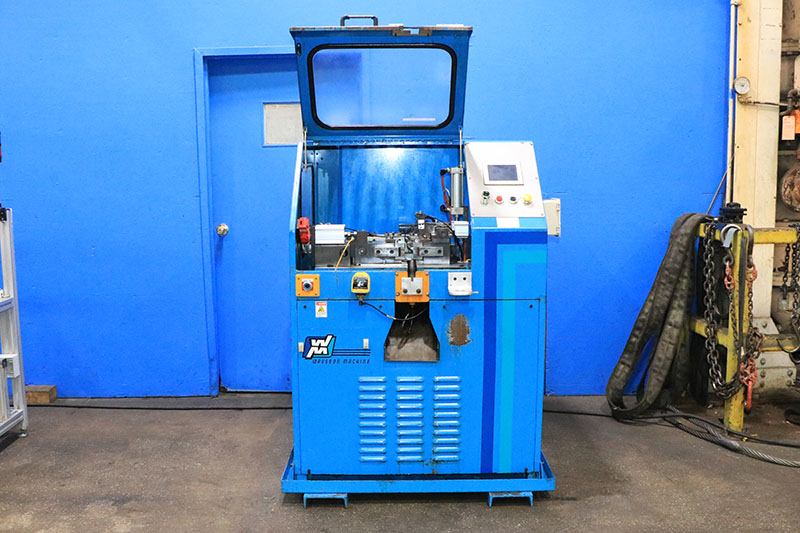

WAUSEON HYDRAULIC END FORMING MACHINE

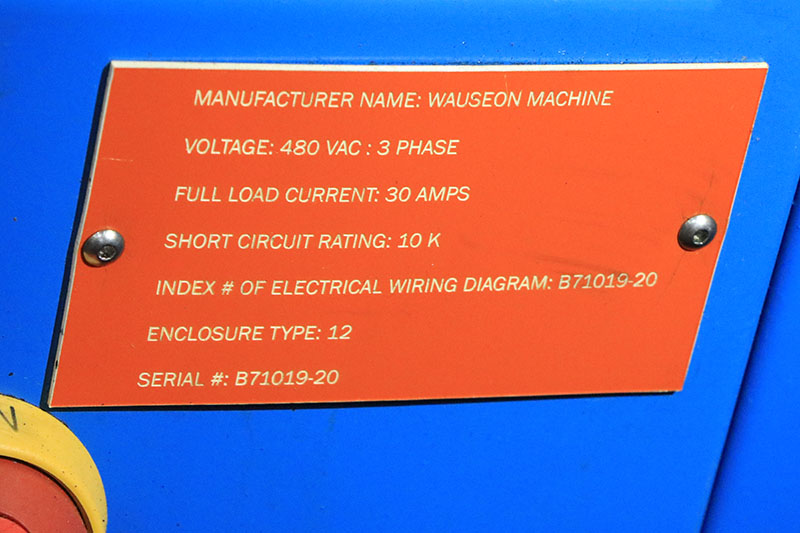

MODEL 1003 HY      S/N B71019-20



CAPACITY ................. 1"

RAM CYLINDER (HYD) ....... 3-1/4" BORE X 3" STROKE

MAXIMUM RAM FORCE ........ 8.2 TONS

CLAMP CYLINDER (AIR) ..... 14.5 TONS DURING LOCKUP

SHUTTLE CYLINDER (AIR) ... 3-1/4" BORE

HYDRAULIC POWER UNIT ..... 40 GALLON RESERVOIR

                           15 GPM, PISTON PUMP 2000 PSI

                           7.5 HP, 1800 RPM ODP

                           220/440 3 PHASE 60 Hz

RAM WORKING PRESSURE ..... 1200 PSI VARIABLE

RAW MAXIMUM PRESSURE ..... 2000 PSI

MAXIMUM JAW OPENING ...... 1.50"

AIR REQUIREMENTS ......... 80 PSI



DIMENSIONS: 36" X 36" X 60"H

WEIGHT: 2,500 LBS.



FEATURES:

- CAPABLE OF END FORMING, BEADING, EXPANDING & REDUCING

- GOOD FOR PRODUCTION & PROT0TYPING
