Willis-Bergonzi 850 RADIAL ARM DRILLS

$2,950

Make:: Willis-Bergonzi

Model:: 850

Year:: 1969

Ref #:: 162245

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

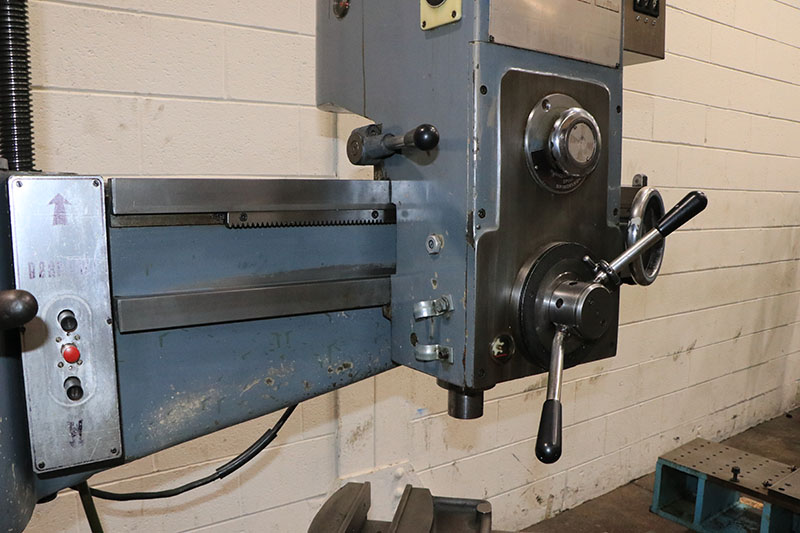

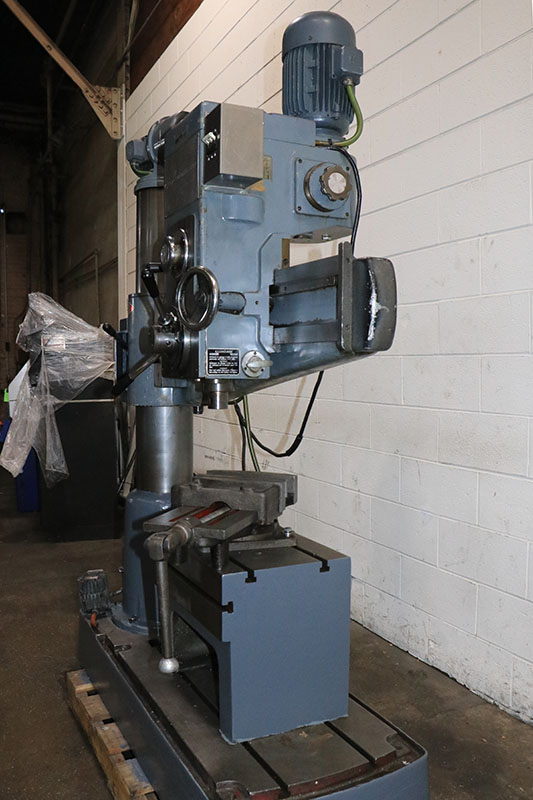

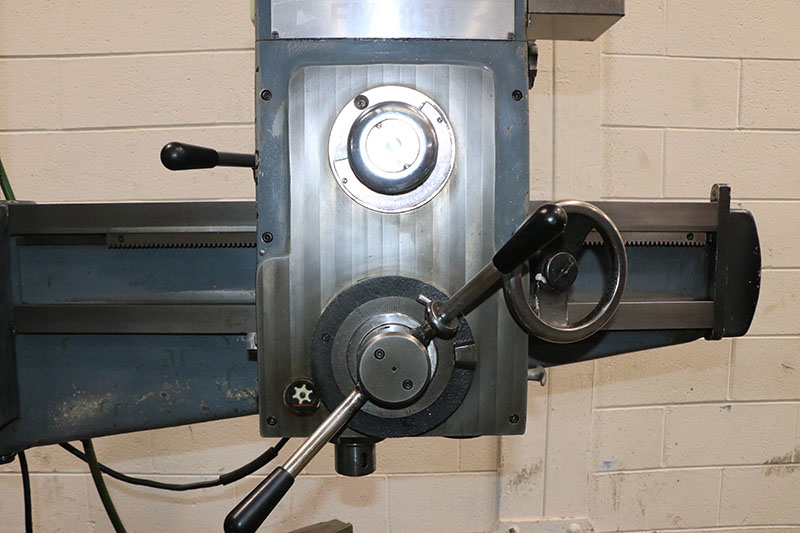

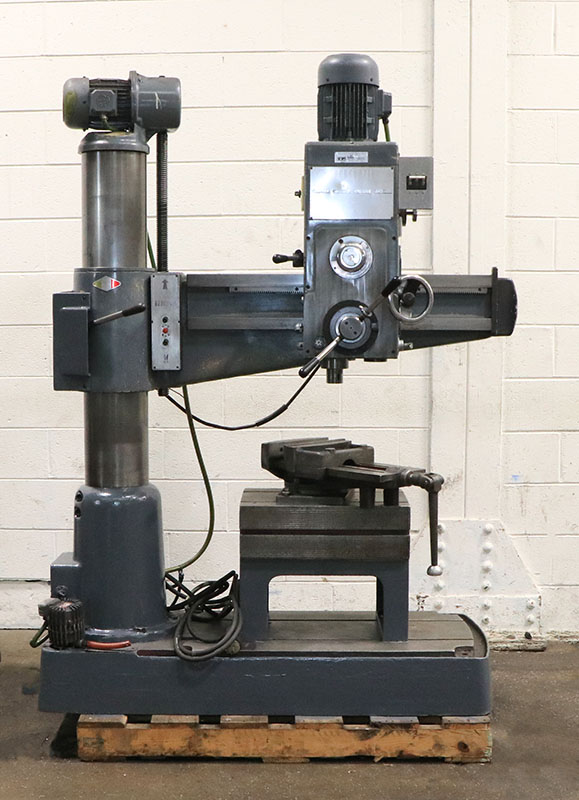

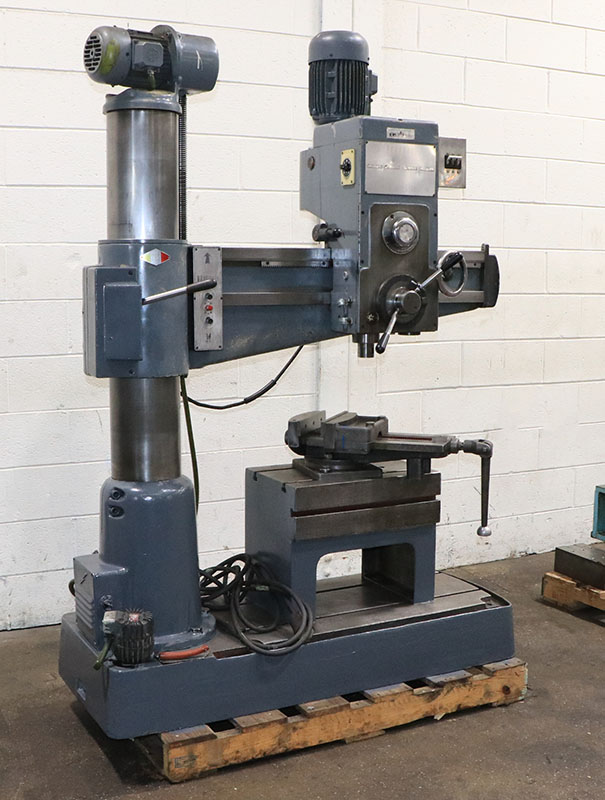

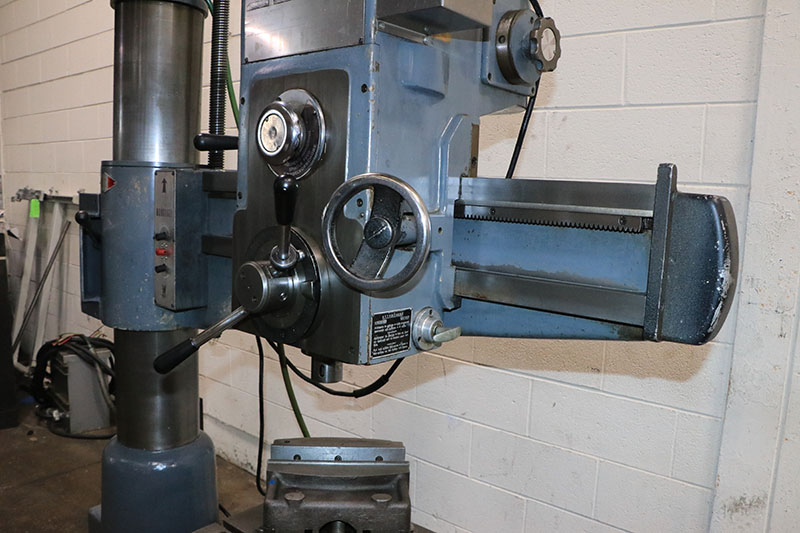

2'9" X 8" WILLIS RADIAL DRILL
MODEL: FM-850, S/N: C-889, NEW: 1970

SPECIFICATIONS:
MAXIMUM DISTANCE SPINDLE TO COLUMN .. 33-1/4"
MINIMUM DISTANCE SPINDLE TO COLUMN .. 9"
COLUMN DIAMETER ..................... 7-7/8"
DISTANCE SPINDLE TO BASE MIN/MAX .... 19-1/4" - 44-7/8"
WORKING SURFACE OF BASE ............. 34-1/4" X 19"
VERTICAL TRAVEL OF SPINDLE IN HEAD .. 6"
TAPER IN SPINDLE .................... #4 MT
SPINDLE FEEDS (3) ................... .003, .008 & .012 IPR
SPINDLE SPEEDS-(8) .................. 95 TO 1000 RPM
DRILLING CAPACITY IN MILD STEEL ..... 1"
APPROXIMATE WEIGHT .................. 2,200 LBS
OVERALL DIMENSIONS HEAD DOWN ........ 77" TALL
                                      23" WIDE
                                      54" LONG

EQUIPPED WITH:
- POWER FEED
- 1 HORSE POWER ELEVATION OF ARM ON COLUMN

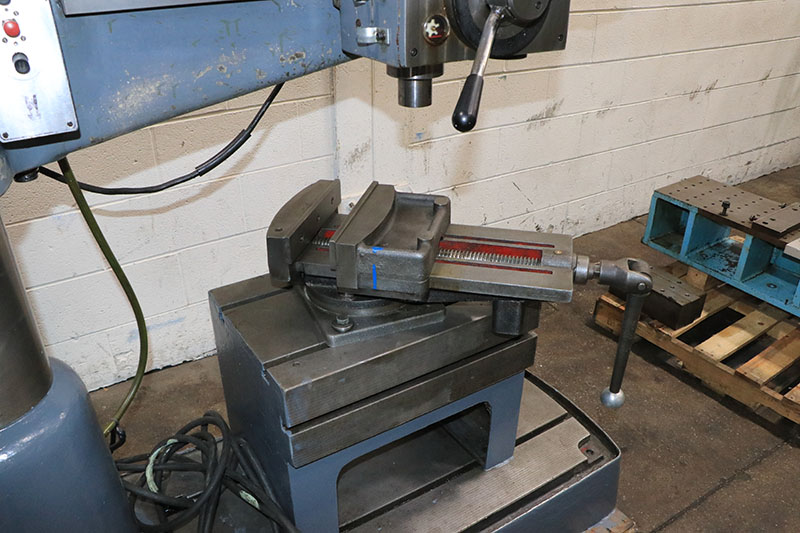

- T-SLOTTED BOX TABLE
- T-SLOTTED BASE
- COOLANT SYSTEM
- 1.7 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
