Acer 1740G ENGINE LATHES

$8,950

Make:: Acer

Model:: 1740G

Year:: 1999

Ref #:: 178535

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

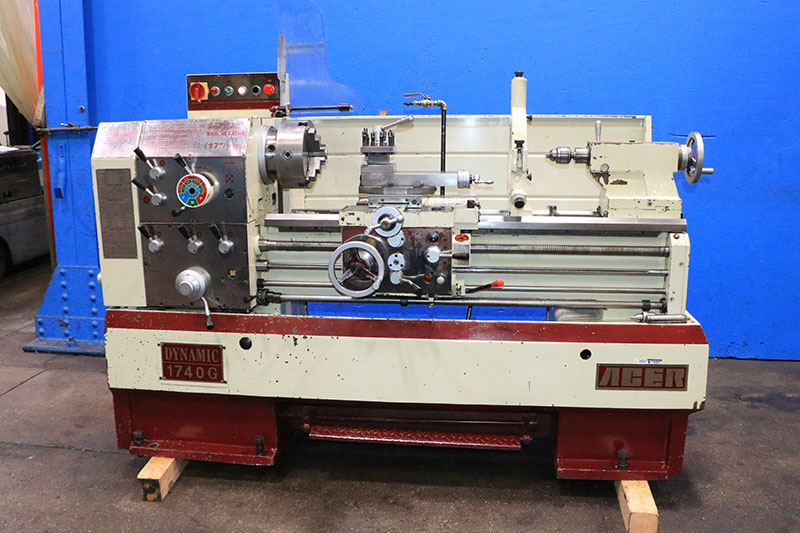

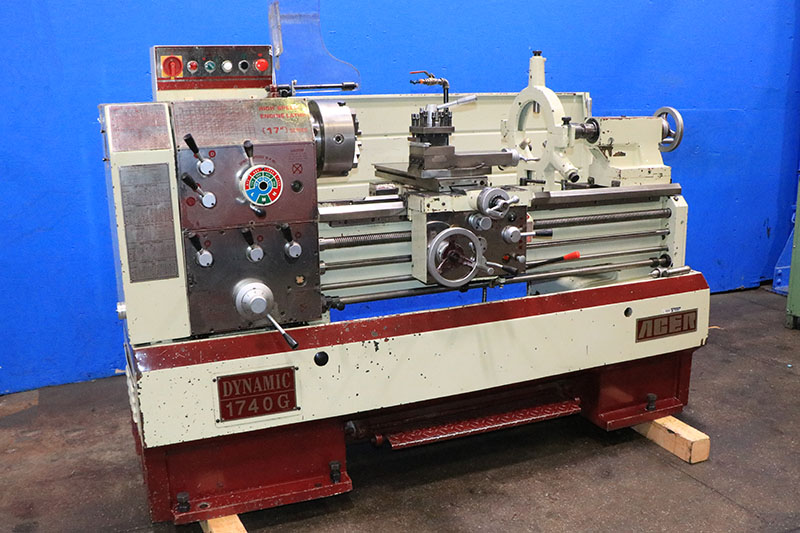

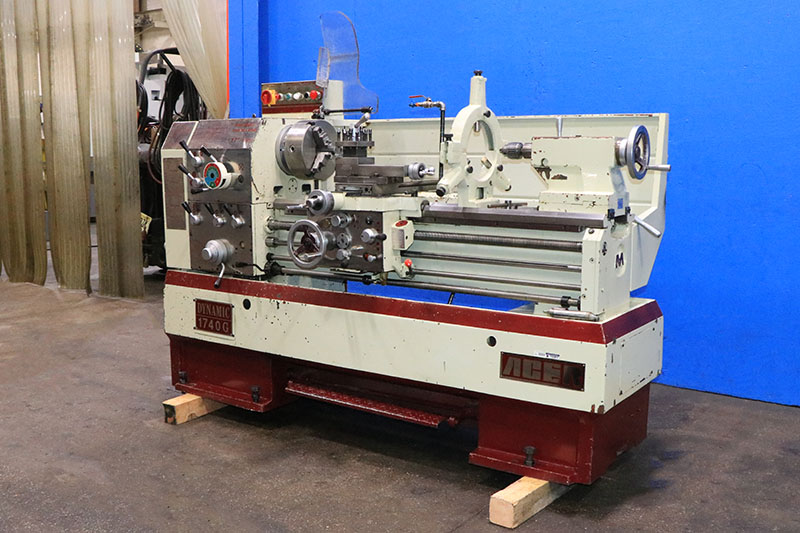

17"/26" x 40" ACER GAP BED ENGINE LATHE
MODEL: 1740G, S/N: 99060557, MFG: 1999

SPECIFICATIONS:
SWING OVER BED ....................... 17"
SWING IN REMOVEABLE GAP .............. 26"
SWING OVER CROSS SLIDE ............... 9-5/8"

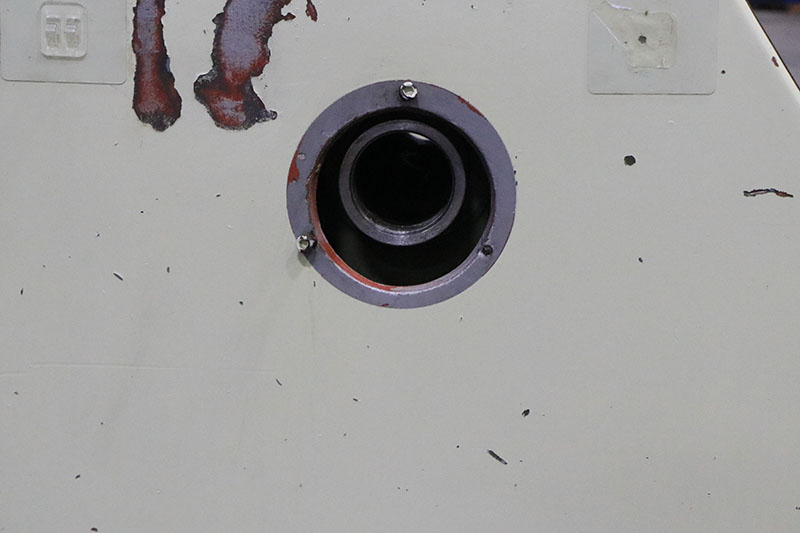

HOLE THRU SPINDLE .................... 2-1/4"
DISTANCE BETWEEN CENTERS ............. 40"
BED WIDTH ............................ 12"
SPINDLE NOSE ......................... D1-6"CAMLOCK

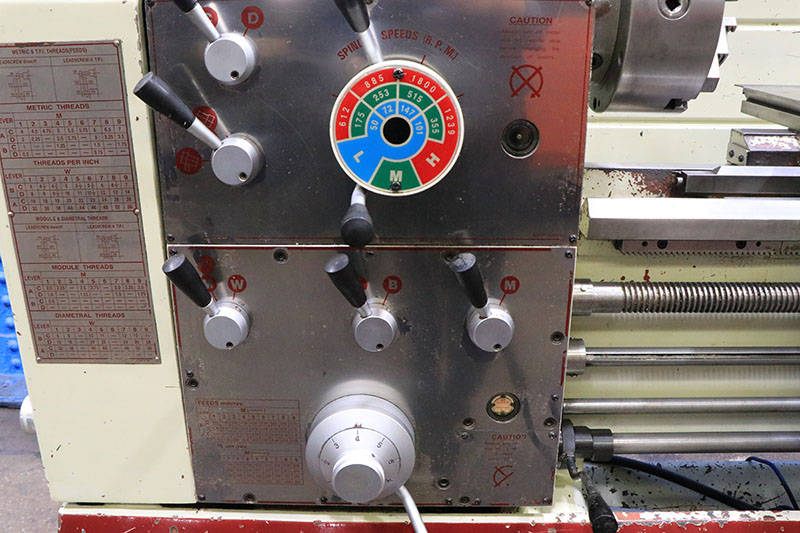

SPINDLE SPEED RANGE (12) ............. 50 - 1800 RPM

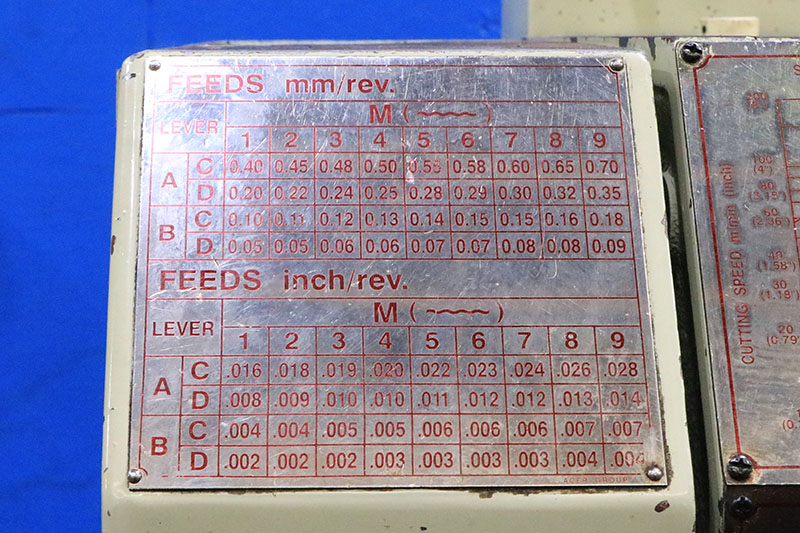

LONGITUDINAL FEED RANGE .............. .002 - .028 IPR
CROSS FEED RANGE ..................... .001 - .014 IPR
ENGLISH THREADING RANGE  ............. 4 - 56 TPI
METRIC THREADING RANGE ............... .5 - 7 mm
TAILSTOCK SPINDLE TRAVEL ............. 6"
TAILSTOCK SPINDLE TAPER .............. #4MT
APPROXIMATE DIMENSIONS ............... 90"L X 40"W
APPROX WEIGHT ........................ 3,950 LBS


EQUIPPED WITH:

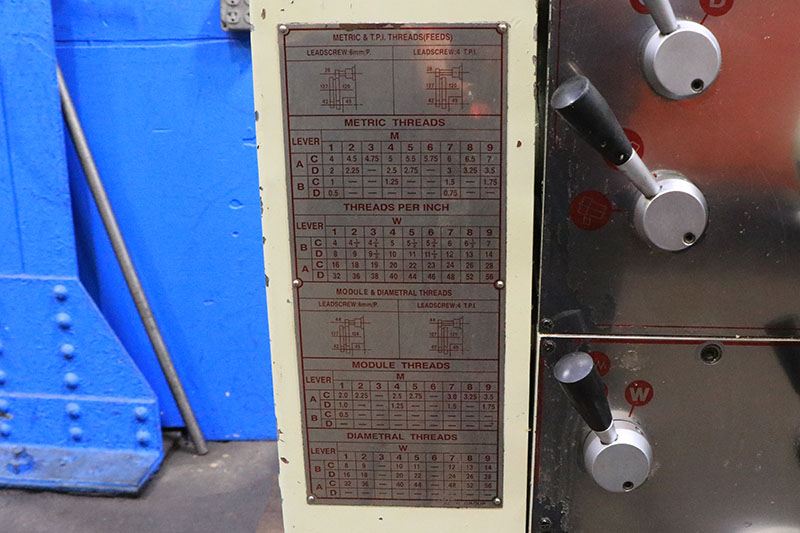

INCH/METRIC THREADING

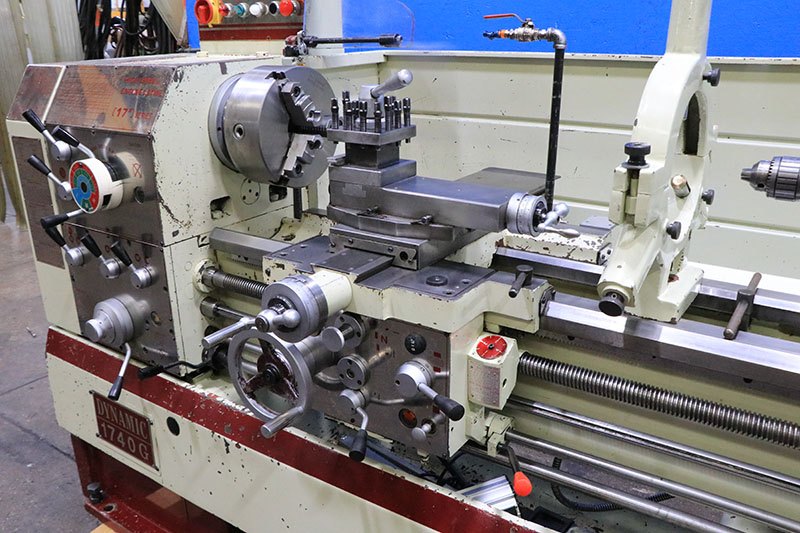

9-3/4" 3-JAW CHUCK
TOOLPOST

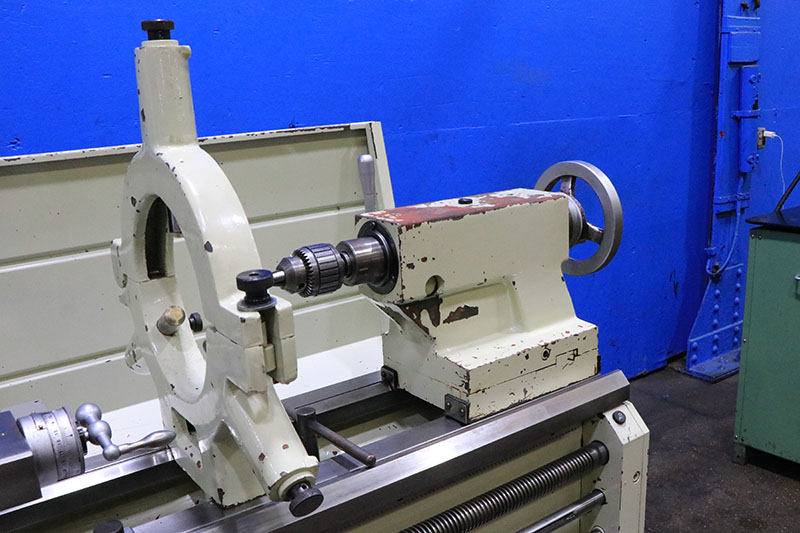

STEADY REST
THREAD DIAL INDICATOR
3/4" JACOBS DRILL CHUCK
LIVE & DEAD CENTERS
COOLANT SYSTEM
FOOT BRAKE
HARDENED & GROUND BEDWAYS
7-1/2 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
