Romi T-14 ENGINE LATHES

Price on Request

Make:
Romi
Model:
T-14
Year:
2001
Ref #:
178216

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

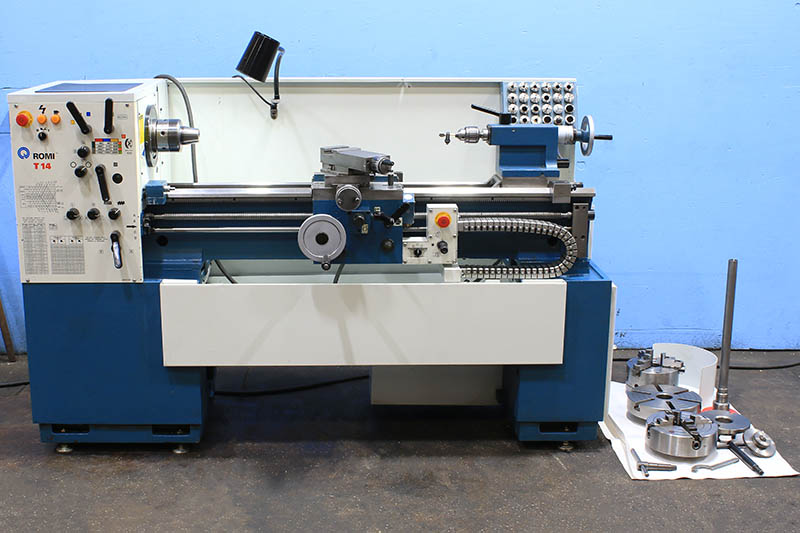

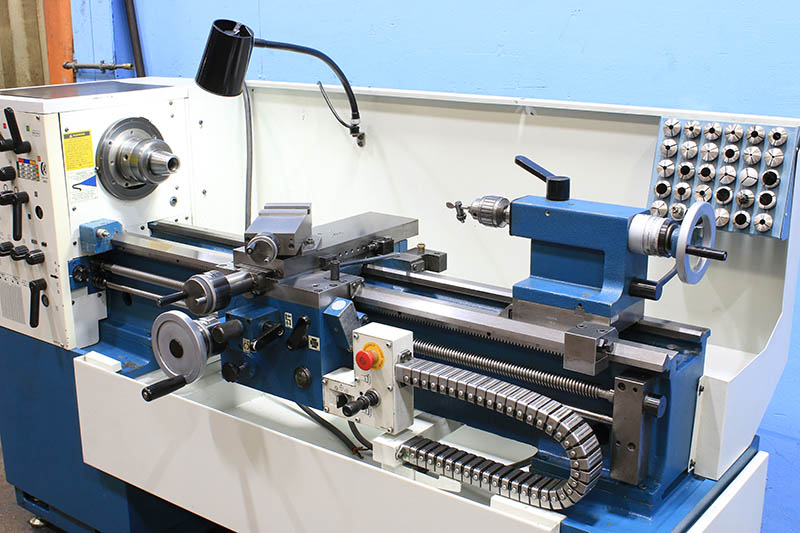

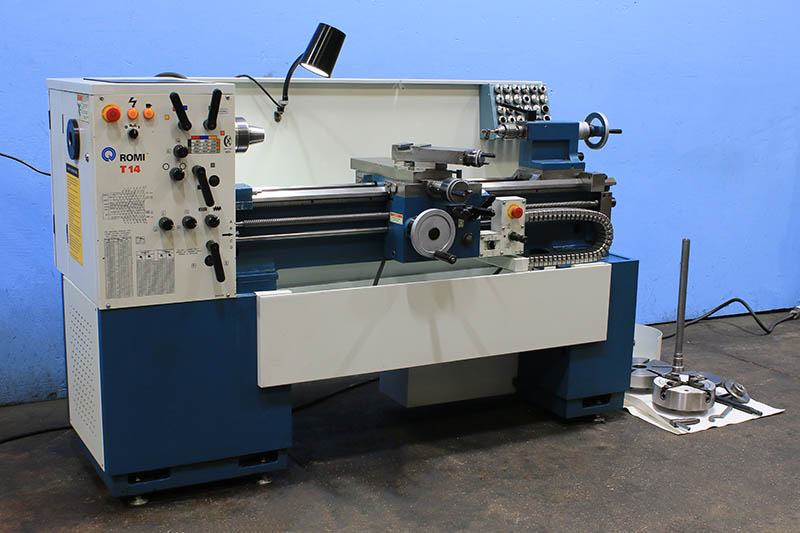

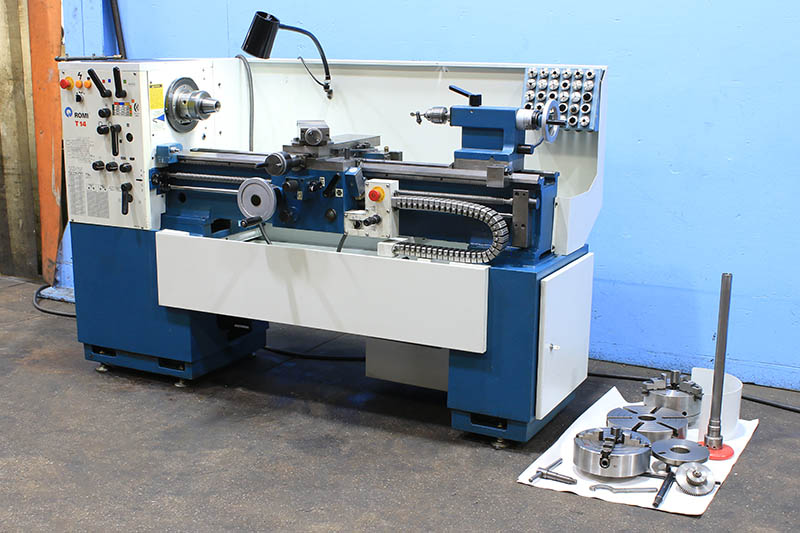

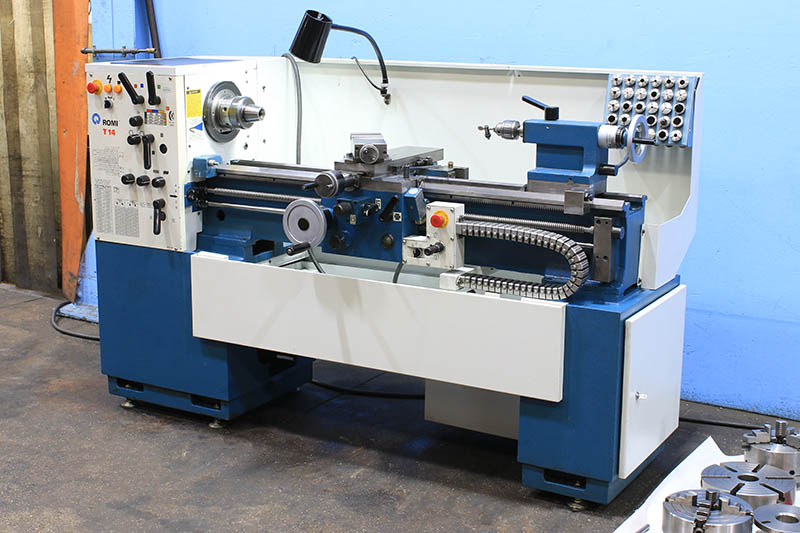

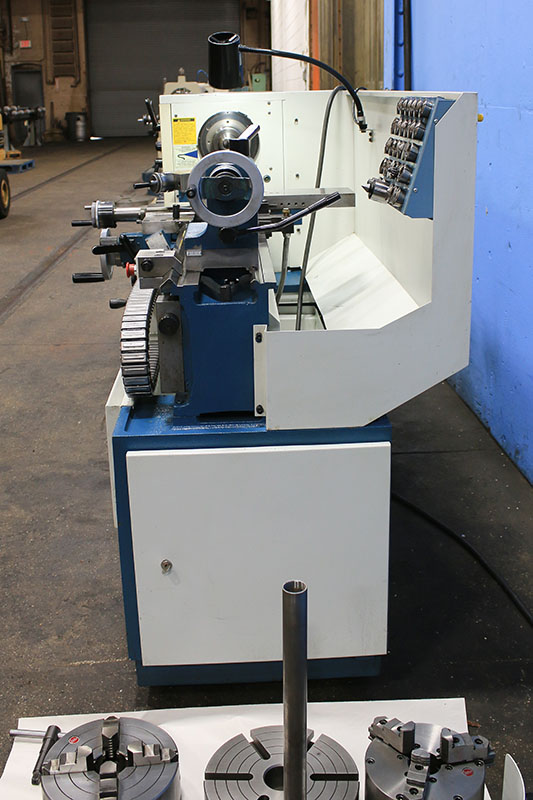

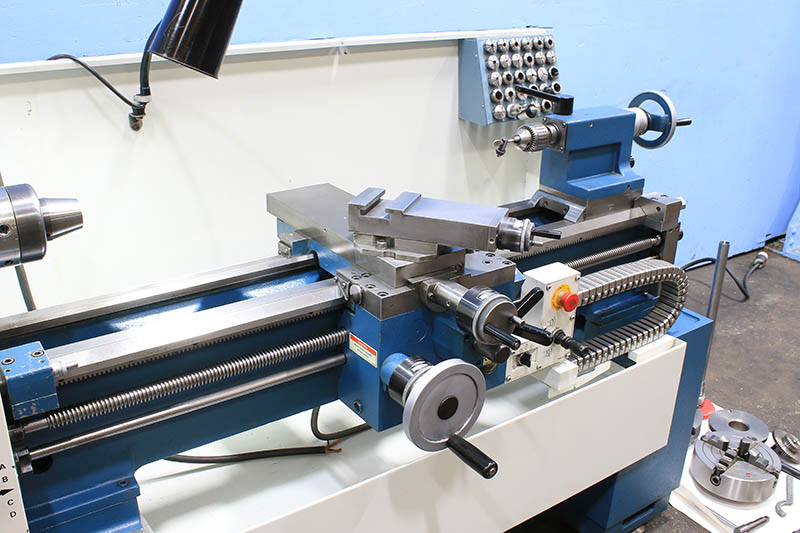

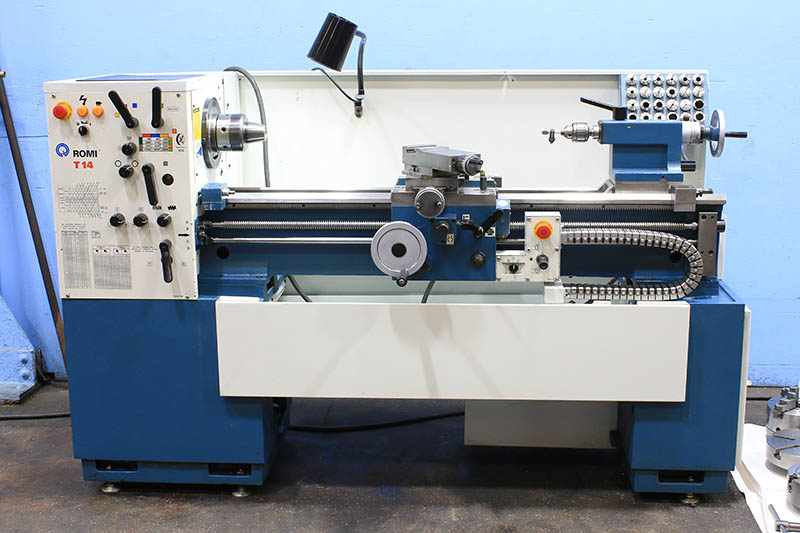

14" X 40" ROMI ENGINE LATHE

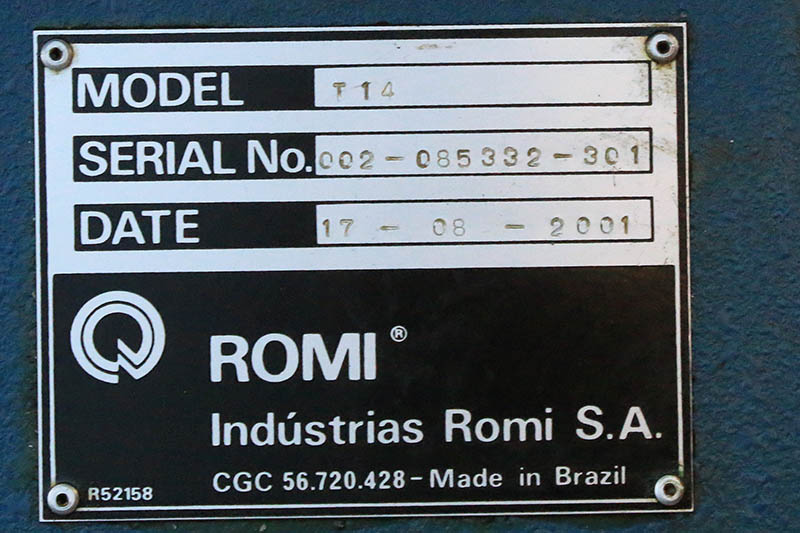

MODEL: T-14, S/N: 085332, NEW: 2001

SPECIFICATIONS:
SWING OVER BED .......................... 14"
SWING OVER CARRIAGE WINGS ............... 11.42"
SWING OVER CROSS SLIDE .................. 7.28"
DISTANCE BETWEEN CENTERS ................ 40"
BED WIDTH ............................... 8.86"

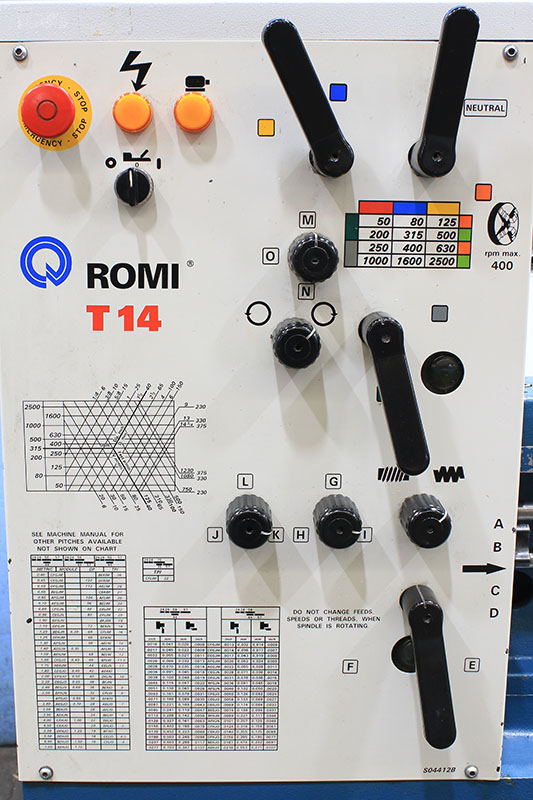

SPINDLE SPEED RANGE (12) ................ 50 - 2,500 R.P.M.
HOLE THROUGH SPINDLE .................... 1.57"
SPINDLE NOSE CAMLOCK .................... D1-4"
AMERICAN STANDARD THREADING RANGE (46) .. 4 TO 36 T.P.I.
METRIC THREADING RANGE (46) ............. 0.4 TO 7 MM
FEED CHANGES:
    LONGITUDINAL (20) ................... 0.00017 - .0293 IPR
    CROSS (20) .......................... 0.0008 - .0144 IPR

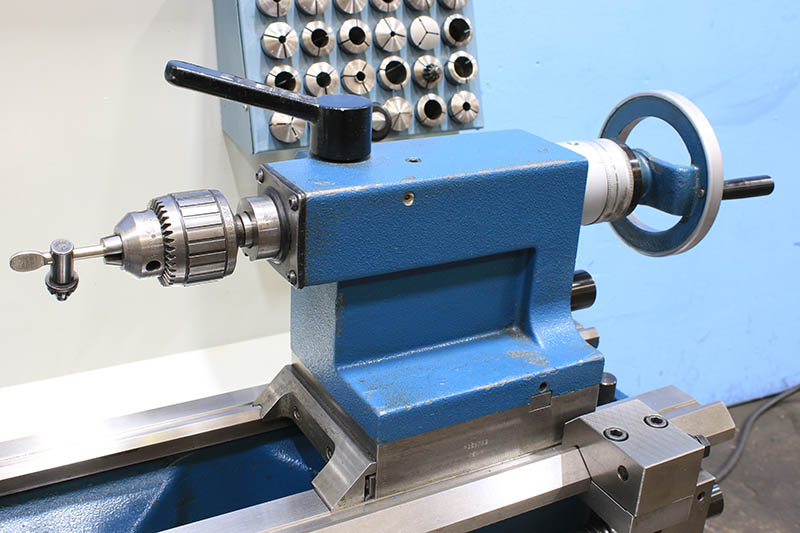

TAILSTOCK SPINDLE TAPER ................. #3MT
TAILSTOCK SPINDLE DIAMETER .............. 1.73"
TAILSTOCK SPINDLE TRAVEL ................ 4.72"
APPROXIMATE DIMENSIONS .................. 30"W x 80"L
APPROXIMATE WEIGHT ...................... 2,400 LBS.

EQUIPPED WITH:
INDUCTION HARDENED AND GROUND BED WAYS
INCH AND METRIC THREADING CAPABILITY

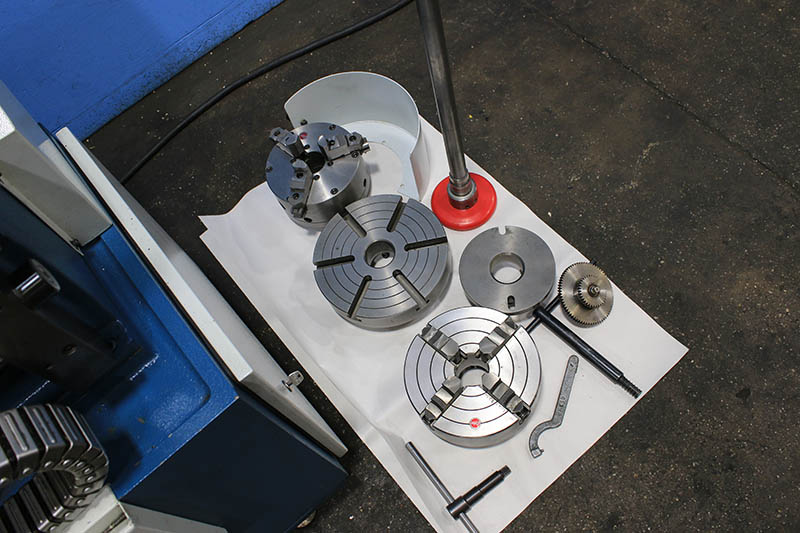

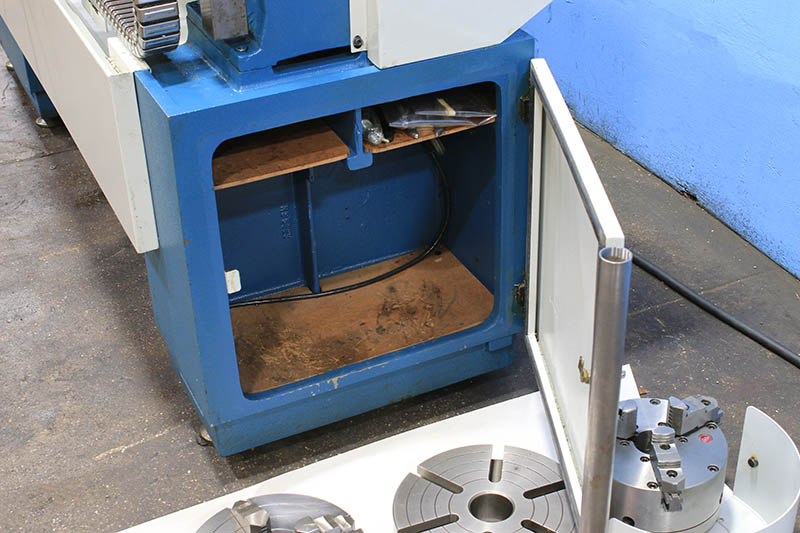

3-JAW CHUCK
4-JAW CHUCK
FACEPLATE

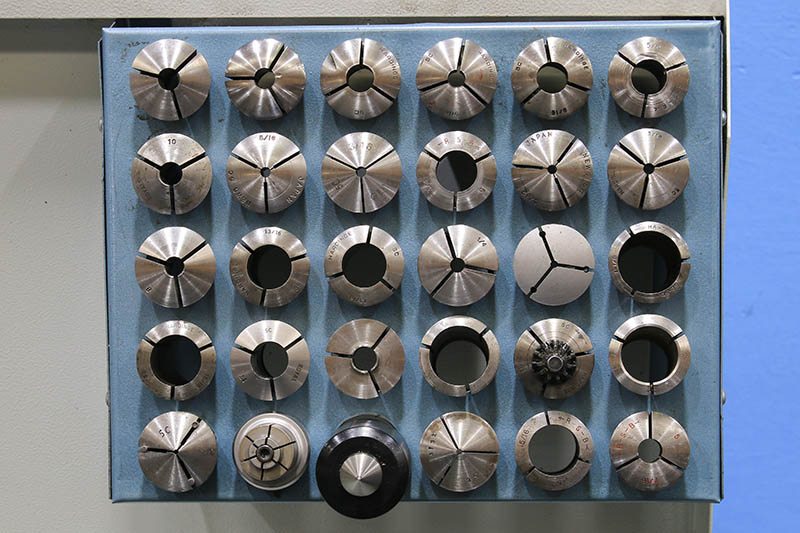

5C COLLET NOSE WITH DRAW BAR
JACOBS DRILL CHUCK
LIVE CENTER
THREAD DIAL INDICATOR
ADJUSTABLE CARRIAGE STOP
REMOVABLE CHIP PAN
COOLANT SYSTEM WITH SPLASH GUARD
5 HORSE POWER MAIN MOTOR
