Acer 2980G Taper, DRO, 4-Jaw, Steady, ENGINE LATHES

Price on Request

Make:: Acer

Model:: 2980G Taper, DRO, 4-Jaw, Steady,

Year:: 2002

Ref #:: 178578

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

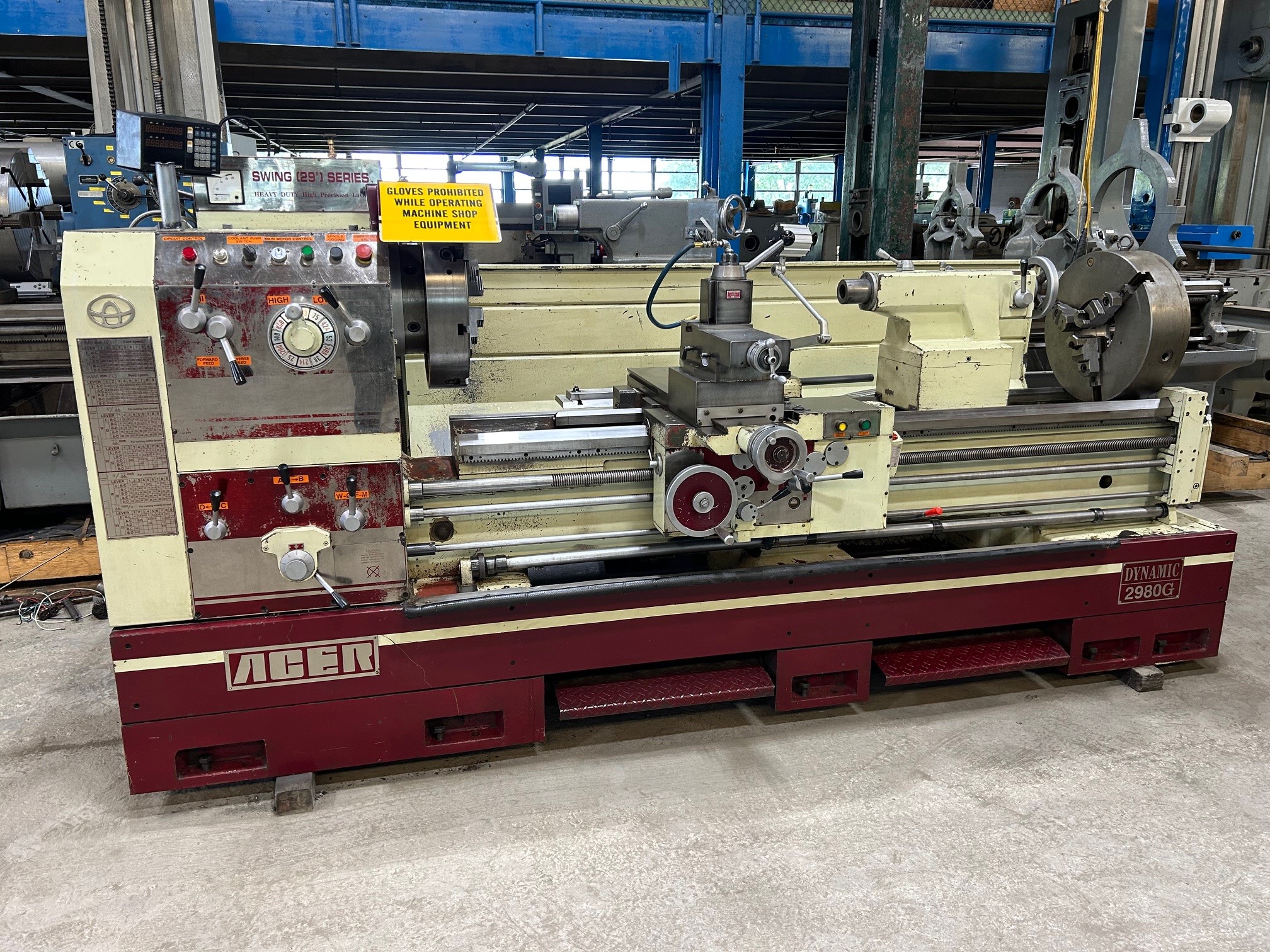

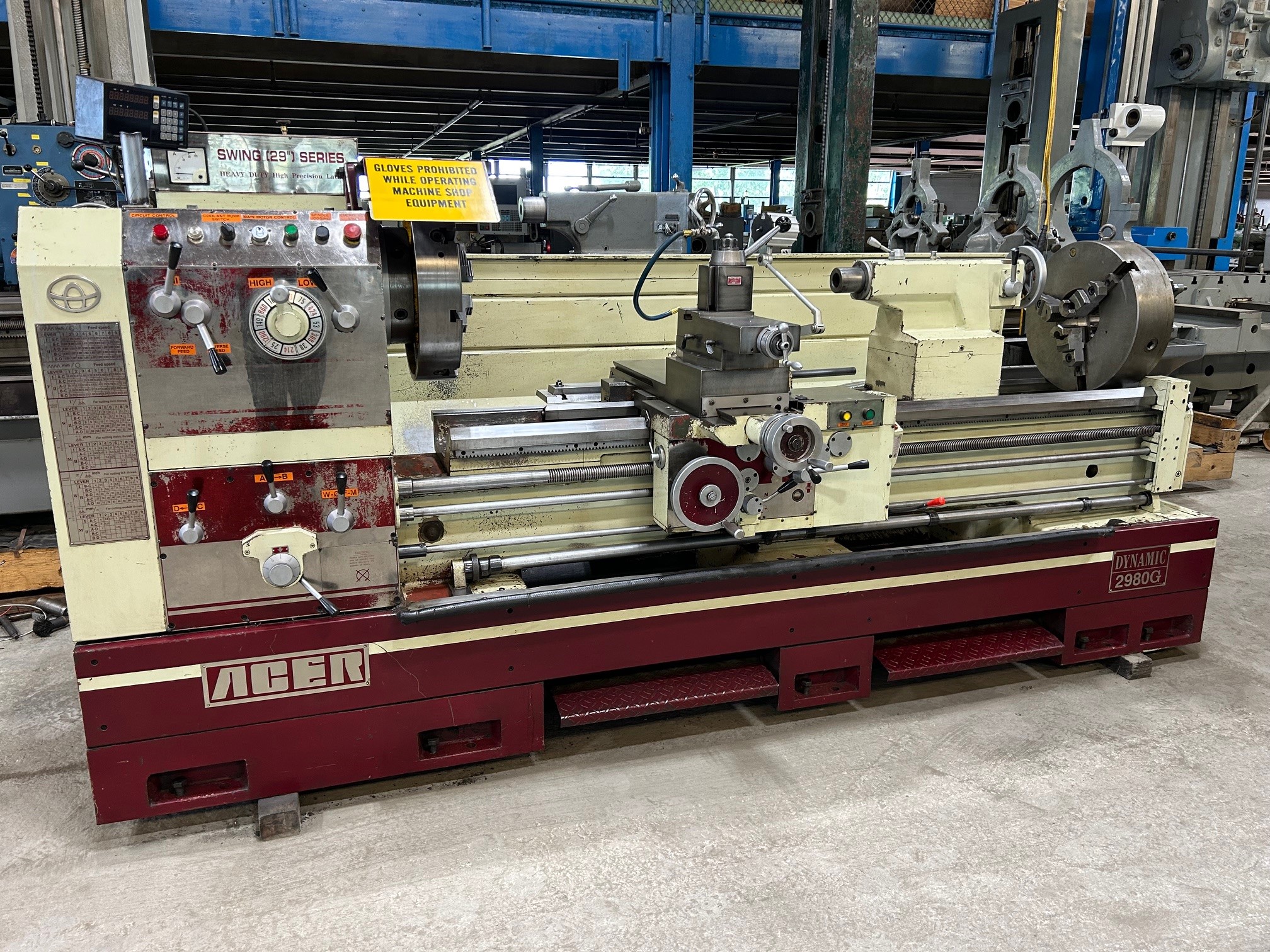

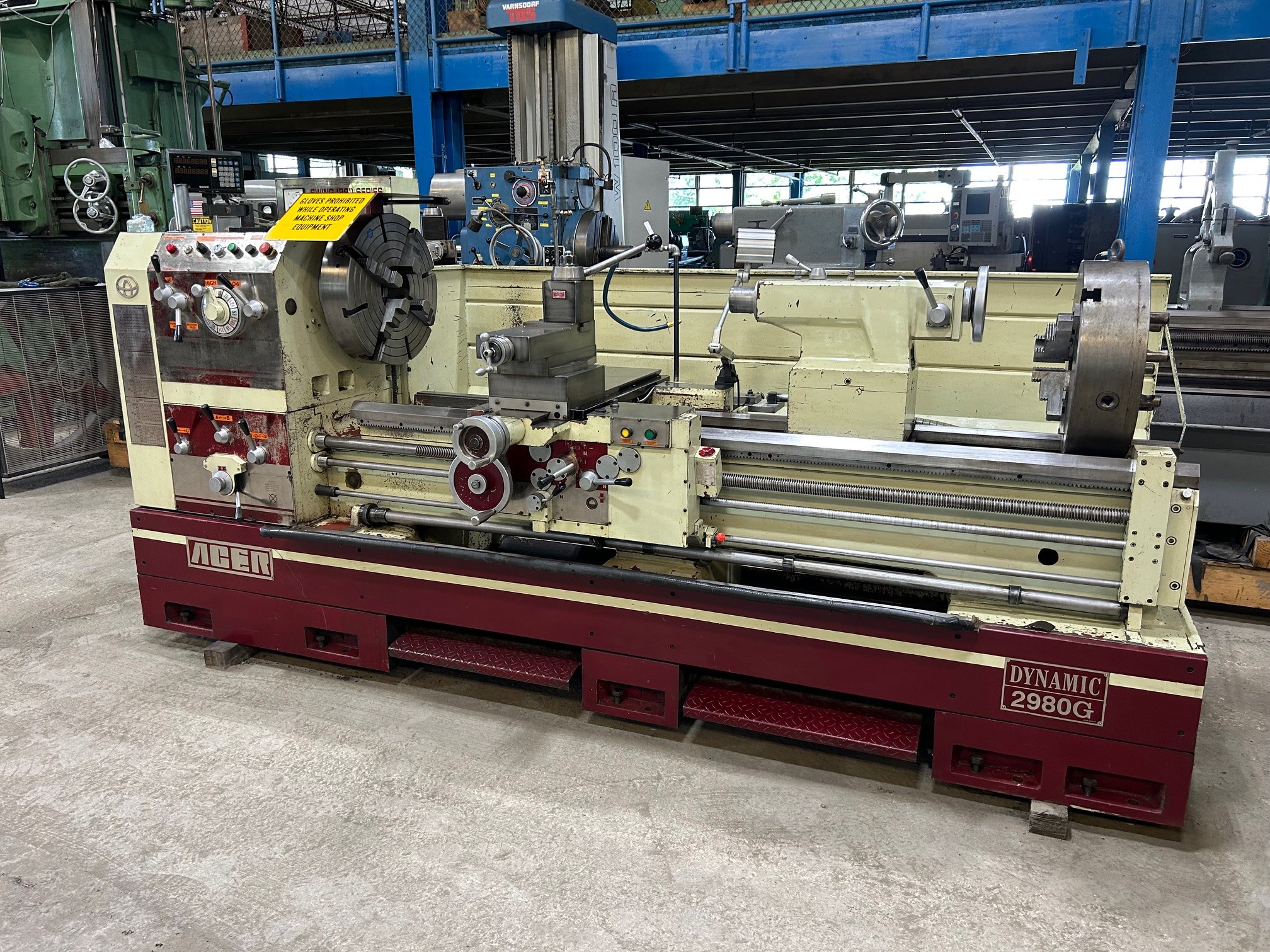

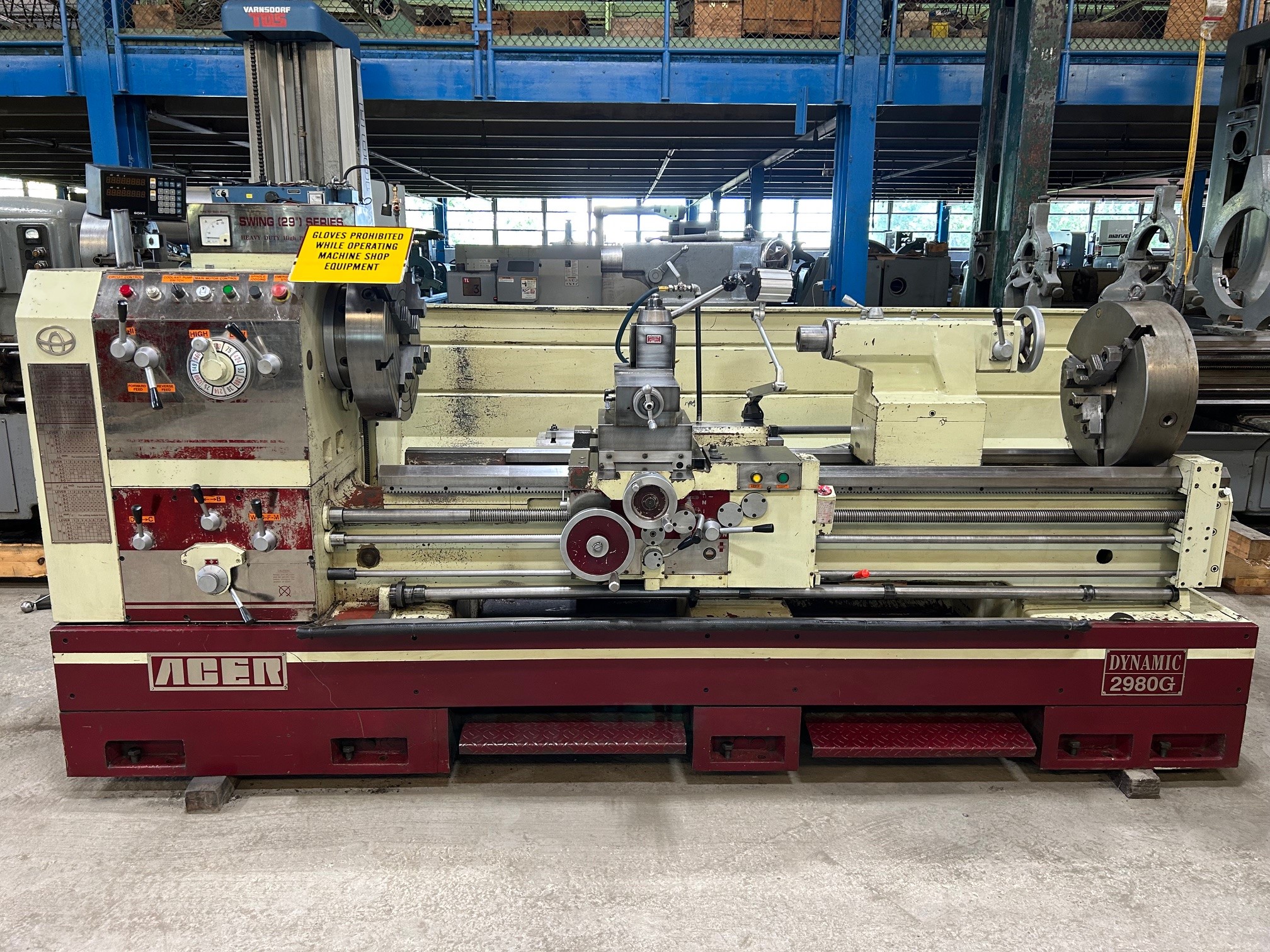

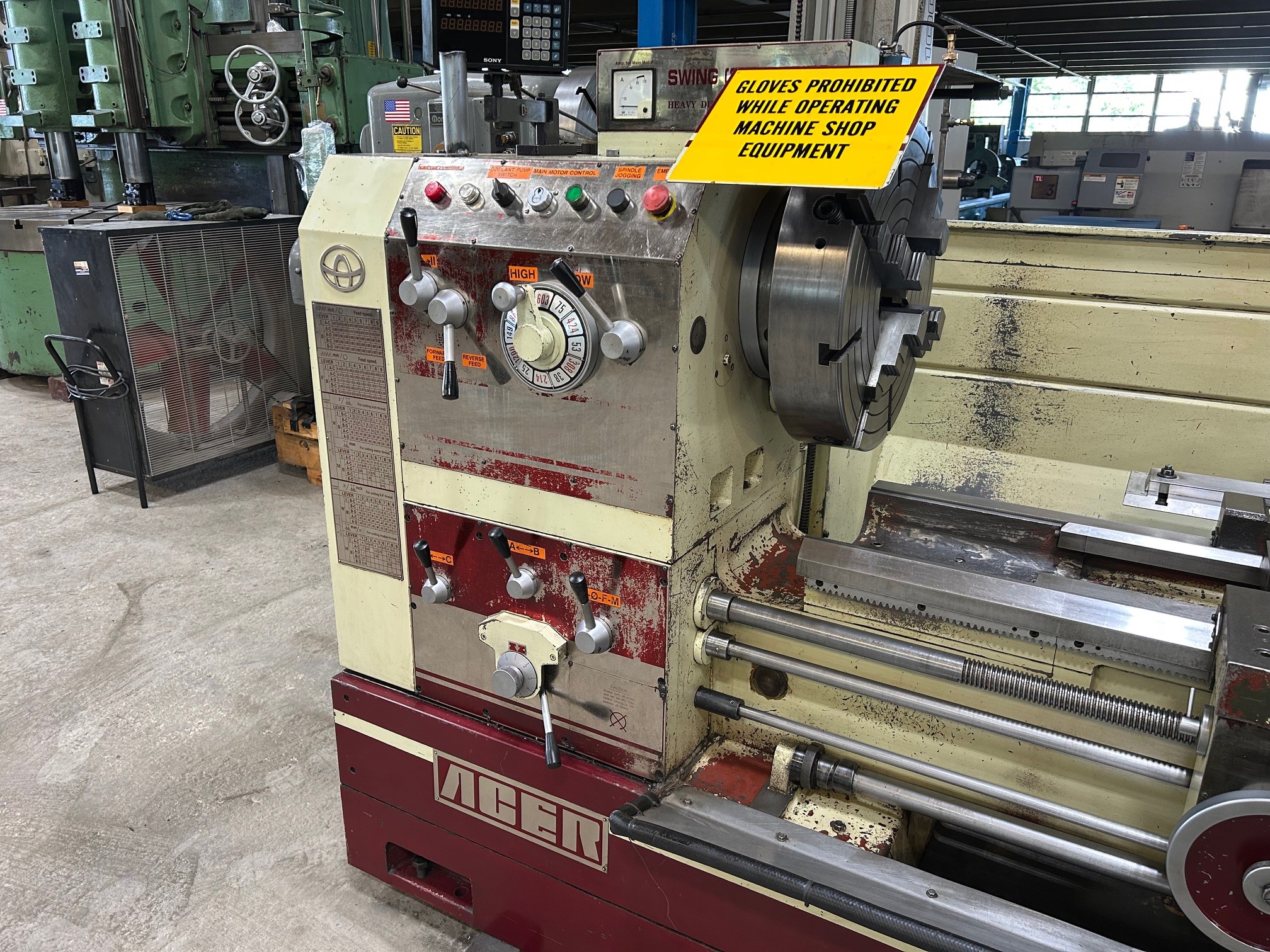

29"/37" x 80" ACER GAP BED ENGINE LATHE
MODEL: 2980G, S/N: N2030124F, YEAR: 2002

SPECIFICATIONS:
SWING OVER BED ....................... 29-1/8"
SWING IN REMOVEABLE GAP .............. 37-25/32"
SWING OVER CROSS SLIDE ............... 20-1/2"
HOLE THRU SPINDLE .................... 4-1/8"
DISTANCE BETWEEN CENTERS ............. 80"
BED WIDTH ............................ 16-1/2"
SPINDLE NOSE ......................... D1-11"CAMLOCK
SPINDLE SPEED RANGE (12) ............. 25 - 1200 RPM
LONGITUDINAL FEED RANGE .............. .0012 - .0287 IPR
CROSS FEED RANGE ..................... .004 - .0118 IPR
ENGLISH THREADING RANGE  ............. 2 - 56 TPI
METRIC THREADING RANGE ............... .5 - 14 mm
TAILSTOCK SPINDLE TRAVEL ............. 7"
TAILSTOCK SPINDLE TAPER .............. #5MT
APPROXIMATE DIMENSIONS ............... 130"L X 50"W
APPROX WEIGHT ........................ 7,250 LBS

EQUIPPED WITH:
INCH/METRIC THREADING

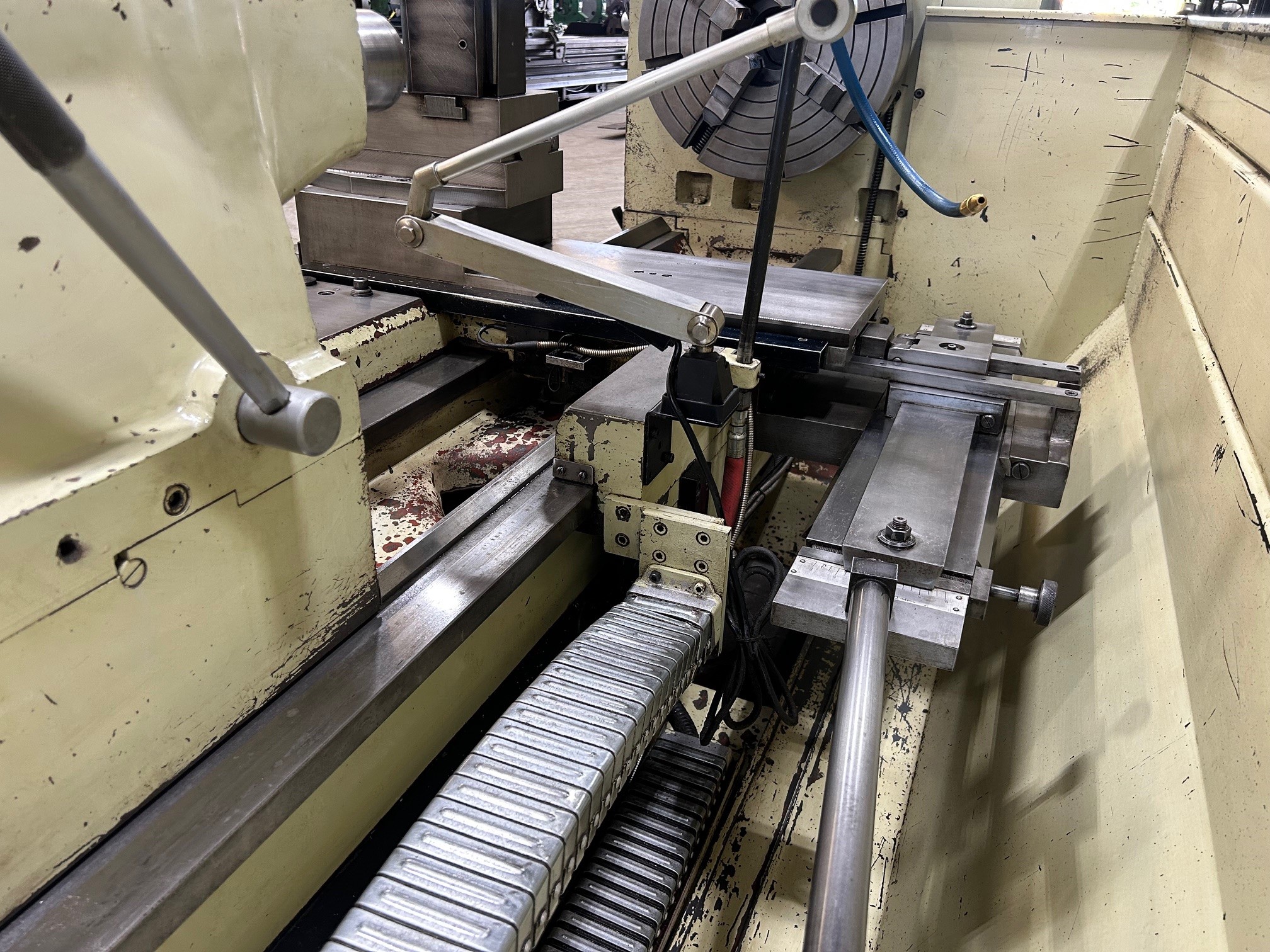

TAPER TURNING ATTACHMENT
20" 4-JAW CHUCK
DIGITAL READOUT
STEADY REST

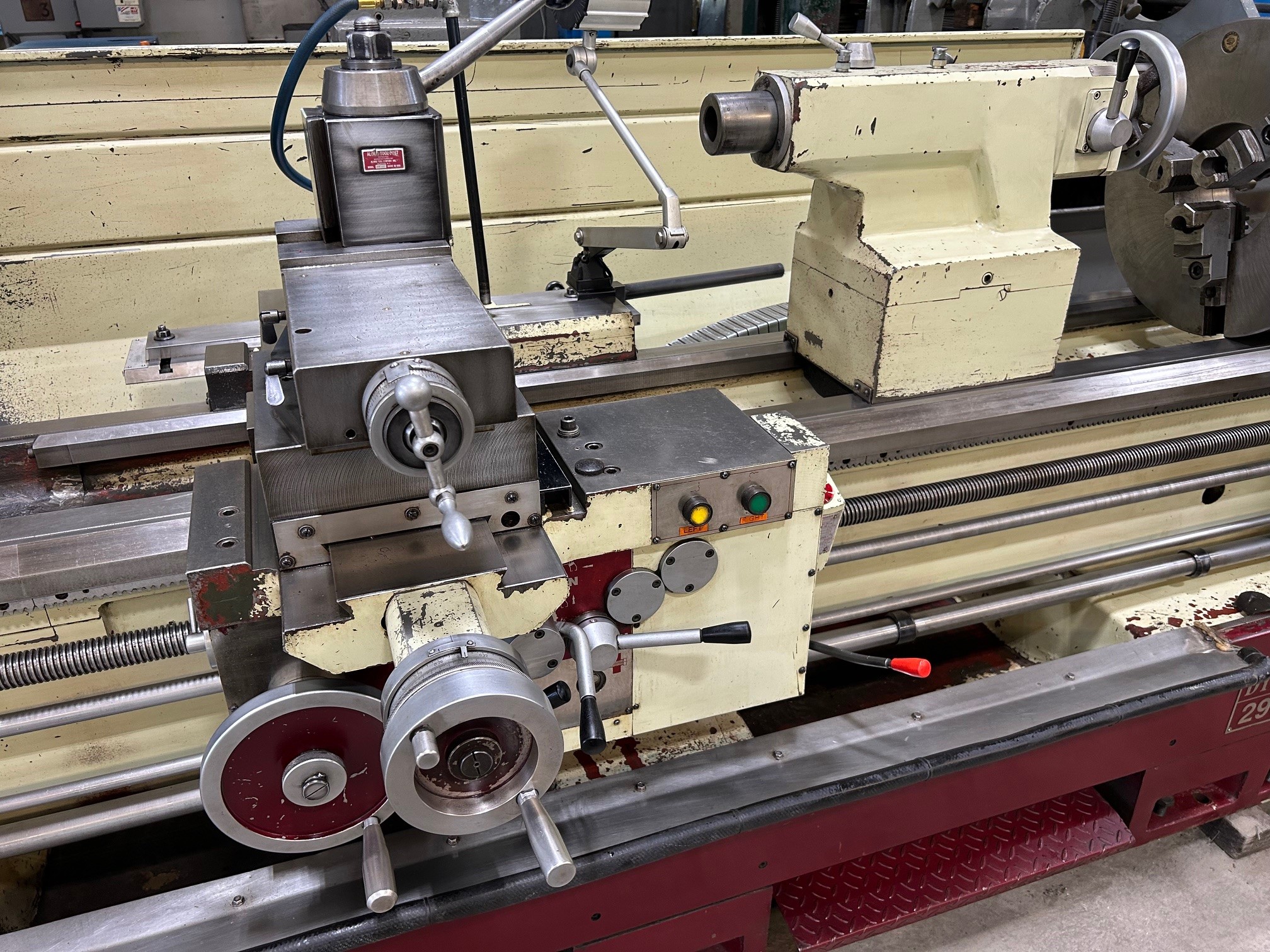

QUICK CHANGE TOOLPOST
THREAD DIAL INDICATOR
COOLANT SYSTEM
FOOT BRAKE
REMOVEABLE CHIP PAN

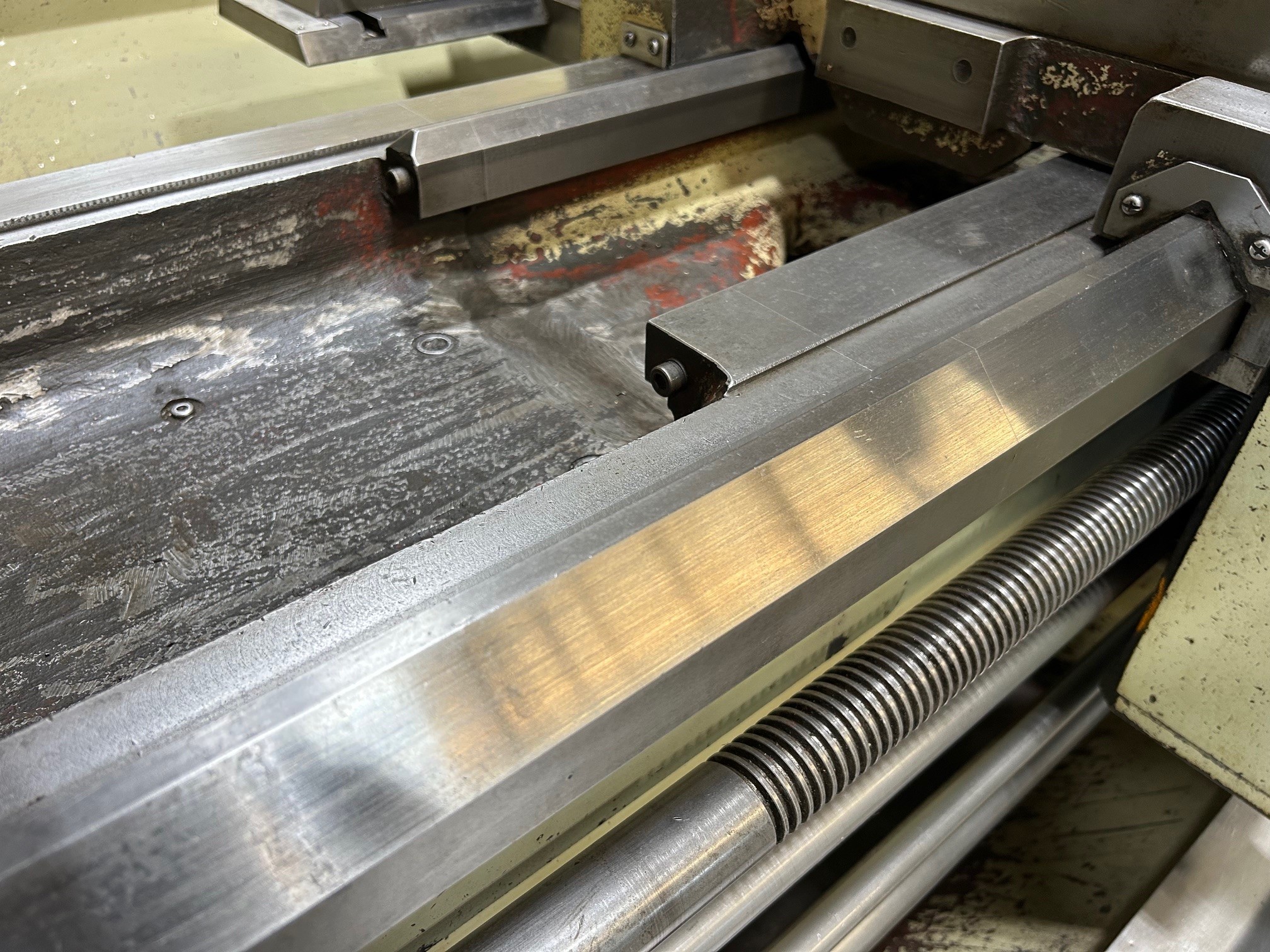

HARDENED & GROUND BEDWAYS
15 HORSE POWER MAIN MOTOR
