Acer 3VKH VERTICAL MILLS - VERTICAL MILLING MACHINES

$6,500

Make:: Acer

Model:: 3VKH

Year:: 1990'S

Ref #:: 179003

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

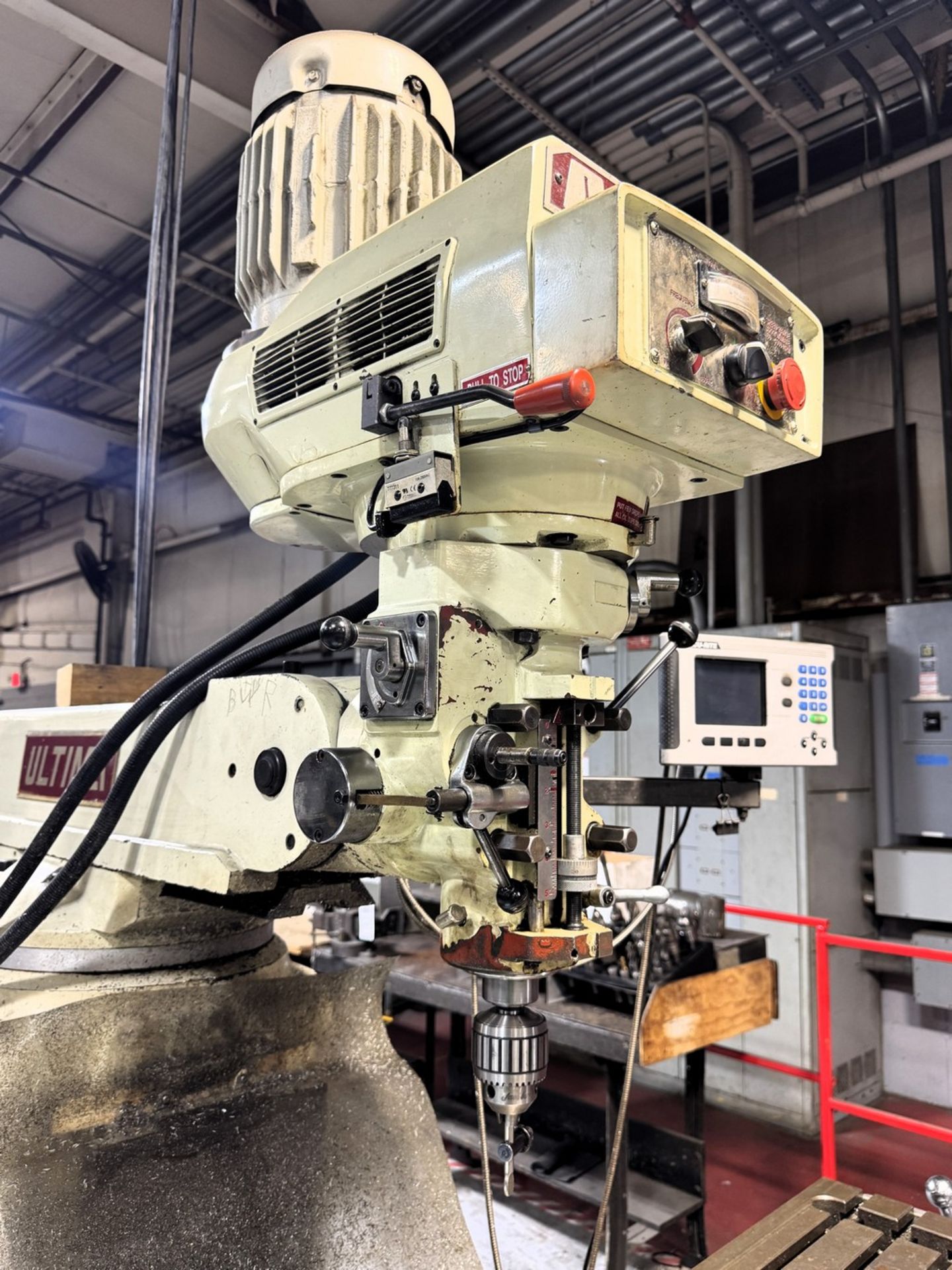

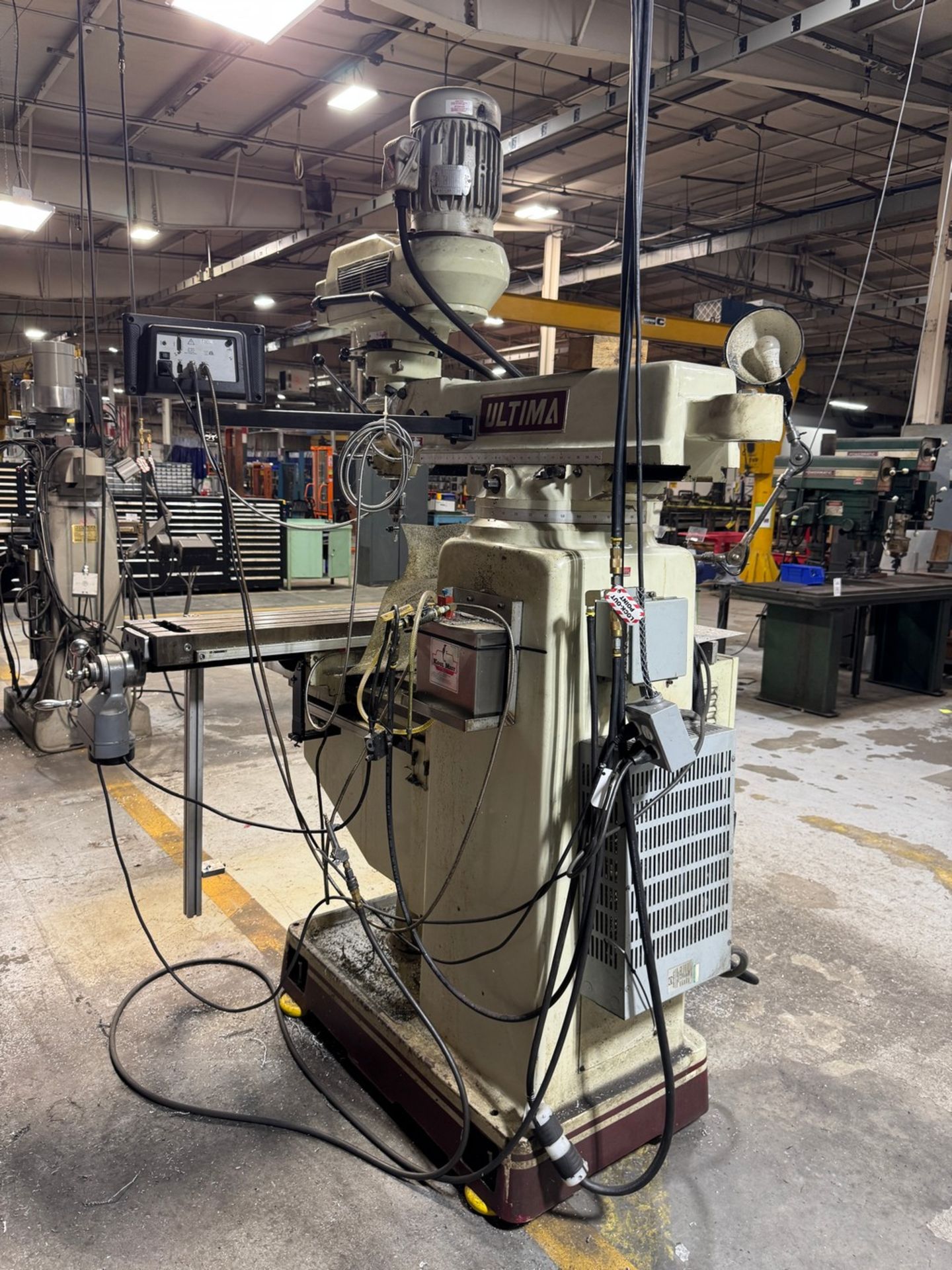

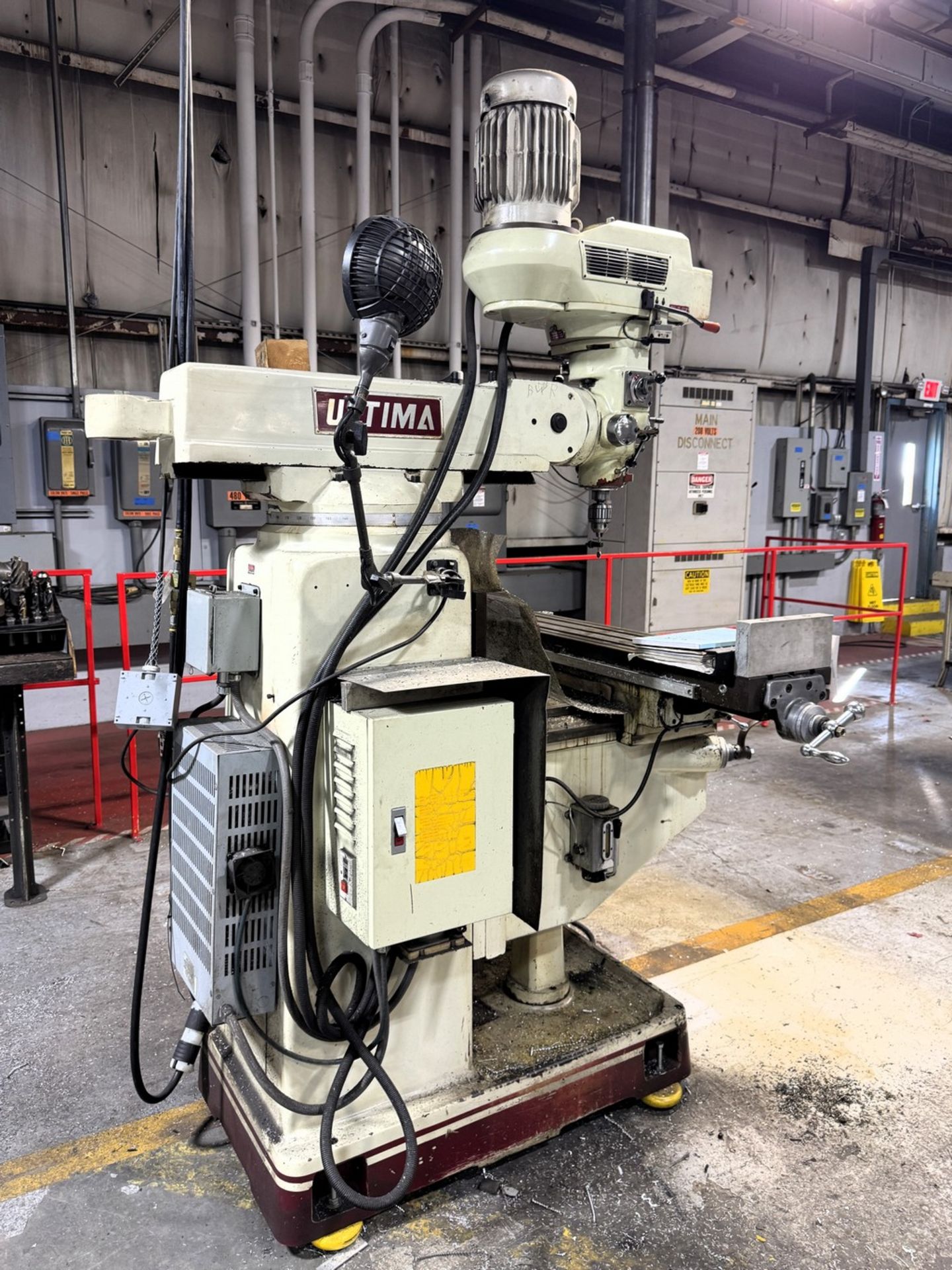

ACER VERTICAL MILLING MACHINE
MODEL EVS-3VKH,    NEW: 1990's

SPECIFICATIONS:

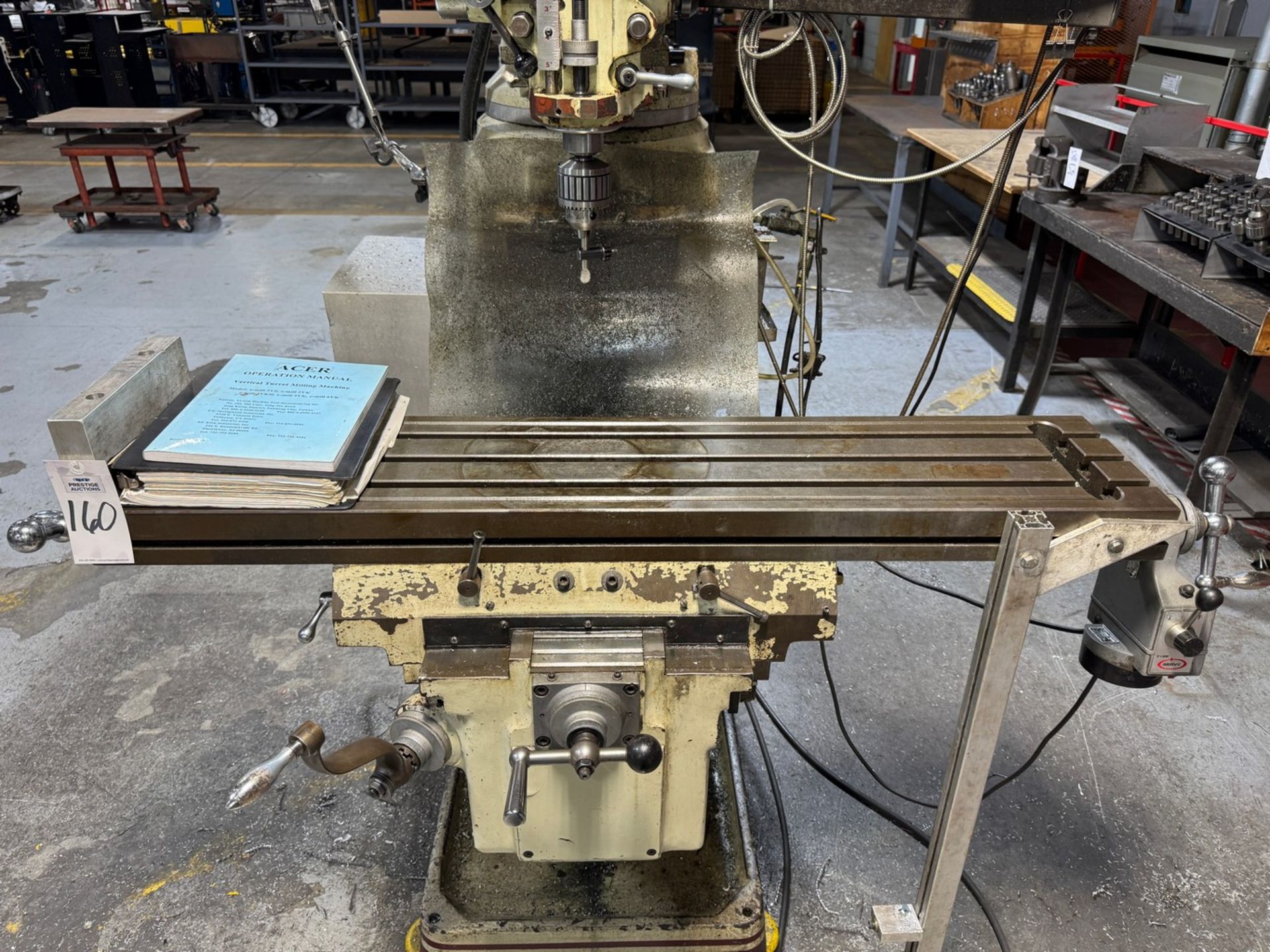

TABLE WORKING SURFACE ......................... 10" X 50"
NUMBER OF T-SLOTS (WIDTH) ..................... 3 (5/8")
RANGE: LONGITUDINAL, MANUAL (X) ............... 32-1/2"
             CROSS (Y) ........................ 16"

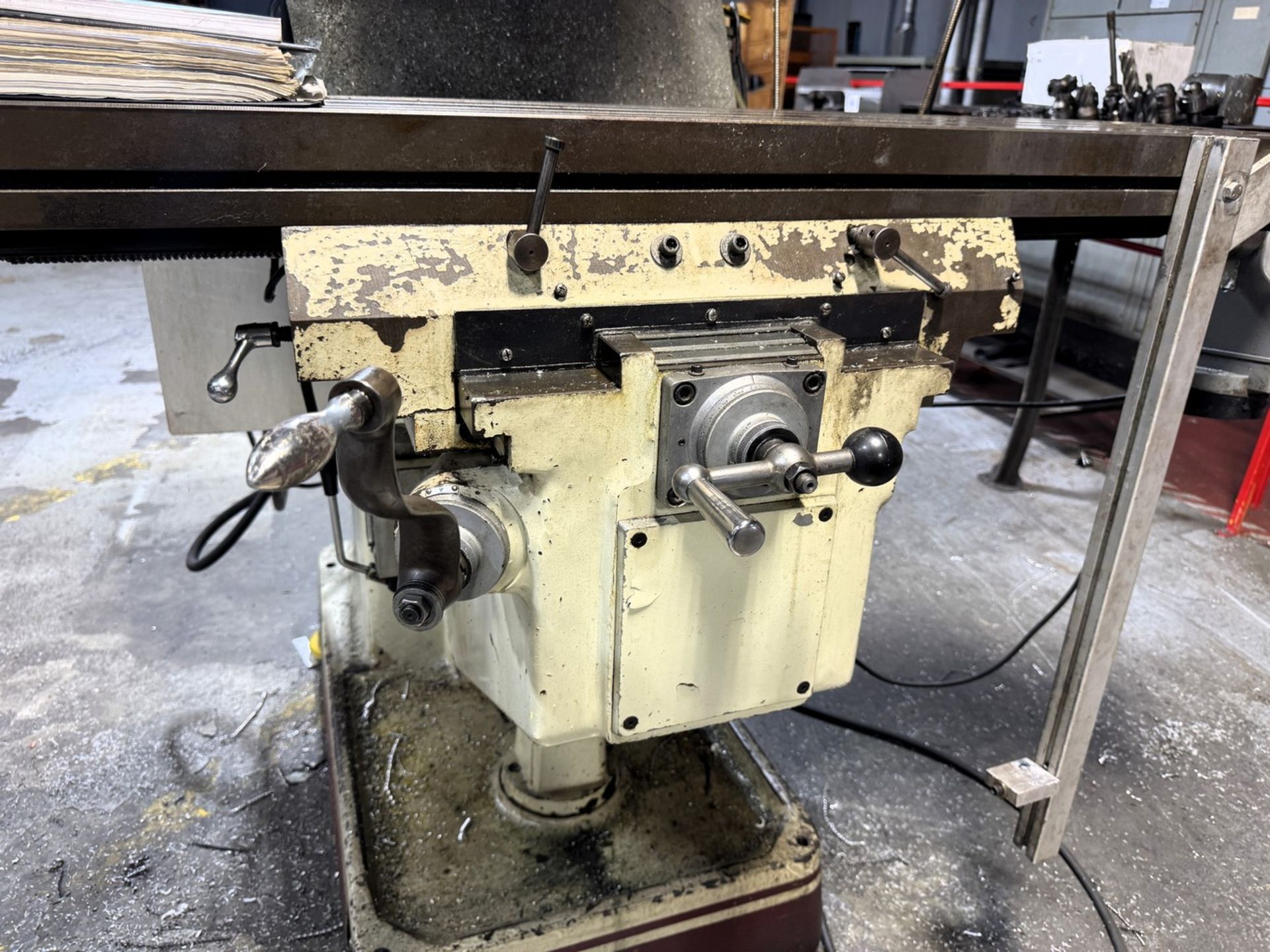

             VERTICAL, KNEE ................... 19"

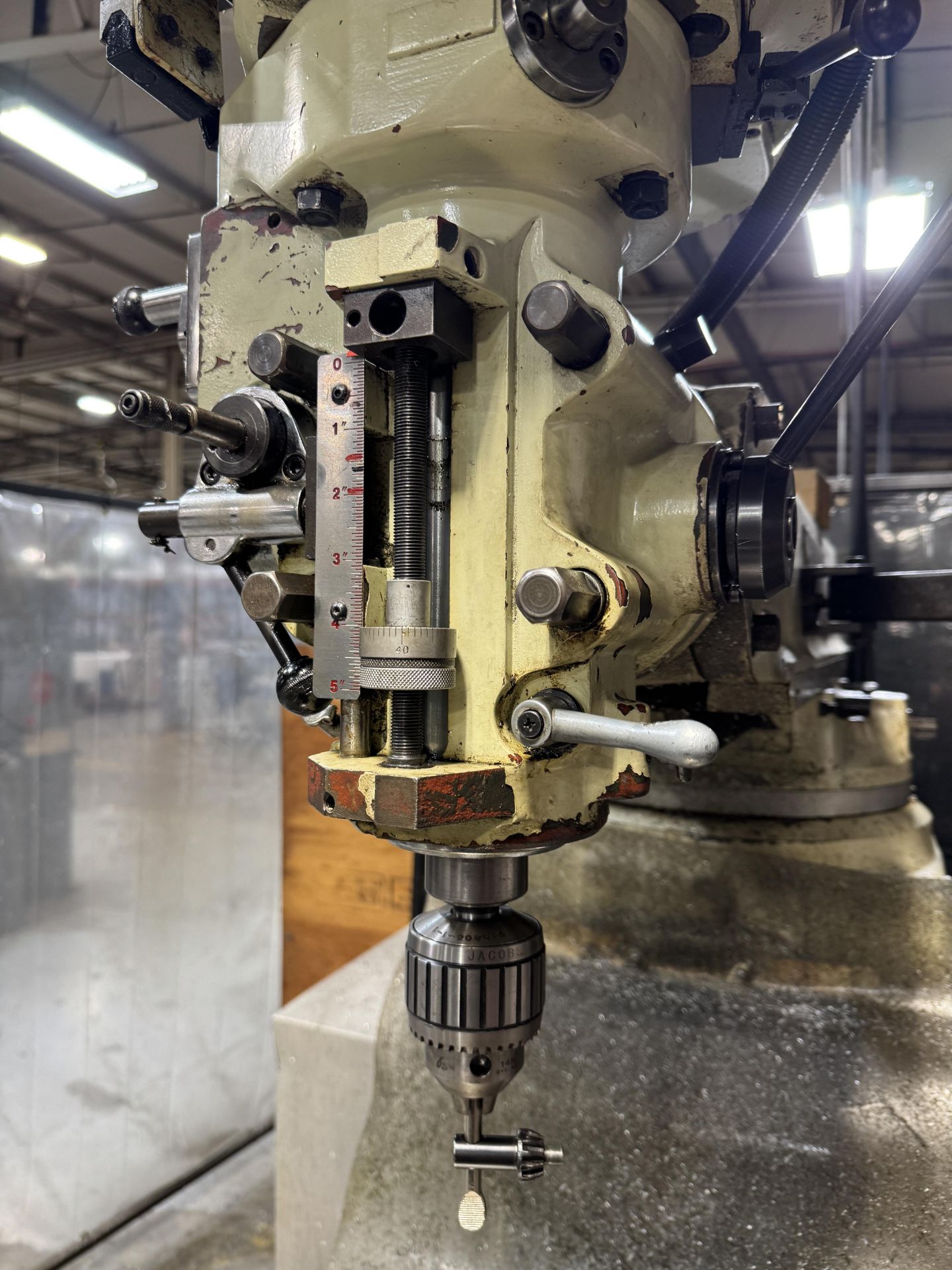

             QUILL (Z) ........................ 5"
RAM TRAVEL .................................... 20"
HEAD TILT, LEFT AND RIGHT ..................... 90 DEGREES
HEAD TILT, FRONT TO REAR, EACH WAY ............ 45 DEGREES
TURRET ROTATION ............................... 360 DEGREES
MAX/MIN DISTANCE, SPINDLE NOSE - TABLE TOP .... 18"/2"
(3) POWER QUILL FEEDS ............ .0015, .003, .006 I.P.R.
QUILL DIAMETER ................................ 3-3/8"
INFINITELY VARIABLE SPINDLE SPEEDS ............ 0 - 4,500 RPM
SPINDLE TAPER ................................. R-8
MAXIMUM COLLET CAPACITY ....................... 3/4"
APPRROXIMATE DIMENSIONS .................. 79" x 74" x 90"H
APPROXIMATE WEIGHT ............................ 3,100 LBS.

EQUIPPED WITH:

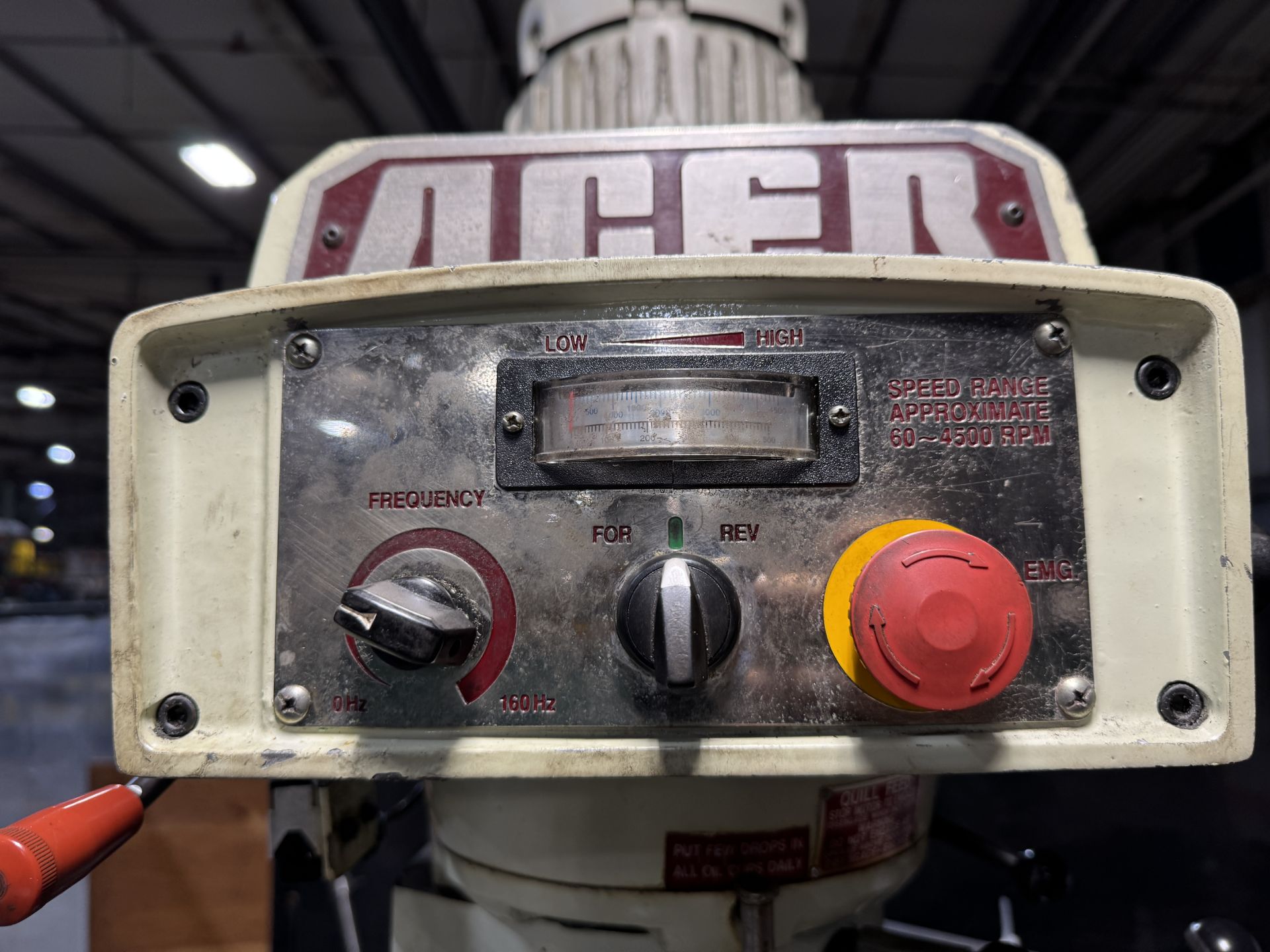

AC FREQUENCY INVERTER SPINDLE DRIVE

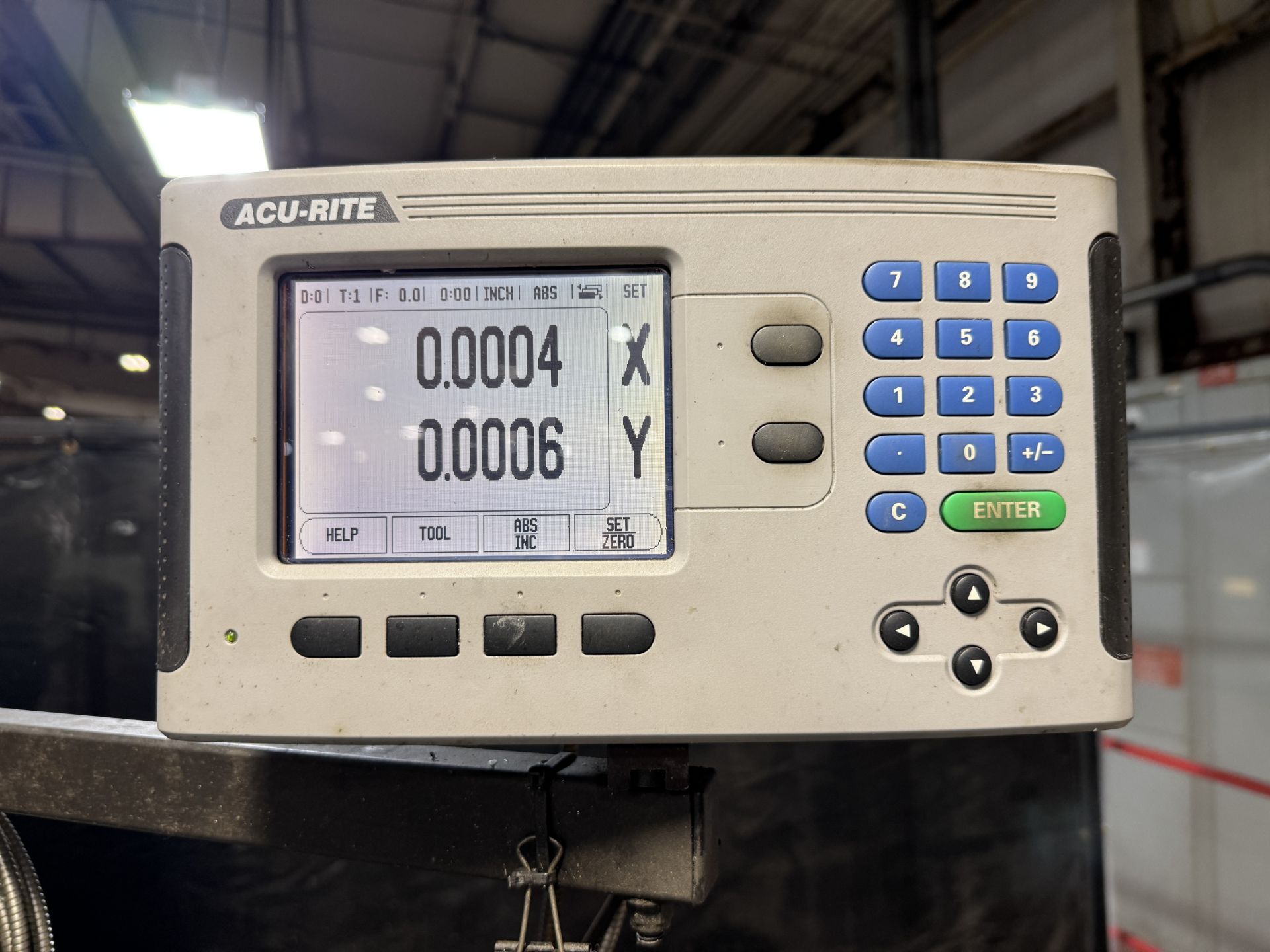

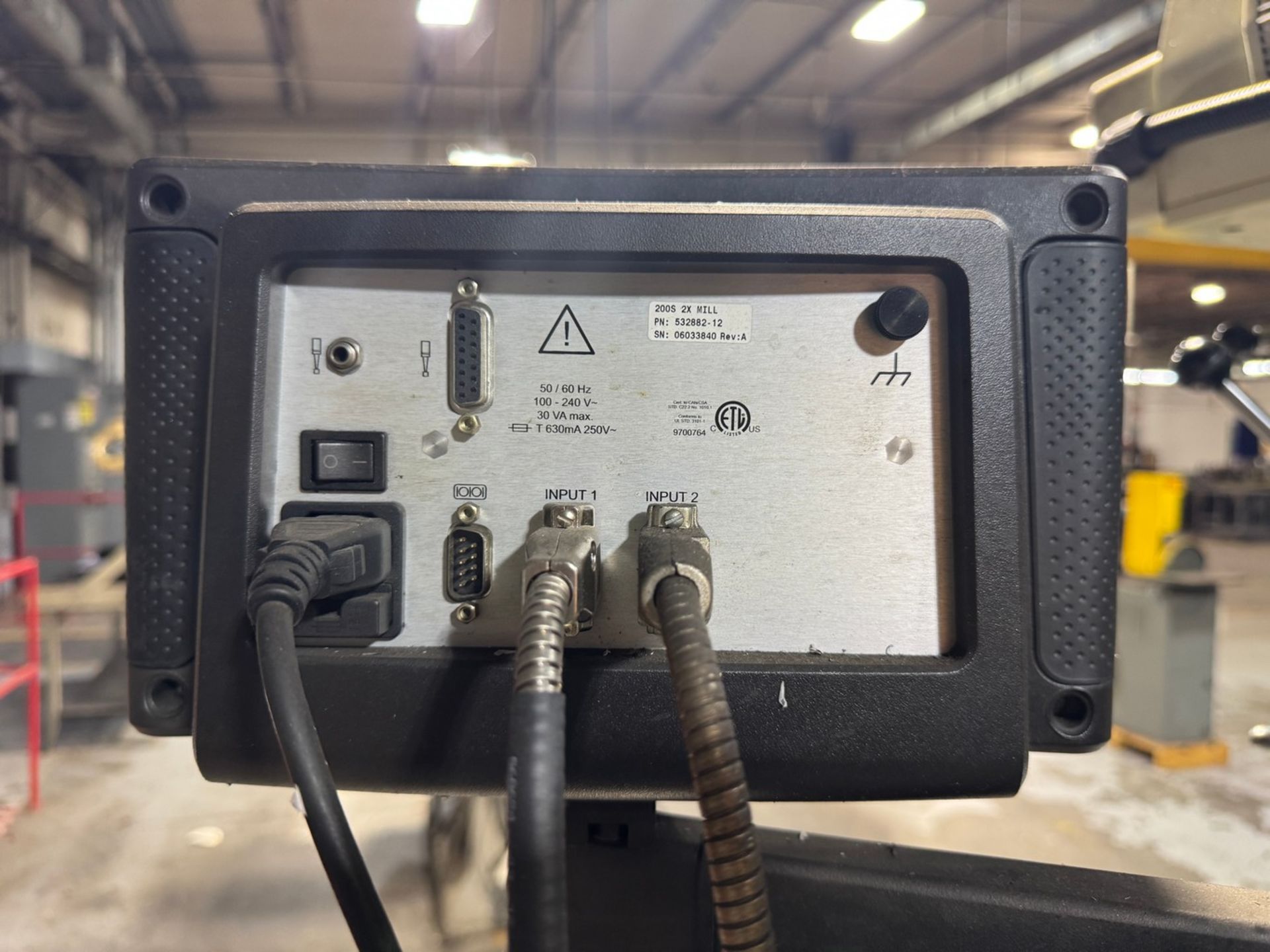

ACU-RITE TWO-AXIS DIGITAL READOUT
SERVO POWER FEED FOR LONGITUDINAL TABLE TRAVEL
HARDENED AND GROUND BOX WAYS FOR X & Y AXES
MEEHANITE CASTING
ONE-SHOT LUBRICATION SYSTEM
3 HORSE POWER SPINDLE DRIVE MOTOR
