Acer E MILL 3VSII VERTICAL MILLS - VERTICAL MILLING MACHINES

$8,500

Make:: Acer

Model:: E MILL 3VSII

Year:: 2017

Ref #:: 178793

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

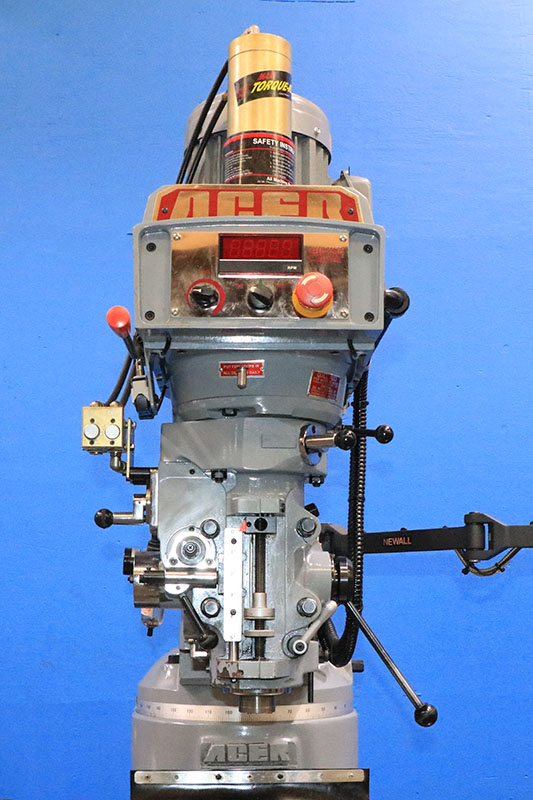

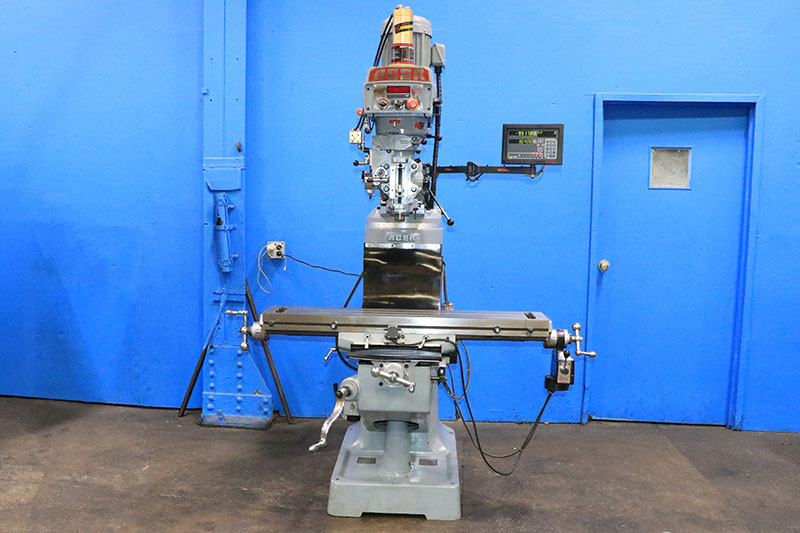

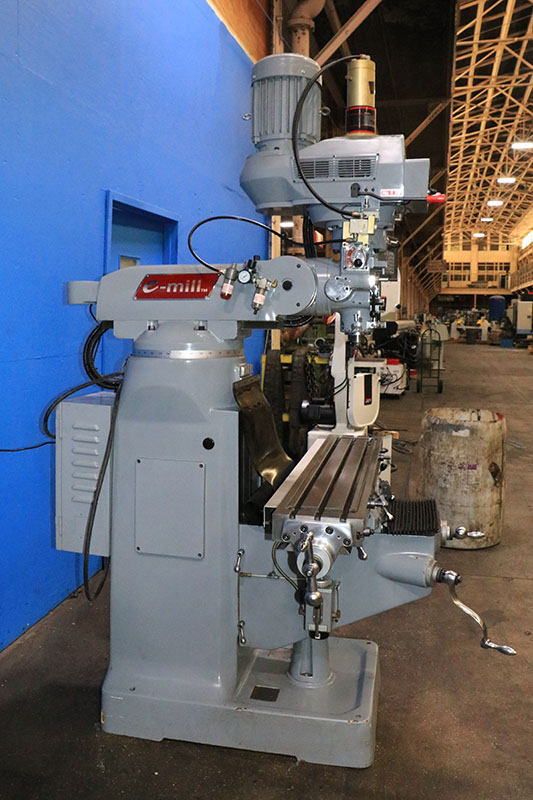

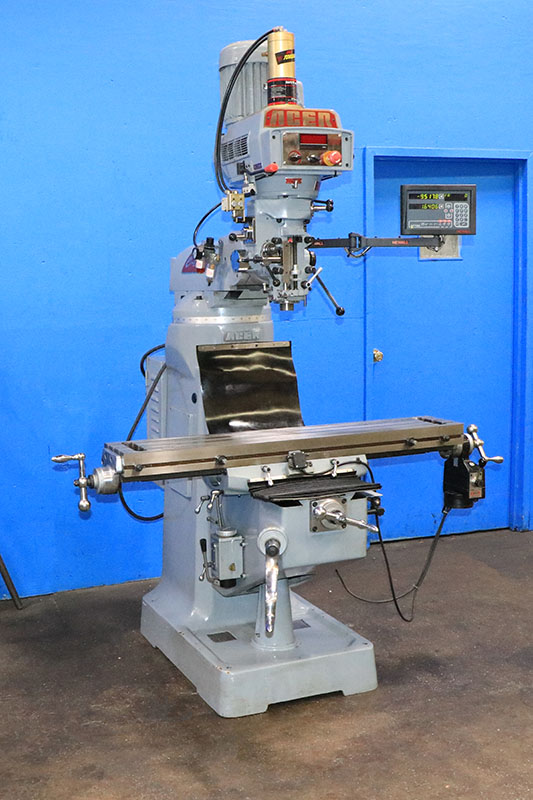

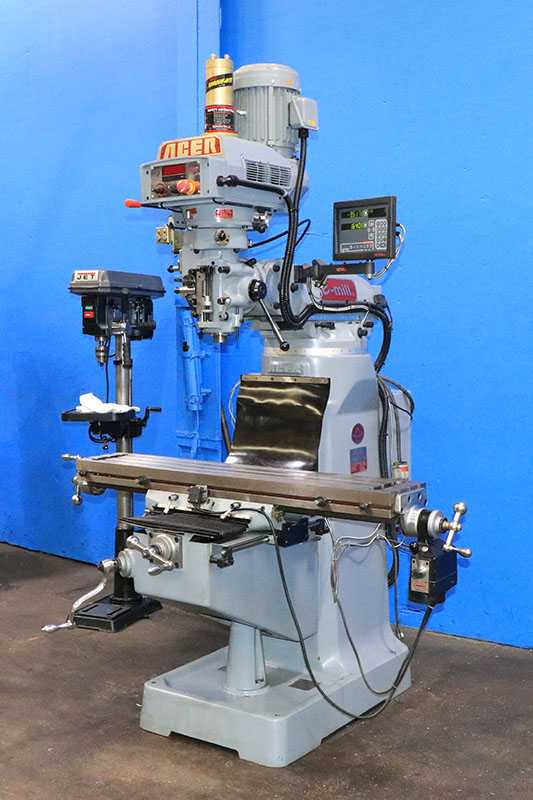

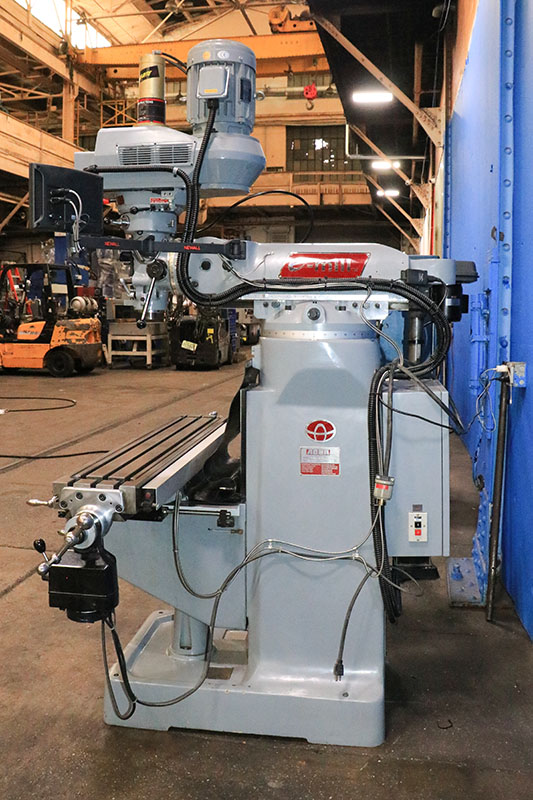

ACER VERTICAL MILLING MACHINE

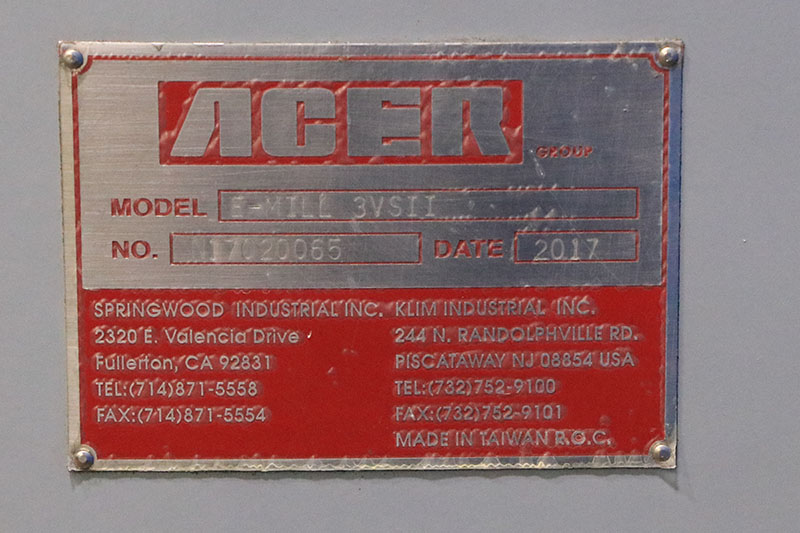

MODEL: E-MILL 3VSII, S/N: N17020065, NEW: 2017

SPECIFICATIONS:

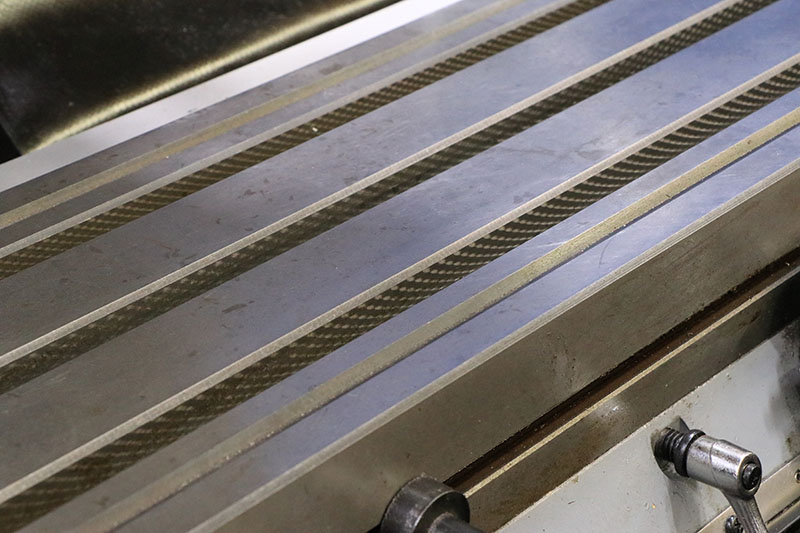

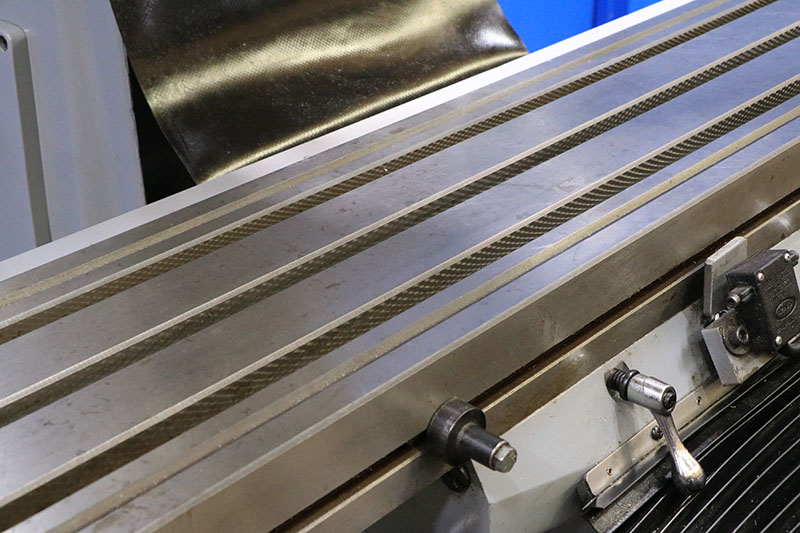

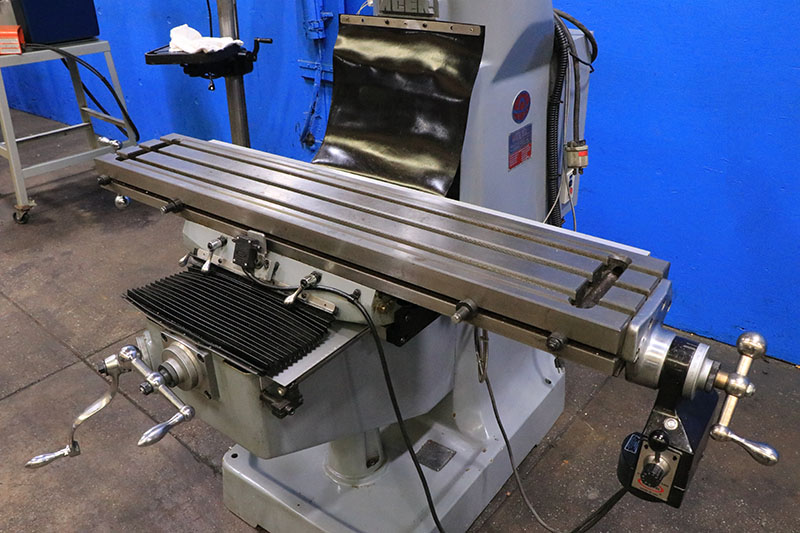

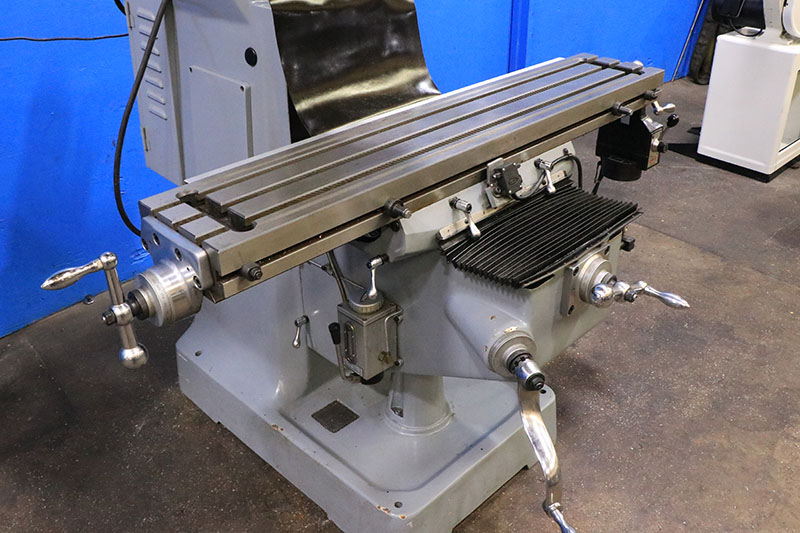

TABLE WORKING SURFACE ......................... 9" X 49"
NUMBER OF T-SLOTS (WIDTH) ..................... 3 (5/8")
RANGE: LONGITUDINAL, MANUAL (X) ............... 34"
             CROSS (Y) ........................ 12"
             VERTICAL, KNEE ................... 16"
             QUILL (Z) ........................ 5"
RAM TRAVEL .................................... 12"
HEAD TILT, LEFT AND RIGHT ..................... 90 DEGREES
HEAD TILT, FRONT TO REAR, EACH WAY ............ 45 DEGREES
TURRET ROTATION ............................... 360 DEGREES
(3) POWER QUILL FEEDS ............ .0015, .003, .006 I.P.R.
QUILL DIAMETER ................................ 3-3/8"
INFINITELY VARIABLE SPINDLE SPEEDS ............ 60 - 4,500 RPM
SPINDLE TAPER ................................. R-8
MAXIMUM COLLET CAPACITY ....................... 3/4"
APPRROXIMATE DIMENSIONS .................. 79" x 74" x 90"H
APPROXIMATE WEIGHT ............................ 2,500 LBS.

EQUIPPED WITH:

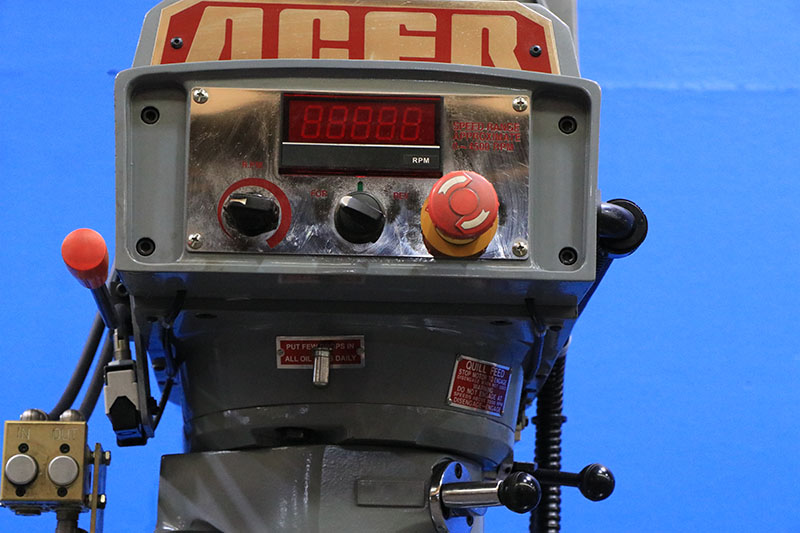

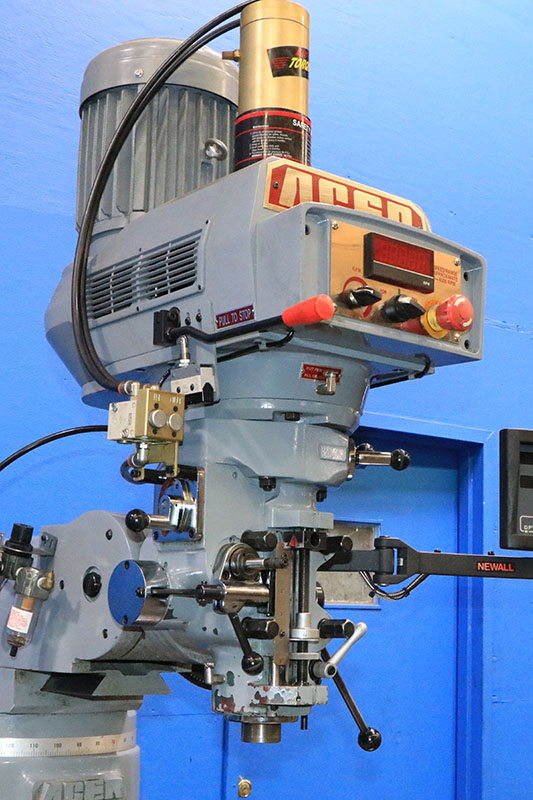

AC FREQUENCY INVERTER SPINDLE DRIVE
NEWALL TWO-AXIS DIGITAL READOUT

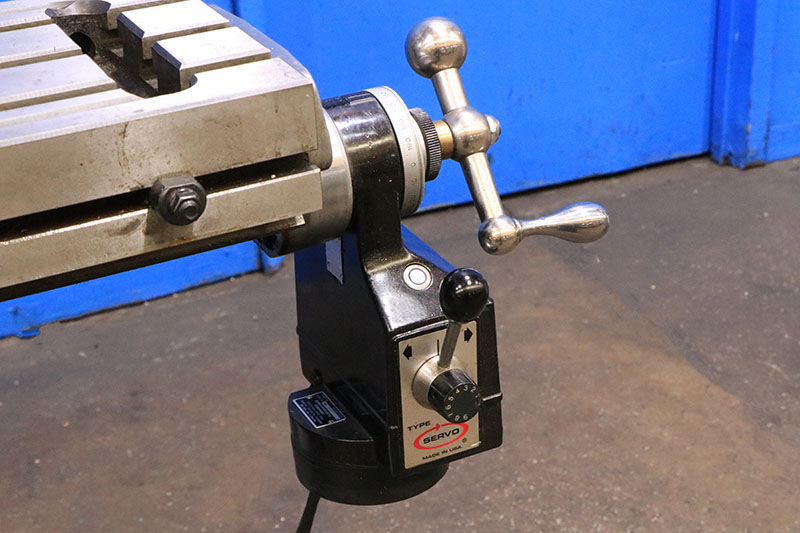

SERVO POWER FEED FOR LONGITUDINAL TABLE TRAVEL

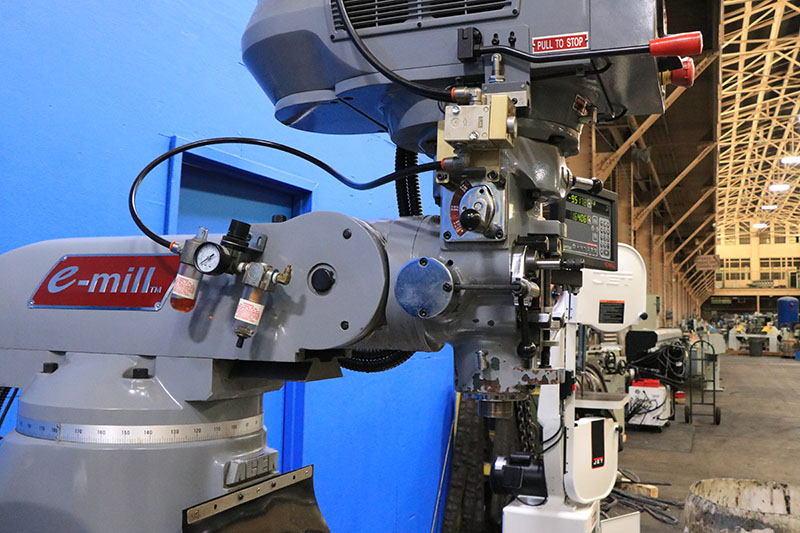

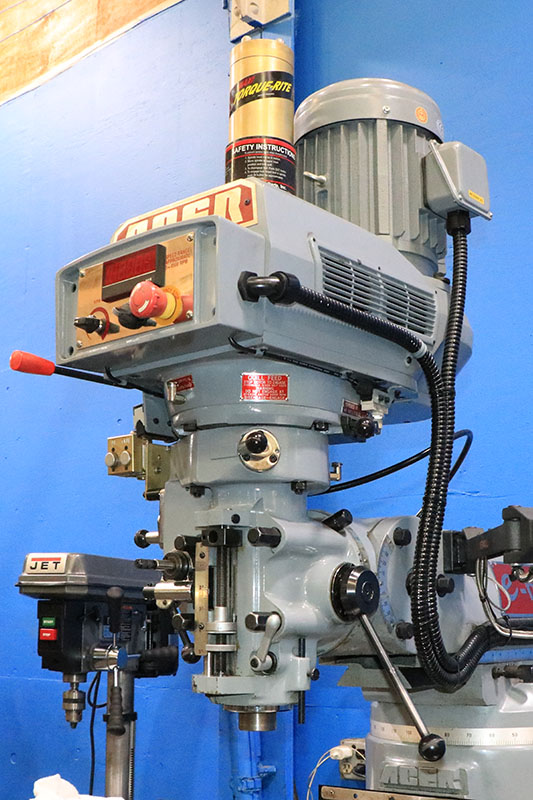

TORQUE-RITE AIR ACTUATED POWER DRAW BAR
HARDENED AND GROUND DOVETAIL WAYS FOR X & Y AXES
MEEHANITE CASTING

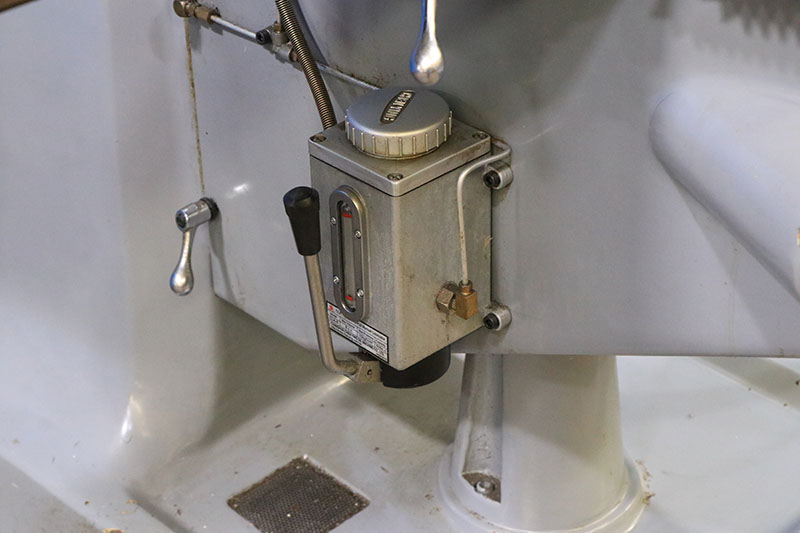

ONE-SHOT LUBRICATION SYSTEM
3 HORSE POWER SPINDLE DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
