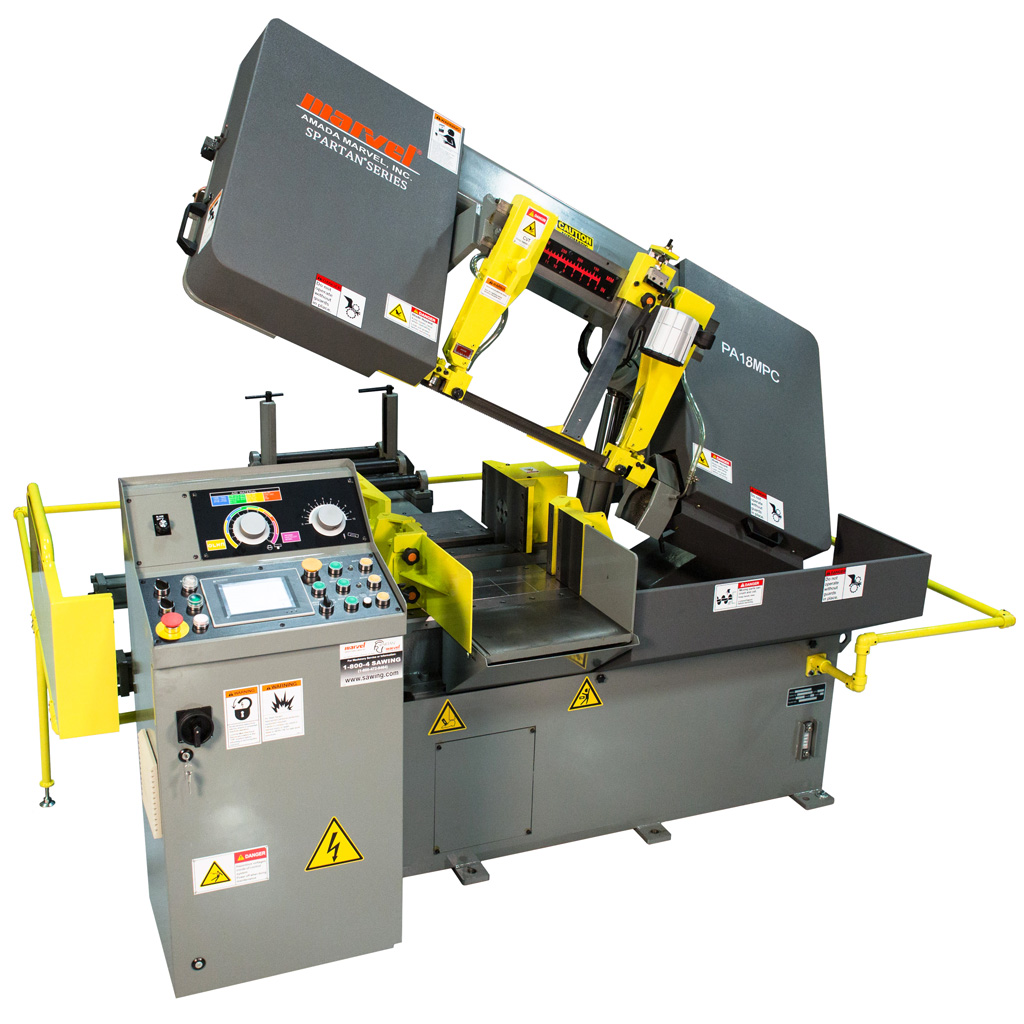

Amada/Marvel PA18MPC - Scissor Style Saw NEW HORIZONTAL BAND SAWS



⦁ HEAVY-DUTY ⦁ HIGH SPEED ⦁ HYDRAULIC ⦁ HORIZONTAL ⦁ METAL ⦁



RECTANGULAR CAPACITY: ................ 18" X 18"

ROUND CAPACITY: ...................... 18" ROUND

BLADE: ............................... 1.5" X .042" X 15' 4"

WEIGHT CAPACITY: ..................... 6,600 LBS.

MACHINE WEIGHT: ...................... 5,600 LBS.

TABLE HEIGHT: ........................ 27”



BLADE TENSION:

HYDRAULICALLY CONTROLLED TENSION (30,000 PSI) PROVIDES CONSISTENT SQUARE CUTTING ACCURACY. THE MOTION DETECTOR WILL SHUT THE MACHINE OFF SHOULD THE BLADE BREAK OR STALL.



SPEED RANGE:

70 - 330 SFPM VARIABLE THROUGH A FREQUENCY INVERTER DRIVE AND HEAVY-DUTY WORM GEAR TRANSMISSION. THE BROAD SPEED RANGE ALLOWS FOR OPTIMUM CUTTING OF A LARGE SPECTRUM OF MATERIALS.



HYDRAULIC DOWN FEED:

FEED RATE AND DOWN PRESSURE CAN BE CONTROLLED INDEPENDENTLY FOR FAST, ACCURATE CUTTING. SETUP IS MADE EASY THROUGH THE COLOR-CODED DIAL ALLOWING THE OPERATOR TO SELECT THE OPTIMUM SETTING FOR THE TYPE OF MATERIAL BEING CUT. BOTH SETTINGS ARE MADE AT THE OPERATOR'S STATION.



HYDRAULIC SHUTTLE FEED:

LENGTH SETTINGS OF 0 - 20" ARE ACCOMPLISHED WITH SIMPLE PROGRAMMING AT THE OPERATOR'S TOUCH SCREEN. THE SHUTTLE COMES TO POSITIVE STOPS AT BOTH ENDS OF THE INDEX, ASSURING CUTOFF LENGTH ACCURACY, REDUCING MATERIAL LOSS. REPEATABILITY IS ± .005 PER INDEX.

MOTORS:



BLADE DRIVE: 7-1/2 H.P., HYDRAULIC PUMP MOTOR: 2 H.P., COOLANT PUMP MOTOR: 1/4 H.P. - ALL MOTORS ARE DUAL VOLTAGE, CHOOSE 230 OR 460 VOLTS, 3 PH. 60 HZ.



OPERATOR'S CONTROL PANEL:

CONVENIENTLY MOUNTED ON THE LEFT HAND SIDE OF THE MACHINE AND OFFERS FULL CONTROL OF ALL MACHINE FUNCTIONS SUCH AS; VISES, BLADE SPEED, SAW FRAME, BUNDLE CLAMPING, PARTS COUNTER, SHUTTLE ADVANCE & RETRACT, COOLANT AND WORK LIGHT.



EPC PROGRAMMABLE CONTROL:

CONVENIENTLY LOCATED ON THE OPERATOR'S CONTROL PANEL, THIS TOUCH SCREEN CONTROL ALLOWS THE OPERATOR TO PROGRAM AND STORE UP TO NINE JOBS. INPUTS INCLUDE PART LENGTHS FROM 0 TO 400" AND NUMBER OF PIECES TO BE CUT. THE BLADE SPEED IS DISPLAYED ON AND SET USING THE TOUCH SCREEN, BUT IS NOT STORED IN MEMORY. THE AUTOMATIC PIECE COUNTER STOPS EACH JOB WHEN THE PRE-SET NUMBER OF CUTS HAS BEEN MADE. THE CONTROL PROVIDES THE OPTION OF RUNNING UP TO 20 JOBS CONSECUTIVELY.



OUT-OF-STOCK SWITCH:

THE MACHINE WILL SHUT OFF AUTOMATICALLY WHEN MATERIAL IS NO LONGER PRESENT IN THE REAR VISE JAWS, ALLOWING FOR TRULY AUTOMATIC OPERATION.



BLADE GUIDES:

THE COMBINATION ROLLER BEARING AND CARBIDE BLADE GUIDES REDUCE HEAT AND BLADE STRESS PROVIDING LONGER BLADE LIFE AND ACCURACIES OF ± .002 PER INCH OF CUT MATERIAL. LARGE ANTI-VIBRATION ROLLERS HELP TO INCREASE BLADE LIFE.



FAST APPROACH:

WORK HEIGHT IS AUTOMATICALLY SET ALLOWING THE HEAD TO RISE JUST ENOUGH TO CLEAR THE WORK PIECE, REDUCING CYCLE TIME AND ALLOWING FOR FASTER CUTTING PERFORMANCE.



CHIP BRUSH:

POWERED FROM THE MAIN DRIVE SHAFT OF THE SAW, THE BRUSH CHANGES SPEED ALONG WITH THE BLADE TO ASSURE THAT CHIPS ARE BEING REMOVED FROM EACH GULLET OF THE BLADE, IMPROVING CUTTING PERFORMANCE AND BLADE LIFE.



FULL STROKING HYDRAULIC VISE JAWS:

THE FRONT VISE JAWS ARE SPLIT TO REDUCE THE REMNANT TO AS LITTLE AS 3". THE SPLIT VISE JAWS ALSO HELP TO REDUCE BURRS LEFT ON THE MATERIAL AND ARE IDEAL FOR BUNDLE CUTTING. HOLDING THE WORK PIECE ON BOTH SIDES OF THE BLADE REDUCES BLADE VIBRATION, PROVIDING MORE ACCURATE CUTS AND LONGER BLADE LIFE.



REAR VISE:

THE REAR VISE JAW FLOATS HYDRAULICALLY TO ACCOMMODATE CROOKED STOCK ASSURING STRAIGHT, ACCURATE CUTS.



WORK LIGHT:

POSITIONED DIRECTLY OVER THE WORK AREA TO PROVIDE BETTER ILLUMINATION OF THE CUTTING AREA, THE WORK LIGHT CAN BE TURNED ON AND OFF INDEPENDENTLY FROM THE OPERATOR'S CONTROL PANEL.



VARIABLE VISE PRESSURE:

HYDRAULIC CLAMPING PRESSURE TO THE WORK HOLDING JAWS CAN BE ADJUSTED AS REQUIRED TO HOLD SOLID OR THIN WALL MATERIAL, ALLOWING THE PIECE TO BE HELD SECURELY AND WITHOUT DISTORTION.



VOLTAGE:

MACHINES COMES STANDAR WITH A 230 VOLT - 3 PHASE - 60 HERTZ CONNECTION (230-3-60)



ALL OTHER VOLTAGES REQUIRE A SEPARATE TRANSFORMER NOT INCLUDED.



OPTION & DESCRIPTIONS

BLADE:

AMADA SGLB BLADE 15' 4" LONG X 1.5" WIDE, 3/4 TOOTH PITCH. THIS IS THE STANDARD BLADE THAT IS INCLUDED WITH MACHINE PURCHASE AND YOU HAVE THE OPTION TO ORDER MORE. PURCHASE 10 OR MORE BLADES WITH YOUR INITIAL BANDSAW PURCHASE AND RECEIVE AN ADDITIONAL YEAR OF PARTS WARRANTY. PURCHASE 36 OR MORE BLADES AND RECEIVE ADDITIONAL YEAR OF PARTS WARRANTY AND UP TO 35% OFF PARTS DISCOUNT (SEE BLADE CLUB FLYER FOR DETAILS).



P18/G1 HYDRAULIC HOLD DOWNS

THE NESTING FIXTURES FOR VERTICAL CLAMPING ARE DESIGNED FOR HIGH PRODUCTION

MULTIPLE CUTTING.  VERTICALLY MOUNTED HYDRAULIC CLAMPS LOCATED ON EACH VISE JAW APPLY DOWNWARD PRESSURE TO HOLD MULTIPLE BAR WORK OR STRUCTURAL SHAPES.  MINIMUM CAPACITY:  5” H X 8” W (127 MM X 203 MM).  MAXIMUM CAPACITY: 9” H X 14” W (229 MM X 356 MM).



FSCC FREE STANDING CONTROL CONSOLE

REPLACES STANDARD CONTROL CONSOLE MOUNTED TO MACHINE BASE WITH A FREE-STANDING PEDESTAL AND 6’ FLEXIBLE ELECTRICAL AND HYDRAULIC LINES (SPECIAL FACTORY ORDER ONLY). PN: (PA460EA00421)



PA18/F0510 FIRST SECTION DEAD ROLLER TABLE

5’0” (1524 MM) LONG. TABLE IS CONSTRUCTED FROM 4” X 5.4 LB. CHANNEL WITH TEN 2.5” (63 MM) DIAMETER BALL BEARING ROLLERS ON 6” CENTERS.  FOR USE ON EITHER THE LOADING OR DISCHARGE SIDE OF MACHINE (FREE STANDING).



PA18/X0510 EXTENSION ROLLER TABLE

5’0” (1524 MM) LONG.  TABLE IS CONSTRUCTED FROM 4” X 5.4 LB.  CHANNEL WITH TEN 2.5” (63 MM) DIAMETER BALL BEARING ROLLERS ON 6” CENTERS. FOR USE AS EXTENSION TO FIRST SECTION.



PA18/E11 COOLANT PAN

FITTING F0510 &/OR X0510 ROLLER CONVEYORS, THE COOLANT PAN COLLECTS AND RETURNS COOLANT BACK TO MACHINE.  INCLUDED IS THE PAN, V-TROUGH, AND HANGERS.



PA13/ML2 AUTOMATIC MIST LUBE

DROP LUBRICATION SYSTEM. (REQUIRES COMPRESSED AIR CONNECTION)



CL2210 UNIST COOLUBE 2210

UNIST COOLUBE 2210 IS THE CUTTING OIL AND LUBRICANT THAT IS SHIPPED WITHIN YOUR ML2 (MIST DROP LUBRICATION SYSTEM).  IT IS FORMULATED AS A METAL CUTTING OIL AND LUBRICANT FOR METALS, WOOD, RUBBER, AND MOST PLASTICS.  IT IS 100% NATURAL, NON-TOXIC, NON-STAINING, AND WILL NOT OXIDIZE (BECOME STICKY OR LEAVE A RESIDUE).  COOLUBE 2210 CUTTING FLUID DOES NOT CONTAIN ANY INGREDIENTS CURRENTLY RECOGNIZED AS HAZARDOUS BY OSHA, IARC OR NIP.  COOLUBE 2210 MACHINING OIL WILL NEVER CAUSE DERMATITIS AND IS FORMULATED FROM COSMETIC GRADE RAW MATERIALS, WHICH MAKES IT ENTIRELY WORKER AND ENVIRONMENTALLY SAFE.  COOLUBE 2210 IS A USDA CERTIFIED BIOBASED PRODUCT.
