Arter H-30, 1972, AUTO UPFEED OF CHUCK, AUTO CYCLE ROTARY SURFACE GRINDERS, HZ SPDL (ARTER TYPE)

Price on Request

Make:: Arter

Model:: H-30, 1972, AUTO UPFEED OF CHUCK, AUTO CYCLE

Year:: 1972

Ref #:: 178540

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

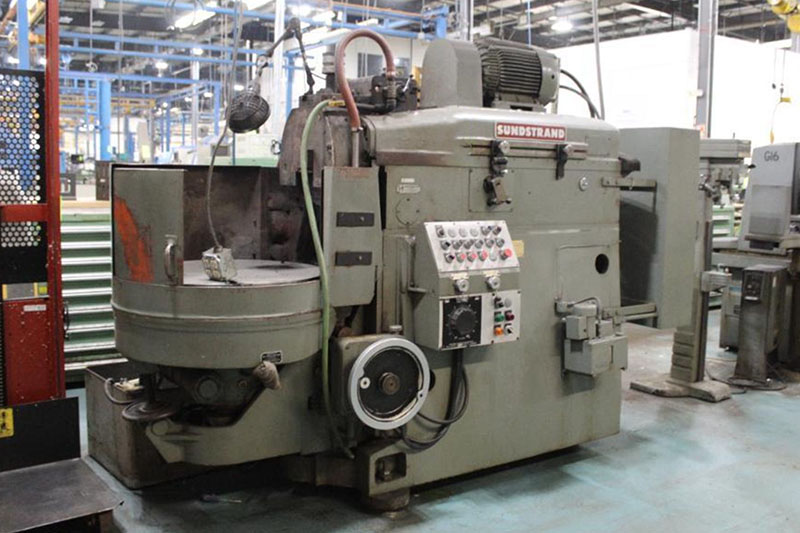

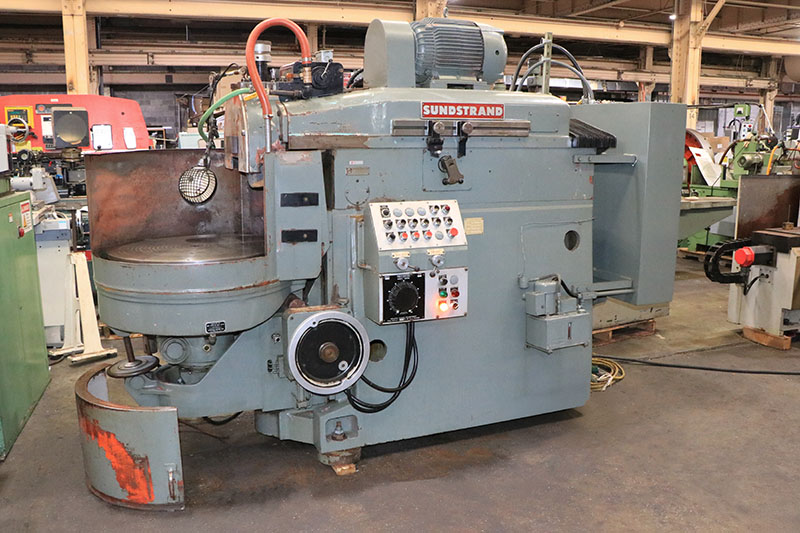

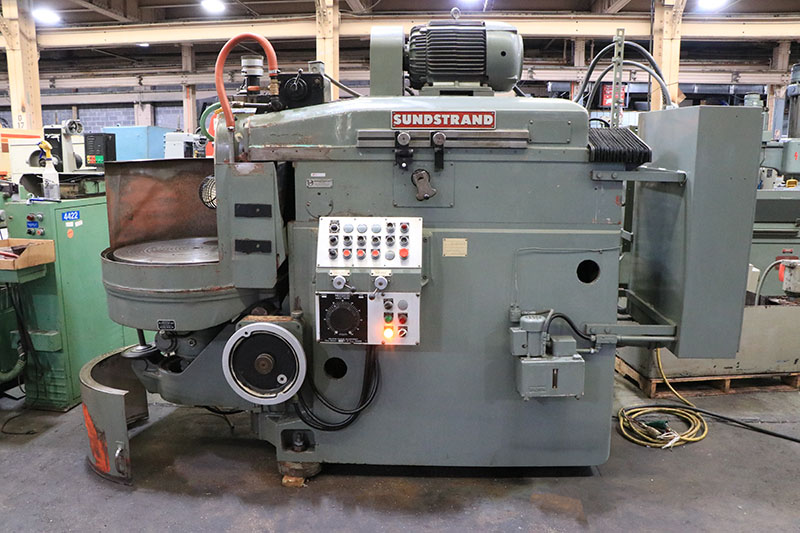

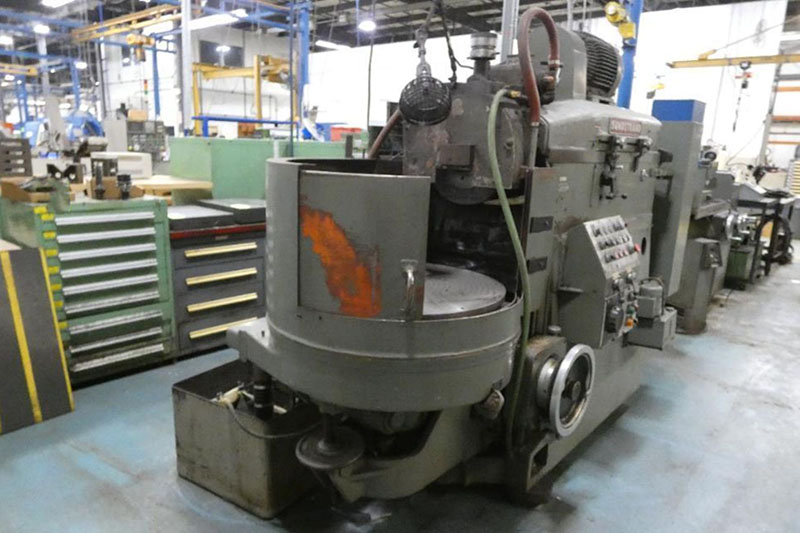

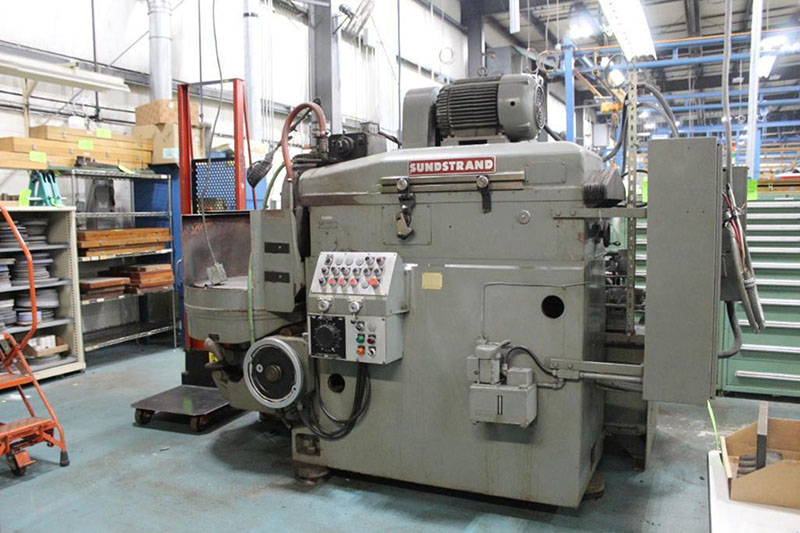

       30" Arter "Made in USA"

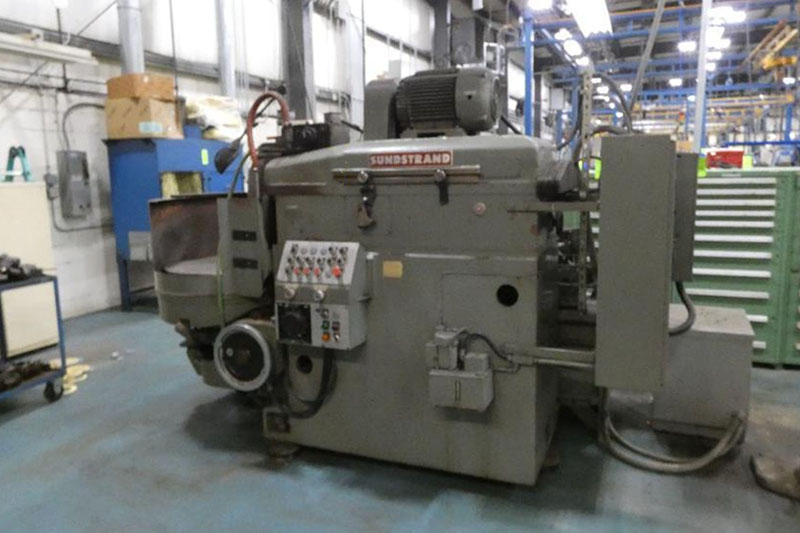

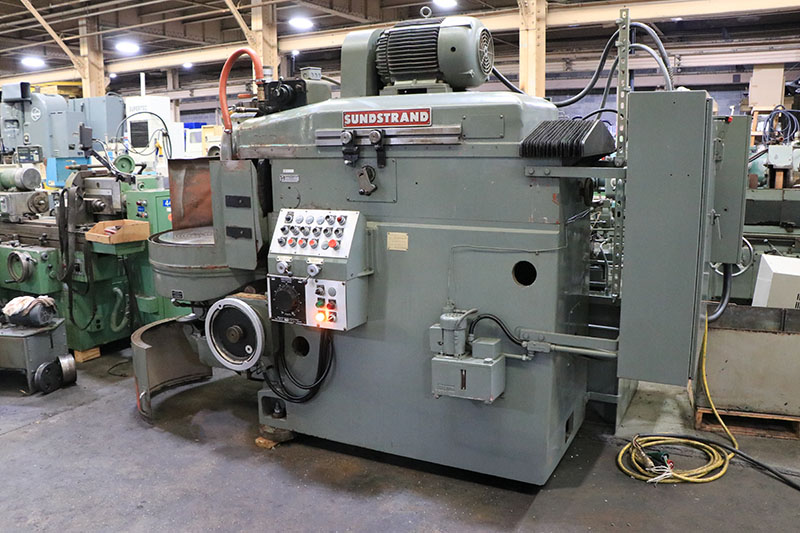

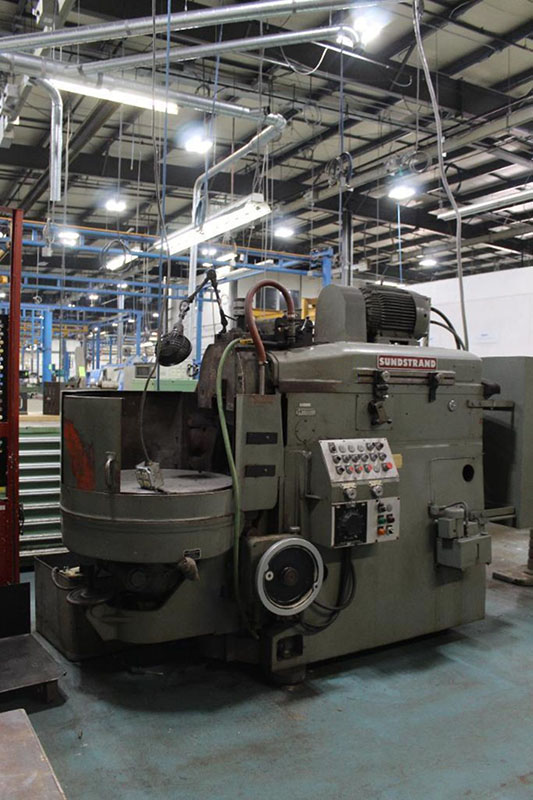

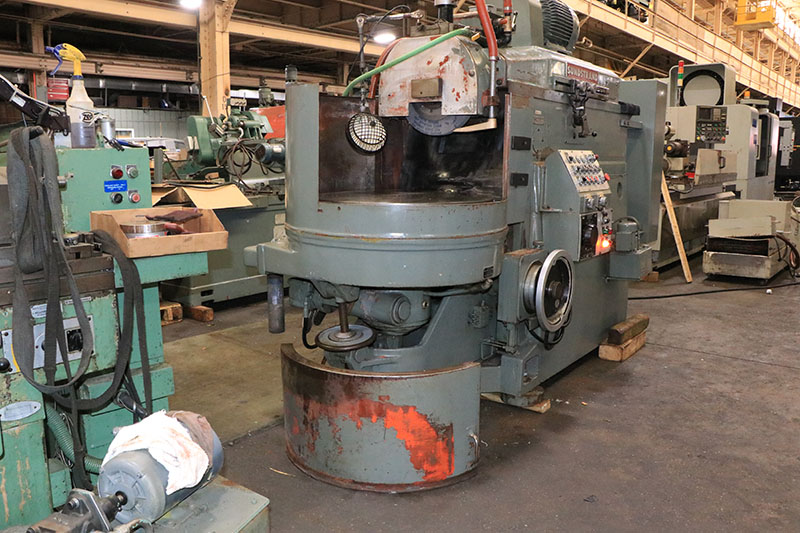

Horizontal Spindle Rotary Surface Grinder

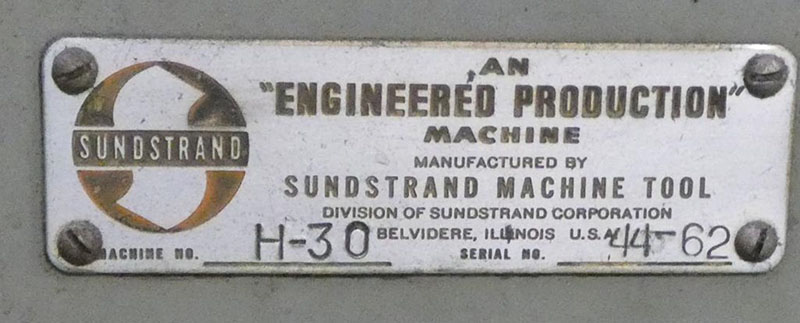

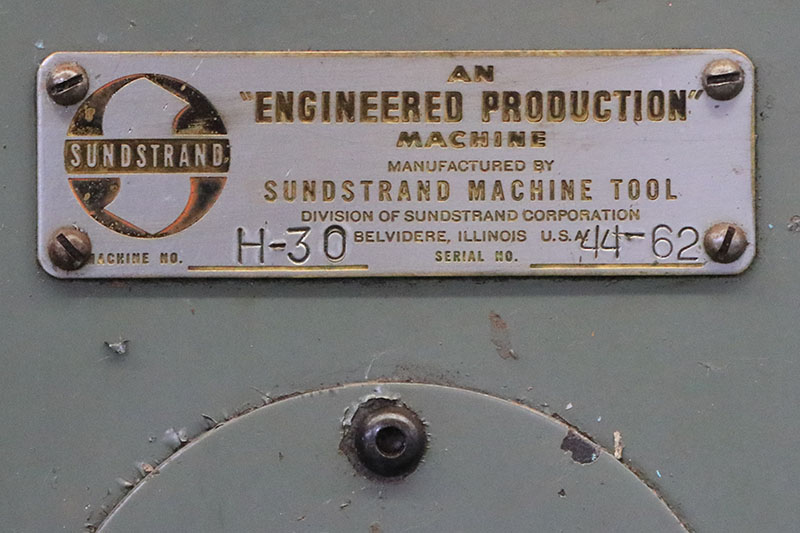

Model No. H-30      S/N: 44-62      New: 1972

SPECIFICATIONS:
Magnetic Chuck Diameter ........... 30"
Swing Inside Guards - Maximum ..... 33"
Work Height - Maximum ............. 10"
Standard Wheel Size ............... 16" x 2" x 8"
Wheel Head Stroke - Maximum ....... 17"
Main Spindle Motor ................ 10 HP
Vertical Travel of Knee ........... 25"
Angular Tilt of Table ............. +/- 10°
Wheelhead Traverse - Variable ..... 0 - 10 FPM
Table Speed Variable .............. 30 - 125 RPM
Power Feed Adjustable .......... 0.0001" - .0015"
Table Slide Positioning ........... 61 PM

Approximate Weight ................ 13,000 Lbs.
Approx. Floor Space ....... 114"F-B x 68"W x 80"H

EQUIPPED WITH:

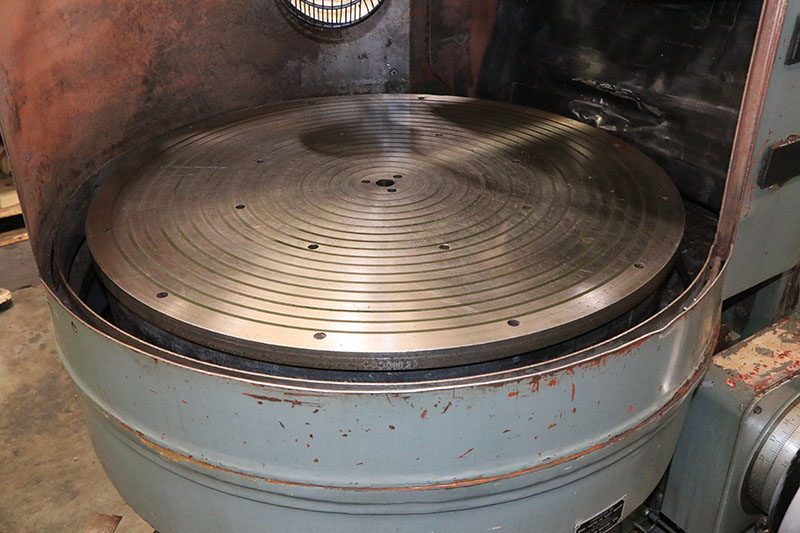

30" Electro-Magnetic Chuck, Concentric Pole Pattern,
 with Excellent 5/8" Chuck Life

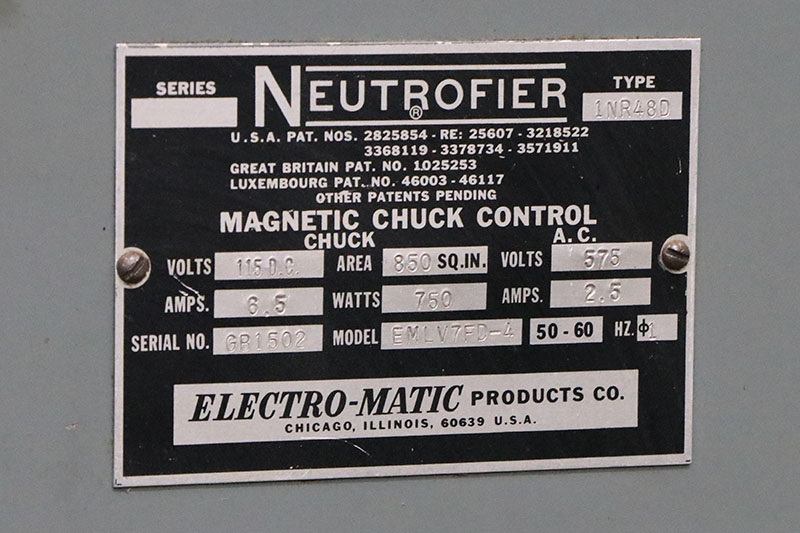

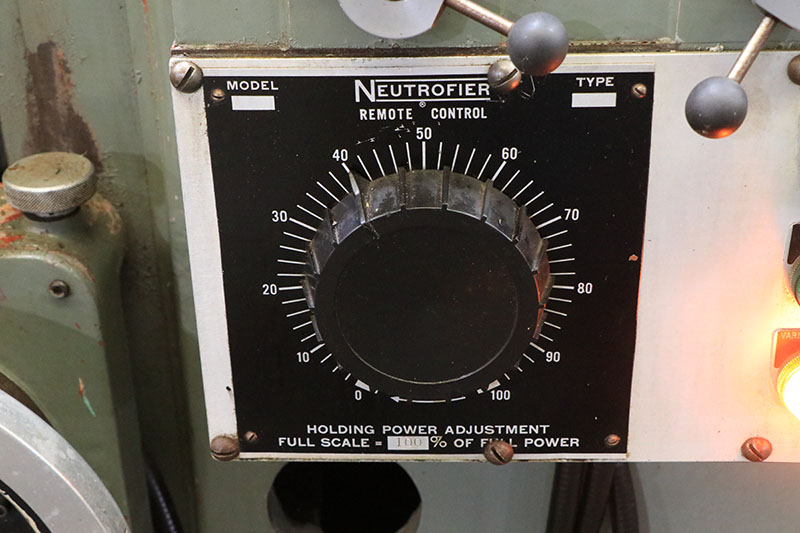

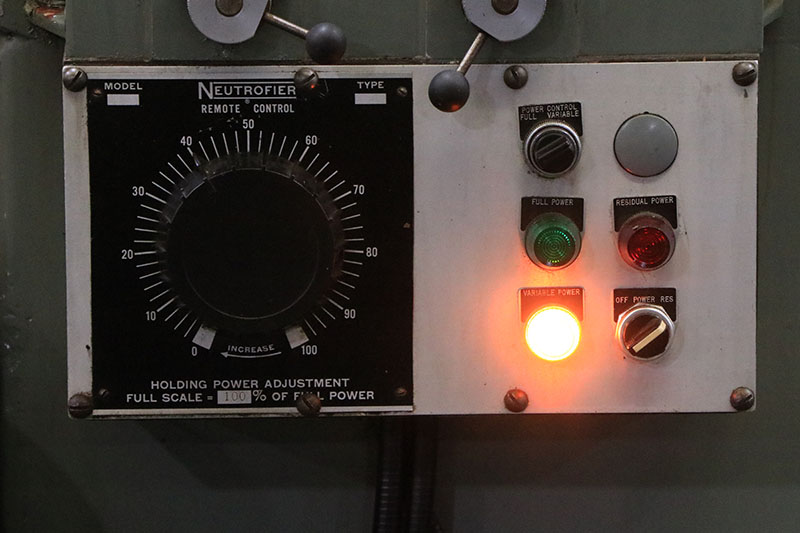

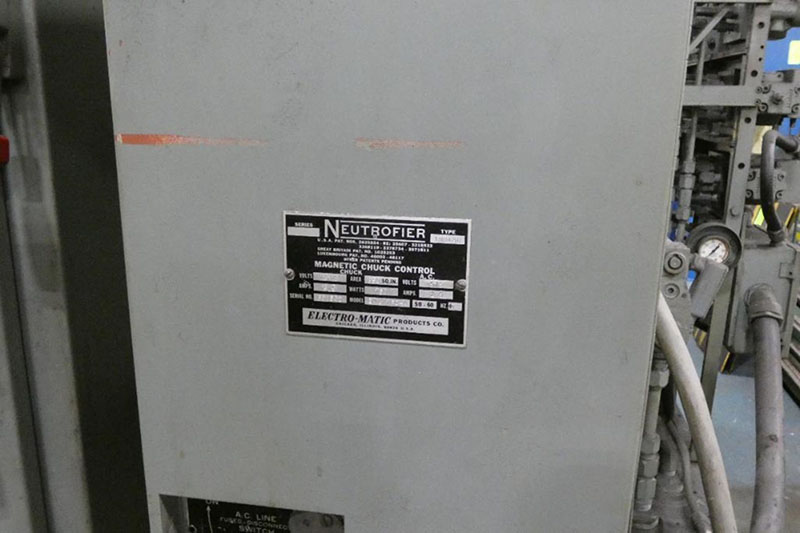

Variable Hold Neutrifier

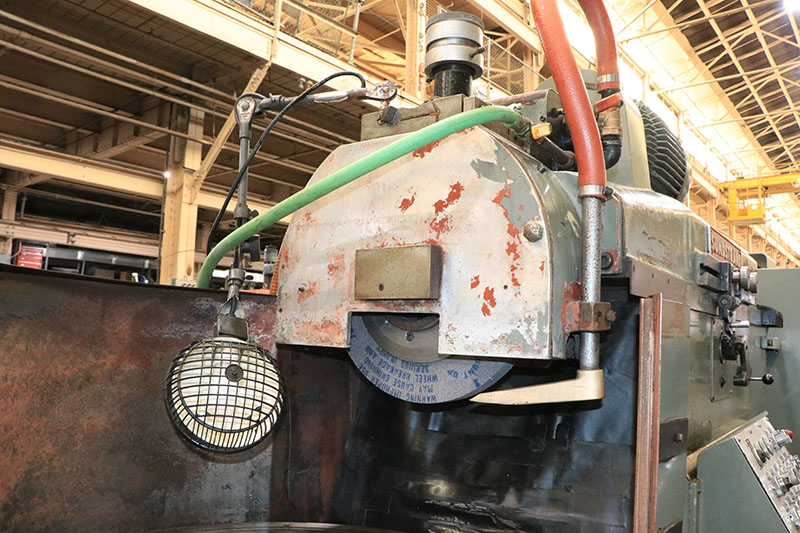

Hydraulic Over the Wheel Dresser,
  with Micrometer Adjustment
Power Table Elevation
Auto Incremental Up-Feed
Angular Table Adjustment

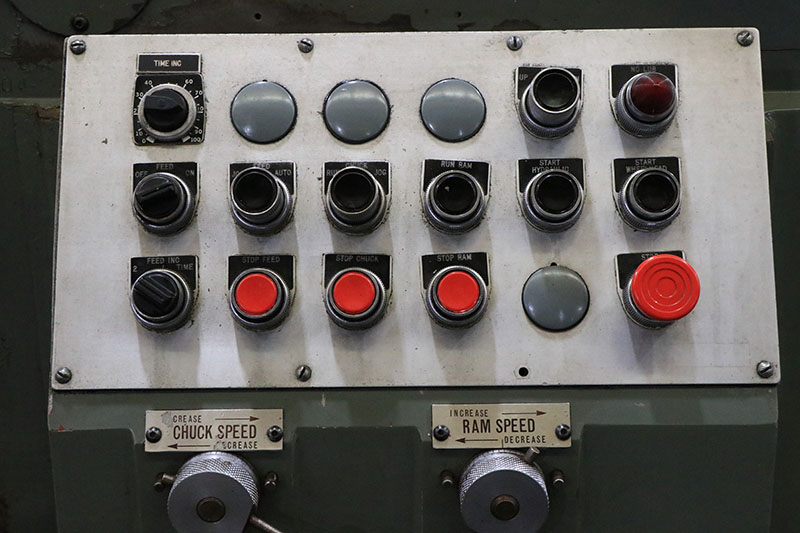

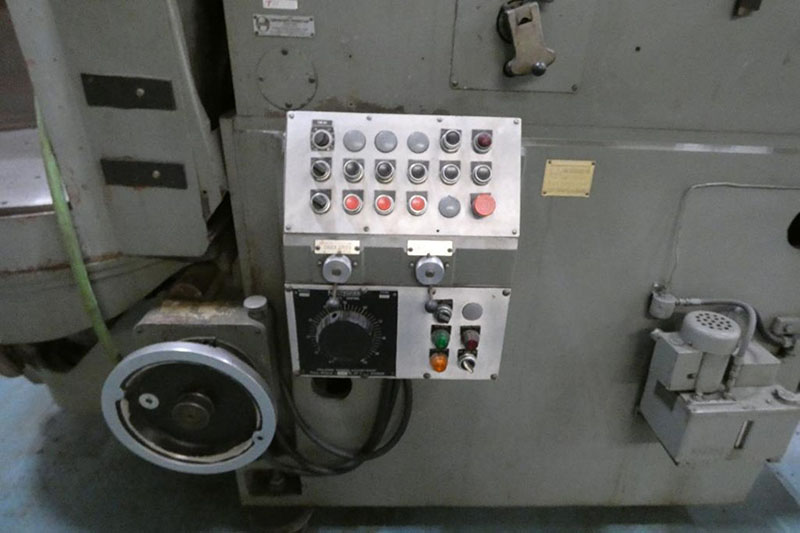

Automatic Cycling, with Indicator Lights

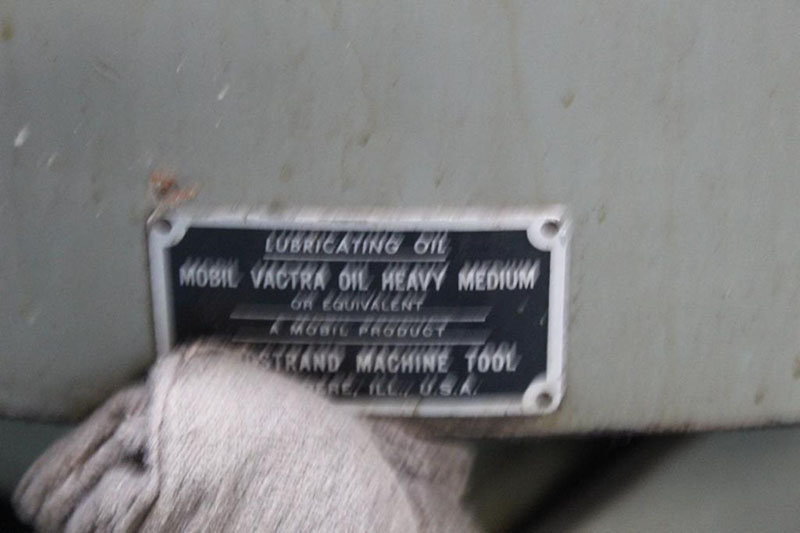

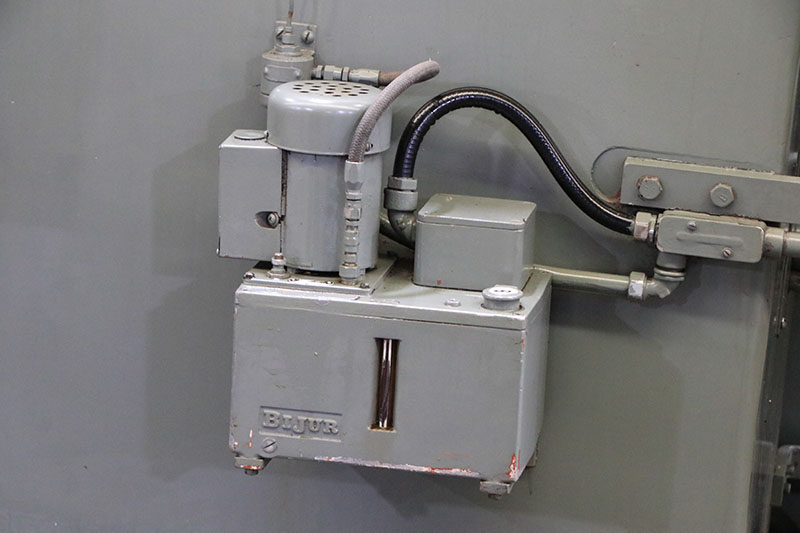

BiJur Trabon Automatic Lubrication System

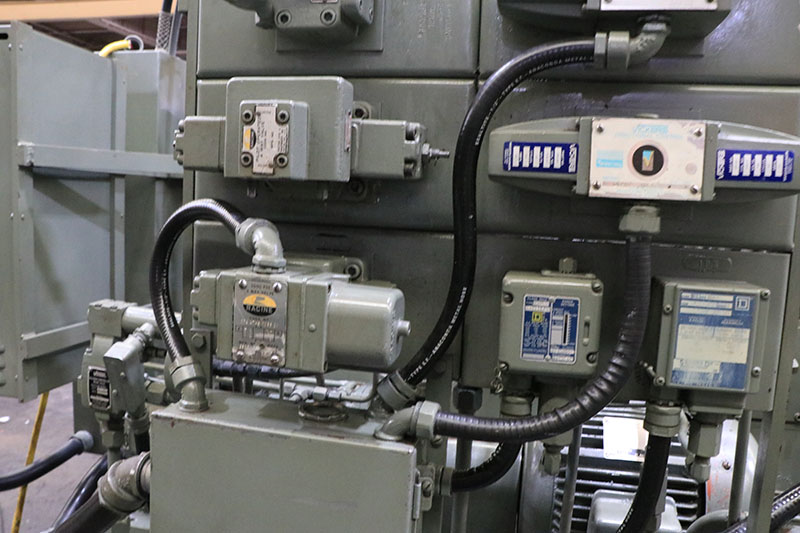

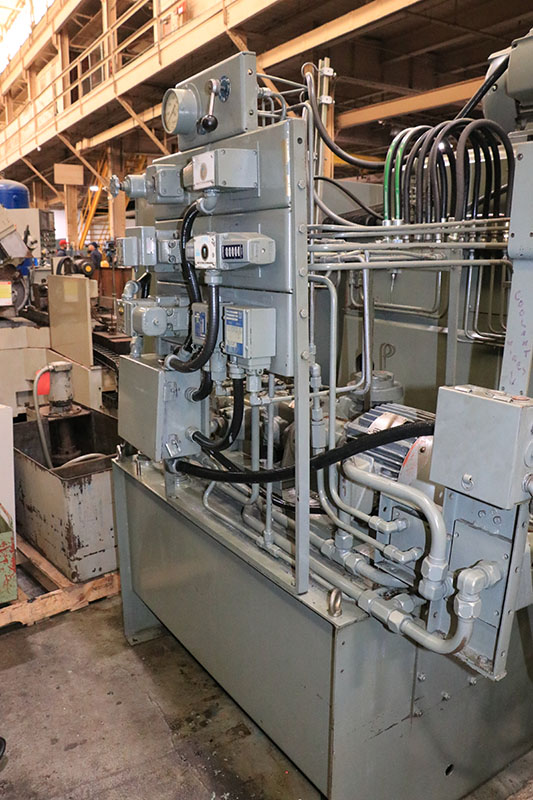

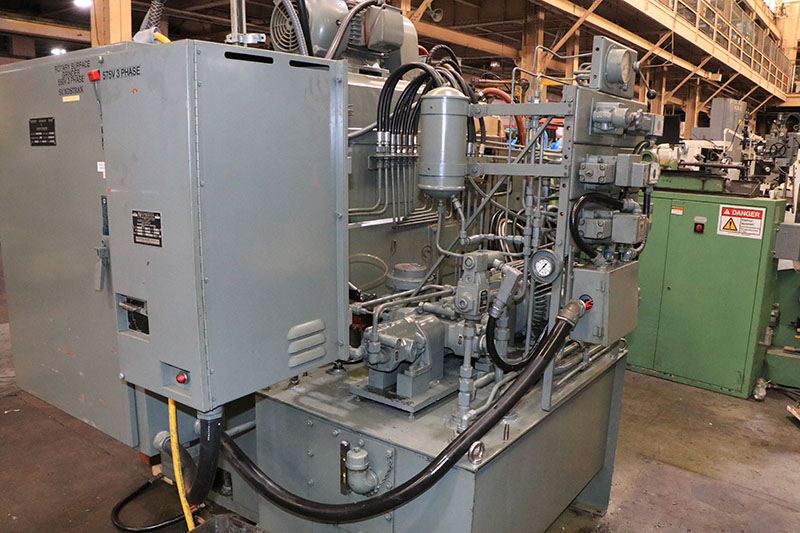

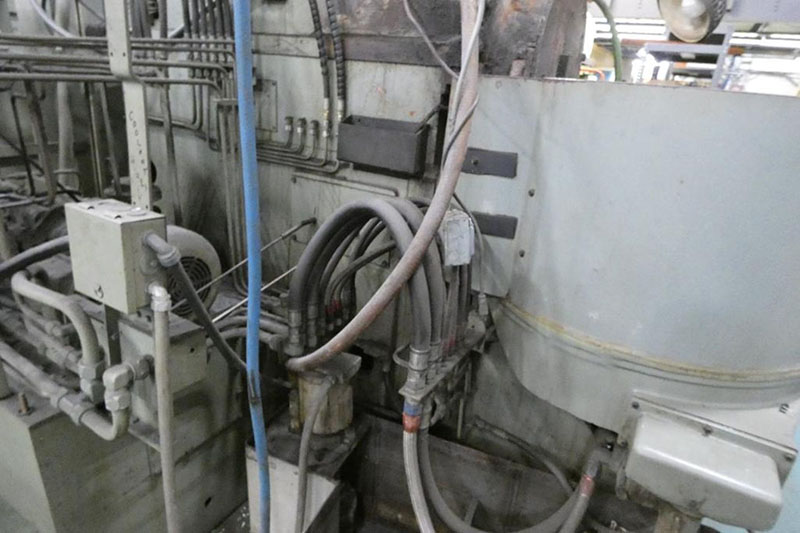

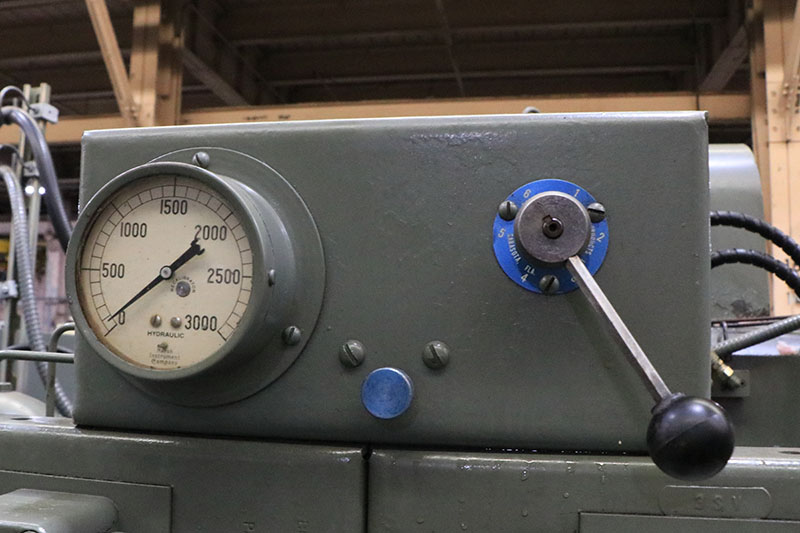

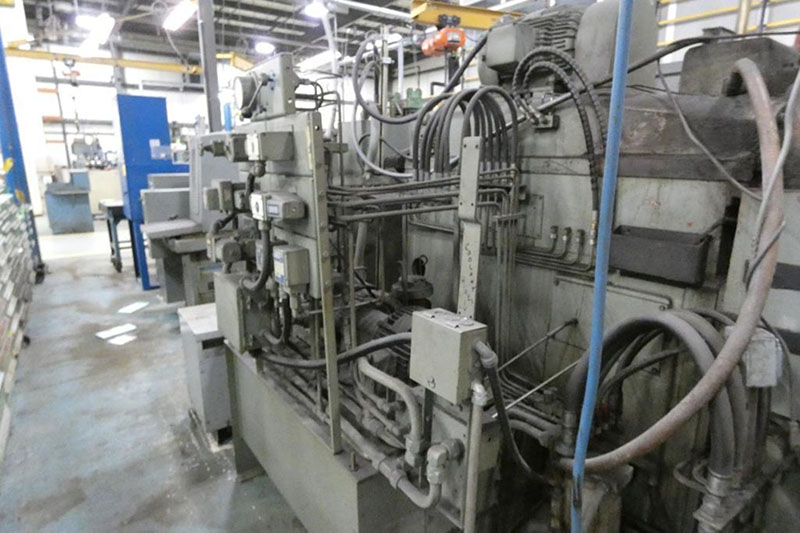

External Hydraulic System

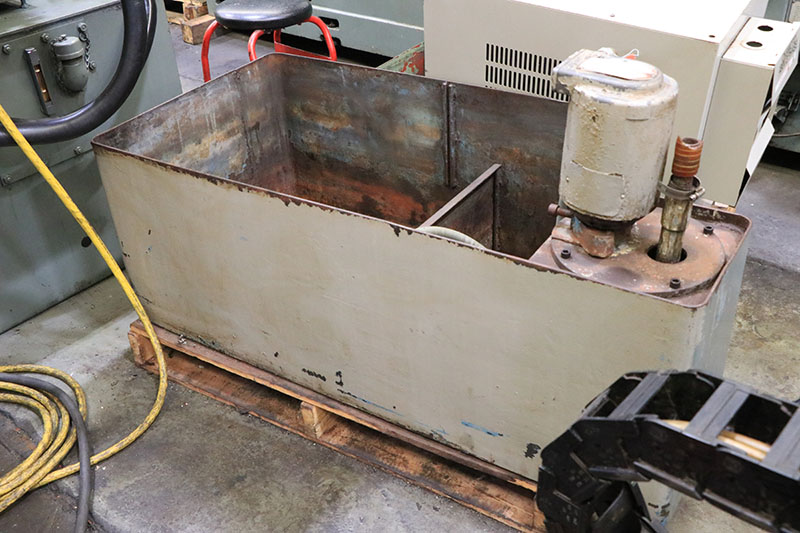

External Coolant Tank, with Pump

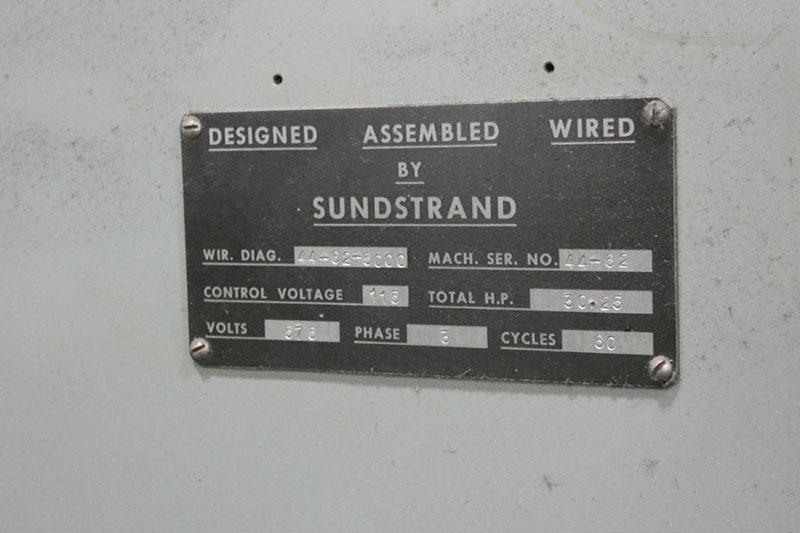

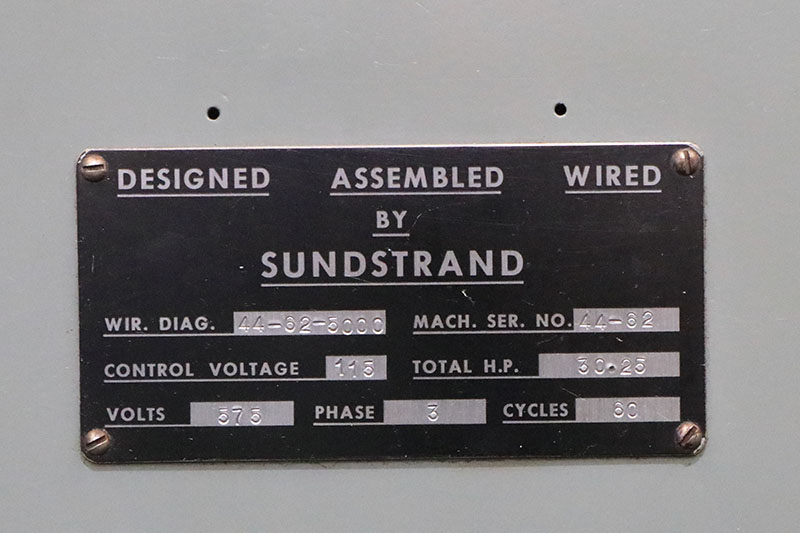

Machine Has Total 30.25 H.P.

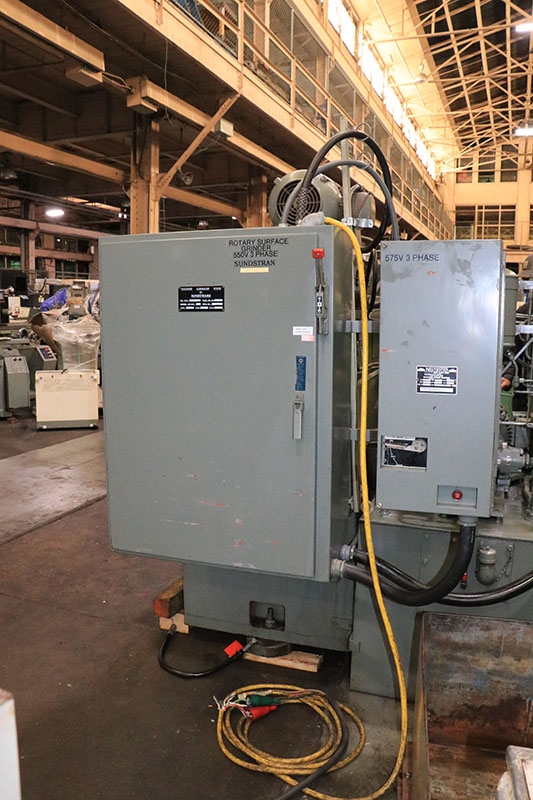

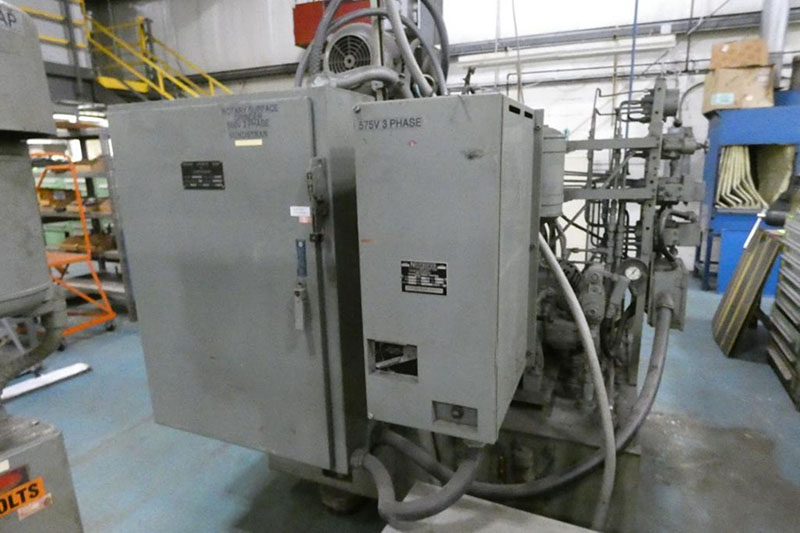

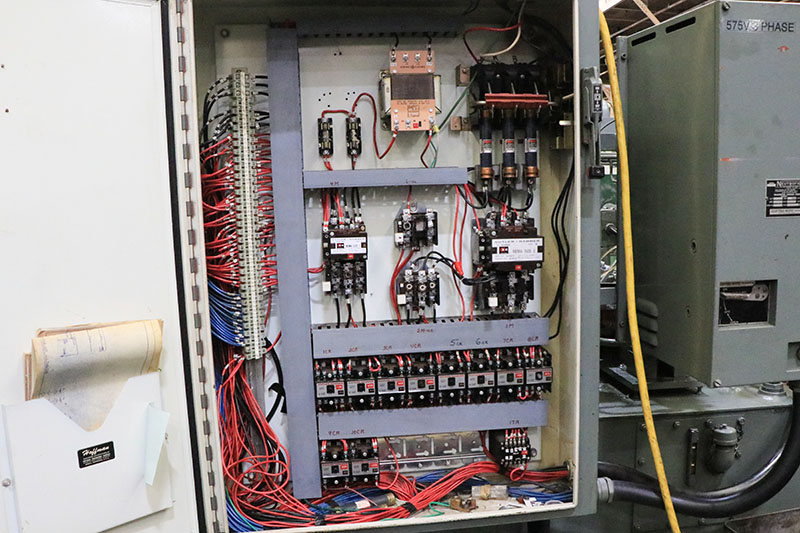

Machine is Wired for 3/60/575 Volts,
  50 Amps Service Required


** Exceptional Condition & Appearance **
** Inspect Under Power in our Harrison, NJ Warehouse **
