Baltec RN-280 RIVETERS

$5,450

Make:: Baltec

Model:: RN-280

Year:: 1990

Ref #:: 178901

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

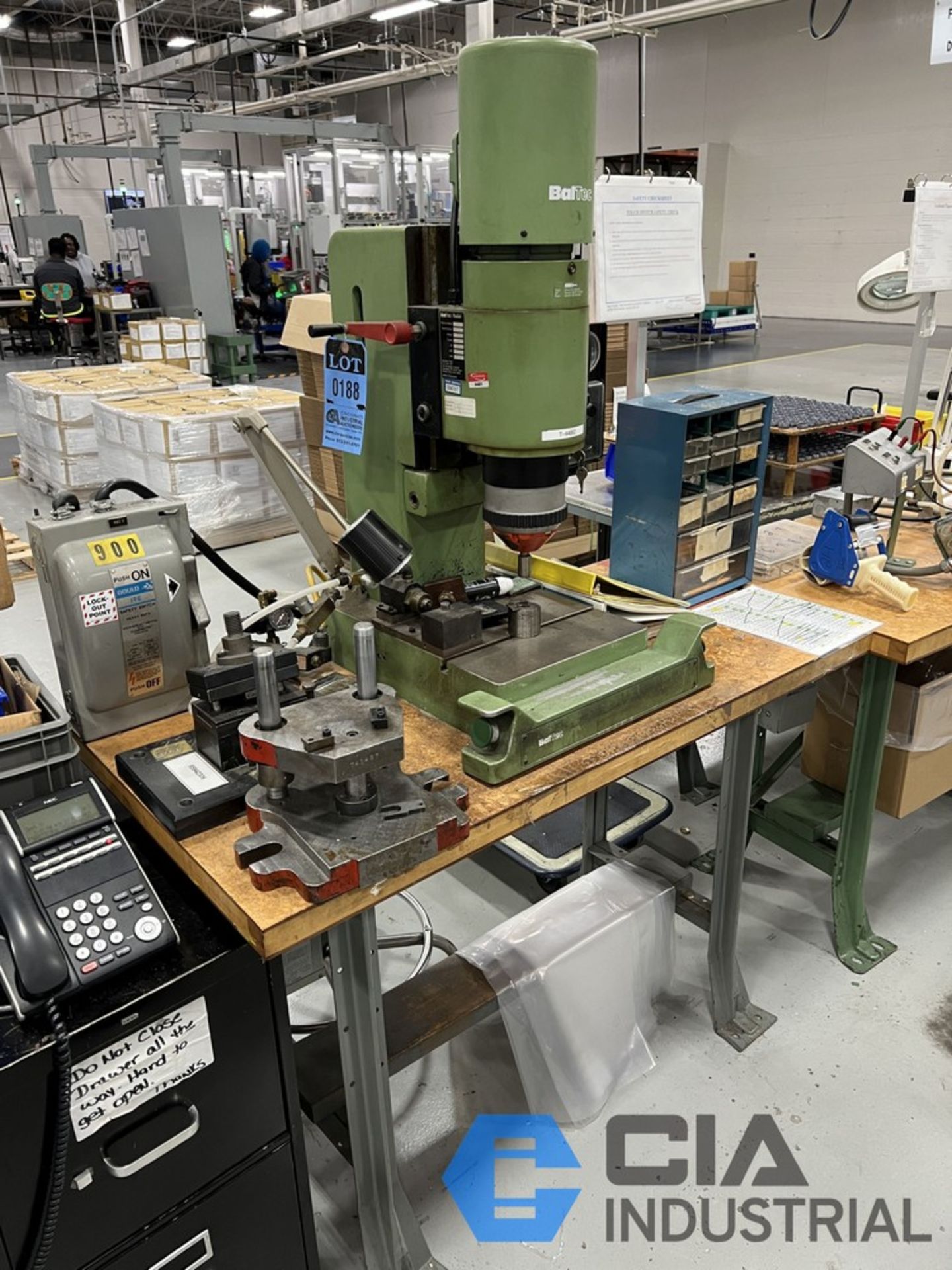

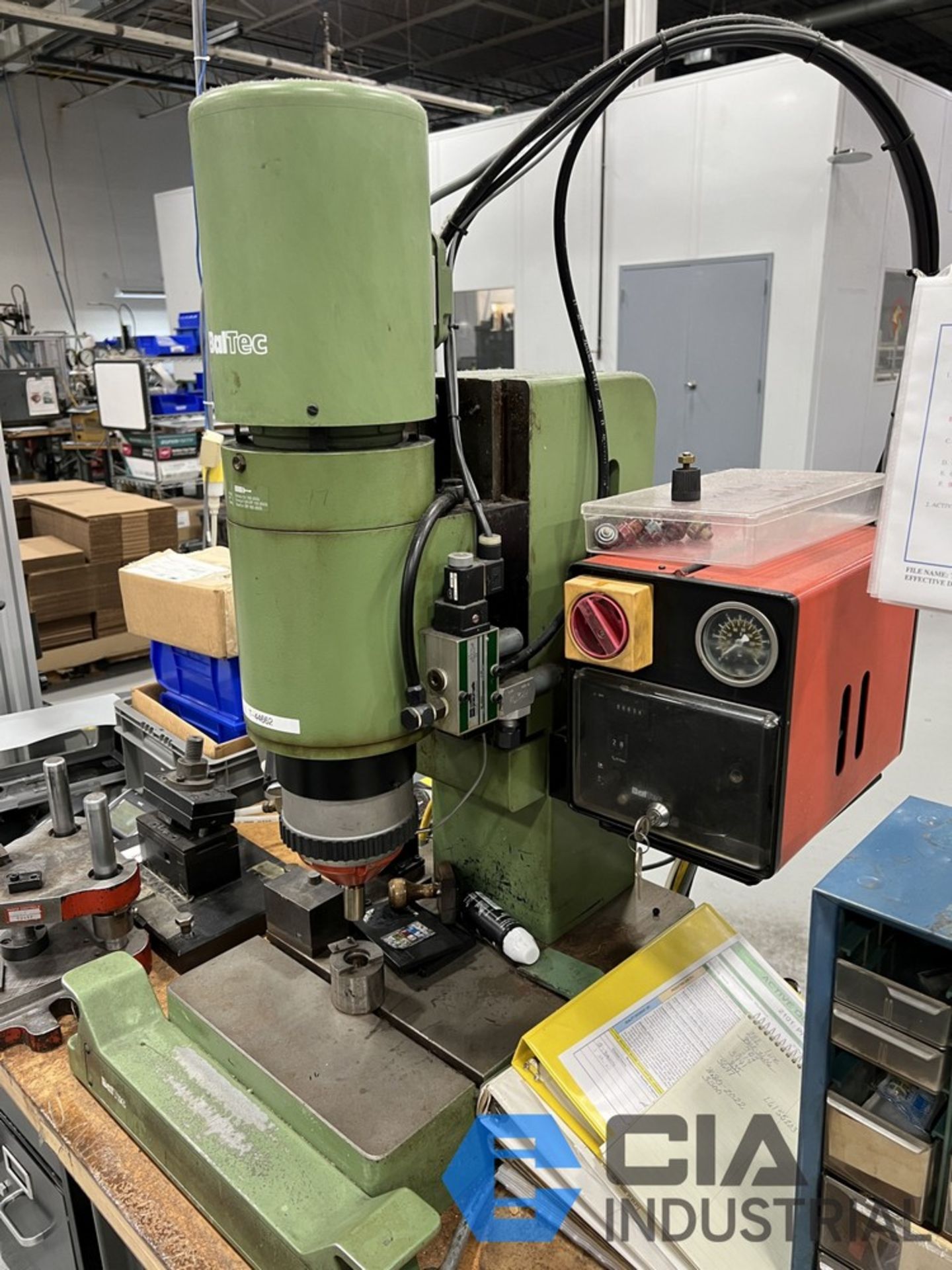

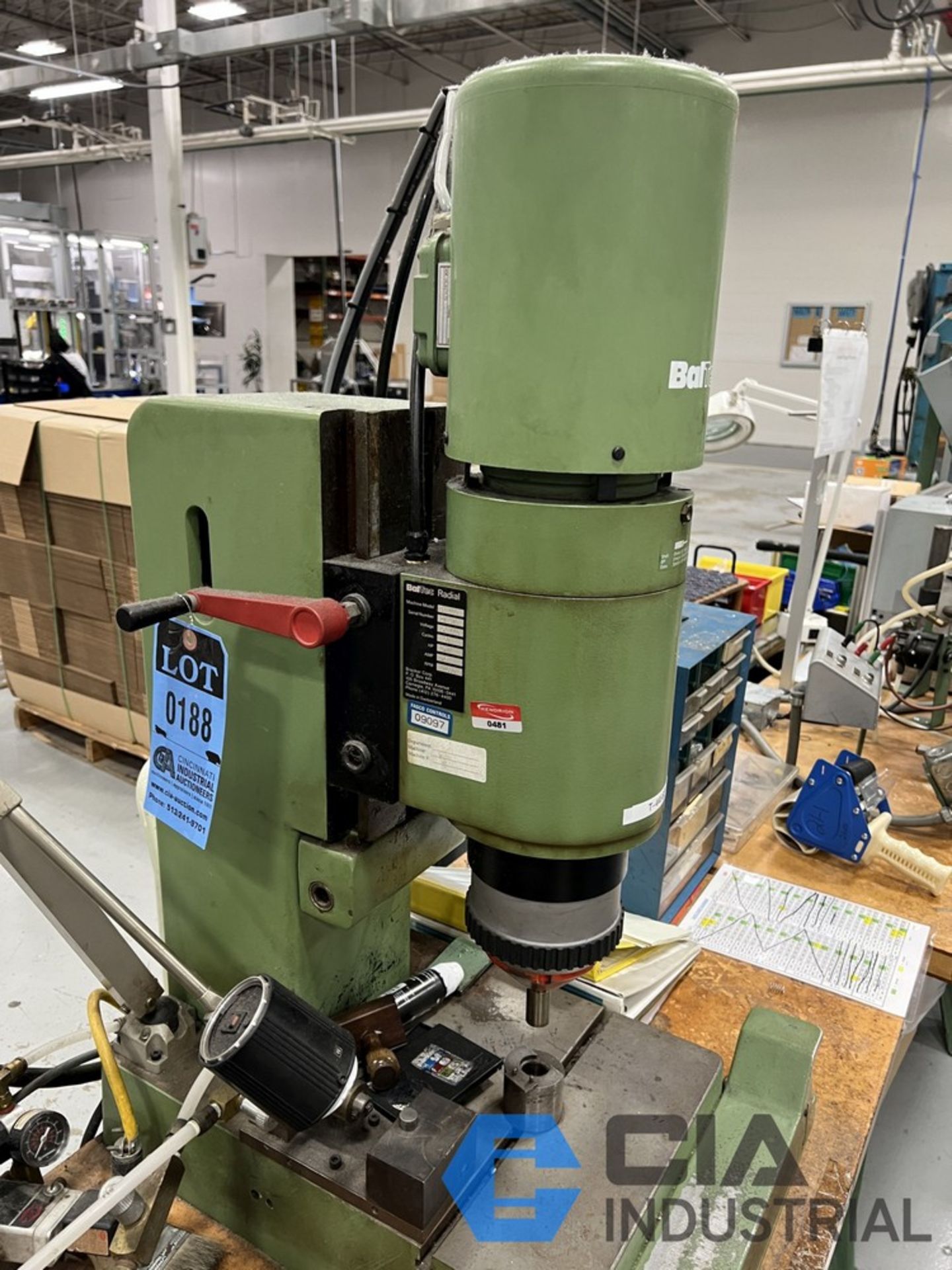

BALTEC RADIAL RIVETING MACHINE

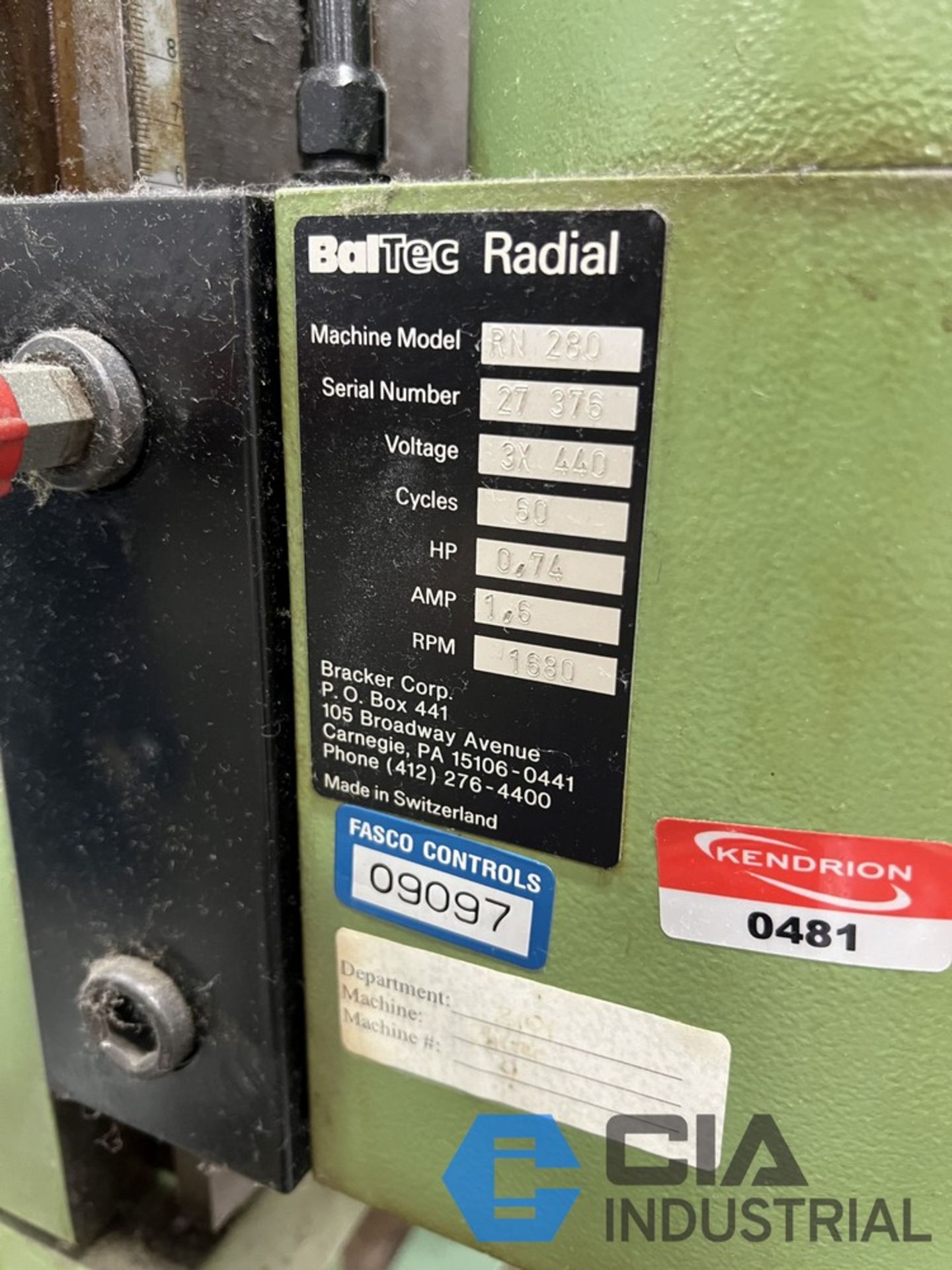

MODEL RN-280     S/N 27376     NEW 1990

SHANK DIAMETER ....................... 1 - 12 mm
RANGE (1010 STEEL) ................... .04 - .5"
MAXIMUM DOWNFEED FORCE ............... 3800 @ 88 psi
                                       PNEUMATIC
STROKE LENGTH RANGE .................. 5 - 40 mm
MOTOR HP @ 1700 RPM .................. 3/4
OPERATING VOLTAGE .................... 3 x 220 V
CFM @ 80 psi, MAX STR, 10 SEC CYCLE .. 2.5"
MACHINE WEIGHT (NOT CRATED) .......... 375 LBS.

COMPLETE WITH:
-RIVETING CAP. FROM .040" TO .5" (STEEL RIVETS, APPROX.
52,000 PSI TENSILE STRENGTH)
-3-PHASE SPINDLE MOTOR, 3/4 HP 220 VOLT
-MAXIMUM 85 PSI AIR PRESSURE
-MICROMETER SPINDLE STROKE ADJ. FROM .2 - 1.575"
-RUGGED CAST IRON COLUMN, w/EASY COURSE ADJ. HANDLE

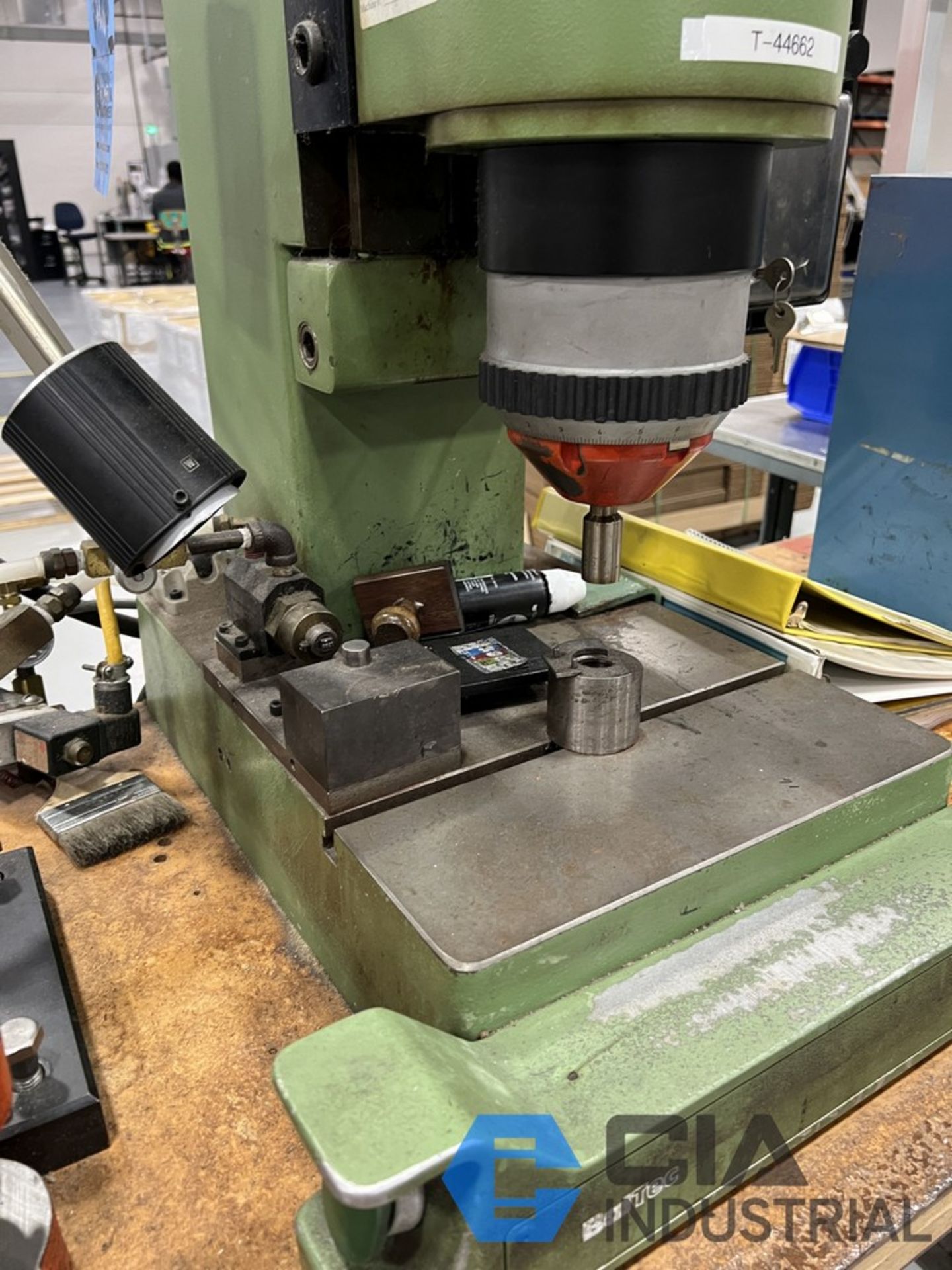

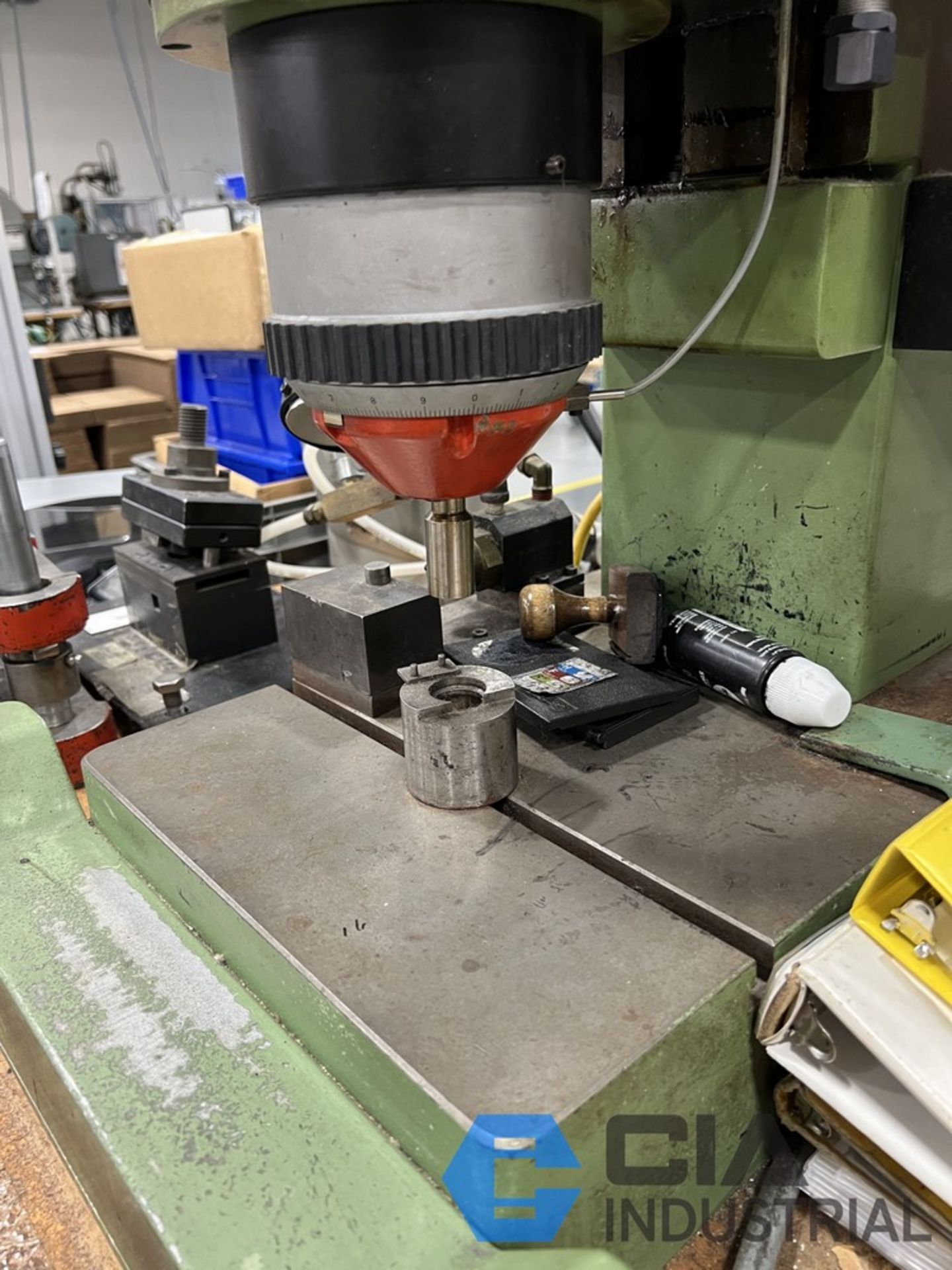

-PRECISION GROUND BASE w/T-SLOT AND PRECISION REAMED
CENTERING HOLE, ALLOWS FOR FAST FIXTURING CHANGES
-SEMI-PERMANENT GREASED SPINDLE DESIGN ELIMINATES
FREQUENTLY SCHEDULED MAINTENANCE.
-ADJUSTABLE STROKE SPEED CONTROL, ALLOWS FOR PRECISE
RIVETING CONTROL

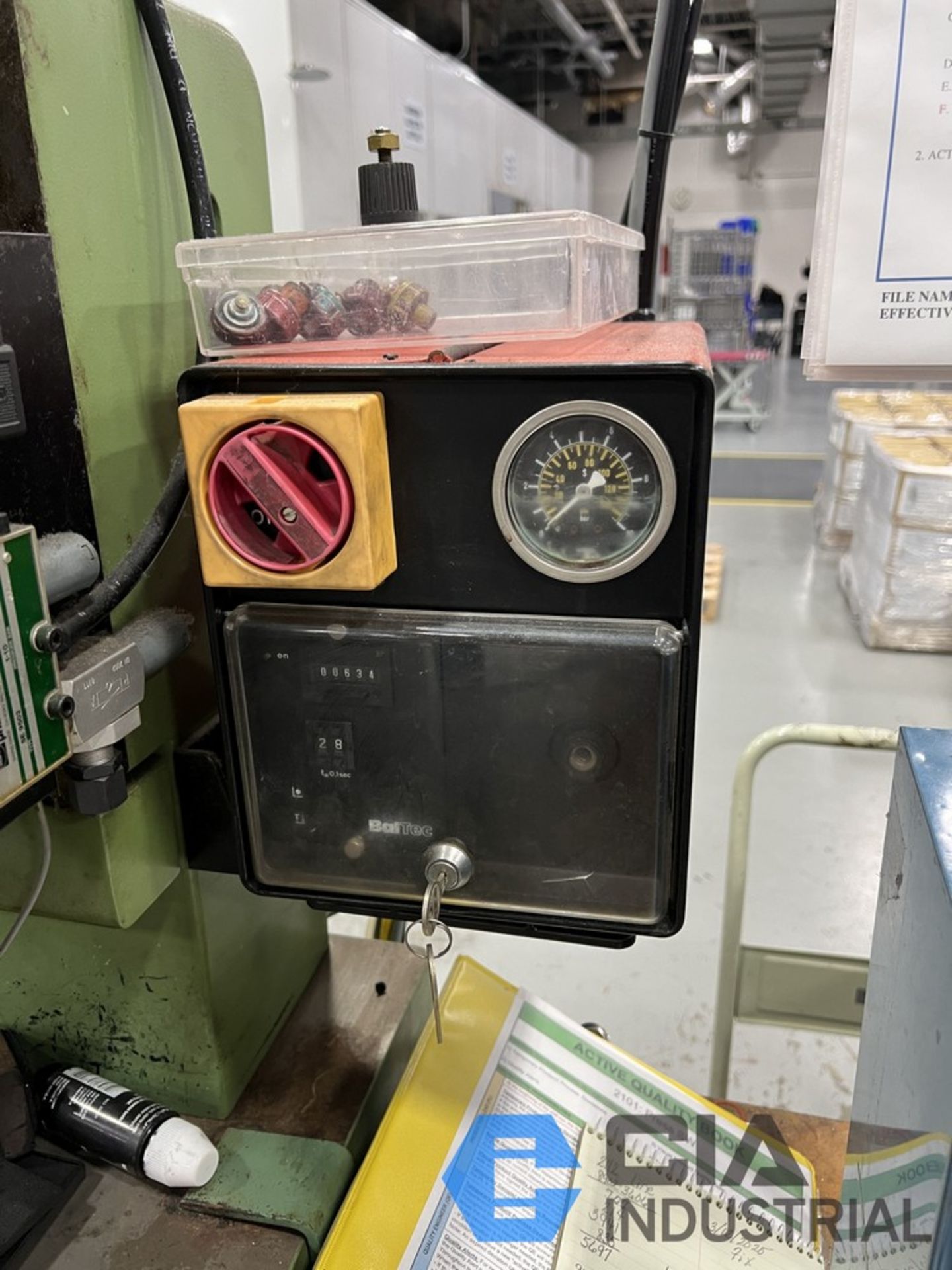

-RC20 CONTROLLER, THAT FEATURES:
 SMALL COMPACT DESIGN, ONLY 8" WIDE, 14" DEEP, 7" HIGH
 LARGE 7 CHARACTER LCD DISPLAY, EASY TO READ
 SOFT TOUCH KEY PAD, FOR EASE OF OPERATION
-MAIN ON / OFF SWITCH
-RESETABLE CYCLE COUNTER, ALLOWS FOR ACCURATE PRODUCTION
COUNTS
-AUTOMATIC SELECTION MODES OF MANUAL OR SEMI-AUTOMATIC
MODES, UPON CONTROL START-UP
-MANUAL COUNTDOWN TIMER, GREATLY AIDS MACHINE SET UP
-NON-RESETABLE TOTAL HOUR ACCUMULATOR, HELPS TRACK TOTAL
MACHINE USAGE FOR LONG RANGE MAINTENANCE
-MANUAL OR SEMI-AUTOMATIC OPERATING MODES
-RIVETING TIME CONTROL FROM .1 SECOND TO 5.9 SECONDS IN
INCREMENTS OF .1 SECOND.
-OPERATOR "LOCK OUT" FEATURE, MINIMIZES OPERATOR TAMPERING
-BUILT-IN DIAGNOSTIC AND ERROR MESSAGES
