Orbitform P-1000 RIVETERS

$8,950

Make:: Orbitform

Model:: P-1000

Year:: 1995

Ref #:: 178029

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

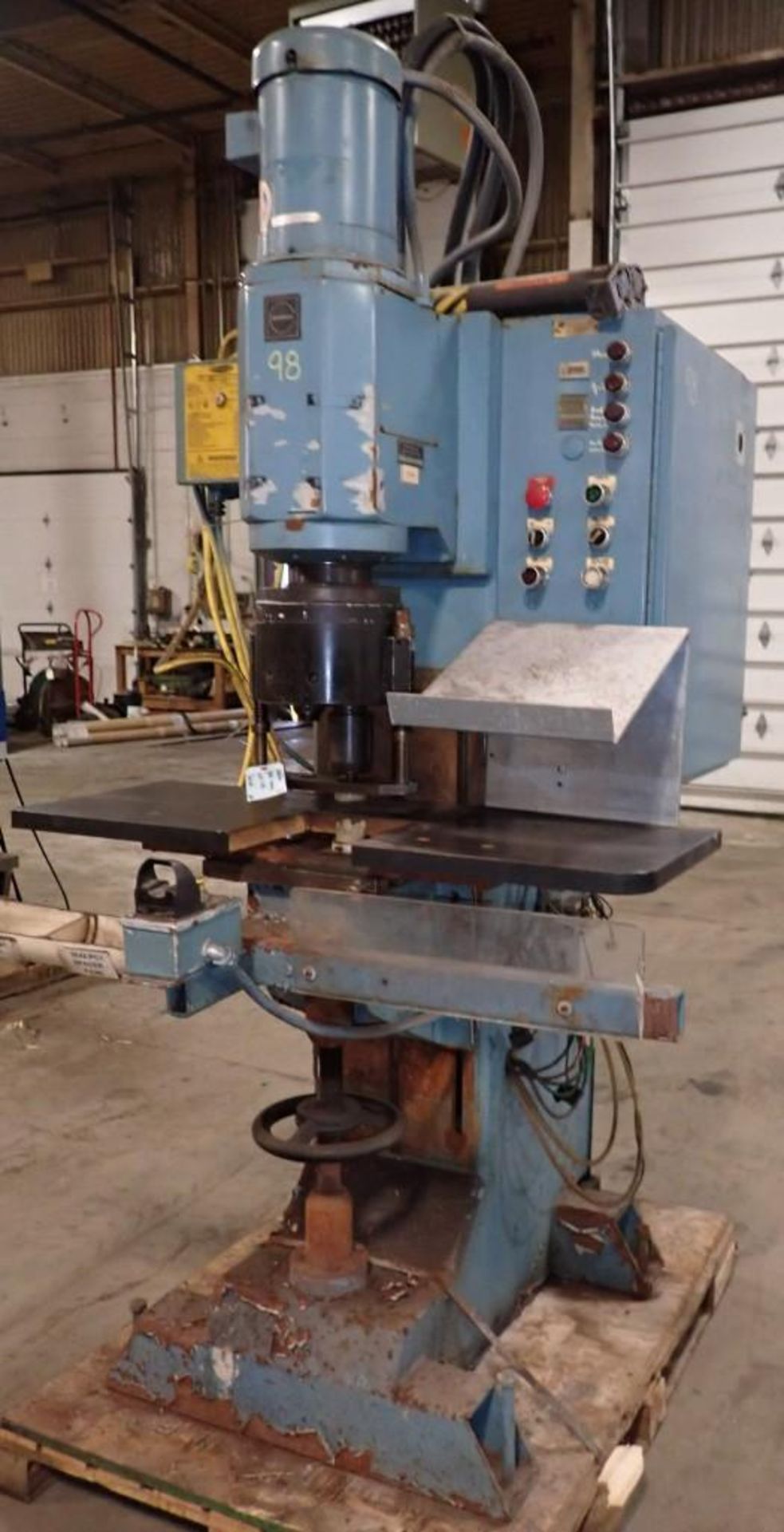

ORBITFORM MODEL P-1000 HYDRAULIC RIVETER

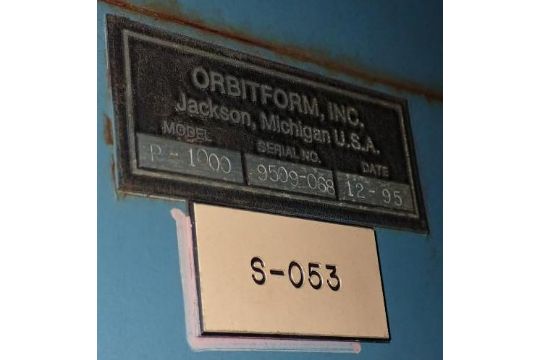

MODEL P-1000           S/N 9509-068          Year 1995

HEAD FORMING CAPACITY ............. 1" Diameter. (MILD STEEL)
STROKE ............................ .06"-2-1/2"
MAXIMUM DOWNWARD FORCE ............ 18,000 lbs @ 1000 PSI
Bed Area .......................... 14 3/8" x 11 3/8"
Riser Size ........................ 12" x 10" x 8" high
Max Open Height ................... 15"
THROAT DEPTH ...................... 9"
Floor to Bed ...................... 37"

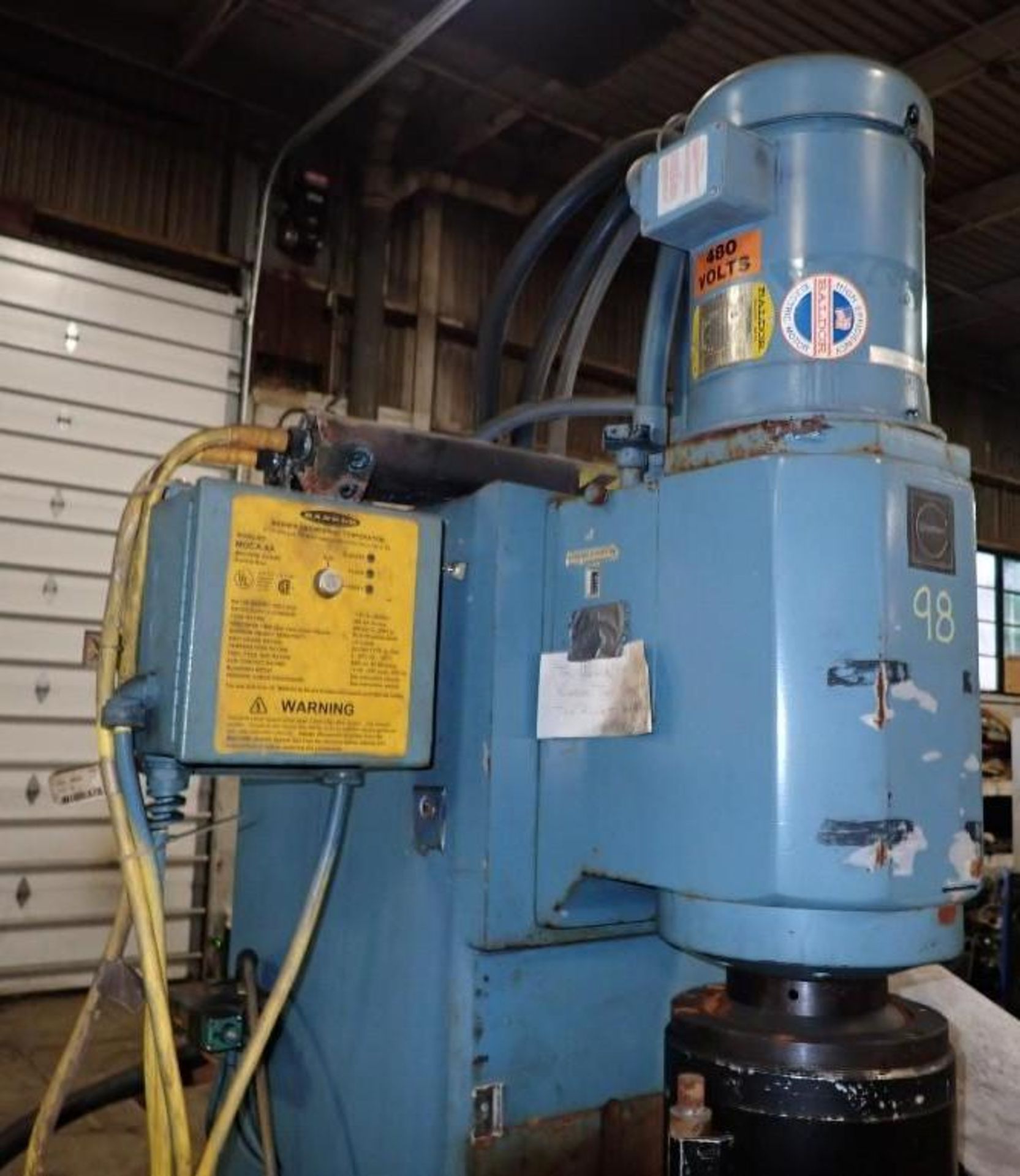

HYDRAULIC MOTOR 2 HP 220/440V
SPINDLE MOTOR 2 HP 220/440V

Dimensions 45" X 32" X 95" high
WEIGHT 1,150 LBS

Machine is equipped with:

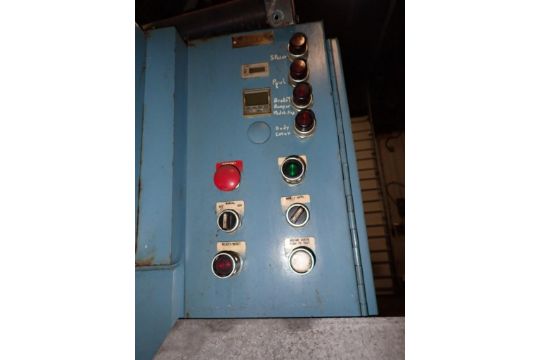

- MANUAL / AUTOMATIC MODE SWITCH
- MANUAL Advance / Retract SELECTOR SWITCH
- Allen Bradley Micrologix 1000 PLC
- FINGER TRIP
- PEDESTAL BASE
