Blanchard 32-60, S/N: 11844, 72" SWING, SEGMENTED WHEEL, ROTARY SURFACE GRINDERS, VT SPDL (BLANCHARD TYPE)

Price on Request

Make:

Blanchard

Model:

32-60, S/N: 11844, 72" SWING, SEGMENTED WHEEL,

Year:

1967

Ref #:

178986

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

---

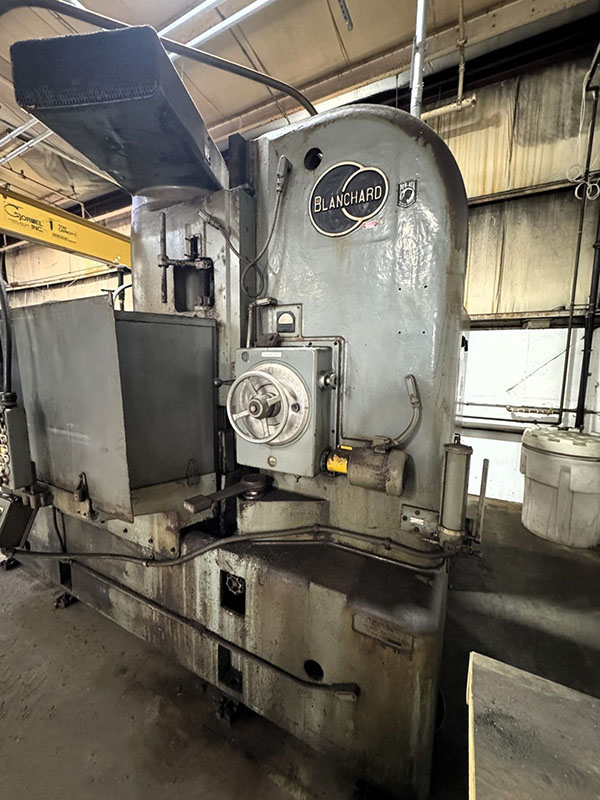

  60" BLANCHARD No. 32-60 ROTARY SURFACE GRINDER,

       WITH FACTORY EXTENDED SWING OF 72",

         AND WITH A 6" CHUCK EXTENSION



           S/N: 11844    NEW:  1967





CHUCK DIAMETER ........................ 66"

MAGNETIC AREA OF CHUCK ................ 60"

SWING INSIDE GUARDS ................... 72"

VERTICAL RANGE UNDER NEW WHEEL ........ 18"

MAXIMUM LOAD ON CHUCK ................. 6,000 LBS

GRINDING WHEEL DIAMETER ............... 32"

GRINDING WHEEL SPEED .................. 514 RPM

CHUCK SPEEDS (6) ...................... 6 TO 33 RPM

INFINITELY VARIABLE POWER DOWNFEED .... 0.004" TO .080"

MAX. DOWNFEED BEFORE STOP OPERATES .... 0.198" (STD.)



APPROXIMATE DIMENSIONS:

 LENGTH & WIDTH............... 15'6"L x 90"W

 HEIGHT ...................... 134"/110" (MAX./MIN. HEIGHT)

APPROXIMATE WEIGHT ........... 35,000 LBS



EQUIPPED WITH:

DRY BASE WITH VERY NICE EXTERNAL COOLANT SYSTEM,

 COMPLETE WITH "GUSHER" COOLANT PUMP

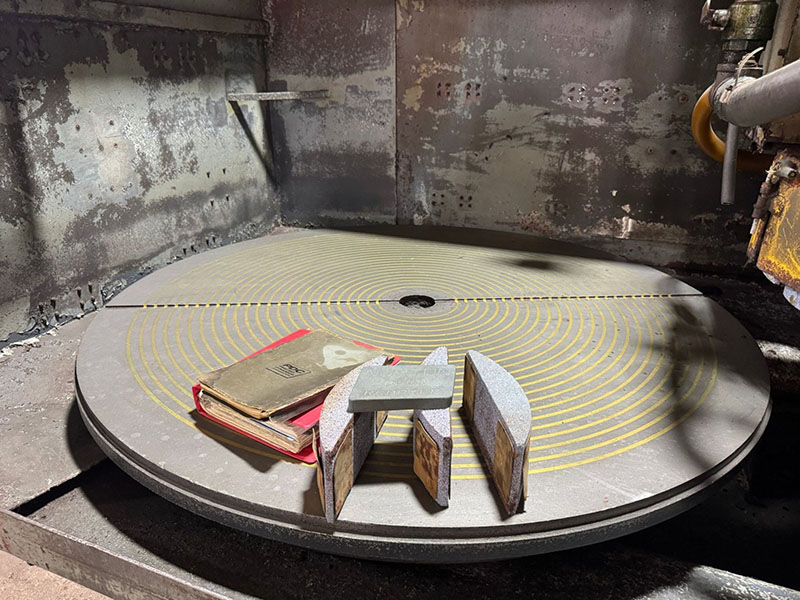

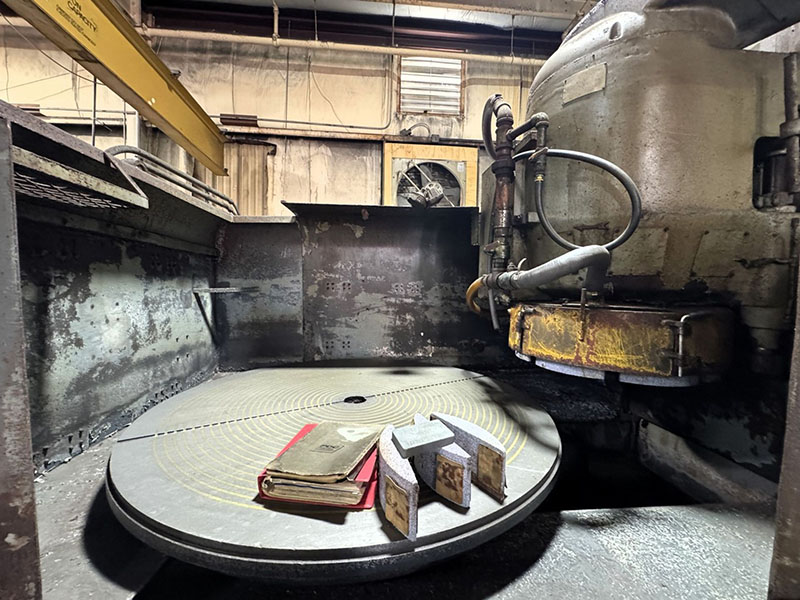

66" ELECTRO-MAGNETIC CHUCK, 60" MAGNETIC HOLD AREA,

 AND WITH 6" CHUCK EXTENSION (ORIGINAL, FROM FACTORY)

EXCELLENT CHUCK LIFE!!

18" VERTICAL RANGE UNDER NEW SEGMENTS/WHEEL

75 HP 3/60/230-460 VOLT GENERAL ELECTRIC SPINDLE MOTOR

"ELECTRO-MATIC" VARIABLE HOLD NEUTROFIER CONTROL

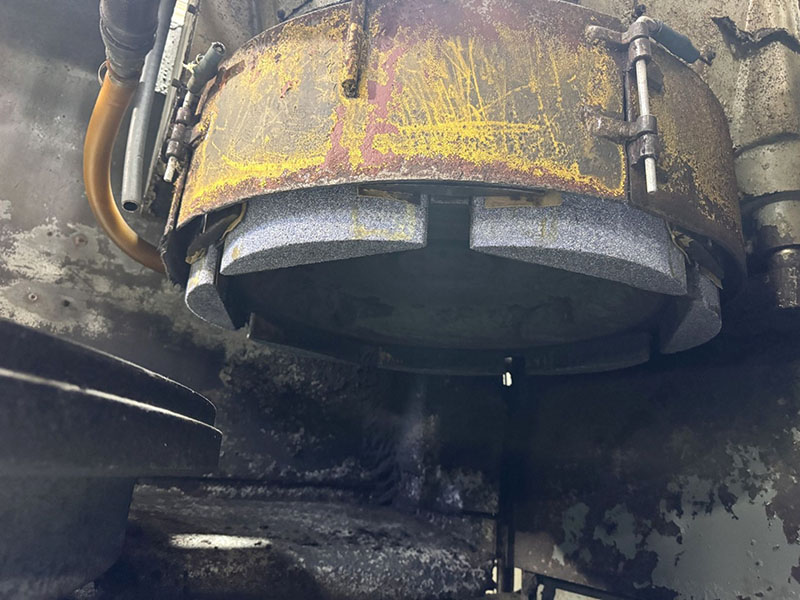

32" DIAMETER "CORTLAND" SEGMENTED WHEEL

WHEEL DRESSER

WHEELHEAD HAS RAPID RAISE & LOWER BY POWER INTERLOCKED

  WITH FEED

3/60/220-440 VOLT MOTORS

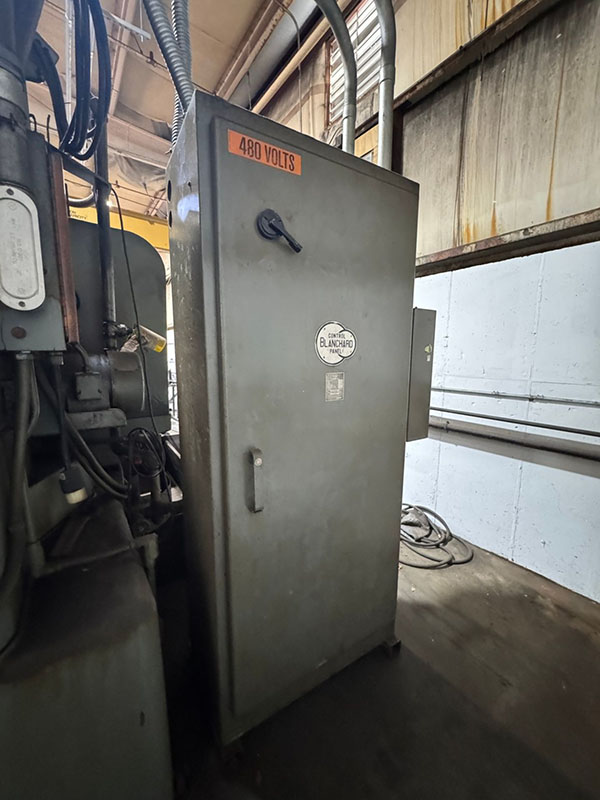

EASY TO SERVICE FLOOR MOUNTED ELECTRICAL CABINET

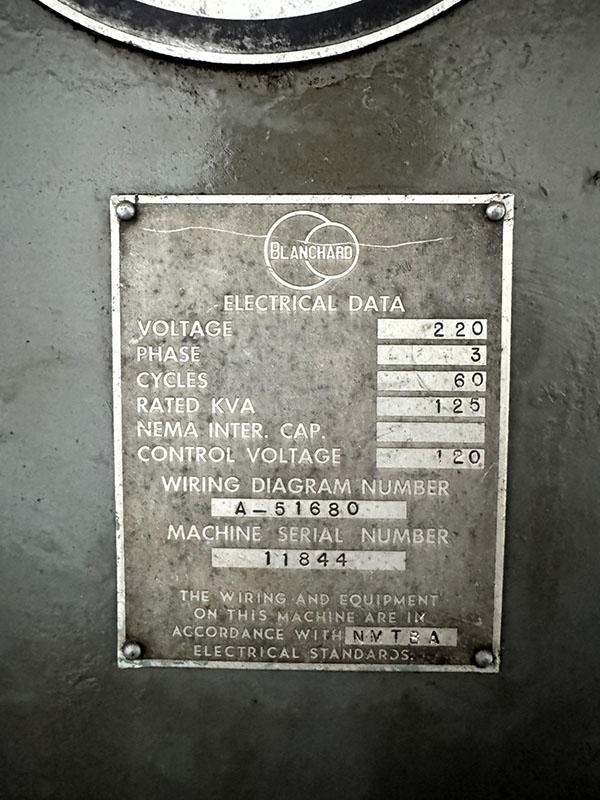

PLEASE NOTE, OUR MACHINE WHEN IT ORIGINALLY

 LEFT THE FACTORY, WAS WIRED FOR 220 VOLTS.

 PRESENTLY IT IS WIRED FOR 3/60/480 VOLTS,

 62.5 KVA SERVICE





SPECIAL NOTE:

PLEASE SEE THE PHOTOS, TAKEN IN THE SHOP, PRIOR TO REMOVAL.

 OUR BLANCHARD GRINDER IS IN UNUSUALLY, HARD TO FIND,

 BETTER CONDITION. PLEASE OBSERVE THE OVERALL CLEANLINESS OF

 OUR MACHINE.  WE OBSERVE THAT THE GUARDING IS NOT BANGED,

 IT ALSO DOES NOT HAVE RUST. THE COOLANT SYSTEM HAS BEEN

 MAINTAINED, WITH REPAIRS.  NO EXTRA "SWARF" TO CLEAN OUT

 BEFORE USING OUR MACHINE.  ALL OF THE HOSES, ELECTRICAL

 WIRING, EVERYTHING IS IN GREAT ORDERLY SHAPE!!

 WHAT A WINNER!!







** EXCELLENT CONDITION & APPEARANCE - FAR ABOVE THE NORM **

** LOCATED IN NORTHEAST USA **

** LOADING & TRUCKING CAN BE ARRANGED FOR YOU!! **
