Bridgeport-Hardinge GX480 VERTICAL MACHINING CENTERS. VMC's

Price on Request

Make:
Bridgeport-Hardinge
Model:
GX480
Year:
2011
Ref #:
161999

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com


BRIDGEPORT-HARDINGE VERTICAL MACHINING CENTER
MODEL: GX480, NEW: 2011

SPECIFICATIONS
X AXIS: ................................. 18.9"
Y AXIS: ................................. 15.8"
Z AXIS: ................................. 16.9"
TABLE SURFACE TO SPINDLE GAUGE DISTANCE:. 5.91"-22.83"
POSITIONING
AUTO MODE (X, Y, Z AXES): ............... 36M/MIN (1,417 IPM)
FEEDRATE RANGE (X, Y, Z AXES): .......... 0.004-23.2M/MIN
MINIMUM INCREMENT: ...................... 0.00004"
BALL SCREW DIAMETER & PITCH (X & Y AXES): 1.26" X 0.63"
BALL SCREW DIAMETER & PITCH (Z AXIS): ... 1/26" X 0.472"
SPINDLE
SPEED, BELTED: .......................... 10,000 RPM
MOTOR POWER RATING CT/30/15/1MIN: ....... 7.5/10/20HP
TORQUE (S3-60%): ........................ 35 FT/LBS
RETENTION FORCE: ........................ 6,375N
SPINDLE TAPER: .......................... NO 40, BIG PLUS
TOOL HOLDER: ............................ BT40
WORK TABLE
WORKING SURFACE: ........................ 23.6" X 15.8"
TABLE LOAD: ............................. 661 LBS
NUMBER OF T-SLOTS: ...................... 3
T-SLOT SIZE: ............................ 0.551"
T-SLOT CENTER DIMENSION: ................ 4.92"

CONTROL
FANUC 0IMD
AUTOMATIC TOOL CHANGER - SWING ARM
MAGAZINE CAPACITY: ...................... 20 TOOLS
TOOL SELECT BY SHORTEST PATH & RANDOM SELECT:  BI-DIRECTIONAL
MAX TOOL DIA (FULL DRUM): ............... 3.15"
MAX TOOL DIA (ADJACENT POCKETS EMPTY):... 5.9"
MAX TOOL LENGTH: ........................ 7.48"
MAX TOOL WEIGHT: ........................ 15.7 LBS
RANDOM TOOL CHANGE TIME (TOOL TO TOOL/C TO C):  4.5 SEC
COOLANT FACILITIES
COOLANT CAPACITY: ....................... 31.7 GALLONS
ACCURACY SPECIFICATIONS (ISO - 230-2)
POSITIONING: ............................ 0.0004"
REPEATABILITY: .......................... 0.0002"
MISCELLANEOUS
POWER SUPPLY REQUIREMENT: ............... 64FLA
ELECTRICAL SUPPLY: ...................... 50 OR 60 HZ
VOLTAGE: ................................ 220
COMPRESSED AIR REQUIREMENT: ............. 70 PSI
MACHINE DIMENSIONS
LENGTH: ................................. 62.01"
DEPTH: .................................. 83.35"
HEIGHT: ................................. 82.2"
APPROX WEIGHT: .......................... 6204 LBS

DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.

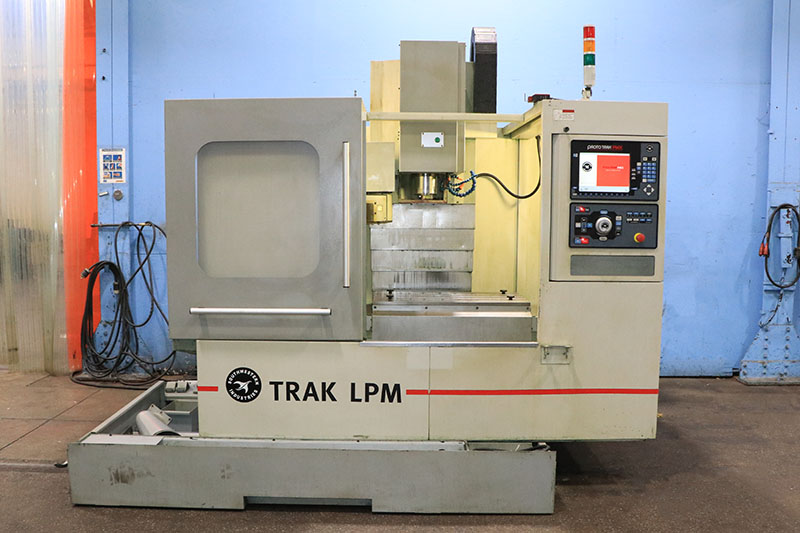

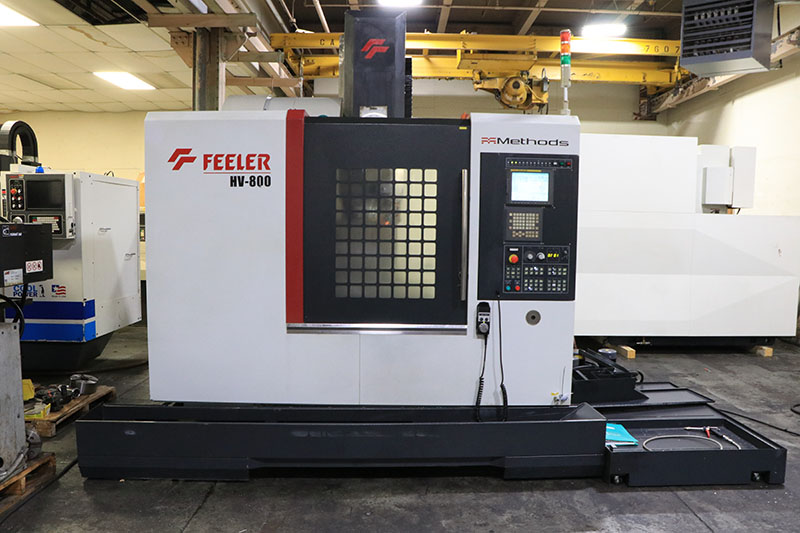

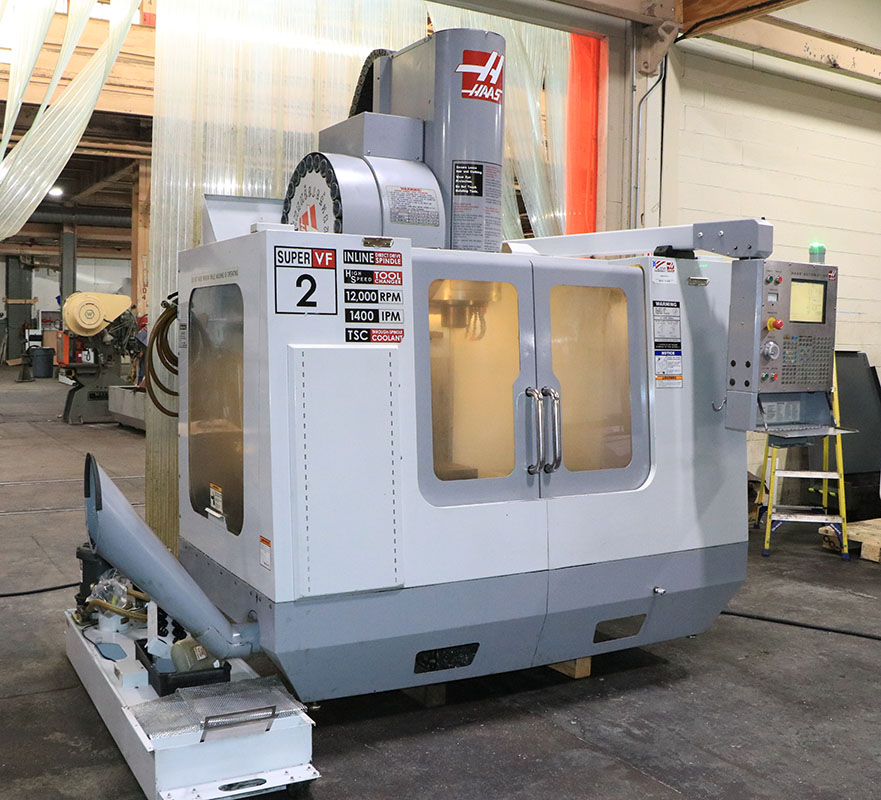

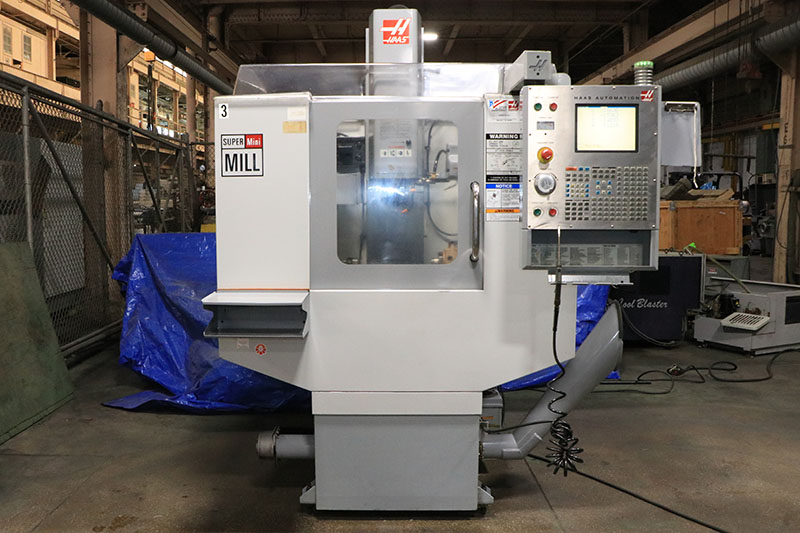

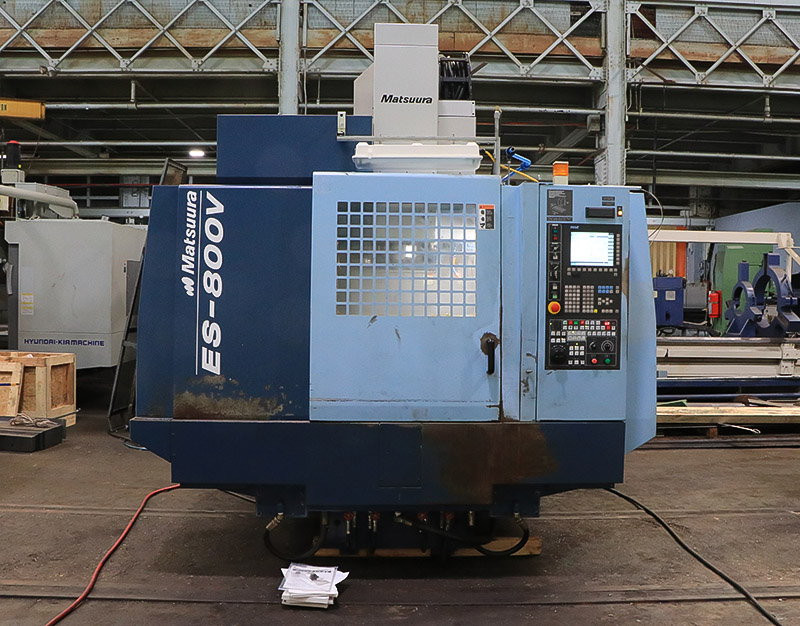

Similar Machines
